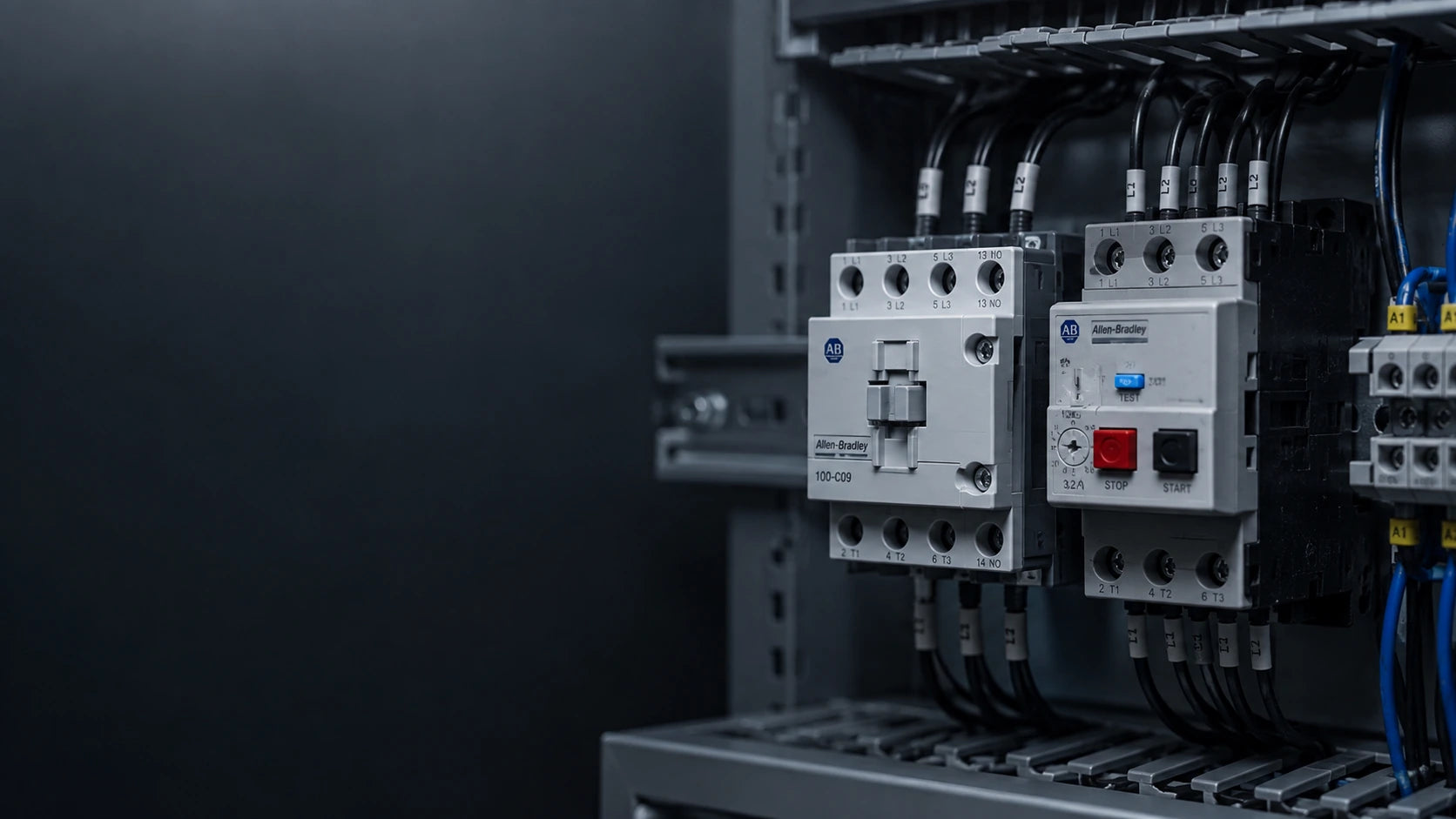

Allen-Bradley Contactor & Motor Starter Troubleshooting: Chattering, Won't Pull In, Burnt Contacts
Share
A contactor that won't pull in, chatters, or drops out under load is almost always caused by a bad or mismatched coil, low control voltage, a worn mechanical linkage, or burnt/welded contacts — not a failed motor. This guide covers diagnosis and cross-reference for Allen-Bradley 100-C and 100-A series IEC contactors and 509-series NEMA motor starters, the most common failure points maintenance techs run into on legacy panels.
Cross-Reference: In-Stock Allen-Bradley Contactors & Starters
| Part Number | Series | Poles | Coil Voltage | Amperage | Type |
|---|---|---|---|---|---|
| 100-C09D10 | Series A | 3 | 120VAC | 9A | IEC Contactor |
| 100-C09Z10 | Series A | 3 | 24VDC | 9A | IEC Contactor |
| 100-C12D10 | Series C100 | 3 | 24VDC | 12A | IEC Contactor |
| 100-A09ND3 | Series B | 3 | 120VAC | 9A | IEC Contactor, 600V |
| 509-A0D | 509 Series | 3 | 120VAC | NEMA Size 0 | NEMA Motor Starter |
When cross-referencing against Eaton (XTCE/DILM), Siemens (3RT SIRIUS), Schneider/Telemecanique (LC1D), or Omron (J7AN) equivalents, always size up, never down — matching amperage exactly on a comparable frame is fine, but never substitute a lower-rated contactor even if the coil voltage matches.
Decoding the Part Number
- 100-C / 100-A — Bulletin 100 IEC contactor family; "C" and "A" denote frame/series generation
- 09 / 12 — Continuous amperage rating (09 = 9A, 12 = 12A)
- D / Z / ND3 — Coil type and voltage code (D = AC coil, Z = DC coil, ND3 = 600V-rated frame)
- 10 — Auxiliary contact configuration (1 N.O.)
- 509-A0D — 509 Series NEMA starter; "A" line, "0" = NEMA Size 0, "D" = coil/enclosure suffix
Common Failure Symptoms
- Won't pull in — no control voltage reaching the coil, open coil, or seized armature. Check coil resistance and control circuit voltage first.
- Chattering or buzzing — low/fluctuating control voltage, a cracked shading coil, or dirt/debris on the pole faces preventing full seating.
- Hums but doesn't engage — mechanical binding in the armature or a broken return spring; the coil is energized but the linkage can't complete its travel.
- Welded or stuck contacts — usually from repeated inrush on an undersized contactor or a load fault; contactor should be replaced, not filed down.
- Burnt or pitted contacts — normal wear over thousands of cycles, accelerated by chattering; visible discoloration or pitting means replacement time.
- Drops out under load — voltage sag on the control circuit or a failing coil losing holding force once warm.
Compatibility Caveats
100-C and 100-A series contactors are not universally interchangeable across series — mounting footprint, auxiliary contact block compatibility, and coil terminal layout can differ between Series A, B, and C100 even at the same amperage. Always match coil voltage exactly (24VDC and 24VAC coils are not interchangeable) and confirm auxiliary contact block part numbers separately when replacing. NEMA-rated 509 starters use bulkier frame sizing than IEC equivalents — don't assume a NEMA Size 0 starter and a 9A IEC contactor are drop-in replacements for each other.
FAQ
Why does my contactor chatter instead of pulling in cleanly?
Most often it's low or unstable control voltage at the coil, or debris/wear preventing the armature from fully seating — check voltage at the coil terminals under load first.
Can I replace a 100-A series contactor with a 100-C series unit?
Not automatically. Confirm mounting footprint, coil voltage, and auxiliary contact block compatibility before substituting across series.
How long do contactor coils typically last?
Coils are usually rated for hundreds of thousands of operating cycles, but heat, voltage fluctuation, and chattering significantly shorten coil life.
What's the real difference between a contactor and a motor starter?
A motor starter is a contactor paired with an overload relay for motor protection; a standalone contactor has no built-in overload protection.
