National Semiconductor DM74LS26N Quad 2-Input NAND Gate DIP-14 Vintage NOS

ITEM SPECIFICS

Brand: National Semiconductor
MPN: DM74LS26N
Model: DM74LS26N
Type: Logic IC
Logic Type: Quad 2-Input NAND Gate
Logic Family: 74LS / Low-Power Schottky TTL
Number of Gates: 4
Inputs Per Gate: 2
Output Type: Open Collector
Maximum Output Interface Voltage: 15 V
Supply Voltage: 5 V nominal
Package / Case: 14-Pin DIP
Mounting Style: Through-Hole
Number of Pins: 14
Condition: New Old Stock

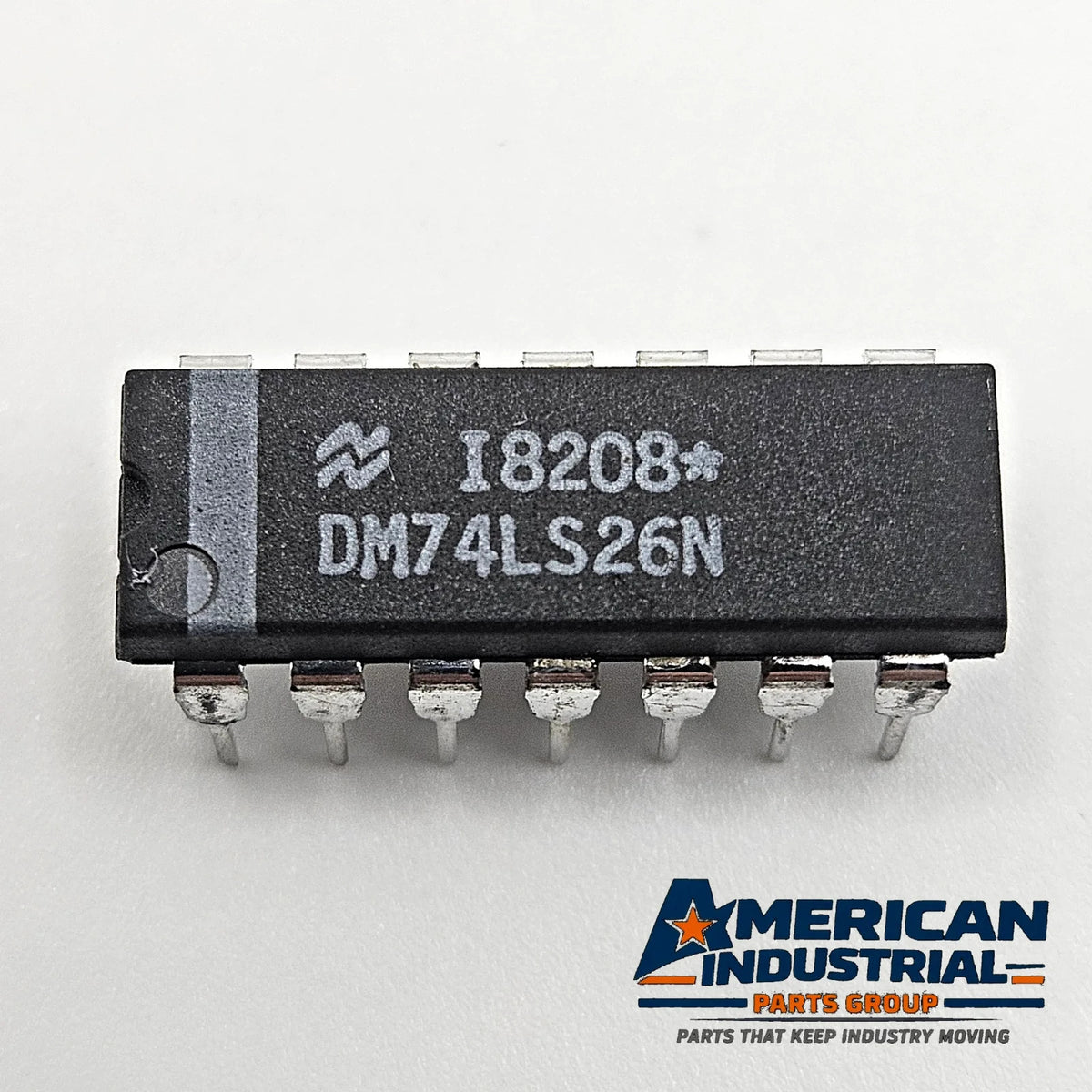

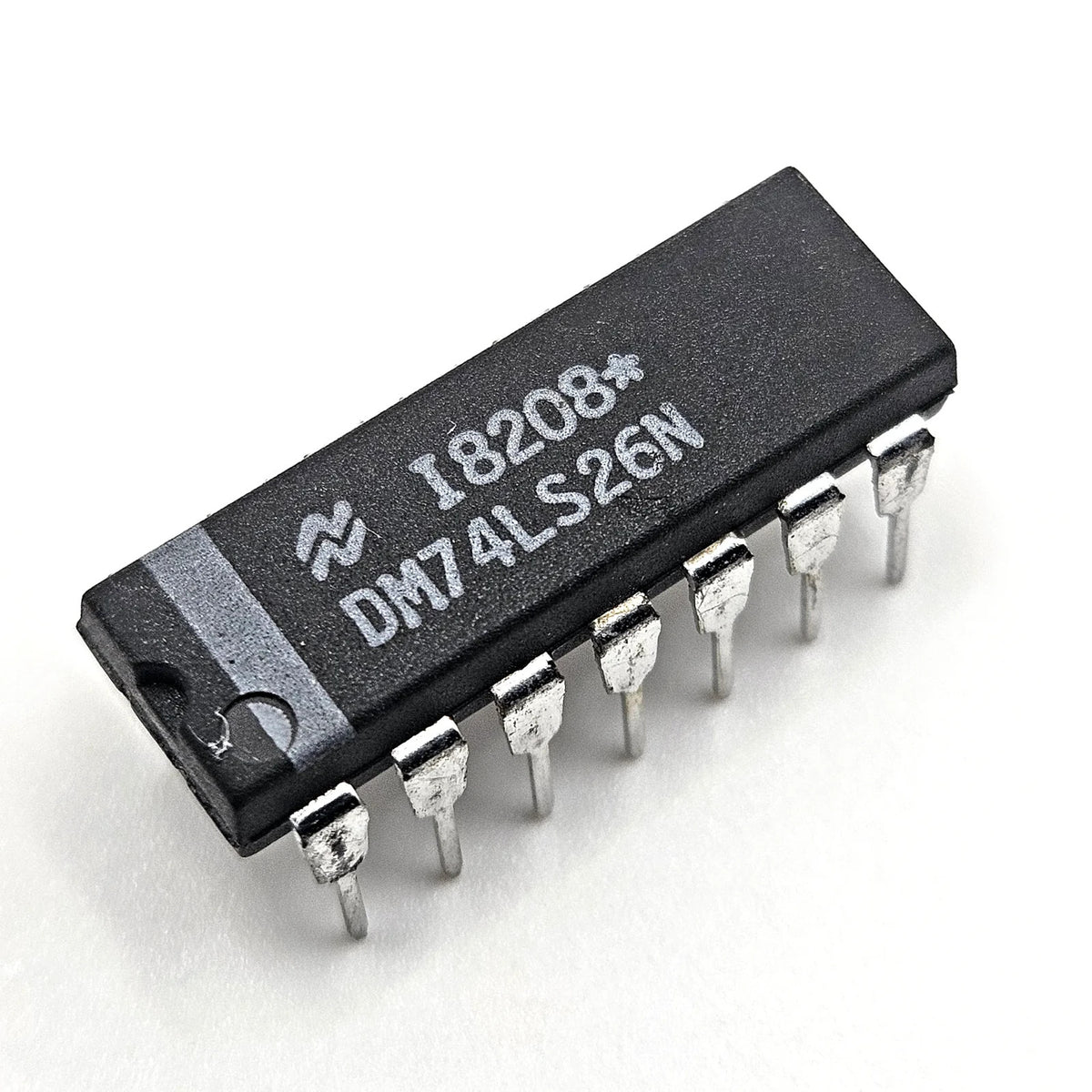

Component Marking: DM74LS26N / I8208*

DESCRIPTION

Vintage National Semiconductor DM74LS26N logic integrated circuit from new old stock inventory.

The DM74LS26N contains four independent 2-input NAND gates with high-voltage open-collector outputs. National Semiconductor documentation specifies the device for interfacing with higher-voltage logic or control circuits while operating from a standard 5 V TTL supply.

• National Semiconductor DM74LS26N
• Quad 2-input NAND gate
• 74LS Low-Power Schottky TTL logic family
• Four independent NAND gates
• Open-collector outputs
• Output interface rating up to 15 V
• 5 V logic supply
• 14-pin DIP package
• Through-hole mounting
• Vintage National Semiconductor IC
• New old stock

The I8208* marking is reproduced exactly as shown on the component and is not represented as a verified manufacturing date.

Please verify the DM74LS26N part number, pinout, pull-up requirements, electrical specifications, and suitability for your application before purchasing.
