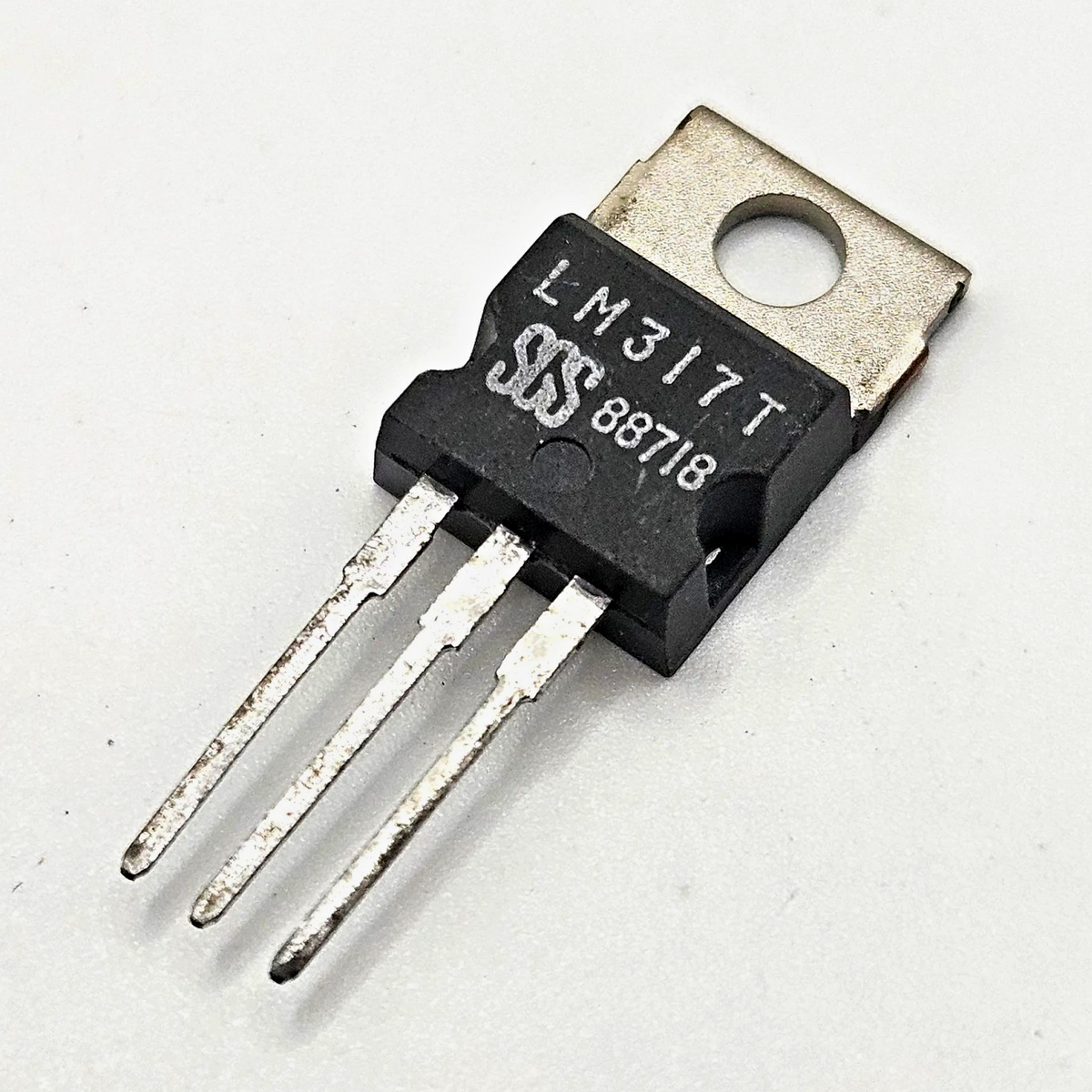

SGS LM317T Adjustable Voltage Regulator 1.2-37V 1.5A TO-220 NOS
SGS LM317T Adjustable Voltage Regulator 1.2-37V 1.5A TO-220 NOS
Regular price
$3.95 USD
Regular price
Sale price
$3.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: SGS
Model: LM317T
MPN: LM317T
Type: Adjustable Positive Voltage Regulator
Output Voltage Range: 1.2V to 37V
Maximum Output Current: 1.5A
Package Type: TO-220
Mounting Style: Through-Hole
Number of Terminals: 3
Cross-Reference Numbers: ECG956, SK9215

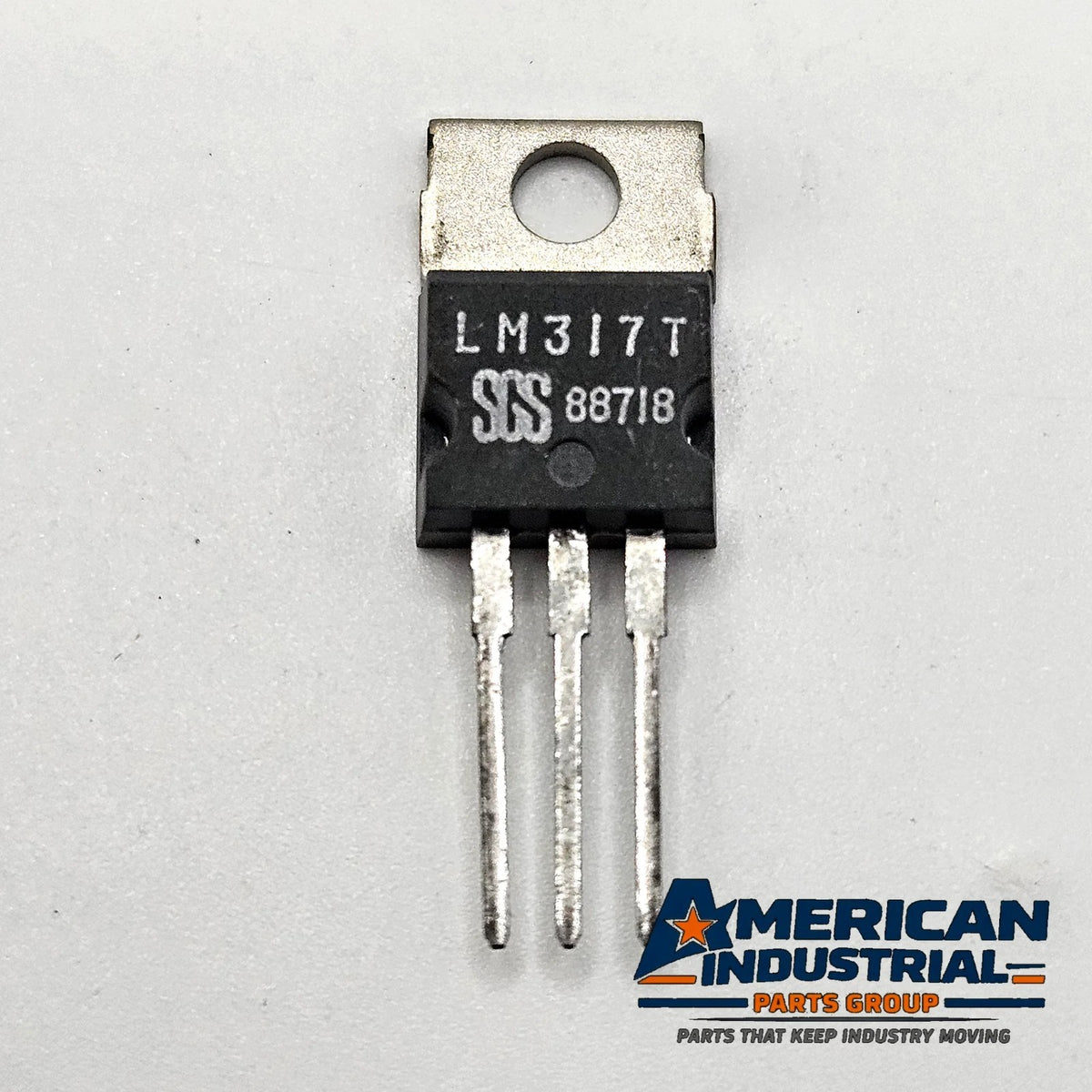

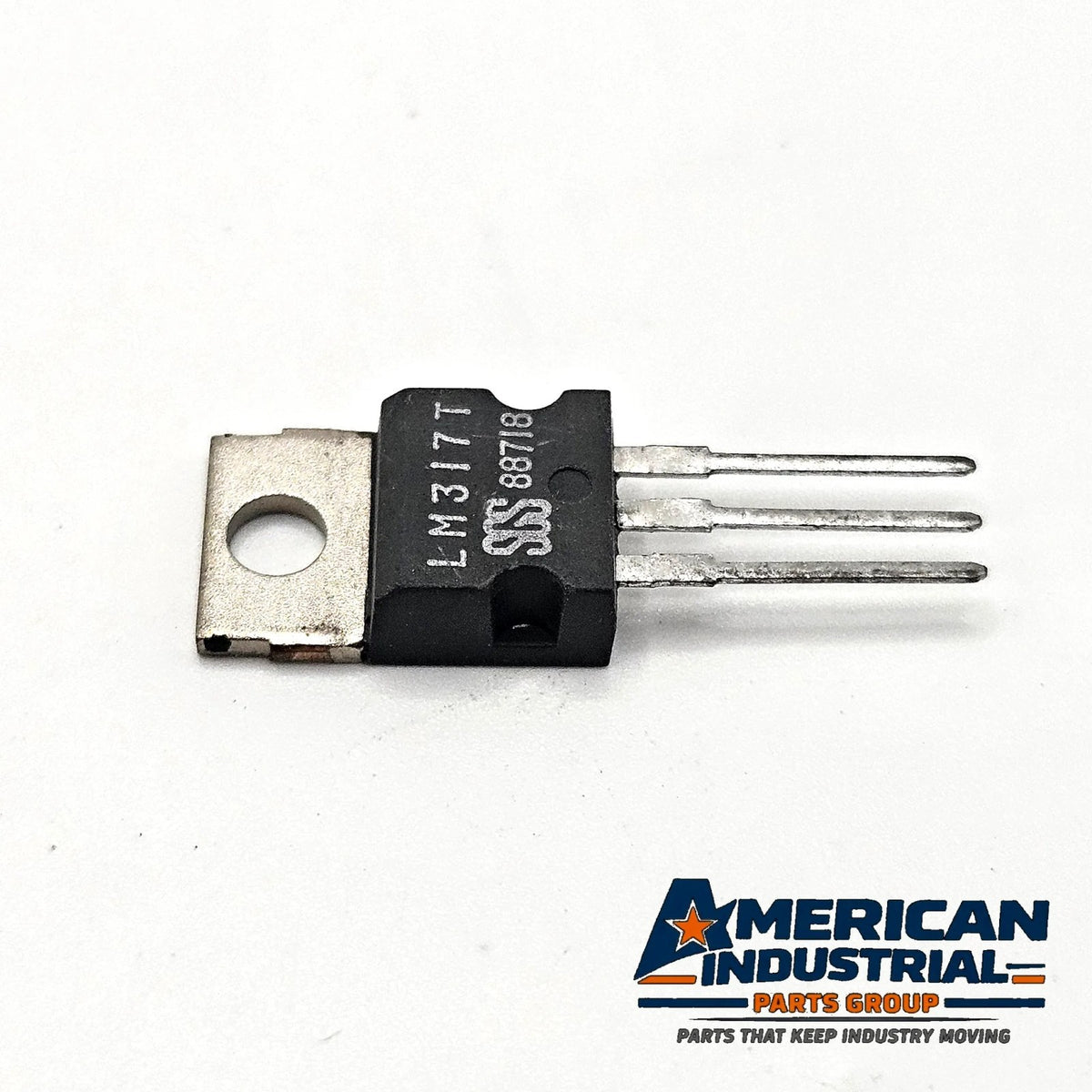

Visible Component Code: 88718
Number of Items: 1
Country/Region of Manufacture: Unknown
Condition: New Old Stock
DESCRIPTION
SGS LM317T adjustable positive voltage regulator in a three-terminal TO-220 package. This regulator provides an adjustable output voltage range of 1.2V to 37V with a maximum output current rating of 1.5A.
Features:
SGS LM317T
Adjustable Positive Voltage Regulator
1.2V to 37V Output Range
1.5A Maximum Output Current
Three-Terminal TO-220 Package
Through-Hole Mounting
Cross-References ECG956 and SK9215
Visible Component Code 88718
New Old Stock

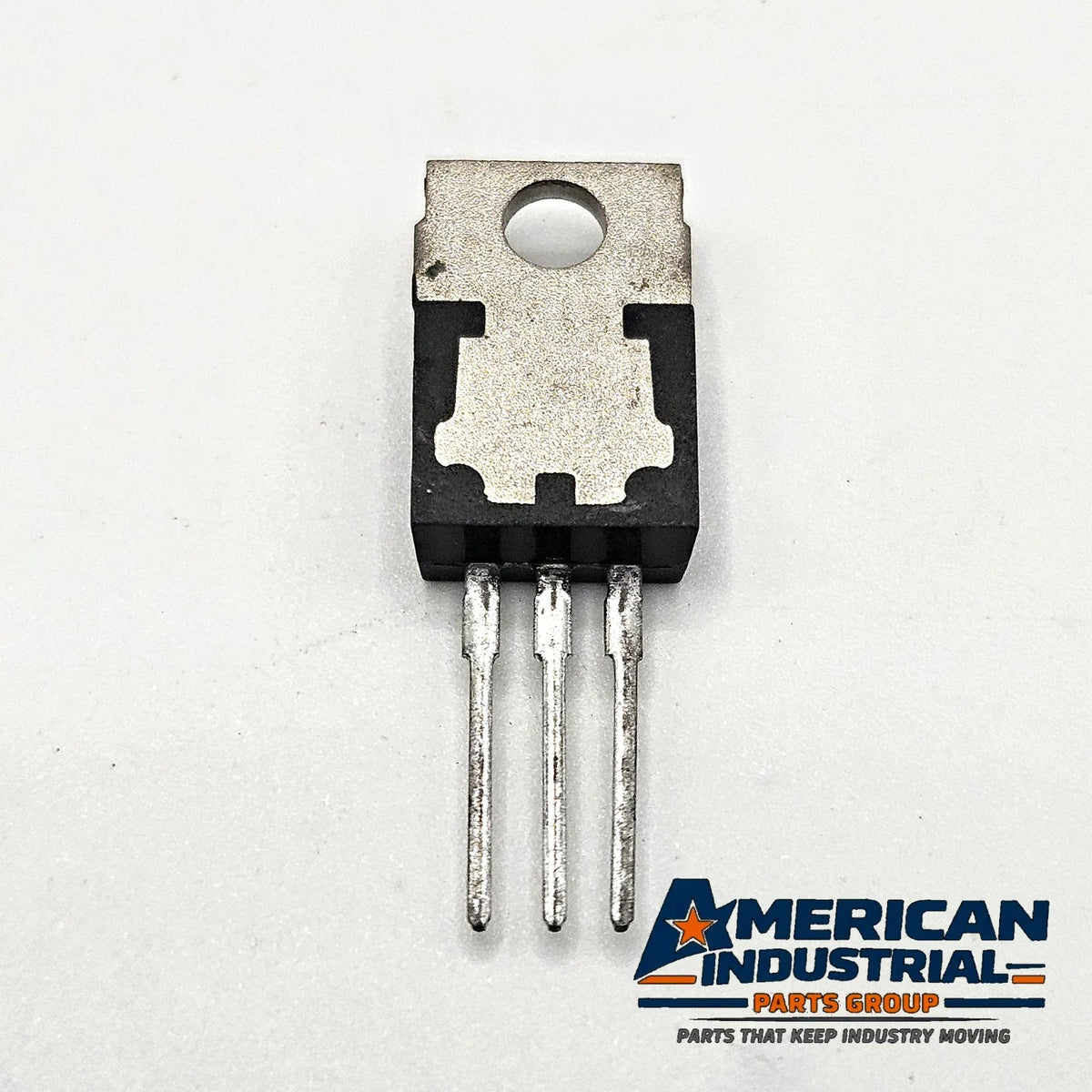

This listing includes one voltage regulator. The component may show minor oxidation, discoloration, or other cosmetic evidence of long-term storage. Please review all photos carefully for the exact condition and markings.
DISCLAIMER
This item is new old stock and has not been installed or placed into service by us. Electrical operation has not been independently tested. Vintage electronic components should be inspected and tested by a qualified technician before installation. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of SGS or SGS-Thomson. All product names, trademarks, brands, and logos are the property of their respective owners. This product is sourced from surplus inventory and is not covered by a manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The LM317 is an adjustable positive linear voltage regulator originally designed by Bob Dobkin at National Semiconductor in 1976 and since second-sourced by many manufacturers, SGS (later SGS-Thomson, now STMicroelectronics) among them. Published ratings are a 1.25V to 37V adjustable output, a 3V to 40V input-to-output differential and 1.5A maximum output current in the TO-220 package. NTE's published replacement list confirms the aftermarket cross-references: the NTE956 / ECG956 replaces the LM317, LM317T and the RCA SK9215, along with numerous house numbers. The LM337 is the negative-output complement. Important: in TO-220 packages the metal tab is connected internally to the regulator's output pin, not to ground — isolate the tab from a grounded heatsink where required.
Q&A
Q: What is the LM317T? A: A three-terminal adjustable positive linear voltage regulator in a TO-220 package, 1.2V to 37V output at up to 1.5A.
Q: What are the cross-reference numbers? A: ECG956 / NTE956 and the RCA SK9215 — NTE's replacement list covers the LM317 and LM317T.
Q: Is the TO-220 tab grounded? A: No. On the LM317 the tab is internally connected to the output pin, so it must be isolated from a grounded heatsink.
SGS LM317T LM317 LM 317T Adjustable Voltage Regulator Positive Voltage Regulator Linear Regulator 1.2V 37V 1.5A TO-220 TO220 Three Terminal Regulator Through Hole IC ECG956 ECG 956 SK9215 SK 9215 Voltage Control Power Supply Repair Circuit Board Repair Vintage Electronics Electronic Component Semiconductor New Old Stock NOS Replacement Regulator Industrial Electronics
