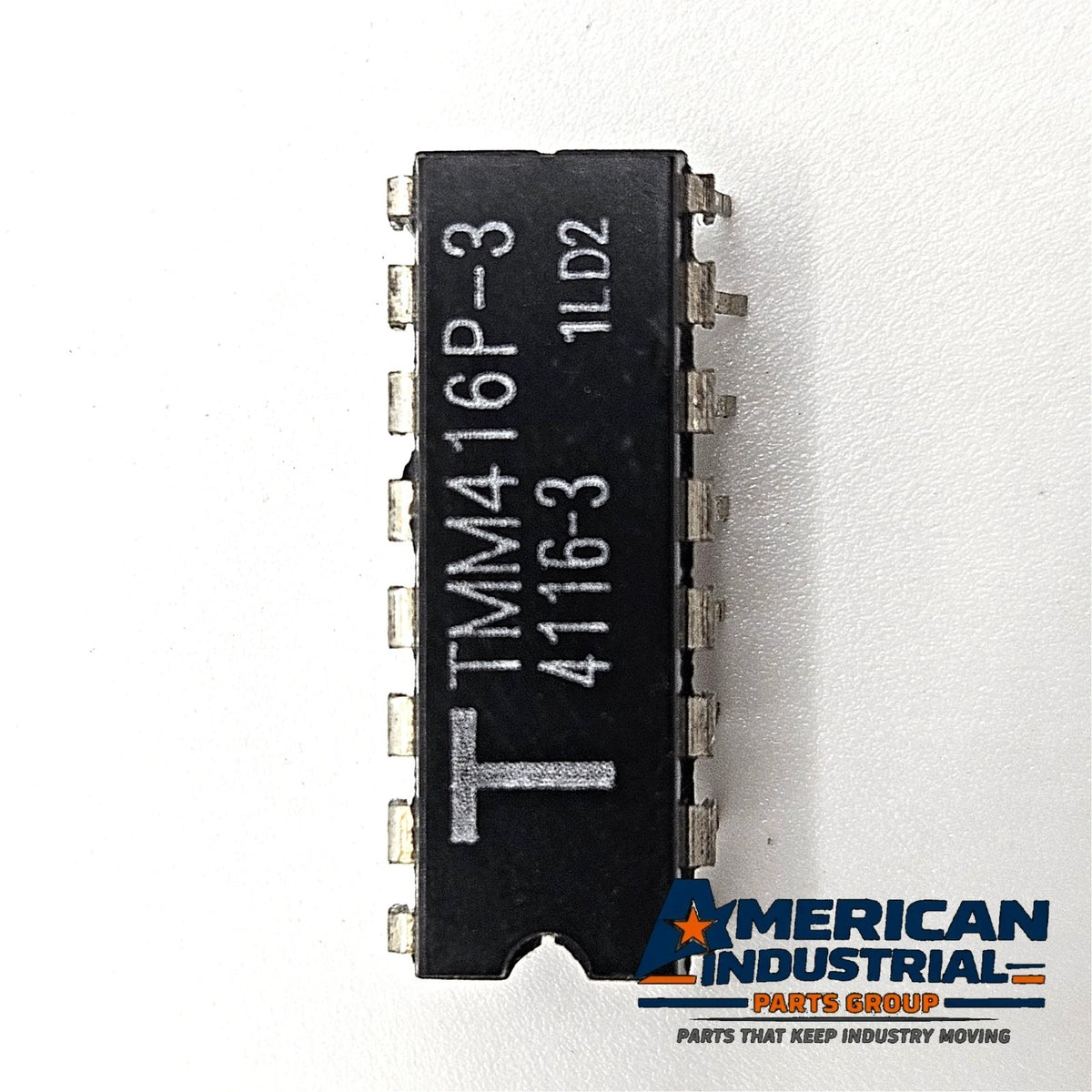

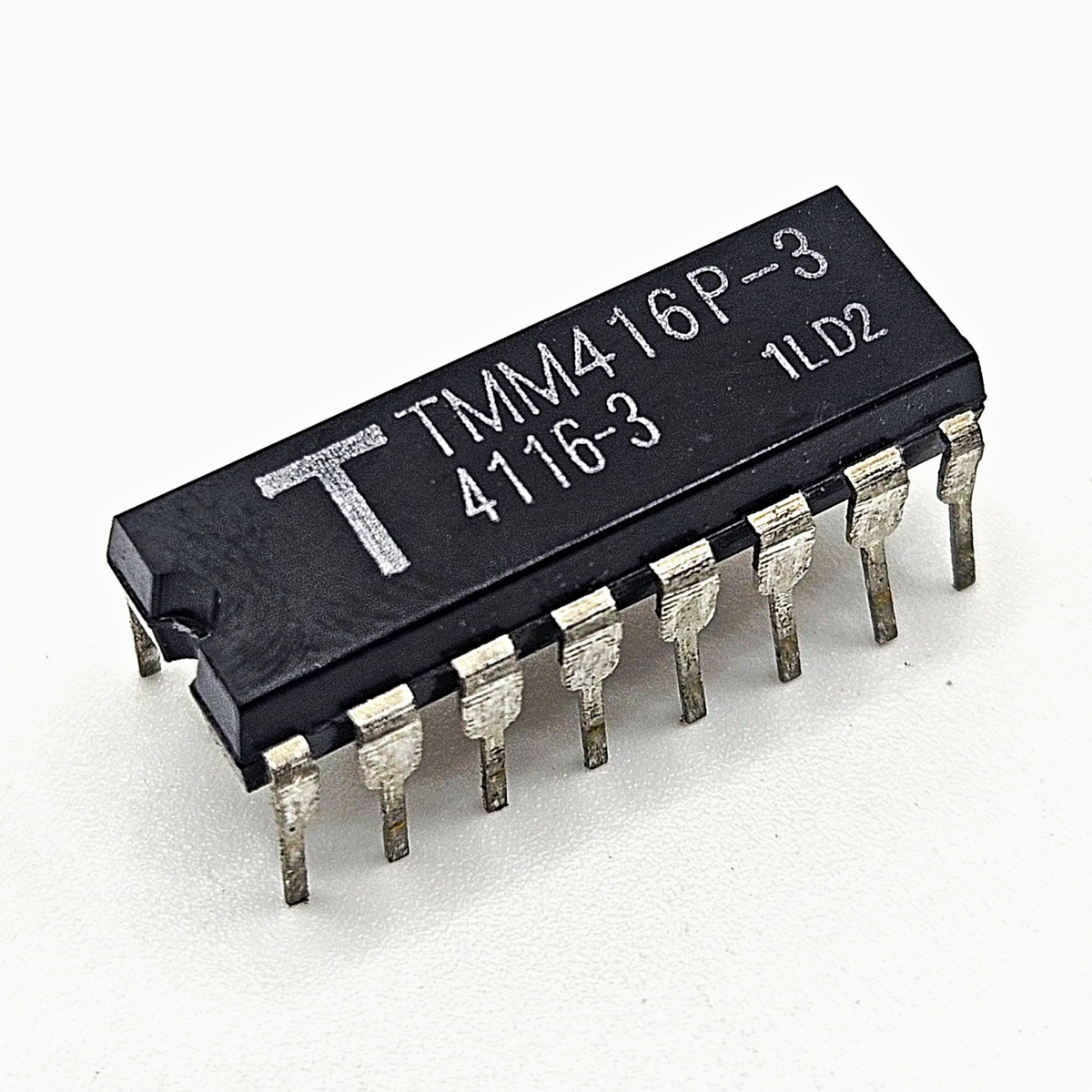

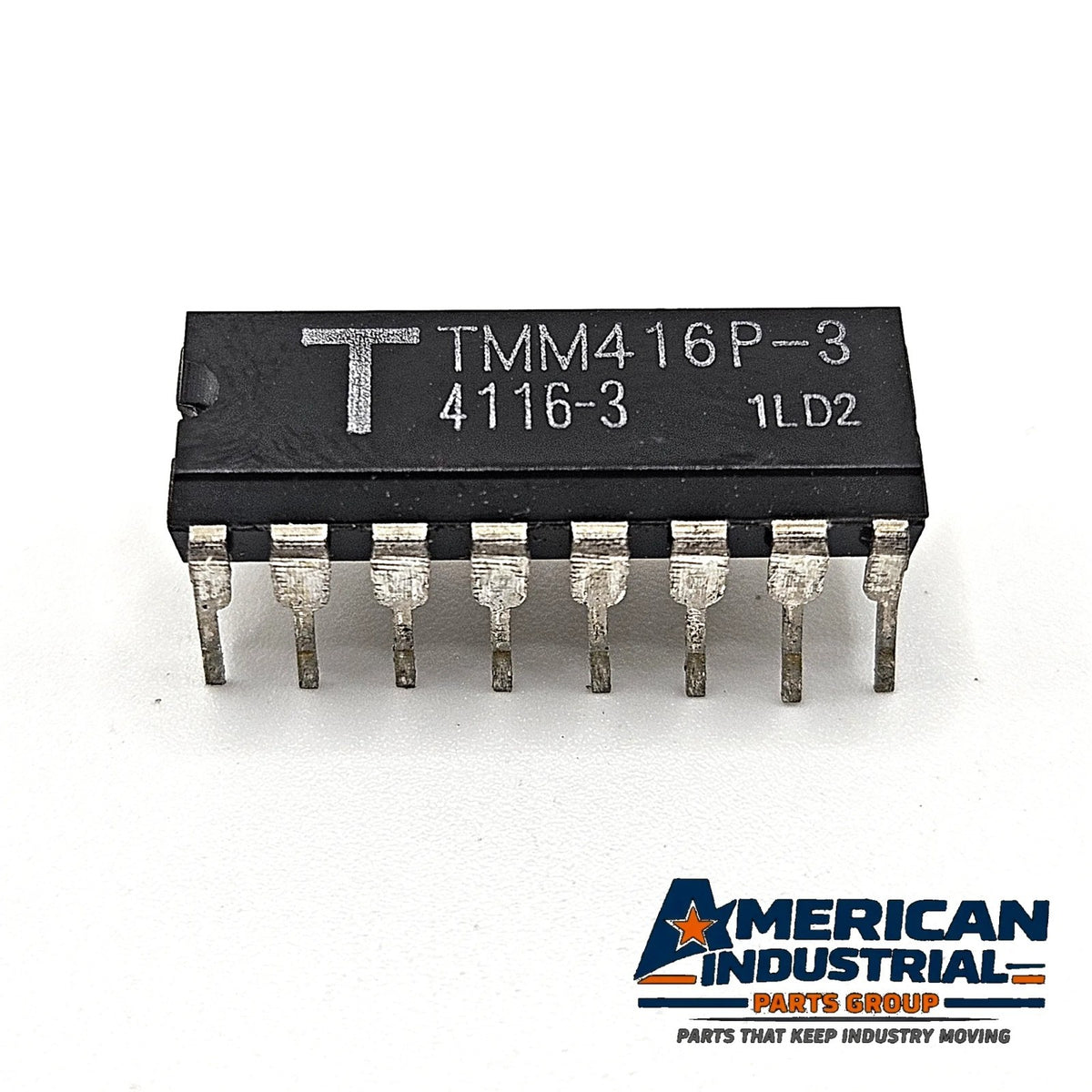

Toshiba TMM416P-3 4116-3 16Kx1 200ns DRAM DIP-16 NOS Vintage IC
Toshiba TMM416P-3 4116-3 16Kx1 200ns DRAM DIP-16 NOS Vintage IC
Regular price
$7.95 USD
Regular price
Sale price
$7.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Toshiba
Model: TMM416P-3
MPN: TMM416P-3
Alternate Part Number: 4116-3
Type: Dynamic Random-Access Memory
Memory Type: Page-Mode DRAM
Memory Organization: 16K x 1 Bit
Memory Density: 16,384 Bits
Maximum Access Time: 200 ns
Refresh Cycles: 128
Output Type: Three-State
Technology: MOS
Package: PDIP-16
Number of Pins: 16
Mounting Style: Through-Hole
Terminal Pitch: 2.54 mm
Operating Temperature Range: 0°C to 70°C
Temperature Grade: Commercial
Product Status: Discontinued / Obsolete
Quantity: 1
Condition: New Old Stock
Custom Label/SKU: TOS-TMM416P-3-N
DESCRIPTION
Toshiba TMM416P-3 dynamic random-access memory integrated circuit. This discontinued vintage semiconductor provides a 16,384-word x 1-bit memory organization with a maximum access time of 200 nanoseconds.
The TMM416P-3 is supplied in a standard 16-pin plastic dual in-line package for through-hole installation. It is intended for compatible legacy computer, arcade, industrial electronic, laboratory, and vintage electronics applications requiring a 4116-series page-mode DRAM.
Features:
Toshiba TMM416P-3
Alternate 4116-3 Marking
16,384-Word x 1-Bit Organization
16,384-Bit Memory Density
200 ns Maximum Access Time
Page-Mode DRAM
128 Refresh Cycles
Three-State Output
16-Pin Plastic DIP Package
Through-Hole Mounting
Commercial Temperature Grade
Discontinued Vintage Semiconductor
Quantity of One

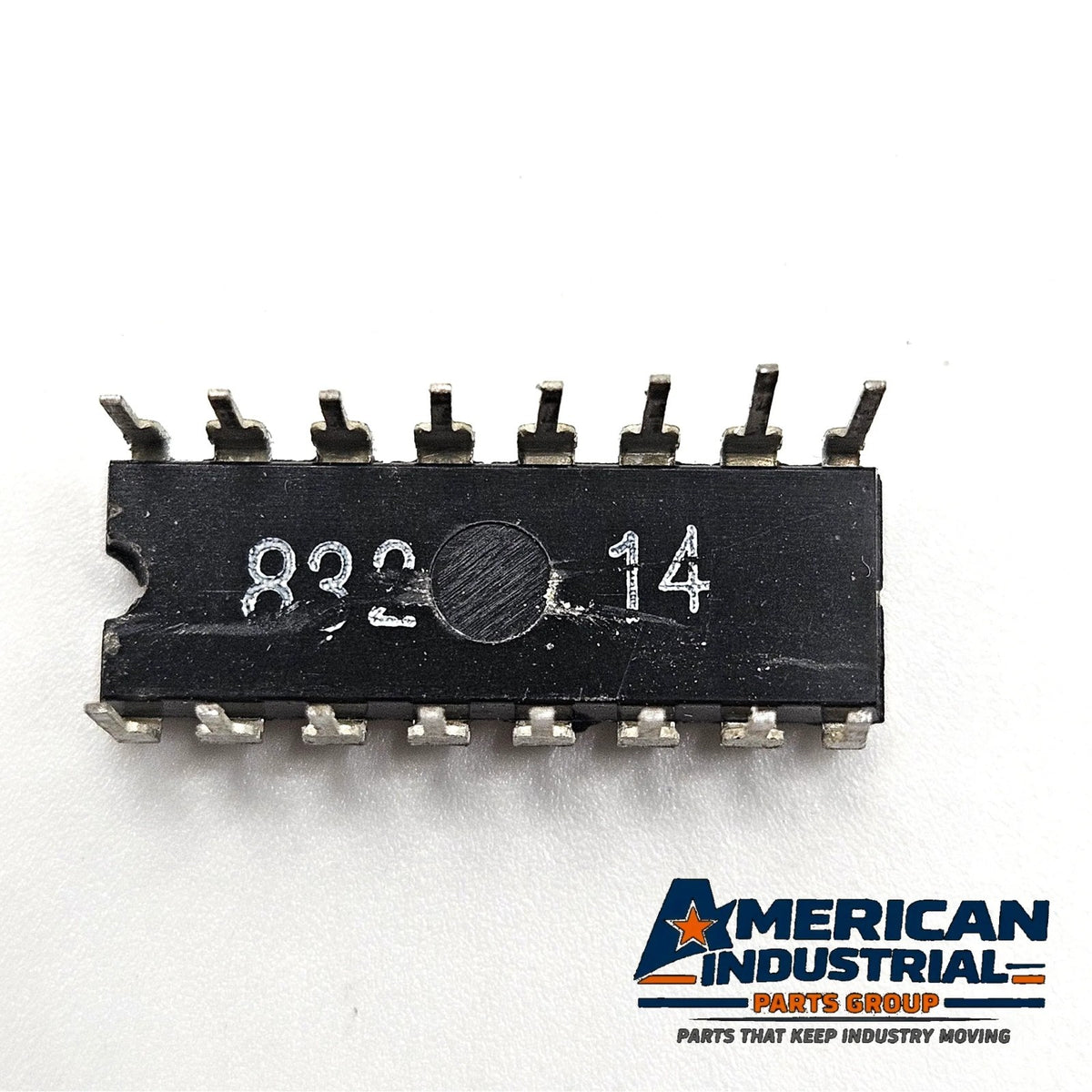

This component is New Old Stock from long-term inventory. It has not been installed or placed into service. No functional testing has been performed. Cosmetic storage wear, surface marks, oxidation, discoloration, and slightly uneven leads may be present from age and handling. Please review all photographs for the exact condition and markings of the component being offered.
DISCLAIMER
This item is New Old Stock from long-term inventory and has not been functionally tested. Due to the age of this discontinued electronic component, compatibility and final testing are the buyer’s responsibility. Please compare the complete part number, speed grade, package, pin configuration, electrical requirements, and equipment documentation before purchasing. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Toshiba. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
Toshiba's MOS Memory data book lists the TMM416 as an alternate source for the Mostek MK4116 — the industry-standard 4116 16K x 1 dynamic RAM. The -3 suffix is the 200 ns speed grade, and this unit carries the alternate 4116-3 marking. Other published 4116-family cross-references include the TMS4116 (Texas Instruments), MCM4116 (Motorola), μPD416 (NEC), AM9016 (AMD), and MB8116 (Fujitsu). The TMM416 requires +12V, +5V, and −5V supplies — always confirm speed grade, supply voltages, and timing against your equipment before substituting.
Q&A
Q: What is the Toshiba TMM416P-3? A: A 16,384 x 1-bit NMOS dynamic RAM with a 200 ns maximum access time in a 16-pin plastic DIP.
Q: Is the TMM416P-3 a 4116 equivalent? A: Yes — Toshiba lists the TMM416 as an alternate source for the Mostek MK4116, and this unit is marked 4116-3 (200 ns grade).
Q: What supply voltages does it require? A: +12V, +5V, and −5V, like other 4116-family 16K DRAMs.
Toshiba TMM416P-3 TMM416P3 4116-3 4116 DRAM 16Kx1 DRAM 16K RAM 16384 Bit Memory IC 200ns DRAM Page Mode DRAM DIP-16 PDIP-16 Through Hole Memory Chip Vintage RAM Vintage Computer Memory Retro Computer Repair Arcade Repair Legacy Electronics Obsolete IC Discontinued Semiconductor Replacement Memory Integrated Circuit Vintage Electronics NOS Electronic Component Industrial Electronics Computer Restoration
