Unitrode SXS60 6kV High Voltage Rectifier Diode Standard Recovery NOS

ITEM SPECIFICS
Brand: Unitrode
MPN: SXS60
Model: SXS60
Series: SXS
Type: High Voltage Rectifier
Rectifier Type: Standard Recovery
Maximum Reverse Voltage: 6 kV (6,000 V)
Mounting Style: Through-Hole
Termination Style: Axial Lead
Number of Pins: 2
Condition: New Old Stock
Additional Marking: HVD
Secondary Marking: 8049

DESCRIPTION
Unitrode SXS60 high-voltage rectifier from new old stock inventory.
The SXS60 is a legacy Unitrode high-voltage rectifier rated at 6.0 kV. Original Unitrode semiconductor databooks identify the SXS60 as part of the SXS high-voltage rectifier series, and legacy cross-reference documentation classifies the SXS series as standard-recovery high-voltage rectifier assemblies.
• Unitrode SXS60
• 6 kV / 6,000 V high-voltage rectifier
• Standard-recovery rectifier
• SXS series
• Axial-leaded configuration

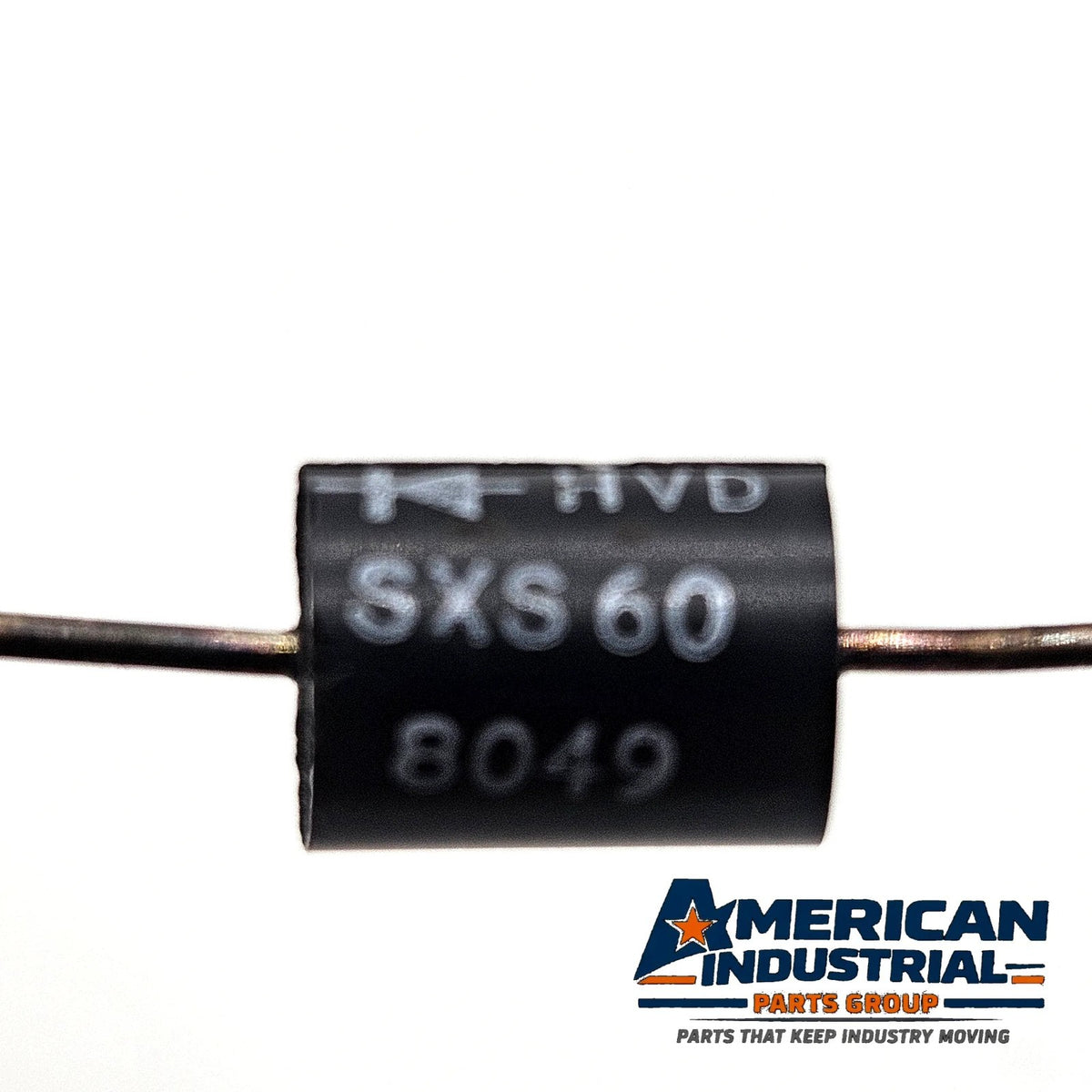

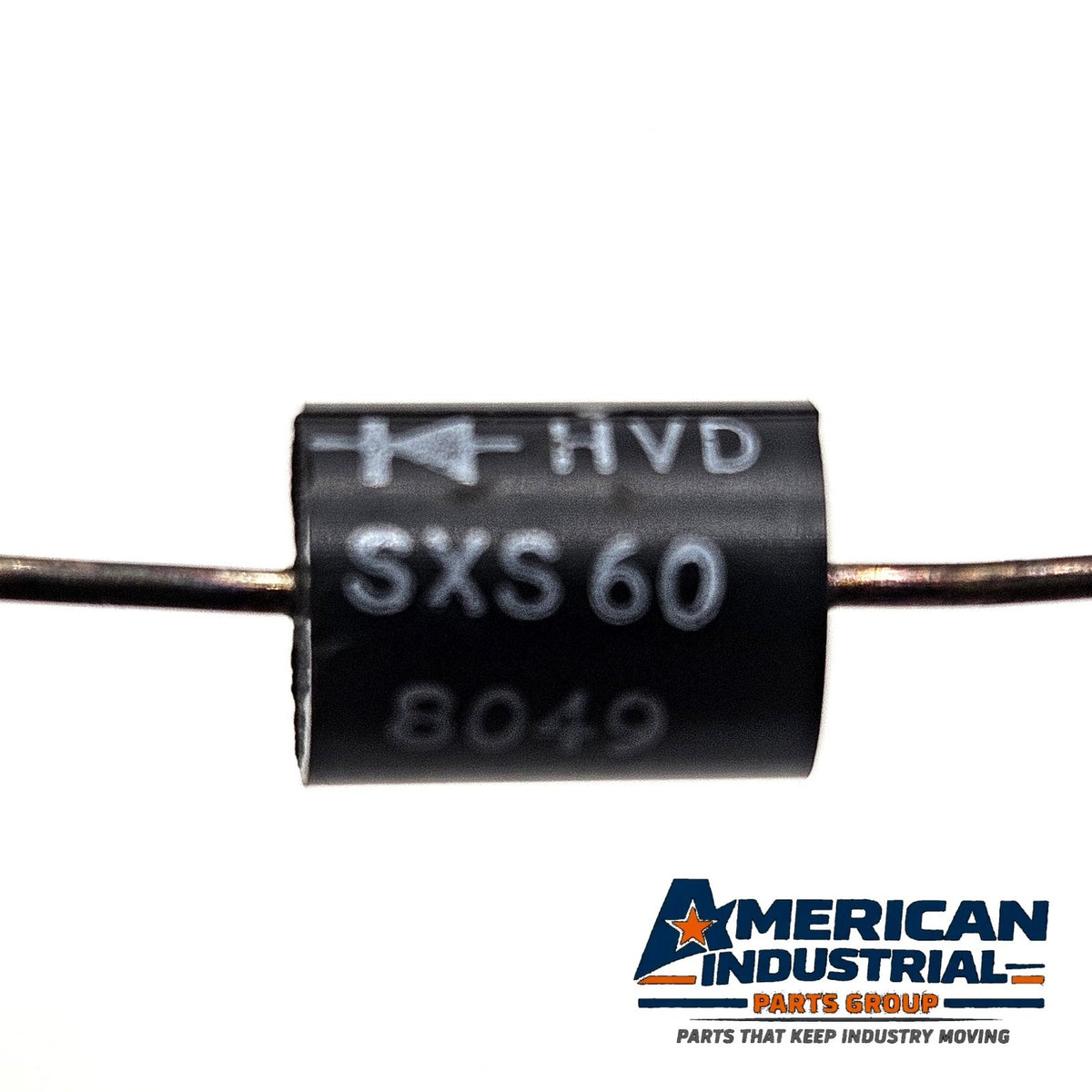

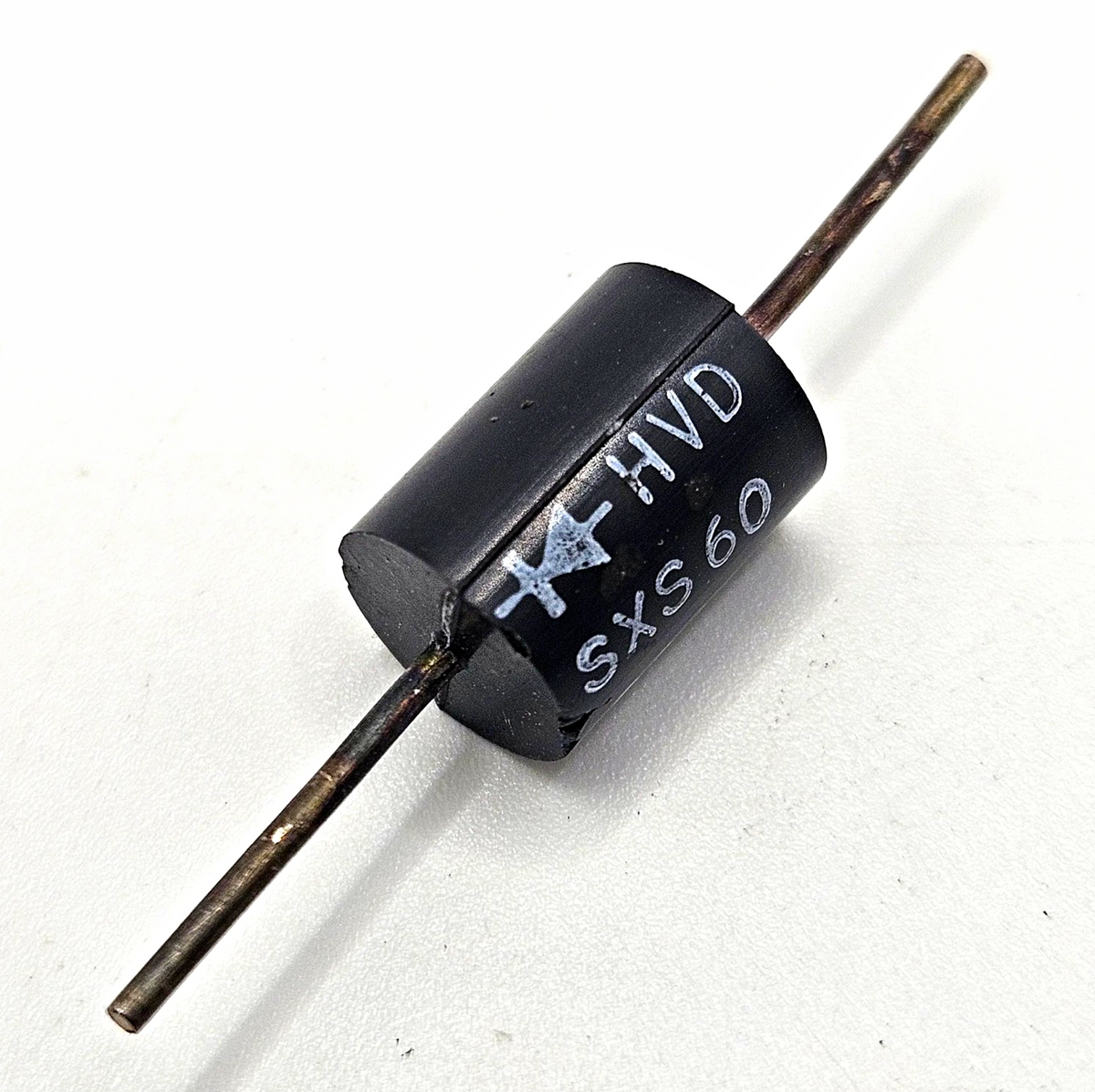

• Polarity symbol marked directly on component
• Component marked “HVD” and “SXS60”

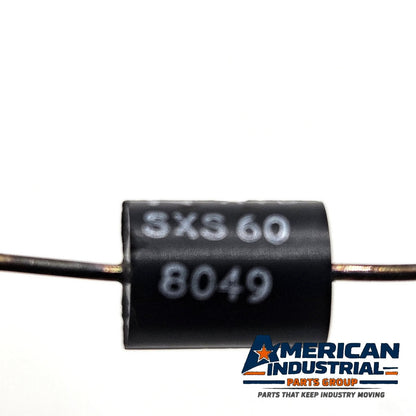

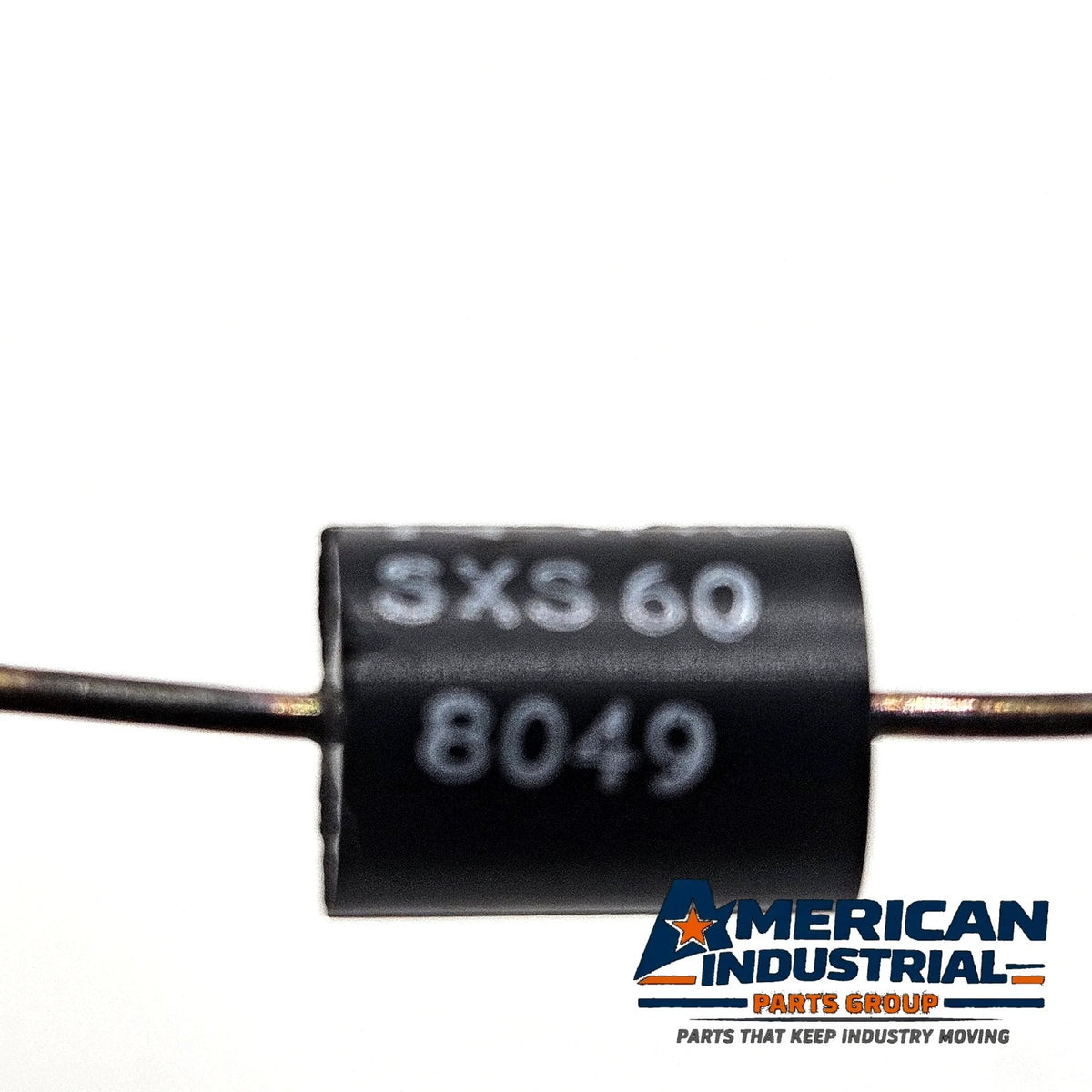

• Secondary marking “8049”
• New old stock
• Vintage/obsolete electronic component
The meaning of the 8049 marking has not been independently verified and is therefore not represented as a manufacturing date.

Please verify the SXS60 part number and required electrical characteristics for your application before purchasing.

DISCLAIMER
New old stock component. Item may show normal cosmetic evidence of long-term storage and handling consistent with its age. Please review the photographs carefully for the exact condition and markings of the item being offered. No testing has been performed unless specifically stated. Buyer is responsible for verifying part number, electrical specifications, suitability, and compatibility before installation.

LEGAL DISCLAIMER
Unitrode is a trademark of its respective owner. American Industrial Parts Group is not an authorized distributor, dealer, or representative of Unitrode or Microsemi. All trademarks, manufacturer names, product names, and part numbers are used solely for identification and reference purposes. No affiliation with or endorsement by the manufacturer is implied.

COMPATIBILITY & CROSS-REFERENCE
The SXS60 is confirmed in Unitrode Corporation's own semiconductor databooks (part number index) as a 6.0kV standard-recovery high-voltage rectifier, part of the SXS10–SXS100 series spanning 1.0kV to 10.0kV in 1.0kV–2.0kV steps. The related SX10–SX100 series (without the “S” suffix) covers the same voltage range as full-wave bridge rectifiers rather than single diodes. Unitrode also offered JAN, JANTX and JANTXV military-screened versions of this series. Confirm exact current rating and reverse recovery characteristics against the original Unitrode datasheet page for your specific application before substituting.

Q&A
Q: What is the SXS60 rated for? A: 6.0kV (6,000V) standard-recovery, per Unitrode's own semiconductor databook part-number index.
Q: What is the SXS series? A: Unitrode's family of axial-lead standard-recovery high-voltage rectifiers, spanning 1.0kV (SXS10) to 10.0kV (SXS100).
Q: Is this new or used? A: New old stock — never installed, sourced from vintage surplus inventory.
