2N3055E NPN Silicon Power Transistor TO-3 15A 60V 115W Made in Italy 1981 NOS
2N3055E NPN Silicon Power Transistor TO-3 15A 60V 115W Made in Italy 1981 NOS
Regular price
$10.12 USD
Regular price
Sale price
$10.12 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Unbranded
MPN: 2N3055E
Type: NPN Silicon Power Transistor (Bipolar)
Package: TO-3 (metal can, case = collector)
VCEO (Collector-Emitter): 60 V
VCBO (Collector-Base): 100 V
VCER (RBE = 100 Ω): 70 V
VEBO (Emitter-Base): 7 V
Collector Current (IC): 15 A
Base Current (IB): 7 A
Power Dissipation (Tc ≤ 25°C): 115 W
VCE(sat): 1 V at IC 4 A / IB 400 mA
Transition Frequency (fT): 2.5 MHz
Max Junction Temperature: 200°C
Marking: "ITALY 8123, 2N3055E"
Date Code: 8123 (1981)
Country of Manufacture: Italy
Condition: New Old Stock
Quantity: 1
DESCRIPTION

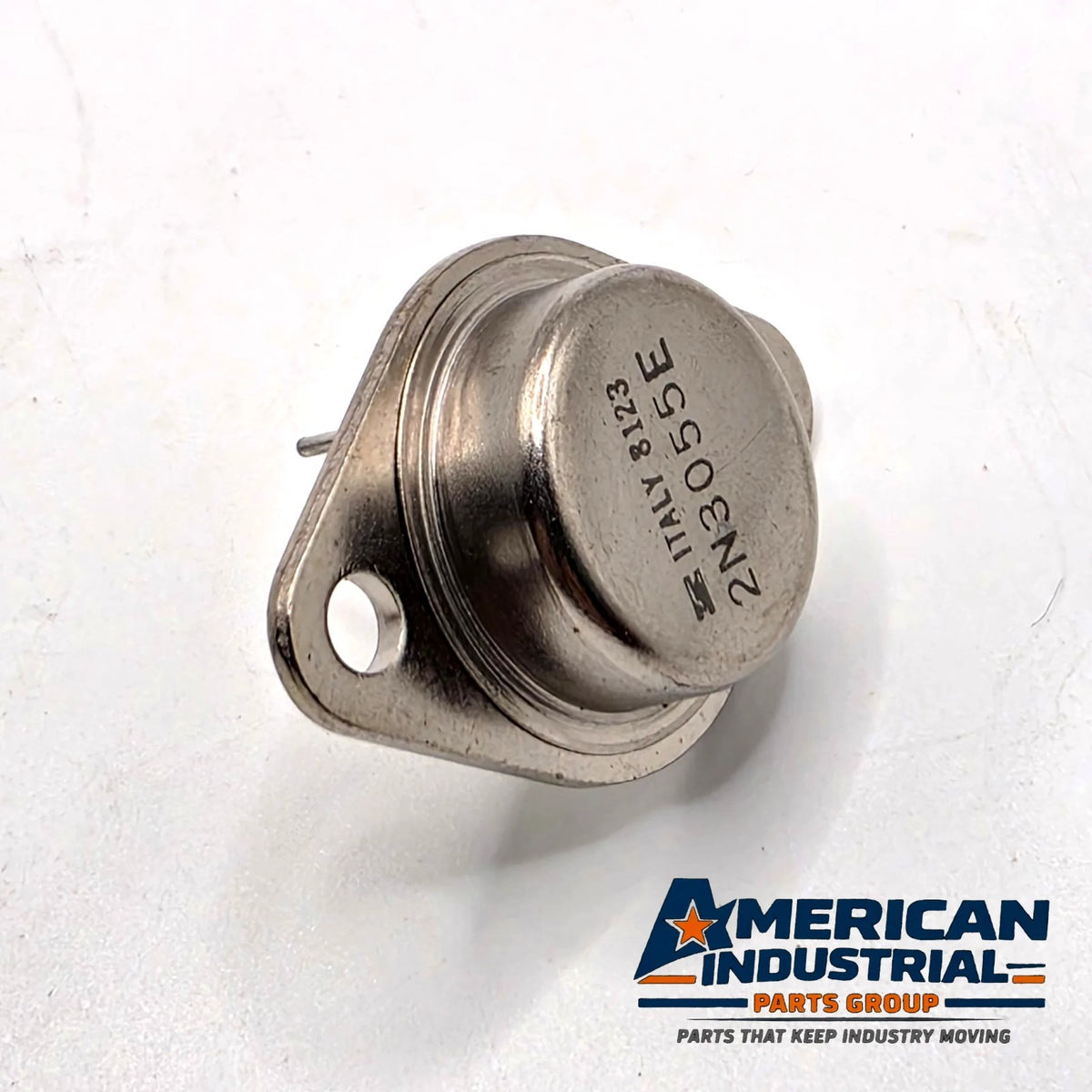

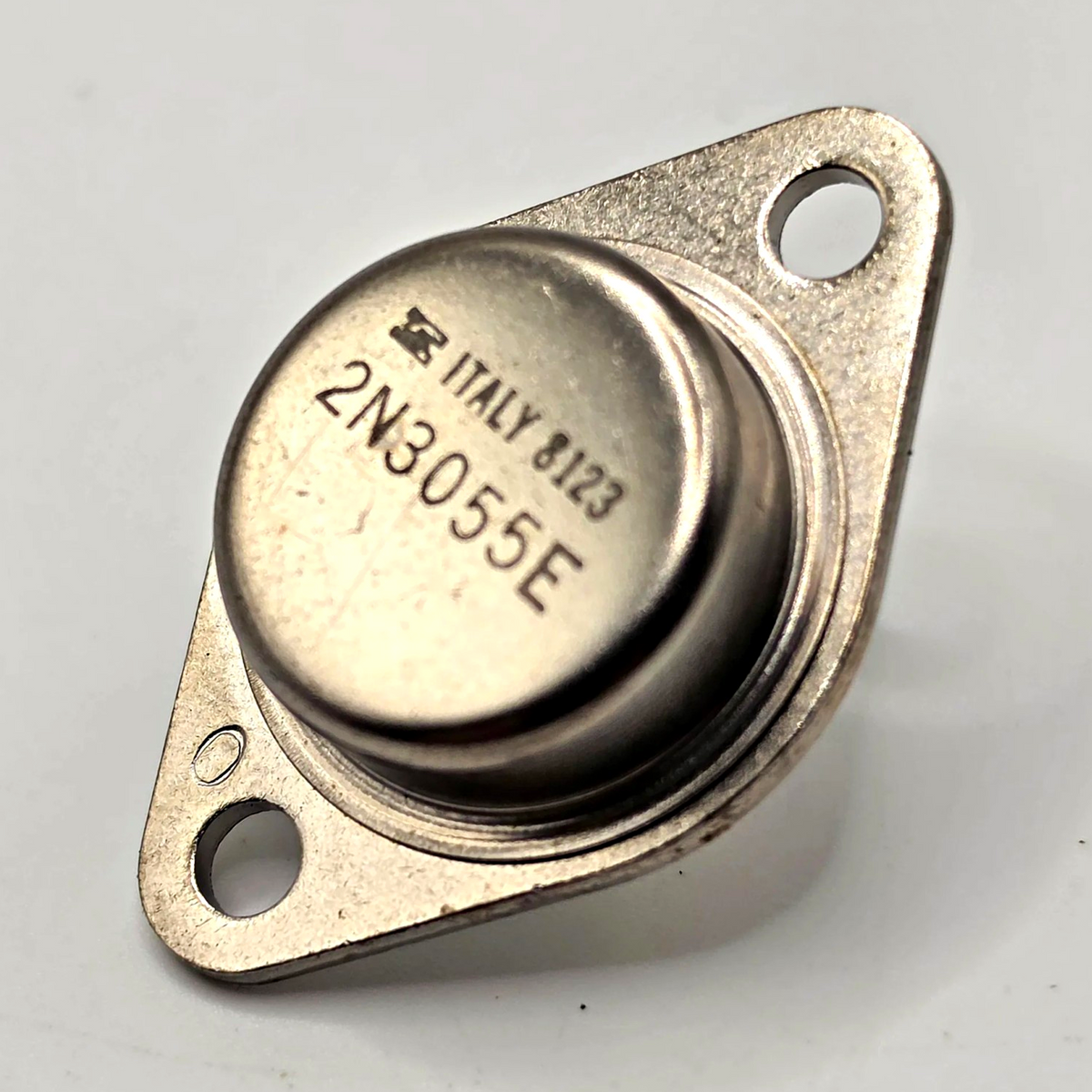

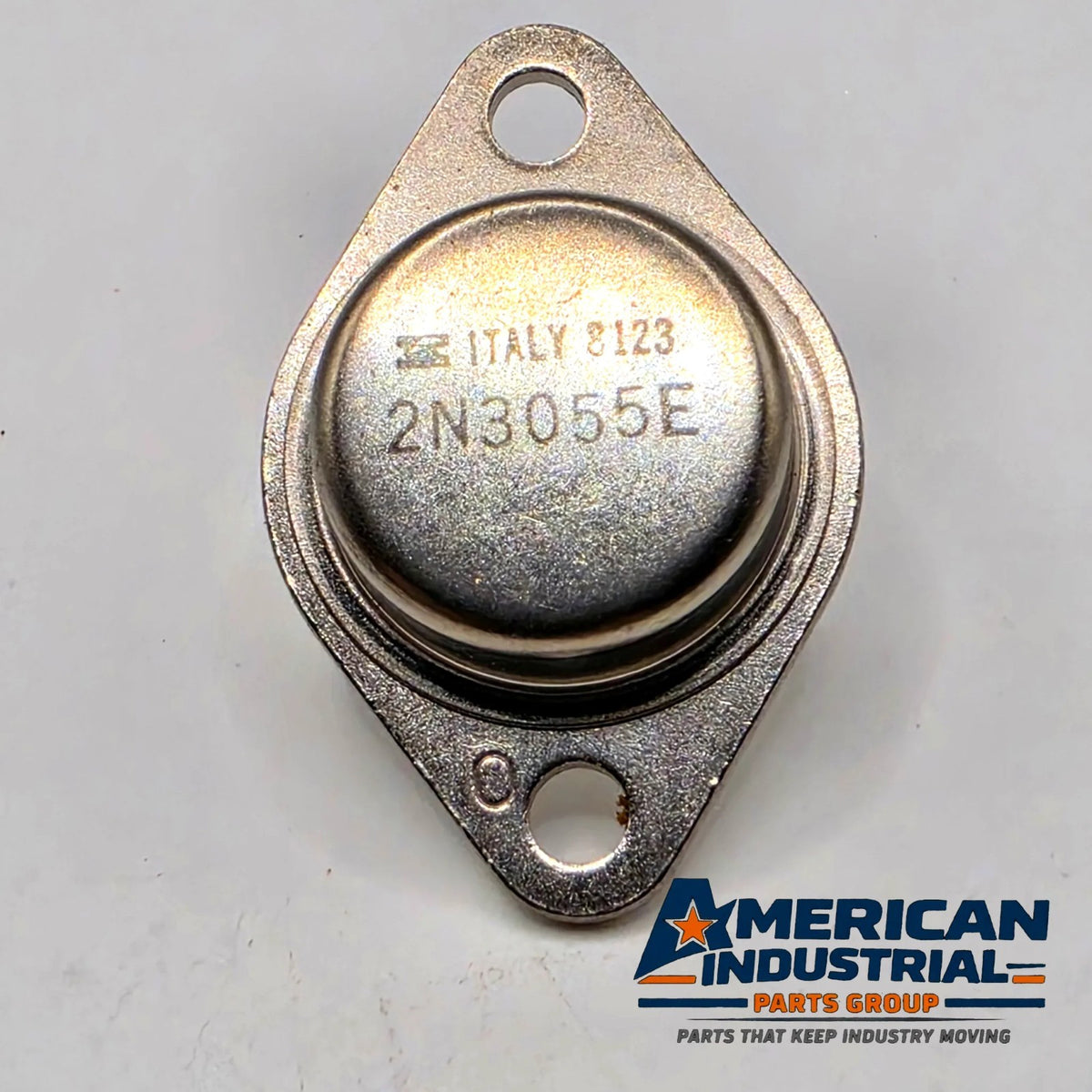

New old stock 2N3055E NPN silicon power transistor in a TO-3 metal can, made in Italy. The cap is marked "ITALY 8123, 2N3055E" with a manufacturer logo, and the date code 8123 indicates 1981. The leads are straight and unused. The case and flange show light storage marks and minor discoloration, as pictured.
The 2N3055 is one of the most widely used NPN power transistors, found in linear power supplies, series-pass regulators, audio power amplifiers, motor drivers and other general-purpose power switching and amplification circuits. It is rated 60 V VCEO, 15 A and 115 W, and the TO-3 case is the collector, so it bolts directly to a heatsink. Use an insulating kit when the heatsink is not at collector potential.
Features:
NPN silicon, 15 A collector current
60 V VCEO / 100 V VCBO
115 W power dissipation at Tc ≤ 25°C
2.5 MHz transition frequency
TO-3 metal case, collector tied to case
Vintage 1981 production, made in Italy
Compatibility:
Replacement for the 2N3055 in power supplies, regulators and audio amplifiers. The NTE equivalent is the NTE130. The ratings listed are the standard 2N3055 family ratings. The "E" suffix is a manufacturer variant marking, so check gain and safe operating area against your circuit for matched-pair or critical amplifier use. The complementary PNP is the MJ2955.
Q&A
Q: What is the pinout?

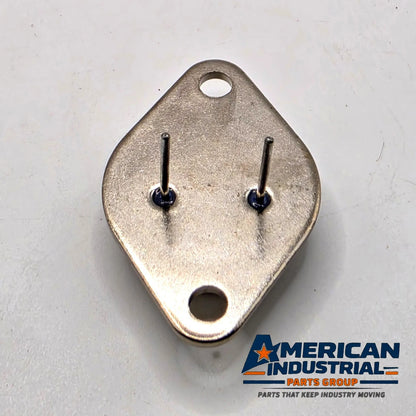

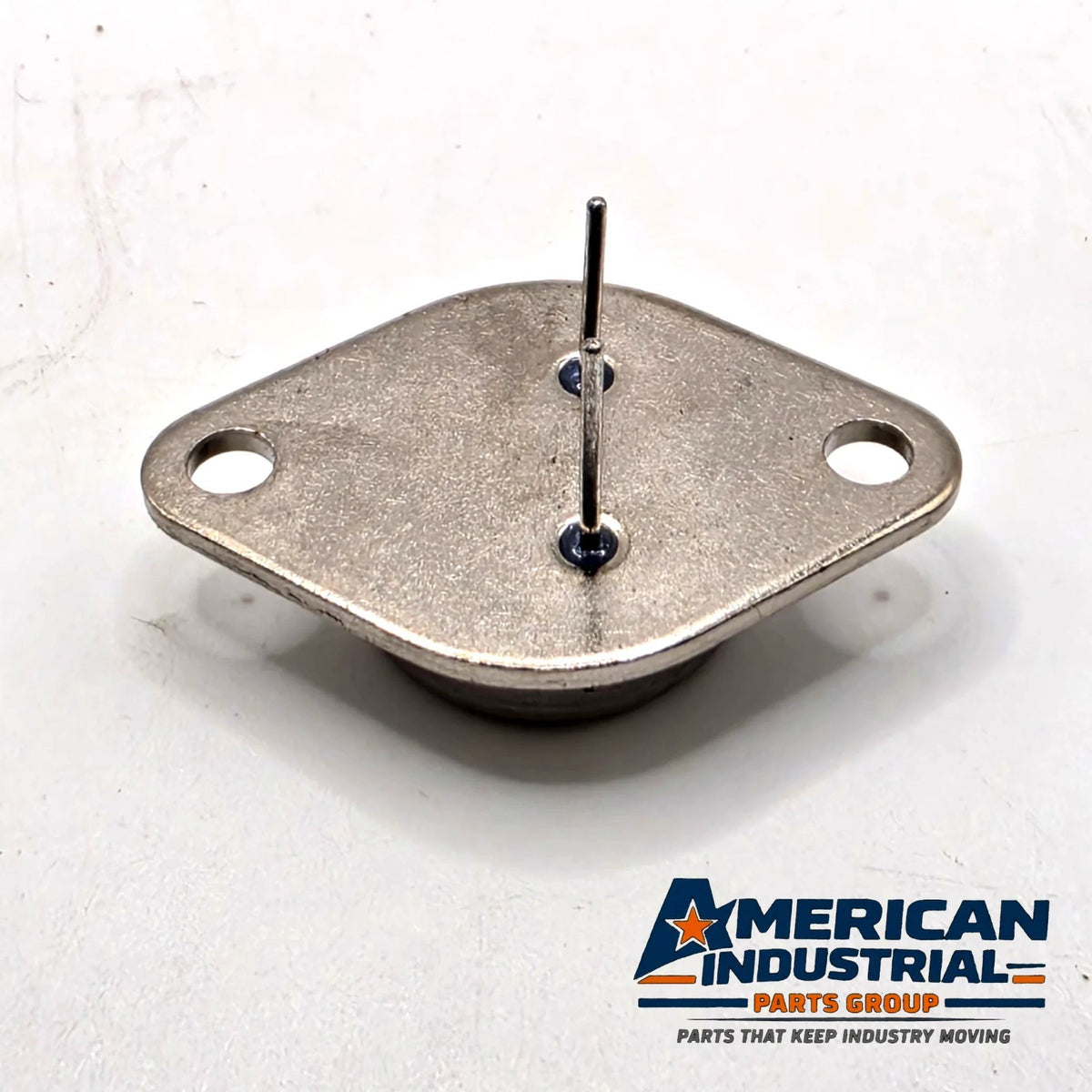

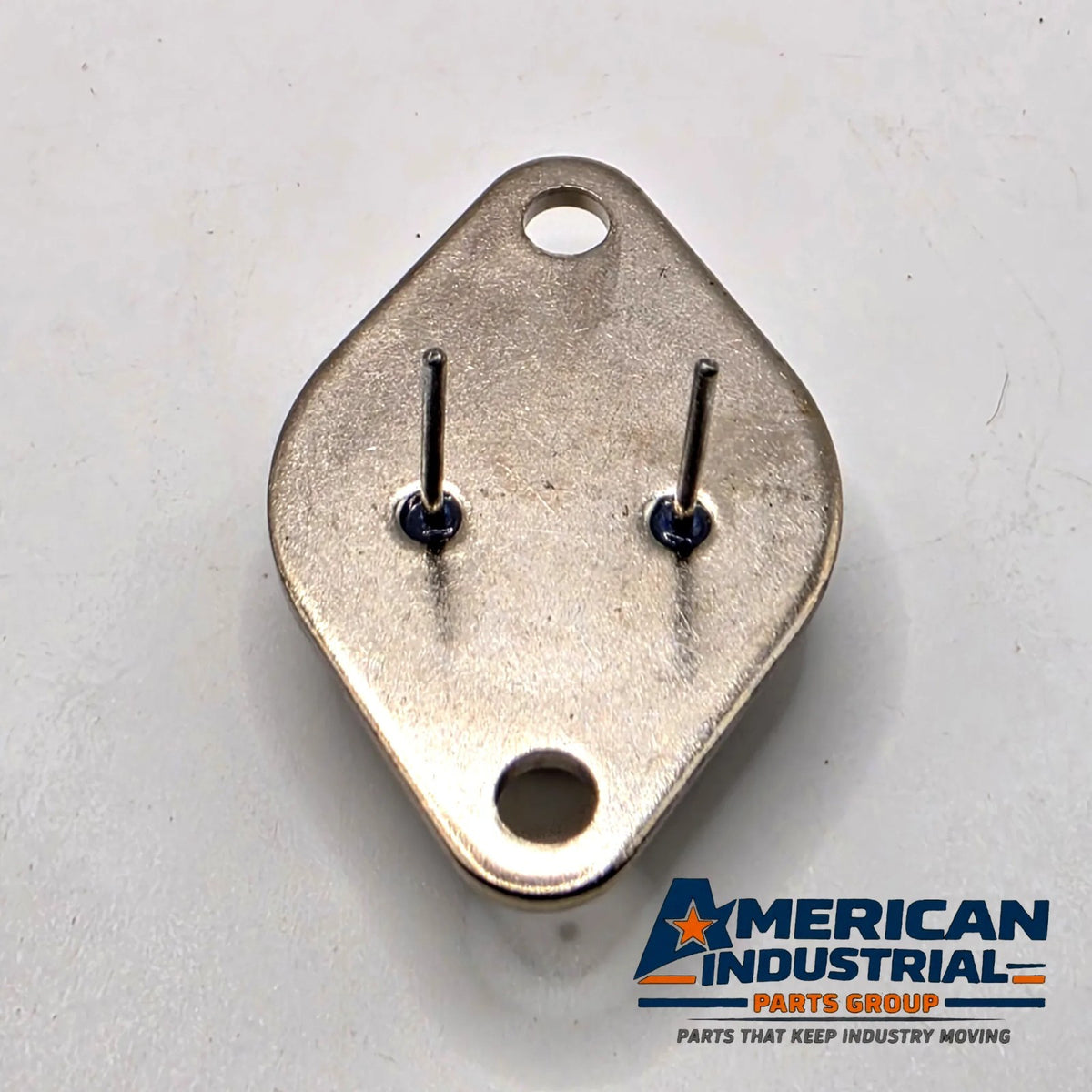

A: TO-3. The two pins are base and emitter, and the metal case is the collector.
Q: What replaces the 2N3055?
A: Common equivalents include the NTE130 and other 2N3055 versions rated 60 V / 15 A / 115 W.
Q: What is the PNP complement?
A: The MJ2955.
Q: Does the case need to be insulated?
A: Yes, if the heatsink is not at collector voltage. The case is the collector, so use a mica or silicone insulator and shoulder washers.
Q: Who made this transistor?
A: It is marked "ITALY" with a manufacturer logo. We list it as unbranded because we have not verified the maker.
DISCLAIMER
Item is new old stock, sold as pictured. Not tested. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
2N3055E, 2N3055, 2N3055 transistor, 2N3055 NPN, NPN power transistor, TO-3 transistor, TO-3 power transistor, 15A 60V transistor, 115W transistor, NTE130, MJ2955 complement, vintage transistor, NOS transistor, Italy transistor, 1981 transistor, audio amplifier transistor, power supply transistor, series pass transistor, linear regulator transistor, amplifier output transistor, power supply repair, amplifier repair, vintage electronics, obsolete electronics
Thank you for shopping with American Industrial Parts Group!
