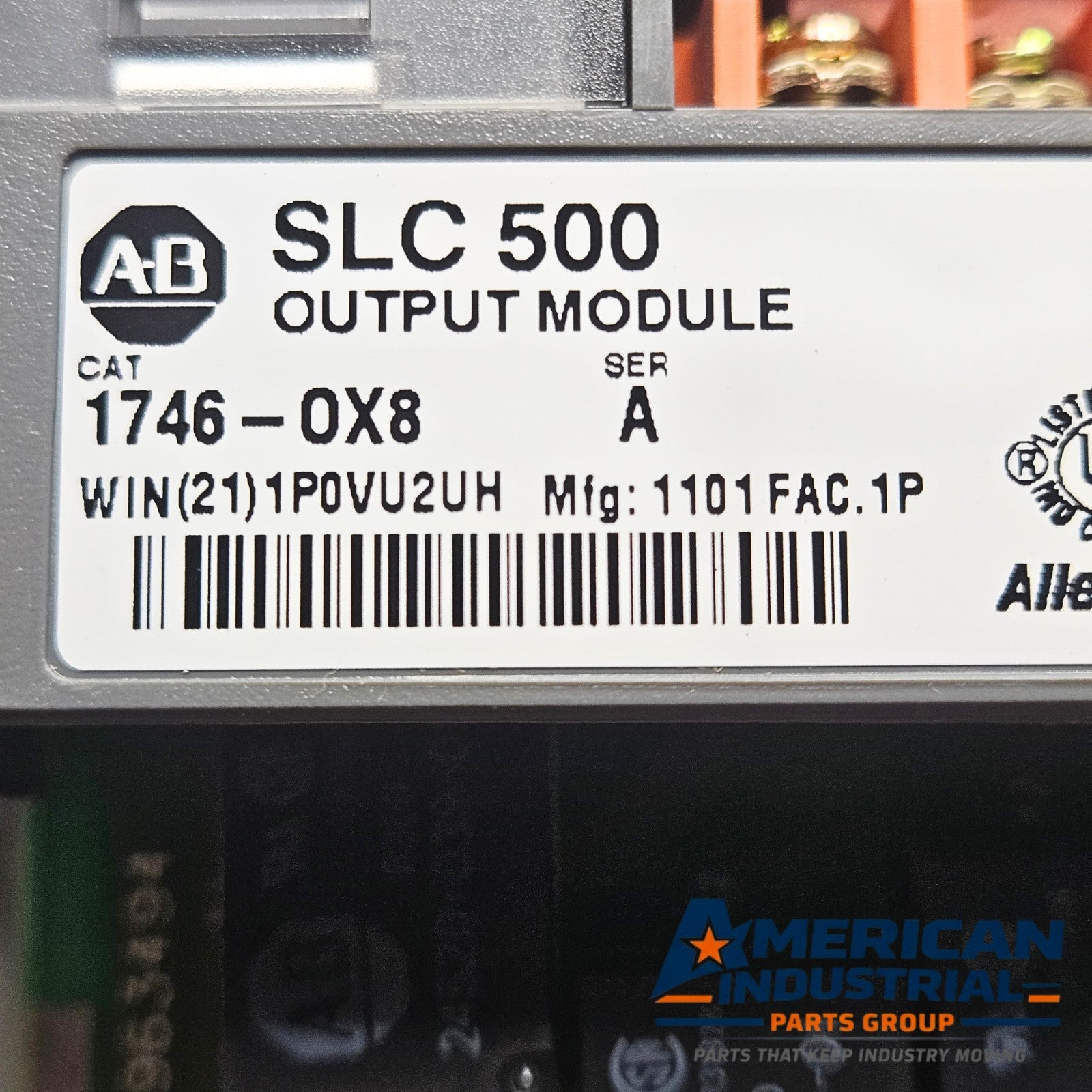

ITEM SPECIFICS
Brand: Allen-Bradley
Model: 1746-OX8
MPN: 1746-OX8
Series: A
Type: Isolated Relay Contact Output Module
Controller Platform: SLC 500
Output Points: 8 Individually Isolated
Output Voltage: 5-250V AC / 5-125V DC
Output Current: 5A Make / 1.5A Break @ 240VAC
Thermal Current: 15A
Backplane Current: 85mA @ 5VDC / 90mA @ 24VDC
Terminal Type: Screw Terminals
Country/Region of Manufacture: United States
Condition: Used
DESCRIPTION

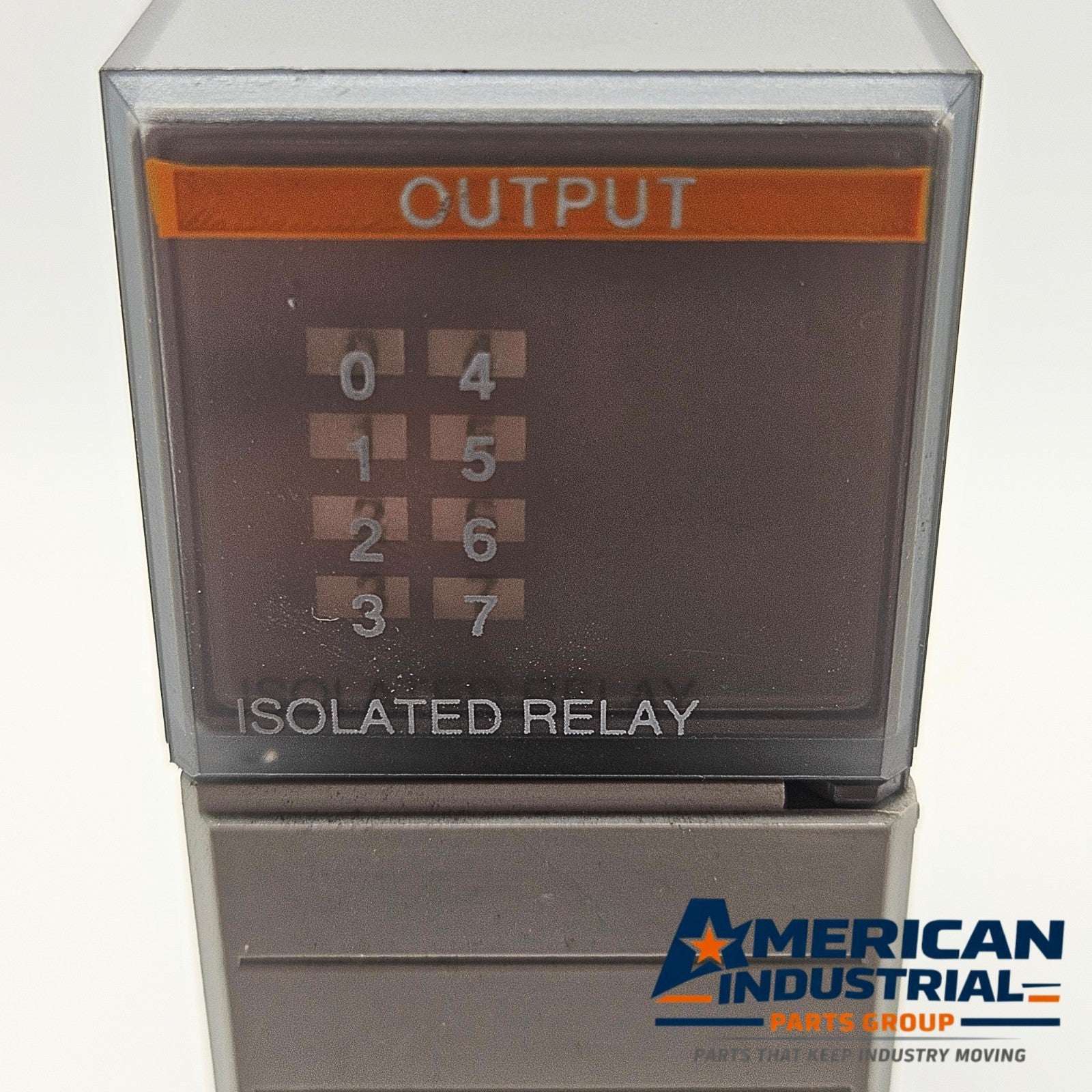

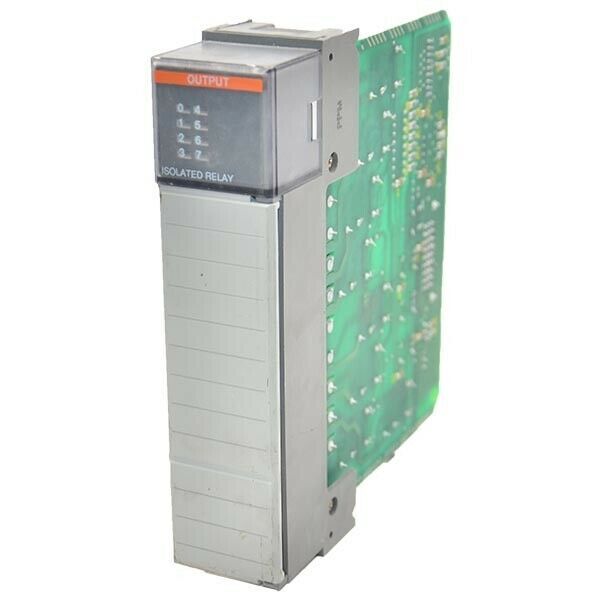

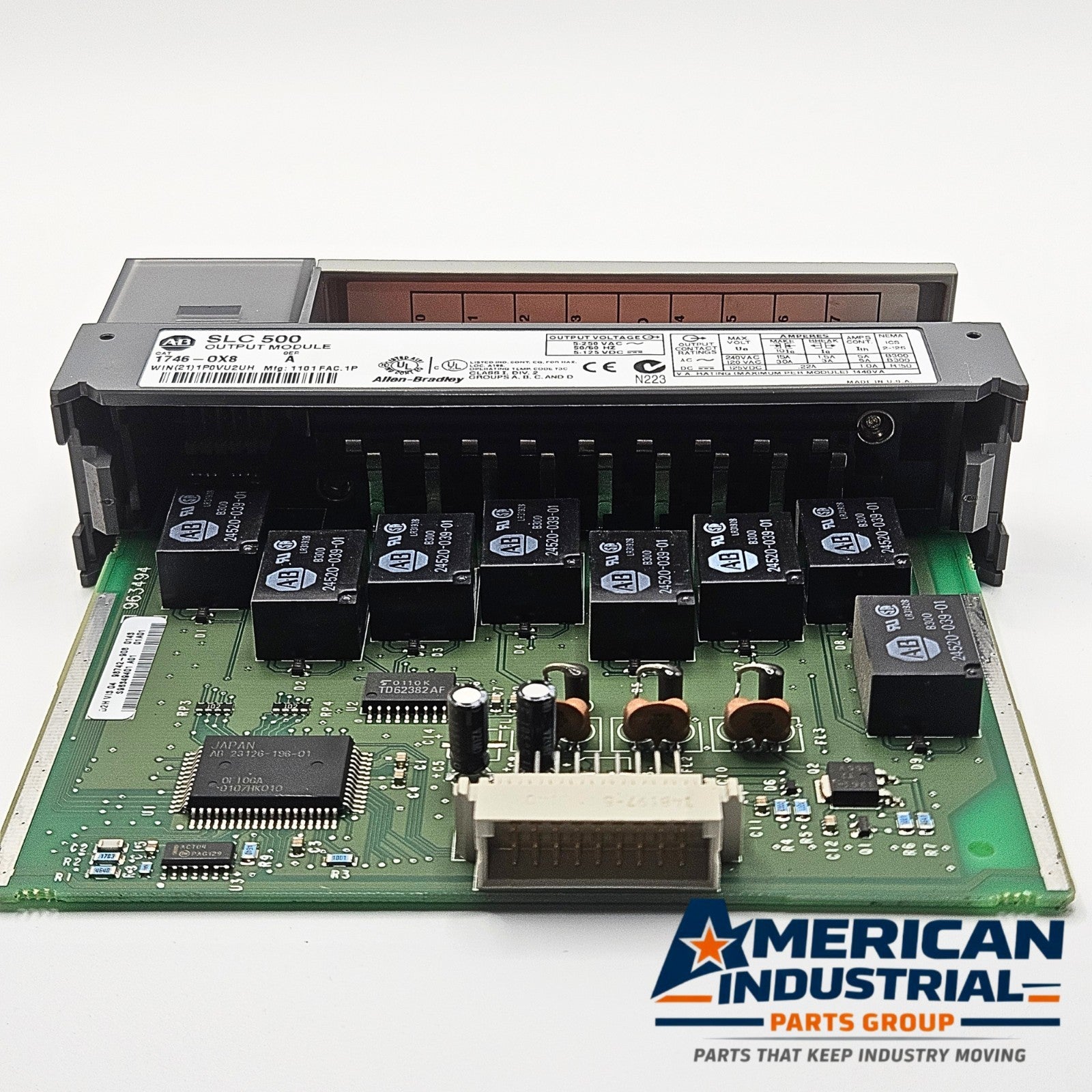

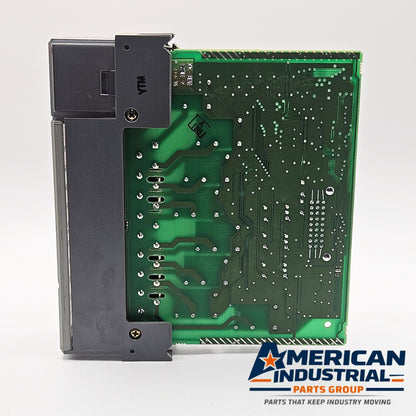

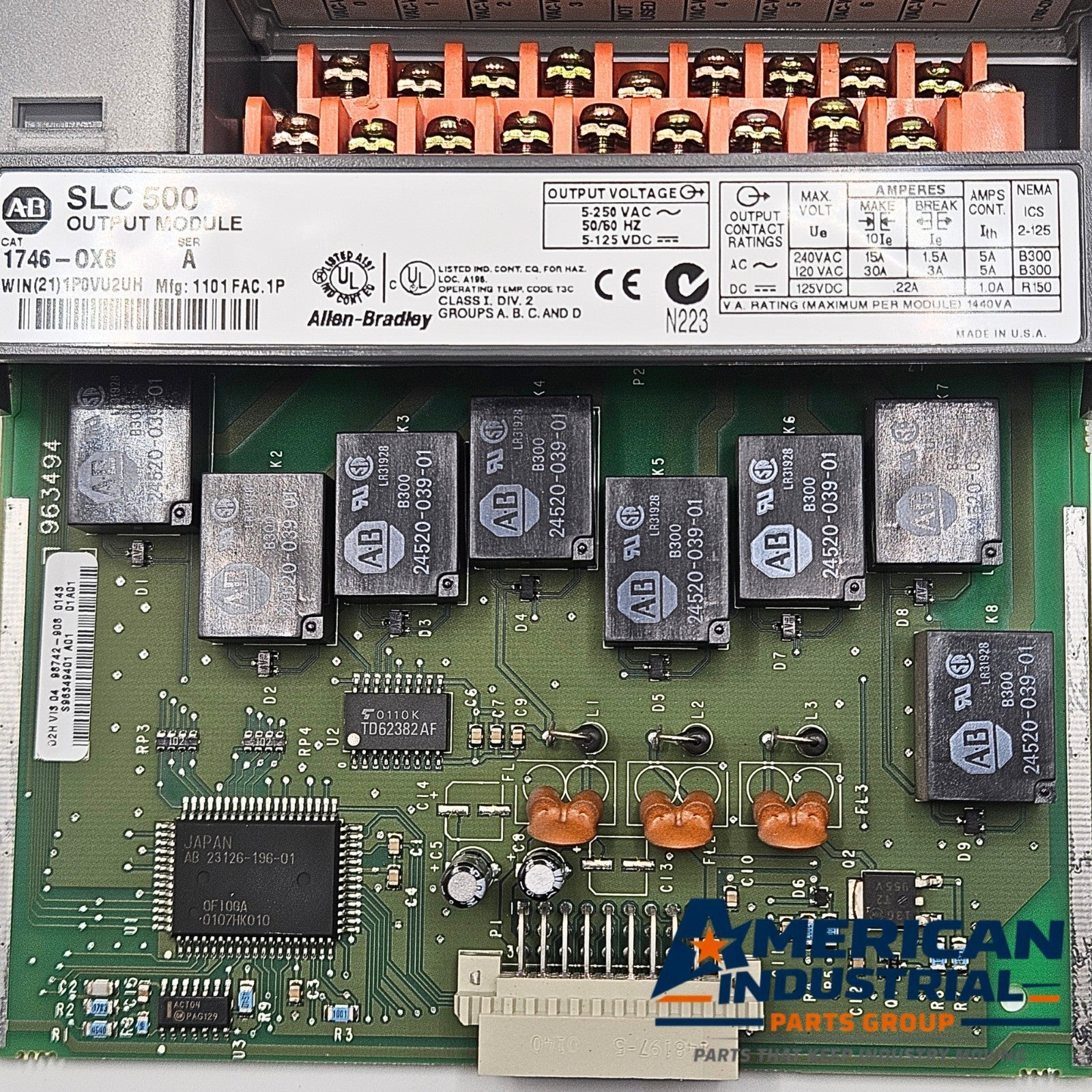

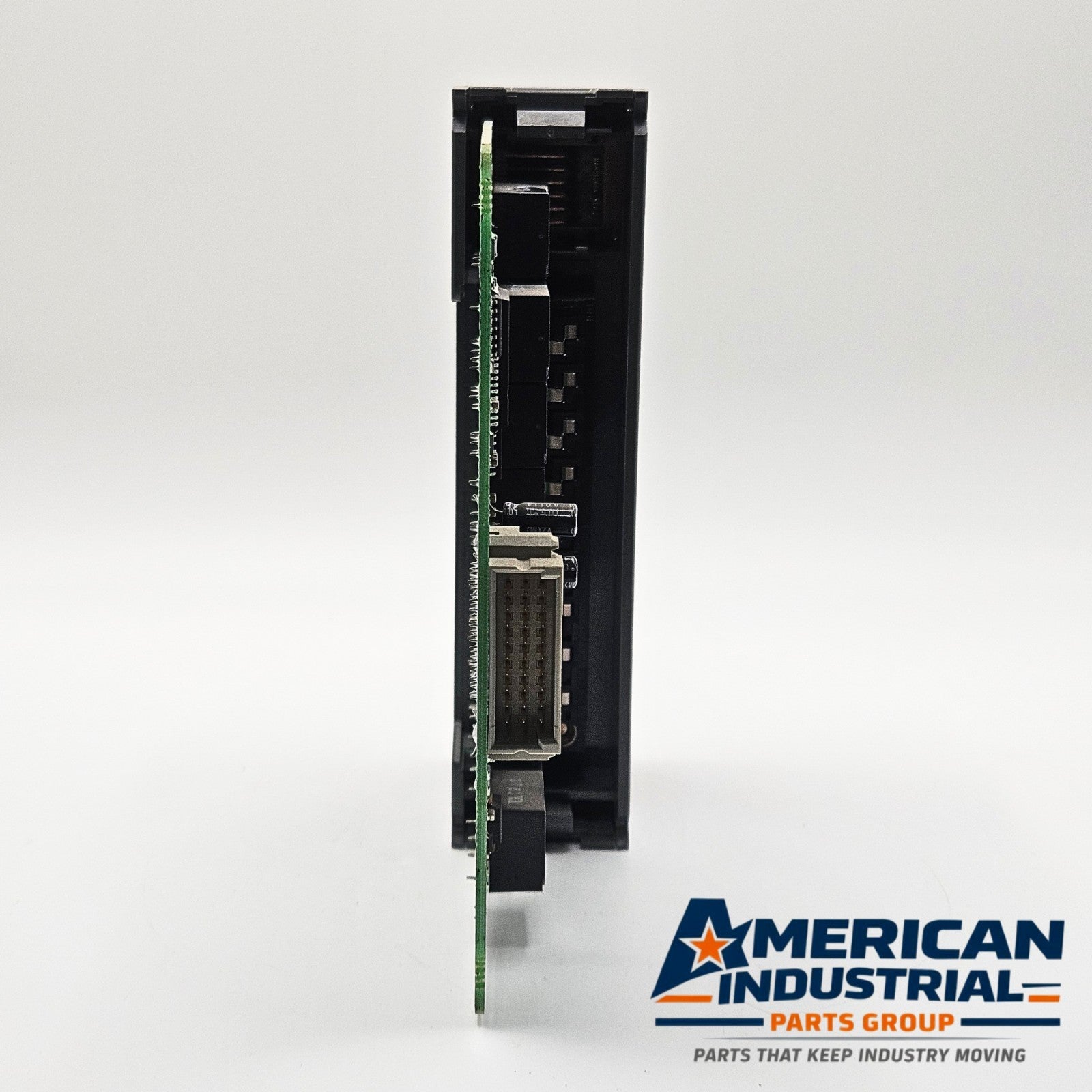

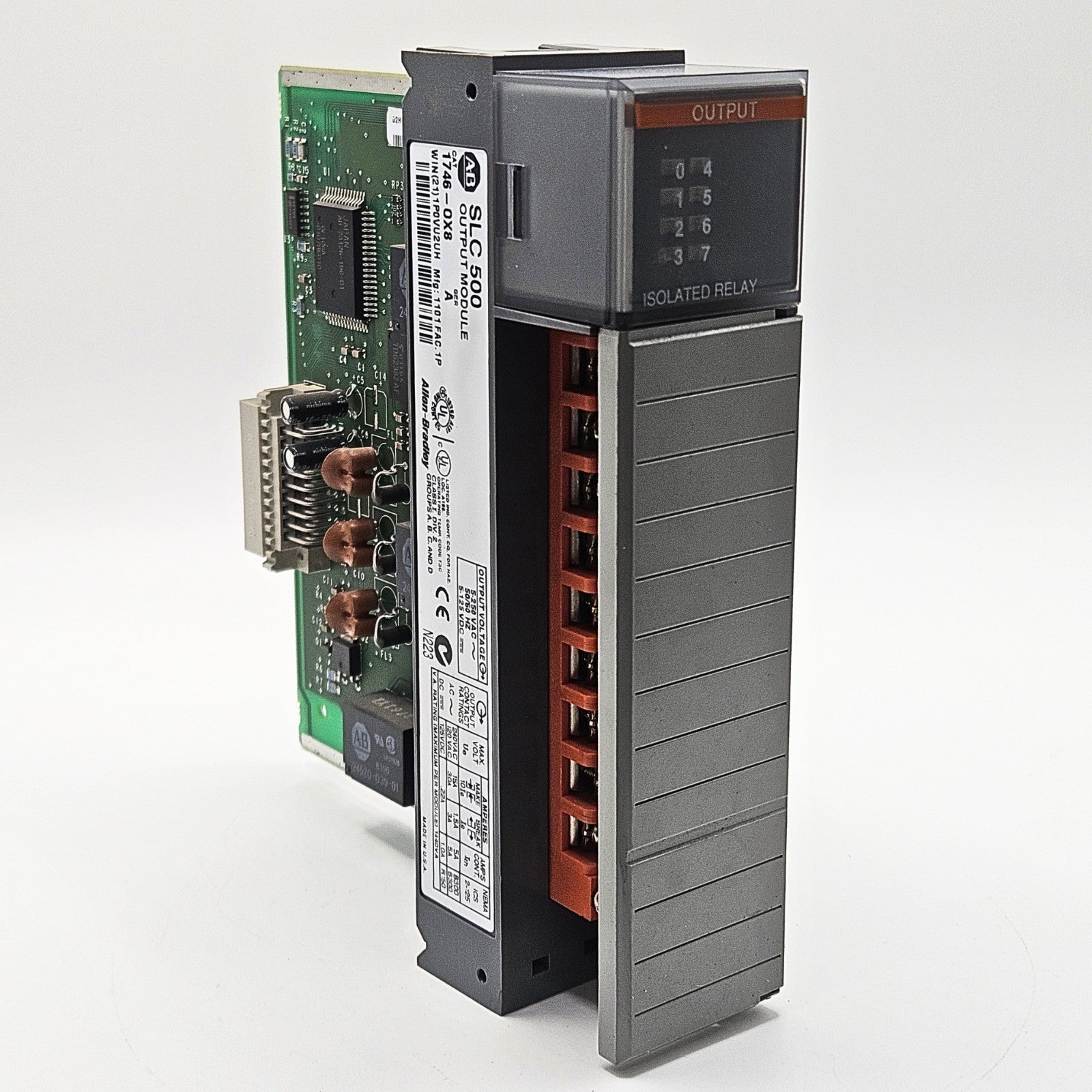

Allen-Bradley 1746-OX8 Series A SLC 500 isolated relay contact output module with 8 individually isolated high-current relay outputs. This discontinued module is commonly used in machine control panels, conveyor systems, packaging equipment, HVAC systems, material handling, motor control centers, and OEM industrial automation applications. Removed from working equipment.
Features:
Allen-Bradley 1746-OX8
Series A
8 Individually Isolated Relay Contact Outputs
5-250V AC / 5-125V DC Output Voltage
5A Make / 1.5A Break @ 240VAC
30A Make / 3A Break @ 120VAC
15A Thermal Current Rating
85mA @ 5VDC / 90mA @ 24VDC Backplane Current

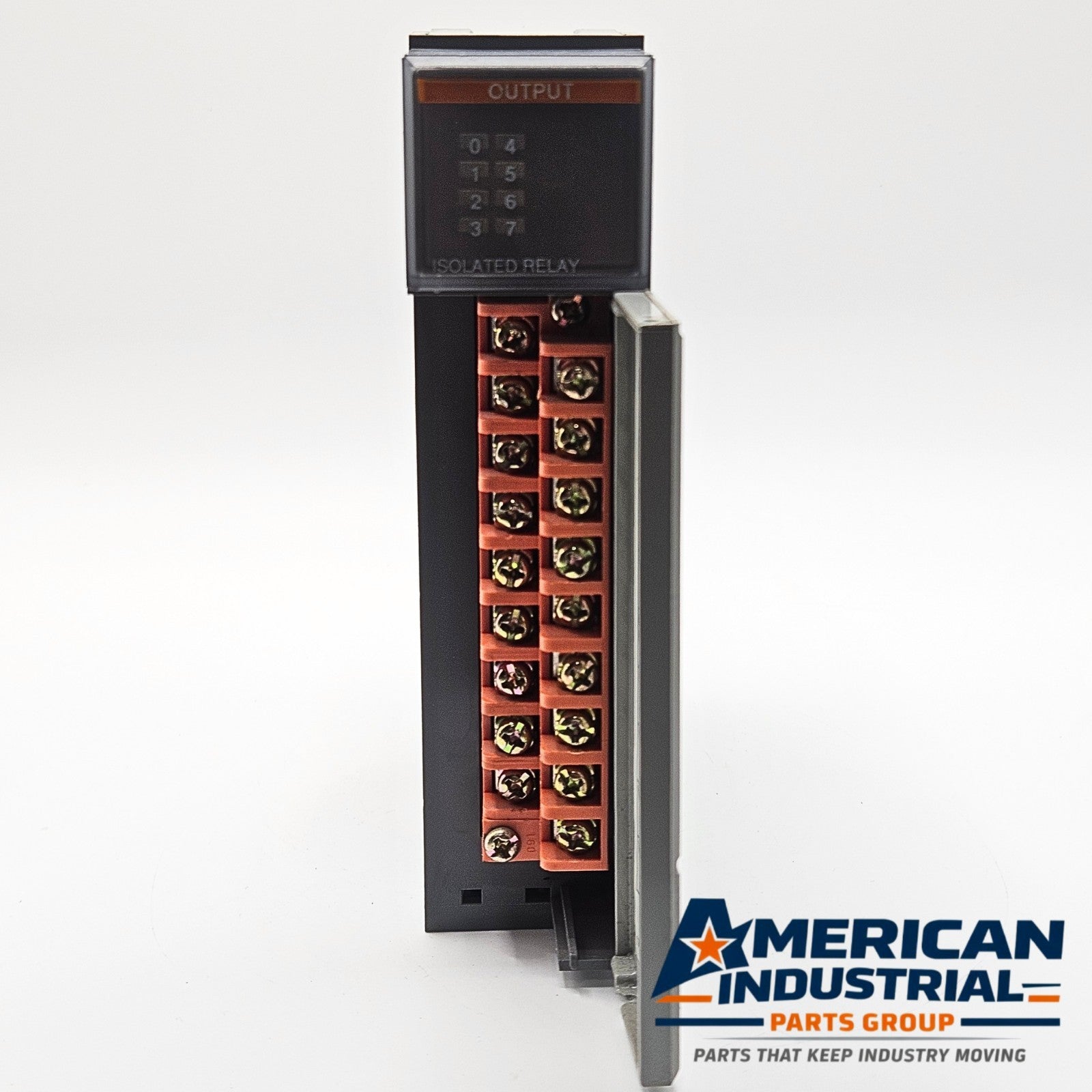

Screw Terminal Connections
SLC 500 Platform Compatible
Made in USA
COMPATIBILITY & CROSS-REFERENCE
Direct replacement for the Allen-Bradley 1746-OX8 Series A SLC 500 relay output module. Mounts directly into a standard SLC 500 rack/chassis alongside other 1746 series I/O modules. This module has been discontinued by Rockwell Automation, making tested used units a practical option for keeping an existing SLC 500 system running. If an output module has faulted, an output point has failed, or your PLC is flagging a module fault, this unit is a ready replacement.
Q: What does this replace? A: Direct replacement for the Allen-Bradley 1746-OX8 Series A relay output module.
Q: What chassis does this fit? A: Standard SLC 500 rack/chassis system.
Q: How many outputs does it have? A: 8 individually isolated relay contact outputs.
DISCLAIMER

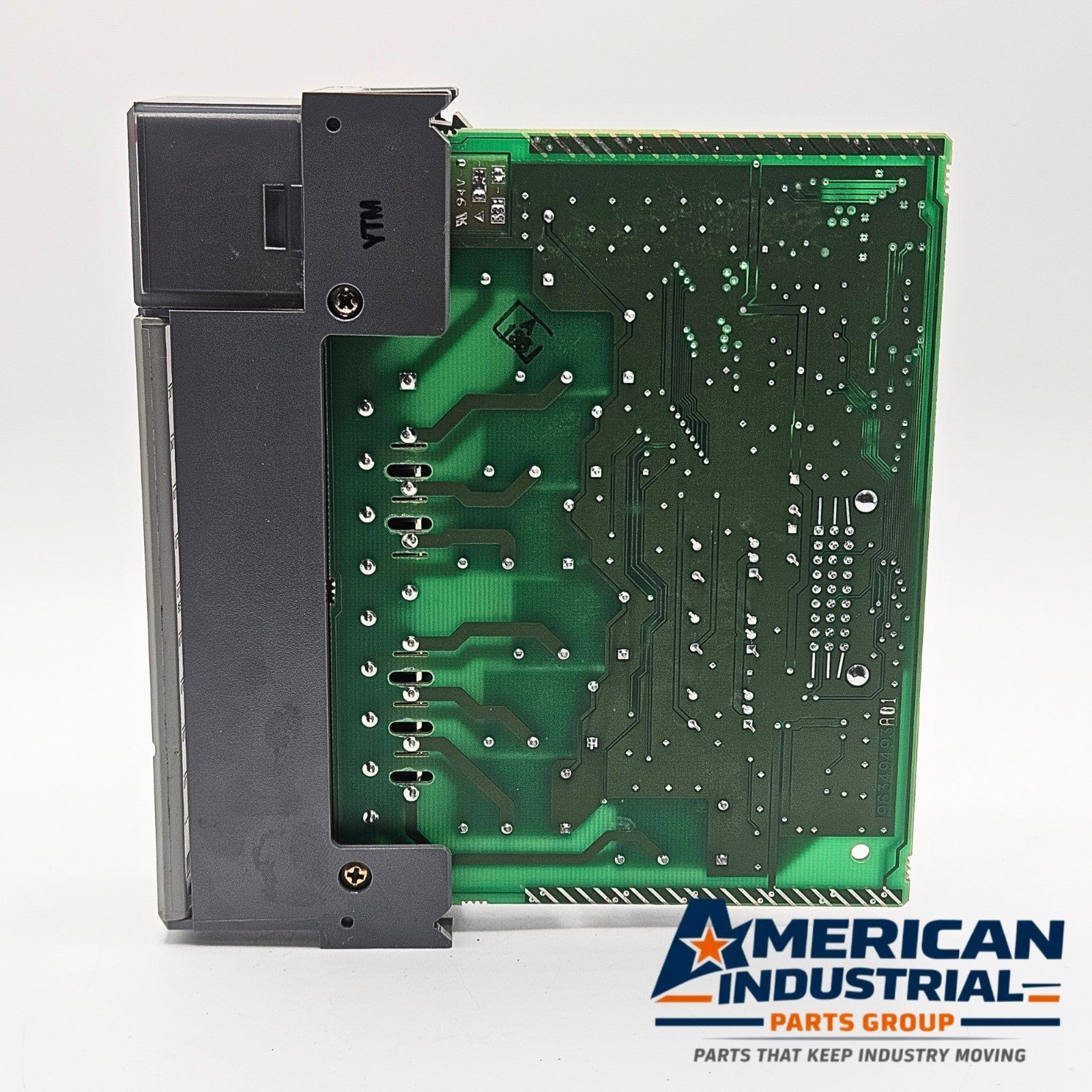

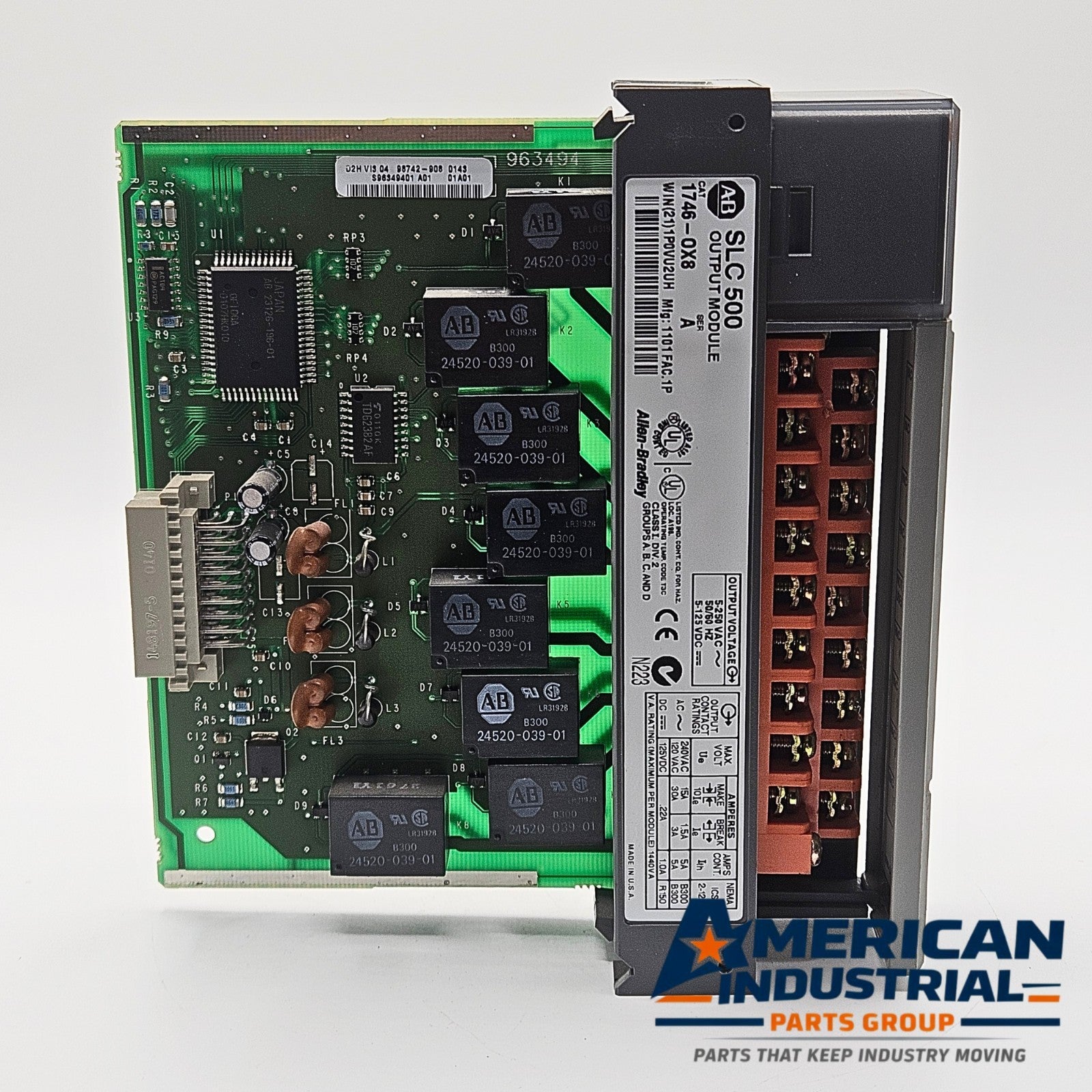

This item is used and was removed from a running operational piece of equipment. May show signs of cosmetic wear (see photos). Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
