ITEM SPECIFICS
Brand: Allen-Bradley
Manufacturer: Rockwell Automation
Model: 1769-IQ16
MPN: 1769-IQ16
Series: Series A
Product Line: Compact I/O
Type: Digital Input Module
Number of Inputs: 16
Input Groups: 2 Groups of 8 Inputs
Input Type: Sinking/Sourcing
Nominal Input Voltage: 24 VDC
Operating Voltage Range: 10–30 VDC at 30°C
Operating Voltage Range at 60°C: 10–26.4 VDC
Input Delay: 8 ms On / 8 ms Off
Backplane Current Draw: 115 mA at 5.1 VDC
24 VDC Bus Current Draw: 0 A
Maximum Heat Dissipation: 3.55 W
Mounting: DIN Rail or Panel Mount
Terminal Type: Removable Screw Terminal Block
Firmware Revision: 3.1

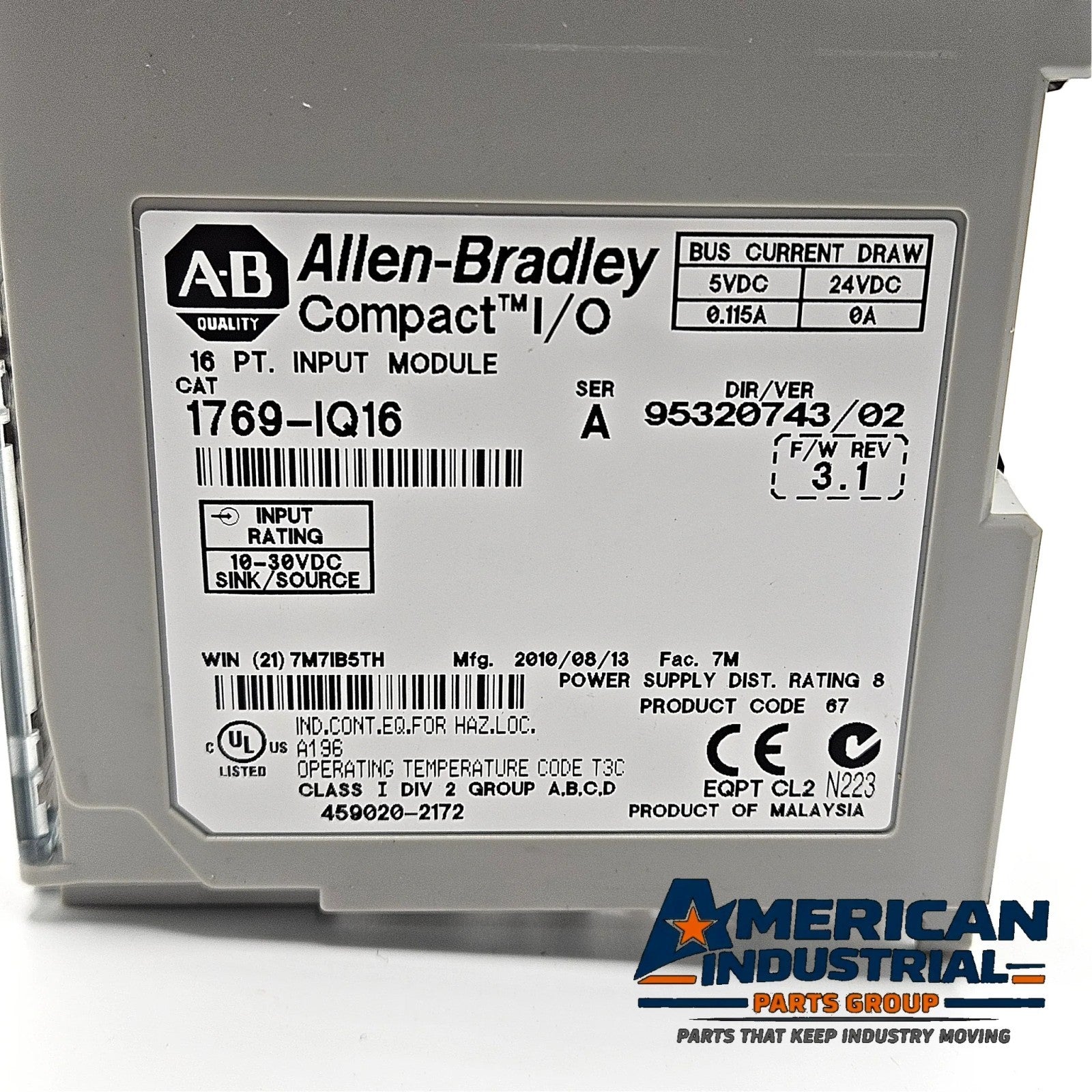

DIR/VER: 95320743/02
Manufacturing Date: August 13, 2010
Country of Manufacture: Malaysia
Approximate Weight: 270 g / 0.60 lb
Condition: New, Never Used Old Surplus – No Original Box
DESCRIPTION

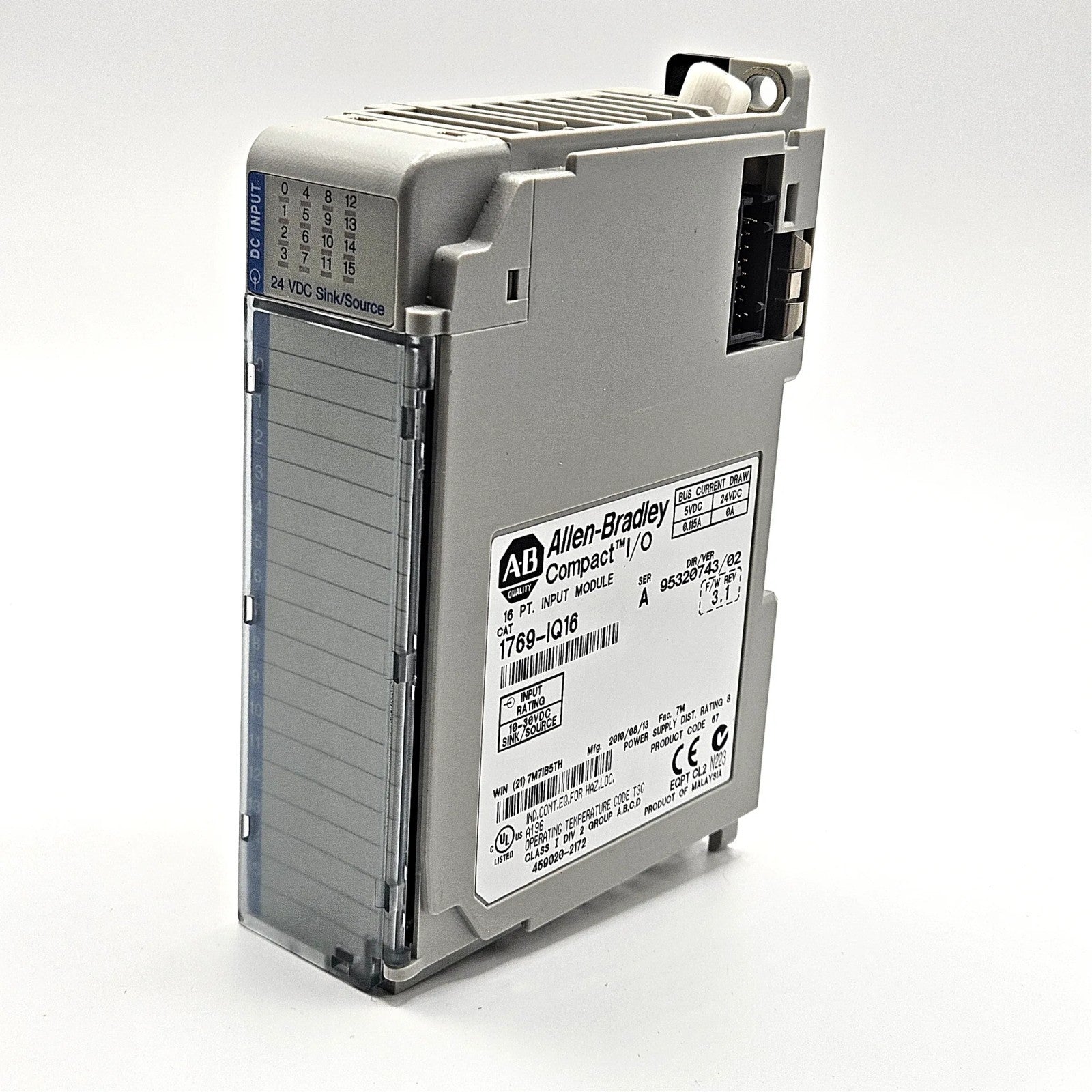

New, never used old surplus Allen-Bradley Compact I/O input module.
No original manufacturer box is included.
Exact catalog number 1769-IQ16.
Series A with firmware revision 3.1.
Manufactured August 13, 2010.
Provides 16 digital DC inputs arranged in two groups of eight.
Supports sinking and sourcing input configurations.
Rated for 24 VDC applications with a 10–30 VDC operating range at 30°C.

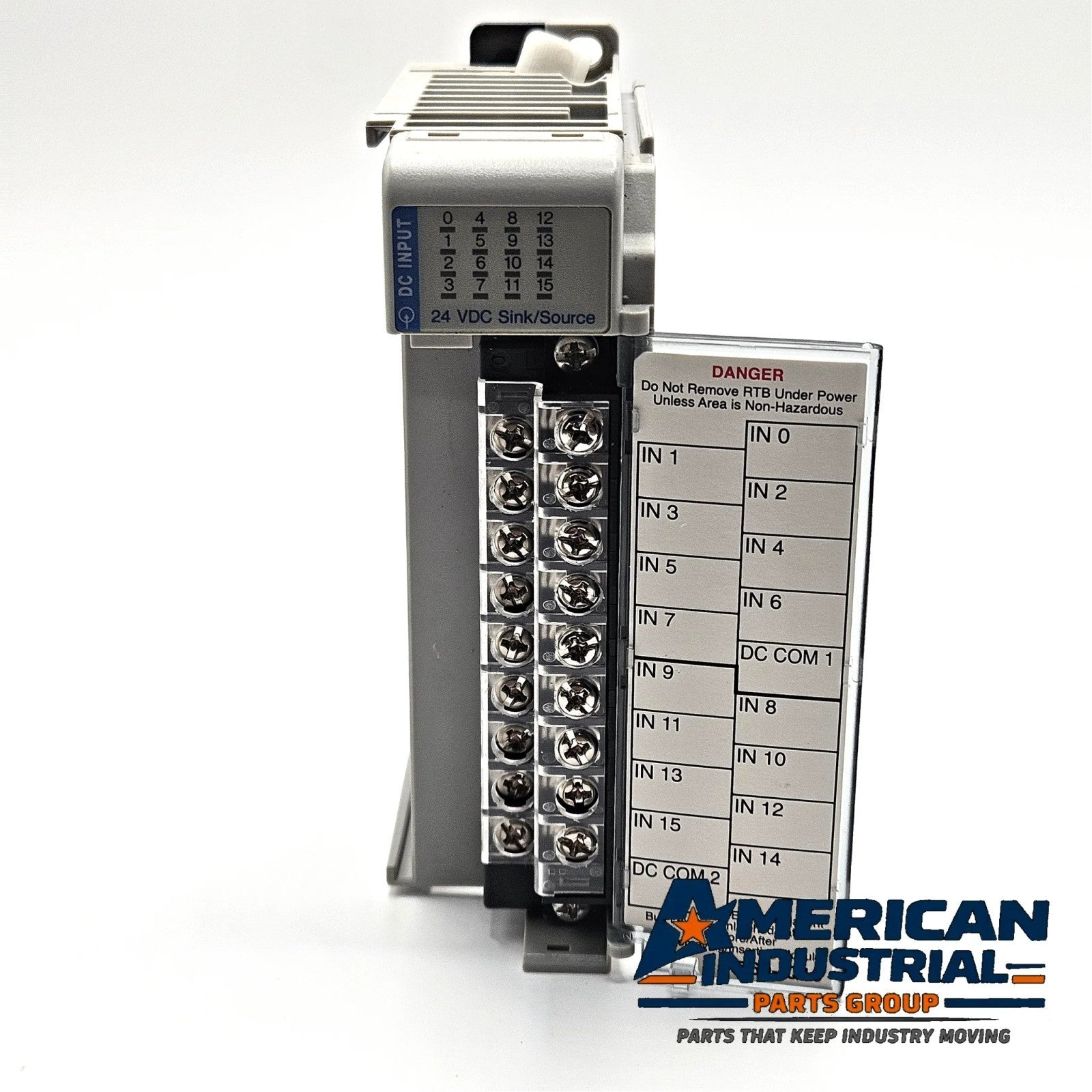

Includes the removable screw terminal block and protective terminal cover shown.
Includes only the exact module and attached components shown in the photographs.
DISCLAIMER
This item is new, never used old surplus and does not include its original manufacturer box. It is an older Series A module manufactured in 2010. The exact module, removable terminal block, and terminal cover shown are included. Please review all photographs and verify the catalog number, series, firmware revision, voltage requirements, and controller compatibility before purchasing.
