ITEM SPECIFICS
Brand: Allen-Bradley
Manufacturer: Rockwell Automation
Model: 1769-OB16
MPN: 1769-OB16
Series: Series B
Firmware Revision: 3.1
Product Family: Compact I/O
Controller Platform: CompactLogix
Type: Digital PLC Output Module
Output Type: DC Sourcing
Number of Outputs: 16
Output Grouping: 16 Points per Group
Nominal Output Voltage: 24 VDC
Operating Voltage Range: 20.4–26.4 VDC
Maximum Current per Point: 1 A at 30°C / 0.5 A at 60°C
Maximum Current per Common: 8 A at 30°C / 4 A at 60°C
Surge Current: 2 A Maximum for 10 ms Every 2 Seconds
Backplane Current Draw: 200 mA at 5.1 VDC
24 VDC Bus Current Draw: 0 A
Maximum Heat Dissipation: 2.11 W
Output Turn-On Delay: 0.1 ms
Output Turn-Off Delay: 1.0 ms
Mounting: DIN Rail or Panel Mount
Terminal Type: Removable Screw Terminal Block
Replacement Terminal Block: 1769-RTBN18
Power-Supply Distance Rating: 8 Modules
Approximate Dimensions: 4.65 x 1.38 x 3.43 in.
Approximate Weight: 0.61 lb.
UPC: 662468992862
Manufacturing Date: August 10, 2010
Country of Manufacture: Malaysia
Condition: New, unused old surplus without original box
DESCRIPTION

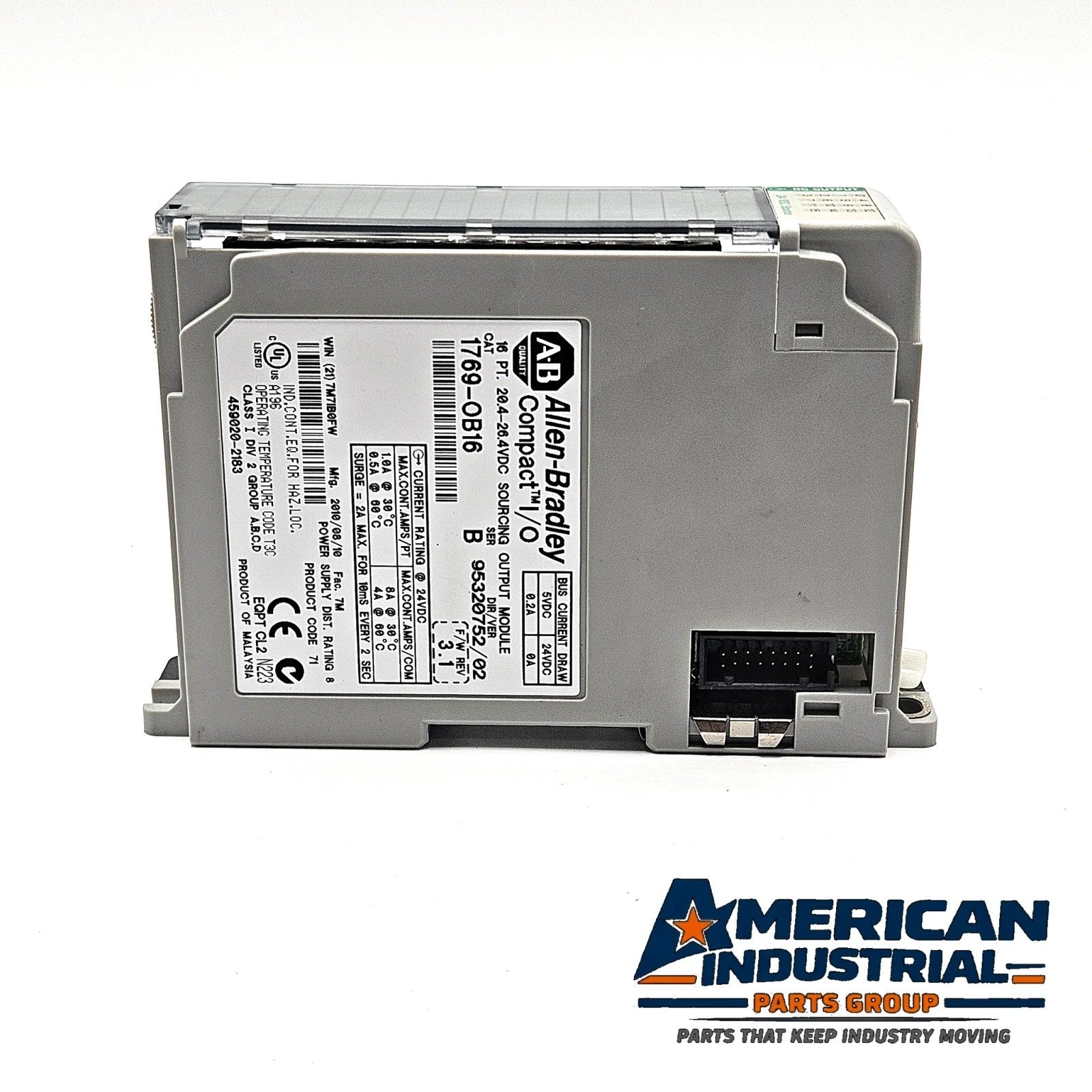

New, never-used Allen-Bradley Compact I/O output module.
Exact catalog number 1769-OB16.
Series B with firmware revision 3.1.
Provides 16 solid-state 24 VDC sourcing outputs.
Operating output-voltage range of 20.4–26.4 VDC.

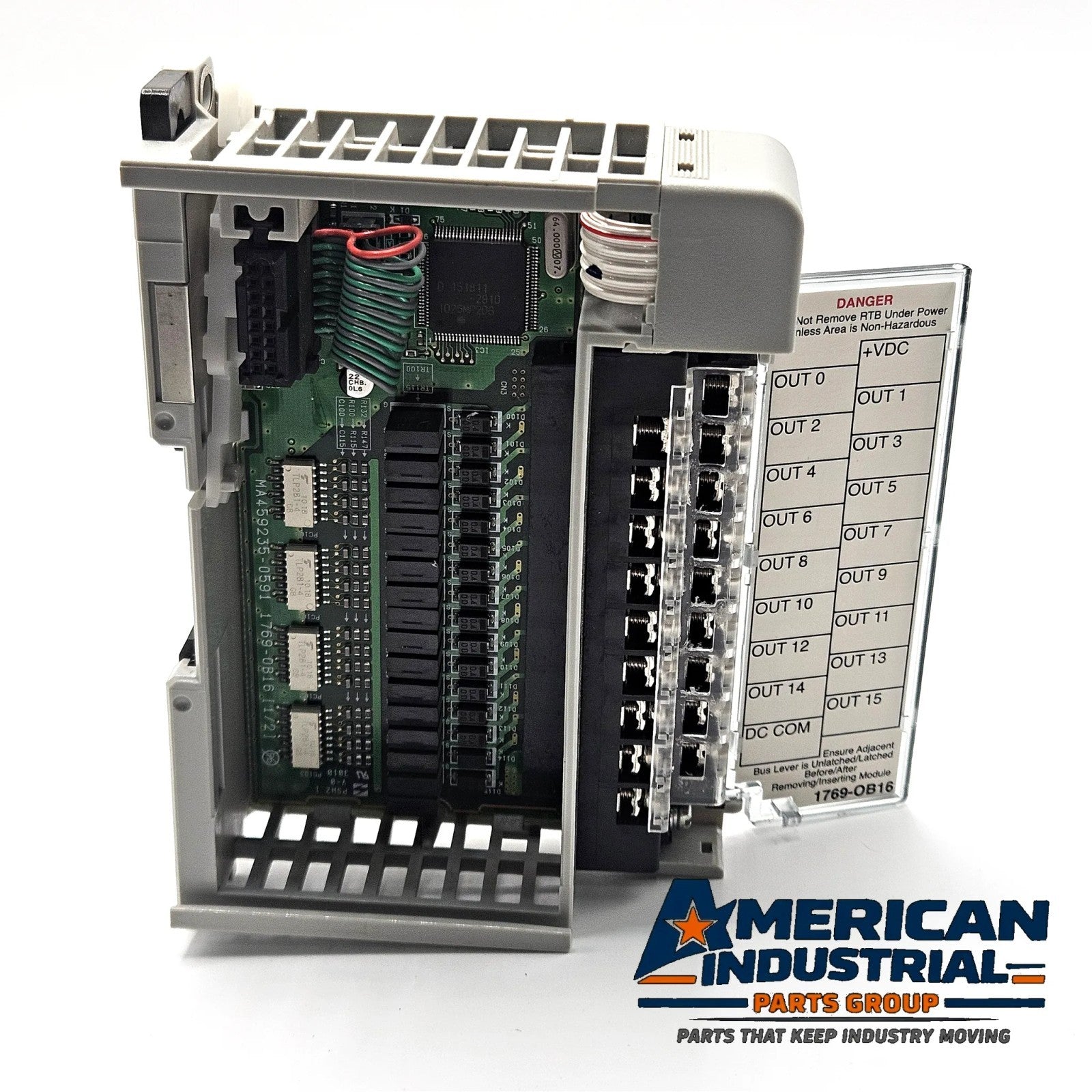

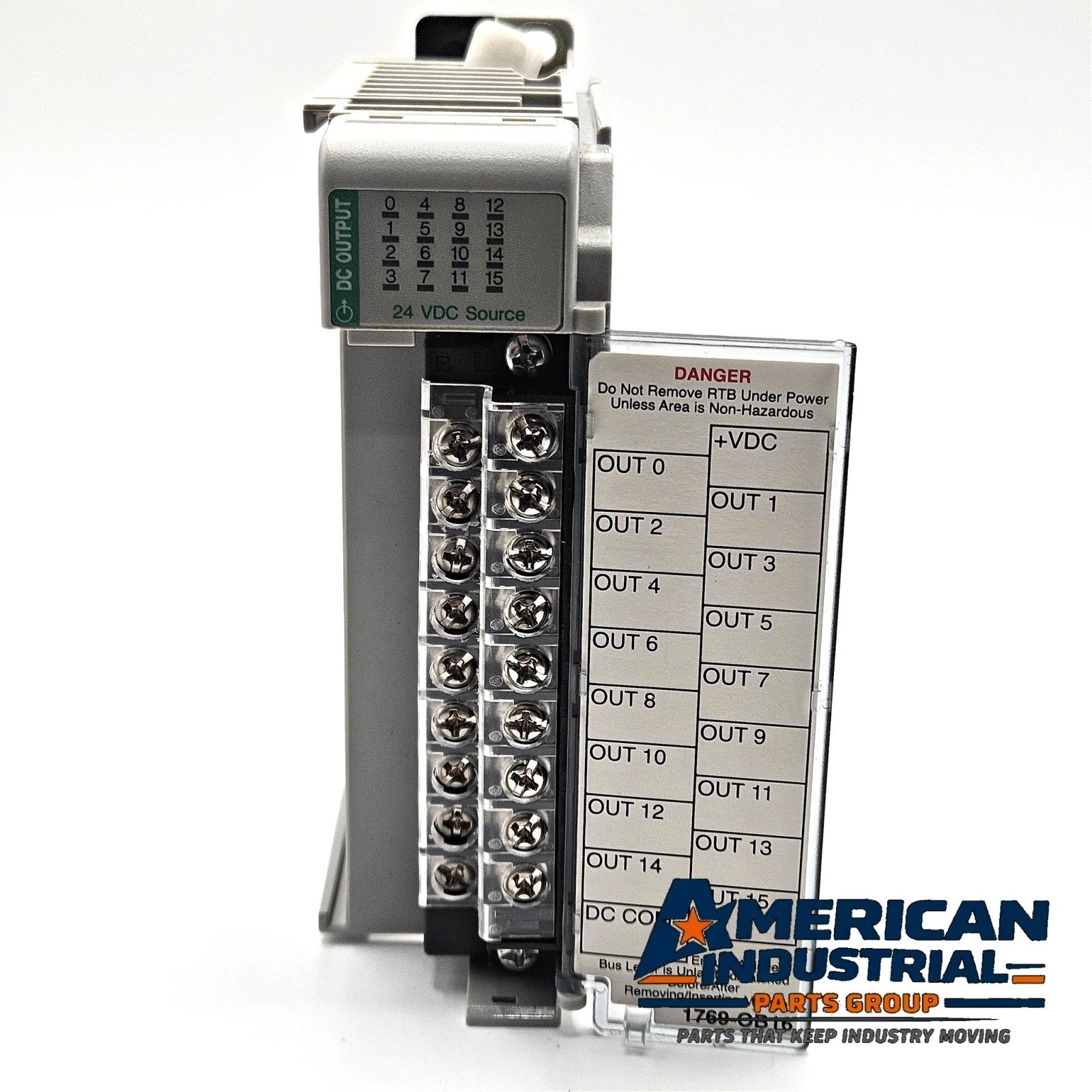

Includes the removable terminal block and terminal identification door shown.
Old surplus inventory without the original factory box.
May show minor cosmetic storage or handling marks from shelf storage.
No installation or operational use is visible.
Includes only the exact module and attached components shown in the photographs.
DISCLAIMER
This item is new, never-used old surplus and does not include the original factory box. The item may show minor cosmetic shelf-storage or handling marks. It has not been represented as factory sealed. Please review all photographs and verify the catalog number, series, firmware revision, voltage, output configuration, terminal requirements, and controller compatibility before purchasing.
