Allen-Bradley 314E121201 120/200 Ohm Cermet Resistor Network 14-Pin New

ITEM SPECIFICS
Brand: Allen-Bradley
Model: 314E121201
MPN: 314E121201
Series: 314E
Type: Cermet Resistor Network
Passive Component Type: Resistor Network
Network Function: Digital Line Termination
R1 Resistance: 120 Ohms
R2 Resistance: 200 Ohms
Characteristic Impedance: 75 Ohms
Resistance Tolerance: ±2%
Temperature Coefficient: ±100 ppm/°C
Package Type: Ceramic Dual-Inline Package
Number of Pins: 14
Lead Spacing: 0.100 in / 2.54 mm
Individual Resistor Rating: 125 mW
Total Package Rating: 1.6 W at 70°C
Operating Temperature Range: -55°C to +125°C
Termination Style: Solder-Coated Through-Hole Leads
Applications: TTL and ECL Digital Line Termination
Additional Marking: 7831
Quantity: 1
Condition: New – Open Box

DESCRIPTION
Allen-Bradley 314E121201 Series 314E cermet resistor termination network in a 14-pin ceramic dual-inline package. The 121 and 201 resistance codes identify 120-ohm R1 and 200-ohm R2 values, providing a 75-ohm characteristic impedance.
Designed for digital line termination applications, including TTL and ECL circuits.

Features:
Allen-Bradley 314E121201
Series 314E
120-Ohm R1 Resistance
200-Ohm R2 Resistance
75-Ohm Characteristic Impedance
±2% Resistance Tolerance
14-Pin Ceramic DIP Package
0.100-Inch / 2.54 mm Lead Spacing
Through-Hole Mounting
Quantity of One Component

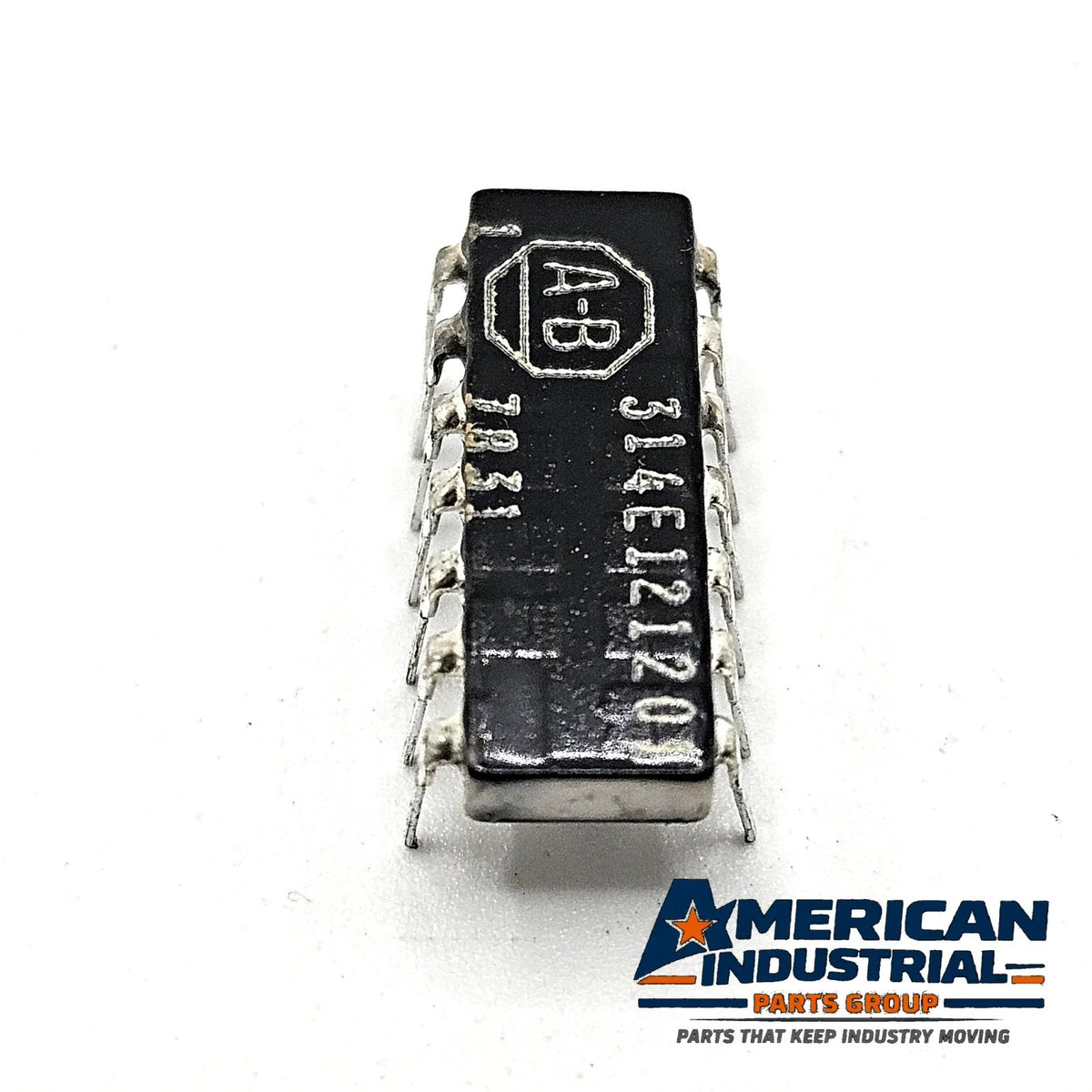

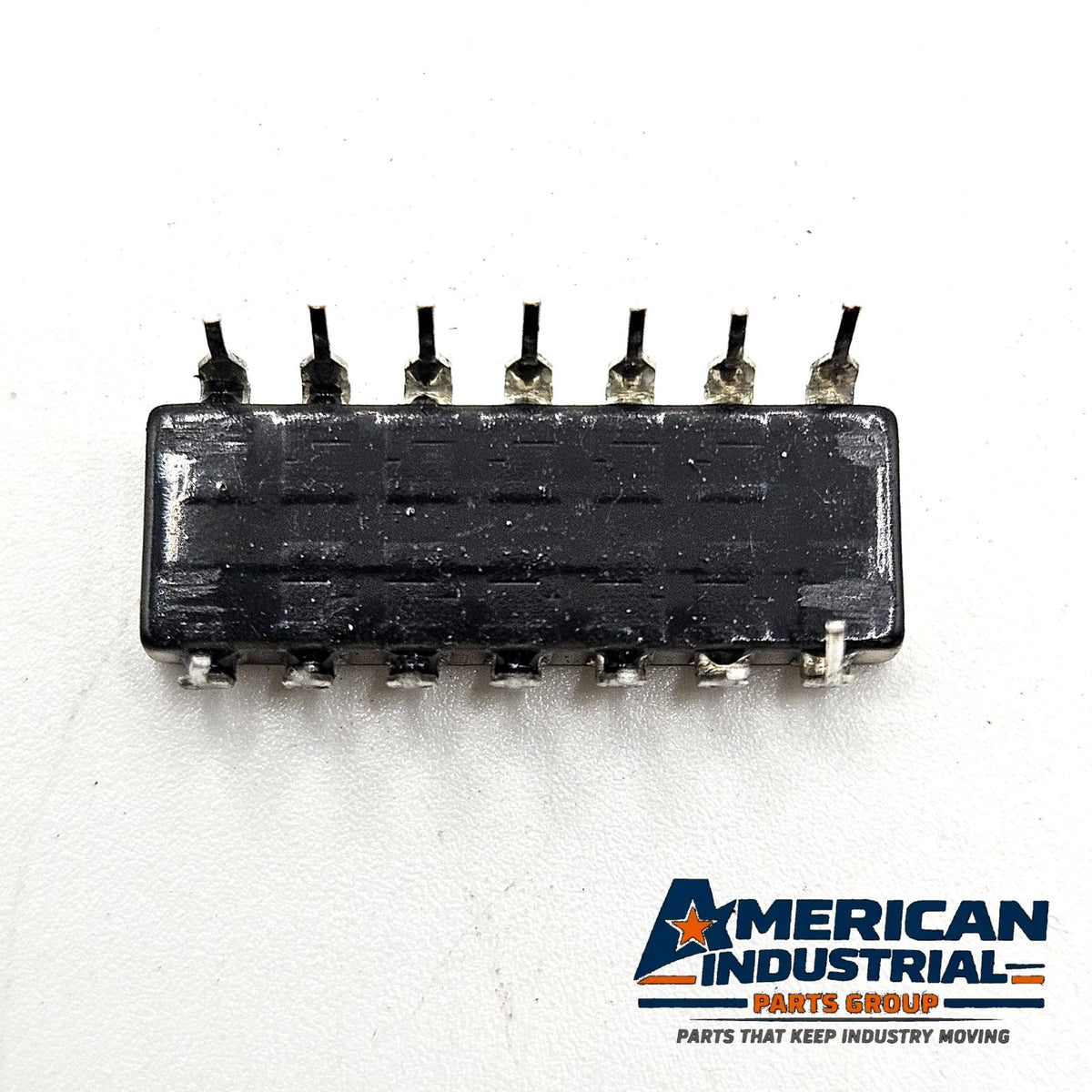

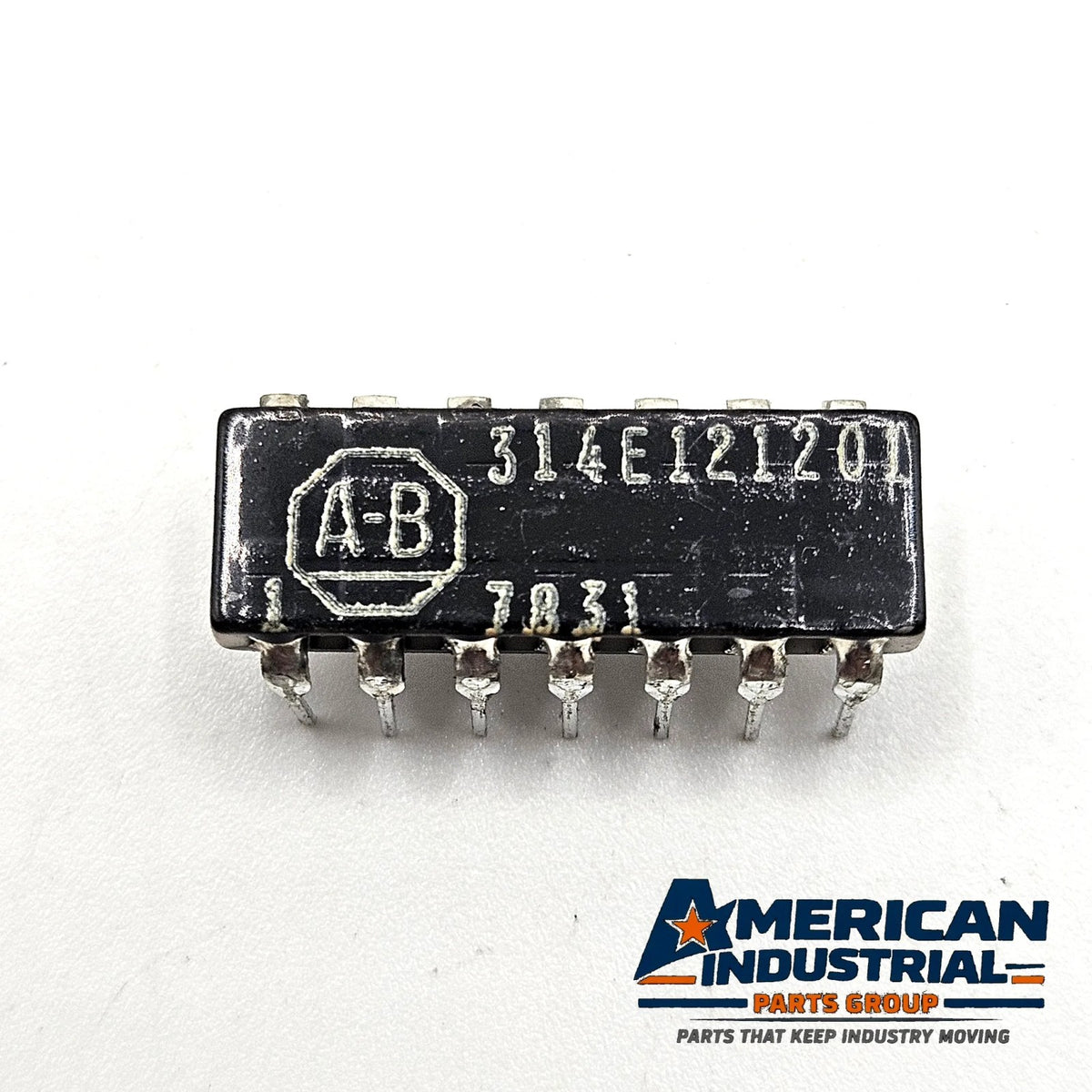

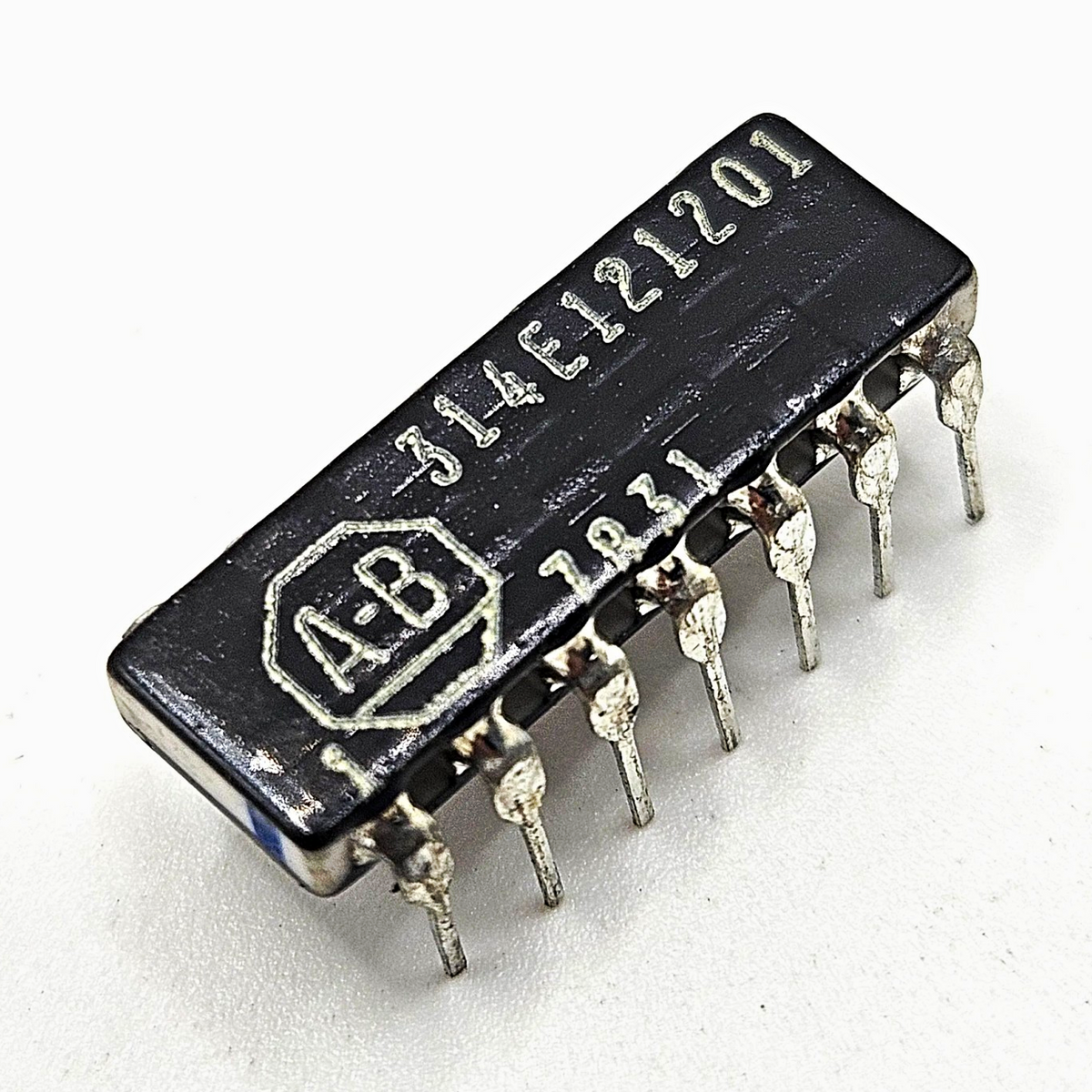

This component came from a new sealed package. The package was opened for identification and photography. The component has not been electrically tested. Please review all photographs for its exact physical condition and lead configuration.

COMPATIBILITY & CROSS-REFERENCE
Direct replacement for an existing Allen-Bradley 314E121201 digital line termination network (120 ohm / 200 ohm, 75 ohm characteristic impedance, 14-pin ceramic DIP). No cross-reference to another brand has been confirmed. If substituting another maker's network, verify both resistance values, circuit configuration, and pinout.

Q&A
Q: What is an Allen-Bradley 314E121201?
A: A 14-pin ceramic DIP cermet resistor network for TTL and ECL digital line termination, with 120 ohm and 200 ohm resistors giving 75 ohm characteristic impedance.
Q: What does 121201 mean?
A: 121 is the 120 ohm R1 value and 201 is the 200 ohm R2 value.
Q: What replaces a 314E121201?
A: This 314E121201 is a direct replacement. No other-brand equivalent has been confirmed.
