Allen-Bradley 700-HC24Z24-3-4 Ice Cube Relay 24VDC 4PDT w/ 700-HN103 Base Used
Allen-Bradley 700-HC24Z24-3-4 Ice Cube Relay 24VDC 4PDT w/ 700-HN103 Base Used
Regular price
$24.95 USD
Regular price
Sale price
$24.95 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Allen-Bradley
Model: 700-HC24Z24-3-4 (relay) / 700-HN103 (base)
MPN: 700-HC24Z24-3-4
Series: Relay Ser D; Base Ser C
Type: 700-HC Miniature Ice Cube Plug-In Relay with Socket
Coil Voltage: 24 VDC
Contact Configuration: 4PDT (4 changeover)
Contact Material: Silver
Thermal Current (Ith): 7 A
Contact Ratings: 7 A 24 VDC; 1/8 HP 120 VAC; 1/3 HP 240 VAC; C300, R300 pilot duty
Options: Push-to-test with manual override (-3), LED indicator (-4)
Pins: 14 blade
Base Rating: 10 A 300 V (UL); 10 A 250 V (CSA), max 20 A TL
Base Mounting: DIN rail or panel, screw terminals
Certifications: cULus, CSA, CE
Country of Manufacture: Italy
Condition: Used
Quantity: 1 relay + 1 base
DESCRIPTION

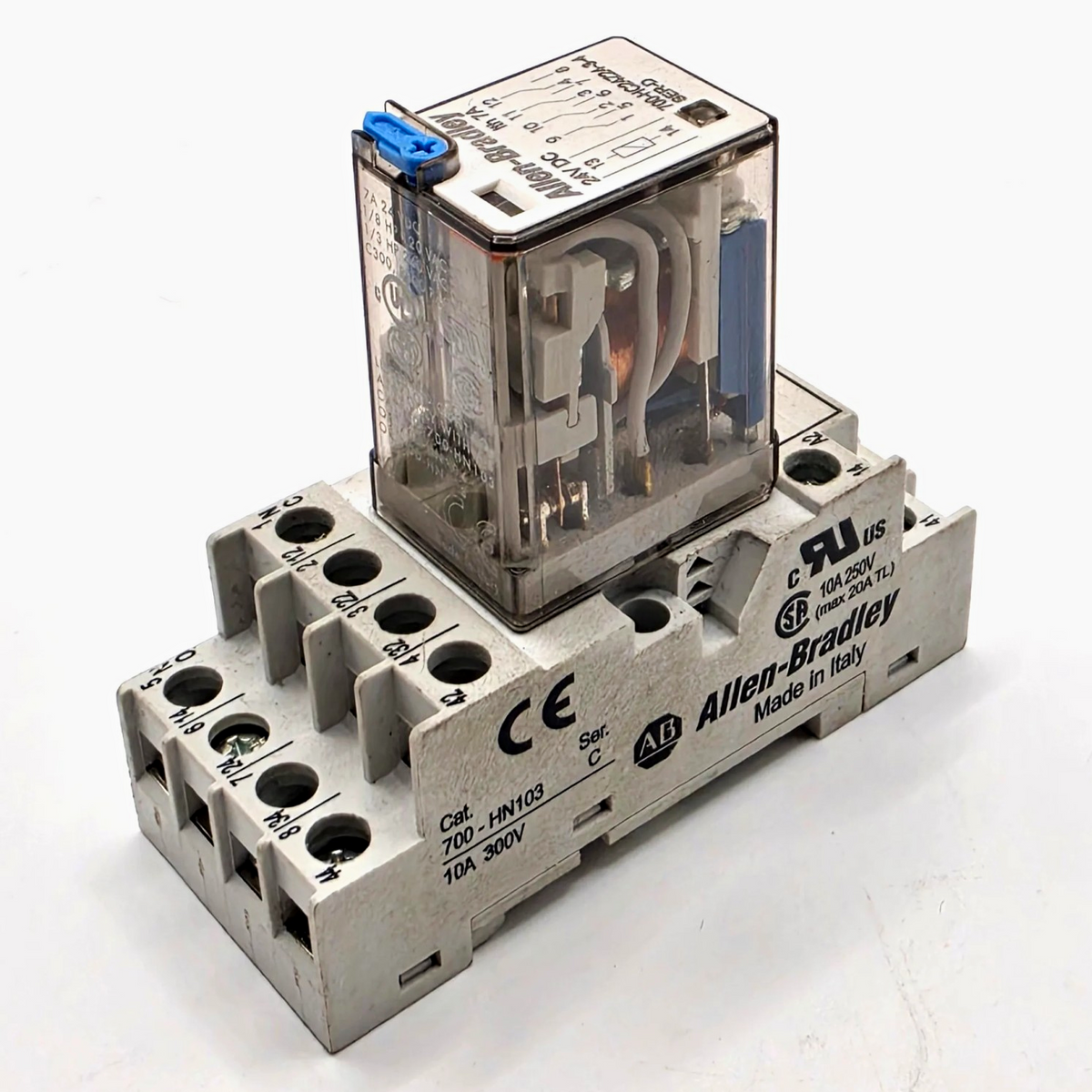

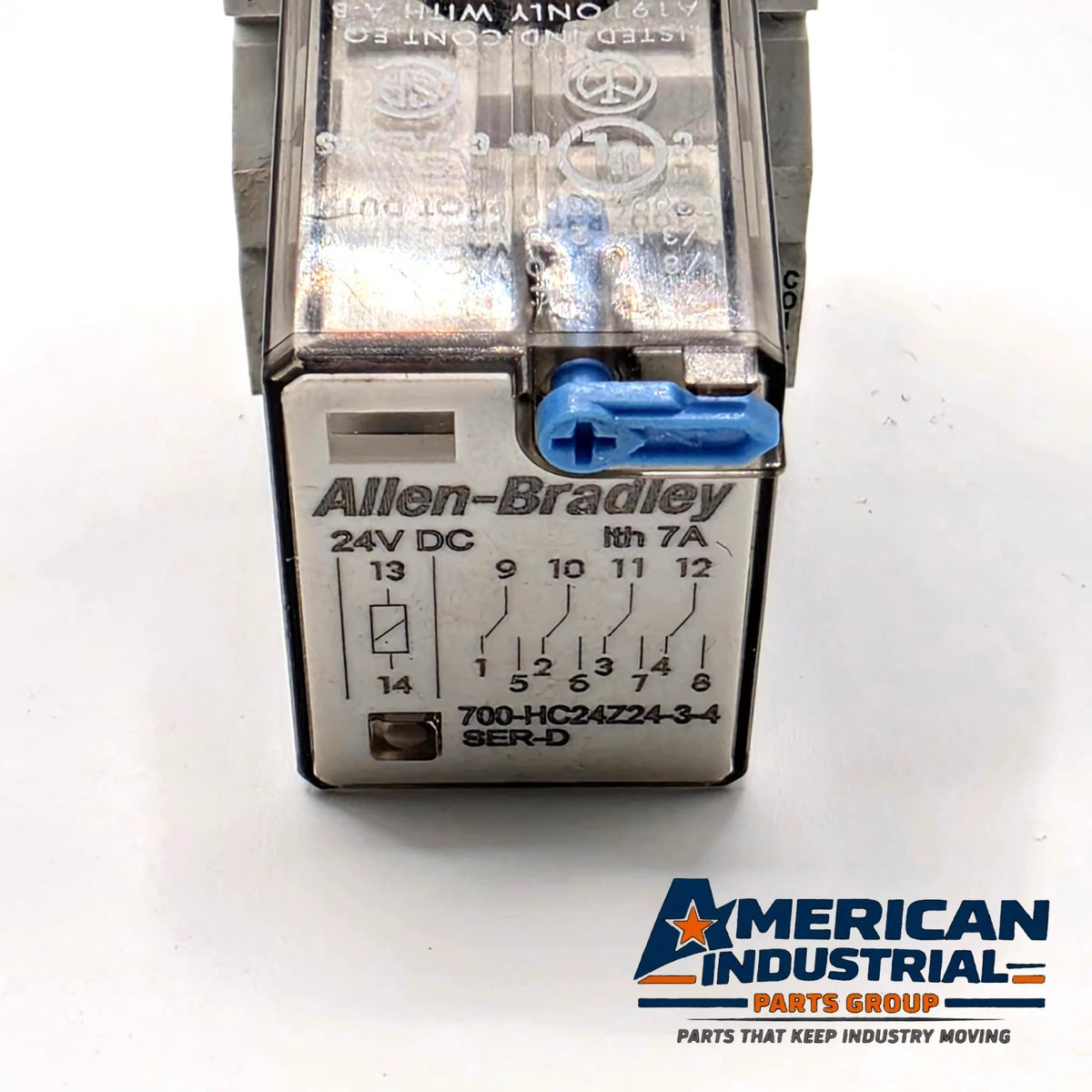

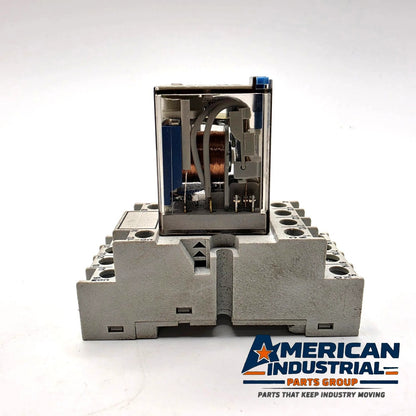

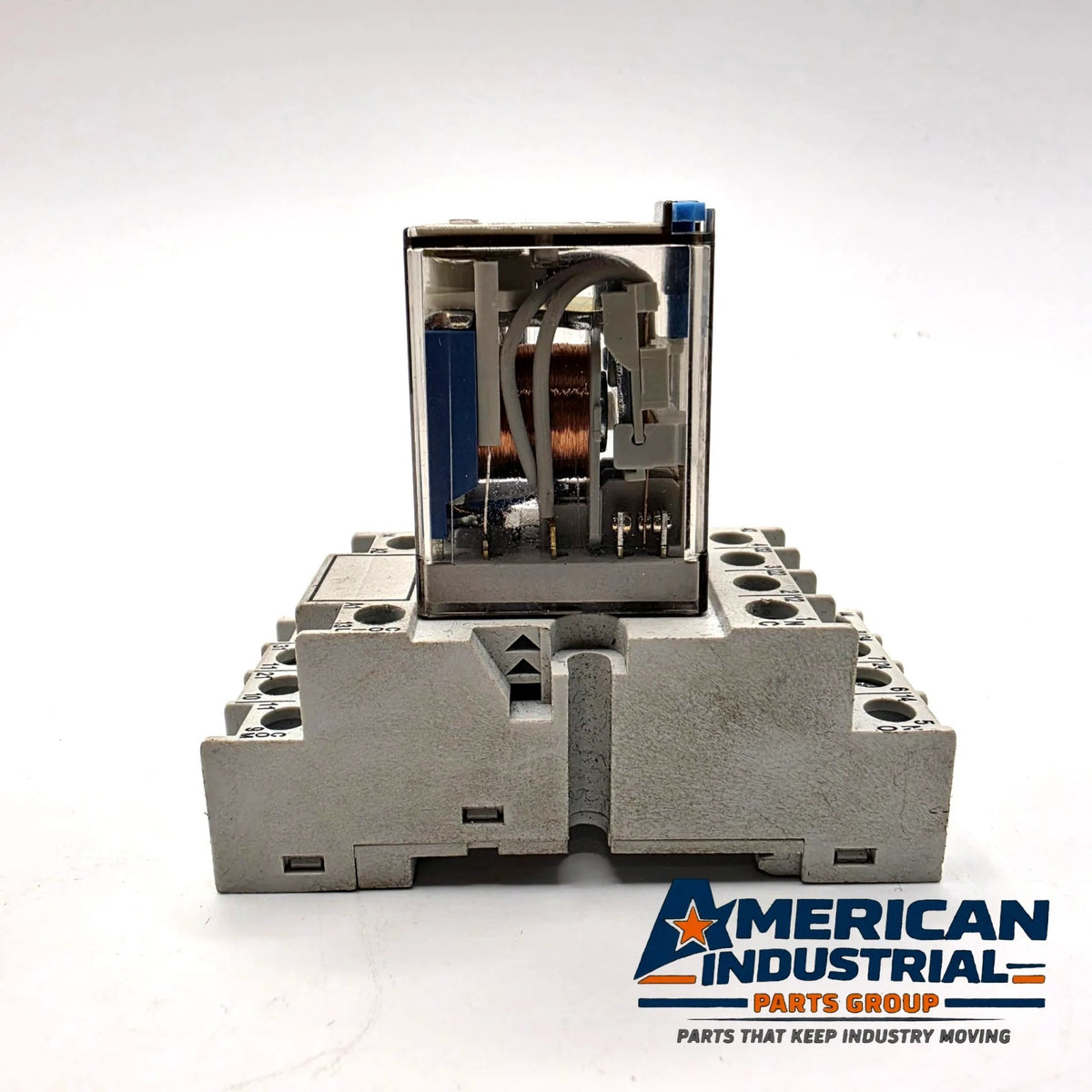

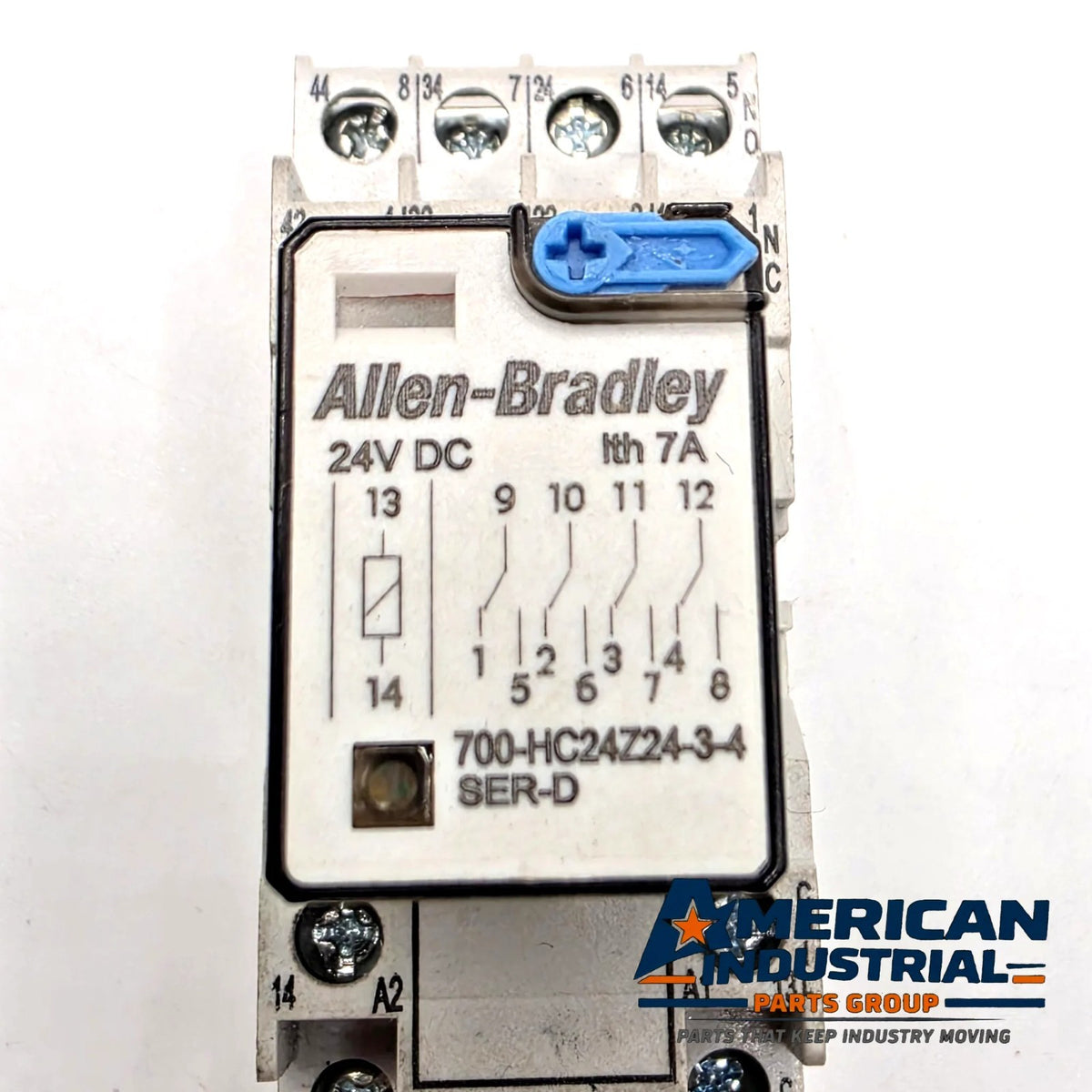

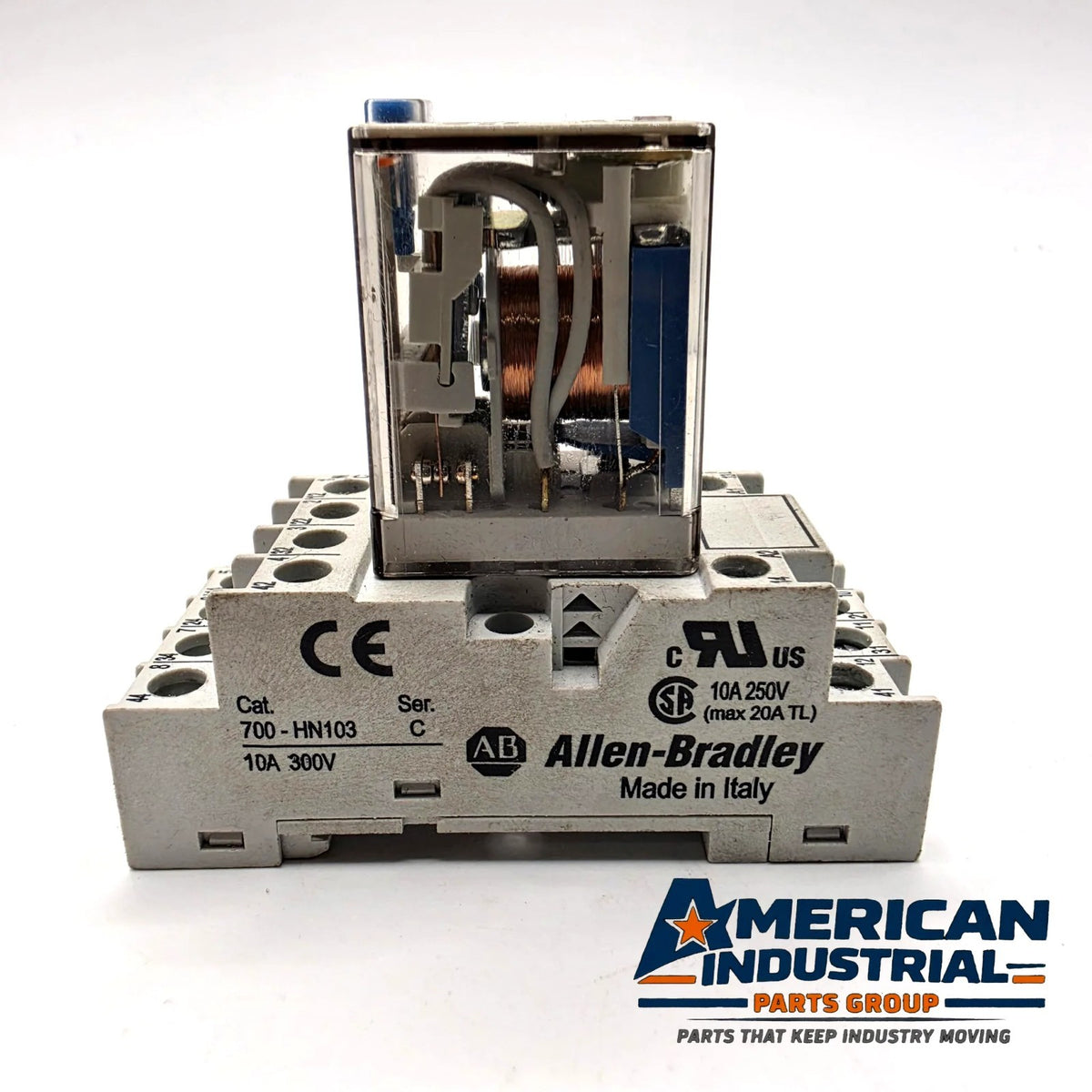

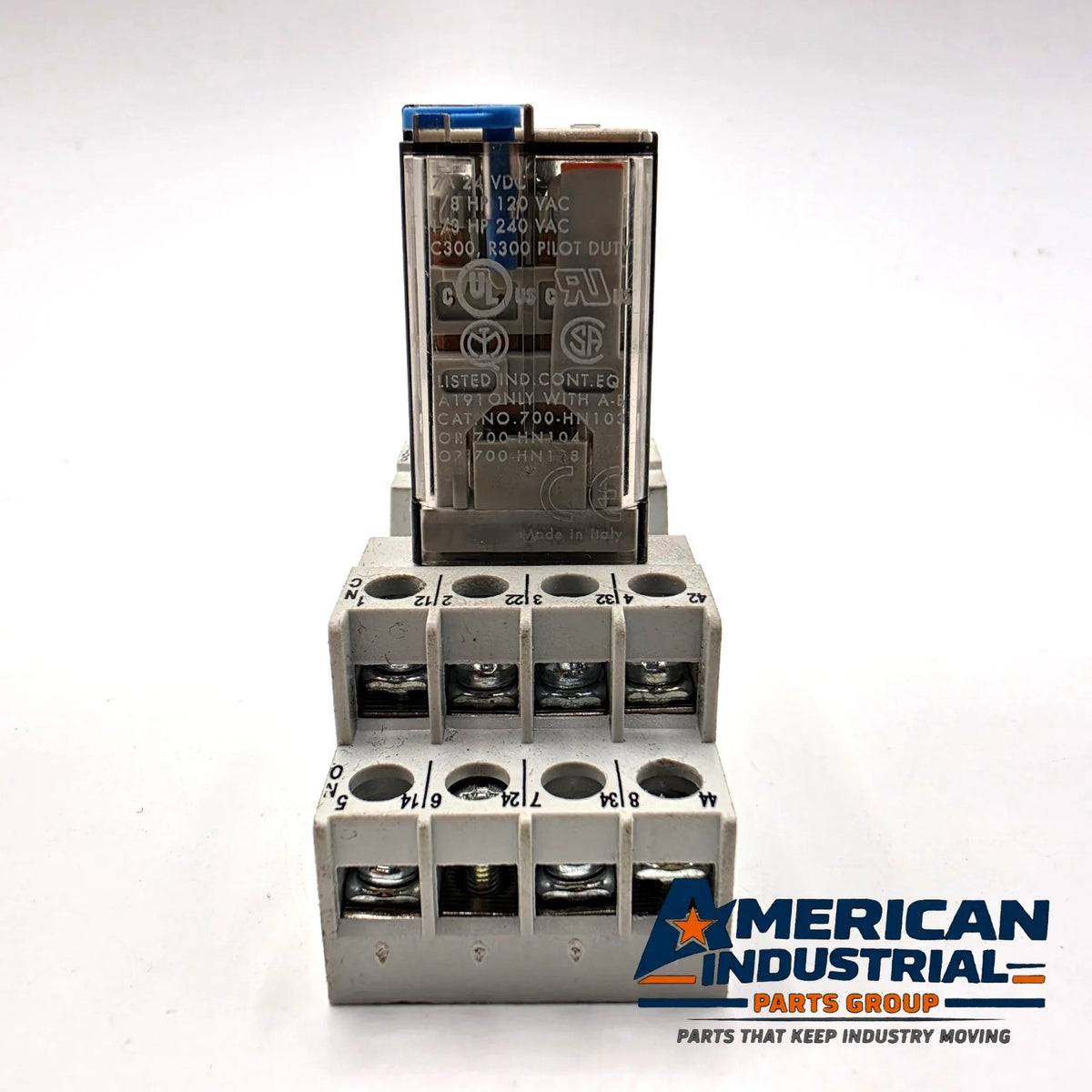

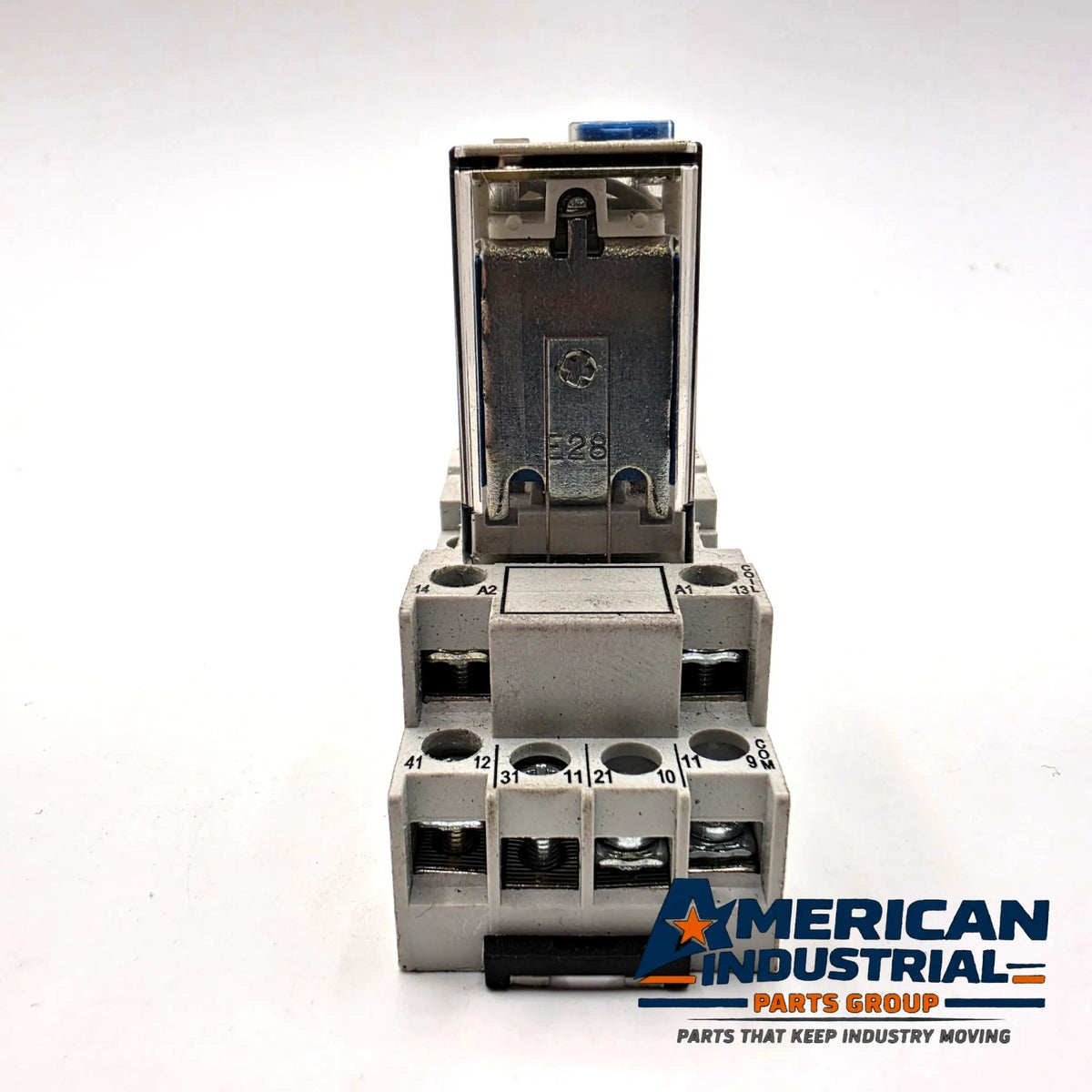

Used Allen-Bradley 700-HC24Z24-3-4 Series D miniature ice cube relay with a 24 VDC coil and 4PDT contacts rated 7 A, sold mounted in its Allen-Bradley 700-HN103 Series C 14-blade socket. The relay cover reads "Allen-Bradley 24V DC, Ith 7A, 700-HC24Z24-3-4 SER-D." The side ratings read "7A 24VDC, 1/8 HP 120VAC, 1/3 HP 240VAC, C300, R300 Pilot Duty," and the cover lists the 700-HN103, 700-HN104 and 700-HN128 sockets for use with it. The base is marked "Cat. 700-HN103 Ser. C, 10A 300V, Made in Italy" with cULus, CSA and CE marks. The blue push-to-test tab, LED window and all terminal screws are present. Light dust and handling marks on the base and cover, as pictured.
The 700-HC is Allen-Bradley's general-purpose miniature ice cube relay for control panels, machine control and PLC output interposing. The -3 option adds a push-to-test button with lockable manual override, so you can operate the contacts without powering the coil. The -4 option adds an LED that shows coil status. The 700-HN103 socket has labeled screw terminals for all four poles and the coil (A1/A2), and it mounts on DIN rail or panel.
Features:
24 VDC coil, 4PDT, 7 A thermal current
1/8 HP at 120 VAC, 1/3 HP at 240 VAC
C300 / R300 pilot duty
Push-to-test with lockable manual override
LED coil status indicator
700-HN103 14-blade DIN-rail socket with screw terminals
cULus, CSA, CE
Compatibility:
Direct replacement for the Allen-Bradley 700-HC24Z24-3-4 and the 700-HN103 socket. The relay also fits the 700-HN104 and 700-HN128 sockets. It replaces 700-HC24Z24 (no options), 700-HC24Z24-3 (push-to-test only) and 700-HC24Z24-4 (LED only) where 24 VDC 4PDT operation is needed. This relay needs a 14-blade socket and will not fit 8-pin or 11-pin octal sockets.
Q&A
Q: What do the -3 and -4 suffixes mean?
A: -3 is the push-to-test button with manual override. -4 is the LED status indicator. This relay has both.
Q: Is the base included?
A: Yes. It comes mounted in a 700-HN103 Series C socket, as pictured.
Q: What coil voltage is this?
A: 24 VDC.
Q: Can it be DIN-rail mounted?
A: Yes. The 700-HN103 socket clips onto standard 35 mm DIN rail and can also be panel-mounted.
Q: How many contacts does it have?
A: Four changeover contacts (4PDT), each with a common, a normally open and a normally closed terminal.
DISCLAIMER
Item is used, sold as pictured. Not tested beyond visual inspection. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
