AMD DAC-08CQ 8-Bit High-Speed D/A Converter Ceramic DIP Vintage NOS

ITEM SPECIFICS

Brand: Advanced Micro Devices
MPN: DAC-08CQ
Model: DAC-08CQ
Type: Digital-to-Analog Converter IC
Function: 8-Bit High-Speed Multiplying D/A Converter
Resolution: 8-Bit
Nonlinearity: ±0.39%
Typical Settling Time: 85 ns
Operating Temperature Range: 0°C to +70°C
Package / Case: 16-Pin Ceramic DIP
Mounting Style: Through-Hole
Number of Pins: 16
Condition: New Old Stock

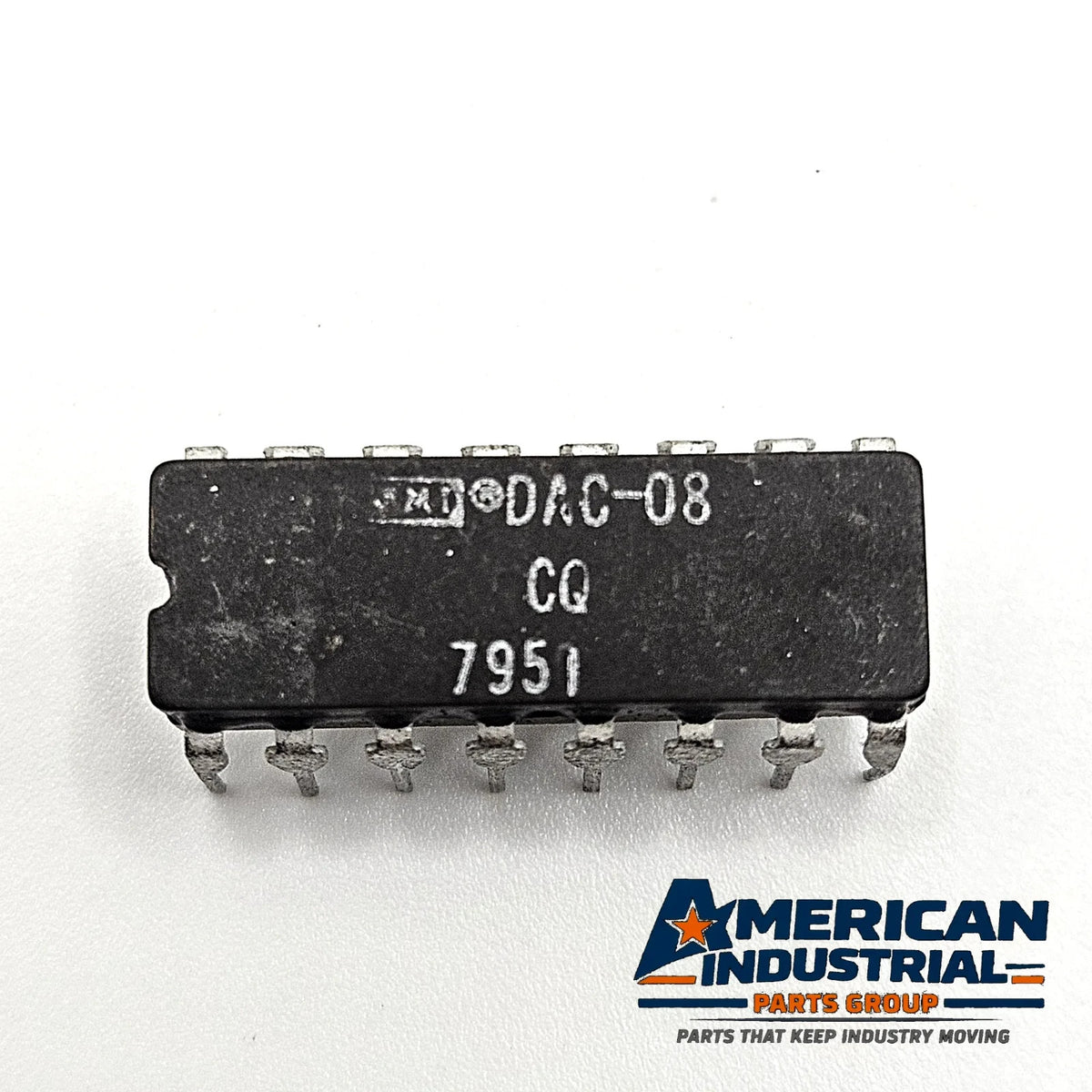

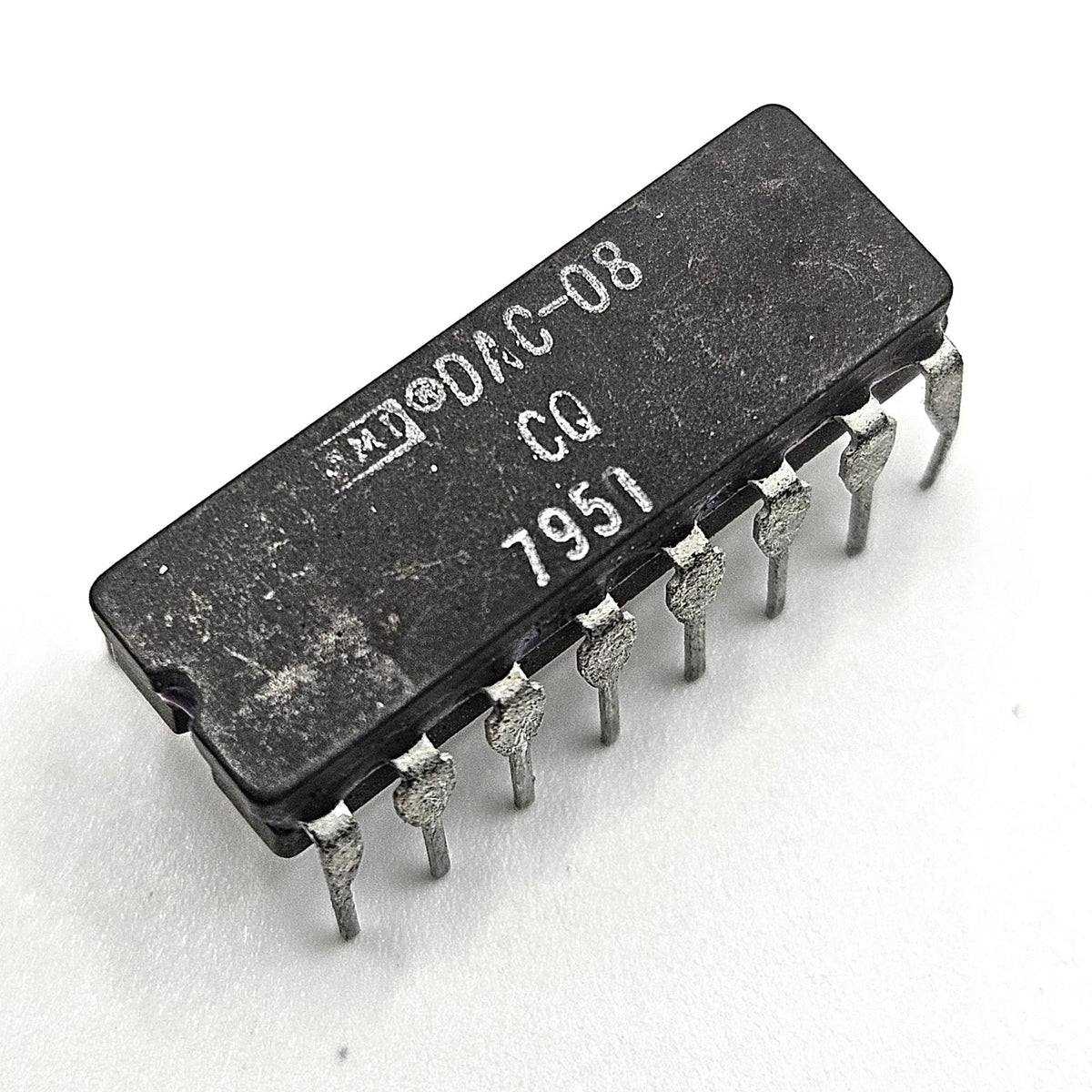

Component Marking: DAC-08CQ / CQ / 7951

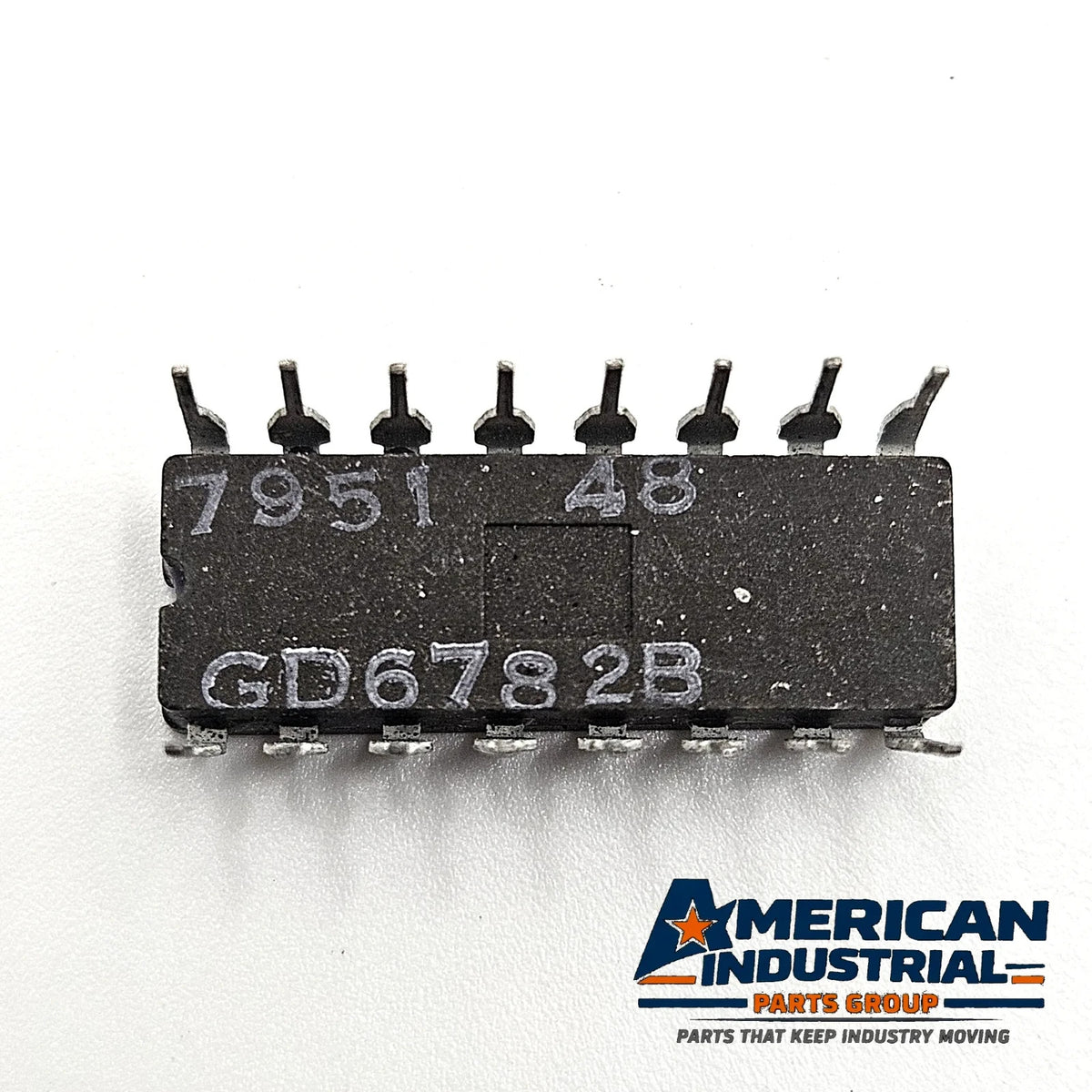

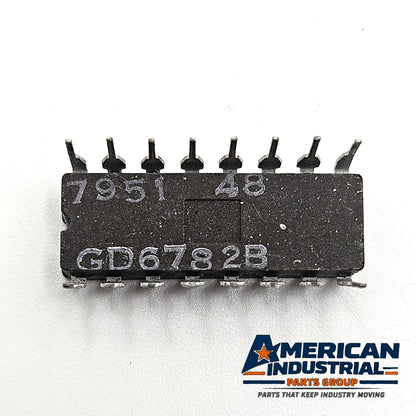

Additional Marking: GD6782B

DESCRIPTION

Vintage Advanced Micro Devices DAC-08CQ digital-to-analog converter integrated circuit from new old stock inventory.

The DAC-08CQ is an 8-bit high-speed multiplying D/A converter designed for analog conversion applications. AMD historical documentation identifies this version as a ceramic dual-inline device with an 85 ns typical settling time and ±0.39% nonlinearity grade.

• Advanced Micro Devices DAC-08CQ
• 8-bit multiplying D/A converter
• High-speed analog converter
• ±0.39% nonlinearity grade
• Typical 85 ns settling time
• 0°C to +70°C operating range
• 16-pin ceramic DIP package
• Through-hole mounting
• Vintage AMD semiconductor
• New old stock
• Component marking includes 7951

The 7951 and GD6782B markings are reproduced exactly as shown on the component and are not represented as verified manufacturing dates or electrical specifications.

Please verify the DAC-08CQ part number, pinout, electrical specifications, and suitability for your application before purchasing.

DISCLAIMER

New old stock component. Item may show normal cosmetic evidence of long-term storage and handling consistent with its age, including minor oxidation, discoloration, or surface wear. Please review the photographs carefully for the exact condition and markings of the item being offered. No testing has been performed unless specifically stated. Buyer is responsible for verifying part number, electrical specifications, pinout, suitability, and compatibility before installation.
