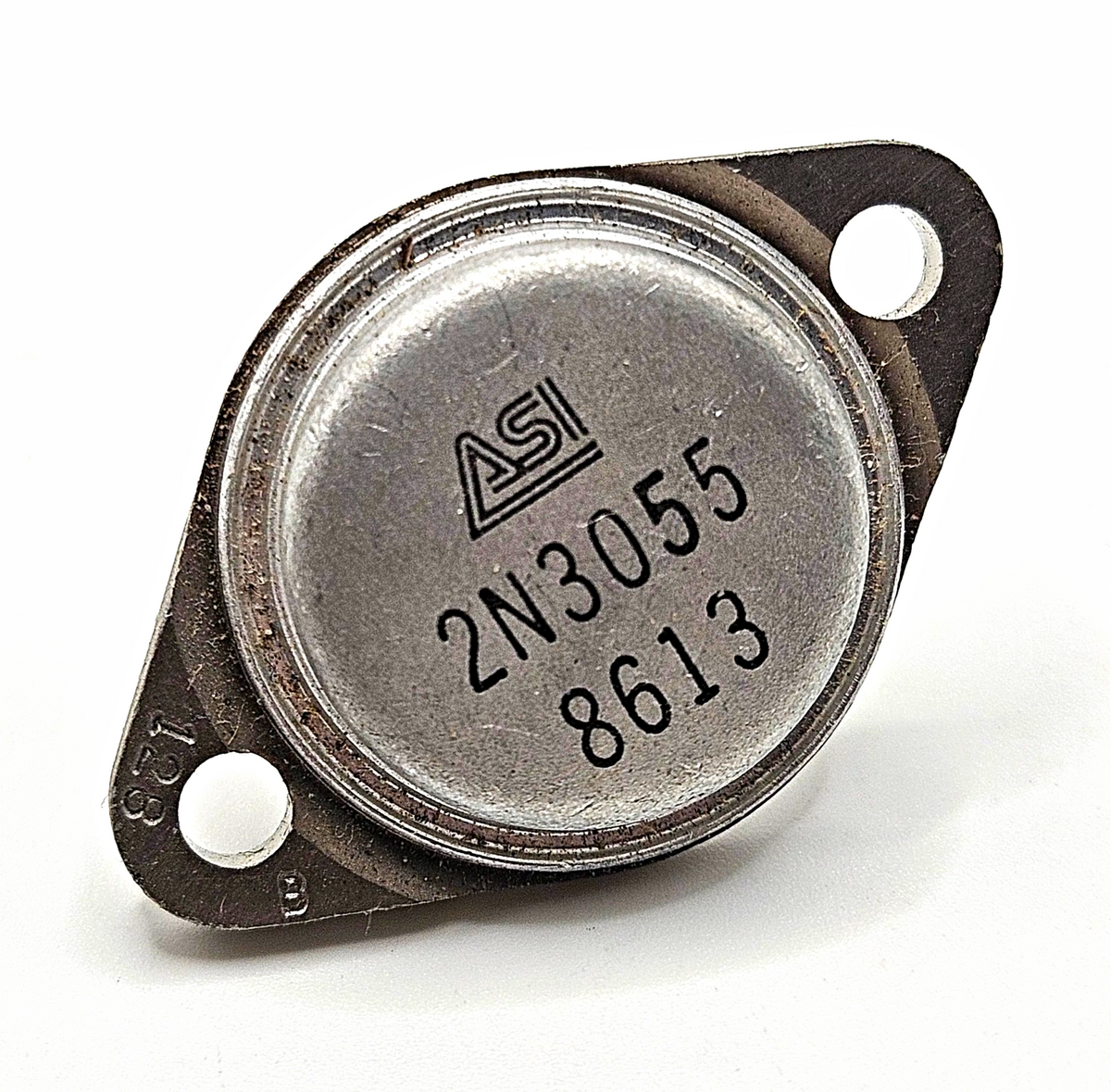

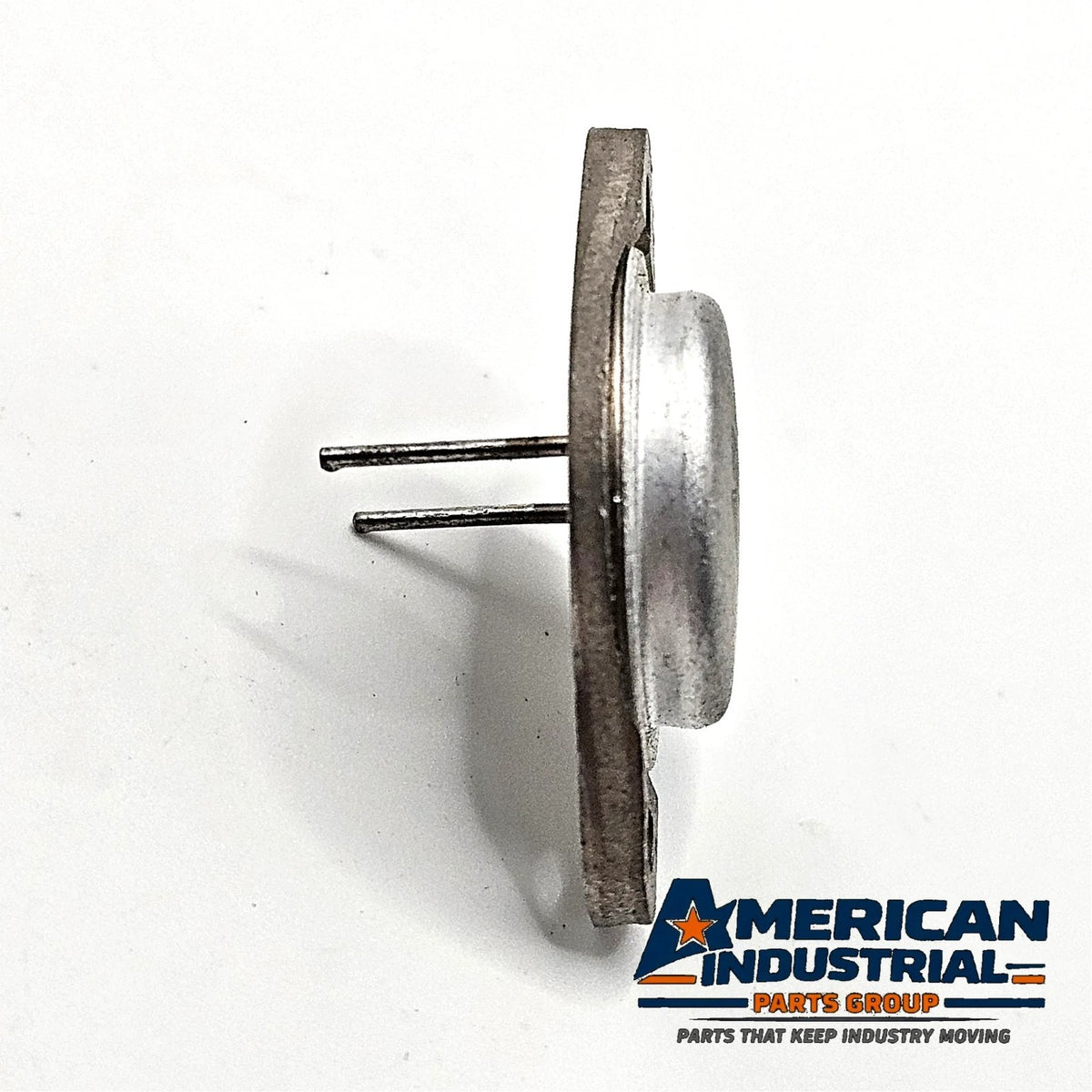

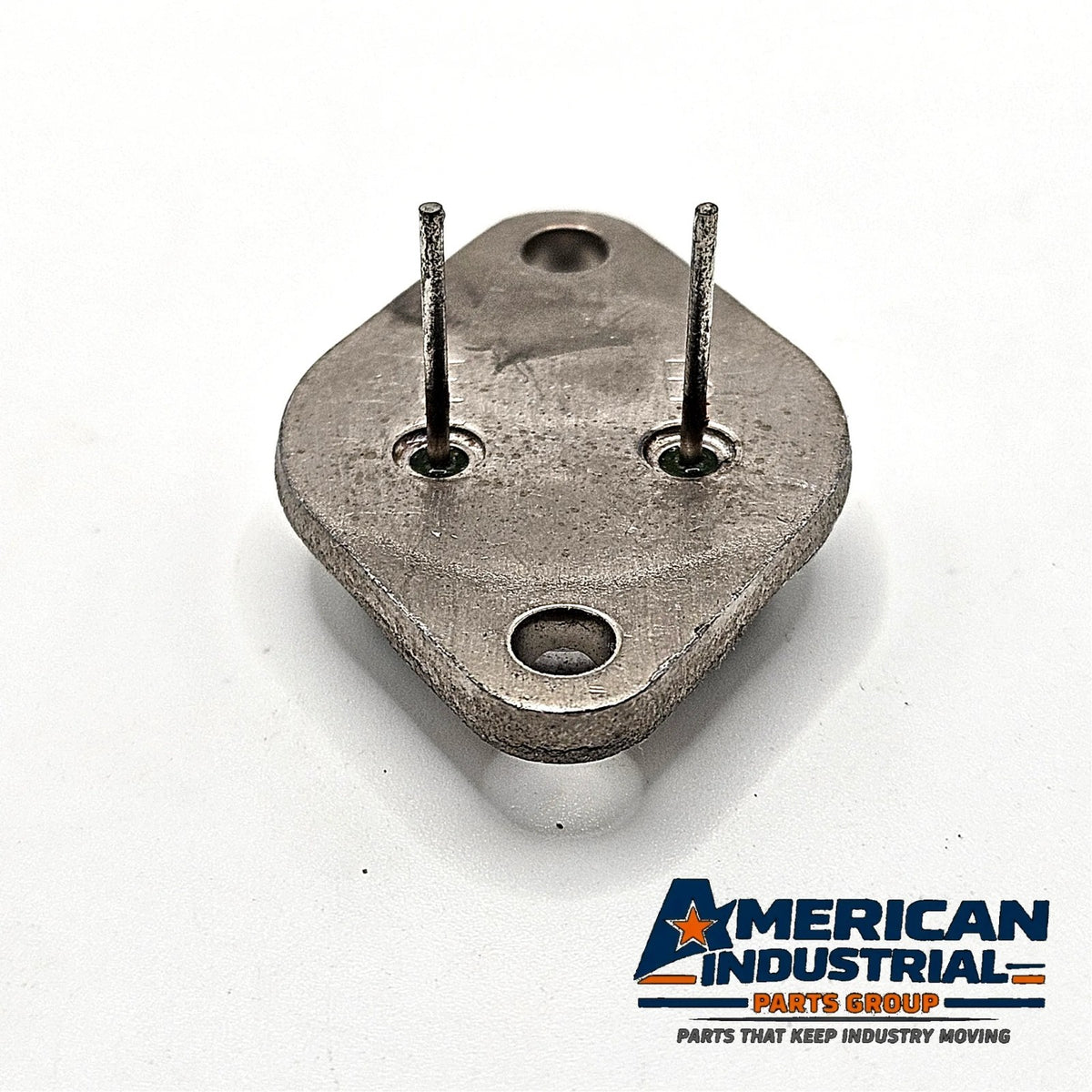

ASI 2N3055 NPN Silicon Power Transistor TO-3 15A 60V NOS Vintage
ASI 2N3055 NPN Silicon Power Transistor TO-3 15A 60V NOS Vintage
Regular price
$24.99 USD
Regular price
Sale price
$24.99 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Advanced Semiconductor, Inc.
Model: 2N3055
MPN: 2N3055
Type: NPN Bipolar Junction Transistor
Transistor Type: NPN Silicon
Transistor Category: Power Transistor
Function: General-Purpose Amplifier and Switch
Collector-Emitter Voltage: 60V
Collector-Base Voltage: 100V
Continuous Collector Current: 15A
Maximum Base Current: 7A
Maximum Power Dissipation: 115W
DC Current Gain: 20–70 at 4A
Package Type: TO-3
Mounting Style: Chassis / Heatsink Mount
Number of Terminals: 2 Leads plus Collector Case
Terminal Identification: Emitter and Base Marked
Condition: New Old Stock
SKU: ASI-2N3055-N
DESCRIPTION
Advanced Semiconductor, Inc. 2N3055 NPN silicon power transistor designed for general-purpose amplifier and switching applications. The rugged TO-3 metal package is intended for chassis or heatsink mounting in power supplies, voltage regulators, audio amplifiers, switching circuits, motor-control circuits, and legacy electronic equipment.
Features:
Advanced Semiconductor, Inc.
Exact Part Number: 2N3055
NPN Silicon Power Transistor
General-Purpose Amplifier and Switch
60V Collector-Emitter Voltage
100V Collector-Base Voltage
15A Continuous Collector Current
115W Maximum Power Dissipation
TO-3 Metal Package

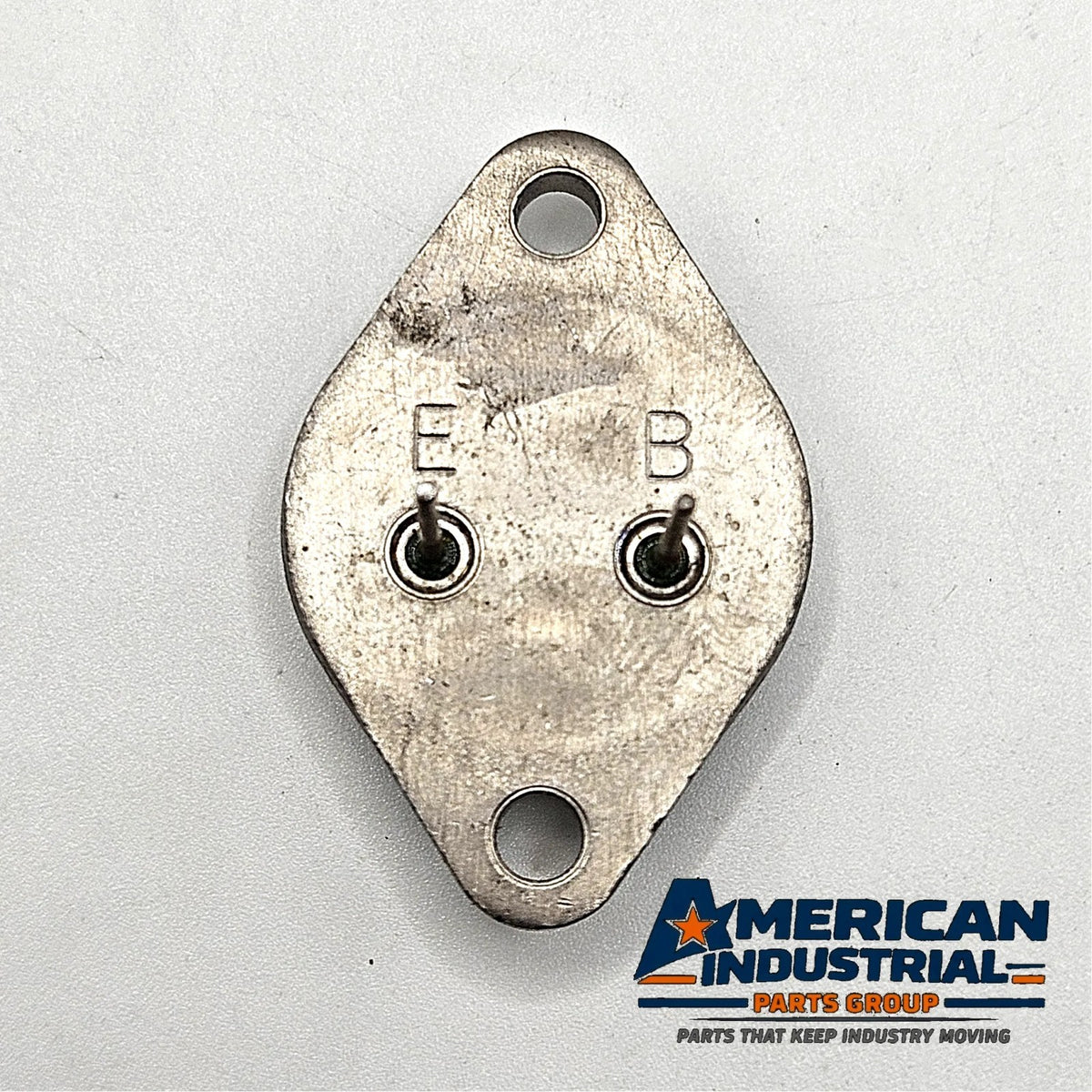

Emitter and Base Terminals Marked on Case
Collector Electrically Connected to Metal Case
Chassis / Heatsink Mounting
Vintage Electronic Component
This transistor is New Old Stock. It has not been installed but may show minor cosmetic evidence of long-term storage, age, oxidation, or handling. Original retail packaging is not included. Please review all photographs carefully for the exact markings, terminal condition, and component included.
DISCLAIMER
This item is New Old Stock and has been stored for an extended period. It may show minor cosmetic wear, oxidation, discoloration, scratches, or other evidence of storage and handling. No claim is made regarding compatibility with any particular circuit or equipment. Buyers should verify the exact part number, electrical ratings, terminal configuration, heatsink requirements, and application specifications before installation. Ships fast with tracking. Thirty-day returns are accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Advanced Semiconductor, Inc. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from New Old Stock inventory and are not covered by original manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The 2N3055 is a JEDEC-registered NPN silicon power transistor in a TO-3 (TO-204AA) metal package, second-sourced by many manufacturers. Registered ratings are 60V collector-emitter, 100V collector-base, 15A continuous collector current, 115W dissipation and a DC current gain of 20 to 70 at 4A. Its complementary PNP device is the MJ2955, and the two are commonly paired in push-pull output stages. The NTE and ECG aftermarket cross-reference house number for the 2N3055 is NTE130 / ECG130. Note that some variants such as the 2N3055H and 2N3055HV carry different voltage ratings — confirm the specific manufacturer's datasheet before substituting. The collector is electrically connected to the case, so the package must be insulated from a grounded heatsink where the circuit requires it.
Q&A
Q: What is the 2N3055? A: An NPN silicon power transistor in a TO-3 metal package, rated 60V with 15A continuous collector current and 115W dissipation.
Q: What is the complementary PNP transistor? A: The MJ2955.
Q: What is the NTE/ECG cross-reference number? A: NTE130 (ECG130).
ASI 2N3055 Advanced Semiconductor 2N3055 NPN transistor silicon power transistor bipolar junction transistor BJT TO-3 transistor TO3 metal can transistor 15A transistor 60V transistor 115W transistor general purpose amplifier switching transistor power supply transistor voltage regulator transistor audio amplifier transistor motor control transistor heatsink mount transistor chassis mount semiconductor vintage electronics vintage transistor electronic repair component legacy electronics replacement transistor NOS transistor New Old Stock industrial electronics MRO electronic component
