AT&T Microelectronics WA-LS02 Quad 2-Input NOR Gate DIP-14 NOS Lot of 10

ITEM SPECIFICS

Brand: AT&T Microelectronics
Model: WA-LS02
MPN: WA-LS02
Quantity: 10
Type: Logic Gate IC
Logic Function: NOR
Number of Gates: 4 per IC
Inputs per Gate: 2
Logic Family: Low-Power Schottky TTL
Package: DIP-14
Mounting Style: Through-Hole
Number of Pins: 14
Nominal Supply Voltage: 5V
Maximum Supply Voltage: 7V
Operating Temperature Range: -55°C to +125°C
Secondary Marking: WE1180
Condition: New Old Stock

DESCRIPTION

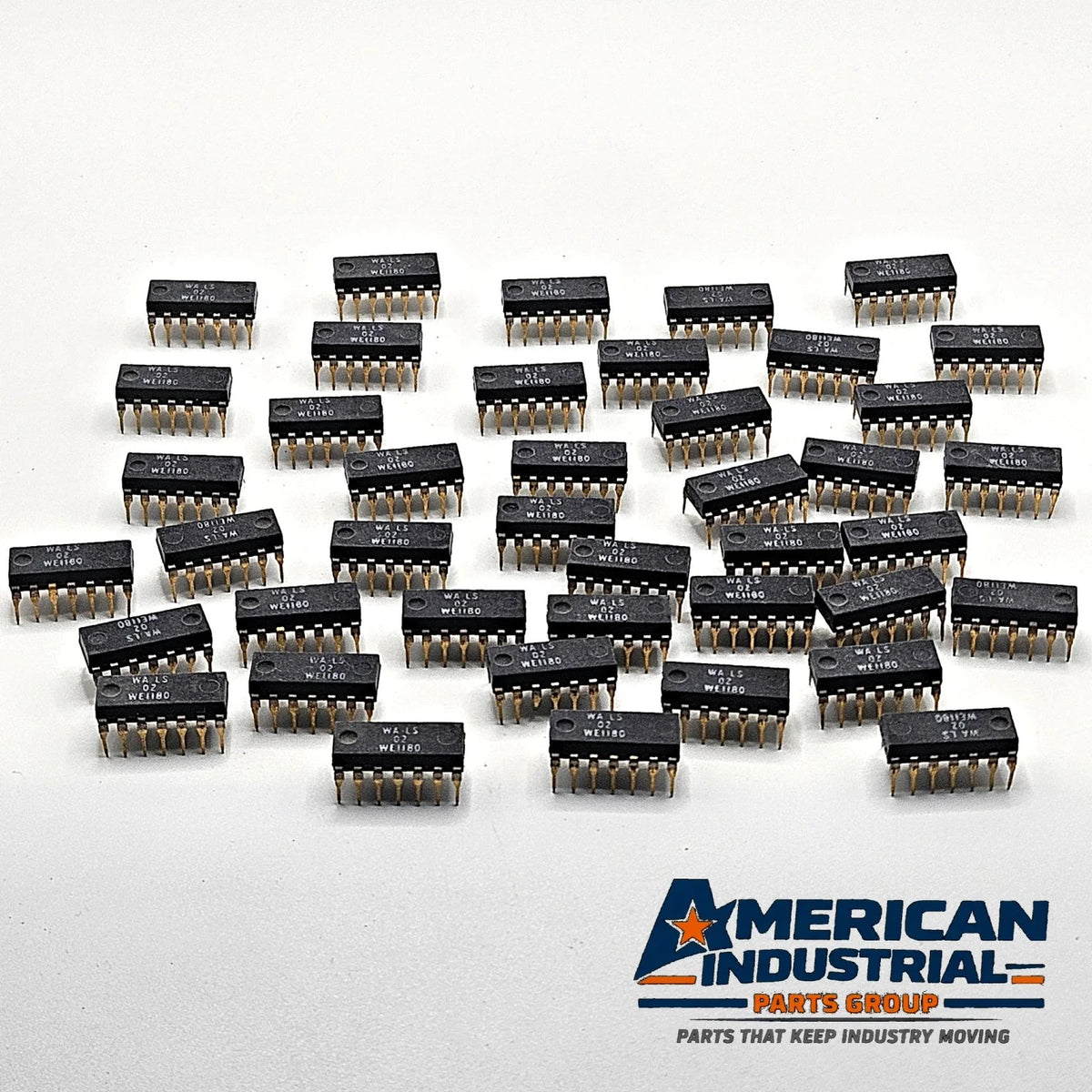

Lot of 10 AT&T Microelectronics WA-LS02 low-power Schottky TTL integrated circuits in 14-pin dual-inline packages.

The WA-LS02 is a quad 2-input positive NOR gate containing four independent NOR logic gates per IC. These devices are part of the LS TTL logic family and are intended for through-hole digital logic applications.

Lot includes 10 WA-LS02 integrated circuits.

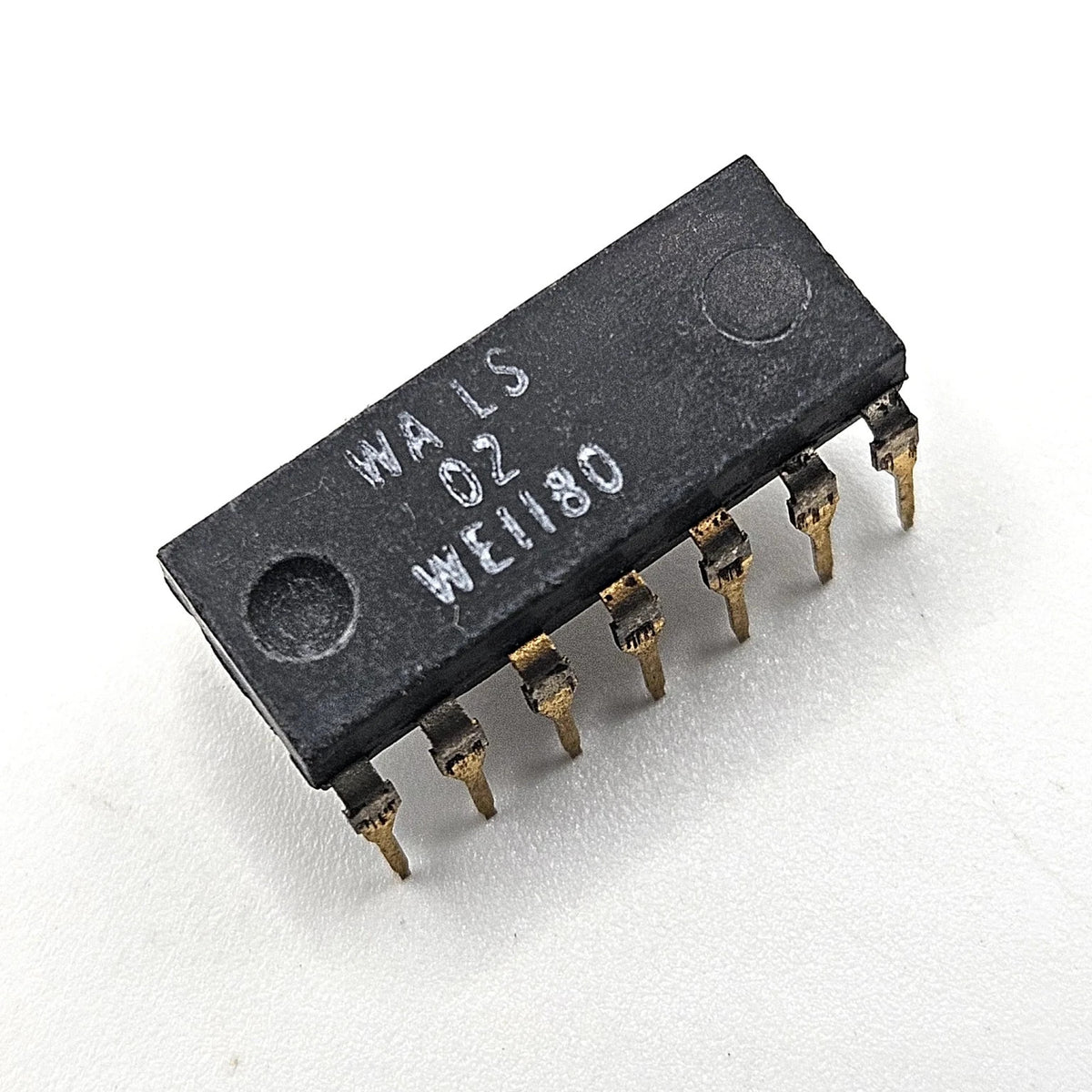

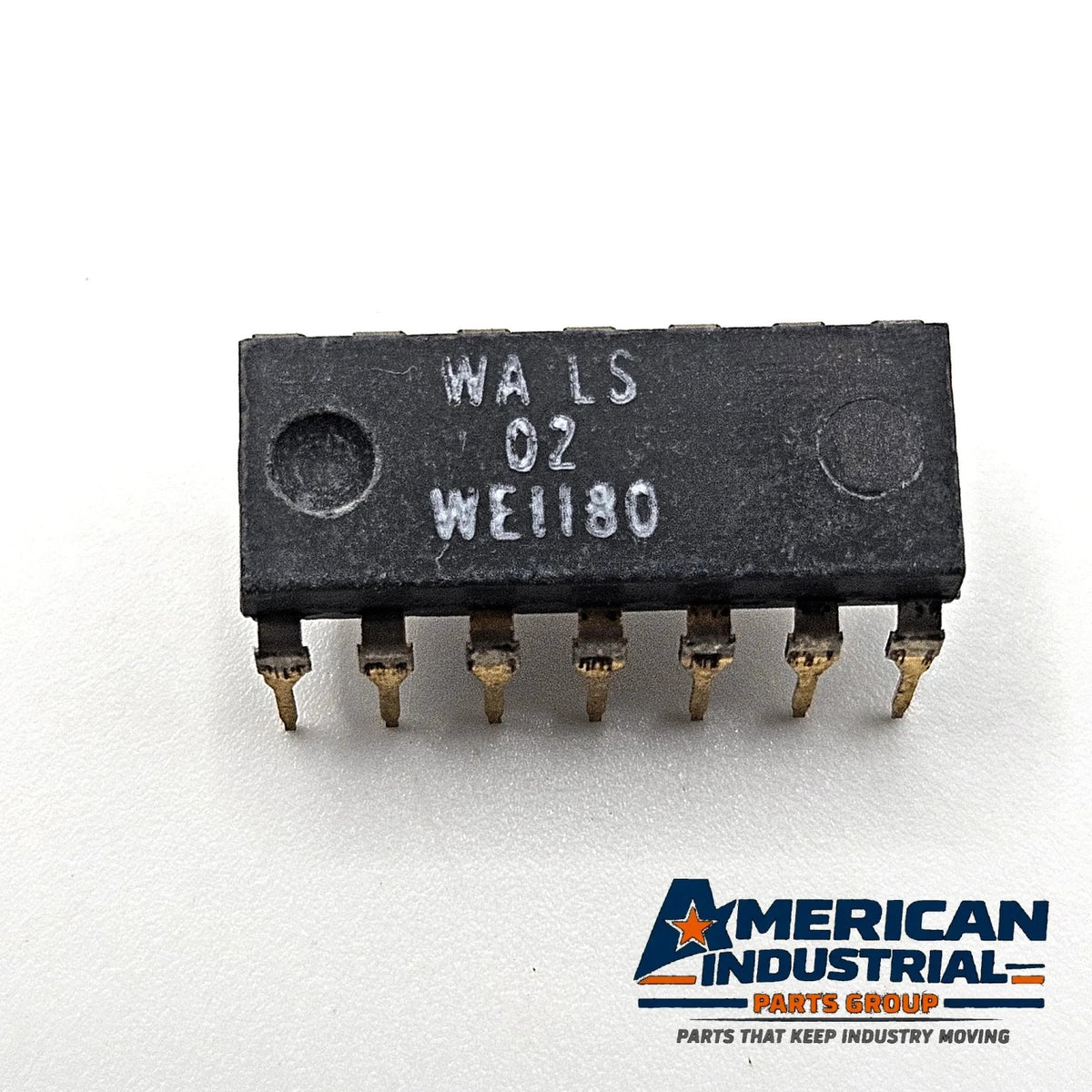

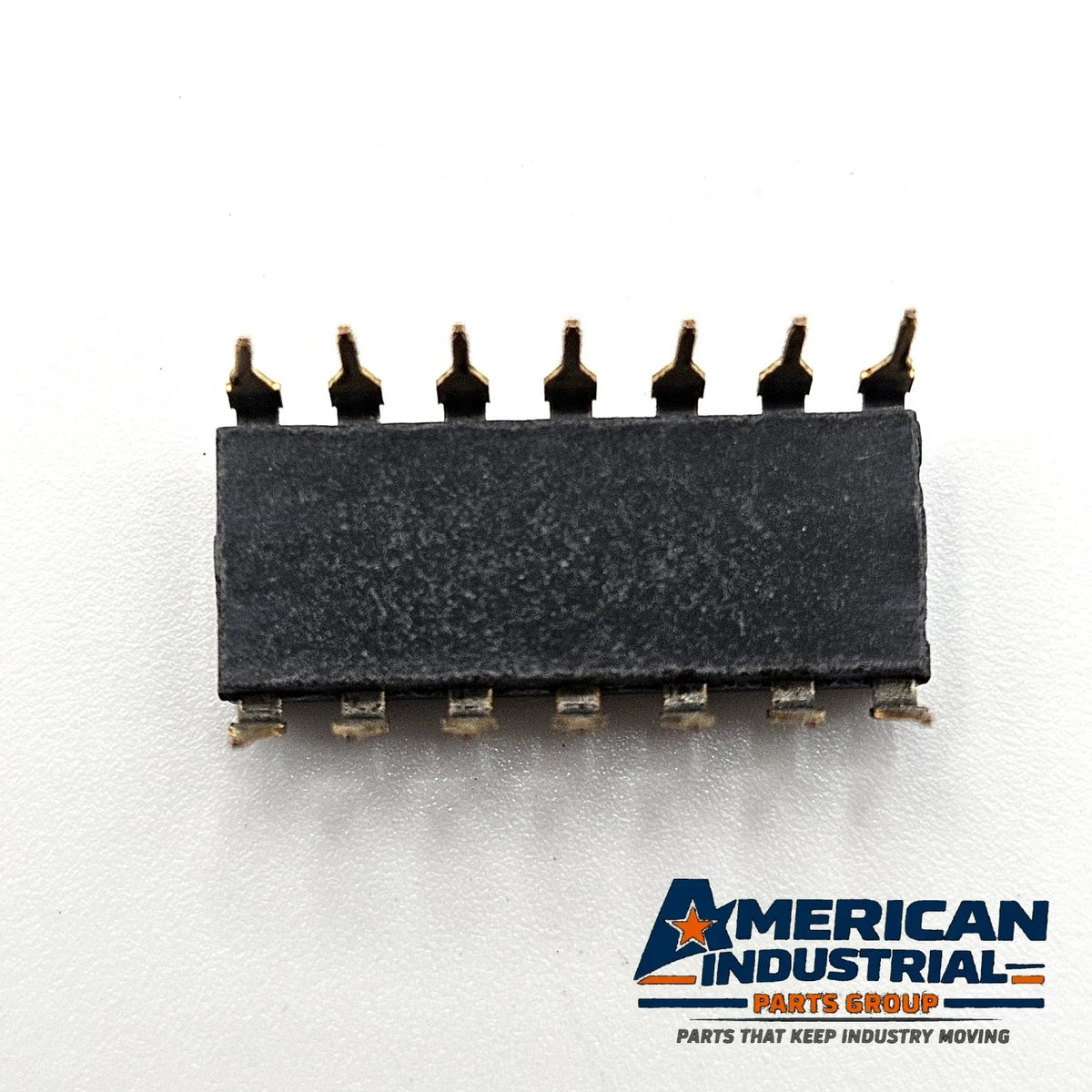

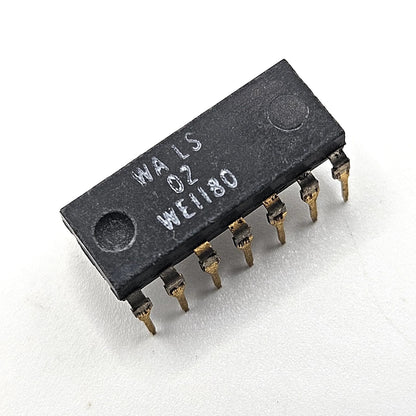

AT&T Microelectronics WA-LS02
Quad 2-input NOR gate
Four independent NOR gates per IC
Low-power Schottky TTL technology
5V nominal supply
7V maximum supply voltage
-55°C to +125°C WA-LS operating temperature range
14-pin DIP package
Through-hole mounting
Vintage / obsolete electronic component
Secondary marking WE1180
New old stock
Quantity: 10

The WE1180 marking is shown exactly as found on the components and is not being represented as the manufacturer part number.

DISCLAIMER

These items are New Old Stock. They may show normal cosmetic evidence of long-term storage, handling, or age. No testing has been performed unless specifically stated. Please review all photos and verify the WA-LS02 part number and electrical requirements for your application before purchase.

LEGAL DISCLAIMER

AT&T Microelectronics is a trademark or trade name of its respective owner. American Industrial Parts Group is not an authorized distributor, dealer, or representative of AT&T Microelectronics. All trademarks, manufacturer names, product names, and part numbers are used solely for identification and reference purposes. No affiliation with or endorsement by the manufacturer is implied.
