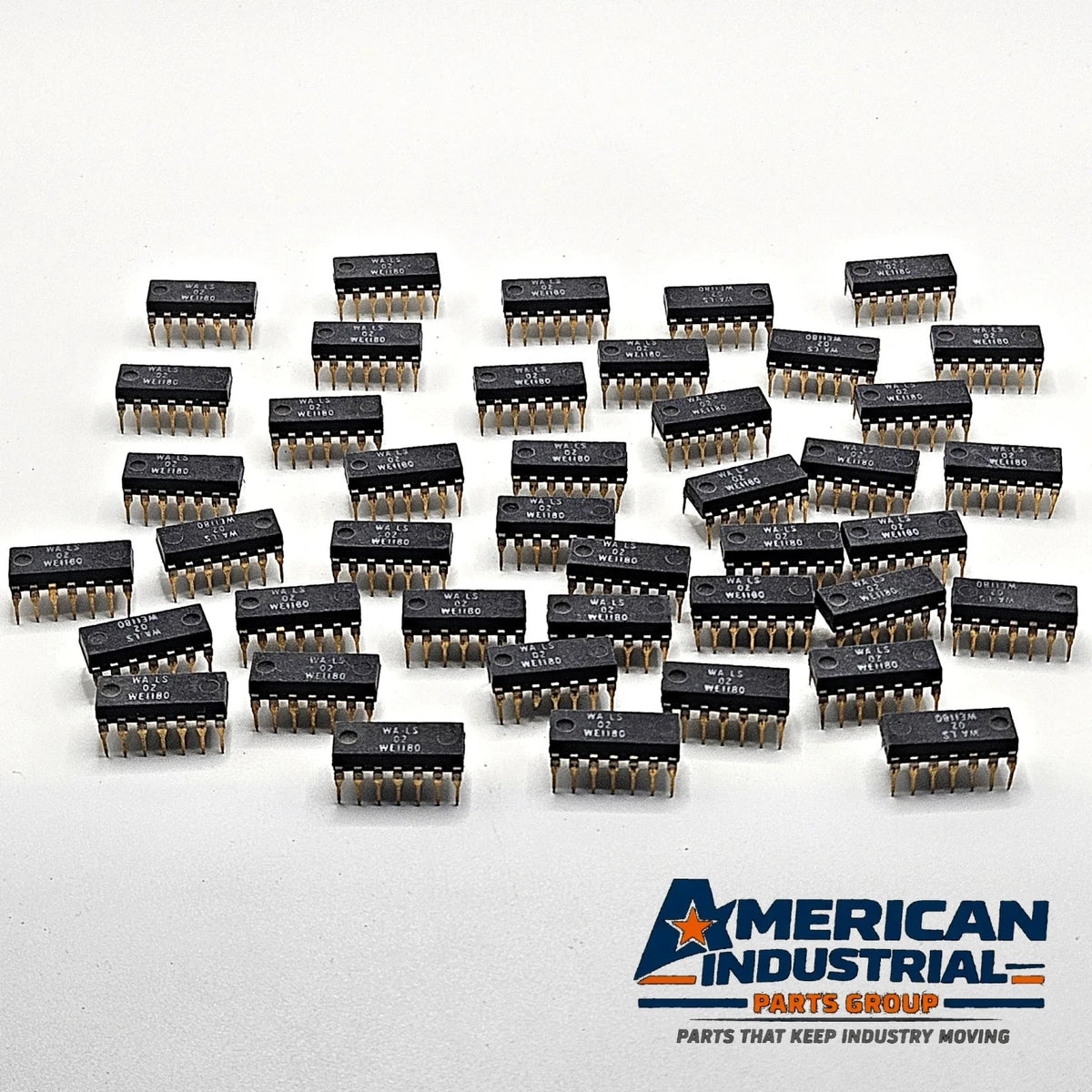

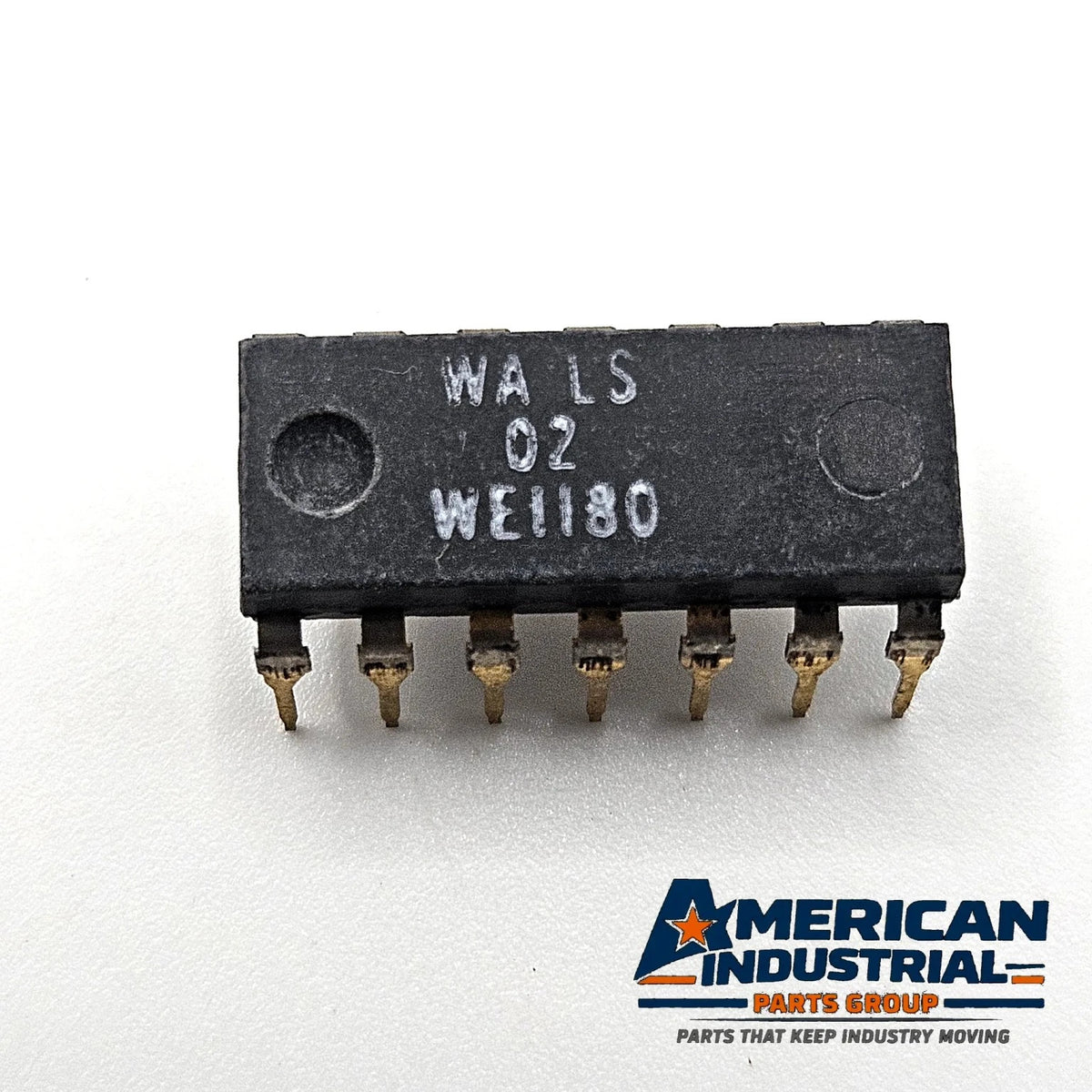

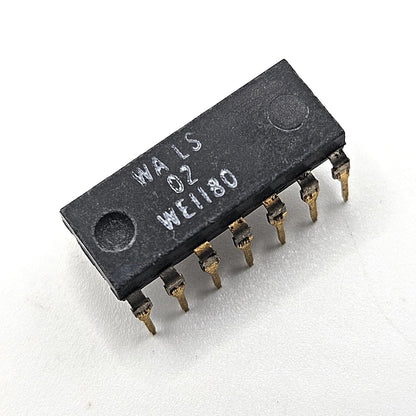

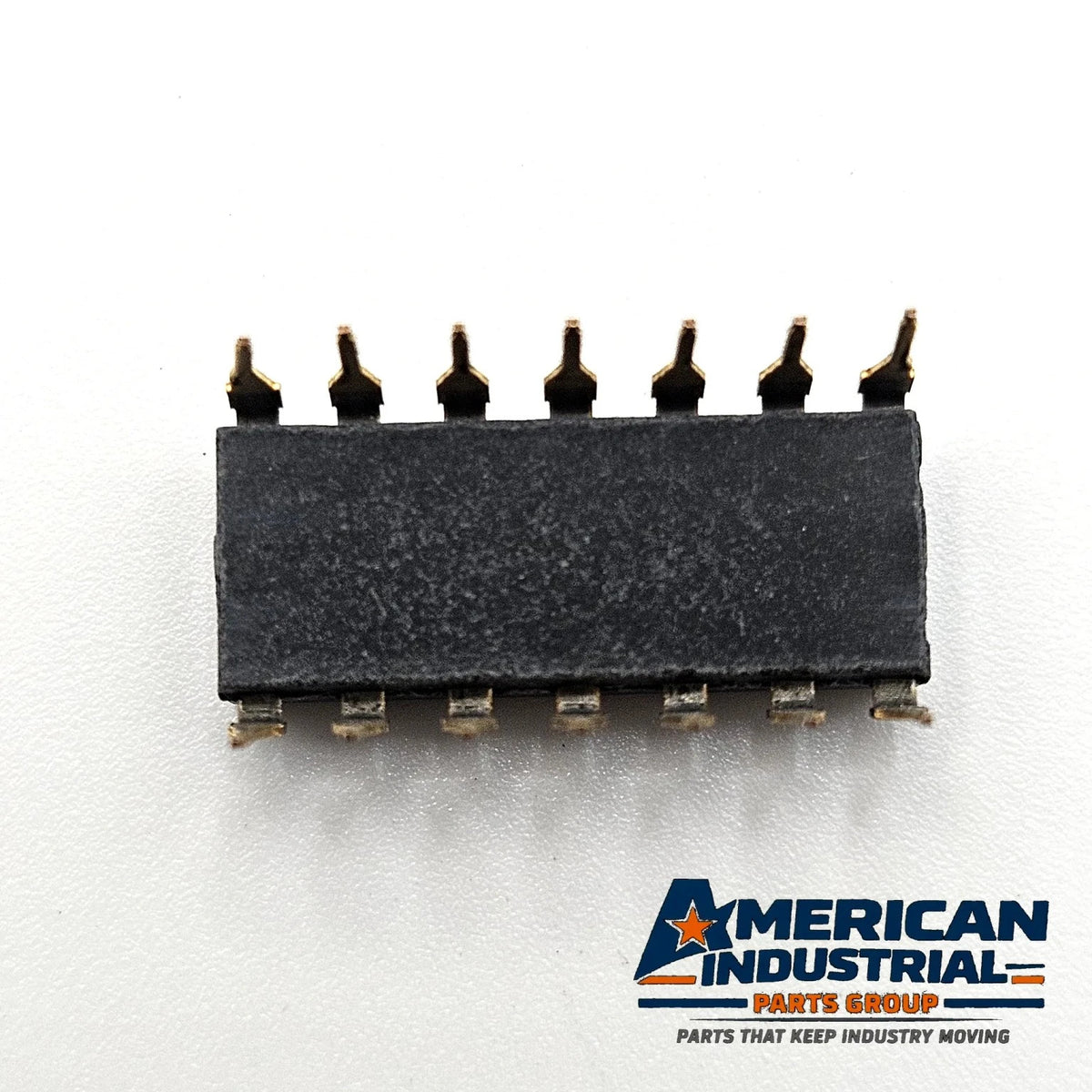

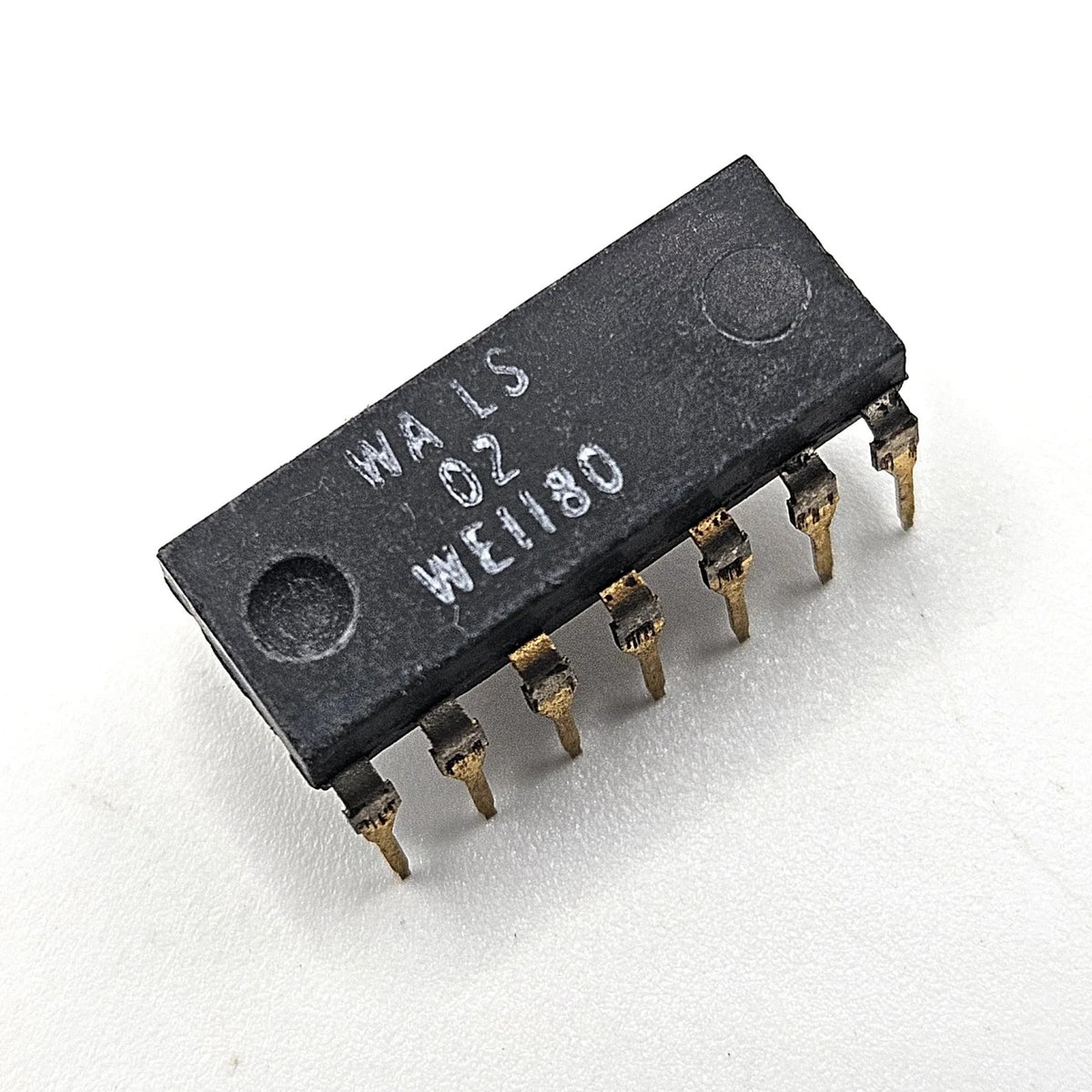

AT&T Microelectronics WA-LS02 Quad 2-Input NOR Gate LS TTL DIP-14 NOS

ITEM SPECIFICS

Brand: AT&T Microelectronics
Model: WA-LS02
MPN: WA-LS02
Type: Logic Gate IC
Logic Function: NOR
Number of Gates: 4
Inputs per Gate: 2
Logic Family: Low-Power Schottky TTL
Package: DIP-14
Mounting Style: Through-Hole
Number of Pins: 14
Nominal Supply Voltage: 5V
Maximum Supply Voltage: 7V
Operating Temperature Range: -55°C to +125°C
Secondary Marking: WE1180
Condition: New Old Stock

DESCRIPTION

AT&T Microelectronics WA-LS02 low-power Schottky TTL integrated circuit in a 14-pin dual-inline package.

The WA-LS02 is a quad 2-input positive NOR gate containing four independent NOR logic gates. The device is part of the LS TTL logic family and is intended for through-hole digital logic applications.

Features:

AT&T Microelectronics WA-LS02
Quad 2-input NOR gate
Four independent NOR logic gates
Low-power Schottky TTL technology
5V nominal supply
7V maximum supply voltage
-55°C to +125°C WA-LS operating temperature range
14-pin DIP package
Through-hole mounting
Vintage semiconductor / obsolete electronic component
Secondary device marking WE1180
New old stock

The WE1180 marking is shown exactly as found on the component and is not being represented as the manufacturer part number.

New old stock component from older inventory. May show minor cosmetic evidence of long-term storage and handling. Please review all photos for exact condition and markings.
