Bussmann LP-CC-1 Low-Peak 1A 600VAC Class CC Time-Delay Fuse LPCC1
Bussmann LP-CC-1 Low-Peak 1A 600VAC Class CC Time-Delay Fuse LPCC1
Regular price
$8.95 USD
Regular price
Sale price
$8.95 USD
Shipping calculated at checkout.
3 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Bussmann
MPN: LP-CC-1
Model: LP-CC-1
Type: Time-Delay Fuse
Fuse Class: CC
Series: Low-Peak LP-CC
Current Rating: 1 A
Voltage Rating: 600 VAC / 300 VDC
Interrupting Rating: 200 kA at 600 VAC; 20 kA at 300 VDC
Dimensions: 13/32 in x 1-1/2 in
Fuse Body Style: Midget Ferrule (Rejection Style)
Indicating: No
Certifications: UL Listed, CSA
Country of Manufacture: Mexico
Quantity: 1
Condition: New – Open Box
DESCRIPTION

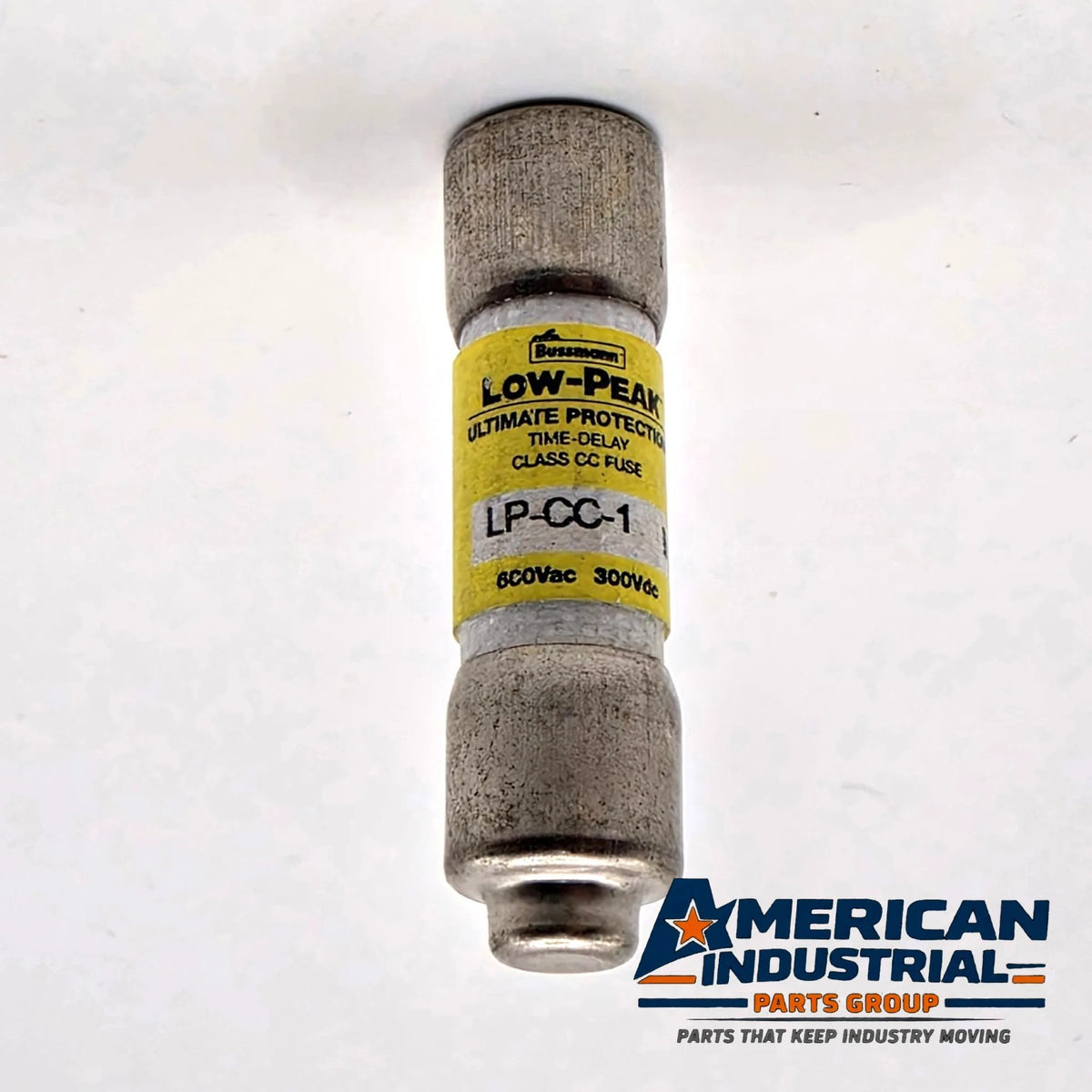

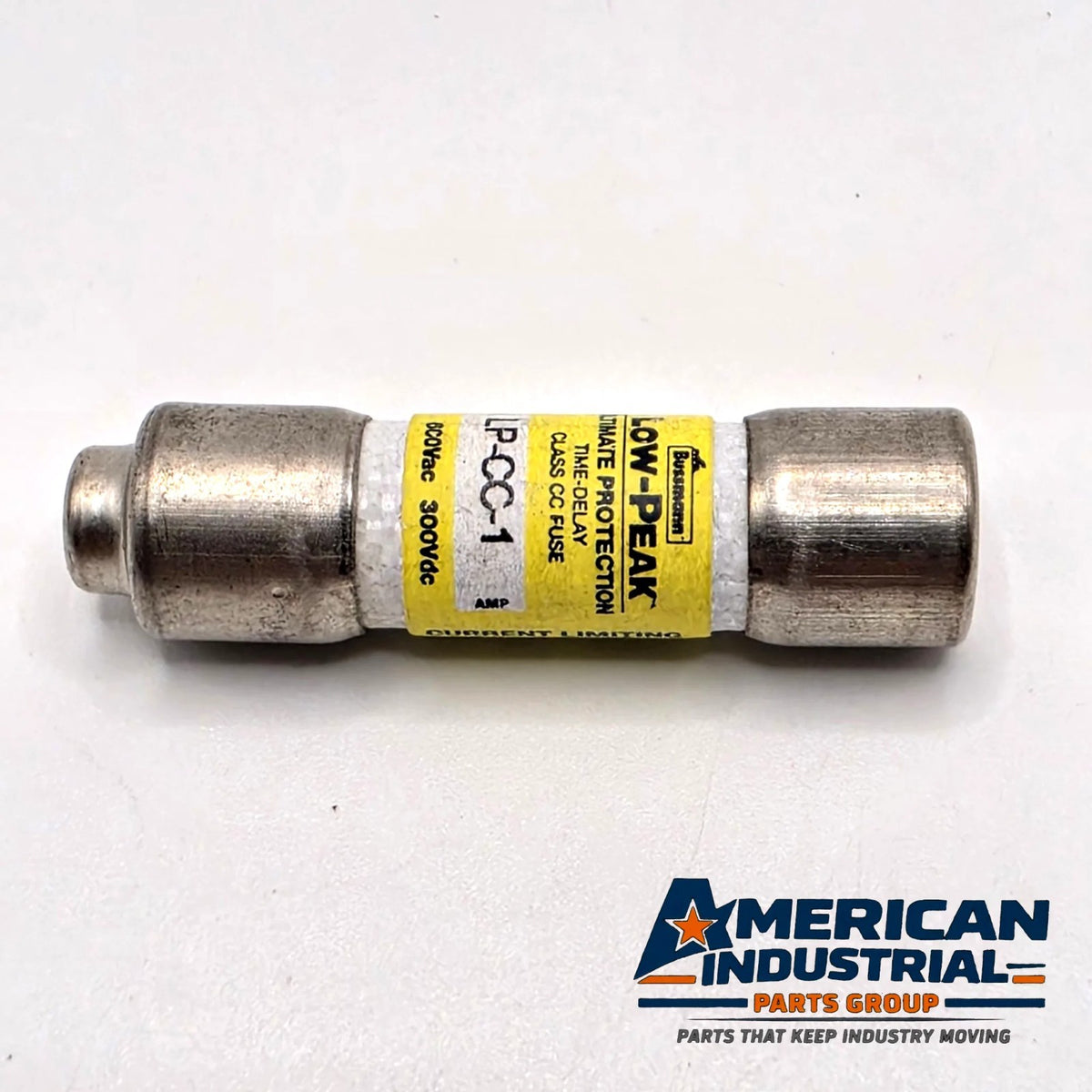

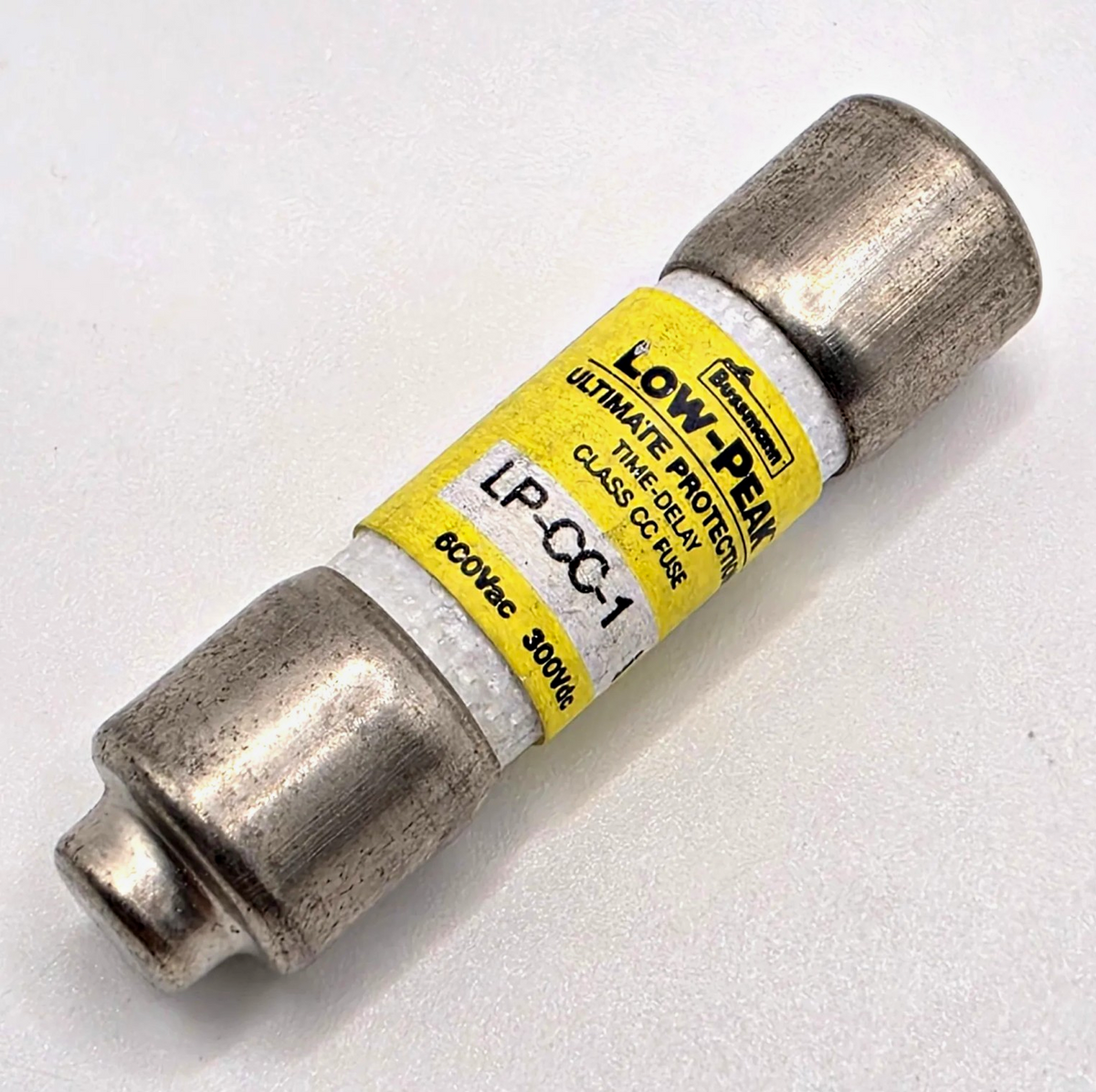

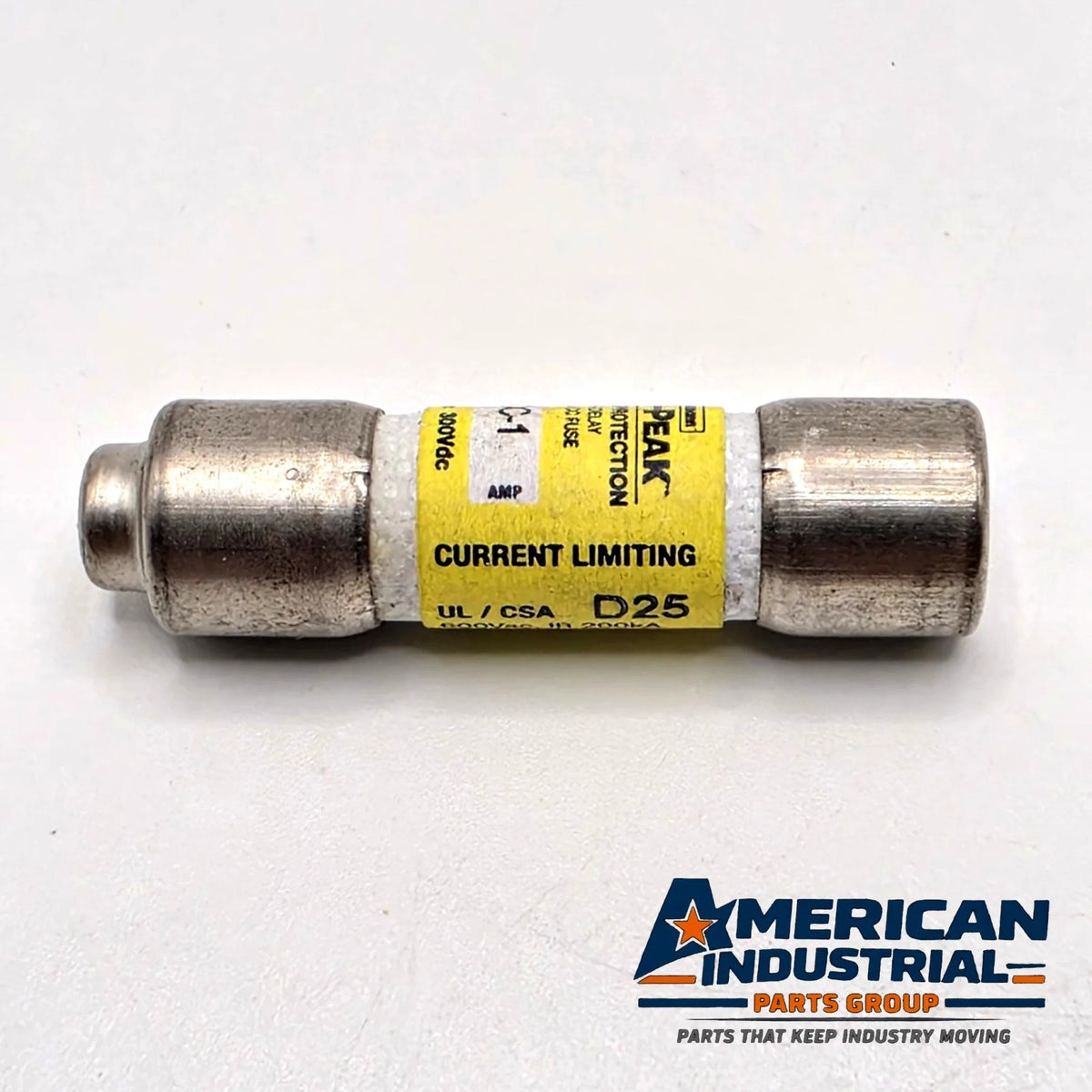

This is a Bussmann LP-CC-1 Low-Peak Ultimate Protection time-delay Class CC fuse, rated 1 amp. It's new, open box and has never been installed. The end caps show tarnish and storage marks, and the label shows light fading and wear. Please see the photos.
Features:
1 A, 600 VAC rating with 200 kA interrupting rating
DC rated 300 VDC with 20 kA interrupting rating, as labeled
Time-delay characteristic rides through inrush (12 seconds minimum at 200% of rating)
Current-limiting Class CC design
Rejection-style end cap fits only Class CC holders, so lower-rated fuses can't be substituted
13/32 in x 1-1/2 in body

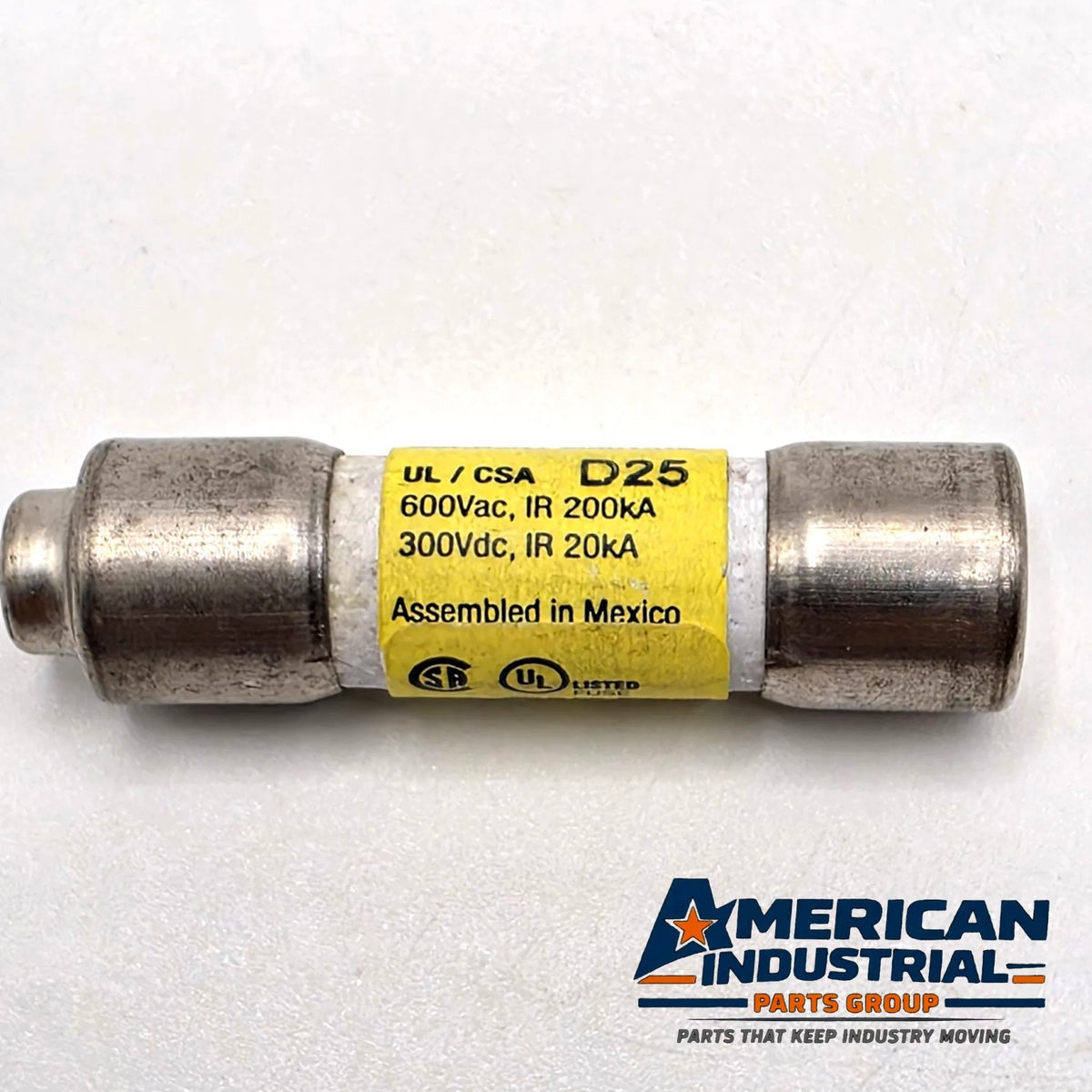

UL Listed, CSA certified, label code D25, assembled in Mexico
Compatibility:
Fits Class CC fuse holders and blocks, including Bussmann CHCC series holders, and Class CC disconnects and panelboards. Commonly used for control transformer primaries, control circuits and small motor branch circuits. Cross-references include the Mersen ATDR1 and Littelfuse CCMR001 Class CC time-delay fuses. Confirm the requirements of your application before installing.
Q&A
Q: Is this fuse new?
A: Yes. It's new, open box and has never been installed. The end caps show tarnish from storage.
Q: Will this fit a standard 13/32 x 1-1/2 midget fuse holder?
A: Only if the holder is Class CC rejection style. Class CC fuses have a rejection feature, and standard midget holders aren't rated for Class CC use.
Q: What's the DC rating?
A: 300 VDC with 20 kA interrupting rating, as printed on the label.
Q: How many fuses are included?
A: One fuse.
DISCLAIMER
The item shown in the photos is the exact item you will receive. Please review all photos and the description carefully before purchasing. Specifications are given for reference; verify compatibility with your equipment before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of Bussmann or Eaton. Brand names, trademarks and part numbers are used for identification purposes only. Electrical components should be installed by qualified personnel in accordance with applicable codes.
lp-cc-1, lp cc 1, lp-cc-1 fuse, lp cc 1 fuse, bussmann lp-cc-1, bussmann lp cc 1, LPCC1, LPCC-1, 1 amp fuse, class cc time-delay fuse, cc type fuse, cartridge fuse, bussmann fuse cross reference, Eaton Bussmann LP-CC-1, CHCC fuse, control transformer fuse, ATDR1 cross reference, CCMR001 cross reference
Thank you for shopping with American Industrial Parts Group!
