Bussmann LP-CC-10 Low-Peak 10A 600VAC Class CC Time-Delay Fuse LPCC10

ITEM SPECIFICS
Brand: Bussmann
MPN: LP-CC-10
Model: LP-CC-10
Type: Time-Delay Fuse
Fuse Class: CC
Series: Low-Peak LP-CC
Current Rating: 10 A
Voltage Rating: 600 VAC / 150 VDC
Interrupting Rating: 200 kA at 600 VAC; 20 kA at 150 VDC
Dimensions: 13/32 in x 1-1/2 in
Fuse Body Style: Midget Ferrule (Rejection Style)
Indicating: No
Certifications: UL Listed, CSA
Country of Manufacture: Mexico
Quantity: 1
Condition: New – Open Box

DESCRIPTION

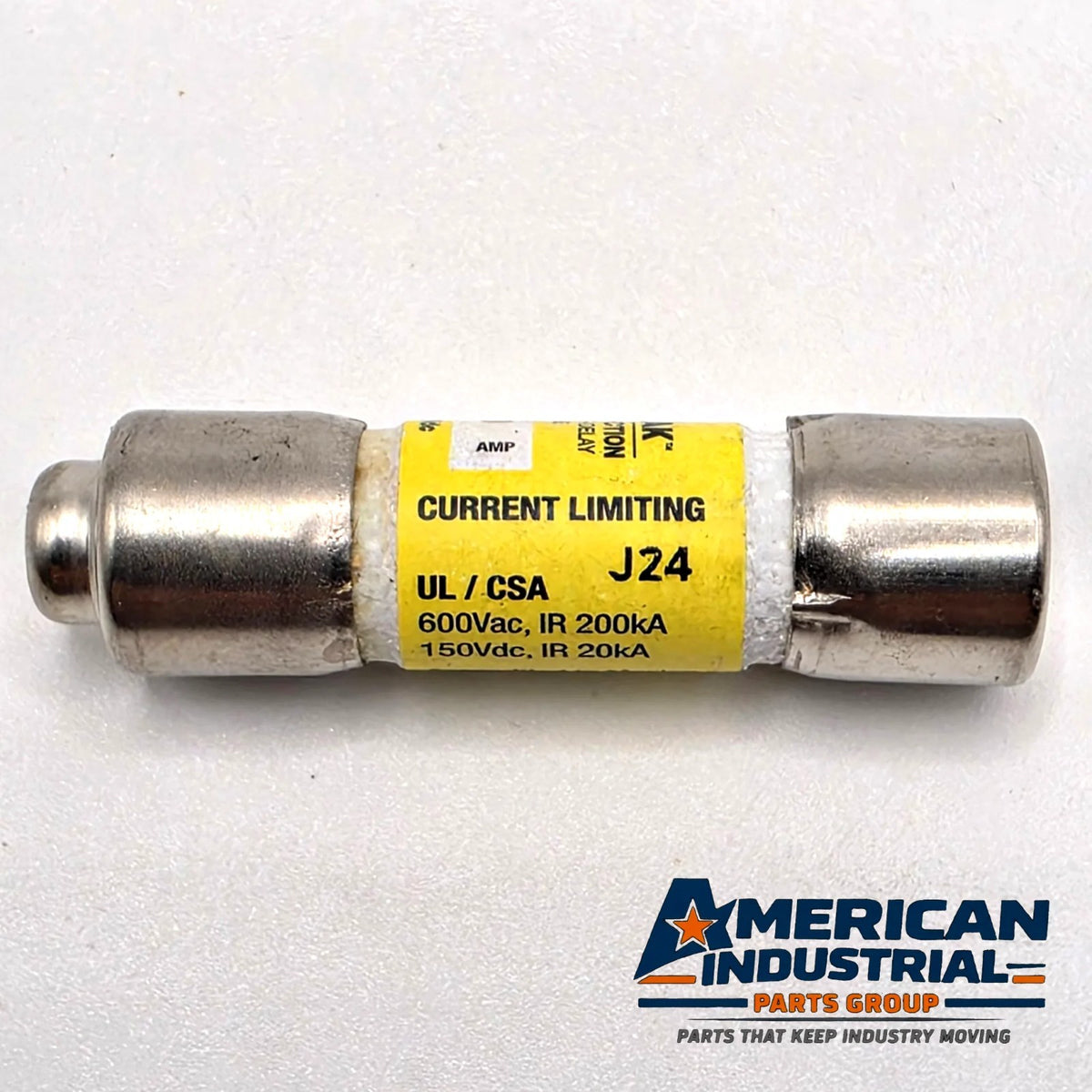

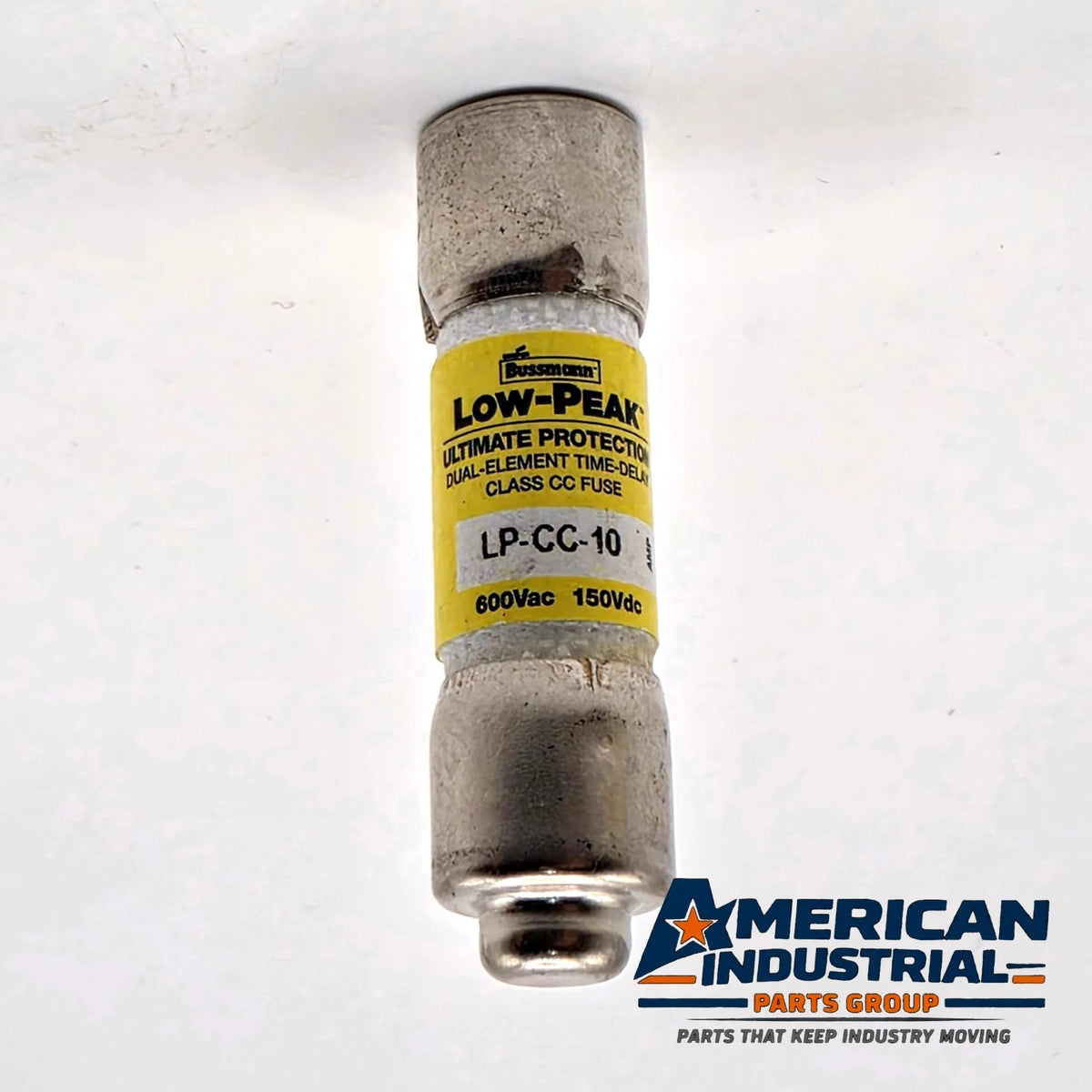

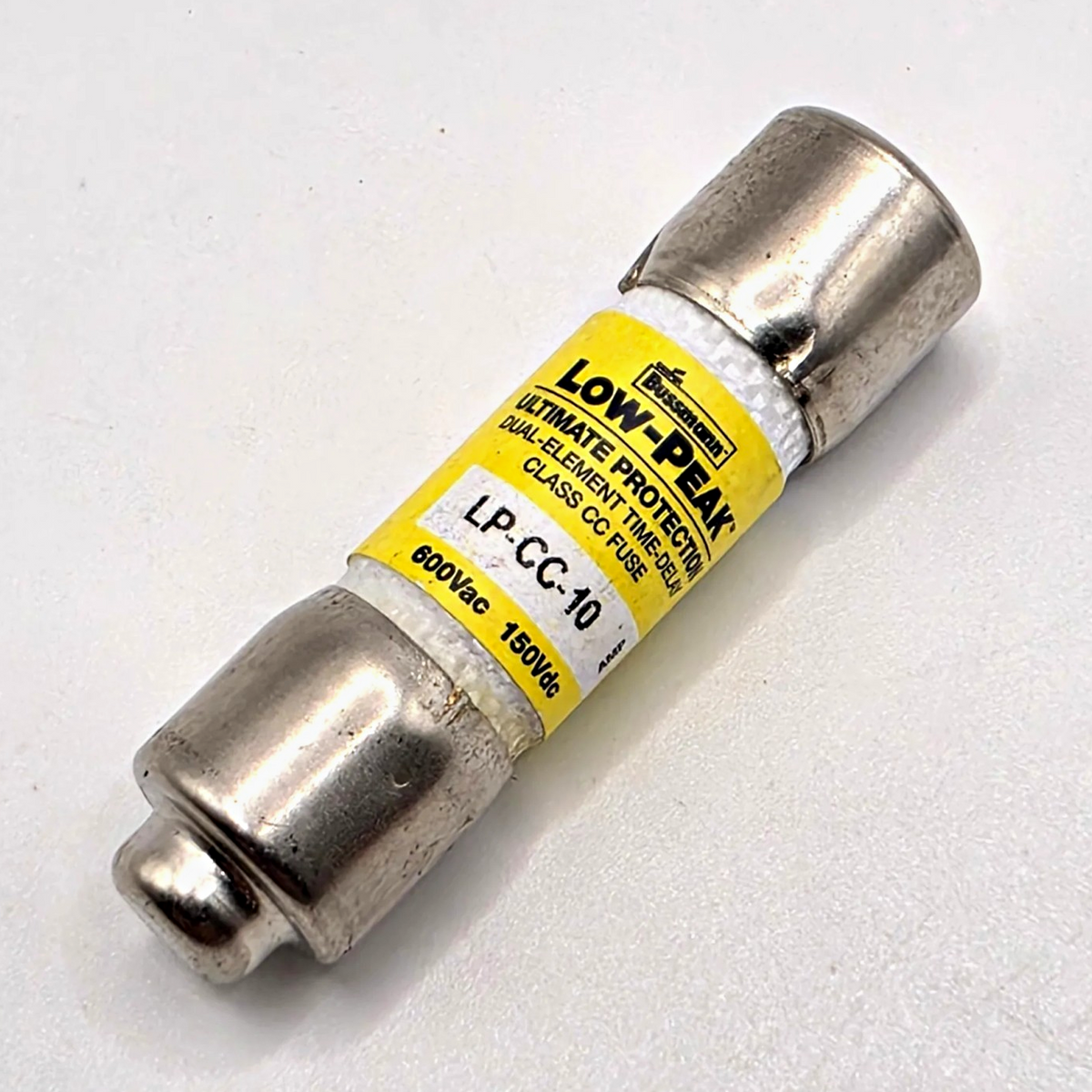

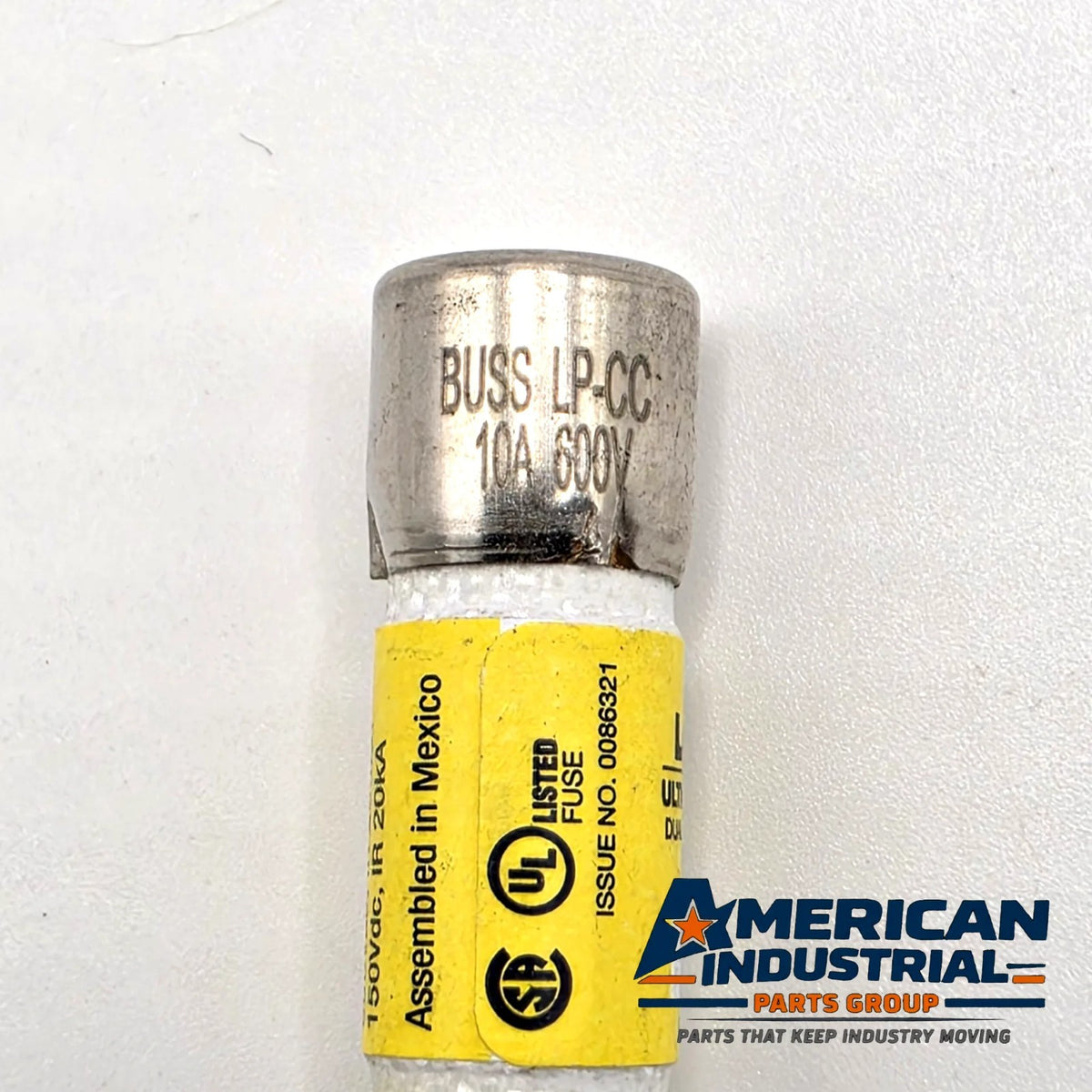

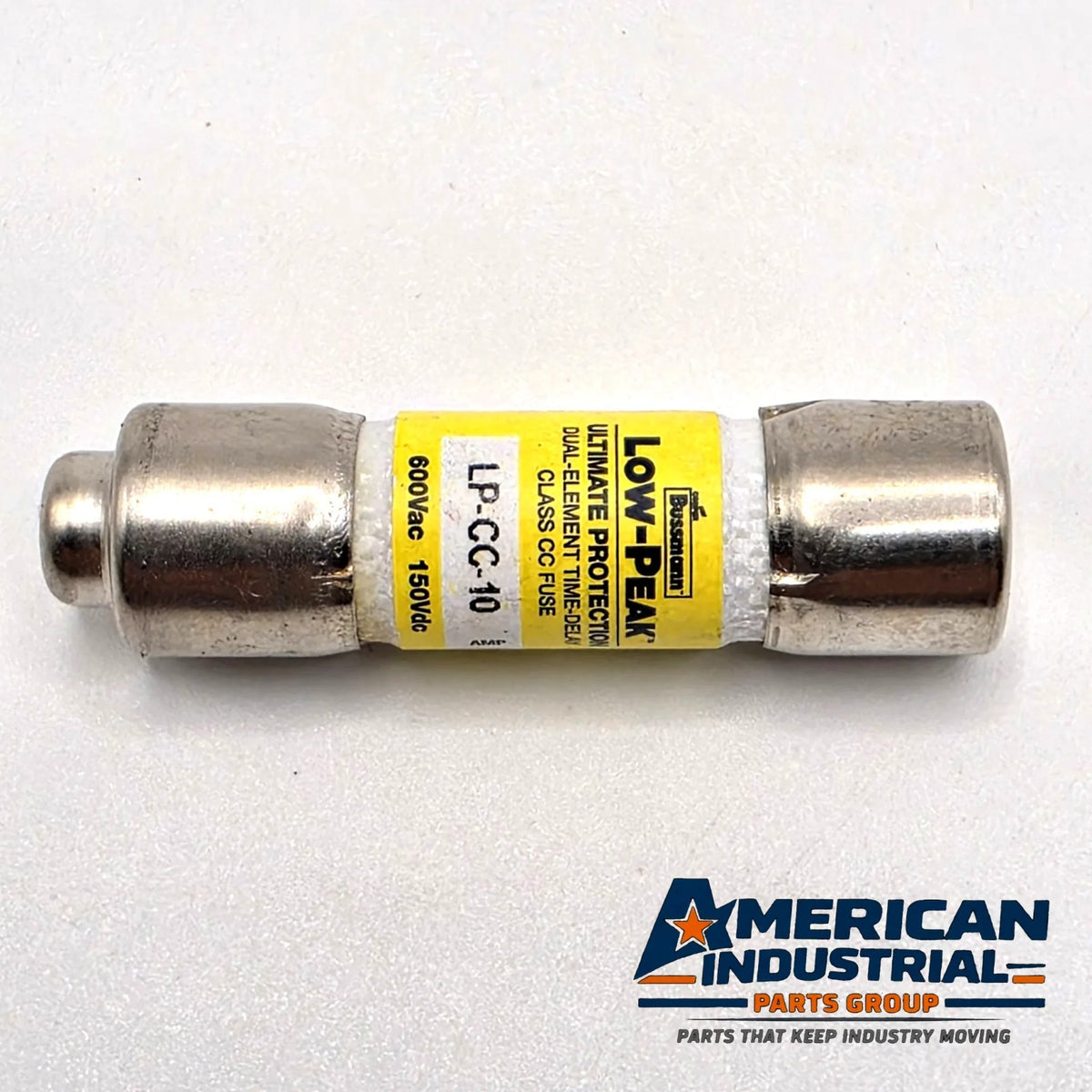

This is a Bussmann LP-CC-10 Low-Peak Ultimate Protection dual-element time-delay Class CC fuse, rated 10 amps. It's new, open box and has never been installed. The end caps show storage marks, including a darkened spot near one cap crimp, and the label shows light wear. Please see the photos. The end cap is stamped "BUSS LP-CC 10A 600V."

Features:
10 A, 600 VAC rating with 200 kA interrupting rating
DC rated 150 VDC with 20 kA interrupting rating, as labeled
Dual-element time-delay rides through motor and transformer inrush (12 seconds minimum at 200% of rating)
Current-limiting Class CC design
Rejection-style end cap fits only Class CC holders, so lower-rated fuses can't be substituted
13/32 in x 1-1/2 in body
UL Listed (Issue No. 0086321), CSA certified, label code J24, assembled in Mexico

Compatibility:
Fits Class CC fuse holders and blocks, including Bussmann CHCC series holders, and Class CC disconnects and panelboards.
Cross-references include the Mersen ATDR10 and Littelfuse CCMR010 Class CC time-delay fuses. Confirm the requirements of your application before installing.

Q&A
Q: Is this fuse new?
A: Yes. It's new, open box and has never been installed. There are storage marks on the end caps.
Q: Will this fit a standard 13/32 x 1-1/2 midget fuse holder?
A: Only if the holder is Class CC rejection style. Class CC fuses have a rejection feature, and standard midget holders aren't rated for Class CC use.
Q: Is this a time-delay or fast-acting fuse?
A: It's dual-element time-delay. It's designed to ride through motor-starting and transformer inrush currents.
Q: How many fuses are included?
A: One fuse.
