Bussmann LP-CC-2-1/2 Low-Peak 2.5A 600VAC Class CC Time-Delay Fuse New

ITEM SPECIFICS
Brand: Bussmann (Eaton)
MPN: LP-CC-2-1/2
Series: Low-Peak LP-CC
Type: Current-Limiting Time-Delay Fuse
Fuse Class: UL Class CC
Current Rating: 2-1/2 A (2.5 A)
AC Voltage Rating: 600 VAC
AC Interrupting Rating: 200 kA
DC Voltage Rating: 300 VDC (as marked)
DC Interrupting Rating: 20 kA (as marked)
Time Delay: 12 seconds minimum at 200% rated current
Size: 13/32 in diameter x 1-1/2 in long
Mounting: Ferrule (Class CC rejection end)
Indicator: Non-indicating
Certifications: UL Listed, CSA
Country of Manufacture: Mexico
Condition: New – Open Box
Quantity: 1

DESCRIPTION

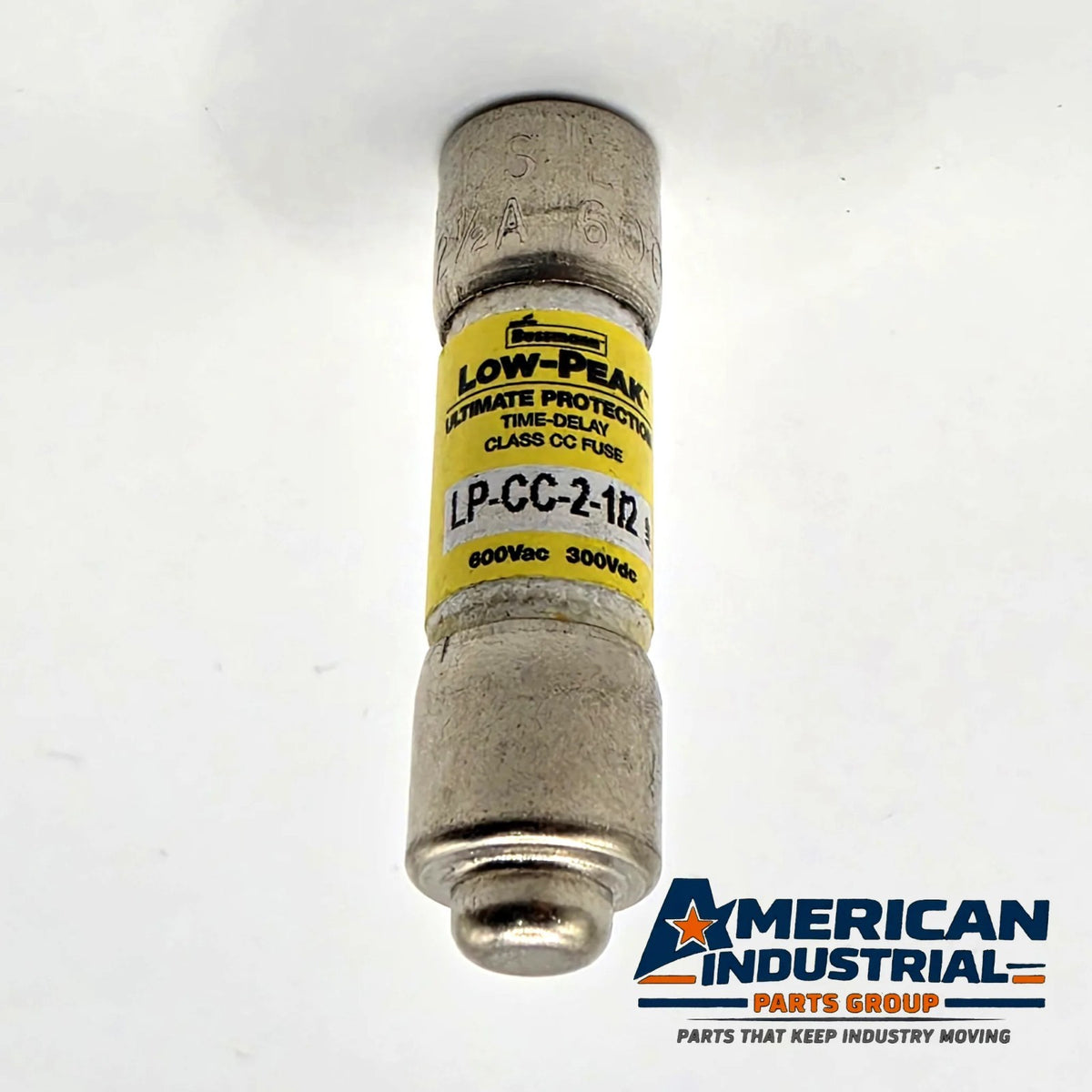

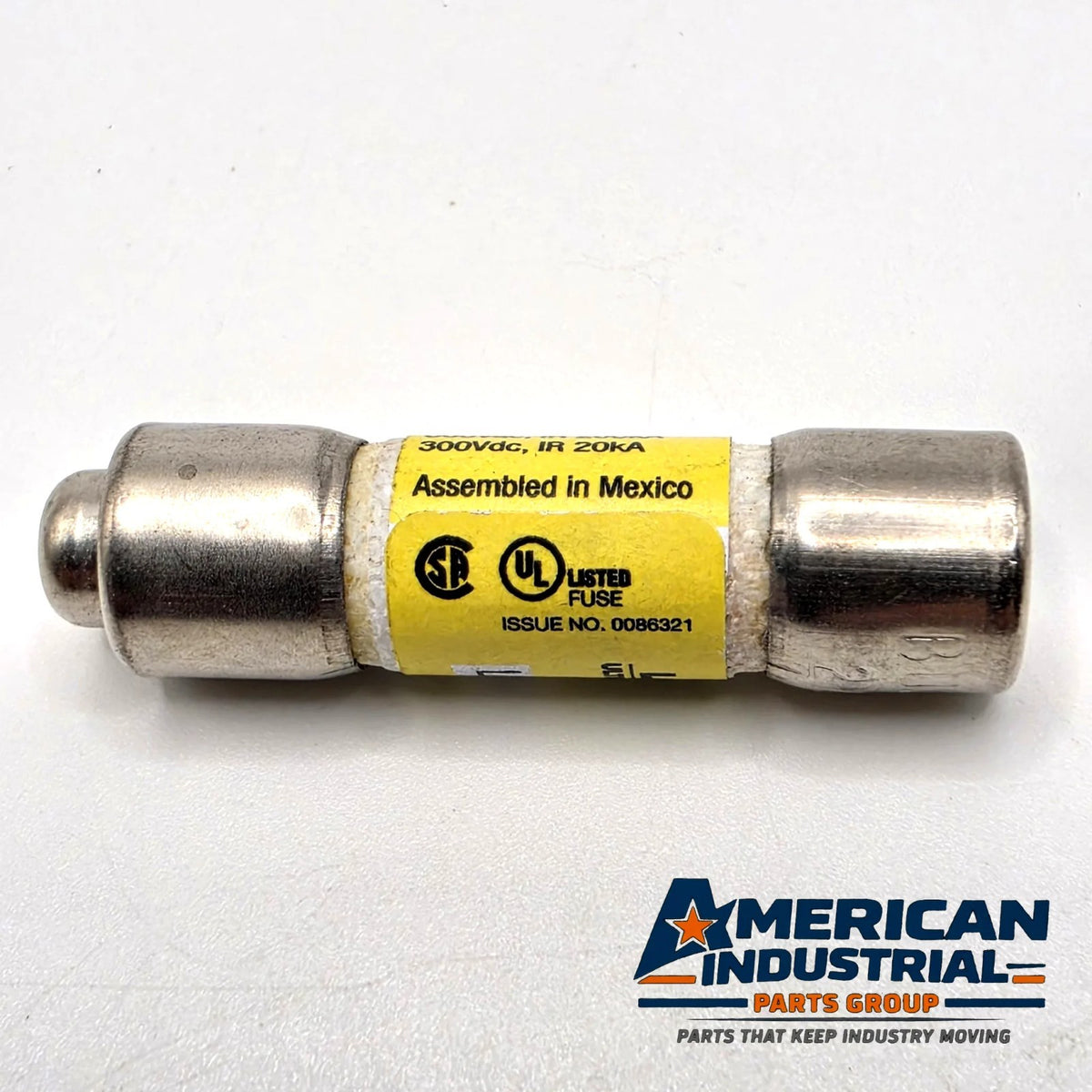

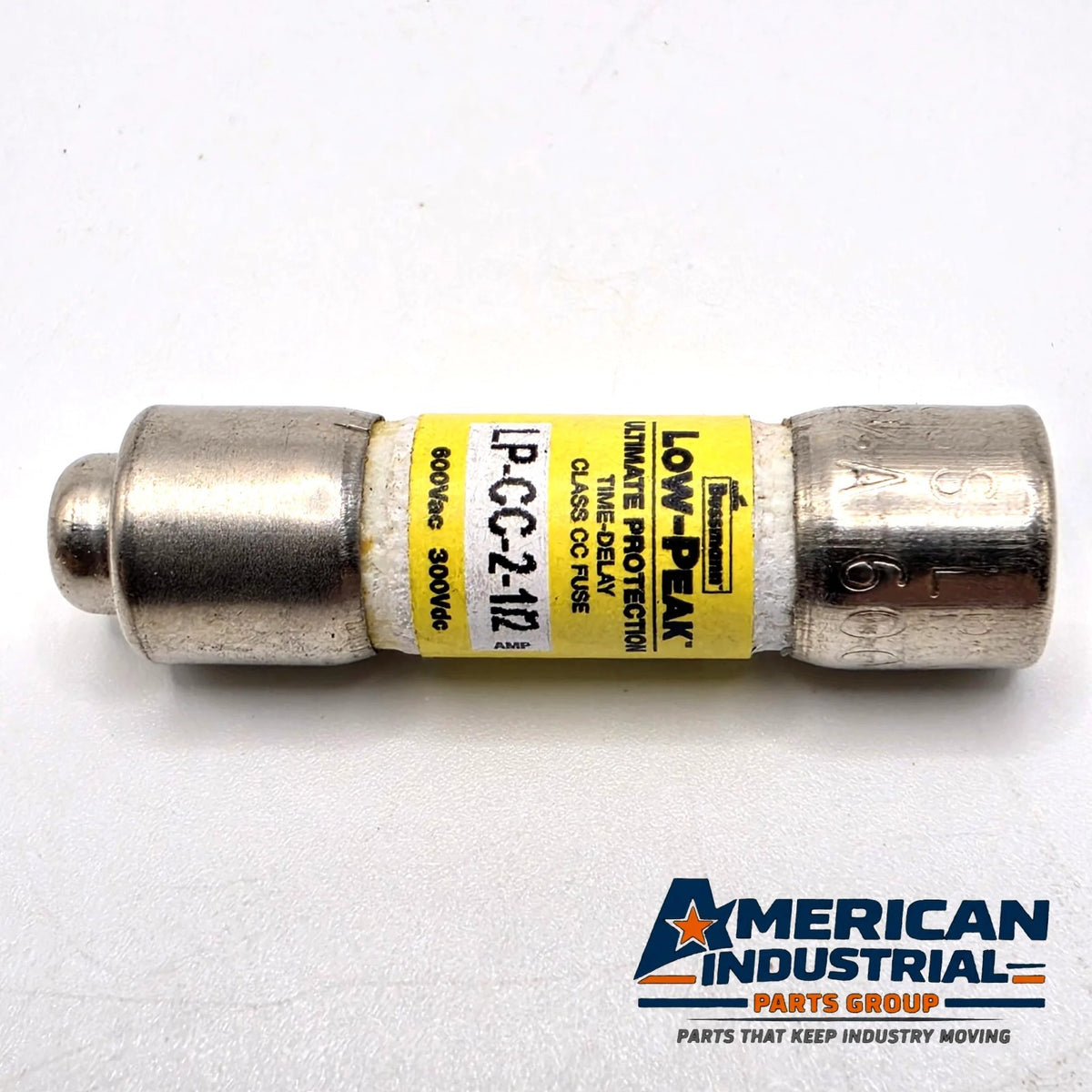

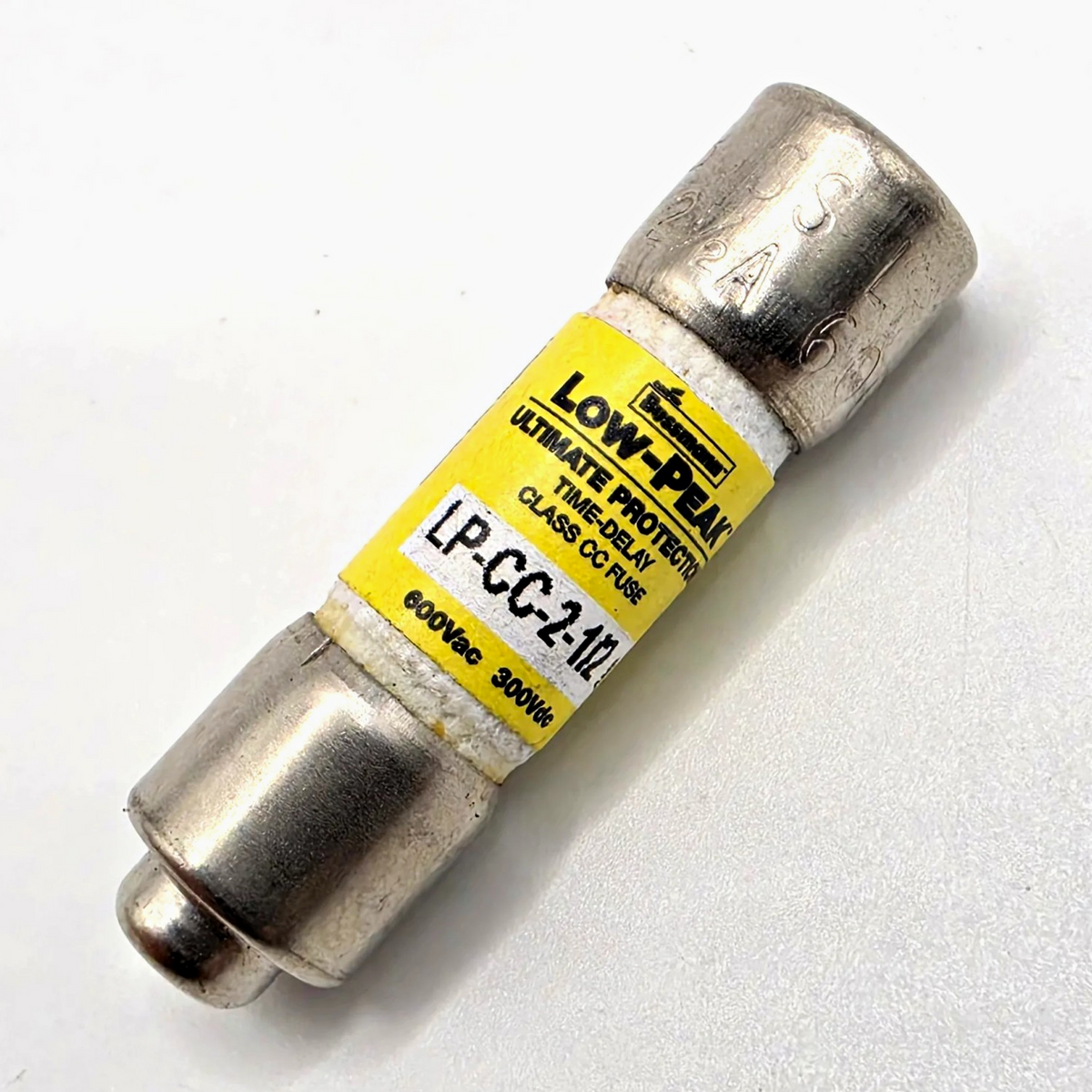

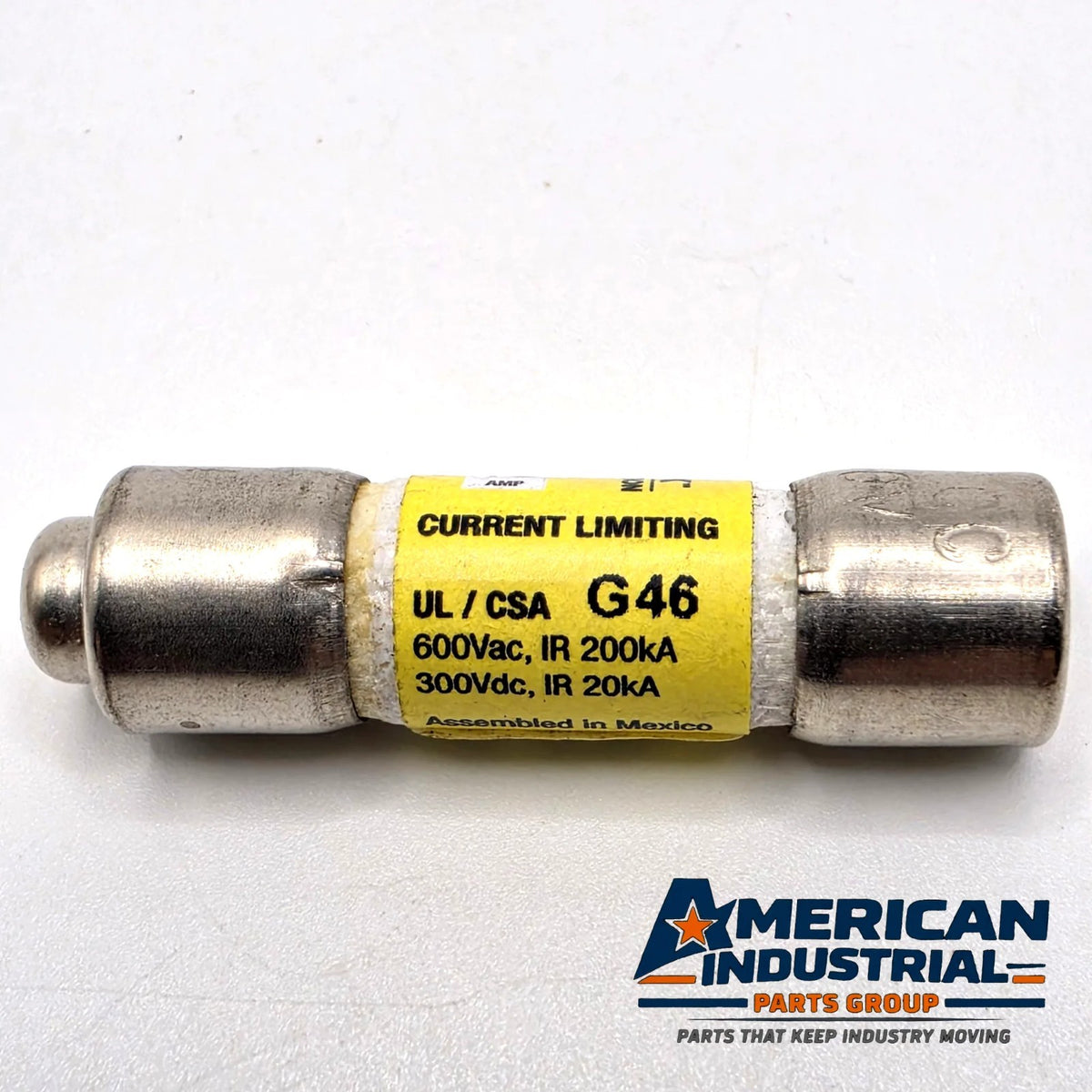

New open box Bussmann LP-CC-2-1/2 Low-Peak time-delay Class CC fuse, rated 2-1/2 A at 600 VAC with a 200 kA interrupting rating, and 300 VDC with a 20 kA interrupting rating as marked on the label. The label reads "Bussmann Low-Peak Ultimate Protection, Time-Delay Class CC Fuse, LP-CC-2-1/2," with UL Listed and CSA marks, "Assembled in Mexico," and code G46. The fuse has not been installed. The label shows light staining and wear, and the end caps have light storage marks, as pictured.
The LP-CC is Bussmann's Low-Peak Class CC time-delay fuse. It holds 200% of its rating for at least 12 seconds, so control transformer inrush and small-motor starting current pass without nuisance opening. The 2-1/2 A rating is a common size for control power transformer primaries and secondaries and for small motor control circuits. The Class CC rejection end fits only Class CC holders, so the wrong fuse can't be installed.

Features:
2-1/2 A, 600 VAC / 300 VDC
200 kA AC and 20 kA DC interrupting ratings
Time delay, 12 seconds minimum at 200%
Current limiting
Class CC rejection-style end cap
13/32 x 1-1/2 in compact ferrule
UL Listed, CSA

Compatibility:
Direct replacement for Bussmann LP-CC-2-1/2 (also listed as LPCC2-1/2 or LP-CC 2.5A). It fits Class CC fuse holders and blocks, such as Bussmann CHCC series DIN-rail holders, and Class CC fused disconnects. Equivalent Class CC time-delay 2-1/2 A fuses are in the Mersen ATDR and Littelfuse CCMR series. Confirm the exact part number and characteristics before substituting.

Q&A
Q: What size is the LP-CC-2-1/2?
A: 13/32 inch diameter by 1-1/2 inches long, the Class CC size.
Q: Is this a time-delay fuse?
A: Yes. It holds 200% of its rating for at least 12 seconds.
Q: Can I use it on DC?
A: Yes. The label marks it 300 VDC with a 20 kA interrupting rating.
Q: Will it fit a standard midget (10 x 38) holder?
A: It will physically fit some, but Class CC fuses belong in Class CC rejection holders. Use the correct holder for code compliance.
Q: Is LP-CC-2-1/2 the same as LP-CC-2.5?
A: Yes. Both refer to the 2-1/2 A (2.5 A) Low-Peak Class CC fuse.

DISCLAIMER
Item is new open box, sold as pictured. The fuse has not been installed. The label shows light wear and staining. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
