Bussmann LP-CC-25 Low-Peak 25A 600VAC Class CC Time-Delay LPCC25 New Open Box

ITEM SPECIFICS
Brand: Bussmann
Manufacturer: Eaton
Product Line: Low-Peak
Model: LP-CC-25
MPN: LP-CC-25
Type: Current-Limiting Time-Delay Fuse, Dual-Element
Fuse Class: Class CC (Rejection Style)
Current Rating: 25 A
Voltage Rating: 600 VAC / 300 VDC
Interrupting Rating: 200 kA at 600 VAC; 20 kA at 300 VDC
Time Delay: 12 seconds at 200% of rating
Size: 13/32 in x 1-1/2 in
Connection: Ferrule
Indicating: Non-indicating
Body Material: Melamine
Certifications: UL Listed, CSA Certified
UPC: 051712180283
Condition: New – Open Box
Quantity: 1

DESCRIPTION

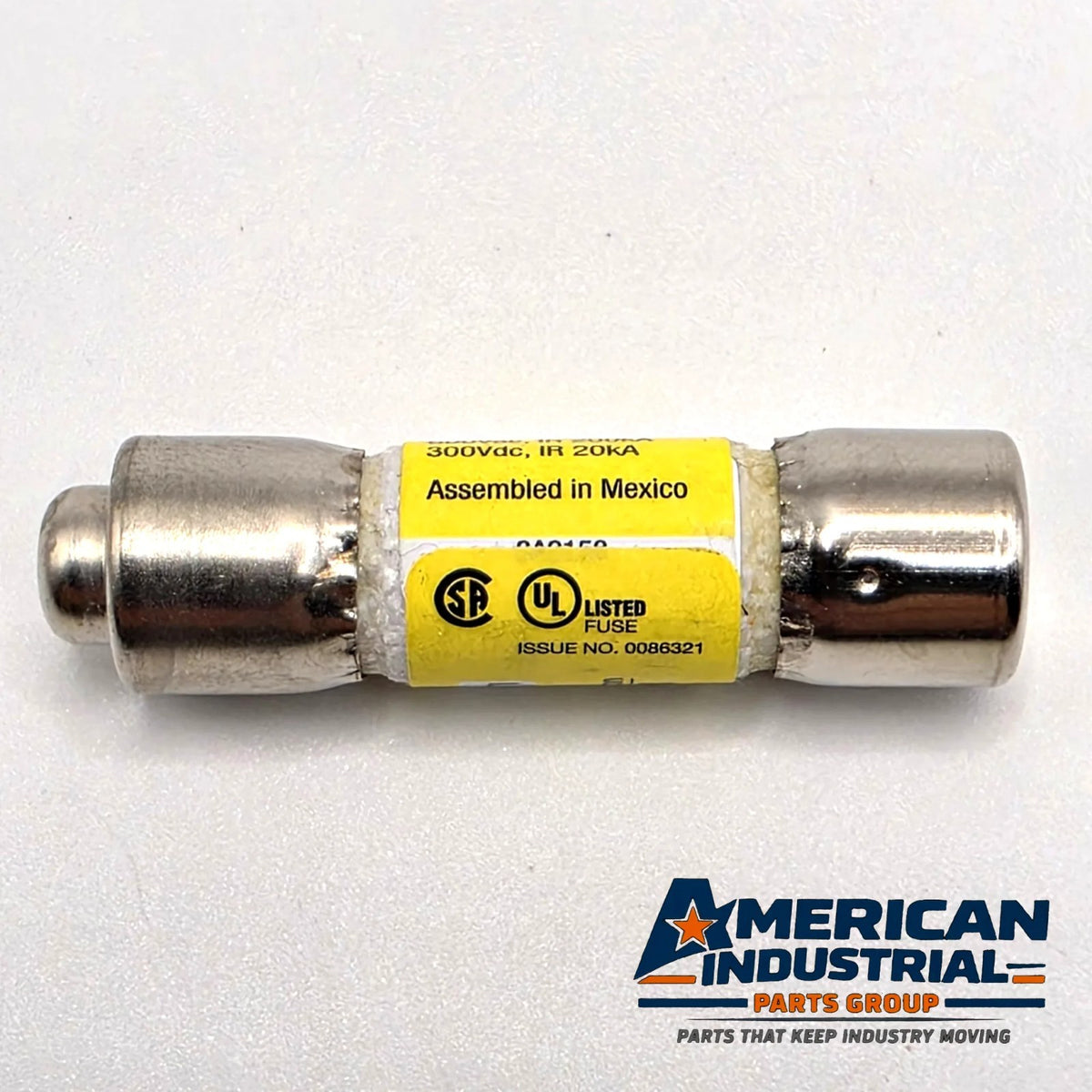

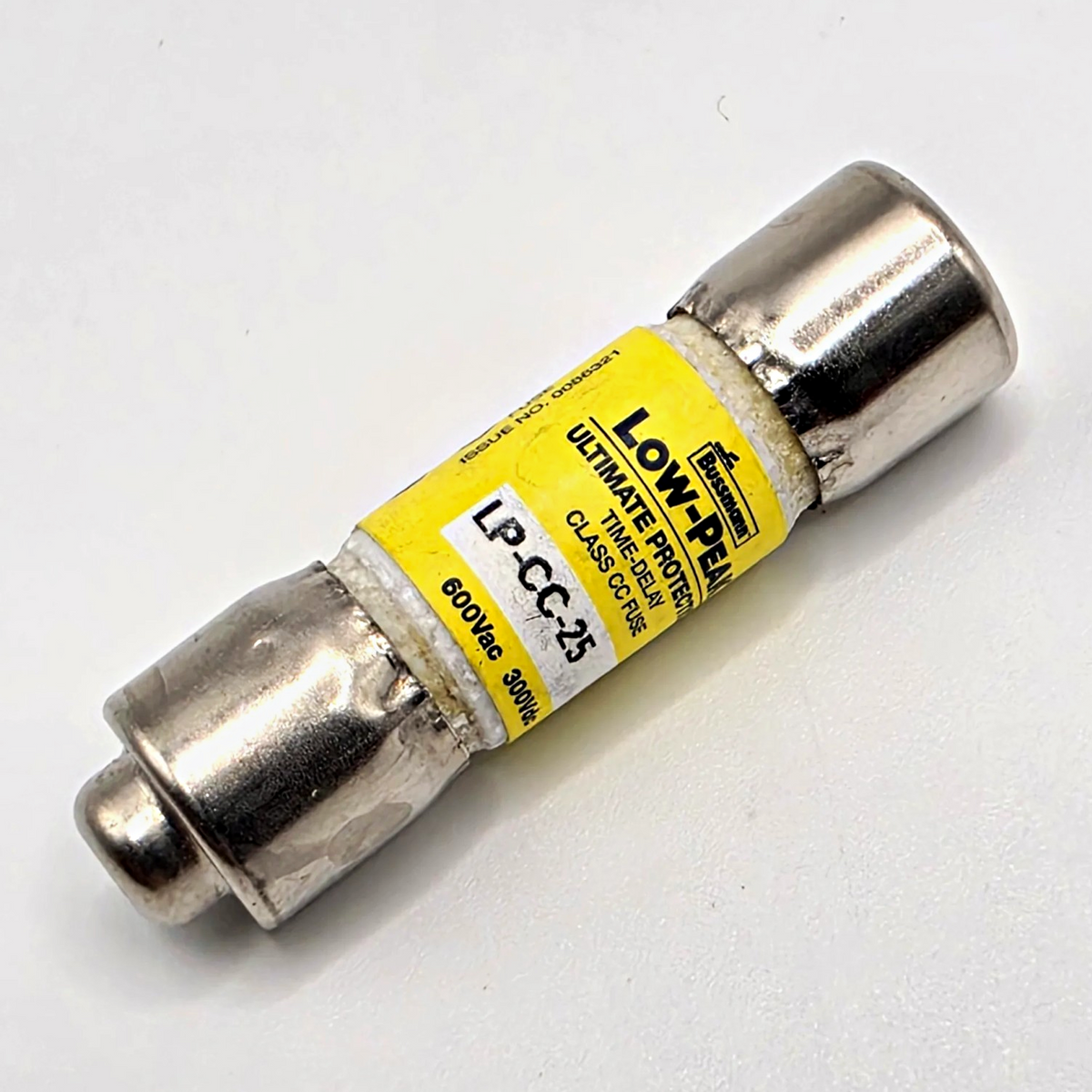

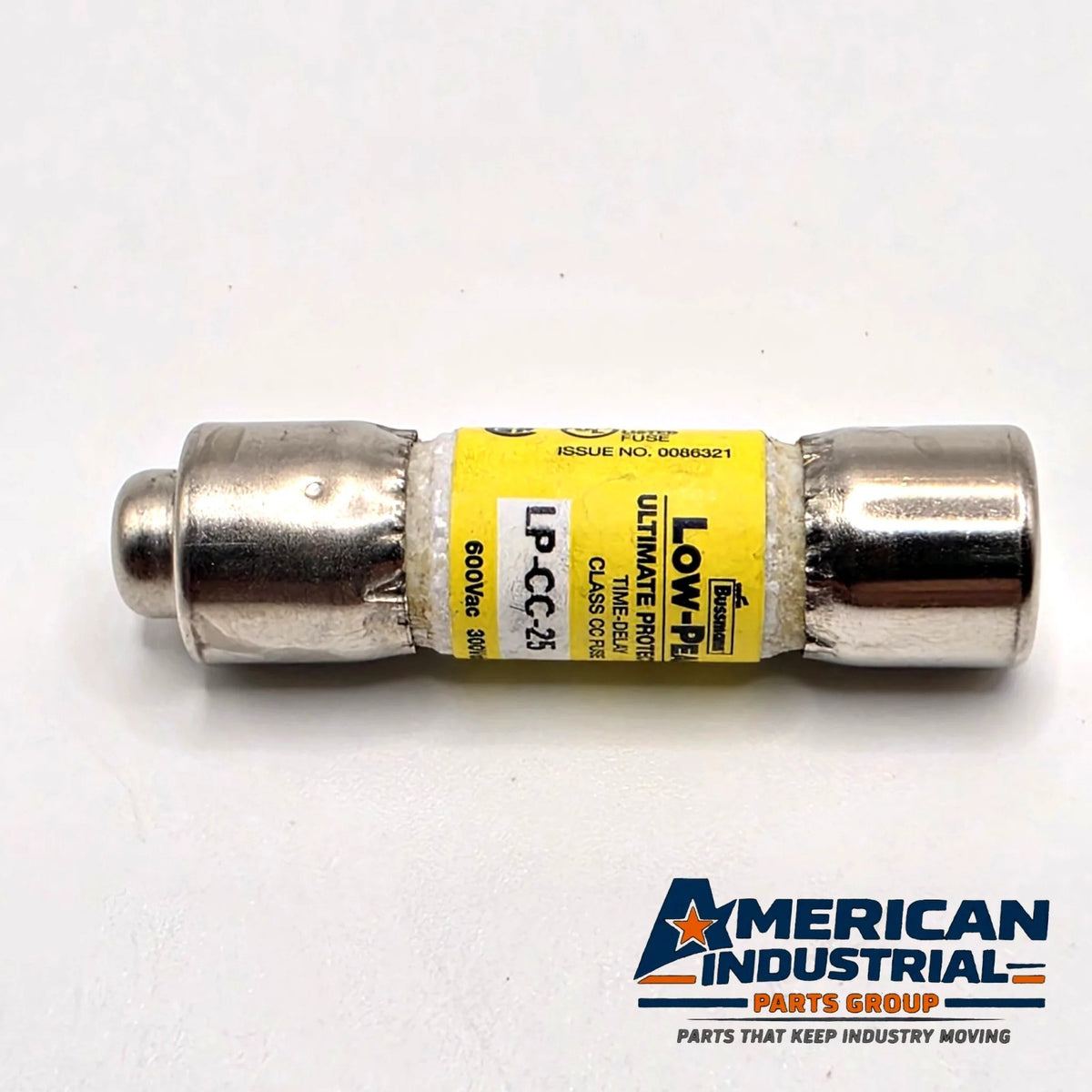

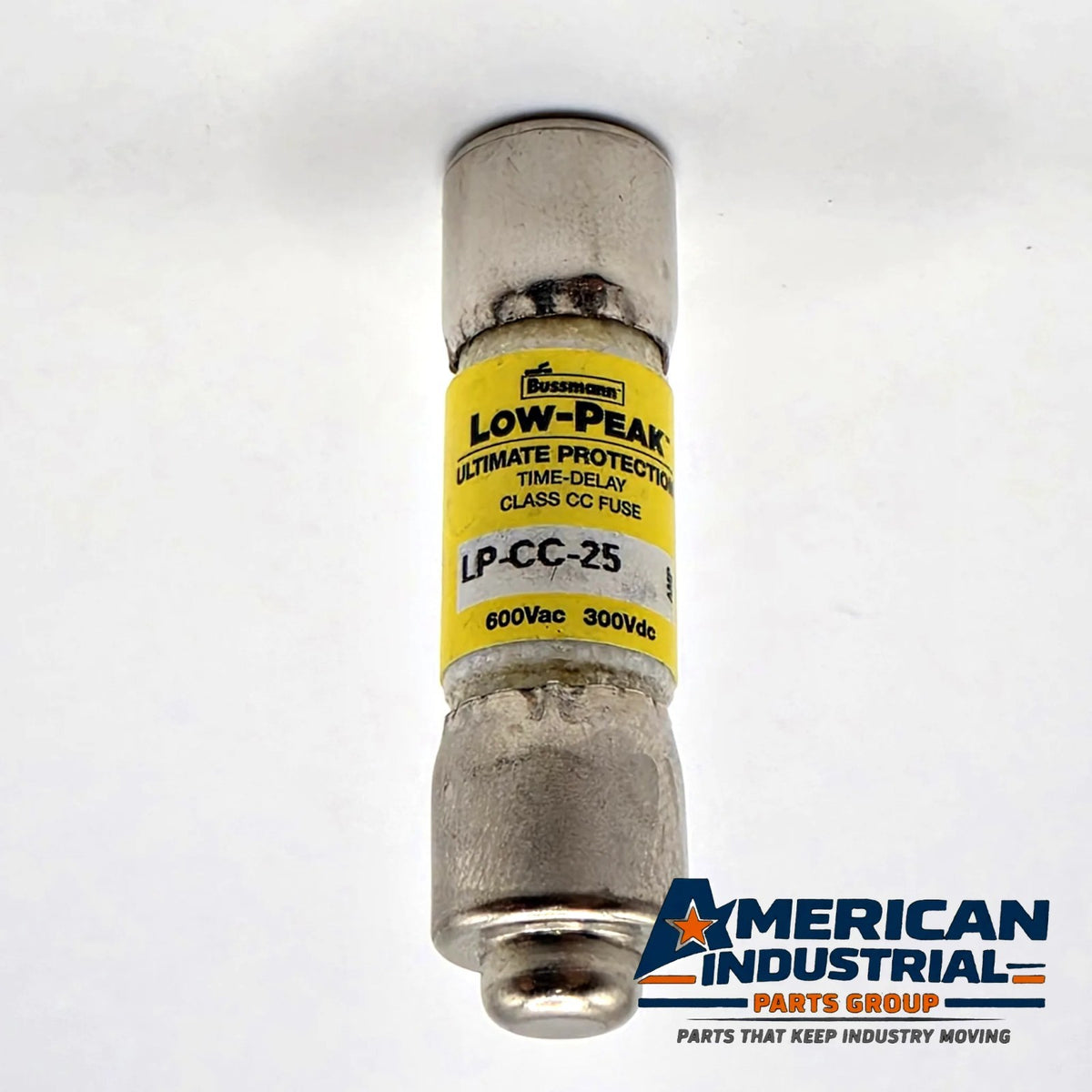

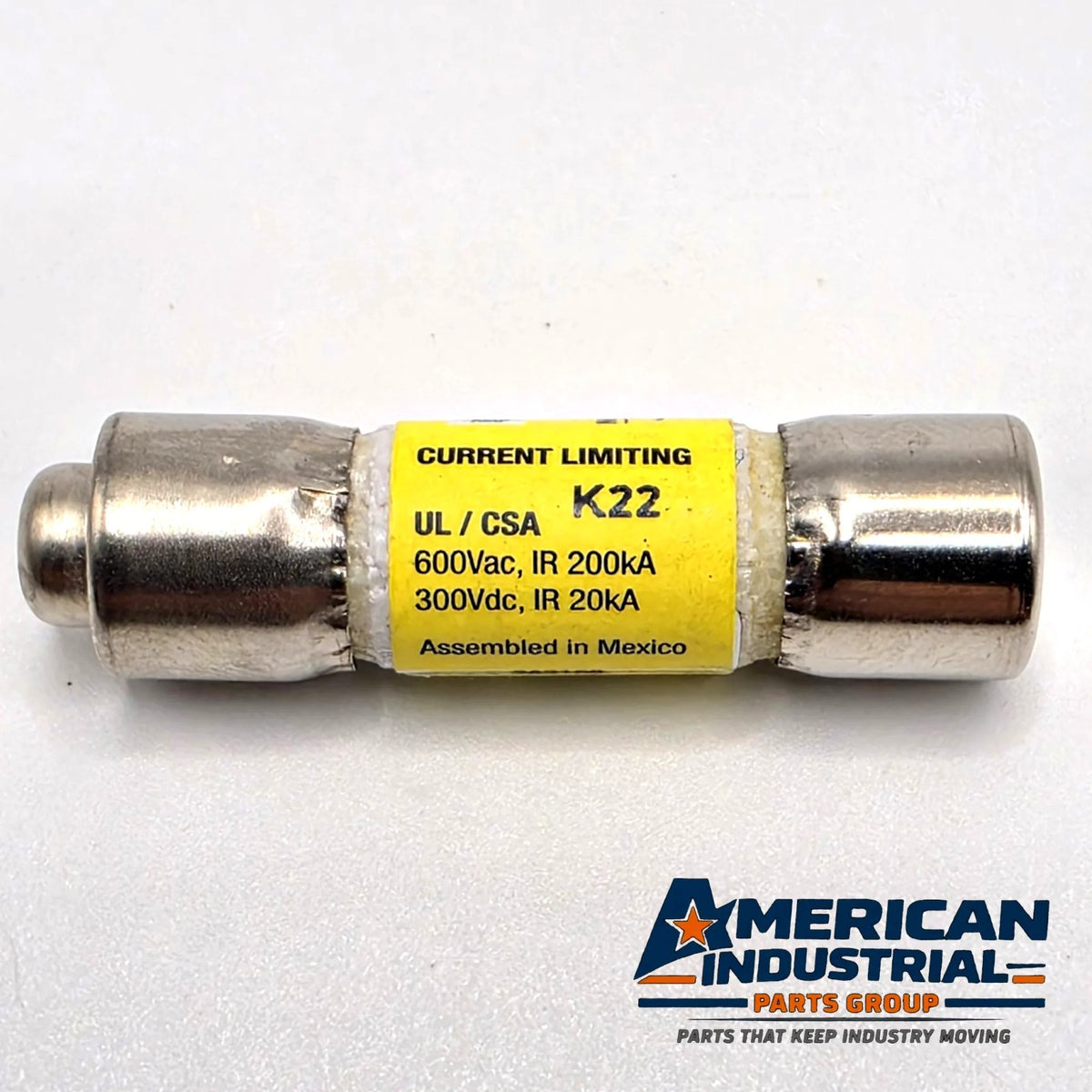

New open-box Bussmann LP-CC-25 Low-Peak 25 amp Class CC time-delay fuse, never installed. The label reads "Low-Peak Ultimate Protection, Time-Delay Class CC Fuse, LP-CC-25, 600Vac 300Vdc, Current Limiting, UL / CSA, 600Vac IR 200kA, 300Vdc IR 20kA, Assembled in Mexico." This is a dual-element, current-limiting fuse in the 13/32 x 1-1/2 inch rejection-style Class CC body. It comes without the original box. Ferrule caps show light shelf tarnish, as pictured.

Features:
25 A current rating
600 VAC / 300 VDC voltage rating
200 kA interrupting rating at 600 VAC (20 kA at 300 VDC)
Dual-element time delay: holds 200% of rated current for 12 seconds
Current-limiting Class CC design
Rejection-style body that fits only Class CC holders
13/32 in x 1-1/2 in ferrule body
UL Listed, CSA Certified

Compatibility:
Direct replacement for the Bussmann LP-CC-25 / LPCC25 Low-Peak fuse. Fits Class CC rejection fuse holders and blocks, including the Bussmann CHCC series. Comparable 25A Class CC time-delay fuses include the Mersen (Ferraz Shawmut) ATDR25 and Littelfuse CCMR25. Used for control transformer primaries, motor branch circuits, and industrial control panels.

Q&A
Q: Is the LP-CC-25 a time-delay or fast-acting fuse?
A: Time-delay. It is a dual-element fuse that holds 200% of its 25A rating for 12 seconds, so it rides through motor and transformer inrush current.
Q: What size is a Class CC fuse?
A: 13/32 in diameter x 1-1/2 in long, with a rejection feature on one end.
Q: What is the interrupting rating?
A: 200,000 A at 600 VAC and 20,000 A at 300 VDC.
Q: What does the LP-CC-25 cross-reference to?
A: Mersen ATDR25 and Littelfuse CCMR25 are comparable 25A Class CC time-delay fuses.

DISCLAIMER
Item is new open box, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.

LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Bussmann or Eaton. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
