Bussmann LP-CC-30 Low-Peak 30A 600VAC Class CC Time-Delay Fuse LPCC30 Open Box

ITEM SPECIFICS
Brand: Bussmann
Manufacturer: Eaton
Product Line: Low-Peak
Model: LP-CC-30
MPN: LP-CC-30
Type: Current-Limiting Time-Delay Fuse, Dual-Element
Fuse Class: Class CC (Rejection Style)
Current Rating: 30 A
Voltage Rating: 600 VAC / 300 VDC
Interrupting Rating: 200 kA at 600 VAC; 20 kA at 300 VDC
Time Delay: 12 seconds at 200% of rating
Size: 13/32 in x 1-1/2 in (10.3 mm x 38.1 mm)
Connection: Ferrule
Indicating: Non-indicating
Body Material: Melamine
Certifications: UL Listed (UL 248-4, Class CC), CSA Certified
UPC: 051712180313
Condition: New – Open Box
Quantity: 1

DESCRIPTION

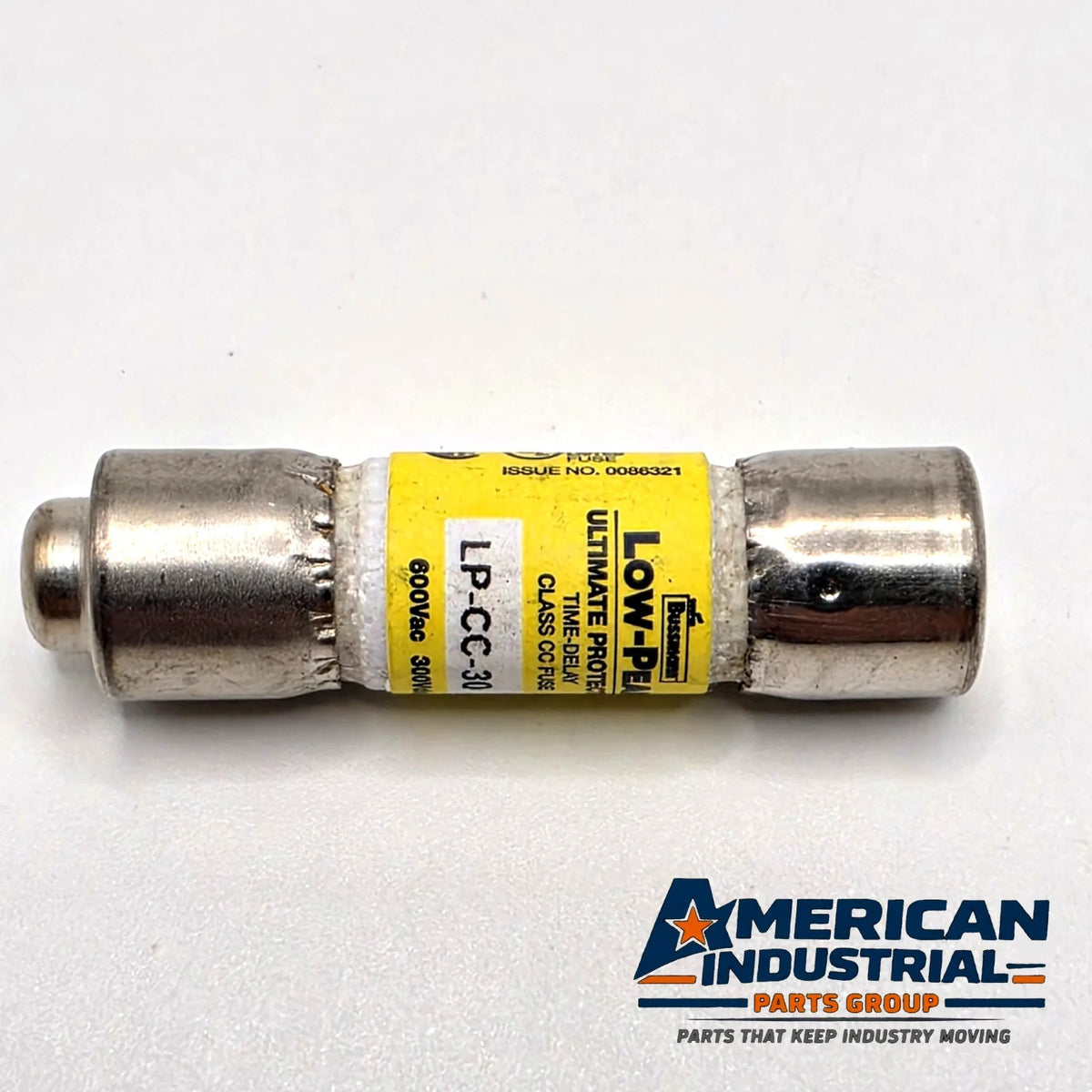

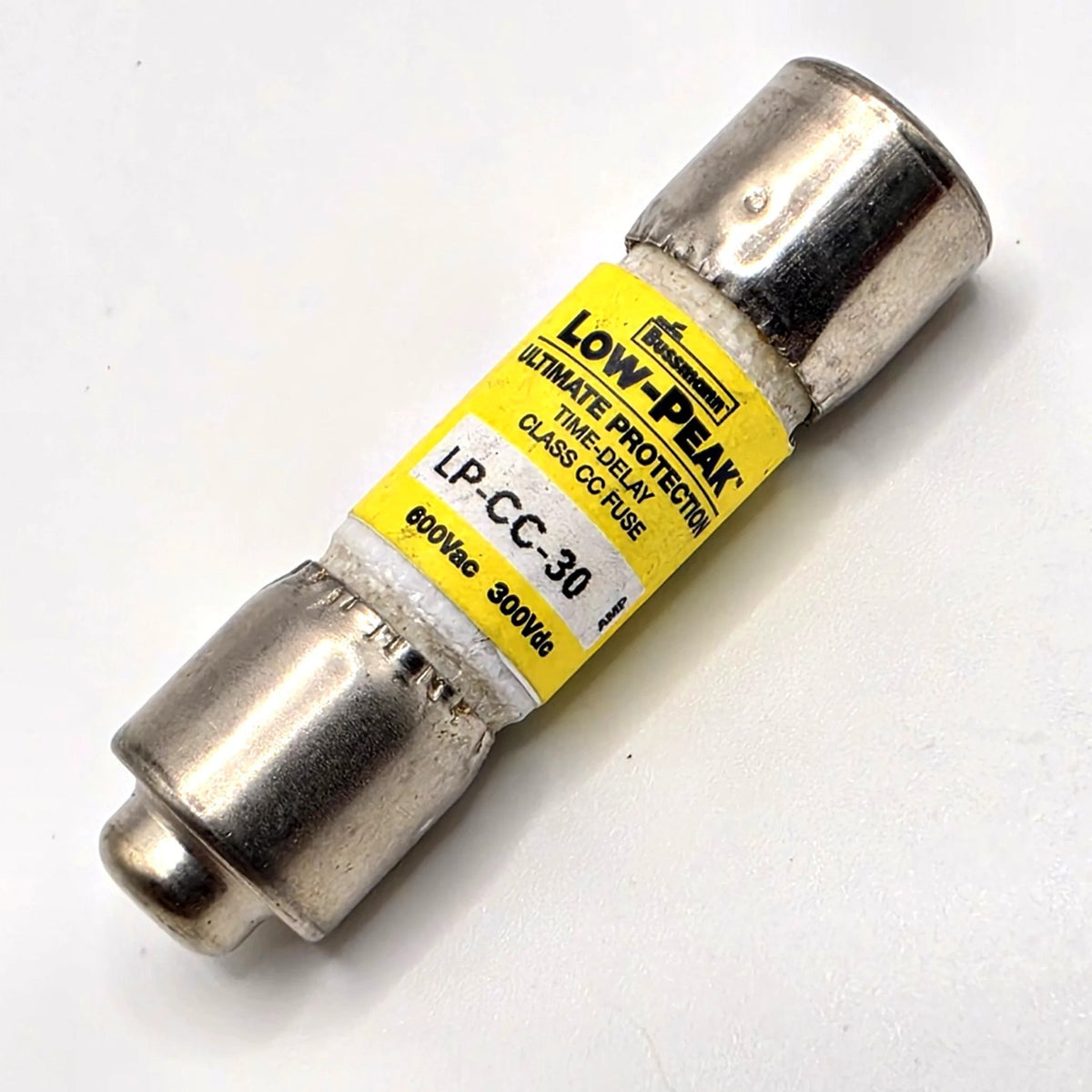

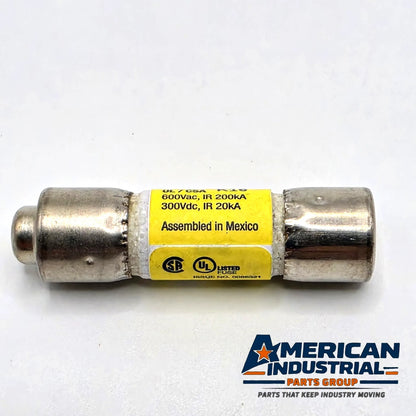

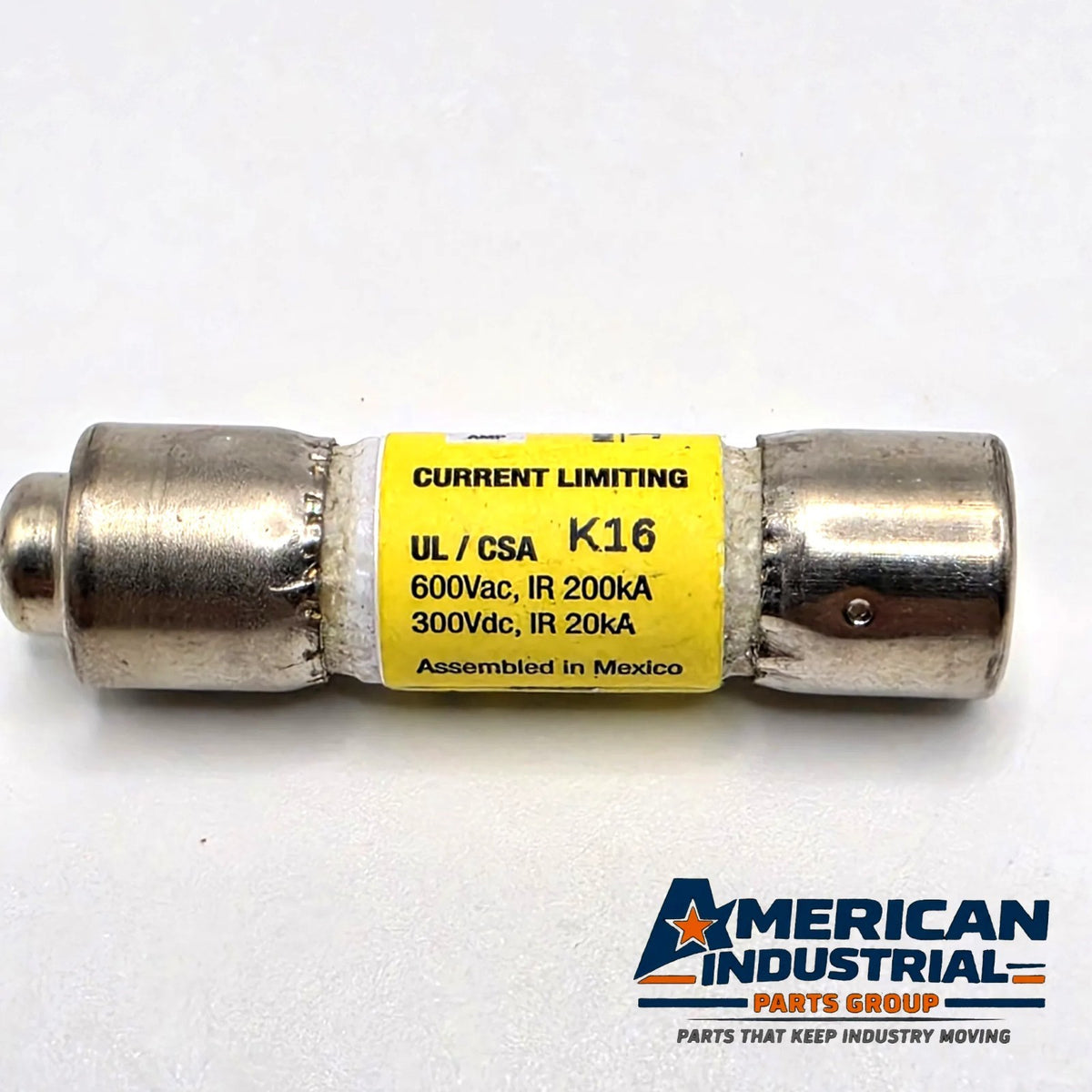

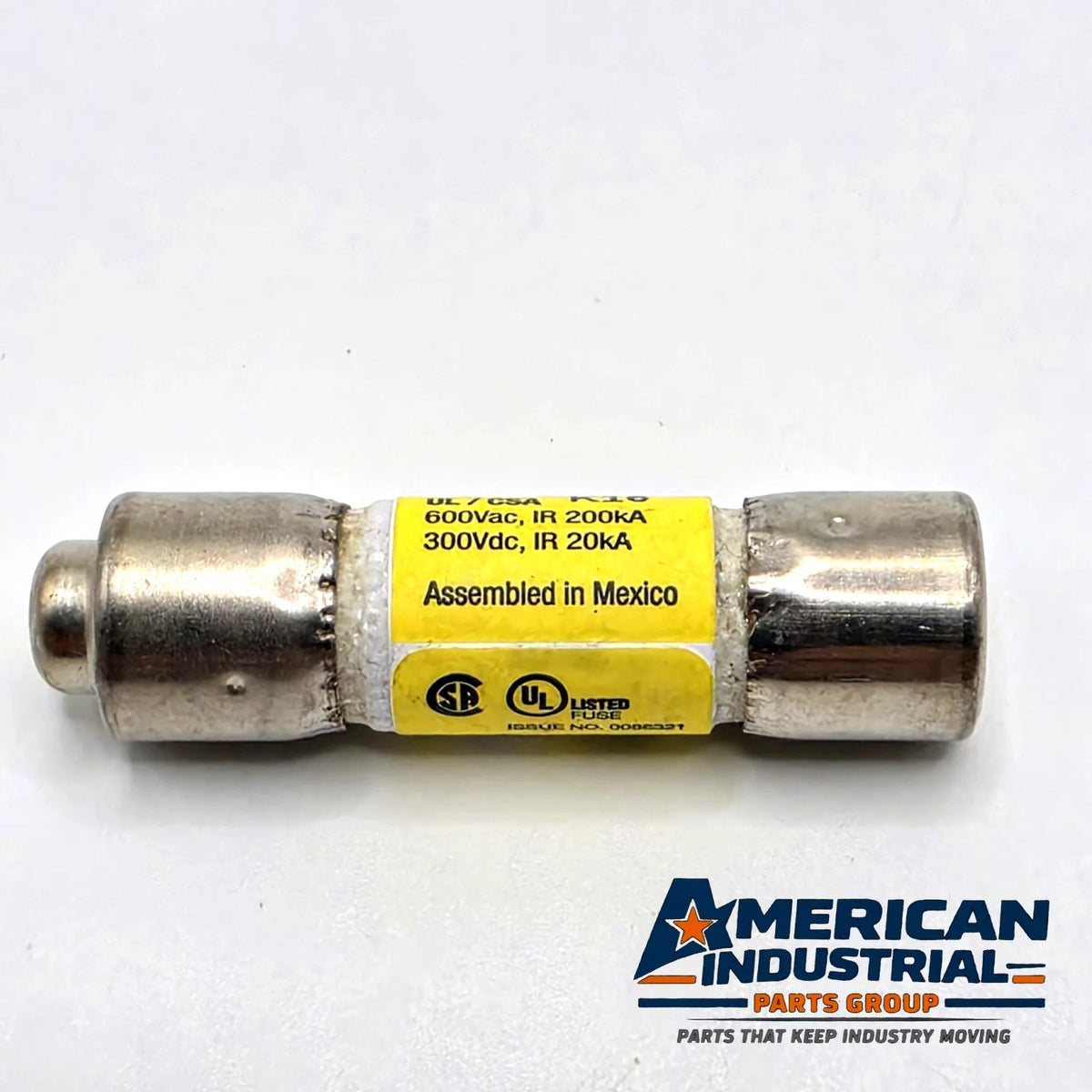

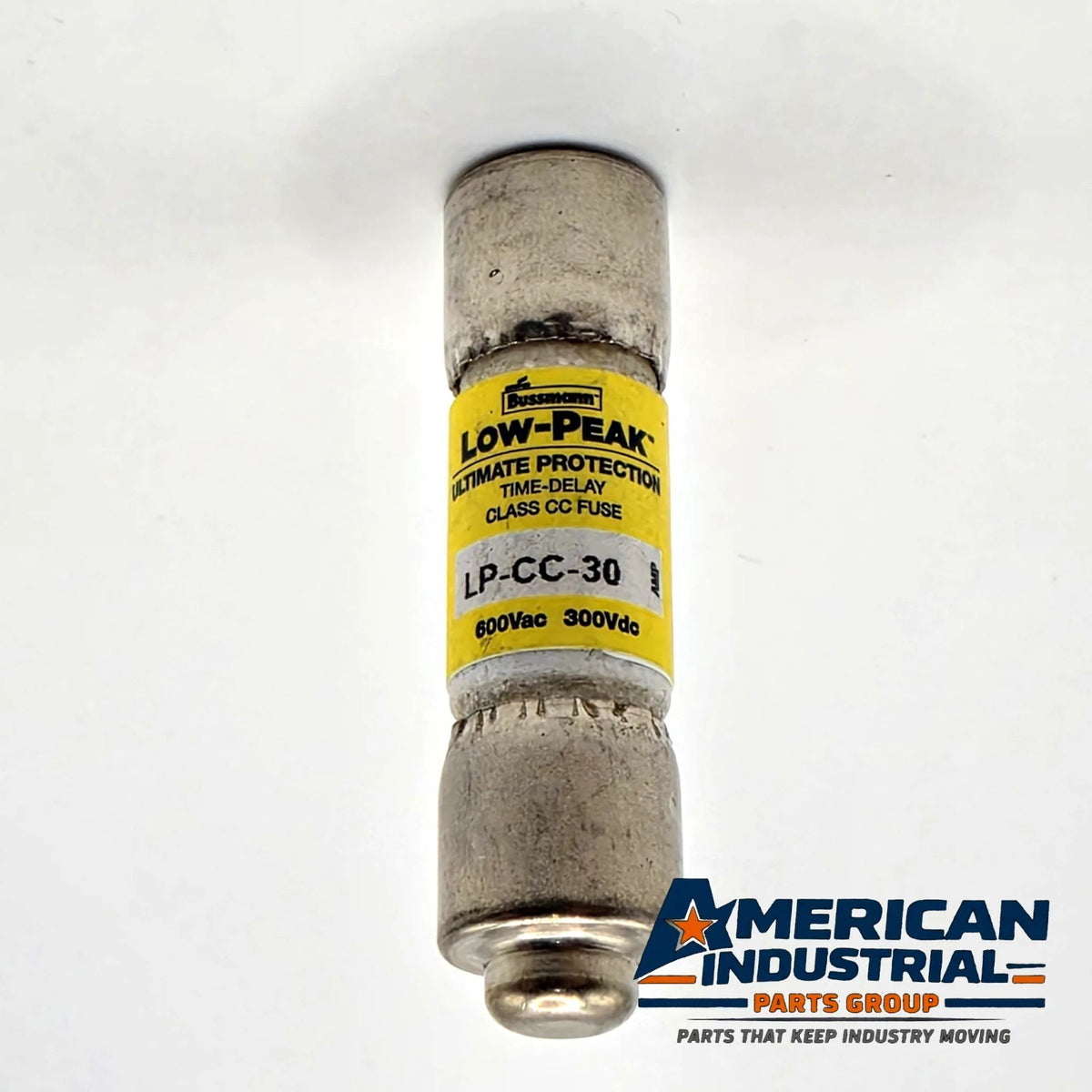

New open-box Bussmann LP-CC-30 Low-Peak 30 amp Class CC time-delay fuse, never installed. The label reads "Low-Peak Ultimate Protection, Time-Delay Class CC Fuse, LP-CC-30, 600Vac 300Vdc, Current Limiting, UL / CSA, 600Vac IR 200kA, 300Vdc IR 20kA, Assembled in Mexico," with UL Listed and CSA marks. This is a dual-element, current-limiting fuse in the 13/32 x 1-1/2 inch rejection-style Class CC body. It comes without the original box. Ferrule caps show light shelf tarnish, as pictured.

Features:
30 A current rating, the highest standard Class CC rating
600 VAC / 300 VDC voltage rating
200 kA interrupting rating at 600 VAC (20 kA at 300 VDC)
Dual-element time delay: holds 200% of rated current for 12 seconds
Current-limiting Class CC design
Rejection-style body that fits only Class CC holders
13/32 in x 1-1/2 in ferrule body
UL Listed, CSA Certified

Compatibility:
Direct replacement for the Bussmann LP-CC-30 / LPCC30 Low-Peak fuse. Fits 30A Class CC rejection fuse holders and blocks, including the Bussmann CHCC series. Comparable 30A Class CC time-delay fuses include the Mersen (Ferraz Shawmut) ATDR30 and Littelfuse CCMR30. Used for control transformer primaries, motor branch circuits, and industrial control panels.

Q&A
Q: Is the LP-CC-30 a time-delay or fast-acting fuse?
A: Time-delay. It is a dual-element fuse that holds 200% of its 30A rating for 12 seconds, so it rides through motor and transformer inrush current.
Q: What does the LP-CC-30 cross-reference to?
A: Mersen ATDR30 and Littelfuse CCMR30 are comparable 30A Class CC time-delay fuses.
Q: What size is a Class CC fuse?
A: 13/32 in diameter x 1-1/2 in long, with a rejection feature on one end.
Q: What is the interrupting rating?
A: 200,000 A at 600 VAC and 20,000 A at 300 VDC.
Q: What fuse holder does it fit?
A: Any 30A Class CC rejection holder, such as the Bussmann CHCC series.

DISCLAIMER
Item is new open box, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
