Bussmann LP-CC-8 Low-Peak 8A 600VAC Class CC Time-Delay Fuse LPCC8 Open Box

ITEM SPECIFICS
Brand: Bussmann
Manufacturer: Eaton
Product Line: Low-Peak
Model: LP-CC-8
MPN: LP-CC-8
Type: Current-Limiting Time-Delay Fuse, Dual-Element
Fuse Class: Class CC (Rejection Style)
Current Rating: 8 A
Voltage Rating: 600 VAC / 150 VDC
Interrupting Rating: 200 kA at 600 VAC; 20 kA at 150 VDC
Time Delay: 12 seconds at 200% of rating
Size: 13/32 in x 1-1/2 in
Connection: Ferrule
Indicating: Non-indicating
Body Material: Melamine
Certifications: UL Listed, CSA Certified
UPC: 051712180399
Condition: New – Open Box
Quantity: 1

DESCRIPTION

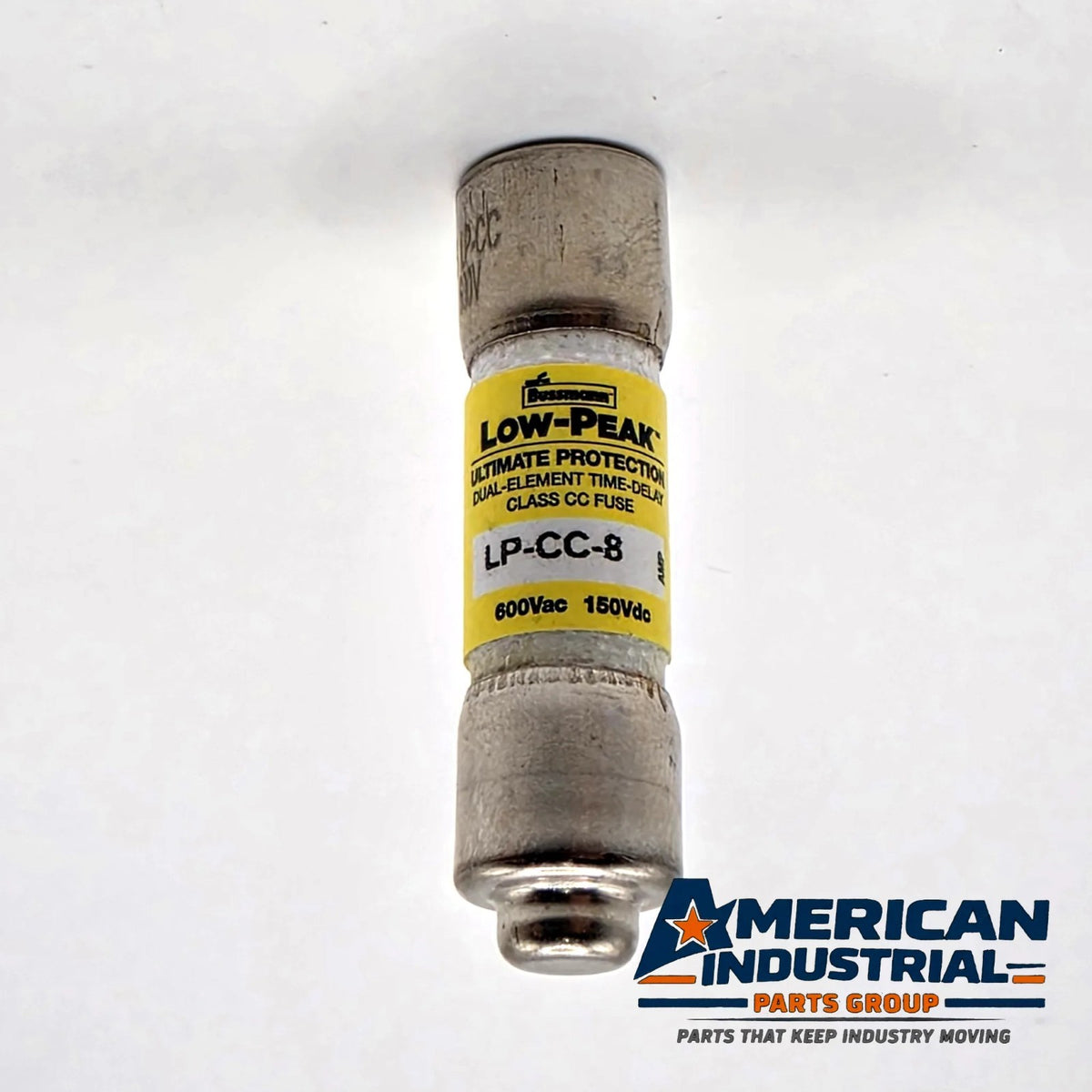

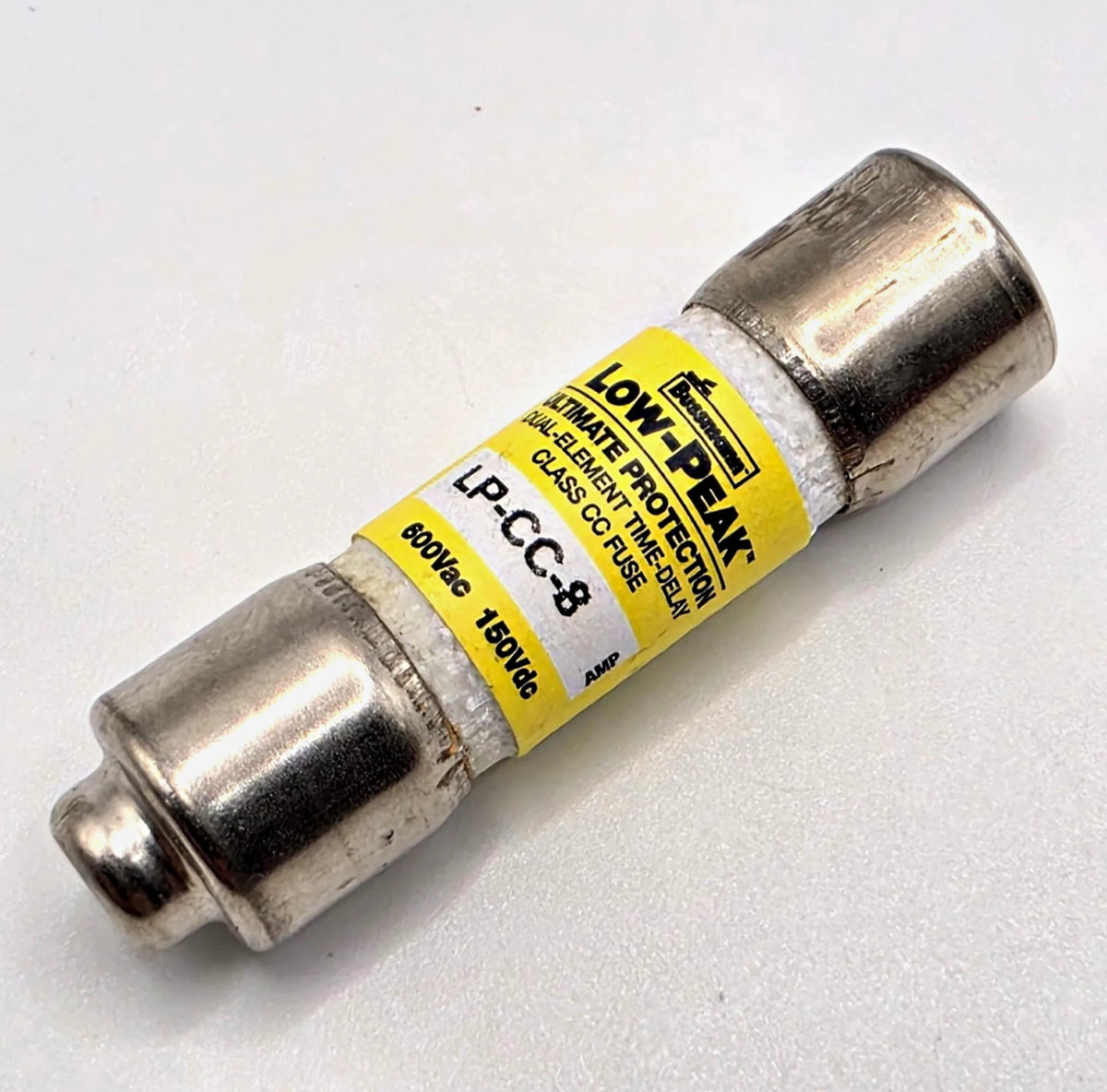

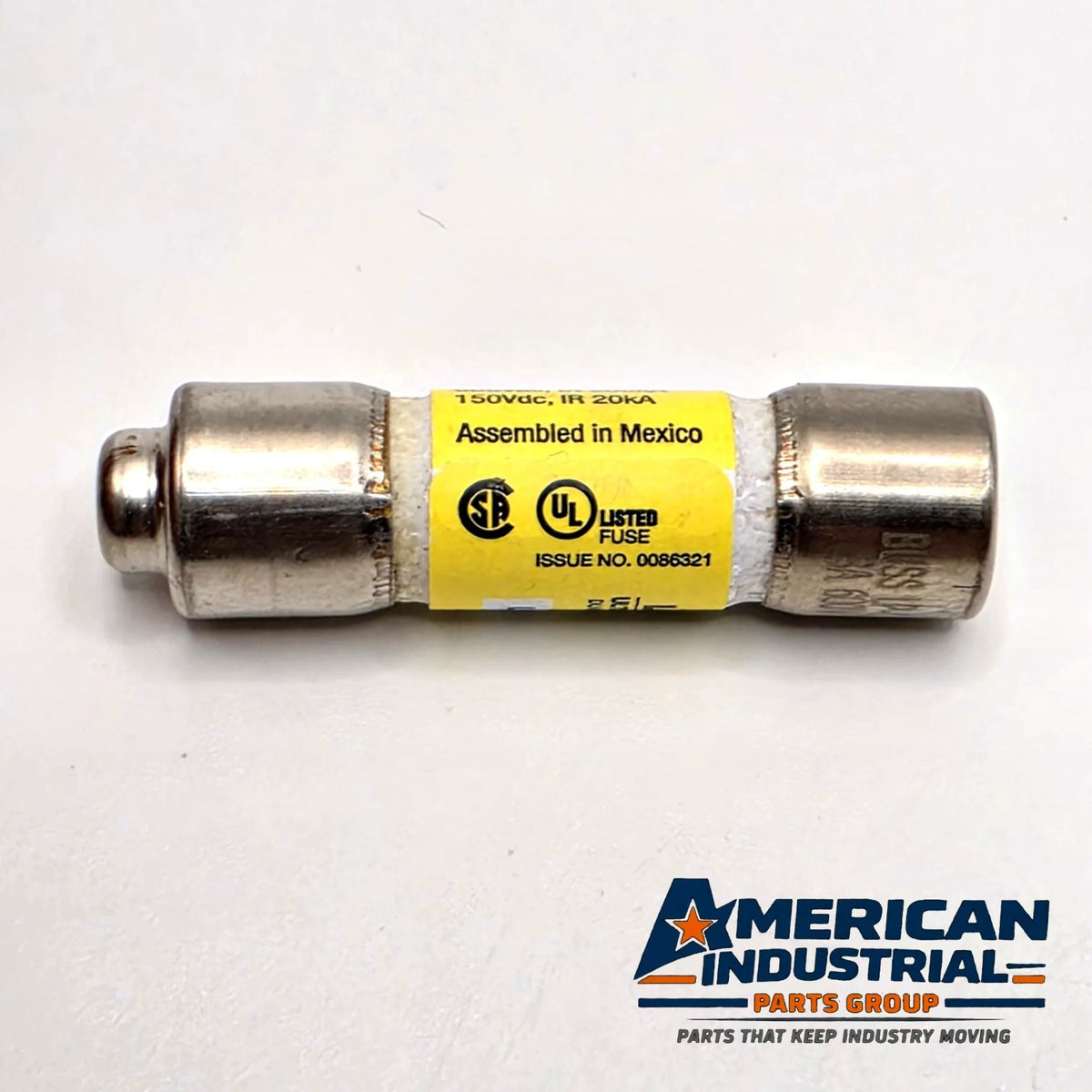

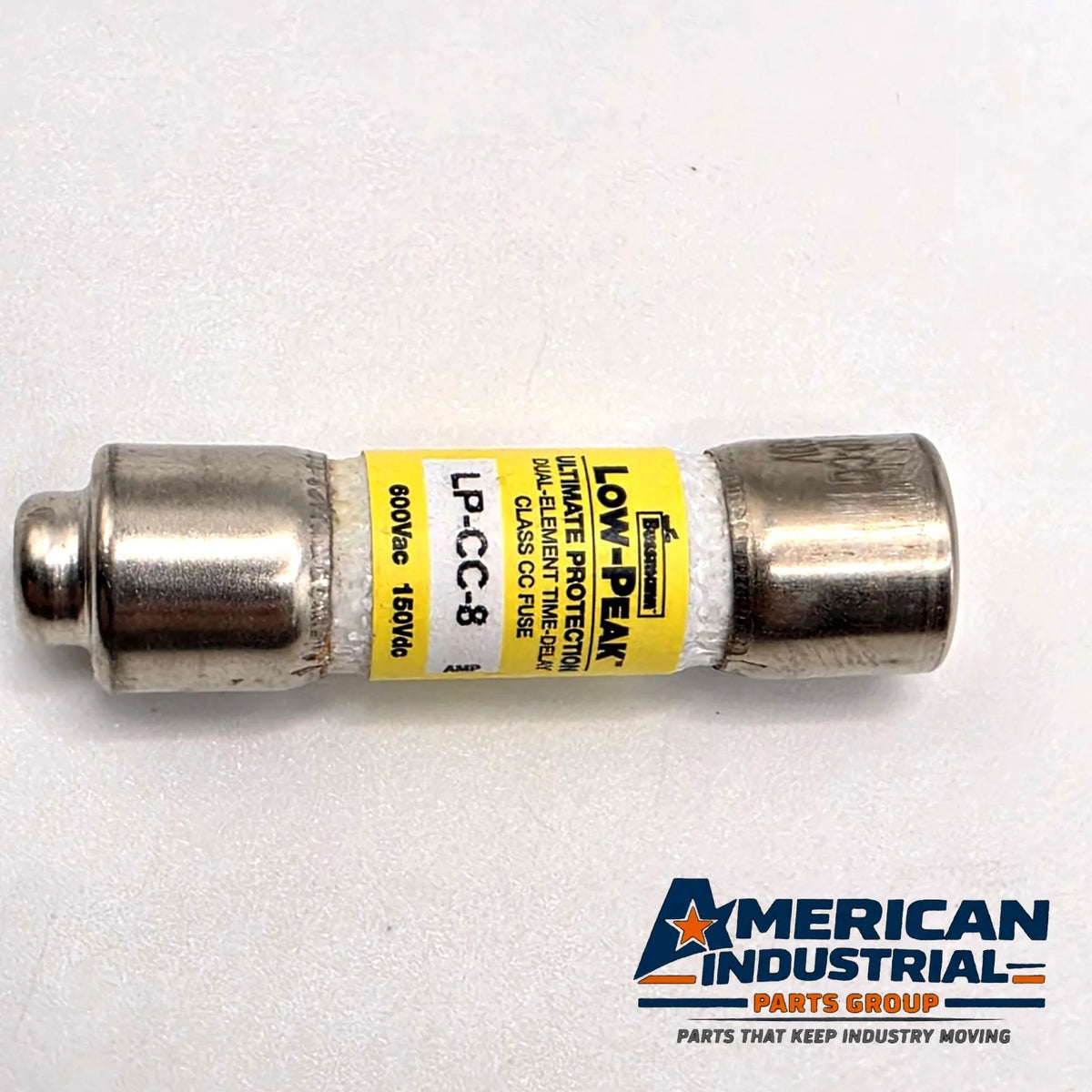

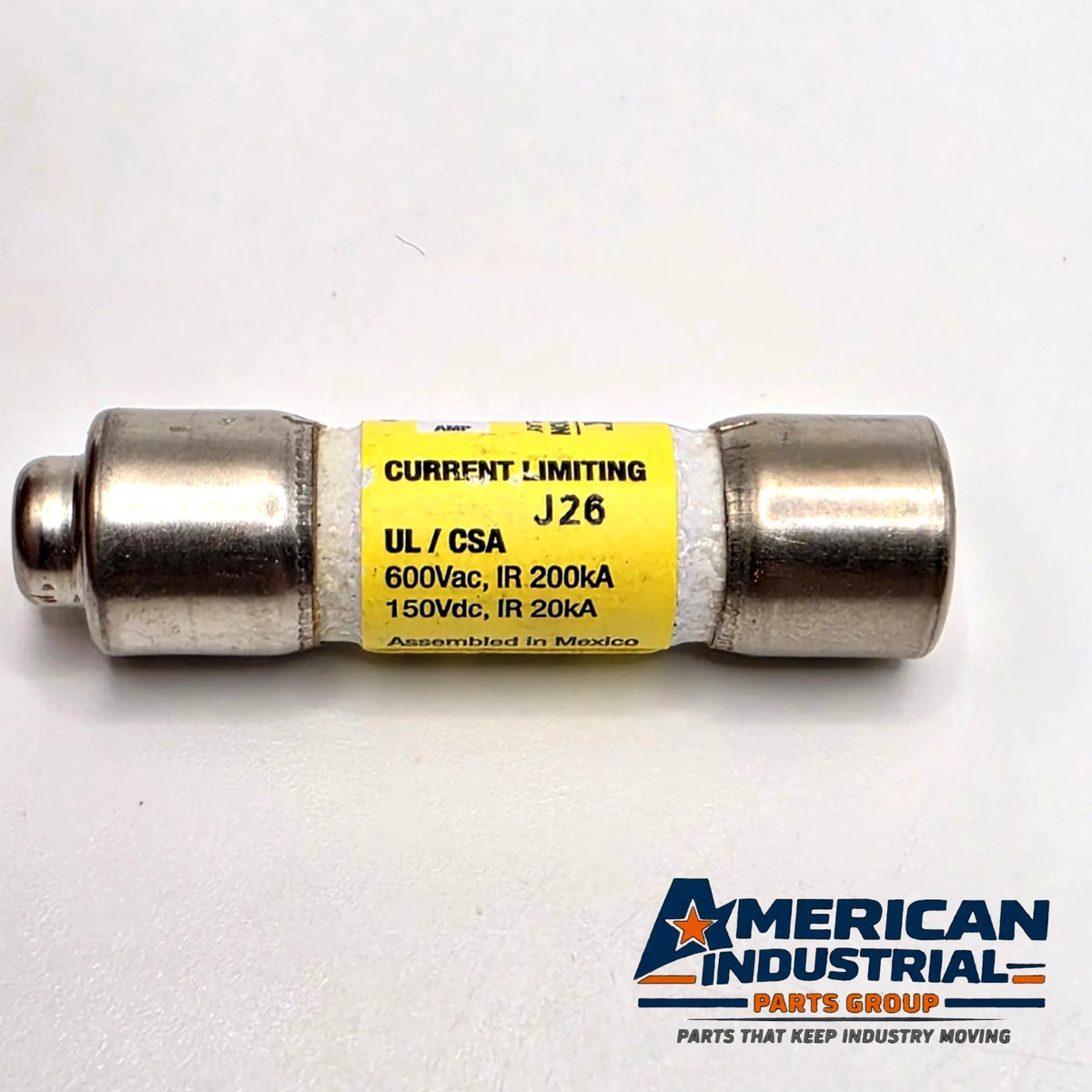

New open-box Bussmann LP-CC-8 Low-Peak 8 amp Class CC dual-element time-delay fuse, never installed. The label reads "Low-Peak Ultimate Protection, Dual-Element Time-Delay Class CC Fuse, LP-CC-8, 600Vac 150Vdc, Current Limiting, UL / CSA, 600Vac IR 200kA, 150Vdc IR 20kA, Assembled in Mexico," with UL Listed and CSA marks. The fuse is housed in the 13/32 x 1-1/2 inch rejection-style Class CC body. It comes without the original box. Ferrule caps show light shelf tarnish, as pictured.
This is the 8 amp LP-CC-8. It is not the 8/10 amp (0.8A) LP-CC-8/10.

Features:
8 A current rating
600 VAC / 150 VDC voltage rating
200 kA interrupting rating at 600 VAC (20 kA at 150 VDC)
Dual-element time delay: holds 200% of rated current for 12 seconds
Current-limiting Class CC design
Rejection-style body that fits only Class CC holders
13/32 in x 1-1/2 in ferrule body
UL Listed, CSA Certified

Compatibility:
Direct replacement for the Bussmann LP-CC-8 / LPCC8 Low-Peak fuse. Fits Class CC rejection fuse holders and blocks, including the Bussmann CHCC series. Comparable 8A Class CC time-delay fuses include the Mersen (Ferraz Shawmut) ATDR8 and Littelfuse CCMR8. Used for control transformer primaries, motor branch circuits, and industrial control panels.

Q&A
Q: Is the LP-CC-8 an 8 amp or 0.8 amp fuse?
A: 8 amp. The 0.8 amp version is a different part, the LP-CC-8/10.
Q: What is the DC voltage rating?
A: 150 VDC with a 20 kA interrupting rating. The AC rating is 600 VAC at 200 kA.
Q: Is the LP-CC-8 time-delay or fast-acting?
A: Time-delay. It is a dual-element fuse that holds 200% of its 8A rating for 12 seconds, so it rides through motor and transformer inrush current.
Q: What does the LP-CC-8 cross-reference to?
A: Mersen ATDR8 and Littelfuse CCMR8 are comparable 8A Class CC time-delay fuses.
Q: What size is a Class CC fuse?
A: 13/32 in diameter x 1-1/2 in long, with a rejection feature on one end.
