Bussmann LPJ-15SP LowPeak Fuse 15A 600VAC 300VDC Class J Dual Element Time Delay
Bussmann LPJ-15SP LowPeak Fuse 15A 600VAC 300VDC Class J Dual Element Time Delay
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
Shipping calculated at checkout.
4 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Bussmann
Model: LPJ-15SP
MPN: LPJ-15SP
Series: Low-Peak LPJ
Type: Dual-Element Time-Delay Fuse
Fuse Class: Class J
Current Rating: 15 A
AC Voltage Rating: 600 VAC
DC Voltage Rating: 300 VDC
AC Interrupting Rating: 300 kA
DC Interrupting Rating: 100 kA
Current Limiting: Yes
Indicator: Non-Indicating
Body Type: Cartridge
Connection Type: Ferrule Ends
Length: 2.25 in
Diameter: Approximately 0.81 in
Condition: New
Quantity: 1 Fuse
DESCRIPTION
Bussmann Low-Peak LPJ-15SP 15-amp Class J fuse featuring dual-element time-delay operation and current-limiting protection. Provides overload and short-circuit protection while accommodating appropriate temporary inrush currents.
New, unused fuse.
Rated 600 VAC and 300 VDC.
Non-indicating cartridge design with ferrule ends.

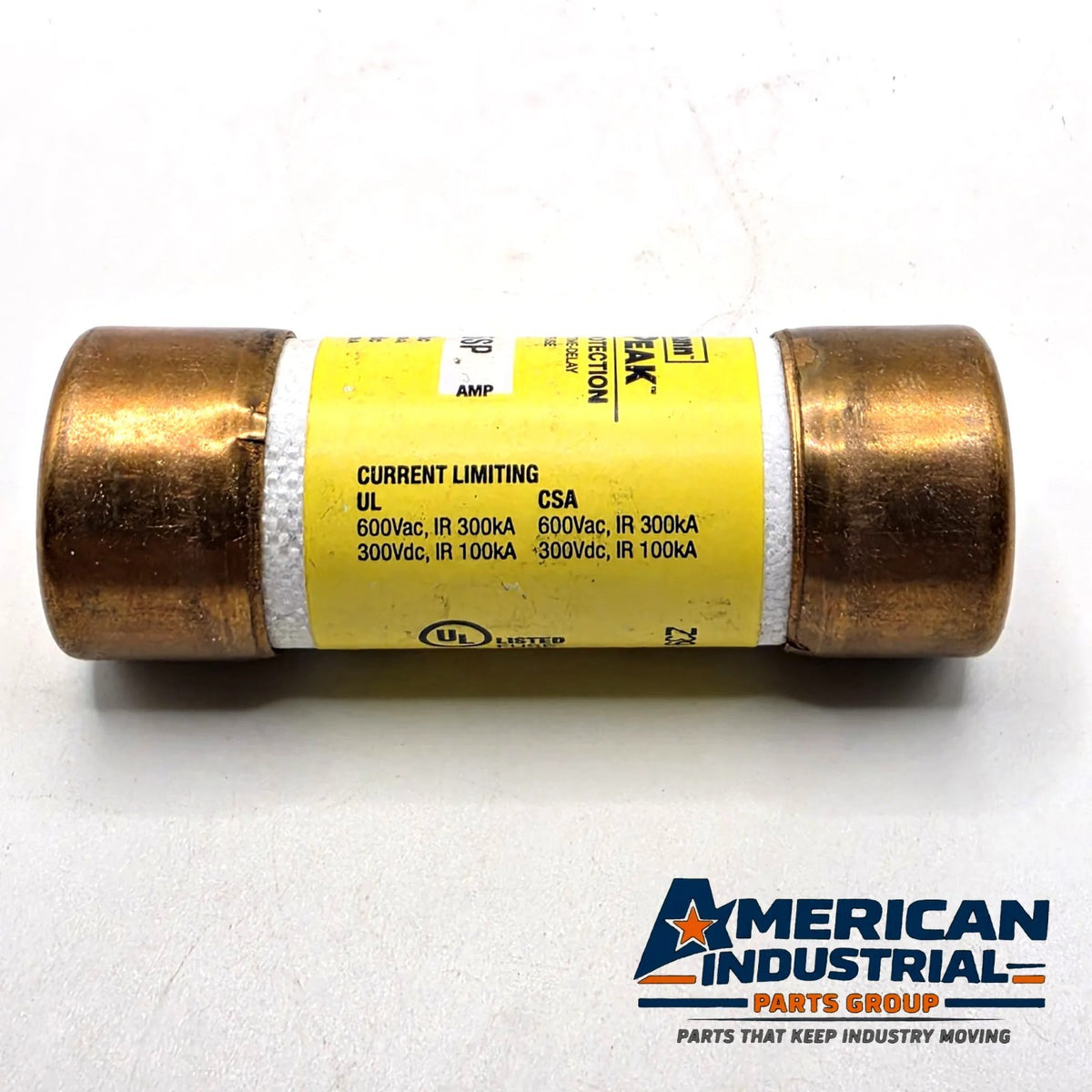

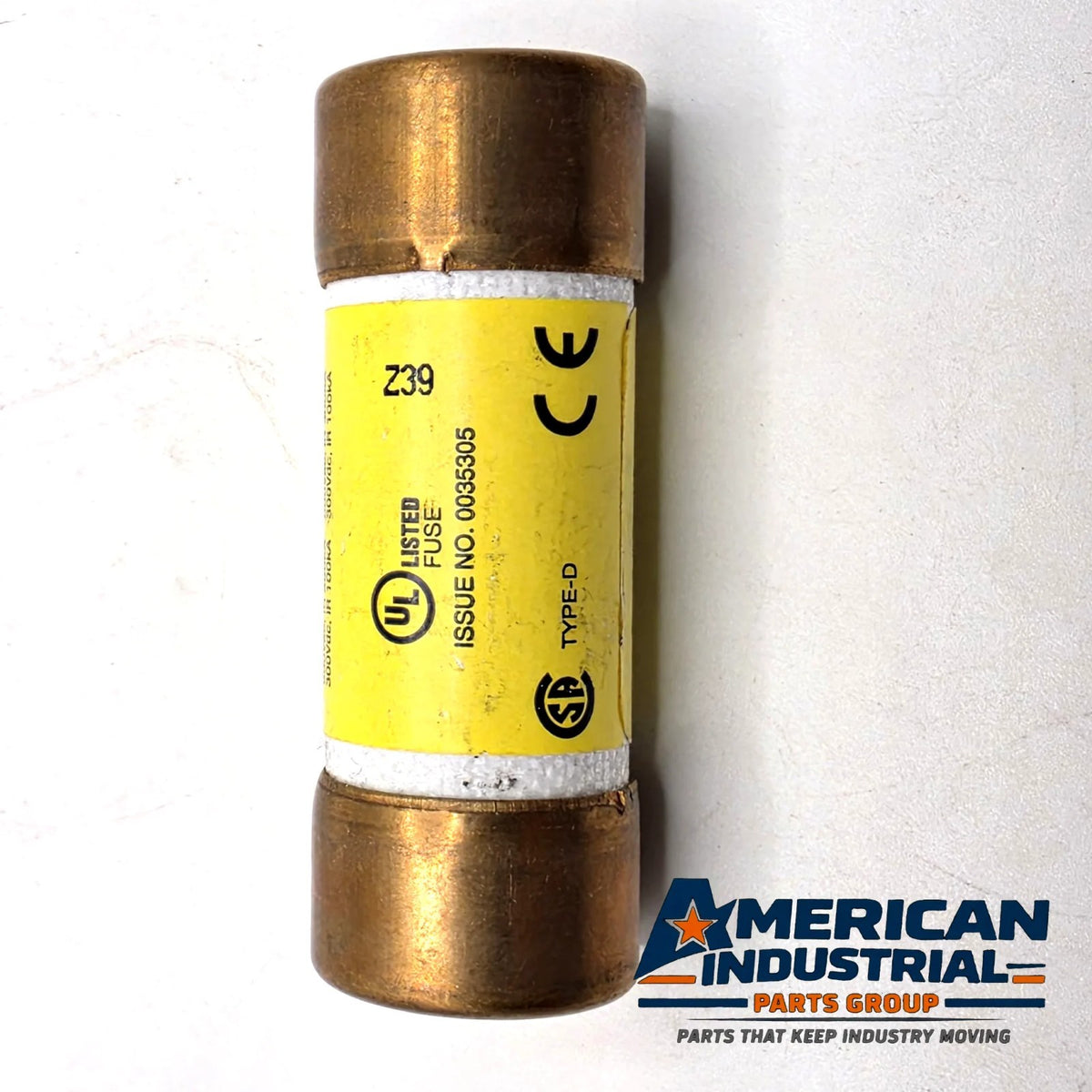

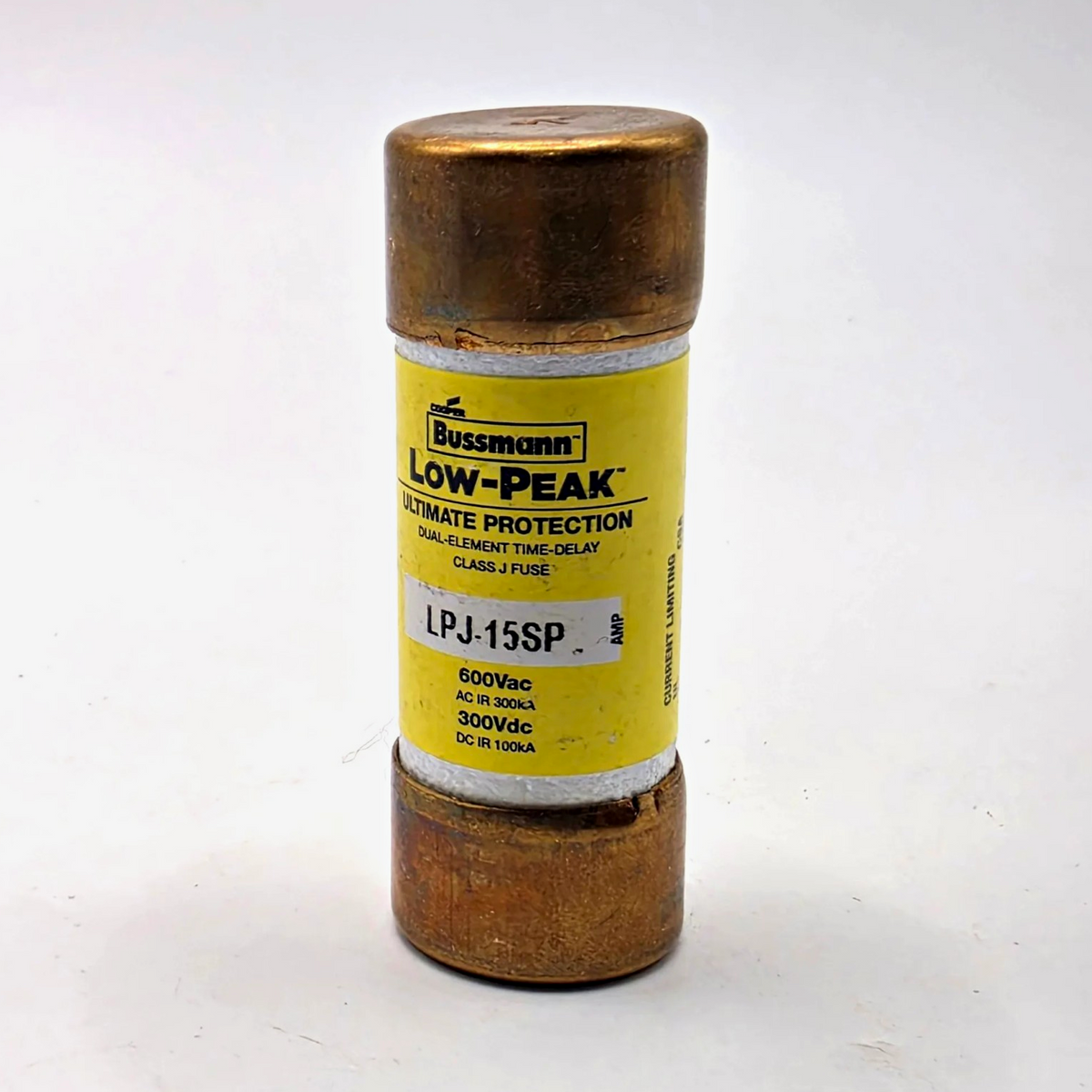

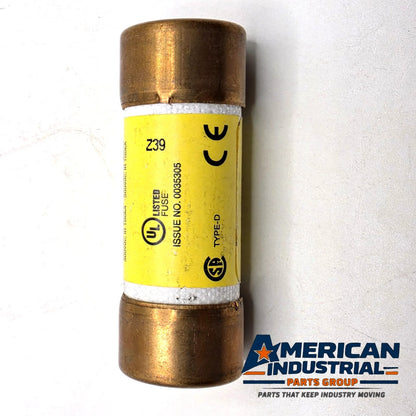

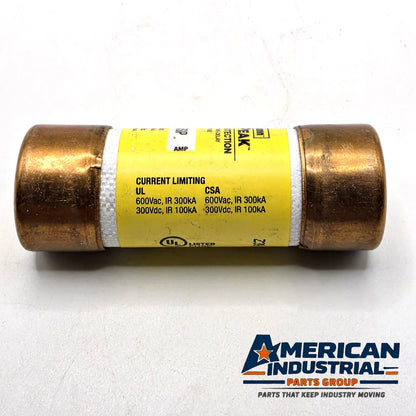

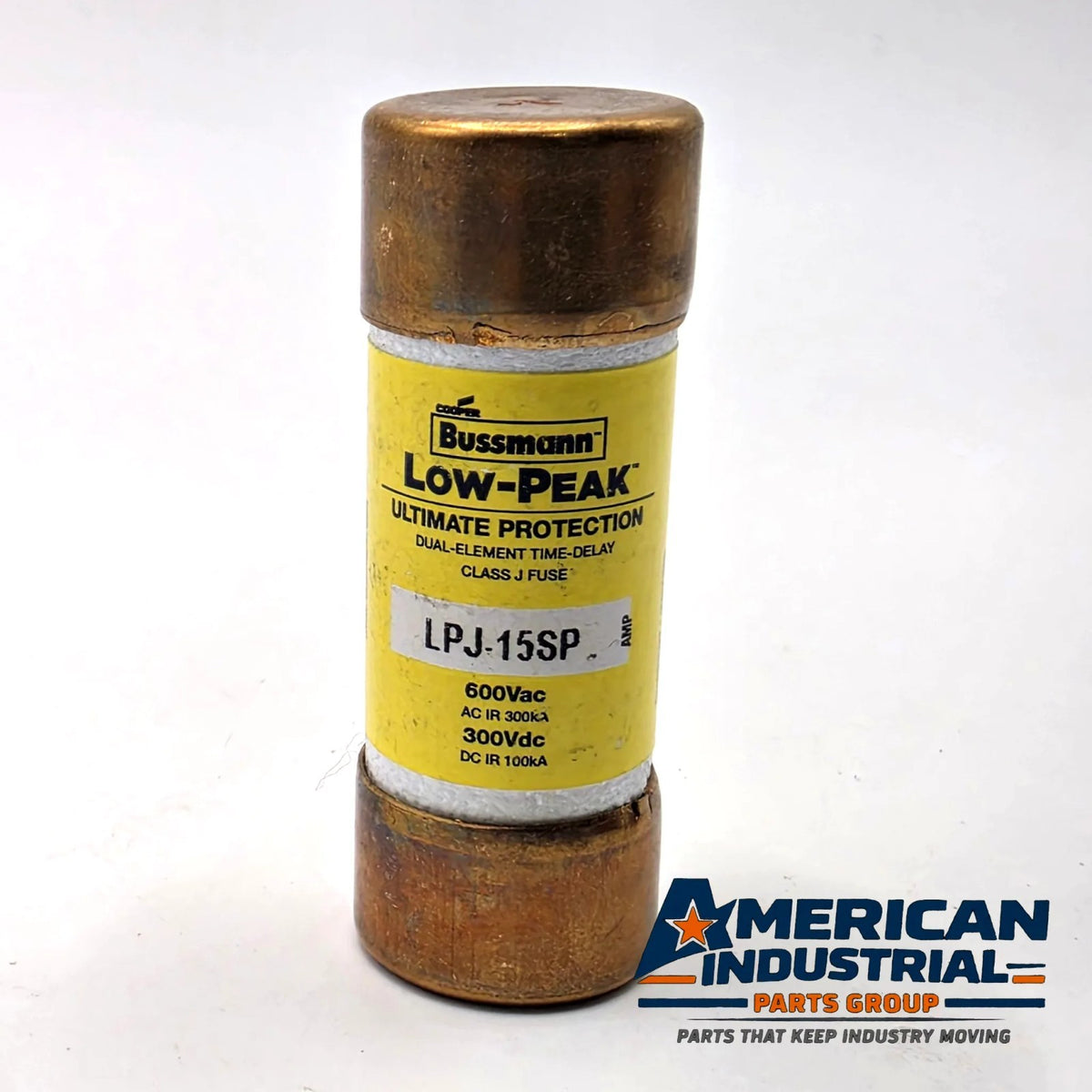

Cooper Bussmann branding as pictured.
Surface discoloration and handling marks are visible on the end caps and label.
Includes one fuse as shown; no holder included.
COMPATIBILITY & CROSS-REFERENCE
Direct replacement for Bussmann LPJ-15SP. It fits 30 A Class J fuse holders, blocks and fused disconnects. Equivalent Class J time-delay 15 A fuses include Mersen AJT15 and Littelfuse JTD015. The indicating version is the LPJ-15SPI. Class J fuses will not fit Class CC, Class R or Class H holders. Confirm amperage and characteristics against your equipment before substituting.
Q&A
Q: What size is the LPJ-15SP? A: 13/16 inch diameter by 2-1/4 inches long, the Class J 0–30 A size.
Q: Is this a time-delay fuse? A: Yes. It is dual-element and holds 500% of its rating for at least 10 seconds.
Q: Can I use it on DC? A: Yes. It is rated 300 VDC with a 100 kA interrupting rating.
Q: What is the difference between the LPJ-15SP and the LPJ-15SPI? A: The SPI version has a blown-fuse indicator. Ratings and size are the same.
DISCLAIMER
New, unused item with cosmetic condition shown in the photographs. Buyer is responsible for verifying the required fuse class, amperage, voltage, dimensions, and application compatibility before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is an independent reseller and is not an authorized distributor or representative of Eaton or Bussmann. All manufacturer names, trademarks, and product designations belong to their respective owners and are used solely for identification. Manufacturer warranty coverage is not guaranteed.
Bussmann LPJ-15SP Low-Peak fuse, Cooper Bussmann LPJ15SP, Eaton Bussmann LPJ 15SP, 15 amp Class J fuse, 15A 600VAC 300VDC cartridge fuse, dual-element time-delay fuse, slow-blow current-limiting fuse, Low Peak LPJ series replacement fuse, non-indicating ferrule fuse, industrial branch circuit protection, motor circuit fuse, control panel fuse, overload and short-circuit protection, 300kA AC interrupting rating, 100kA DC interrupting rating, AJT15, JTD015, blown fuse replacement.
