Bussmann LPJ-2-1/4SP Low-Peak 2.25A 600V Class J Time Delay Fuse New

ITEM SPECIFICS
Brand: Bussmann (Eaton)
MPN: LPJ-2-1/4SP
Series: Low-Peak LPJ-SP
Type: Dual-Element Time-Delay Fuse
Fuse Class: UL Class J (CSA Type D)
Current Rating: 2-1/4 A (2.25 A)
AC Voltage Rating: 600 VAC
AC Interrupting Rating: 300 kA
DC Voltage Rating: 300 VDC
DC Interrupting Rating: 100 kA
Time Delay: 10 seconds minimum at 500% rated current
Size: 13/16 in diameter x 2-1/4 in long
Body: Melamine tube, ferrule ends
Indicator: Non-indicating
Current Limiting: Yes
Certifications: UL Listed, CSA, CE, UKCA, RoHS
Country of Manufacture: Mexico
Condition: New – Open Box
Quantity: 1

DESCRIPTION

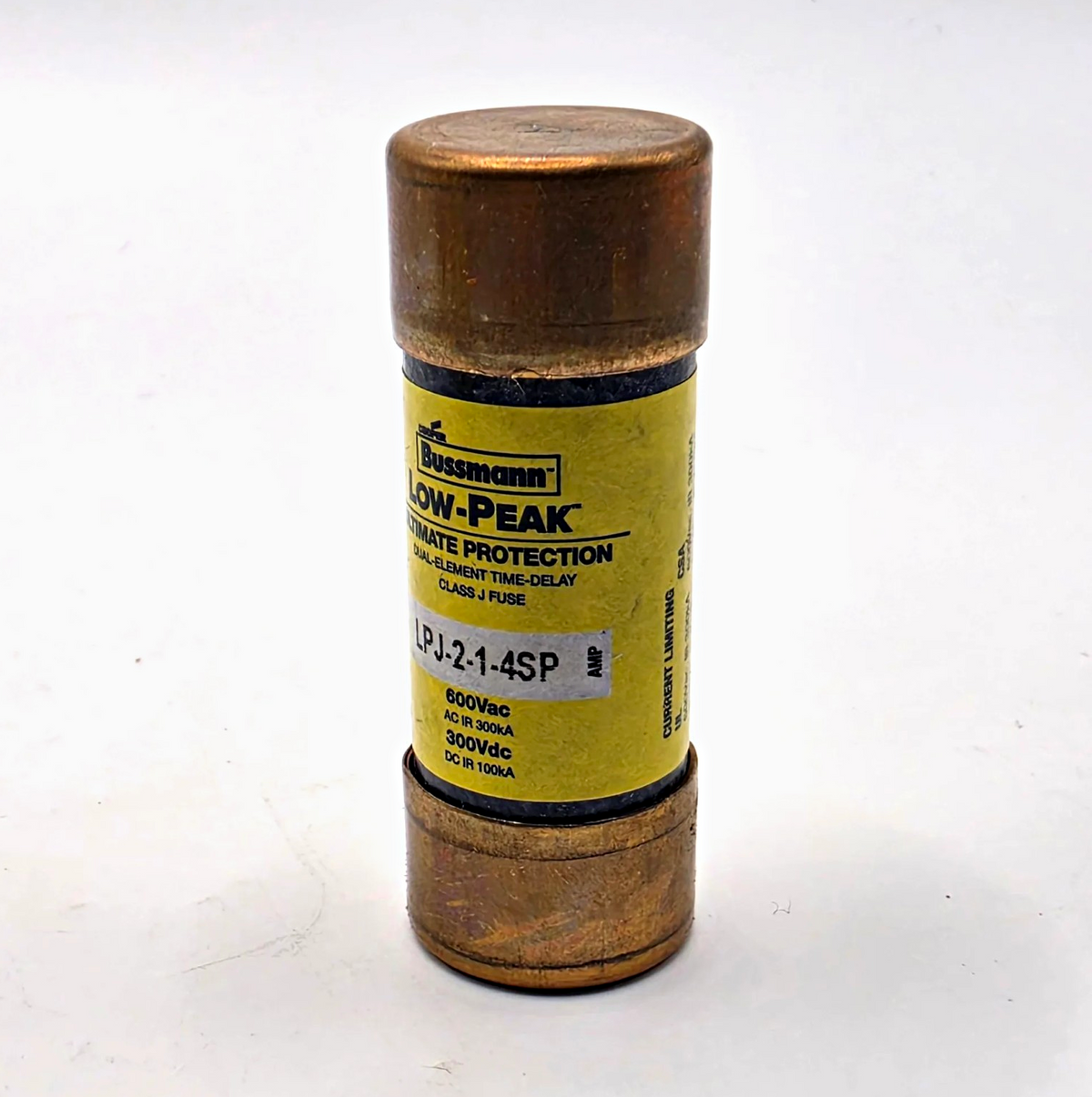

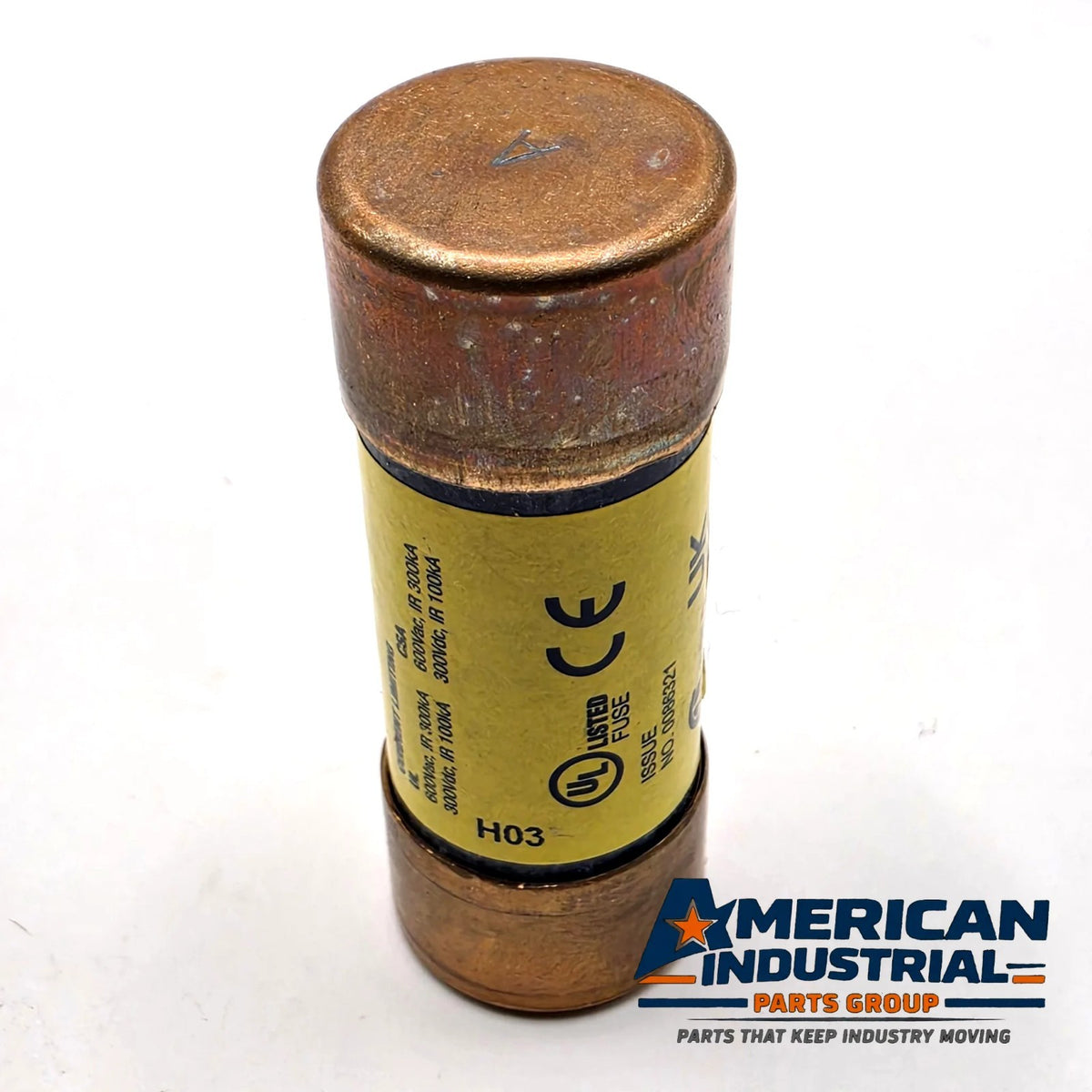

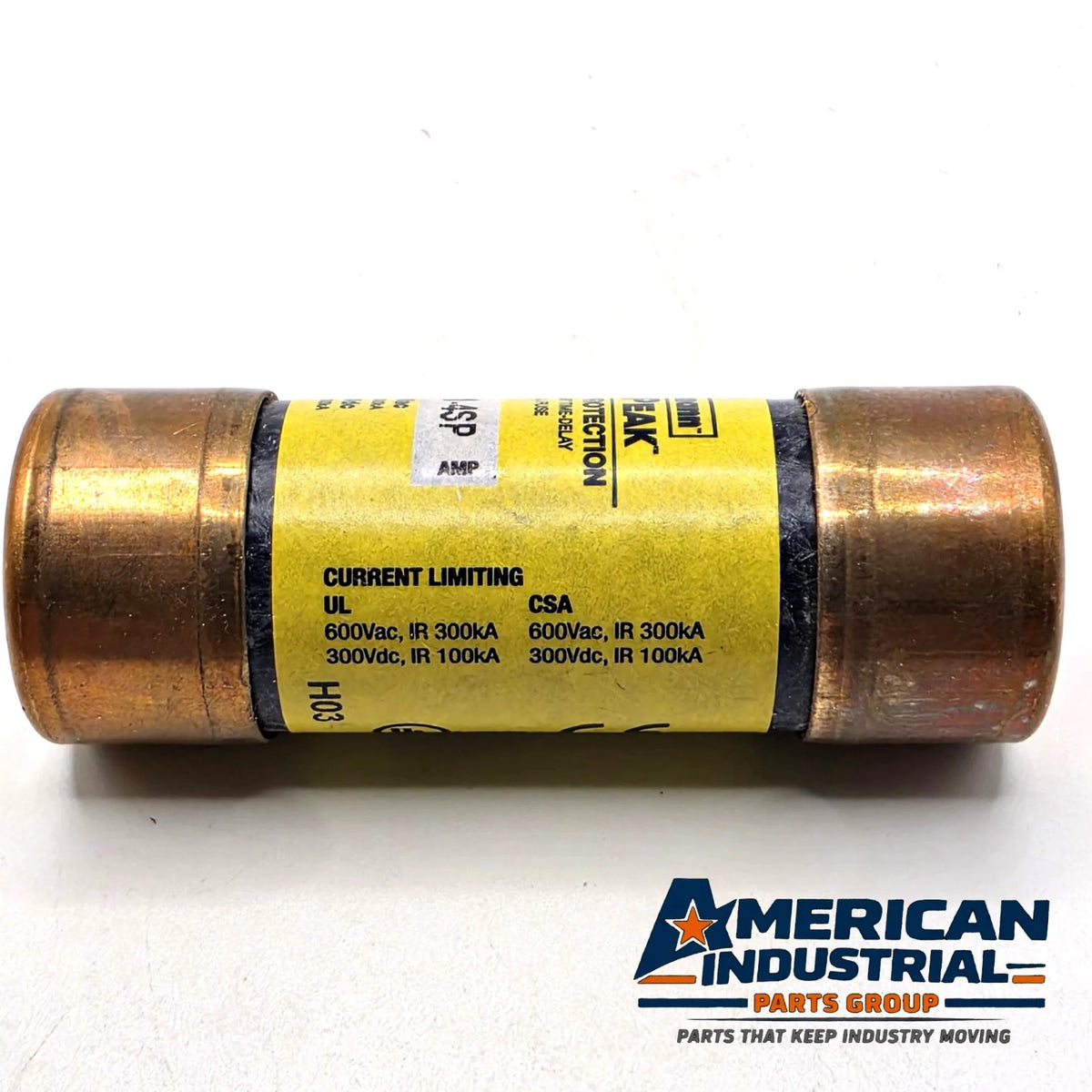

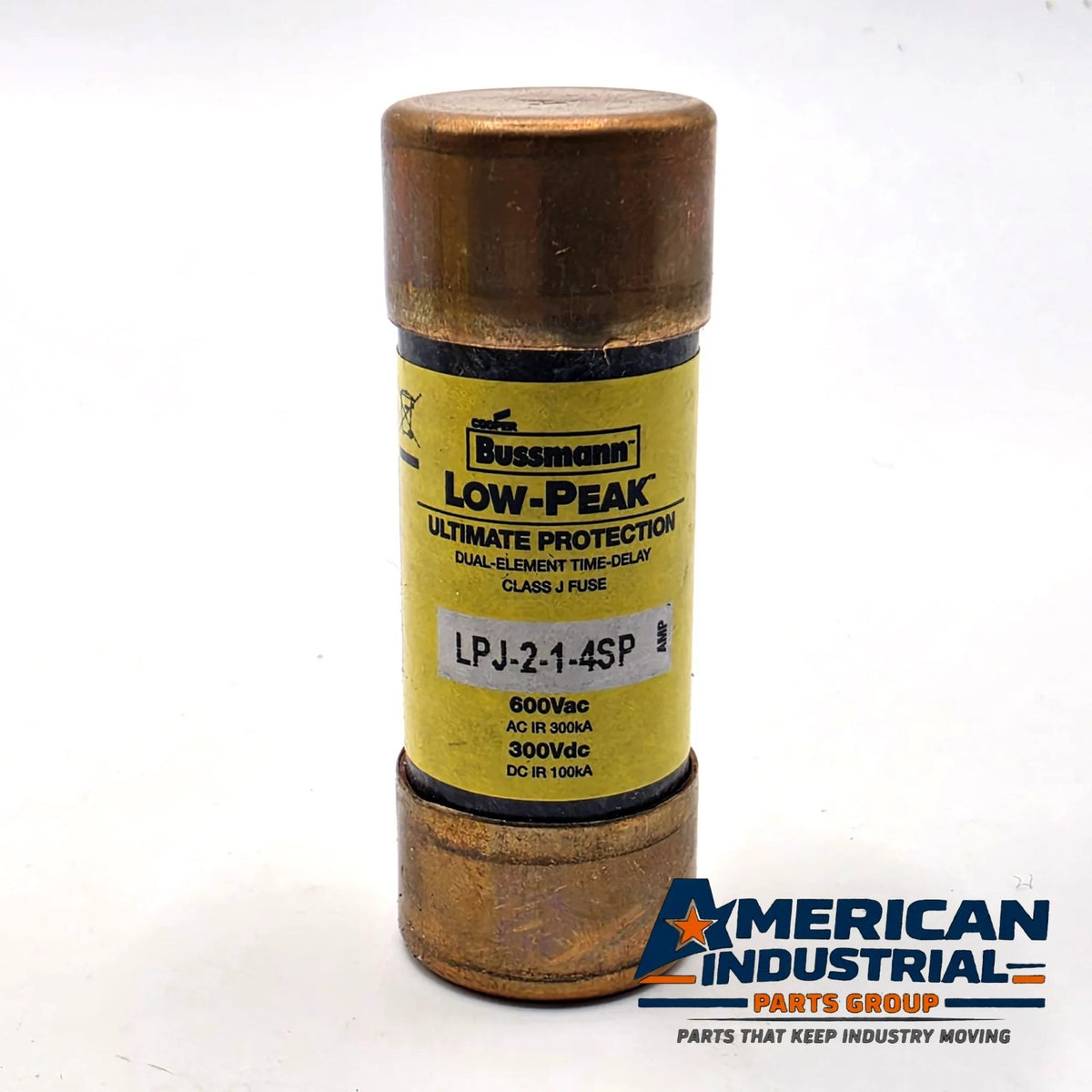

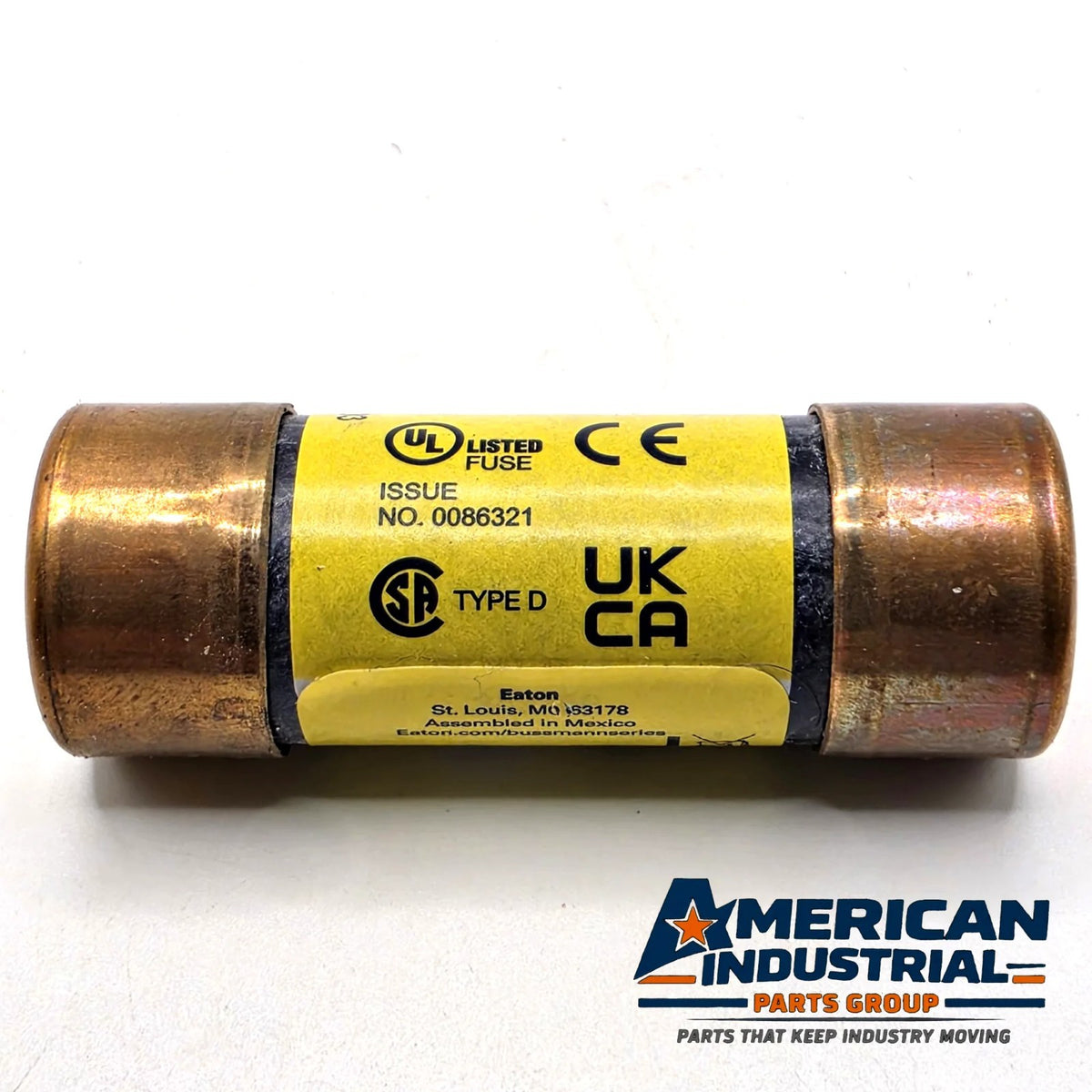

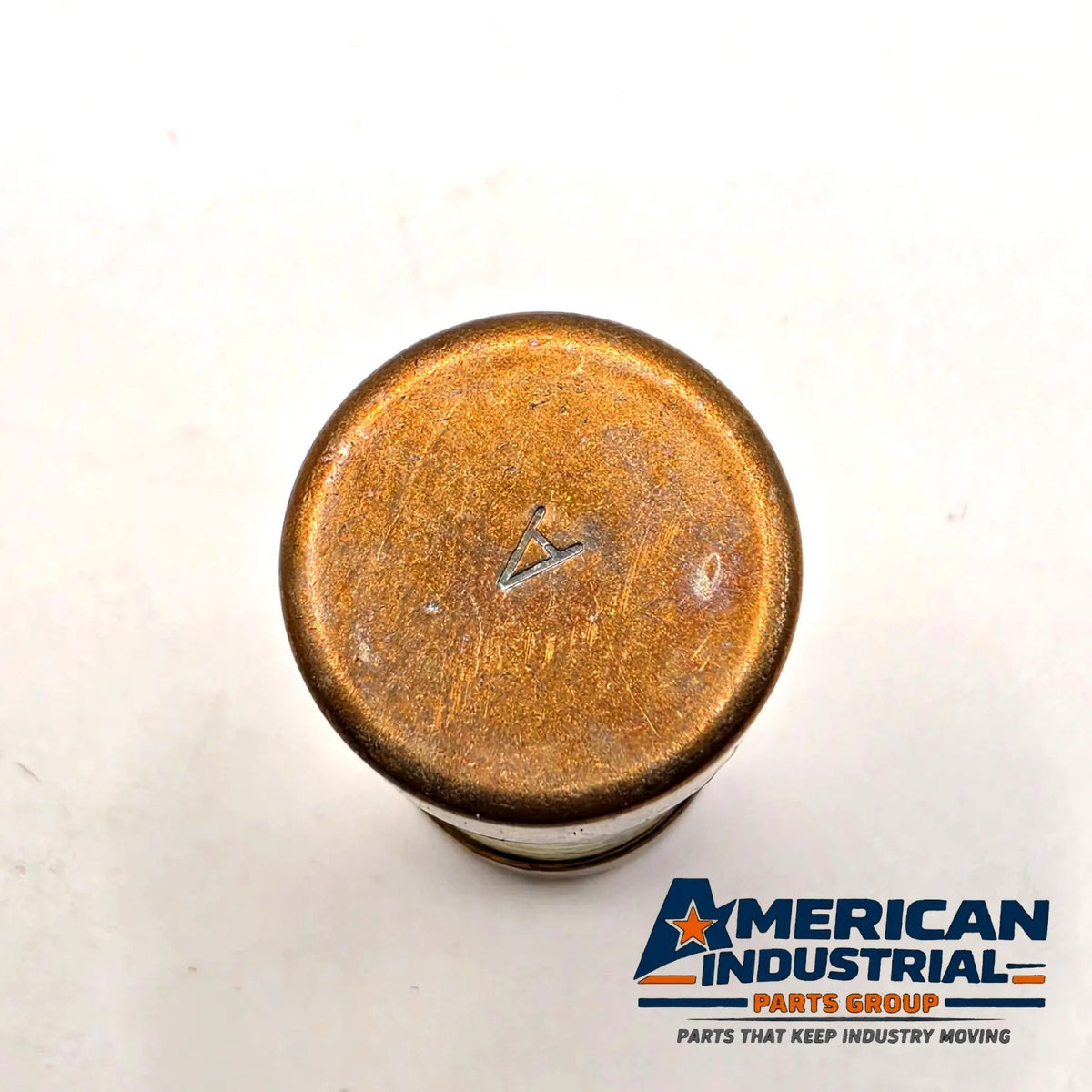

New open box Bussmann LPJ-2-1/4SP Low-Peak dual-element time-delay Class J fuse, rated 2-1/4 A at 600 VAC with a 300 kA interrupting rating, and 300 VDC with a 100 kA interrupting rating. The label reads "Cooper Bussmann Low-Peak Ultimate Protection, Dual-Element Time-Delay Class J Fuse, LPJ-2-1-4SP," with UL Listed, CSA Type D, CE and UKCA marks and "Eaton, St. Louis, MO 63178, Assembled in Mexico." The fuse has not been installed. The label is readable with light handling marks. The copper end caps show tarnish from storage, as pictured.

The LPJ-SP is Bussmann's Low-Peak Class J time-delay fuse. It holds 500% of its rating for at least 10 seconds, so control transformer inrush and small-motor starting current pass without nuisance opening. Its current-limiting design gives a high level of protection. The 2-1/4 A rating is a common size for control power transformer primaries and small motor and control circuits. The Class J dimensions reject other fuse classes, so the wrong fuse can't be installed.

Features:
2-1/4 A, 600 VAC / 300 VDC
300 kA AC and 100 kA DC interrupting ratings
Dual-element time delay, 10 seconds minimum at 500%
Current limiting
Class J size rejection
Non-indicating
13/16 x 2-1/4 in ferrule
UL Listed, CSA Type D, CE, UKCA, RoHS

Compatibility:
Direct replacement for Bussmann LPJ-2-1/4SP. The label prints the part number as "LPJ-2-1-4SP," which is the same part. It fits 30 A Class J fuse holders and blocks, including Bussmann CH30J and JM600-series holders, and 30 A Class J fused disconnects. Equivalent Class J time-delay 2-1/4 A fuses include Mersen AJT2-1/4 and Littelfuse JTD2.25. The indicating version is the LPJ-2-1/4SPI. Confirm amperage and characteristics against your equipment before substituting.

Q&A
Q: Is LPJ-2-1-4SP the same as LPJ-2-1/4SP?
A: Yes. Both are the 2-1/4 A (2.25 A) Low-Peak Class J fuse. The label uses a dash in place of the slash.
Q: What size is it?
A: 13/16 inch diameter by 2-1/4 inches long, the Class J 0–30 A size.
Q: Is this a time-delay fuse?
A: Yes. It is dual-element and holds 500% of its rating for at least 10 seconds.
Q: Can I use it on DC?
A: Yes. It is rated 300 VDC with a 100 kA interrupting rating.
Q: Will it fit a Class CC or Class R holder?
A: No. Class J fuses need Class J holders.

DISCLAIMER
Item is new open box, sold as pictured. The fuse has not been installed. The end caps are tarnished from storage. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
