Bussmann LPJ-2SP Low-Peak 2A 600V Class J Time Delay Fuse Dual Element New

ITEM SPECIFICS
Brand: Bussmann (Eaton)
MPN: LPJ-2SP
Series: Low-Peak LPJ-SP
Type: Dual-Element Time-Delay Fuse
Fuse Class: UL Class J (CSA HRCI-J, Type D)
Current Rating: 2 A
AC Voltage Rating: 600 VAC
AC Interrupting Rating: 300 kA
DC Voltage Rating: 300 VDC
DC Interrupting Rating: 100 kA
Time Delay: 10 seconds minimum at 500% rated current
Size: 13/16 in diameter x 2-1/4 in long (21 x 57 mm)
Mounting: Ferrule
Indicator: Non-indicating
Current Limiting: Yes
Certifications: UL Listed, CSA, CE, UKCA
Condition: New – Open Box
Quantity: 1

DESCRIPTION

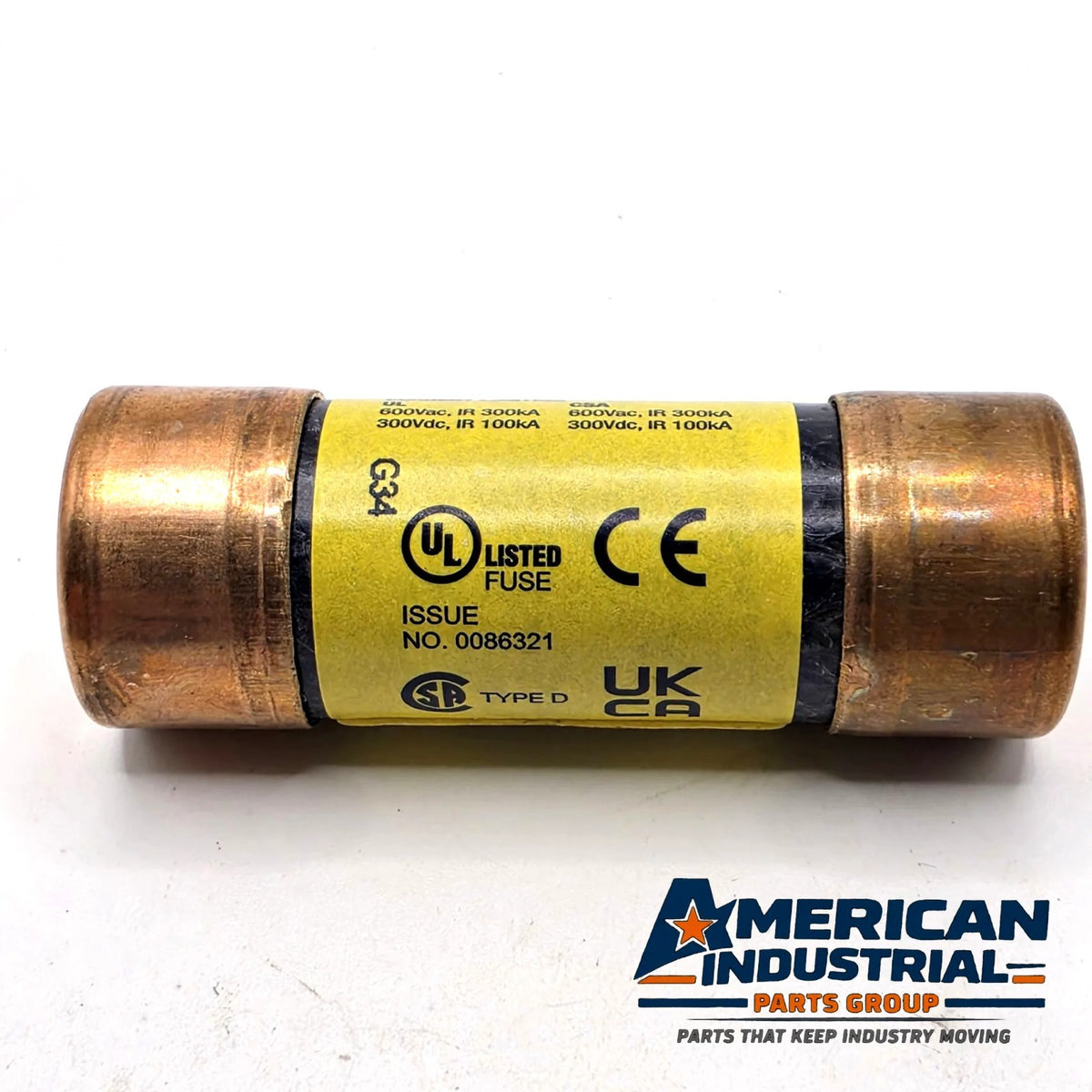

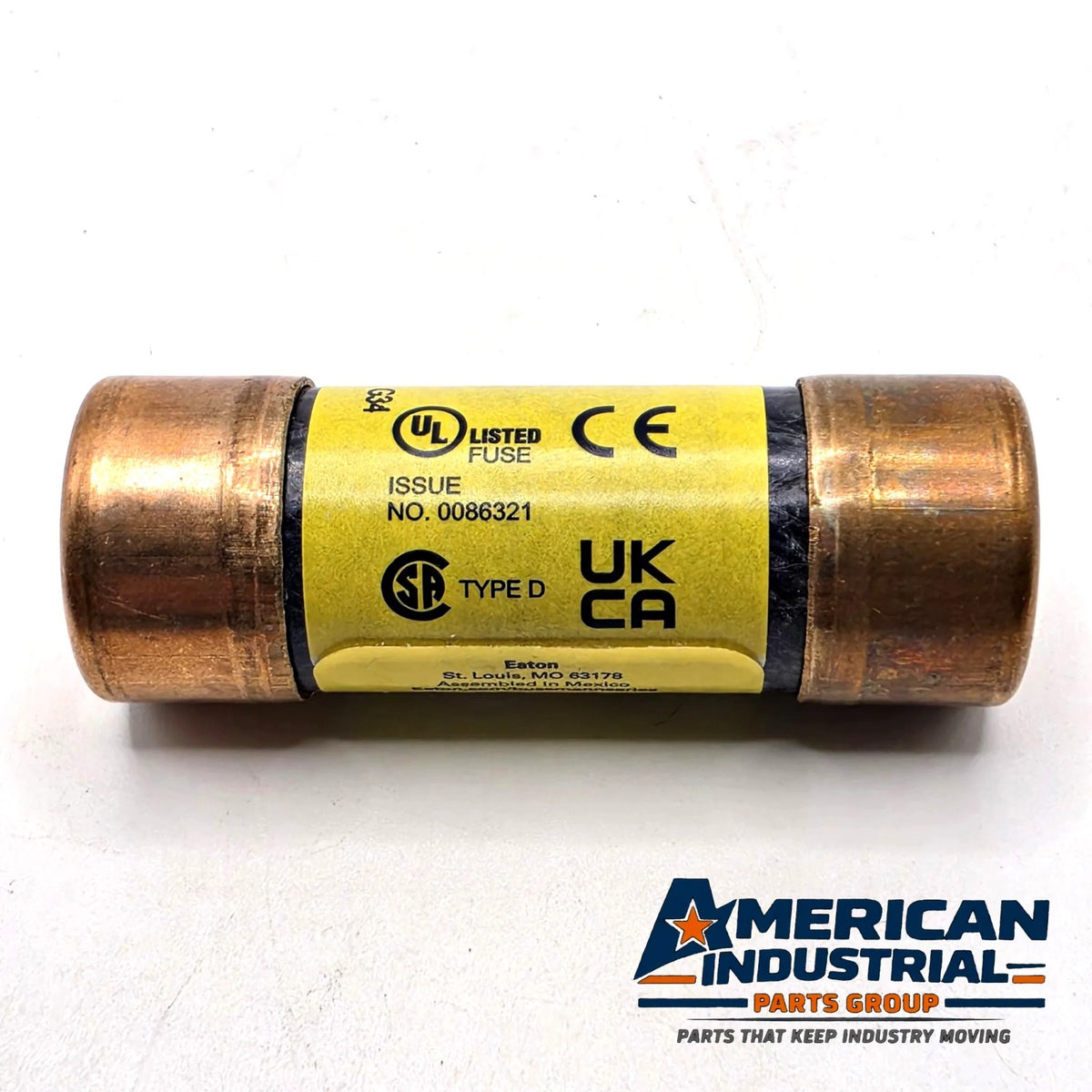

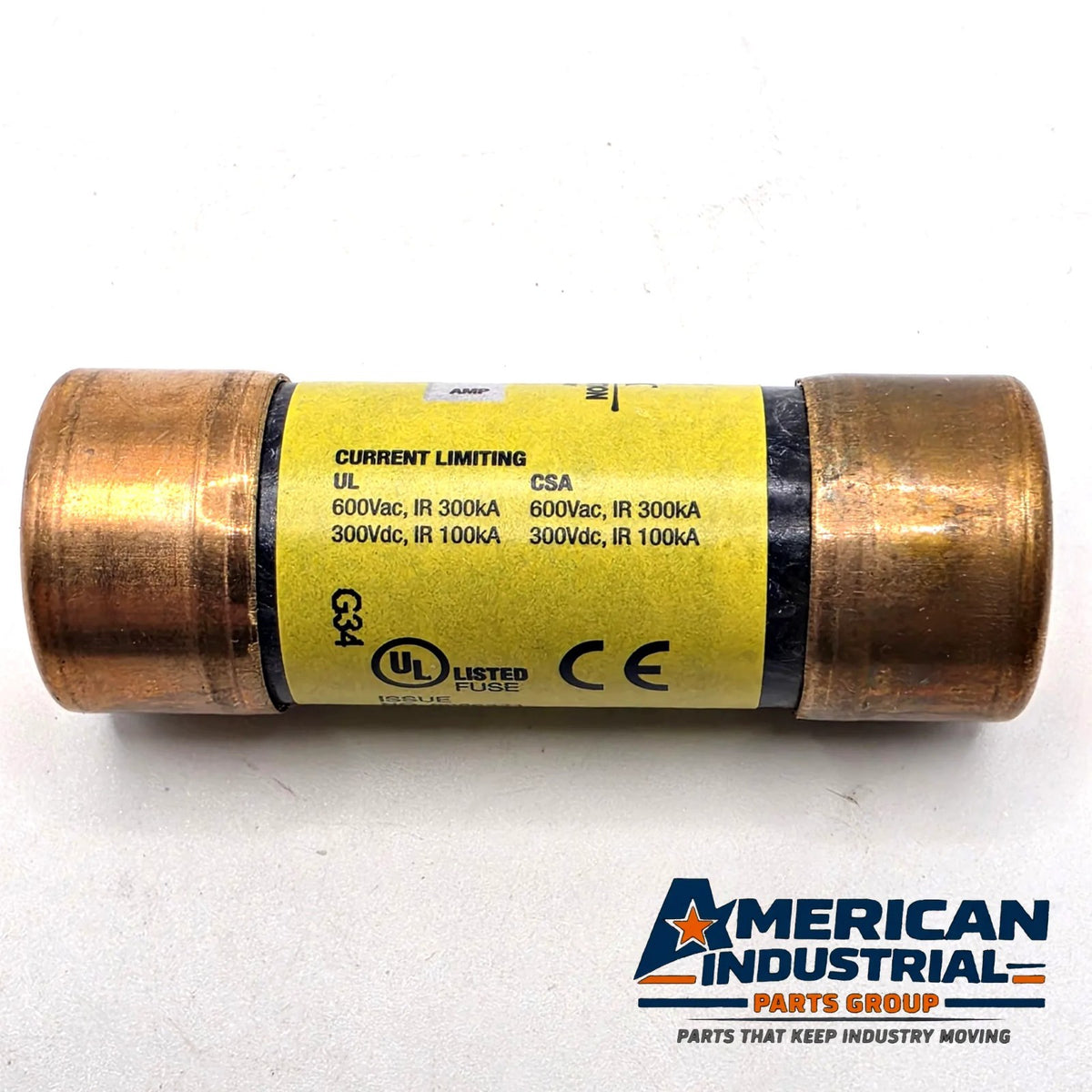

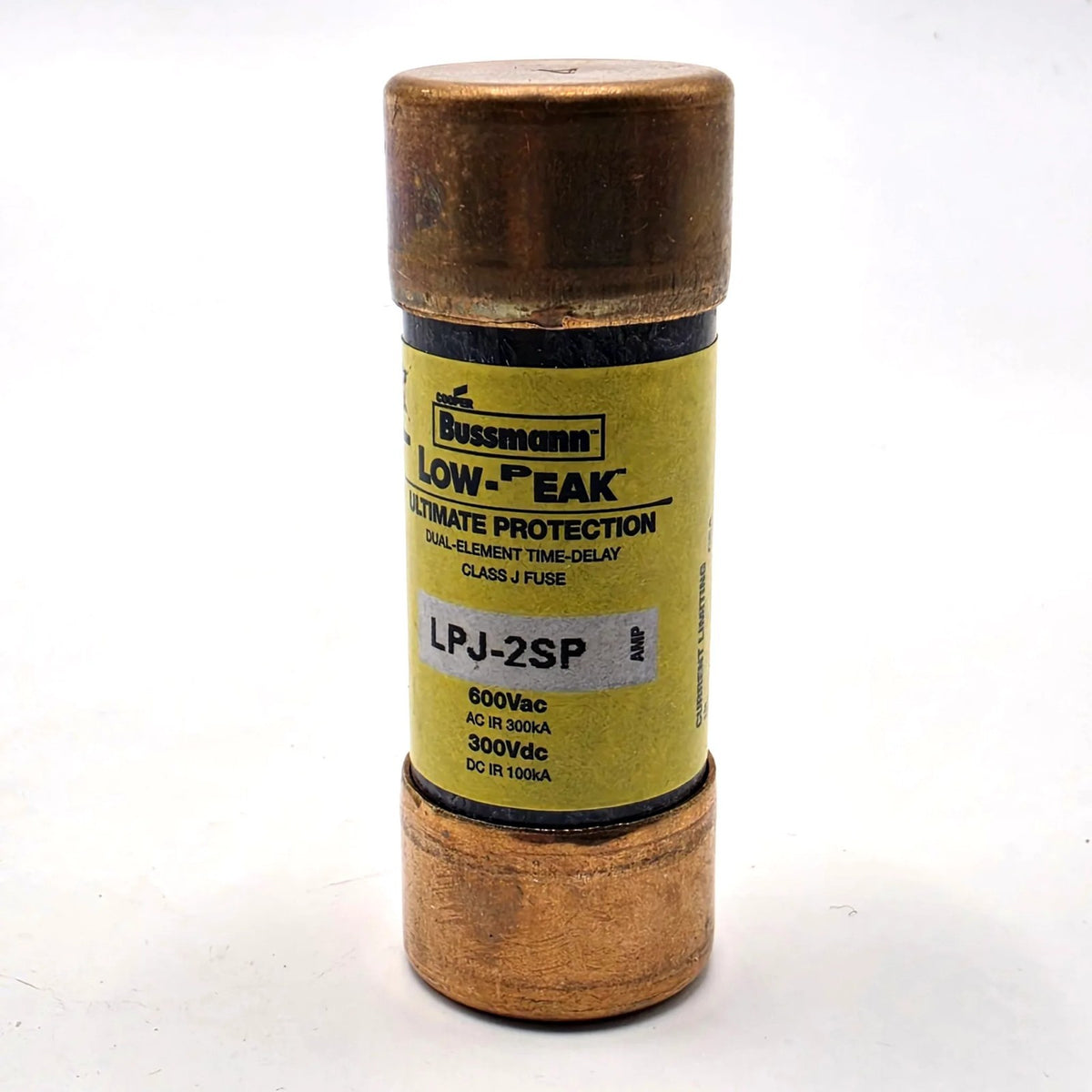

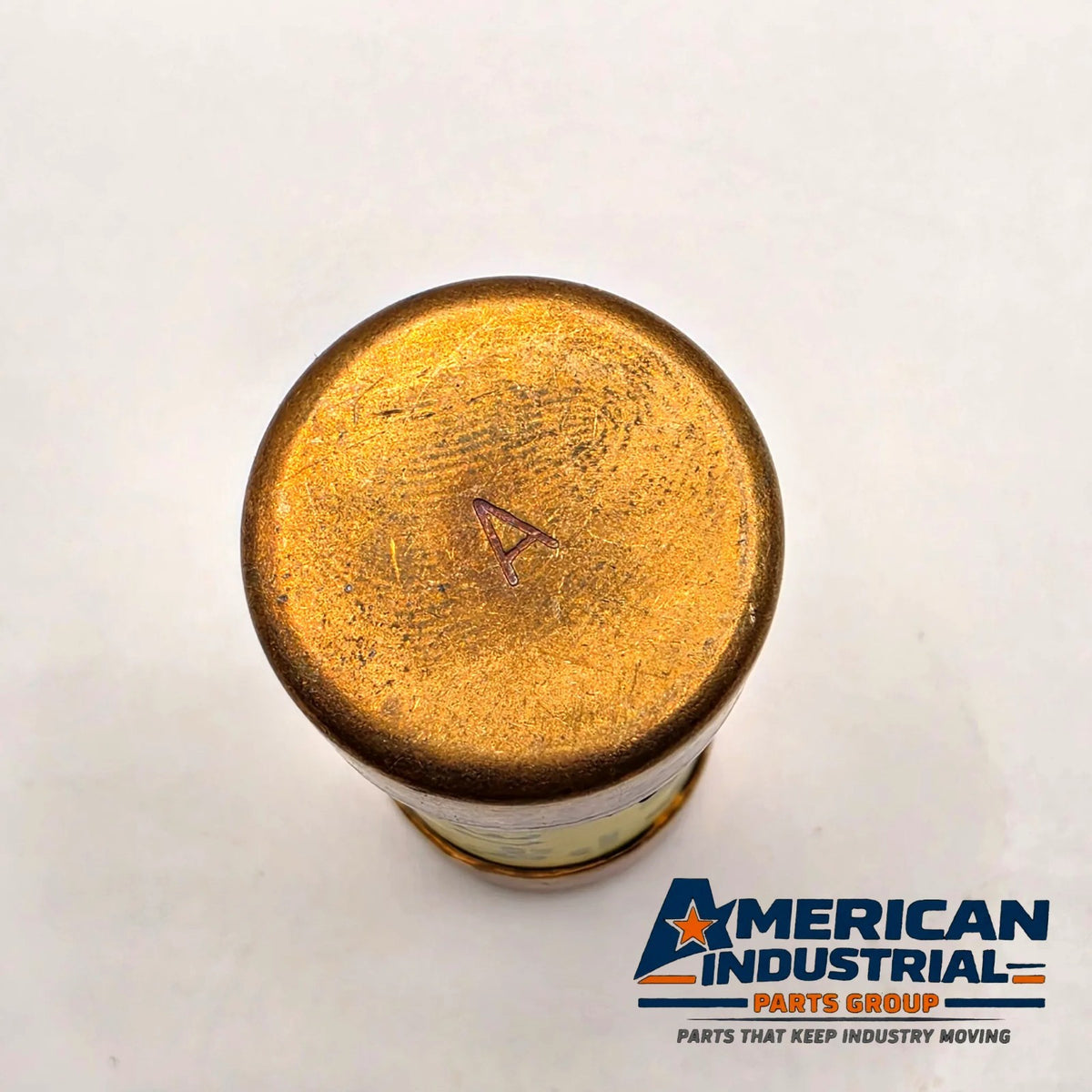

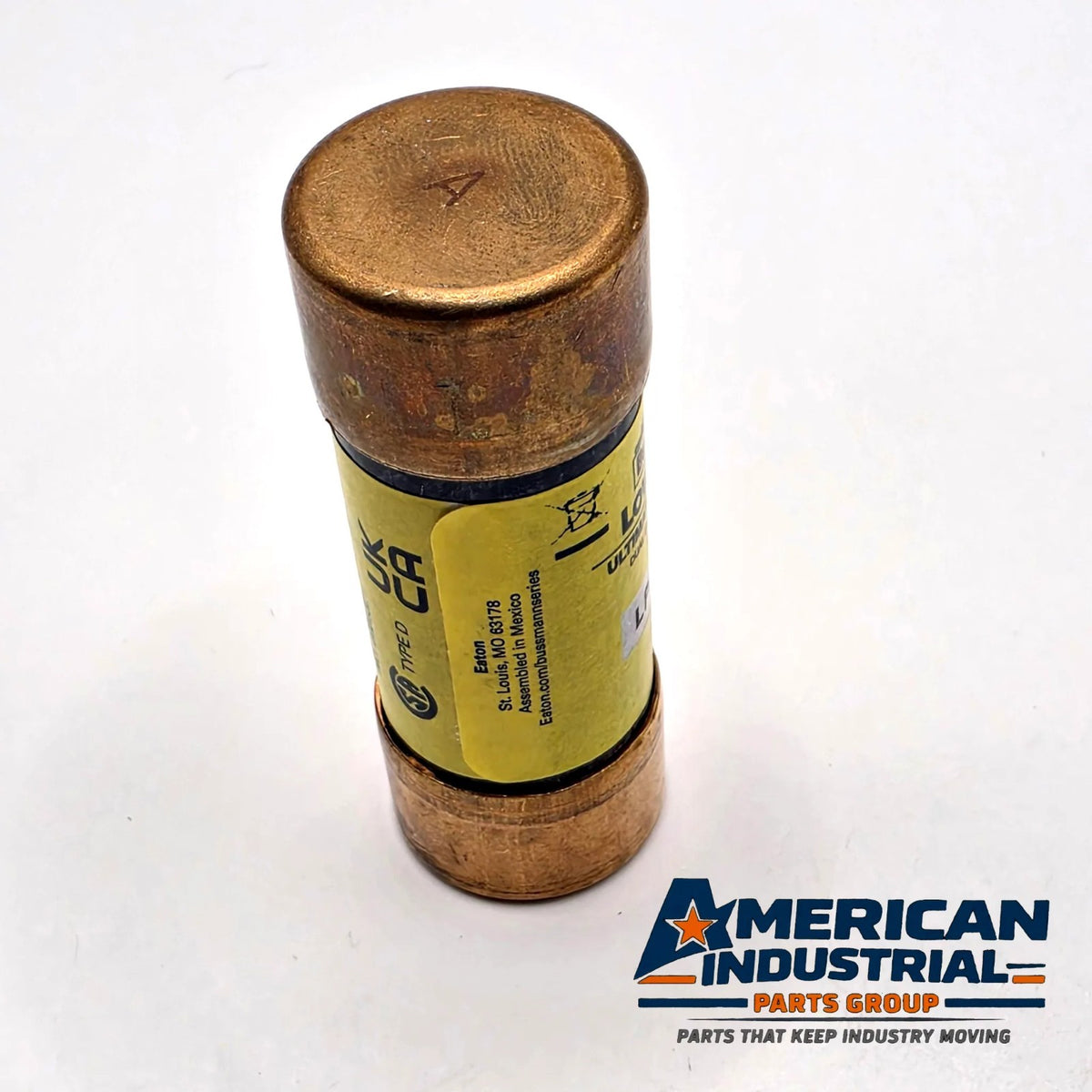

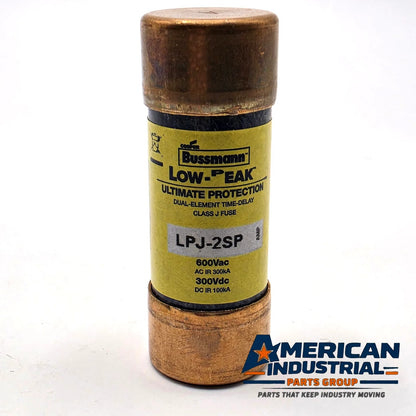

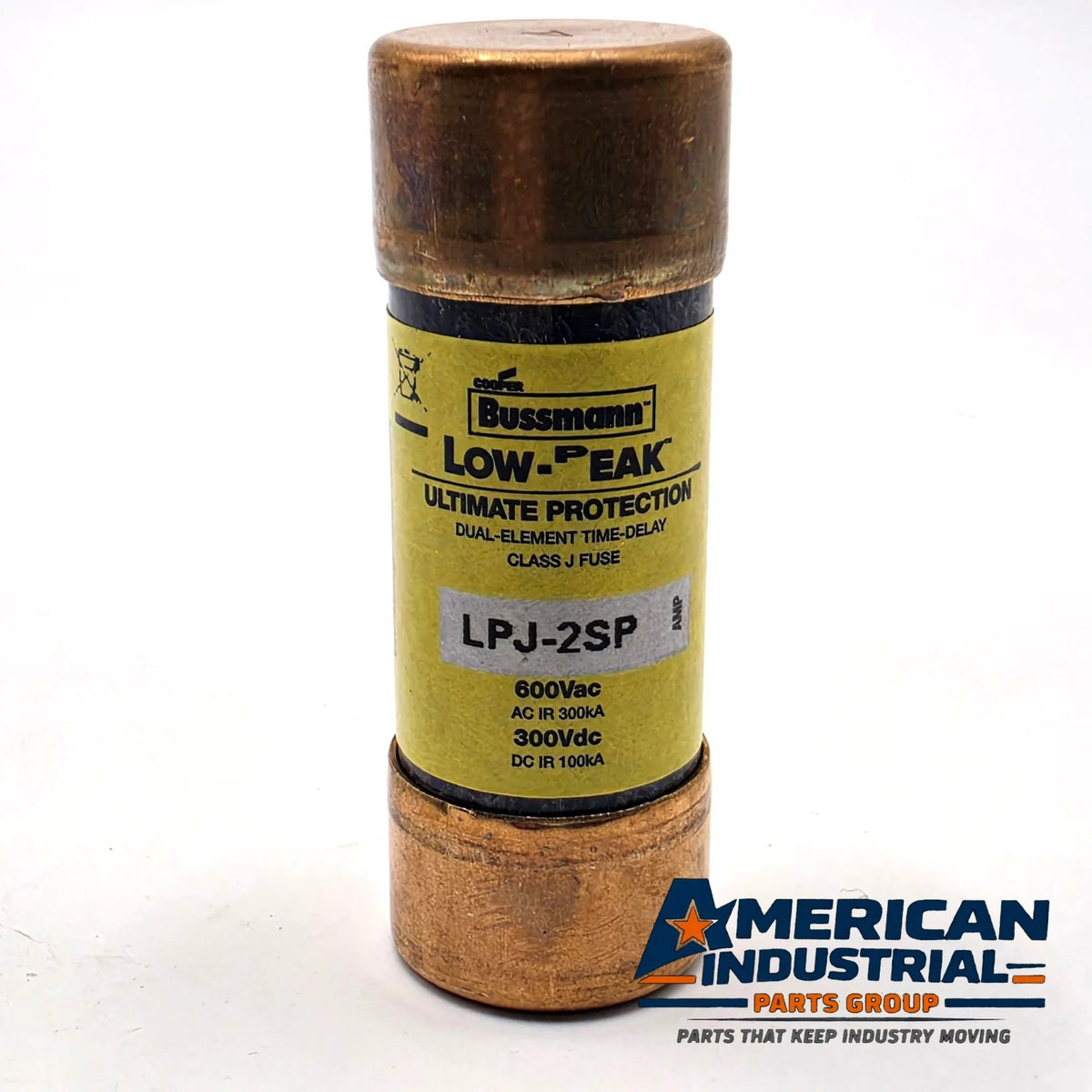

New open box Bussmann LPJ-2SP Low-Peak dual-element time-delay Class J fuse, rated 2 A at 600 VAC with a 300 kA interrupting rating, and 300 VDC with a 100 kA interrupting rating. The label reads "Cooper Bussmann Low-Peak Ultimate Protection, Dual-Element Time-Delay Class J Fuse, LPJ-2SP," with UL Listed, CSA Type D, CE and UKCA marks and "Eaton, St. Louis, MO." The label is clean and readable. The copper end caps show storage tarnish, as pictured.

The LPJ-SP is Bussmann's Low-Peak Class J time-delay fuse. It holds 500% of its rating for at least 10 seconds, so motor inrush and transformer magnetizing current pass without nuisance opening. Its current-limiting design gives a high level of protection for motor branch circuits, control transformers, feeders and panelboards. The Class J dimensions reject other fuse classes, so the wrong fuse can't be installed.

Features:
2 A, 600 VAC / 300 VDC
300 kA AC and 100 kA DC interrupting ratings
Dual-element time delay, 10 seconds minimum at 500%
Current limiting
Class J size rejection
Non-indicating
13/16 x 2-1/4 in ferrule
UL Listed, CSA Type D, CE, UKCA

Compatibility:
Direct replacement for Bussmann LPJ-2SP and the earlier LPJ-2S. It fits 30 A Class J fuse holders and blocks, such as Bussmann JM60030 series and CH30J modular holders, and Class J disconnect switches. Equivalent Class J time-delay 2 A fuses include Mersen AJT2 and Littelfuse JTD002. The indicating version is the LPJ-2SPI. Confirm amperage and characteristics against your equipment before substituting.

Q&A
Q: What size is the LPJ-2SP?
A: 13/16 inch diameter by 2-1/4 inches long, the Class J 0–30 A size.
Q: Is this a time-delay fuse?
A: Yes. It is dual-element and holds 500% of its rating for at least 10 seconds.
Q: Can I use it on DC?
A: Yes. It is rated 300 VDC with a 100 kA interrupting rating.
Q: What is the difference between the LPJ-2SP and the LPJ-2SPI?
A: The SPI version has a blown-fuse indicator. The SP is non-indicating. Ratings and size are the same.
Q: Will it fit a Class CC or Class R holder?
A: No. Class J fuses need Class J holders.

DISCLAIMER
Item is new open box, sold as pictured. The fuse has not been installed. The end caps show tarnish from storage. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
