Bussmann LPJ-3SP Low-Peak 3A 600V Class J Time Delay Fuse Dual Element New
Bussmann LPJ-3SP Low-Peak 3A 600V Class J Time Delay Fuse Dual Element New
Regular price
$11.99 USD
Regular price
Sale price
$11.99 USD
Shipping calculated at checkout.
2 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Bussmann (Eaton)
MPN: LPJ-3SP
Series: Low-Peak LPJ-SP
Type: Dual-Element Time-Delay Fuse
Fuse Class: UL Class J (CSA Type D)
Current Rating: 3 A
AC Voltage Rating: 600 VAC
AC Interrupting Rating: 300 kA
DC Voltage Rating: 300 VDC
DC Interrupting Rating: 100 kA
Time Delay: 10 seconds minimum at 500% rated current
Size: 13/16 in diameter x 2-1/4 in long
Mounting: Ferrule
Indicator: Non-indicating
Current Limiting: Yes
Certifications: UL Listed, CSA, CE, UKCA
Condition: New – Open Box
Quantity: 1
DESCRIPTION

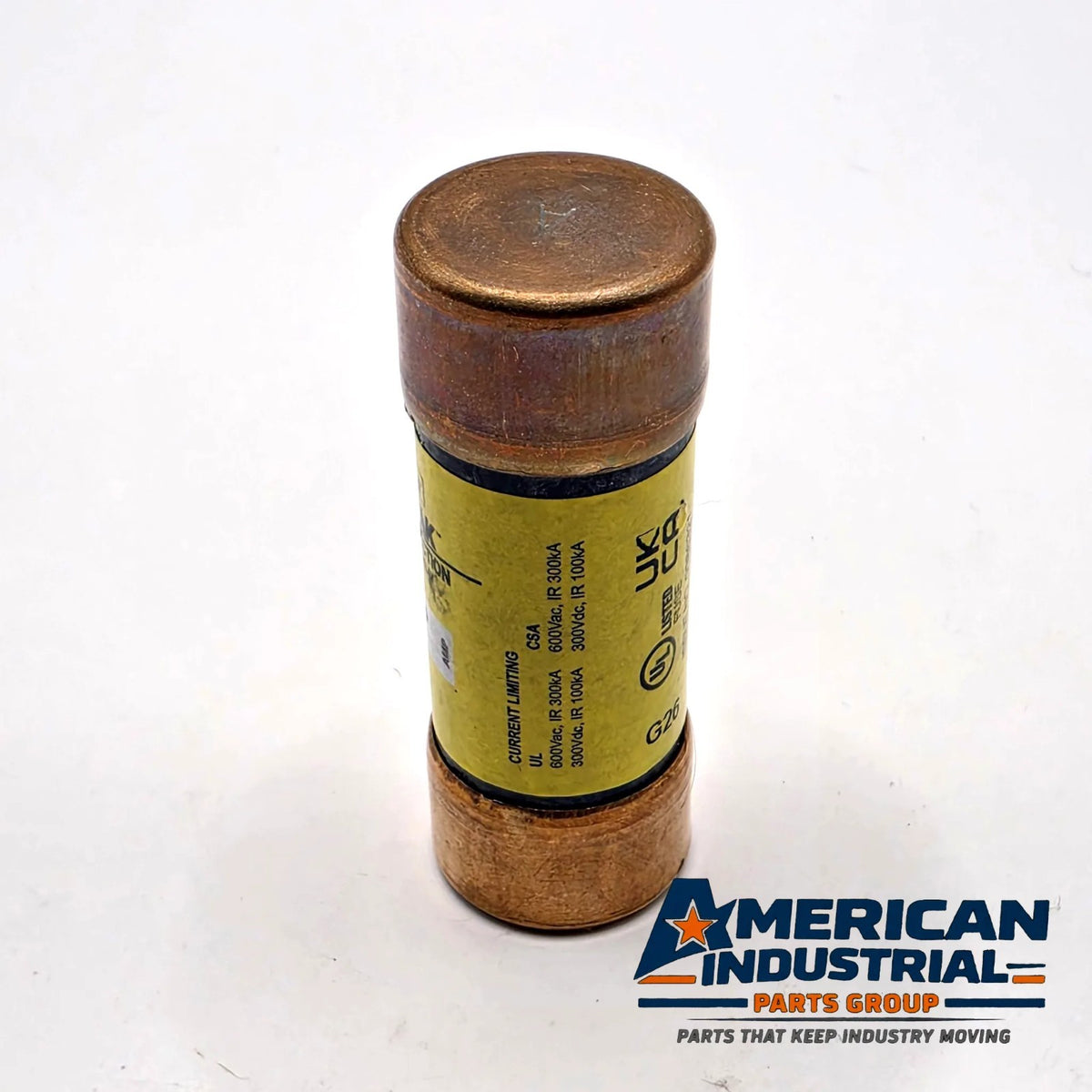

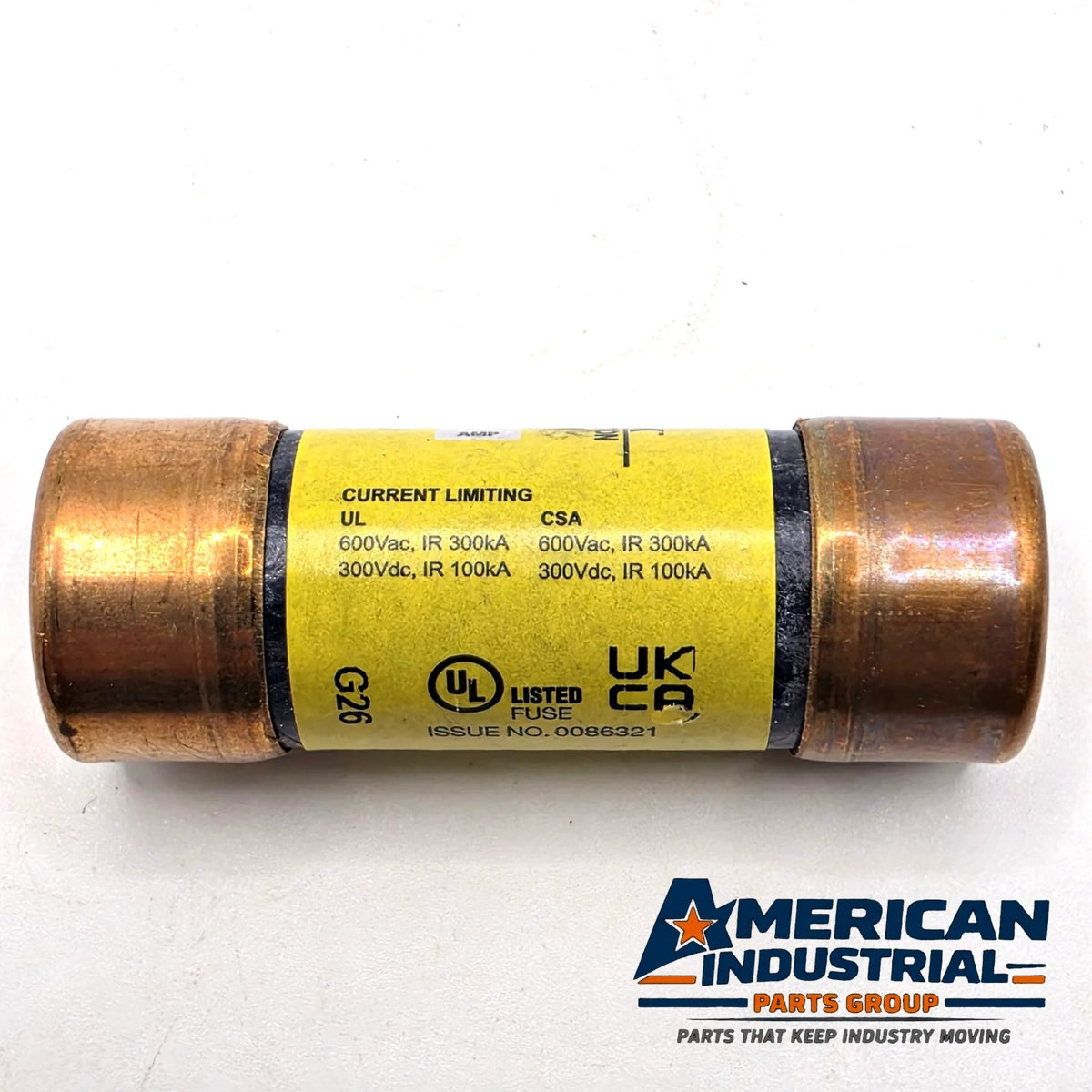

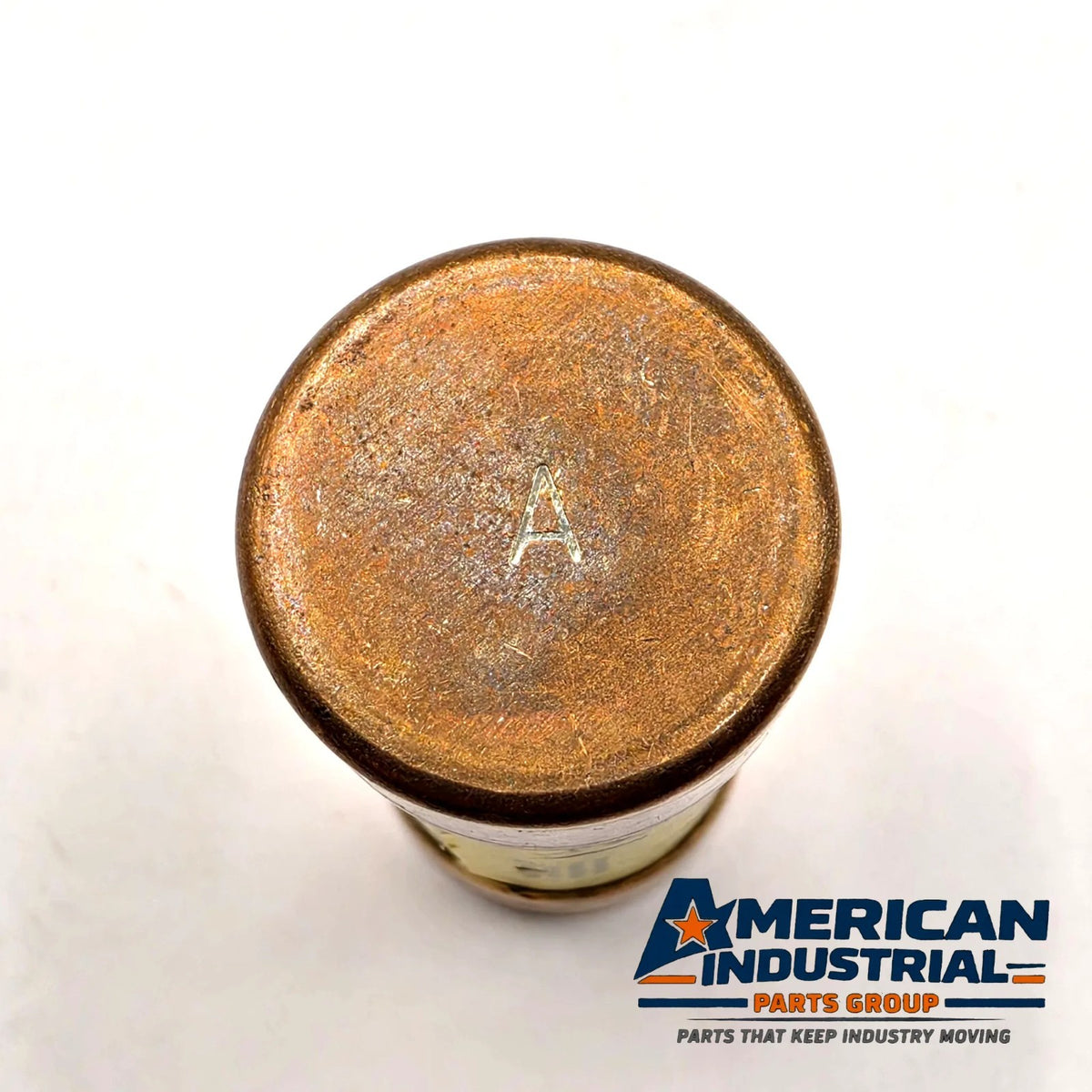

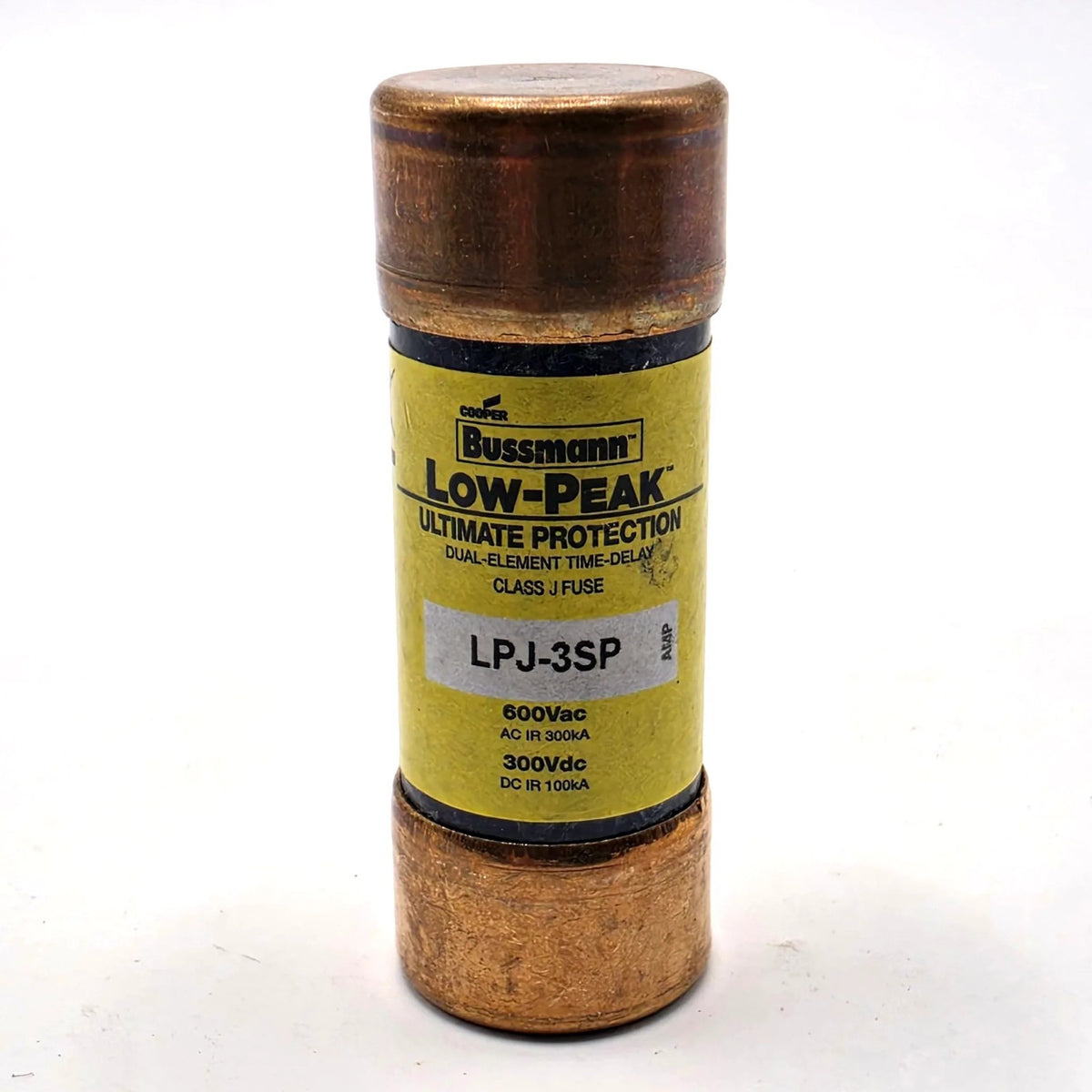

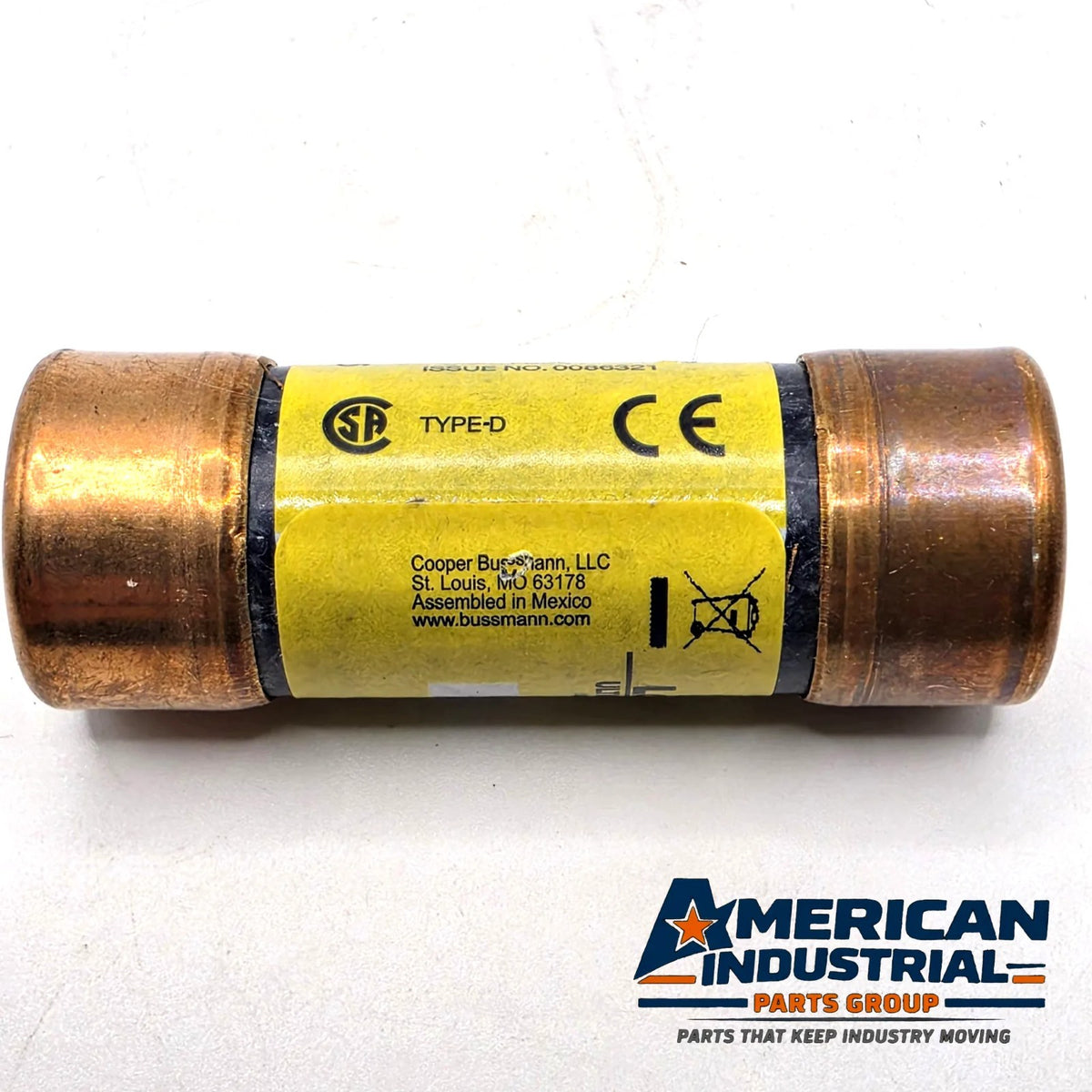

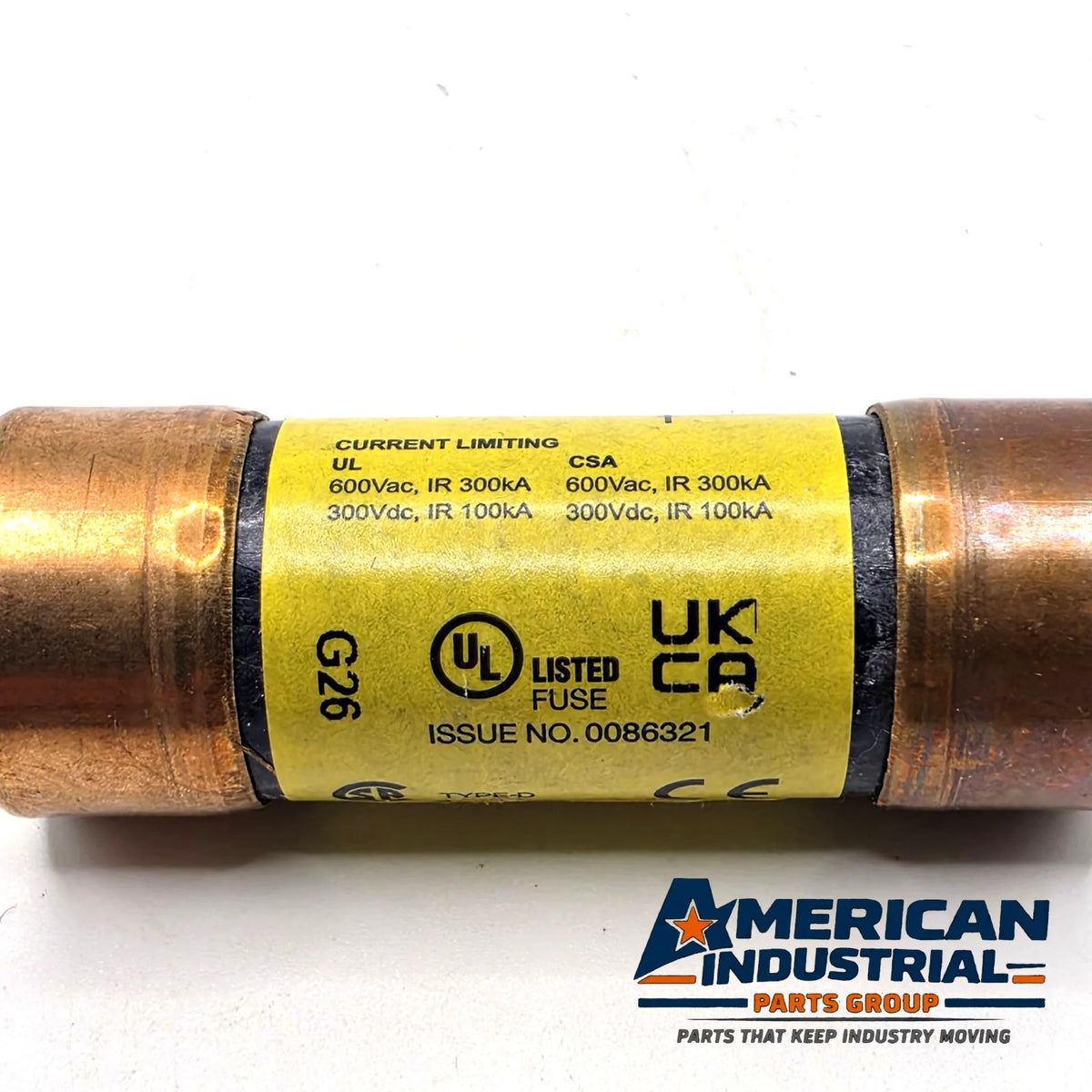

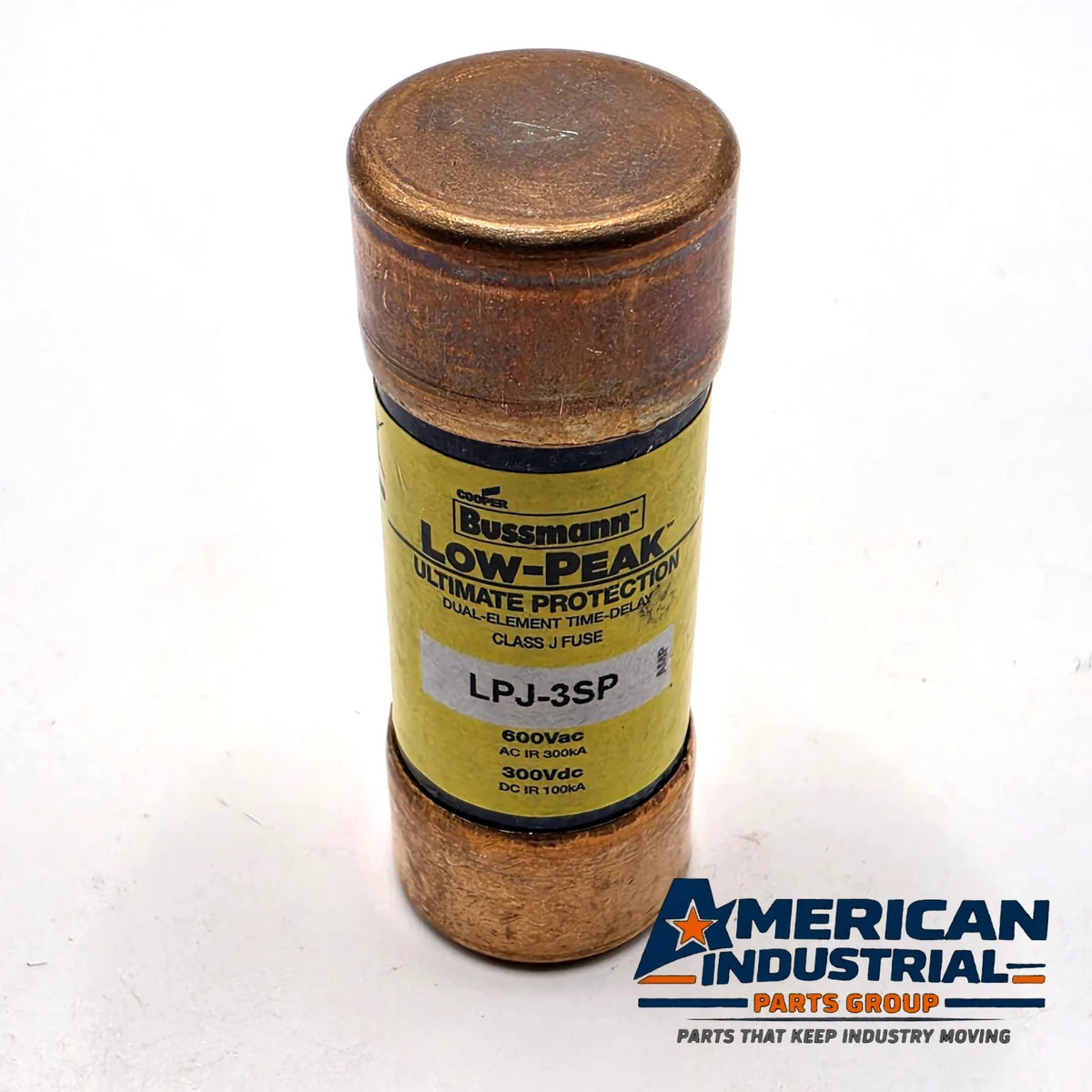

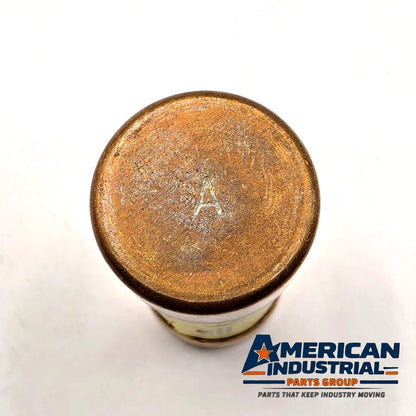

New open box Bussmann LPJ-3SP Low-Peak dual-element time-delay Class J fuse, rated 3 A at 600 VAC with a 300 kA interrupting rating, and 300 VDC with a 100 kA interrupting rating. The label reads "Cooper Bussmann Low-Peak Ultimate Protection, Dual-Element Time-Delay Class J Fuse, LPJ-3SP," with UL Listed, CSA Type D, CE and UKCA marks. Code G26 is printed on the label. The fuse has not been installed. The label has a small tear near the UKCA mark and a light stain near "Time-Delay." The copper end caps show tarnish from storage, as pictured.
The LPJ-SP is Bussmann's Low-Peak Class J time-delay fuse. It holds 500% of its rating for at least 10 seconds, so motor inrush and transformer magnetizing current pass without nuisance opening. Its current-limiting design gives a high level of protection for motor branch circuits, control transformers and control circuits. The Class J dimensions reject other fuse classes, so the wrong fuse can't be installed.
Features:
3 A, 600 VAC / 300 VDC
300 kA AC and 100 kA DC interrupting ratings
Dual-element time delay, 10 seconds minimum at 500%
Current limiting
Class J size rejection
Non-indicating
13/16 x 2-1/4 in ferrule
UL Listed, CSA Type D, CE, UKCA
Compatibility:
Direct replacement for Bussmann LPJ-3SP. It fits 30 A Class J fuse holders and blocks, including Bussmann CH30J and JM600-series holders, and Class J fused disconnects such as the Allen-Bradley 194R-NJ030 series. Equivalent Class J time-delay 3 A fuses include Mersen AJT3 and Littelfuse JTD003. The indicating version is the LPJ-3SPI. Confirm amperage and characteristics against your equipment before substituting.
Q&A
Q: What size is the LPJ-3SP?
A: 13/16 inch diameter by 2-1/4 inches long, the Class J 0–30 A size.
Q: Is this a time-delay fuse?
A: Yes. It is dual-element and holds 500% of its rating for at least 10 seconds.
Q: Can I use it on DC?
A: Yes. It is rated 300 VDC with a 100 kA interrupting rating.
Q: What is the difference between the LPJ-3SP and the LPJ-3SPI?
A: The SPI version has a blown-fuse indicator. The SP is non-indicating. Ratings and size are the same.
Q: Will it fit a Class CC or Class R holder?
A: No. Class J fuses need Class J holders.
DISCLAIMER
Item is new open box, sold as pictured. The fuse has not been installed. The label has a small tear and a stain, and the end caps are tarnished from storage. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Bussmann or Eaton. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
LPJ-3SP, LPJ3SP, LPJ-3SPI, Bussmann LPJ-3SP, Cooper Bussmann LPJ-3SP, Eaton LPJ-3SP, Buss LPJ-3SP, Low-Peak fuse, Bussmann Low-Peak 3A, class j fuse, fuse class j, bussmann class j fuse, class j time-delay fuse, class j 3 amp fuse, 3A 600V fuse, dual element fuse 3A, time delay fuse 3 amp, current limiting fuse, motor circuit fuse, control transformer fuse, AJT3, JTD003, mersen class j fuse, littelfuse class j fuse, class j fuse holder, CH30J, 194R-NJ030 fuse
