Bussmann LPJ-3SP Low-Peak Fuse 3A 600VAC 300VDC Class J Dual Element Time Delay

ITEM SPECIFICS
Brand: Bussmann
Model: LPJ-3SP
MPN: LPJ-3SP
Series: Low-Peak LPJ
Type: Dual-Element Time-Delay Fuse
Fuse Class: Class J
Current Rating: 3 A
AC Voltage Rating: 600 VAC
DC Voltage Rating: 300 VDC
AC Interrupting Rating: 300 kA
DC Interrupting Rating: 100 kA
Current Limiting: Yes
Indicator: Non-Indicating
Body Type: Cartridge
Connection Type: Ferrule Ends
Length: 2.25 in
Diameter: Approximately 0.81 in
Certifications: UL Listed, CSA Certified
Condition: New
Quantity: 1 Fuse

DESCRIPTION
Bussmann Low-Peak LPJ-3SP 3-amp Class J fuse featuring dual-element time-delay operation and current-limiting protection. Designed to provide overload and short-circuit protection while accommodating appropriate temporary inrush currents.
New, unused fuse.
Rated 600 VAC and 300 VDC.
Non-indicating cartridge design with ferrule ends.

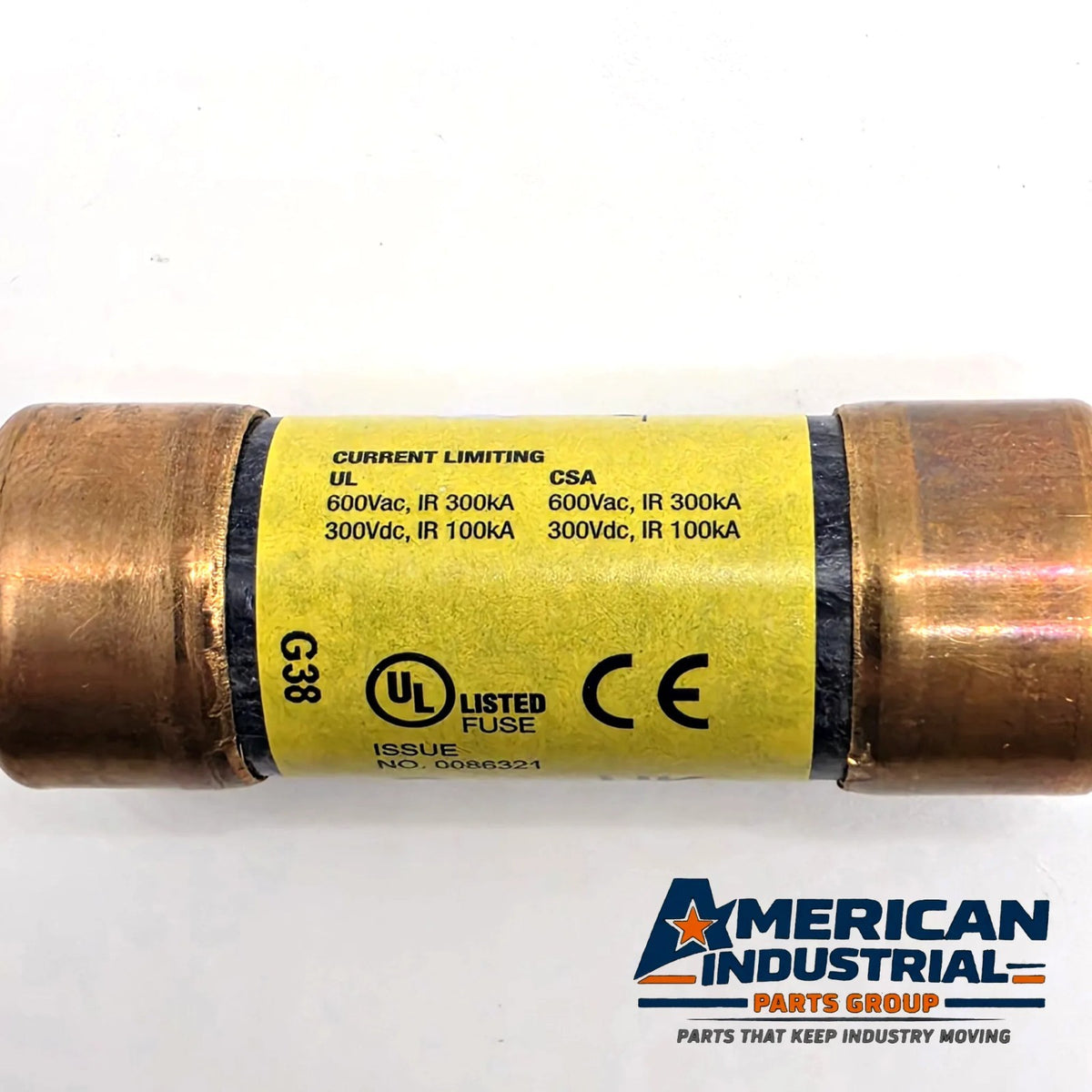

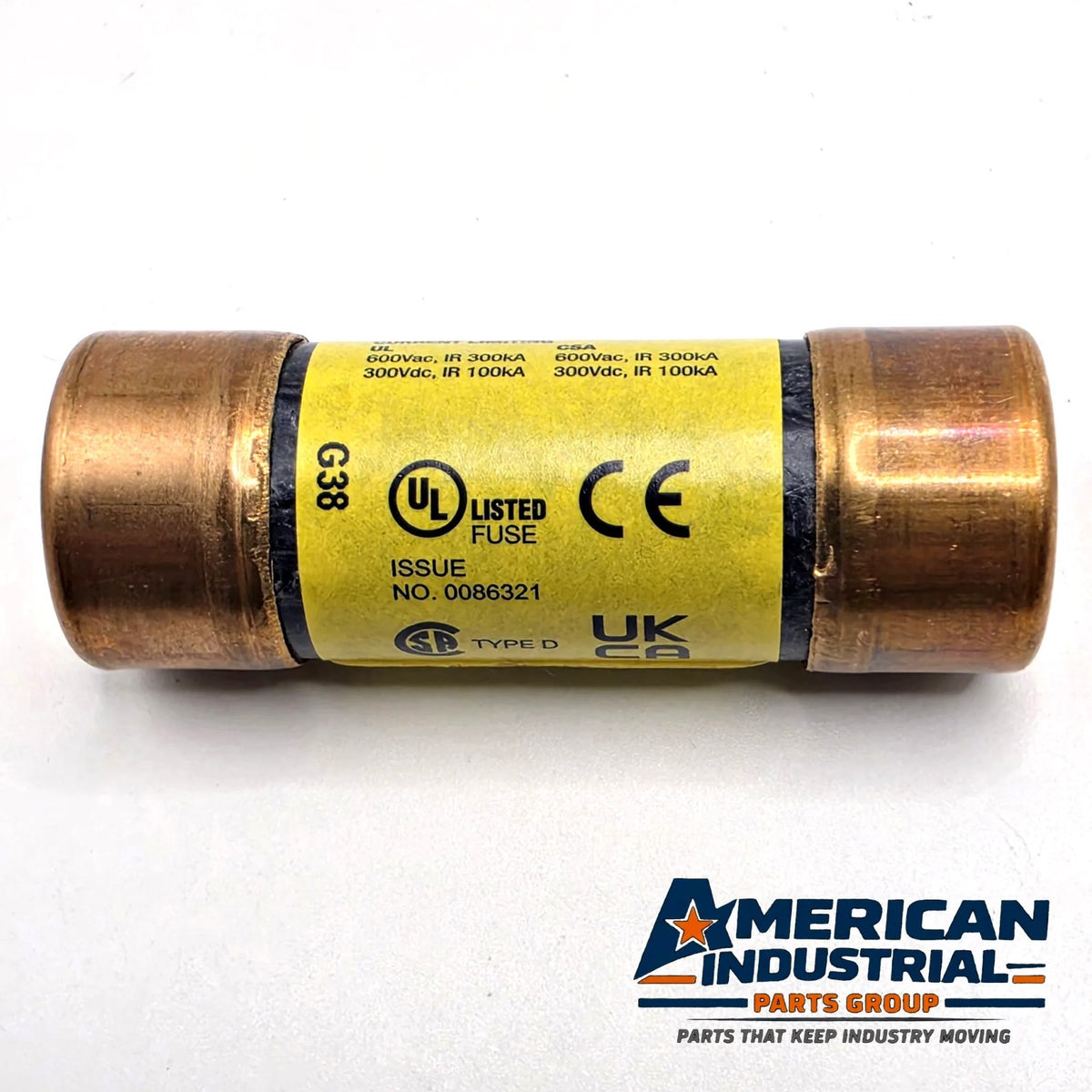

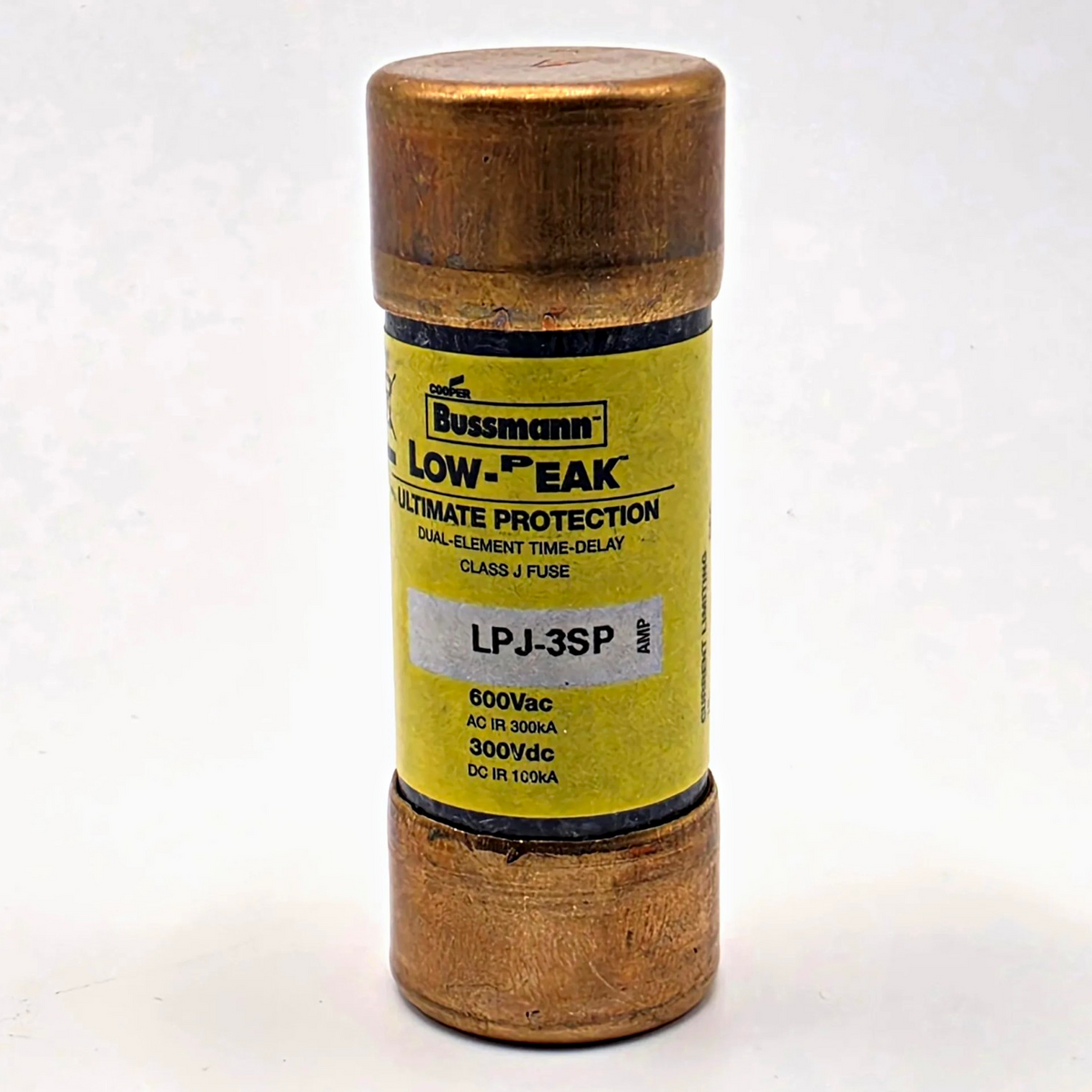

Cooper Bussmann branding as pictured.

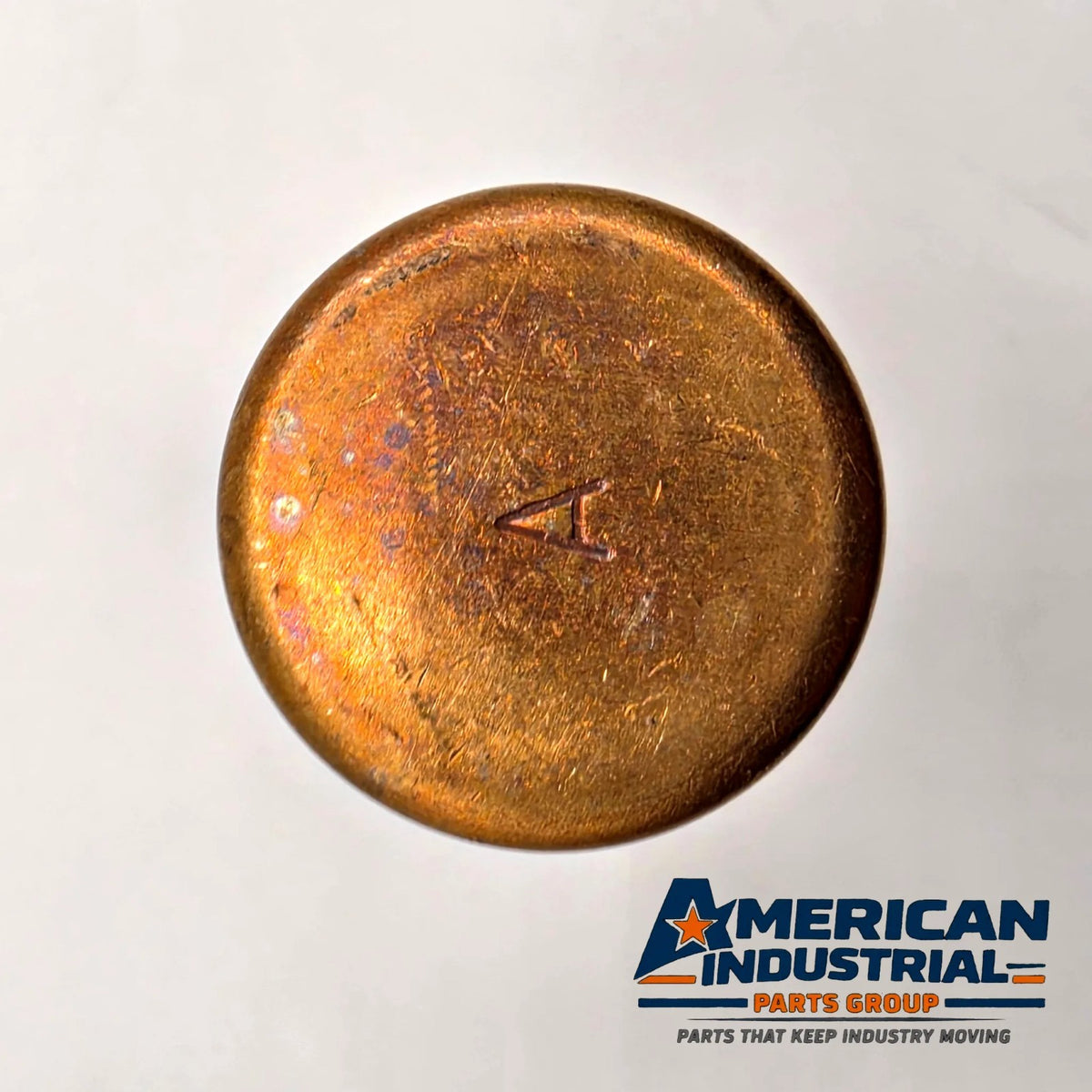

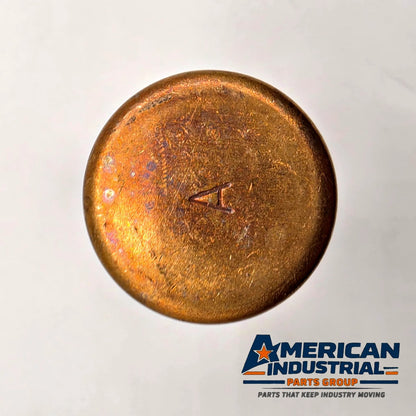

Copper-colored end caps show surface discoloration and handling marks visible in the photographs.
Includes one fuse as shown.

COMPATIBILITY & CROSS-REFERENCE
Direct replacement for Bussmann LPJ-3SP. It fits 30 A Class J fuse holders, blocks and fused disconnects. Equivalent Class J time-delay 3 A fuses include Mersen AJT3 and Littelfuse JTD003. The indicating version is the LPJ-3SPI. Class J fuses will not fit Class CC, Class R or Class H holders. Confirm amperage and characteristics against your equipment before substituting.

Q&A
Q: What size is the LPJ-3SP? A: 13/16 inch diameter by 2-1/4 inches long, the Class J 0–30 A size.
Q: Is this a time-delay fuse? A: Yes. It is dual-element and holds 500% of its rating for at least 10 seconds.
Q: Can I use it on DC? A: Yes. It is rated 300 VDC with a 100 kA interrupting rating.
Q: What is the difference between the LPJ-3SP and the LPJ-3SPI? A: The SPI version has a blown-fuse indicator. Ratings and size are the same.

DISCLAIMER
New, unused item with cosmetic condition as pictured. Review all photographs before purchasing. Buyer is responsible for verifying the required fuse class, amperage, voltage, dimensions, and application compatibility.
