Bussmann LPJ-40SP Low-Peak 40A 600V Class J Time Delay Fuse Dual Element New
Bussmann LPJ-40SP Low-Peak 40A 600V Class J Time Delay Fuse Dual Element New
Regular price
$18.29 USD
Regular price
Sale price
$18.29 USD
Shipping calculated at checkout.
4 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Bussmann (Cooper Bussmann / Eaton)
MPN: LPJ-40SP
Series: Low-Peak LPJ-SP
Type: Dual-Element Time-Delay Fuse
Fuse Class: UL Class J (CSA Type D)
Current Rating: 40 A
AC Voltage Rating: 600 VAC
AC Interrupting Rating: 300 kA
DC Voltage Rating: 300 VDC
DC Interrupting Rating: 100 kA
Time Delay: 10 seconds minimum at 500% rated current
Size: 1-1/16 in diameter x 2-3/8 in long (Class J 35–60 A size)
Weight: 0.18 lb
Mounting: Ferrule
Indicator: Non-indicating
Current Limiting: Yes
Certifications: UL Listed, CSA, CE
Country of Manufacture: Mexico
Condition: New – Open Box
Quantity: 1
DESCRIPTION

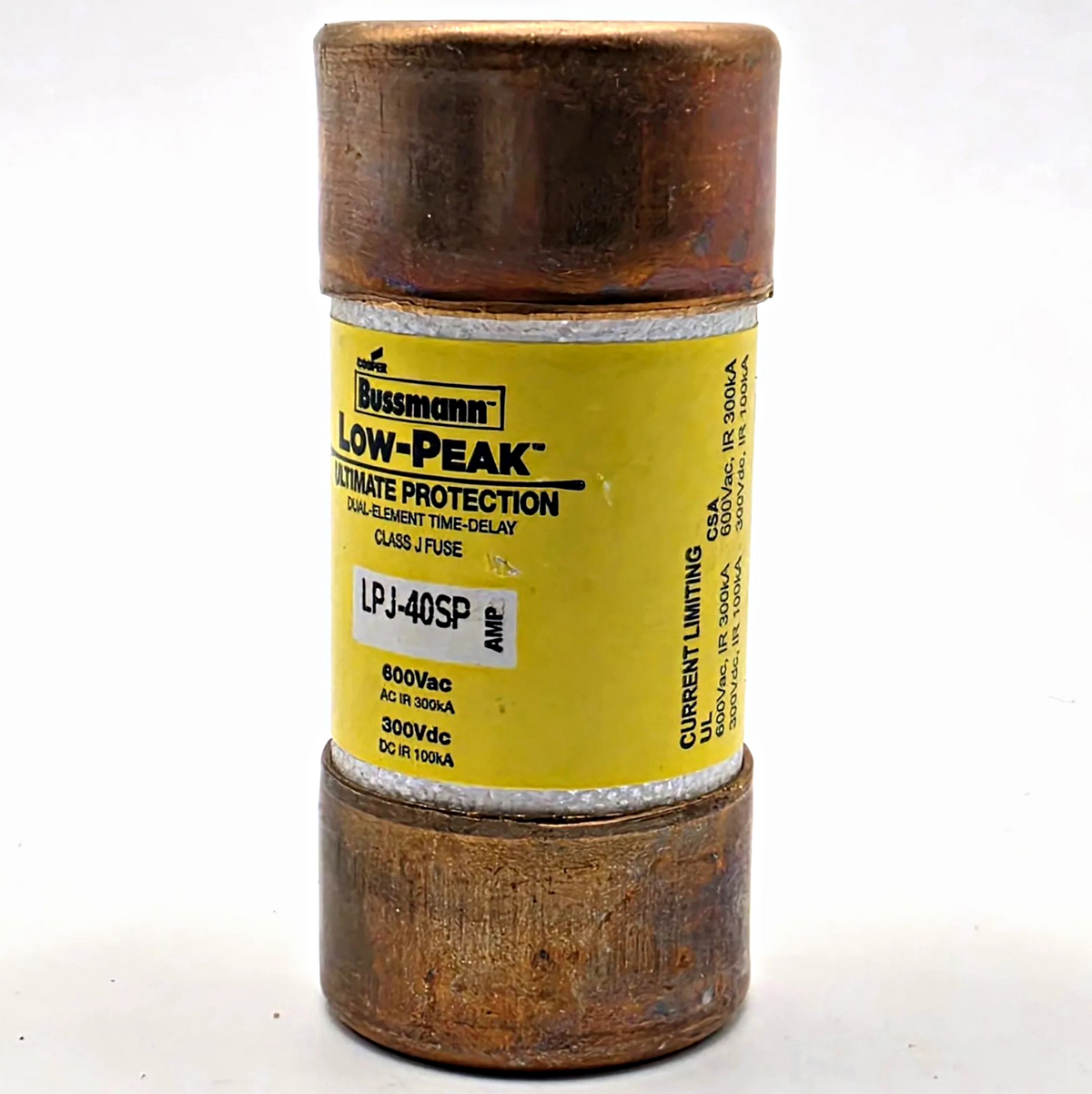

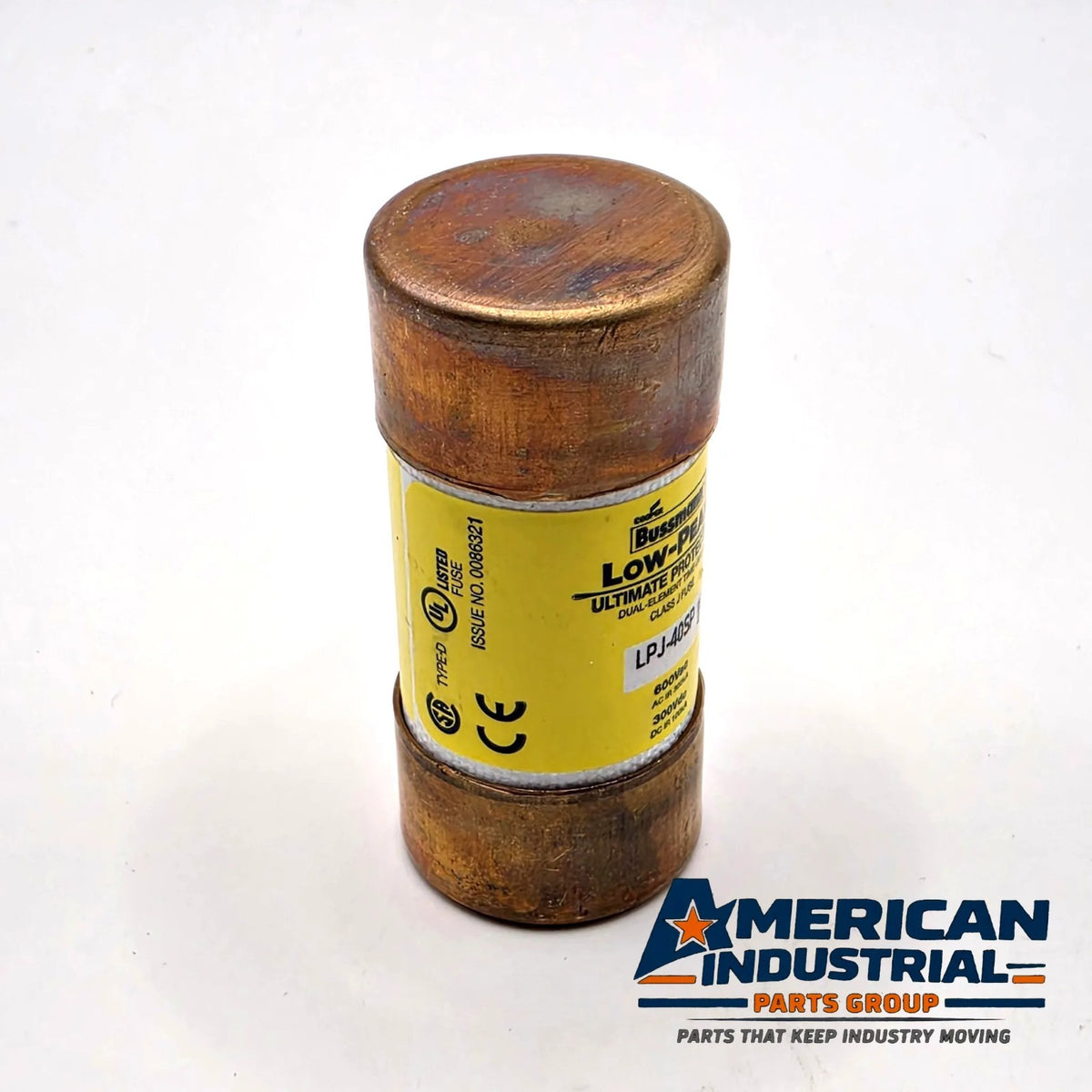

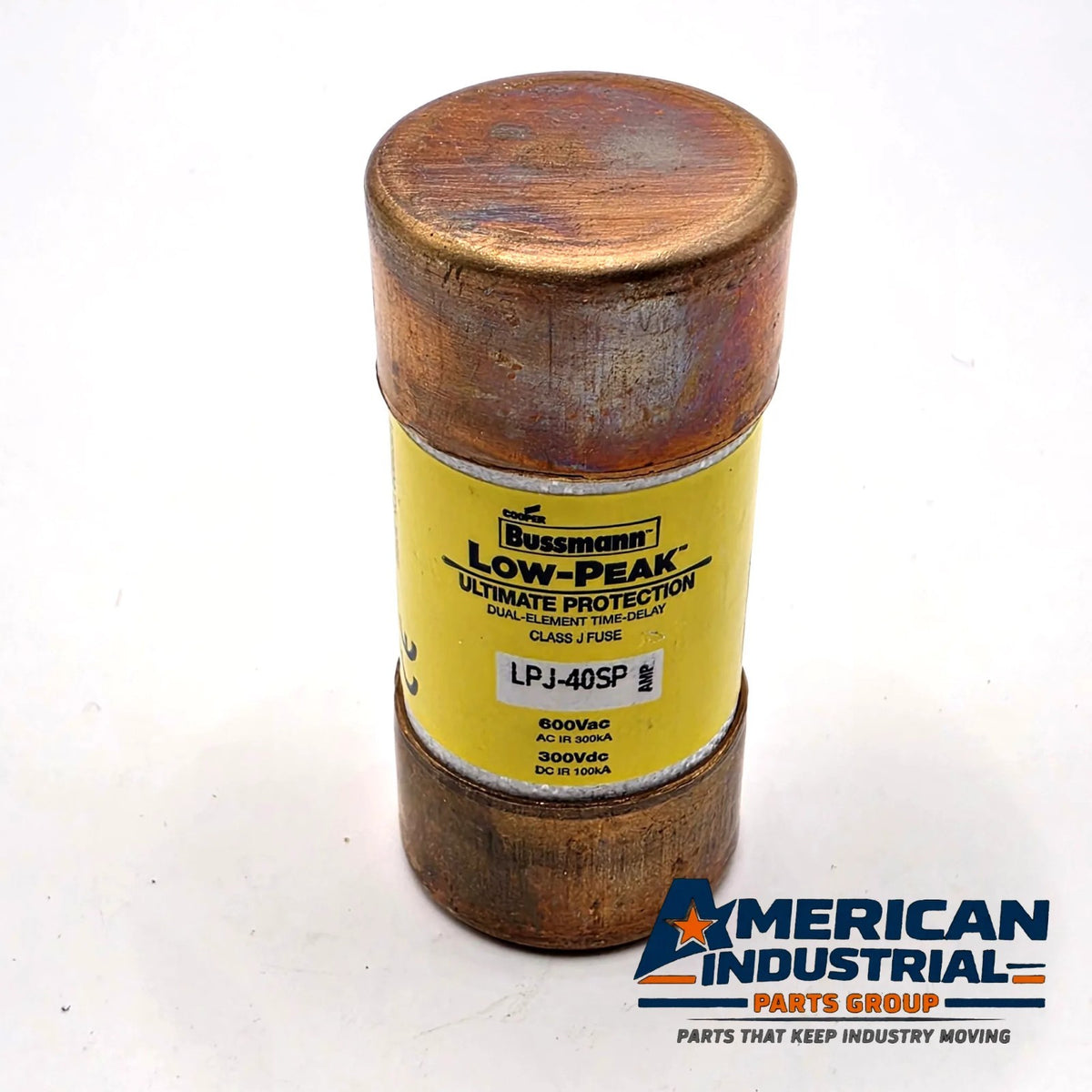

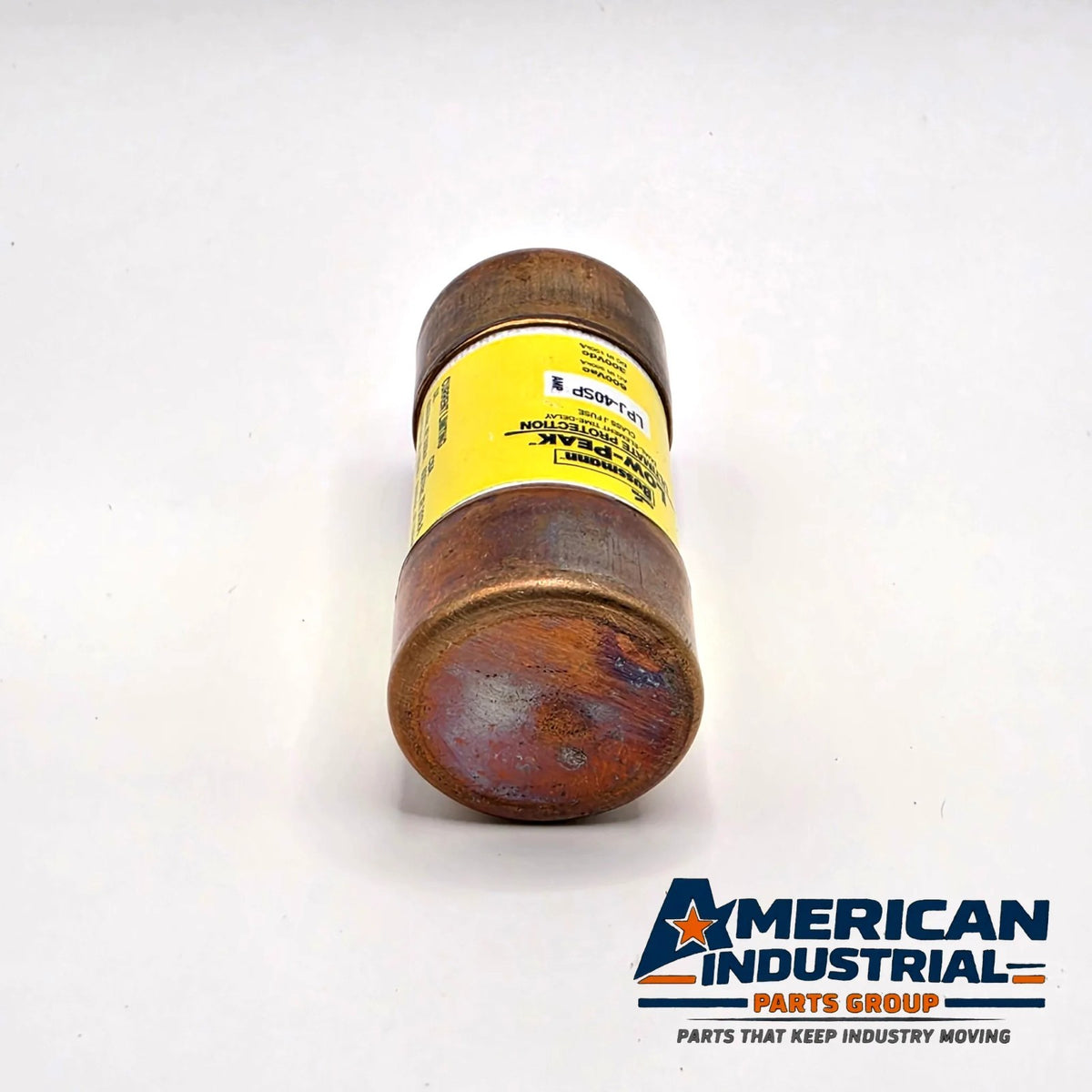

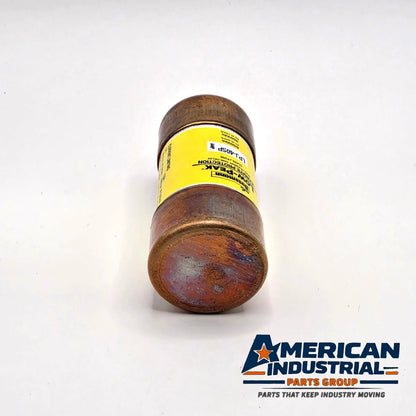

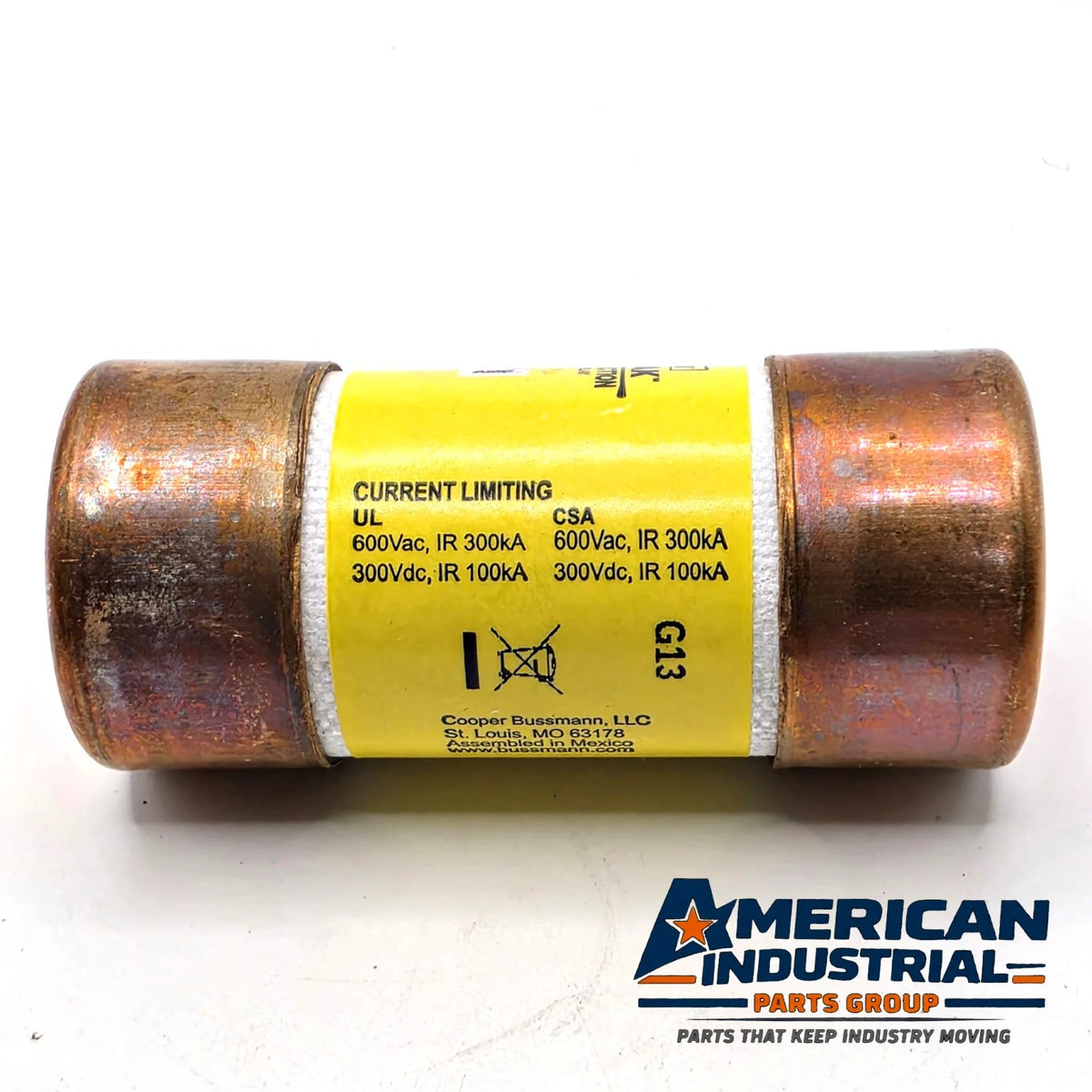

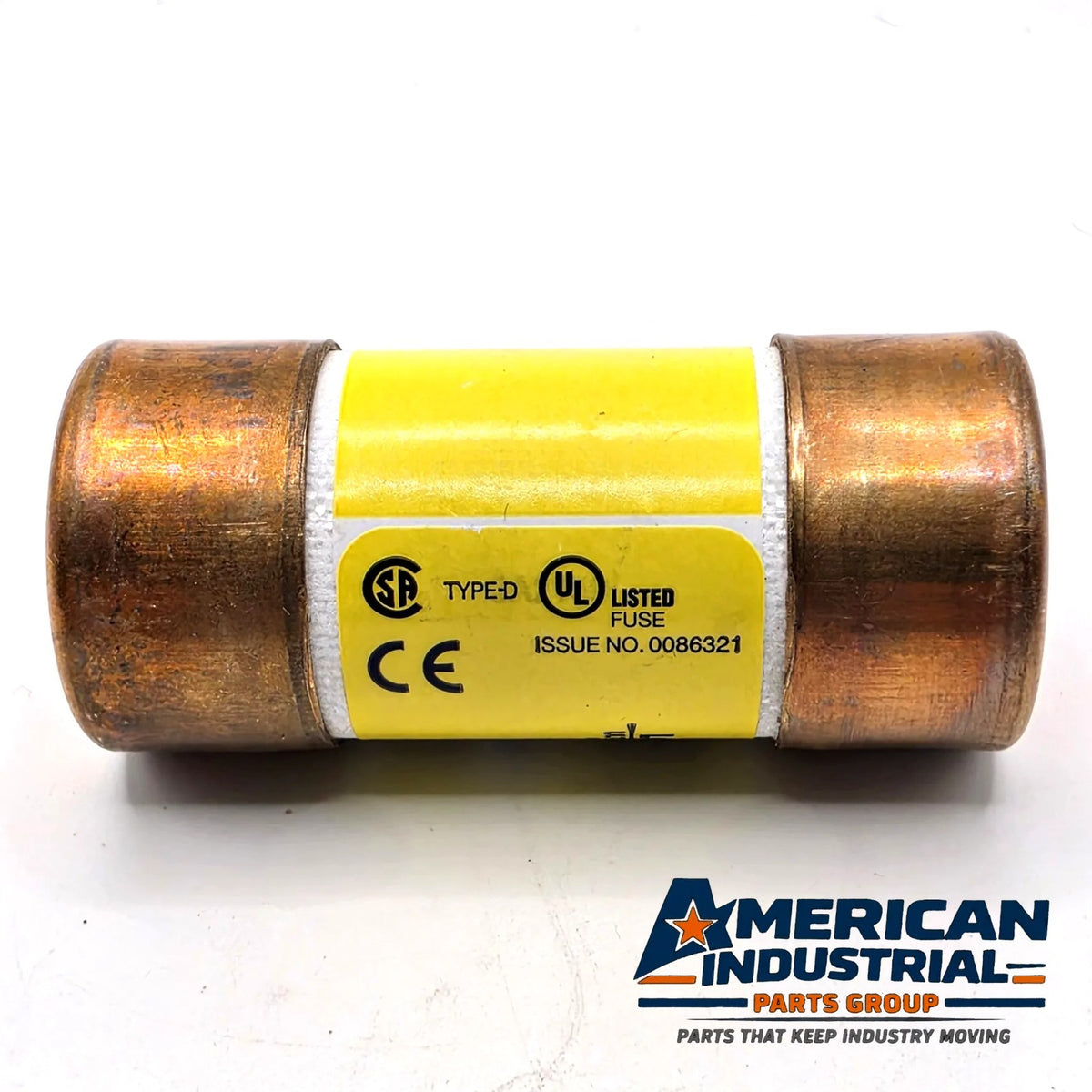

New open box Bussmann LPJ-40SP Low-Peak dual-element time-delay Class J fuse, rated 40 A at 600 VAC with a 300 kA interrupting rating, and 300 VDC with a 100 kA interrupting rating. The label reads "Cooper Bussmann Low-Peak Ultimate Protection, Dual-Element Time-Delay Class J Fuse, LPJ-40SP," with UL Listed, CSA Type D and CE marks and "Cooper Bussmann, LLC, St. Louis, MO 63178, Assembled in Mexico." Code G13 is printed on the label. The fuse has not been installed. The label is clean and readable. The copper end caps show heavy tarnish and discoloration from storage, as pictured.
The LPJ-SP is Bussmann's Low-Peak Class J time-delay fuse. It holds 500% of its rating for at least 10 seconds, so motor inrush and transformer magnetizing current pass without nuisance opening. Its current-limiting design gives a high level of protection for motor branch circuits, feeders, panelboards and control circuits. The Class J dimensions reject other fuse classes, so the wrong fuse can't be installed.
Features:
40 A, 600 VAC / 300 VDC
300 kA AC and 100 kA DC interrupting ratings
Dual-element time delay, 10 seconds minimum at 500%
Current limiting
Class J size rejection
Non-indicating
1-1/16 x 2-3/8 in ferrule (35–60 A Class J size)
UL Listed, CSA Type D, CE
Compatibility:
Direct replacement for Bussmann LPJ-40SP. It fits 60 A Class J fuse holders and blocks, such as Bussmann CH60J and JM600-series 60 A holders, and 60 A Class J fused disconnects. It will not fit 30 A Class J holders, which are sized for 13/16 x 2-1/4 in fuses. Equivalent Class J time-delay 40 A fuses include Mersen AJT40 and Littelfuse JTD040. The indicating version is the LPJ-40SPI. Confirm amperage and characteristics against your equipment before substituting.
Q&A
Q: What size is the LPJ-40SP?
A: 1-1/16 inch diameter by 2-3/8 inches long, the Class J 35–60 A size.
Q: Will it fit a 30 A Class J holder?
A: No. It needs a 60 A Class J holder or disconnect.
Q: Is this a time-delay fuse?
A: Yes. It is dual-element and holds 500% of its rating for at least 10 seconds.
Q: Can I use it on DC?
A: Yes. It is rated 300 VDC with a 100 kA interrupting rating.
Q: What is the difference between the LPJ-40SP and the LPJ-40SPI?
A: The SPI version has a blown-fuse indicator. The SP is non-indicating.
DISCLAIMER
Item is new open box, sold as pictured. The fuse has not been installed. The end caps are heavily tarnished from storage. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Bussmann or Eaton. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
LPJ-40SP, LPJ40SP, LPJ-40SPI, Bussmann LPJ-40SP, Cooper Bussmann LPJ-40SP, Eaton LPJ-40SP, Buss LPJ-40SP, Low-Peak fuse, Bussmann Low-Peak 40A, class j fuse, fuse class j, bussmann class j fuse, class j time-delay fuse, class j 40 amp fuse, 40A 600V fuse, dual element fuse 40A, time delay fuse 40 amp, current limiting fuse, motor circuit fuse, 60A disconnect fuse, AJT40, JTD040, mersen class j fuse, littelfuse class j fuse, class j fuse holder, CH60J
Thank you for shopping with American Industrial Parts Group!
