Bussmann LPJ-4SP Low-Peak 4A 600VAC Class J Time-Delay Fuse LPJ4SP
Bussmann LPJ-4SP Low-Peak 4A 600VAC Class J Time-Delay Fuse LPJ4SP
Regular price
$12.95 USD
Regular price
Sale price
$12.95 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Bussmann
MPN: LPJ-4SP
Model: LPJ-4SP
Type: Dual-Element Time-Delay Fuse
Fuse Class: J (CSA Type D)
Series: Low-Peak LPJ-SP
Current Rating: 4 A
Voltage Rating: 600 VAC / 300 VDC
Interrupting Rating: 300 kA at 600 VAC; 100 kA at 300 VDC
Dimensions: 13/16 in x 2-1/4 in
Indicating: No
Certifications: UL Listed, CSA, CE, UKCA
Country of Manufacture: Mexico
Quantity: 1
Condition: New – Open Box
DESCRIPTION

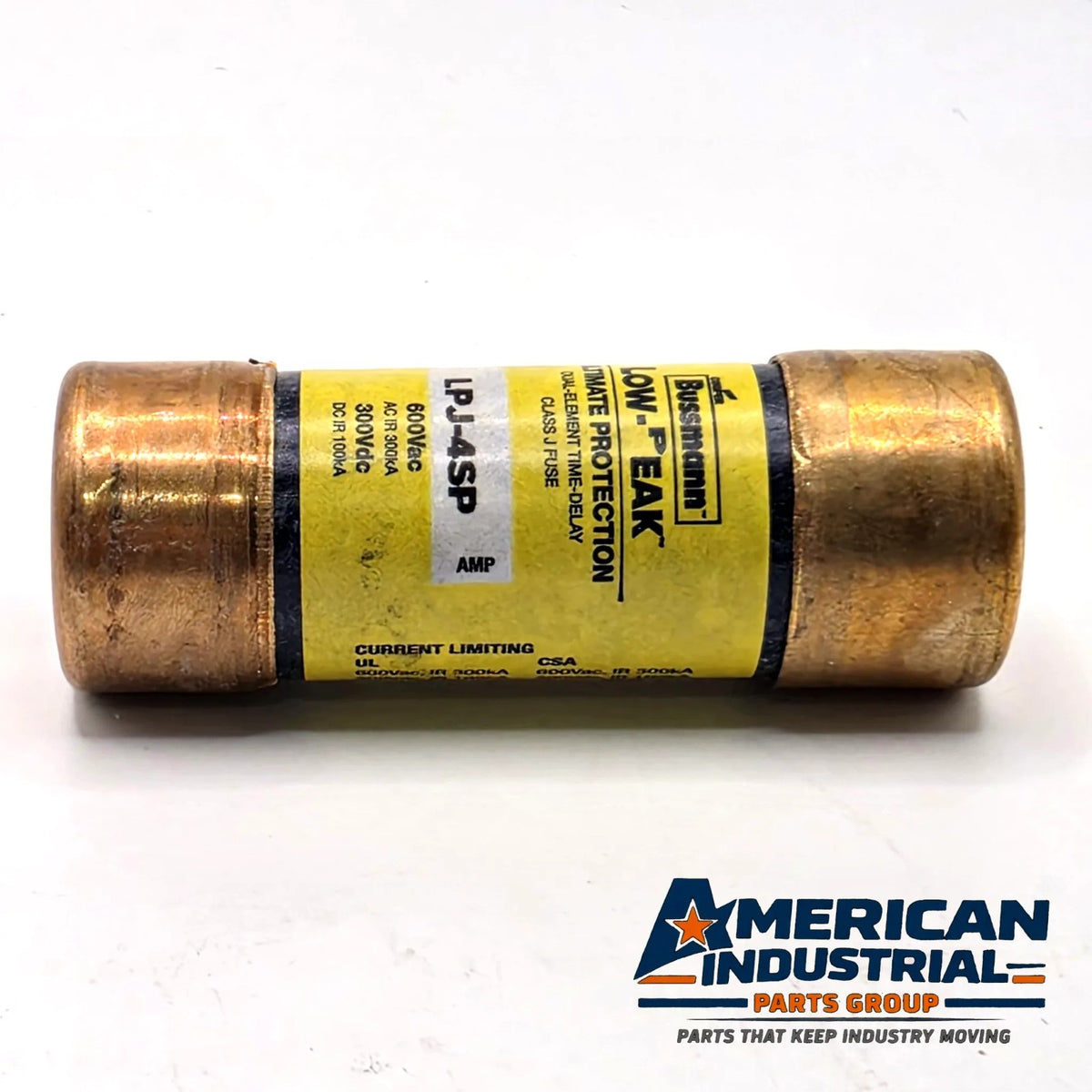

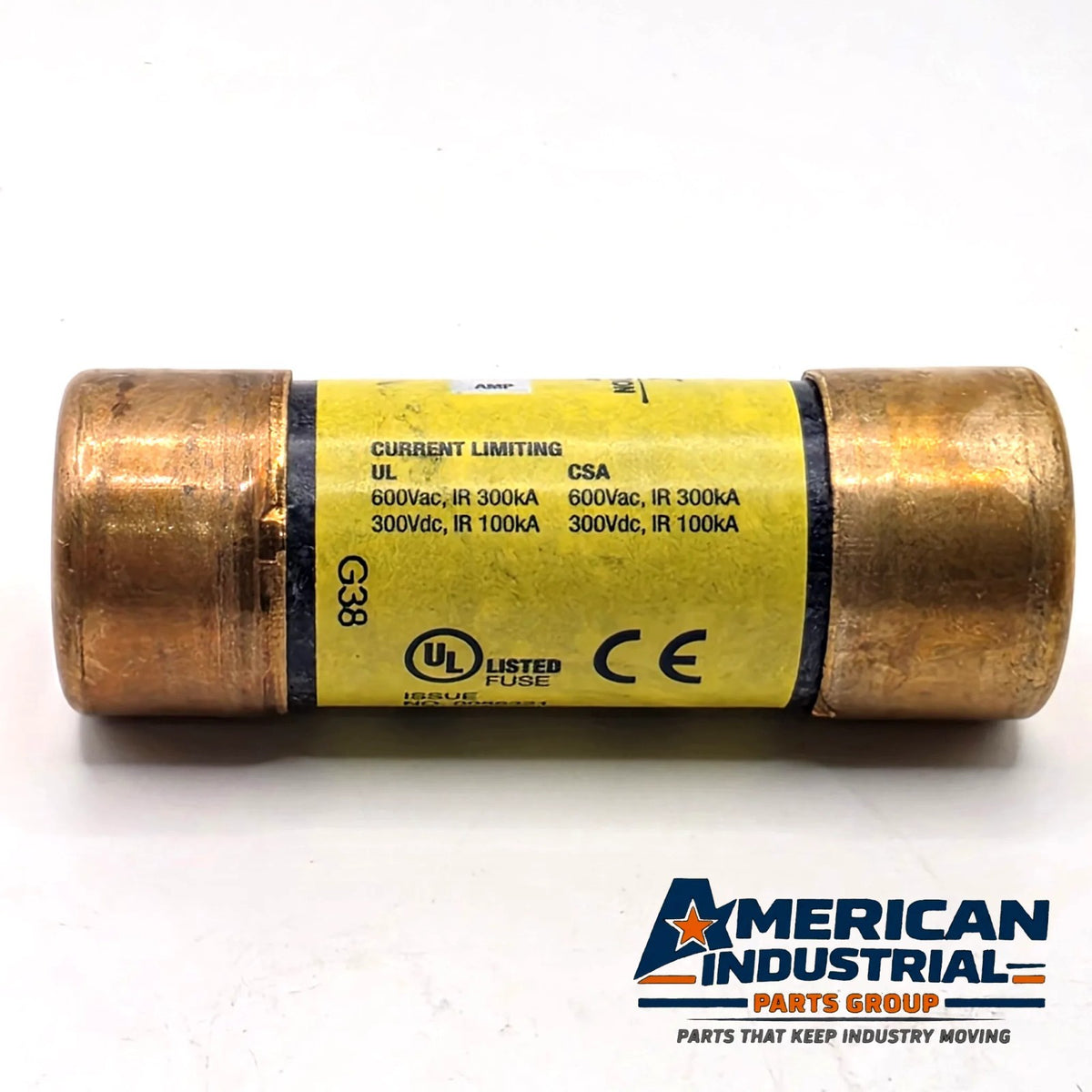

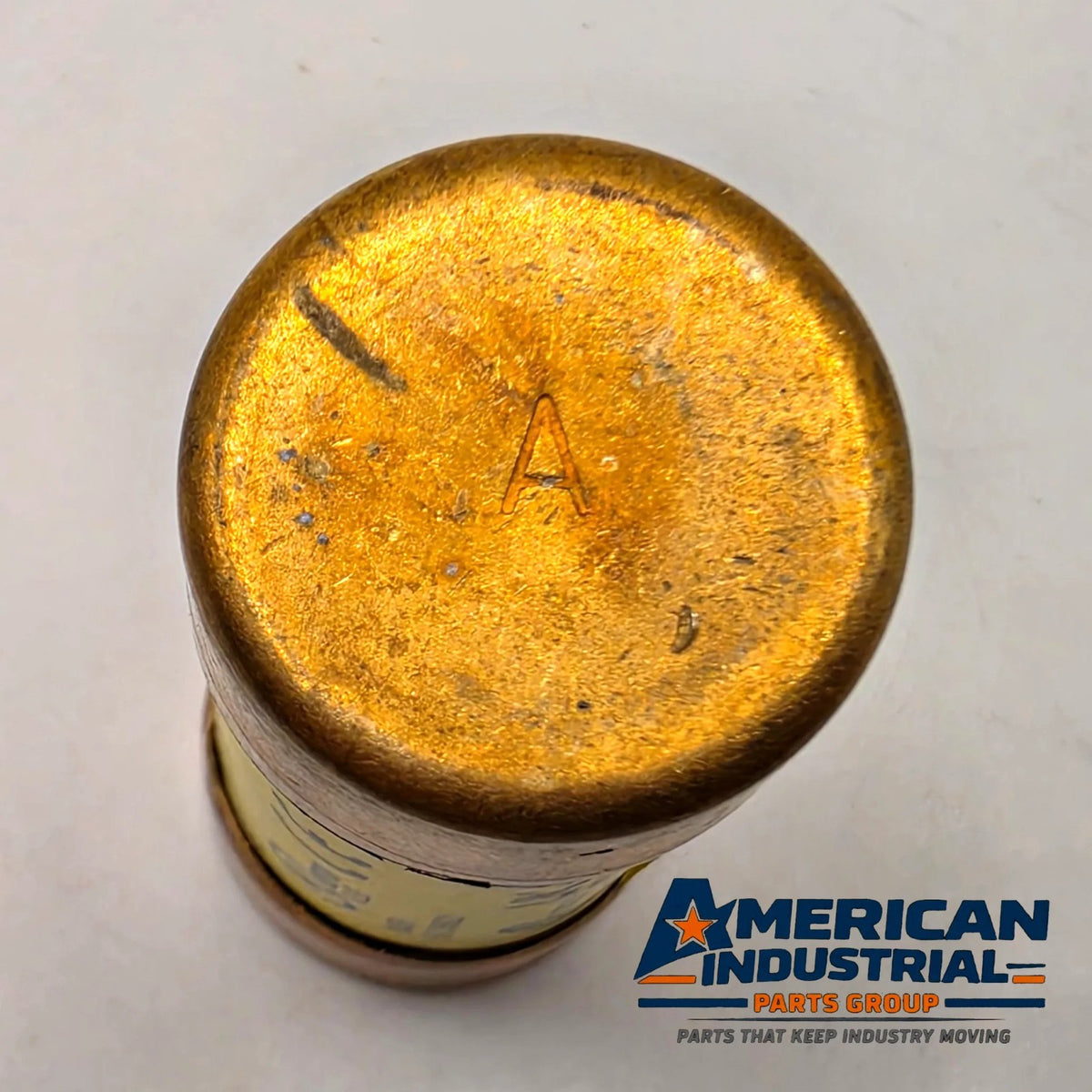

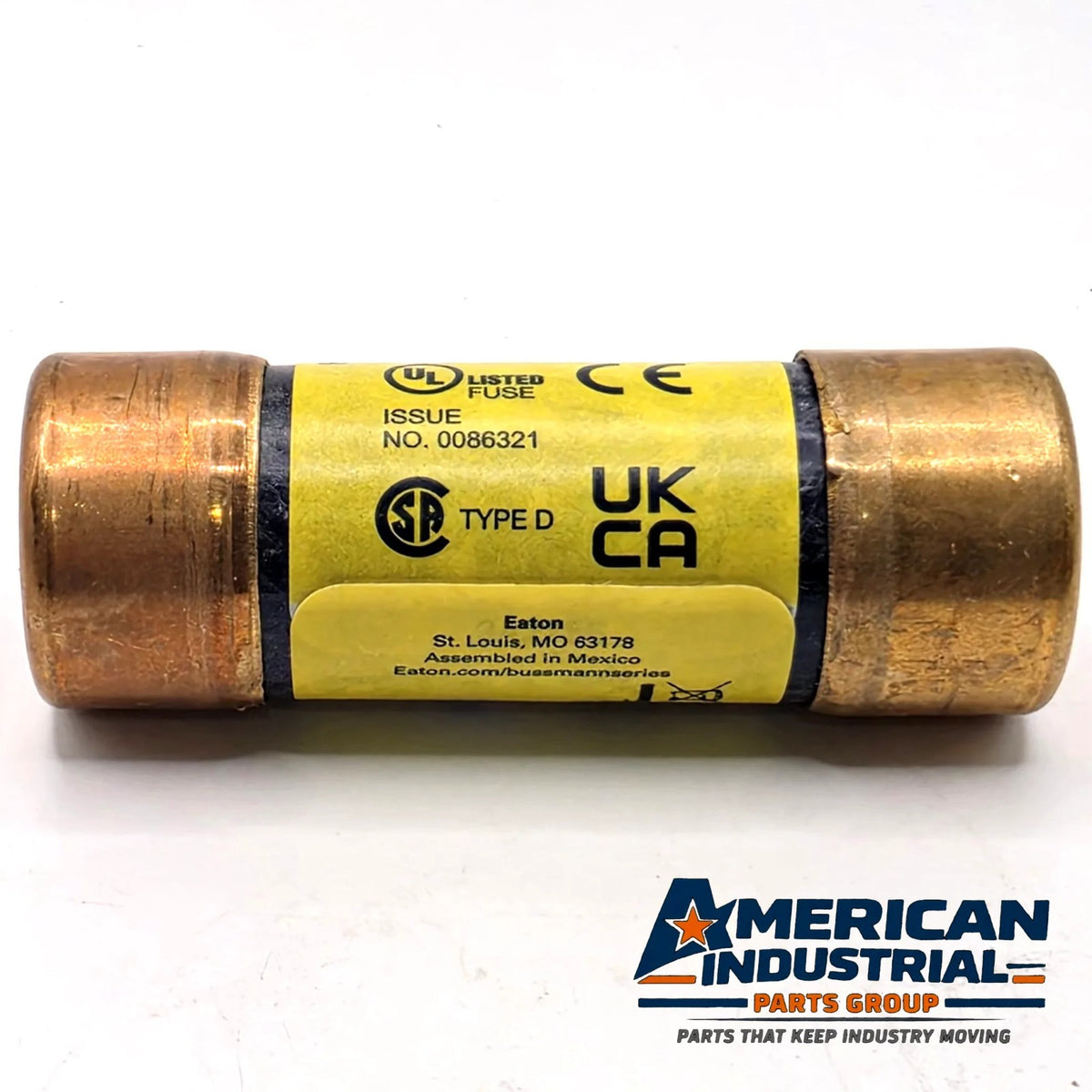

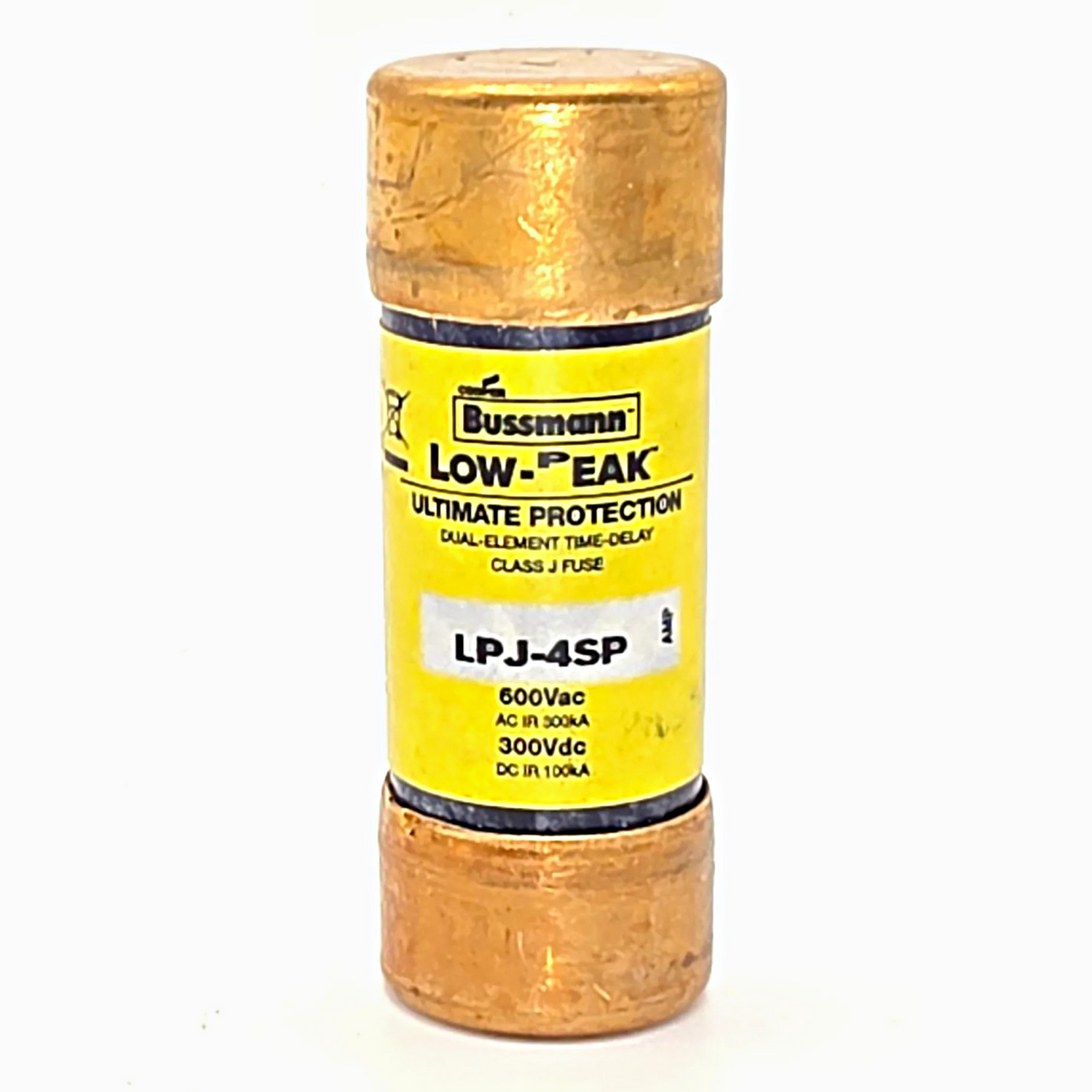

This is a Bussmann LPJ-4SP Low-Peak Ultimate Protection dual-element time-delay Class J fuse, rated 4 amps. It's new, open box and has never been installed. The copper end caps show tarnish, oxidation and handling marks, and the label shows light soiling. Please see the photos. The label is the current Eaton (St. Louis, MO) version, code G38.
Features:
4 A, 600 VAC rating with 300 kA interrupting rating
300 VDC rating with 100 kA interrupting rating
Dual-element time-delay: 10 seconds minimum at 500% of rating, for motor and transformer inrush
Current-limiting Class J design for high fault-current protection
Class J dimensions reject non-Class J fuses
13/16 in x 2-1/4 in ferrule body
UL Listed (Issue No. 0086321), CSA Type D, CE and UKCA marked, assembled in Mexico
Compatibility:
Fits 30 A Class J fuse holders and blocks, including Bussmann CH30J / JM60030 series holders and Class J disconnect switches. Cross-references include the Mersen AJT4 and Littelfuse JTD004 Class J time-delay fuses. Confirm the requirements of your application before installing.
Q&A
Q: Is this fuse new?
A: Yes. It's new, open box and has never been installed. The copper end caps show tarnish from storage.
Q: Will this fit a 30 A Class J fuse holder?
A: Yes. All LPJ-SP fuses rated 1 to 30 A share the 13/16 in x 2-1/4 in Class J body.
Q: Is this an indicating fuse?
A: No. The LPJ-SP is non-indicating. The indicating version is the LPJ-SPI.
Q: How many fuses are included?
A: One fuse.
DISCLAIMER
The item shown in the photos is the exact item you will receive. Please review all photos and the description carefully before purchasing. Specifications are given for reference; verify compatibility with your equipment before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of Bussmann or Eaton. Brand names, trademarks and part numbers are used for identification purposes only. Electrical components should be installed by qualified personnel in accordance with applicable codes.
lpj-4sp, lpj 4sp, LPJ4SP, LPJ-4, bussmann lpj-4sp, Eaton Bussmann LPJ-4SP, 4 amp class j fuse, class j time delay fuse, low peak class j fuse, 600V class j fuse, CH30J fuse, AJT4 cross reference, JTD004 cross reference, motor circuit fuse, cartridge fuse
Thank you for shopping with American Industrial Parts Group!
