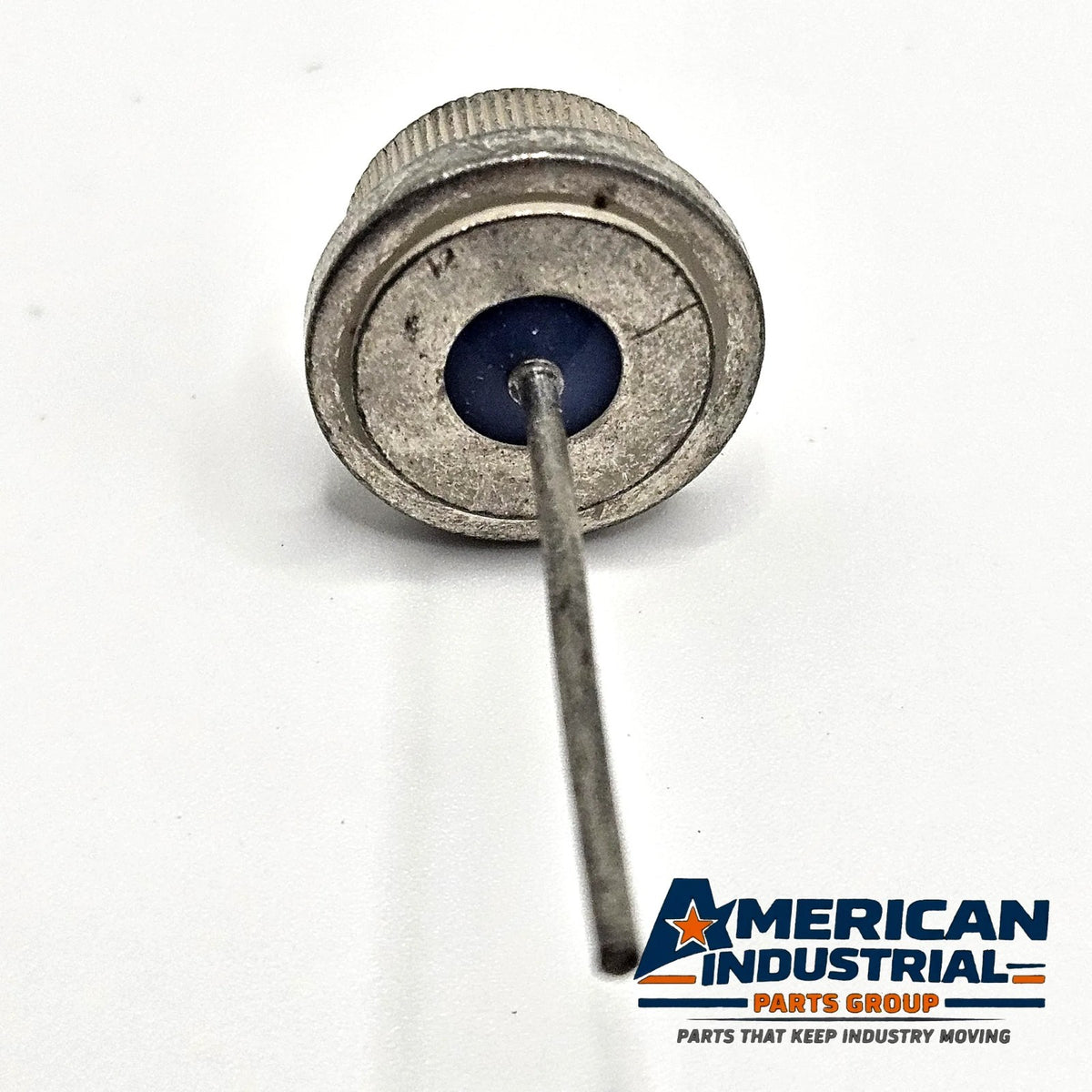

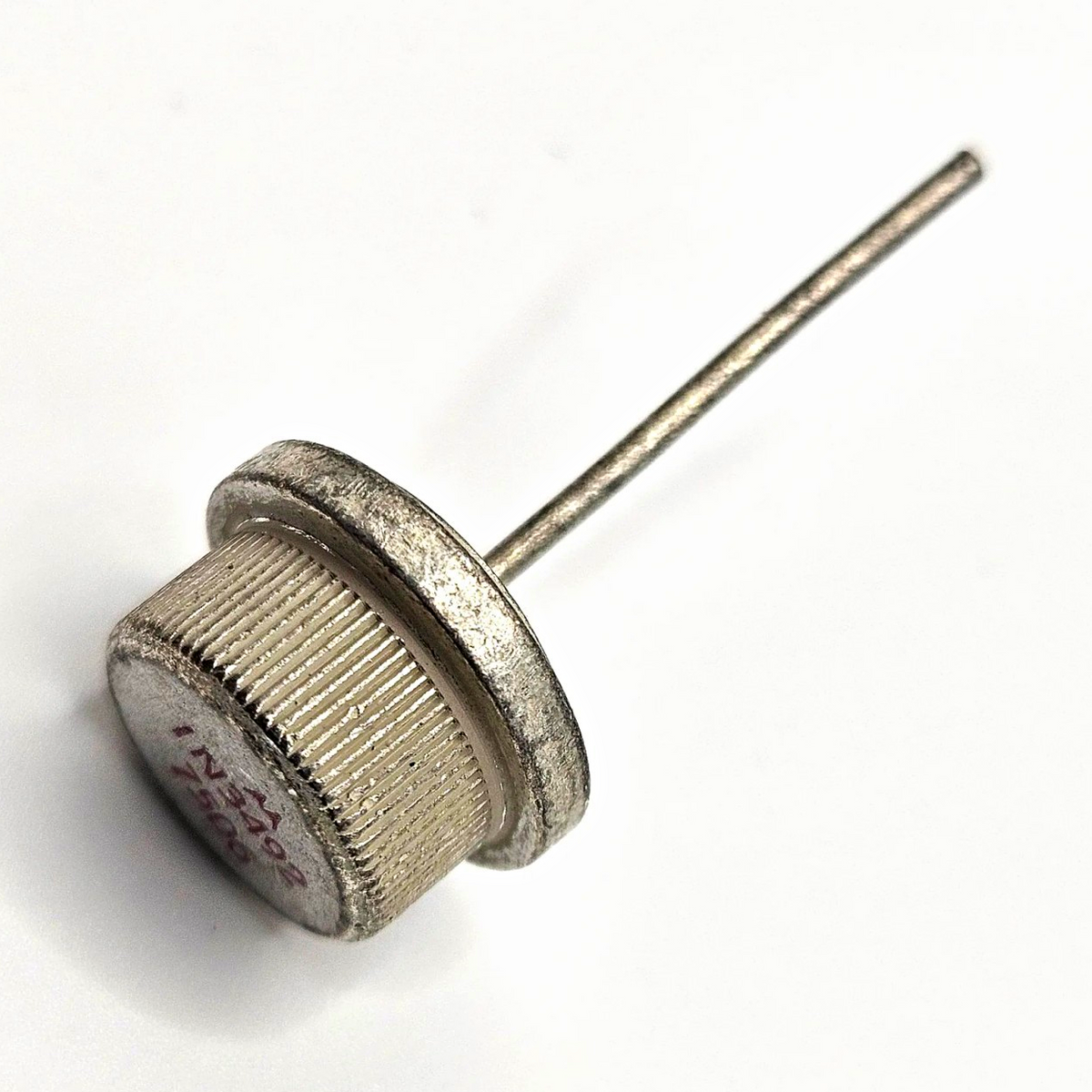

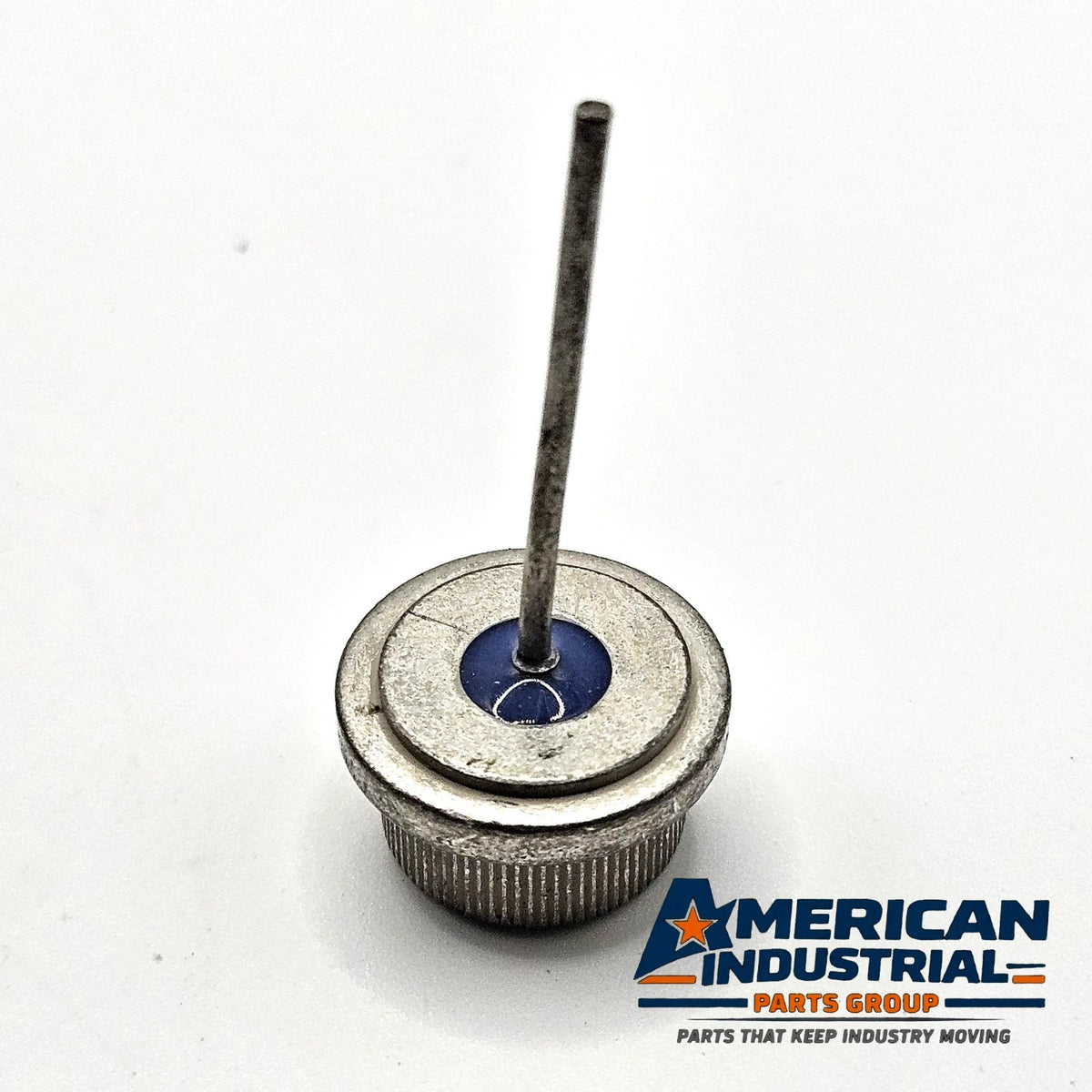

ECG 5966 1N-3492 25A Press-Fit Rectifier Diode New
ECG 5966 1N-3492 25A Press-Fit Rectifier Diode New
Regular price
$9.95 USD
Regular price
Sale price
$9.95 USD
Shipping calculated at checkout.
8 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: ECG
Model: 5966
MPN: 5966
Cross-Reference Marking: 1N-3492
Type: Silicon Power Rectifier Diode
Maximum Average Current: 25A
Voltage Rating: Not verified; 1N3492 marking indicates 100V JEDEC type
Mounting Style: Press-Fit
Terminal Configuration: Cathode connected to metal case; anode on axial lead
Construction: Metal case with axial lead
Condition: New
DESCRIPTION

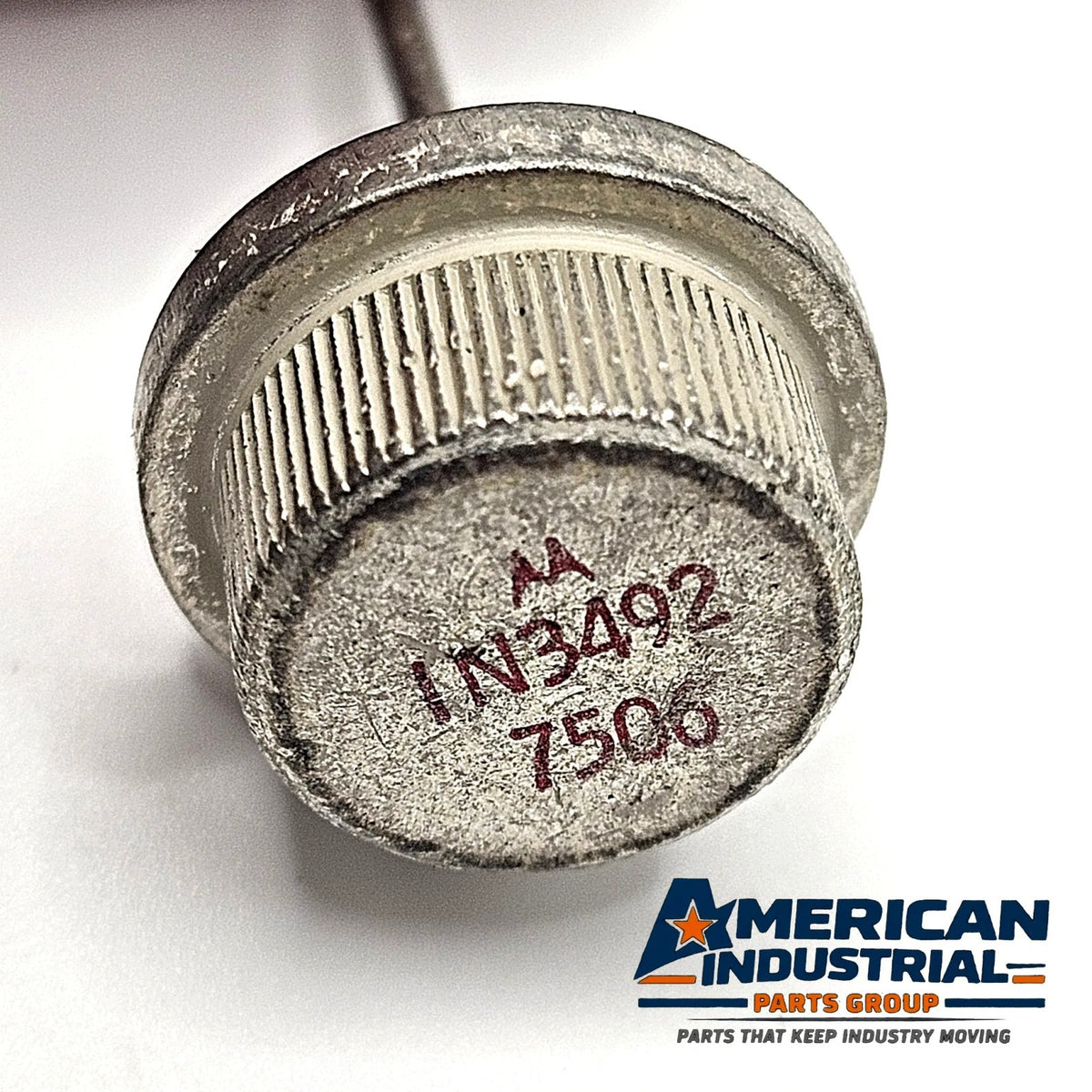

New ECG 5966 silicon power rectifier diode marked 1N-3492.
This is a 25A press-fit rectifier diode. The 1N-3492 marking identifies a JEDEC 100V type; confirm voltage before use in circuits above 100V. The metal case is electrically connected to the cathode, while the separate axial lead is the anode. Confirm the required installation orientation and mounting dimensions before use.
Suitable applications may include power supplies, alternators, industrial electronics, equipment repair, and other circuits requiring a press-fit power rectifier.
DISCLAIMER
New surplus electronic component. Not function-tested. May show cosmetic marks from storage and handling. Please review all photos carefully before purchase.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of ECG, Sylvania, or any related manufacturer. All product names, trademarks, and logos belong to their respective owners. This item is sourced from surplus inventory and is not covered by a manufacturer warranty.
COMPATIBILITY & CROSS-REFERENCE
The 1N-3492 marking identifies a member of the JEDEC 1N3491 to 1N3495 press-fit rectifier family in the DO-21 package, rated 50V (1N3491) through 400V (1N3495); the 1N3492 is the 100V member. In NTE's line, the NTE5963 is the 25A, 400V press-fit member of this family and is cross-referenced to the 1N3495R. In this family an R suffix denotes reverse polarity (anode to case); the 1N3492 carries no R suffix, consistent with cathode to case. Verify polarity with a meter and confirm the voltage rating before installation.
Q&A
Q: What voltage is the 1N3492 rated for? A: 100V, per the JEDEC 1N3491 to 1N3495 family ratings.
Q: Which terminal is the case? A: The case is the cathode and the lead is the anode; an R suffix would indicate the reverse.
Q: How many are included? A: One.
ECG 5966 1N-3492 1N3492 25A rectifier diode silicon power rectifier press fit diode DO-21 cathode case anode lead metal case diode alternator diode industrial rectifier vintage electronics replacement diode power supply diode equipment repair semiconductor rectifier diode shorted replacement alternator not charging diode replacement
Thank you for shopping with American Industrial Parts Group!
