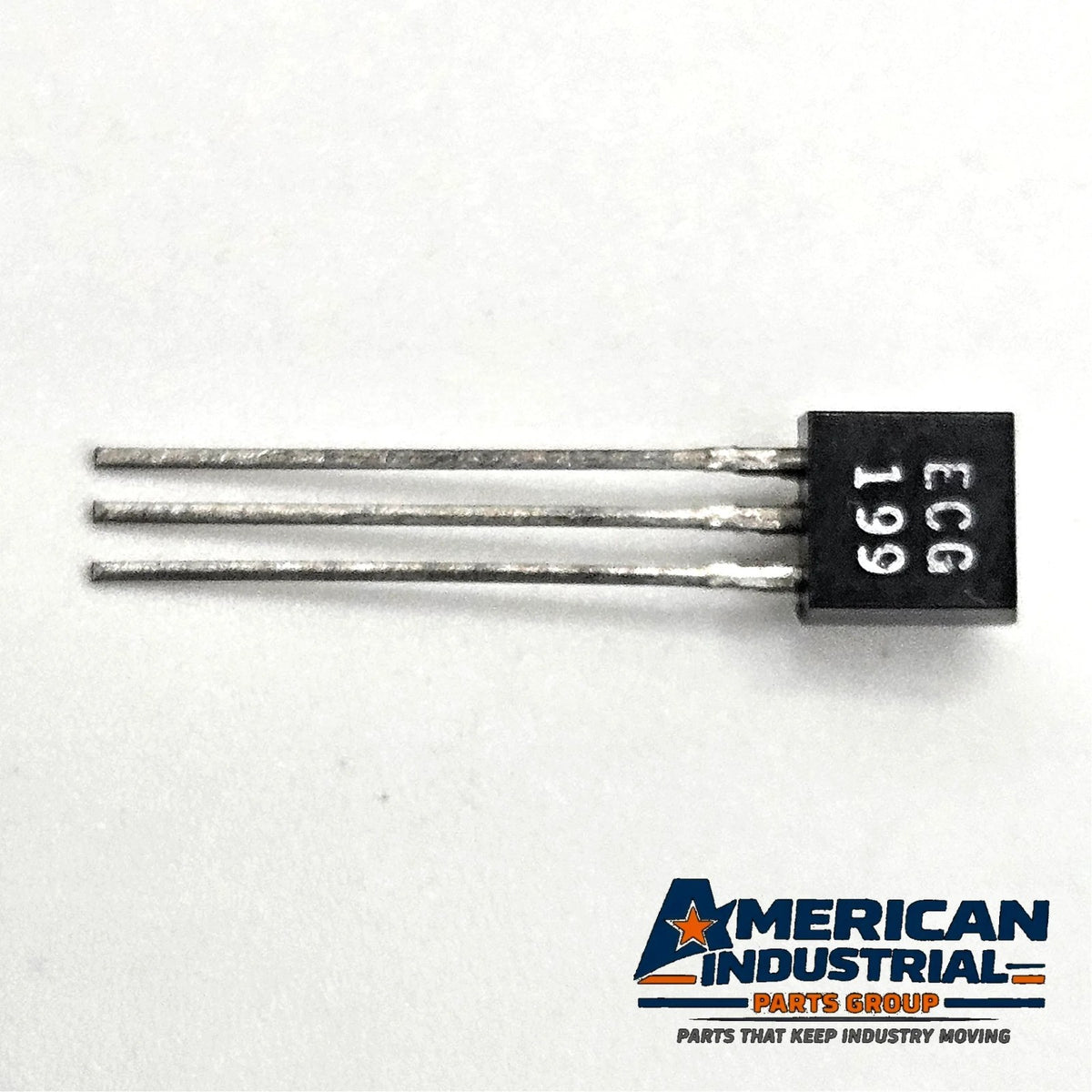

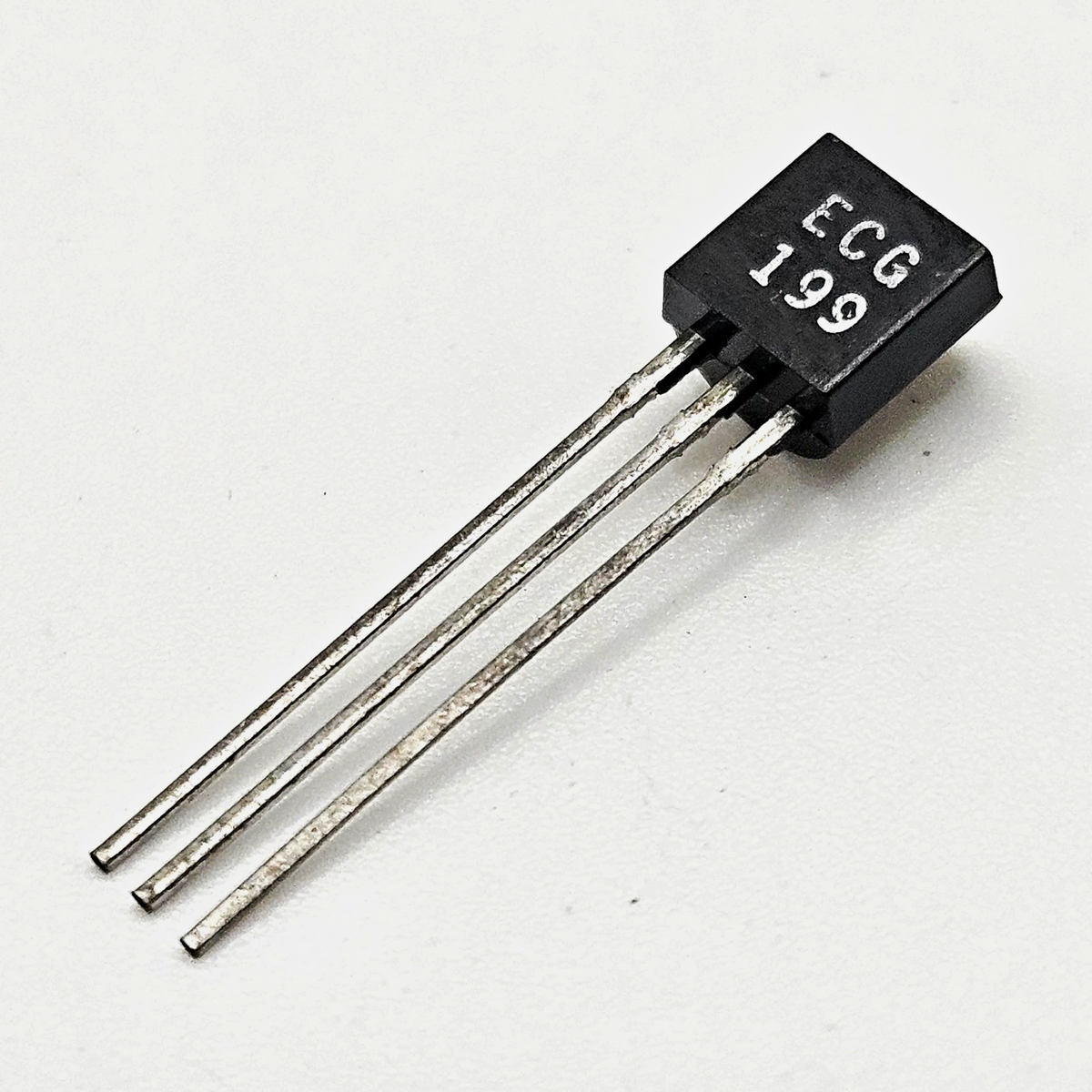

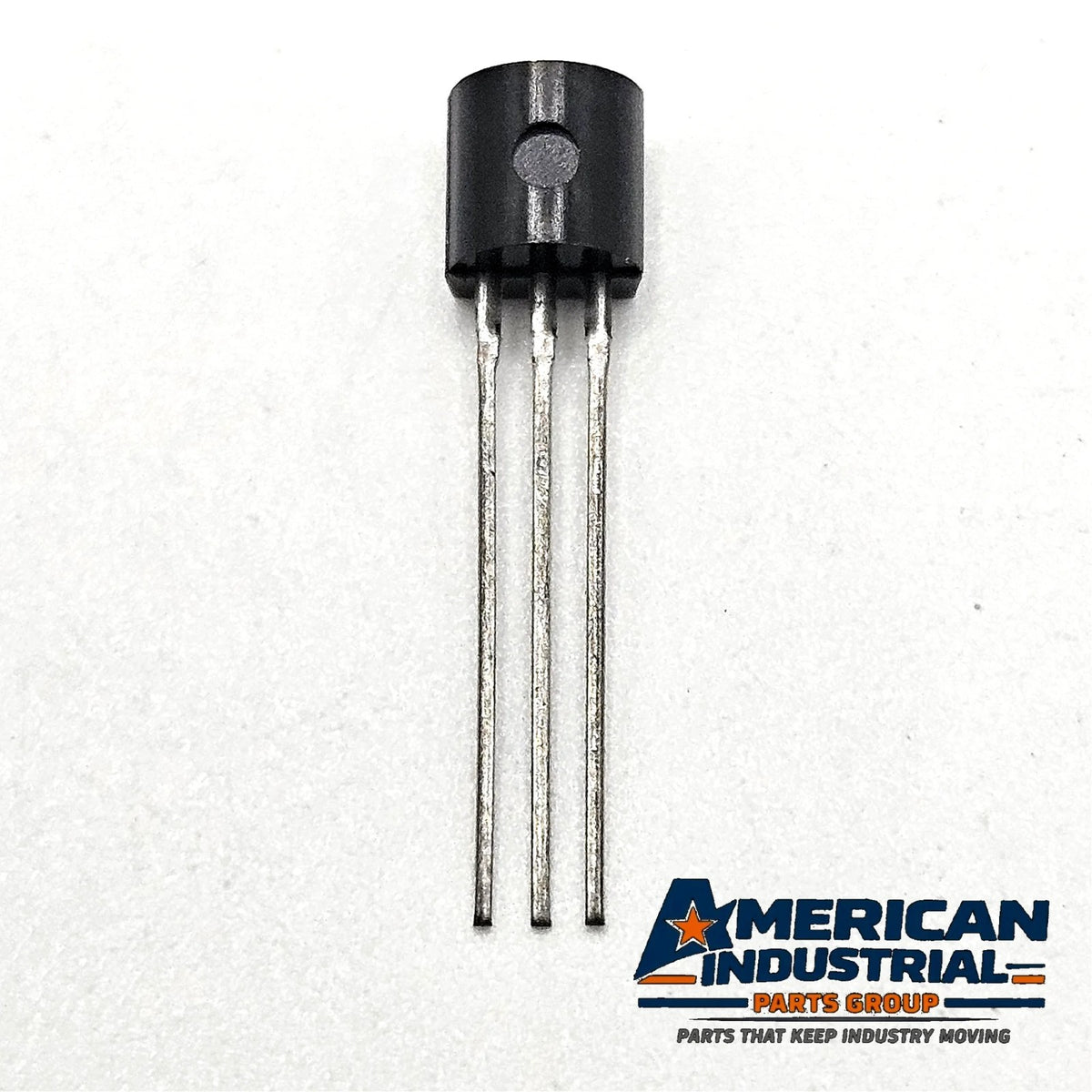

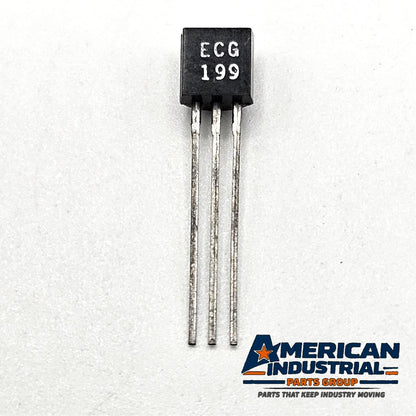

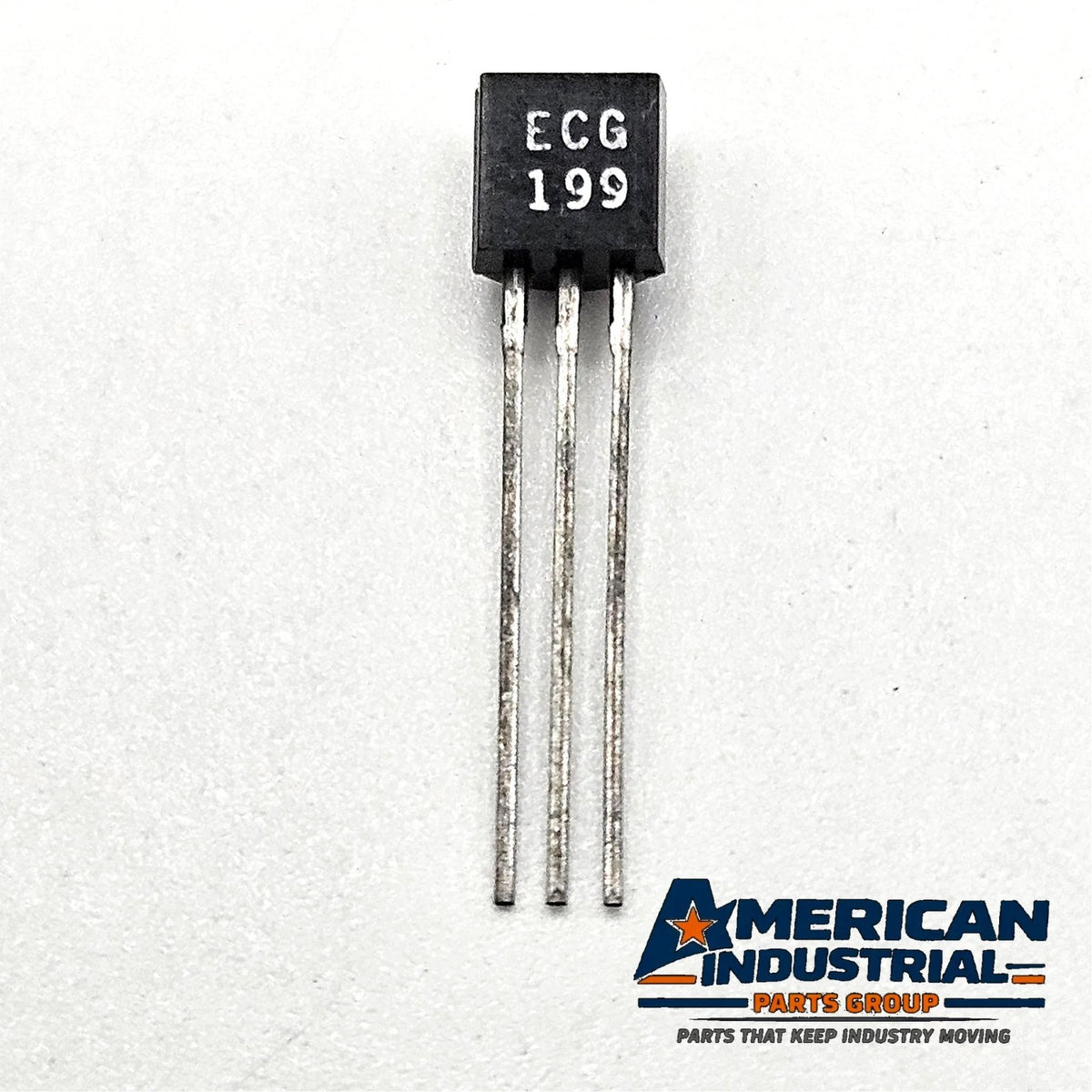

ECG199 NTE199 NPN Low Noise High Gain Transistor TO-92 50V NOS
ECG199 NTE199 NPN Low Noise High Gain Transistor TO-92 50V NOS
Regular price
$7.95 USD
Regular price
Sale price
$7.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: ECG
Model: ECG199
MPN: ECG199
Alternate Part Number: ECG-199
Cross-Reference Number: NTE199
Type: NPN Bipolar Junction Transistor
Transistor Polarity: NPN
Semiconductor Material: Silicon
Application: Low-Noise, High-Gain Amplifier
Collector-Emitter Voltage: 50V
Collector-Base Voltage: 70V
Emitter-Base Voltage: 5V
Maximum Collector Current: 100mA
Maximum Power Dissipation: 360mW
DC Current Gain: 400–800
Maximum Noise Figure: 3dB
Number of Pins: 3
Pin Configuration: Emitter-Collector-Base
Package: TO-92
Mounting Style: Through-Hole
Product Status: Discontinued / Obsolete
Quantity: 1
Condition: New Old Stock
Custom Label/SKU: ECG-ECG199-N
DESCRIPTION
ECG ECG199 silicon NPN bipolar transistor designed for low-noise preamplifier and small-signal industrial amplifier applications. This discontinued three-lead transistor features high current gain, low collector saturation voltage, and low-noise performance in a compact TO-92 through-hole package.
The ECG199 cross-references to the NTE199 replacement transistor. Compatibility should be confirmed by comparing the electrical ratings, lead arrangement, circuit requirements, and original equipment documentation before installation.
Features:
ECG ECG199
Silicon NPN Transistor
Low-Noise, High-Gain Amplifier
50V Collector-Emitter Rating
70V Collector-Base Rating
5V Emitter-Base Rating
100mA Maximum Collector Current
360mW Maximum Power Dissipation
400–800 DC Current Gain
3dB Maximum Noise Figure
Emitter-Collector-Base Lead Arrangement
Three-Lead TO-92 Package
Through-Hole Mounting
NTE199 Cross Reference
Discontinued Vintage Semiconductor
Quantity of One
This component is New Old Stock from long-term inventory. It has not been installed or placed into service. No functional testing has been performed. Cosmetic storage wear, surface marks, oxidation, discoloration, or slight lead irregularities may be present from age and handling. Please review all photographs for the exact condition and markings of the component being offered.
DISCLAIMER
This item is New Old Stock from long-term inventory and has not been functionally tested. Due to the age of this discontinued electronic component, compatibility and final testing are the buyer’s responsibility. Cross-reference information does not guarantee suitability for every circuit. Verify voltage, current, gain, power dissipation, package, pin configuration, and application requirements before purchasing or installing. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of ECG. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
ECG and NTE are aftermarket cross-reference replacement house numbers, and the ECG199 corresponds directly to the NTE199. NTE's published datasheet specifies the NTE199 as a silicon NPN transistor in a TO-92 package designed for low-noise preamplifier and small-signal industrial amplifier applications, rated 50V collector-emitter, 70V collector-base, 5V emitter-base and 100mA collector current, with low collector saturation voltage and tight beta control — matching the ratings of this device. ECG-numbered devices are long discontinued and NTE Electronics ceased operations in 2024, so remaining stock of both lines is new old stock. Confirm the original device's ratings and the emitter-collector-base lead arrangement before substituting.
Q&A
Q: What is the ECG199? A: A silicon NPN low-noise, high-gain transistor in a TO-92 package, rated 50V collector-emitter and 70V collector-base with 100mA maximum collector current.
Q: What is the NTE equivalent? A: The NTE199 — NTE's published ratings match this device.
Q: Where is this transistor typically used? A: Low-noise preamplifier and small-signal amplifier stages in audio, radio and instrumentation service work.
ECG ECG199 ECG-199 NTE199 NPN Transistor Silicon Transistor Low Noise Transistor High Gain Transistor Preamp Transistor Preamplifier Transistor Small Signal Transistor Industrial Amplifier Transistor Audio Amplifier Transistor TO-92 Transistor Through Hole Transistor 50V Transistor 100mA Transistor Vintage Semiconductor Obsolete Transistor Discontinued Electronic Component NOS Transistor Vintage Electronics Radio Repair Audio Repair Stereo Repair Industrial Electronics Replacement Transistor
