ECG128 NPN Silicon Transistor 2N3568 AF Preamp Driver Gold Leads NOS 1 pc
ECG128 NPN Silicon Transistor 2N3568 AF Preamp Driver Gold Leads NOS 1 pc
Regular price
$4.95 USD
Regular price
Sale price
$4.95 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
SPECIFICS
Brand: ECG
MPN: ECG128
Cross Reference: 2N3568 (per bin label)
Type: Bipolar Junction Transistor (BJT)
Polarity: NPN
Material: Silicon
Application: AF Preamp, Driver, Video Amp (per bin label)
Package: 3-lead epoxy body (TO-105 style)
Lead Finish: Gold-plated
Mounting: Through-Hole
Number of Pins: 3
Quantity: 1
Condition: New (New Old Stock)
DESCRIPTION

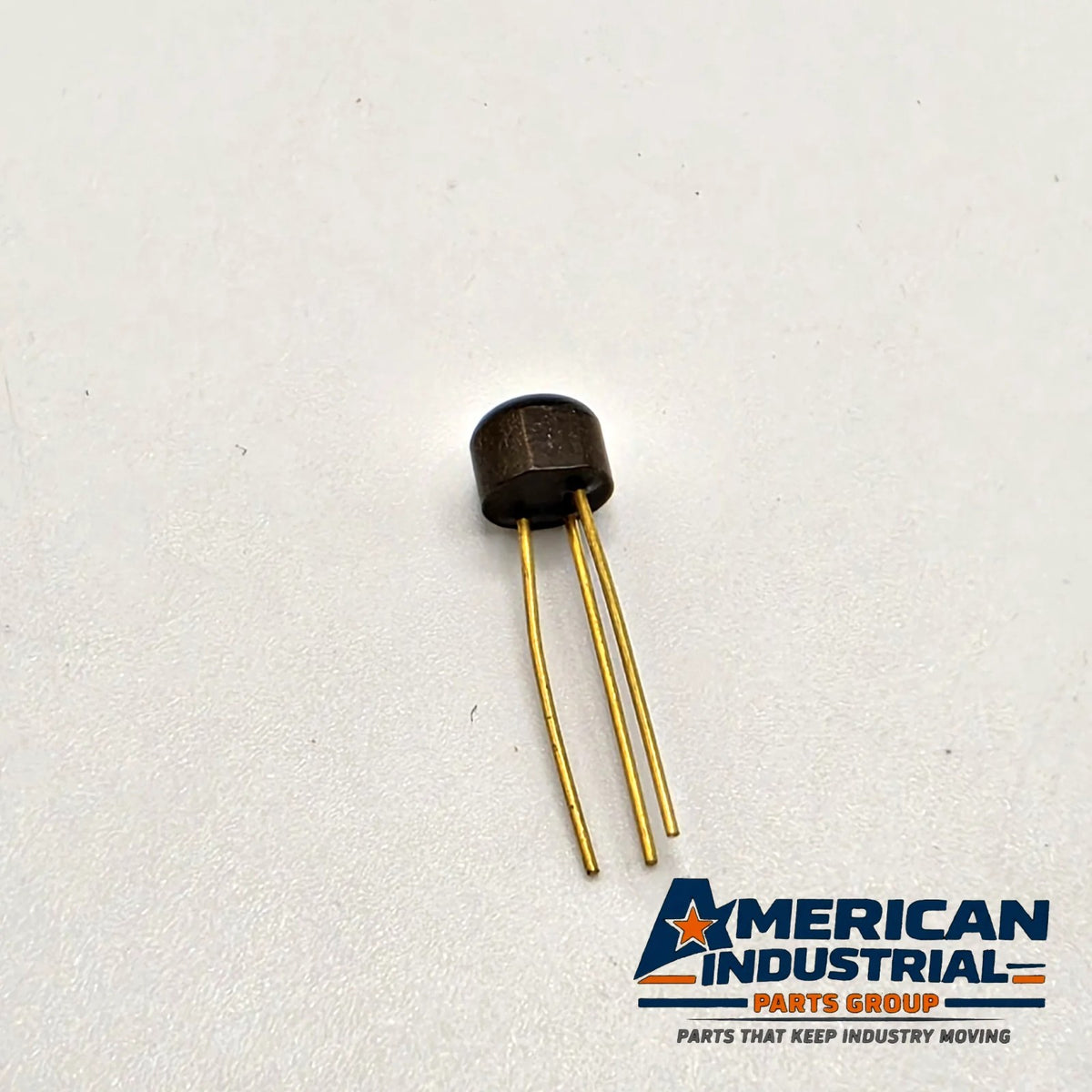

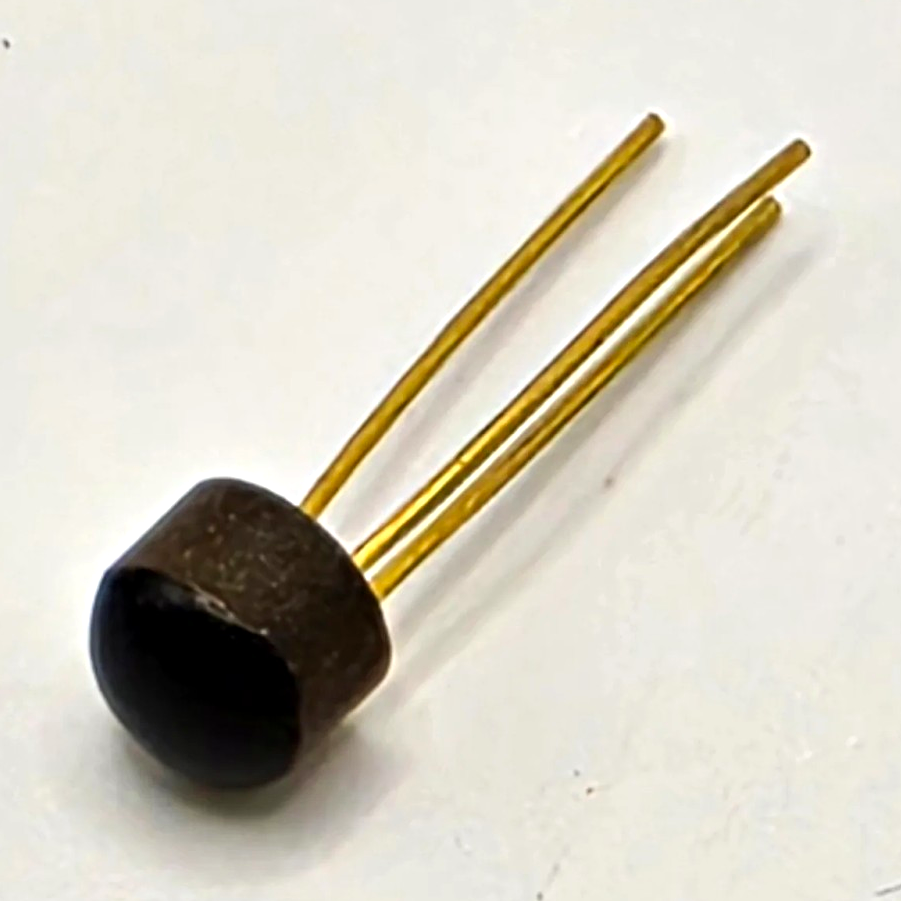

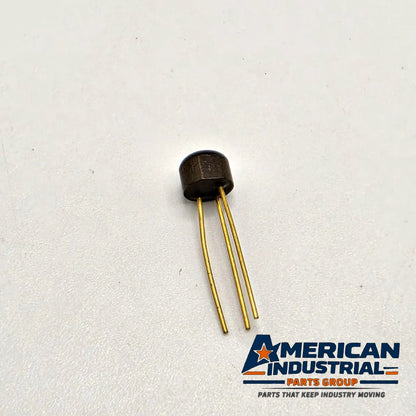

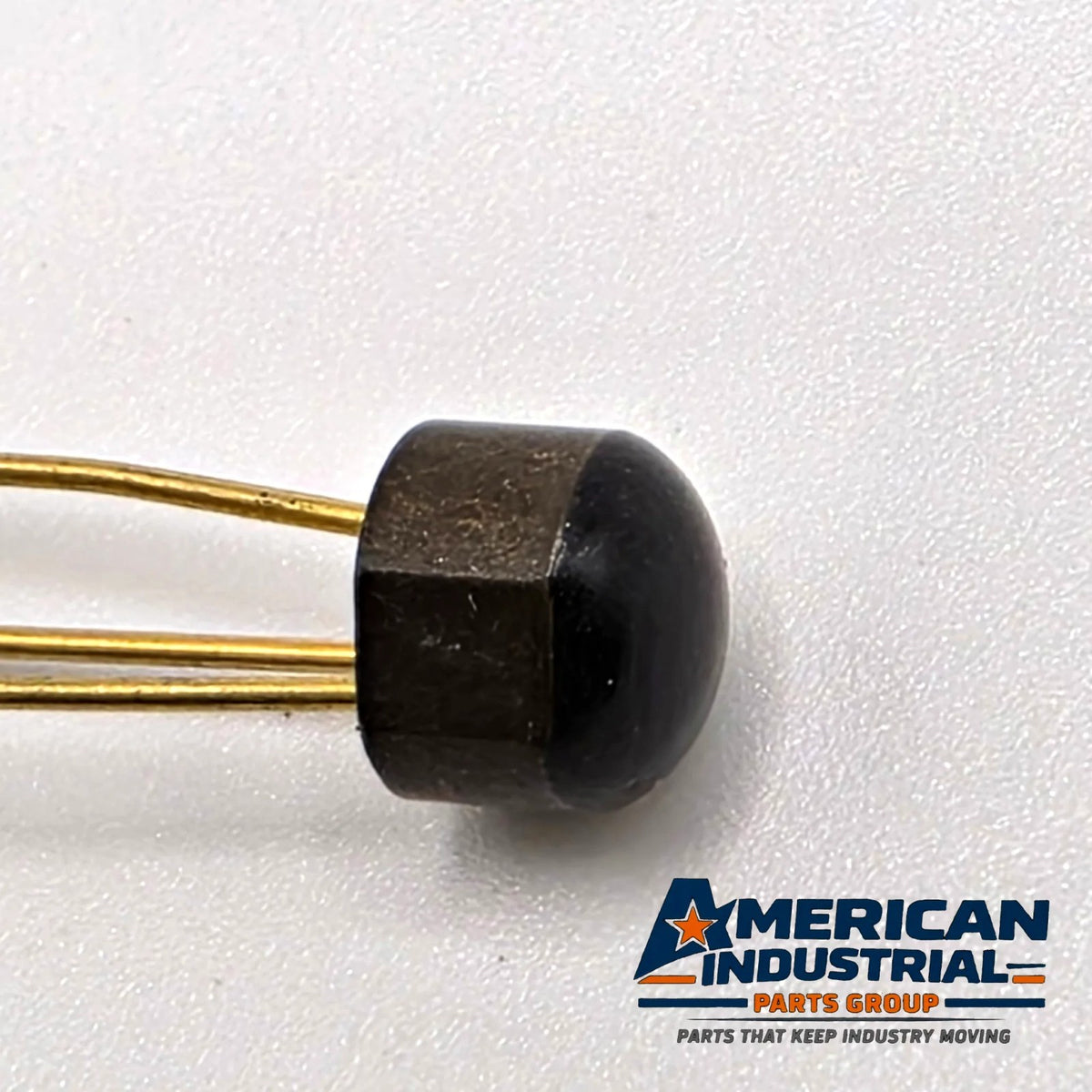

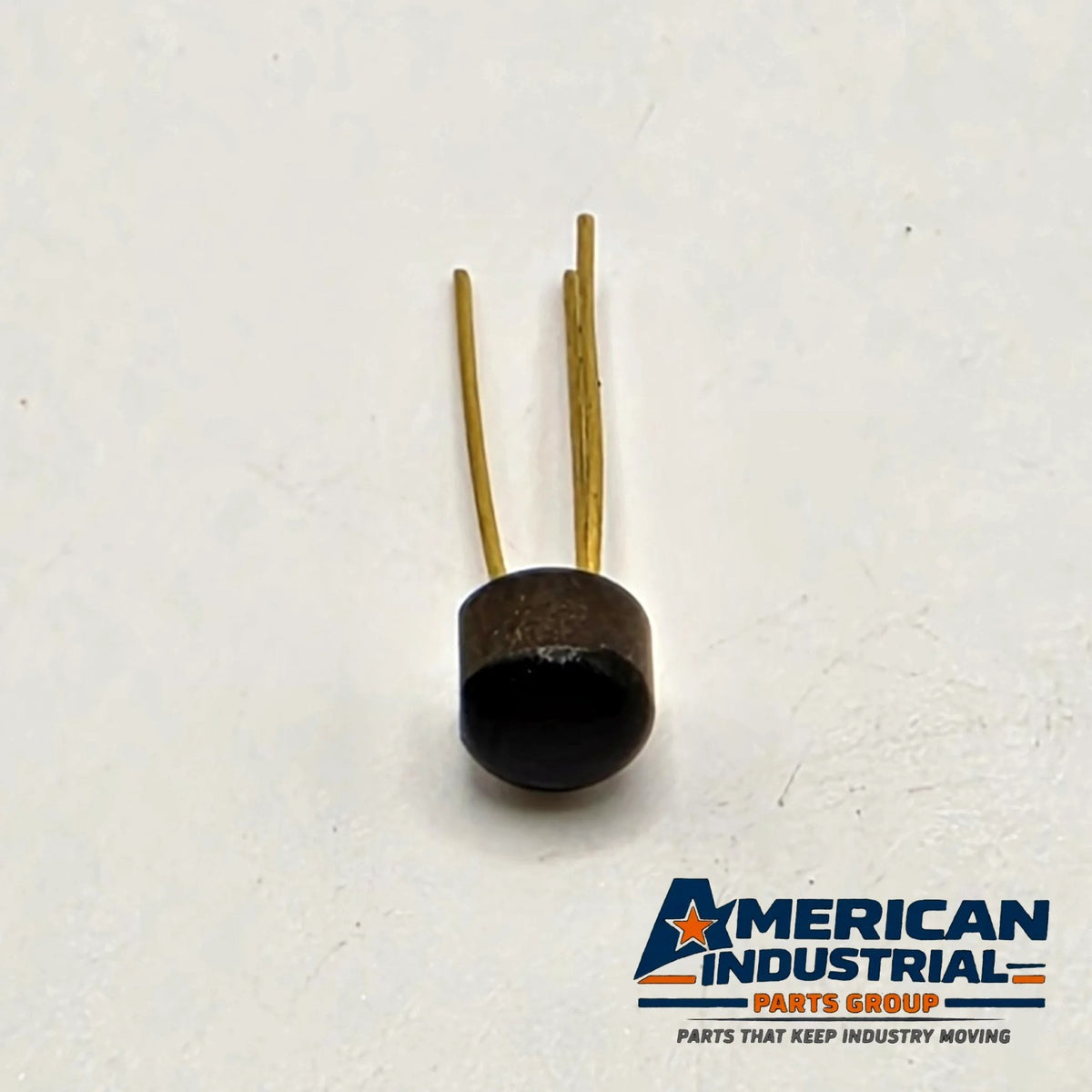

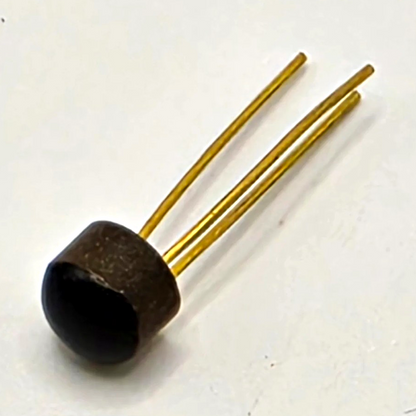

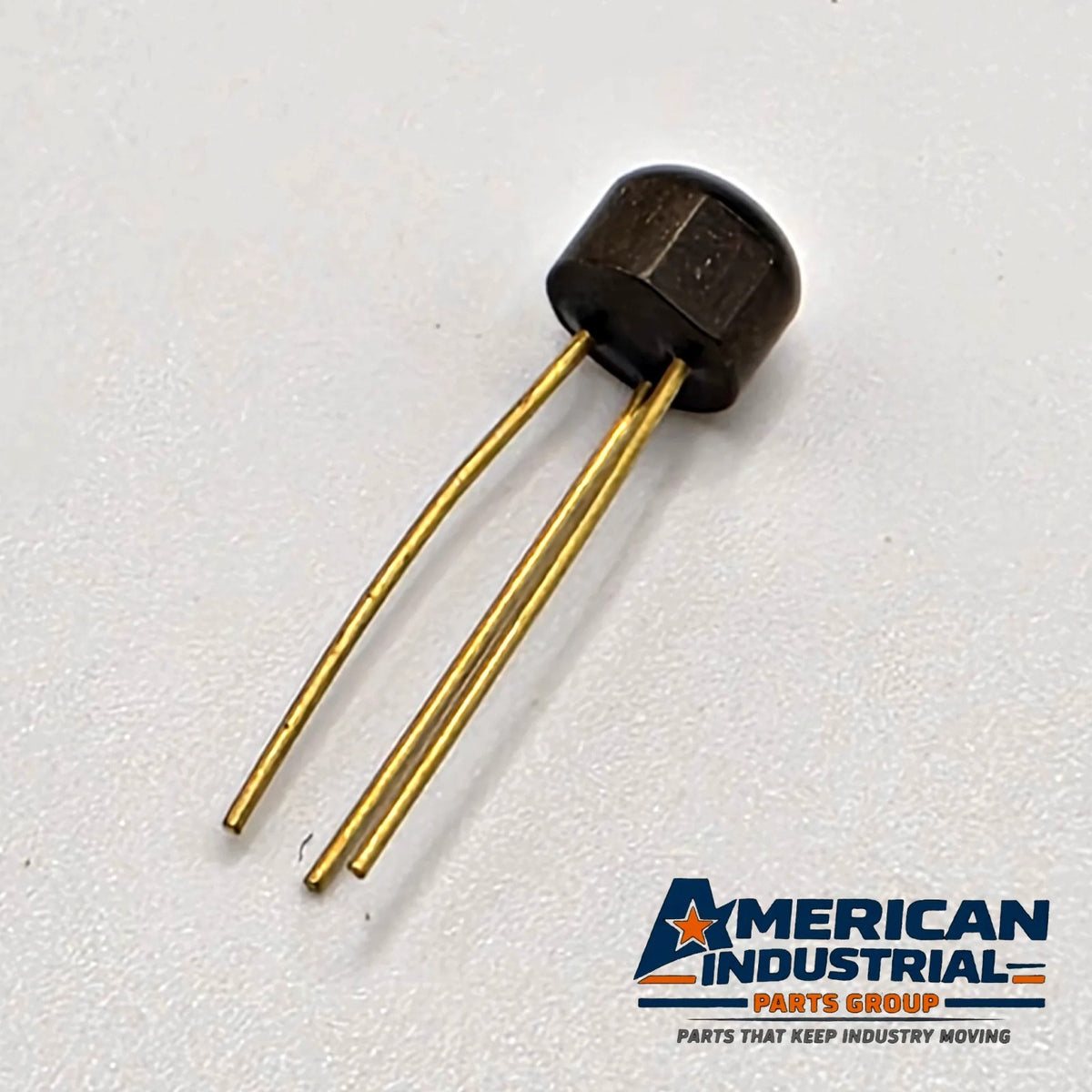

This is one ECG128 NPN silicon transistor, new old stock, from original parts-bin inventory. The bin is labeled "ECG-128, 2N-3568, T-NPN, Si AF Pre Amp, Dr., Vid Amp." The transistor body itself has no markings. The unit is a 3-lead epoxy package (TO-105 style) with gold-plated leads. The bin label says "TO-39," but this unit is not a TO-39 metal can, so please see the photos. The leads are full length and unused. The body shows light storage marks.
Features:
NPN silicon small-signal transistor
Intended for audio-frequency preamp, driver and video amplifier stages, per the bin label
2N3568 ratings: VCEO 60 V, VCBO 80 V, hFE 40 minimum, fT 60 MHz
Gold-plated through-hole leads
Full-length leads, never soldered
Compatibility:
For through-hole repair and replacement in vintage audio, TV/video and general small-signal amplifier circuits calling for an ECG128 or 2N3568 type device. The package differs from the TO-39 metal-can version of the ECG128, so check board footprint, pinout and heat-sinking requirements before installing.
Q&A
Q: Is this a metal-can TO-39 transistor?
A: No. This unit is a 3-lead epoxy package (TO-105 style) with gold leads, as shown in the photos.
Q: Is the transistor marked?
A: No. The body is unmarked. Identification is from the original bin label (ECG-128 / 2N-3568).
Q: Is this new?
A: Yes. It's new old stock with full-length, unused leads.
Q: How many are included?
A: One transistor.
DISCLAIMER
The item shown in the photos is the exact item you will receive. Please review all photos and the description carefully before purchasing. Specifications are given for reference; verify compatibility with your equipment before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of NTE Electronics, Philips ECG or Sylvania. Brand names, trademarks and part numbers are used for identification purposes only. Electrical components should be installed by qualified personnel in accordance with applicable codes.
ECG128, ECG 128, ECG-128, NTE128, 2N3568, 2N 3568, NPN transistor, silicon NPN transistor, audio preamp transistor, video amp transistor, driver transistor, TO-105 transistor, gold lead transistor, NOS transistor, vintage transistor
Thank you for shopping with American Industrial Parts Group!
