ECG284 NTE284 NPN Power Transistor Audio Output TO-3 180V 16A 150W New
ECG284 NTE284 NPN Power Transistor Audio Output TO-3 180V 16A 150W New
Regular price
$14.95 USD
Regular price
Sale price
$14.95 USD
Shipping calculated at checkout.
2 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: ECG
MPN: ECG284
Model: ECG284
Cross Reference: NTE284
Complement: ECG285 / NTE285 (PNP)
Type: Bipolar (BJT)
Polarity: NPN
Semiconductor Material: Silicon
Collector-Base Voltage (VCBO): 180 V
Collector-Emitter Voltage (VCEO): 180 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 16 A
Power Dissipation (PC): 150 W
DC Current Gain (hFE): 70–140 @ VCE 5 V, IC 2 A
Gain-Bandwidth Product (fT): 6 MHz typ
Package / Case: TO-3
Mounting: Chassis Mount
Number of Pins: 2 (case is the collector)
Junction Temperature: +150°C
Condition: New
DESCRIPTION
ECG284 NPN silicon power transistor in a TO-3 metal case. It's built for the output stages of high-fidelity audio amplifiers rated up to 100 W. NTE now sells this part number as the NTE284, and its complementary PNP device is the ECG285 / NTE285.
Features:
180 V VCEO / 180 V VCBO
16 A collector current
150 W power dissipation
DC current gain (hFE) of 70–140 at VCE 5 V, IC 2 A
Typical gain-bandwidth product (fT) of 6 MHz
VCE(sat) of 3.0 V max at IC 10 A, IB 1 A
TO-3 metal case; the case is the collector

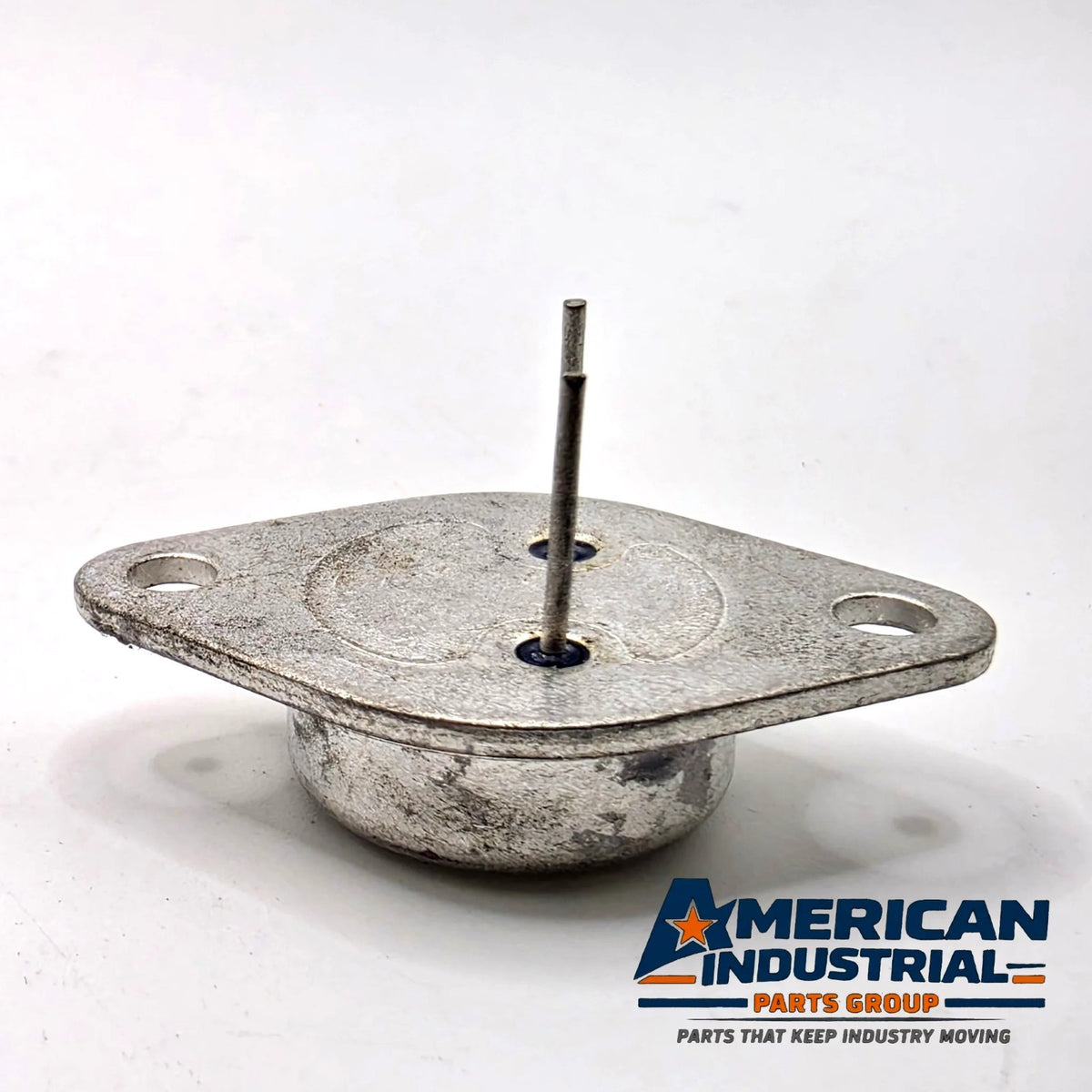

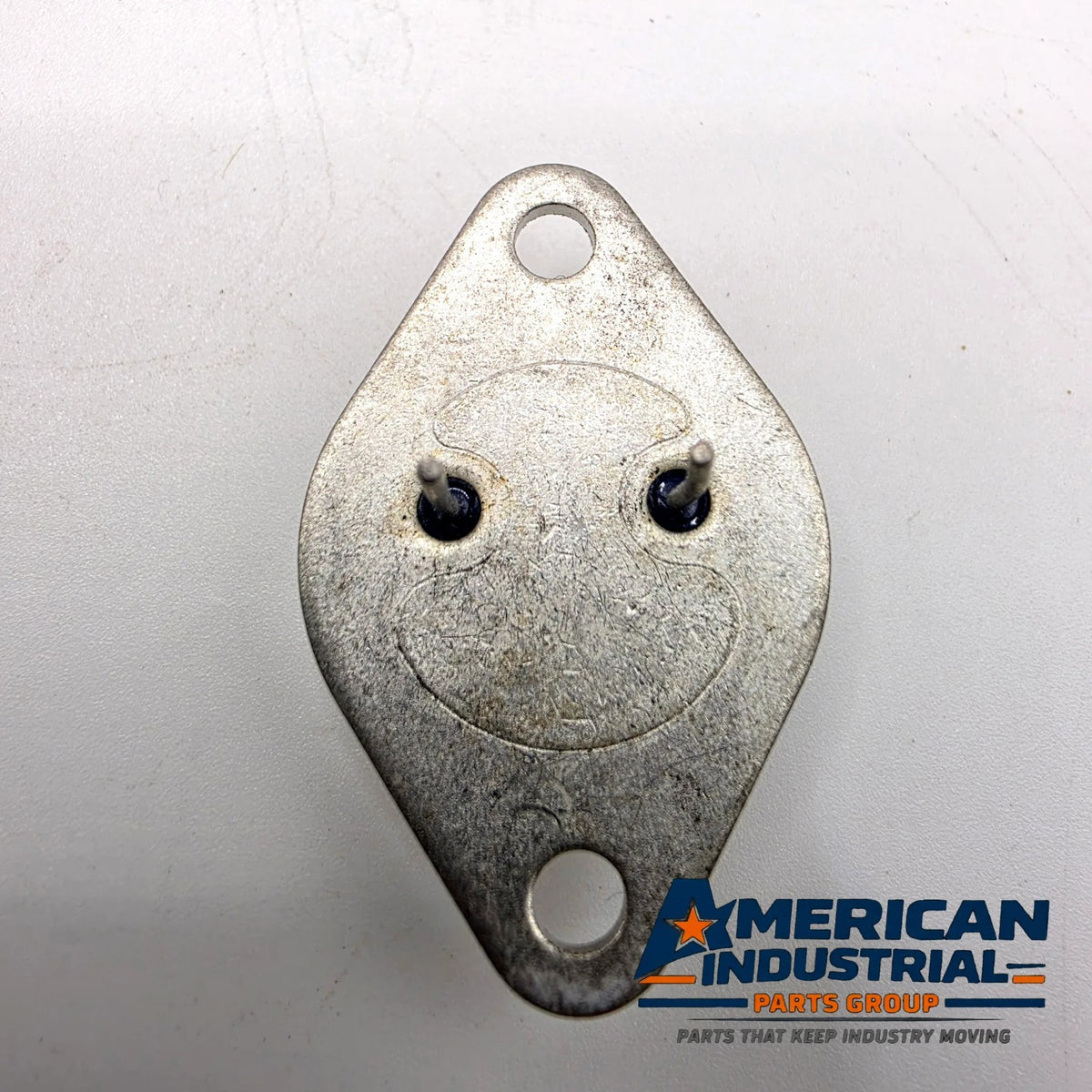

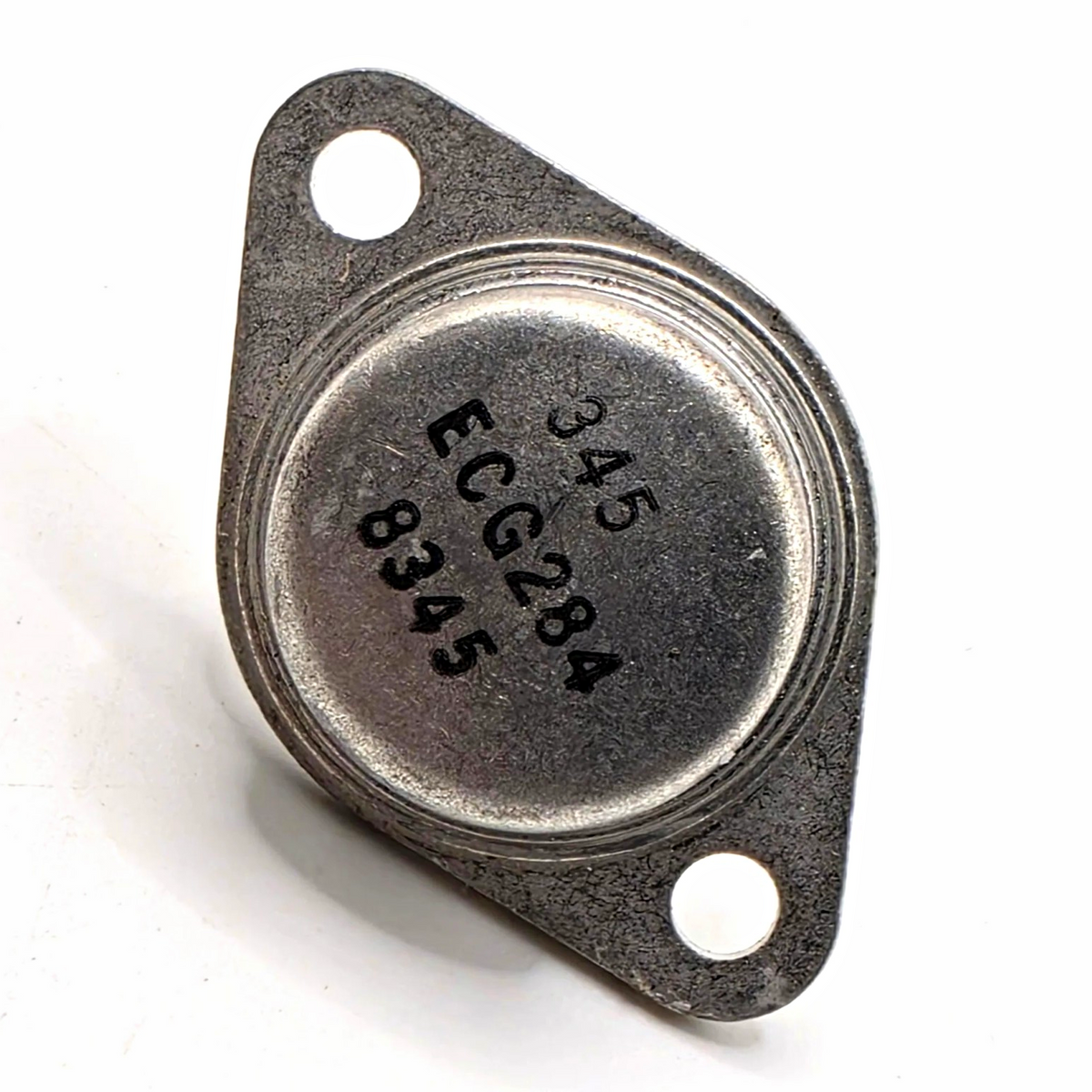

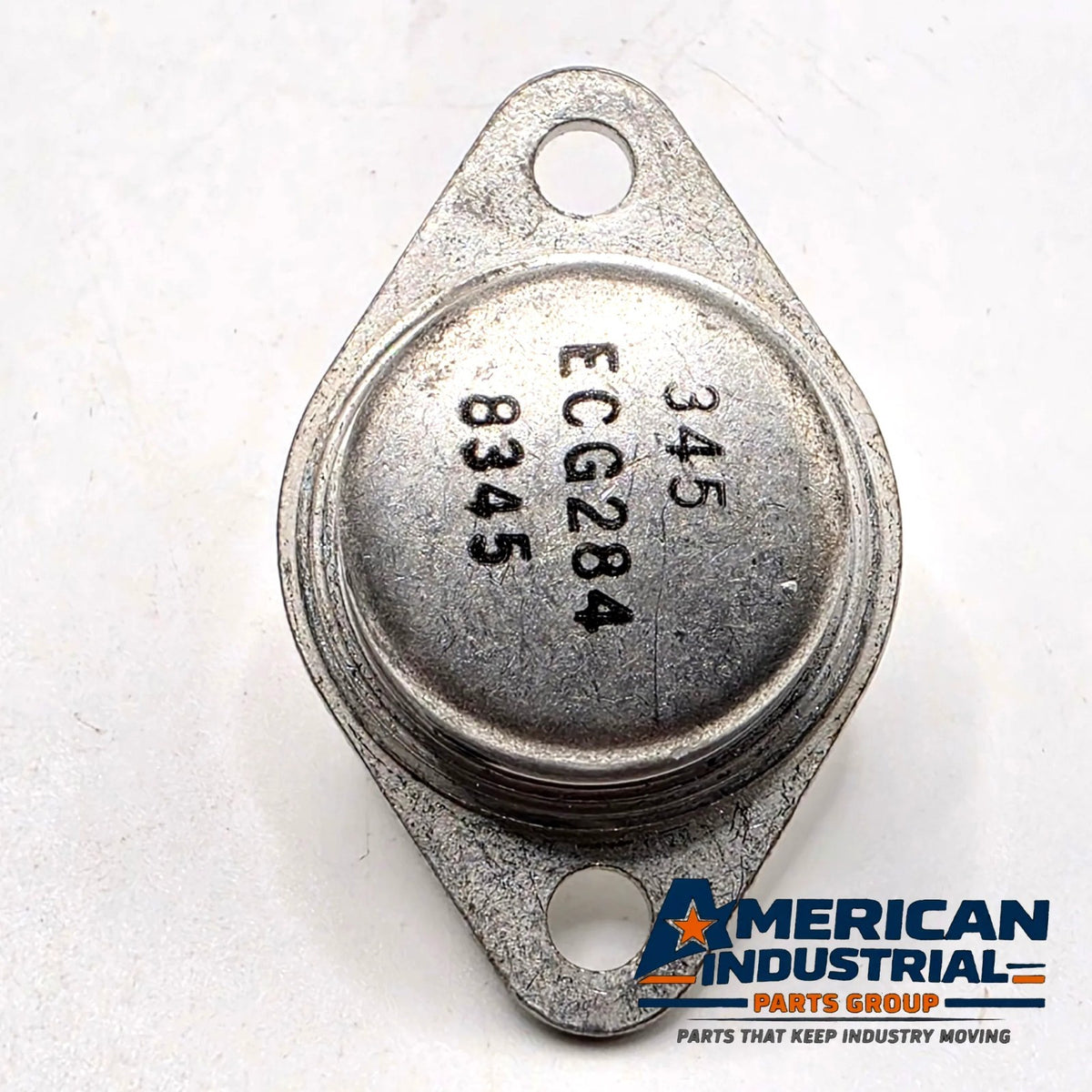

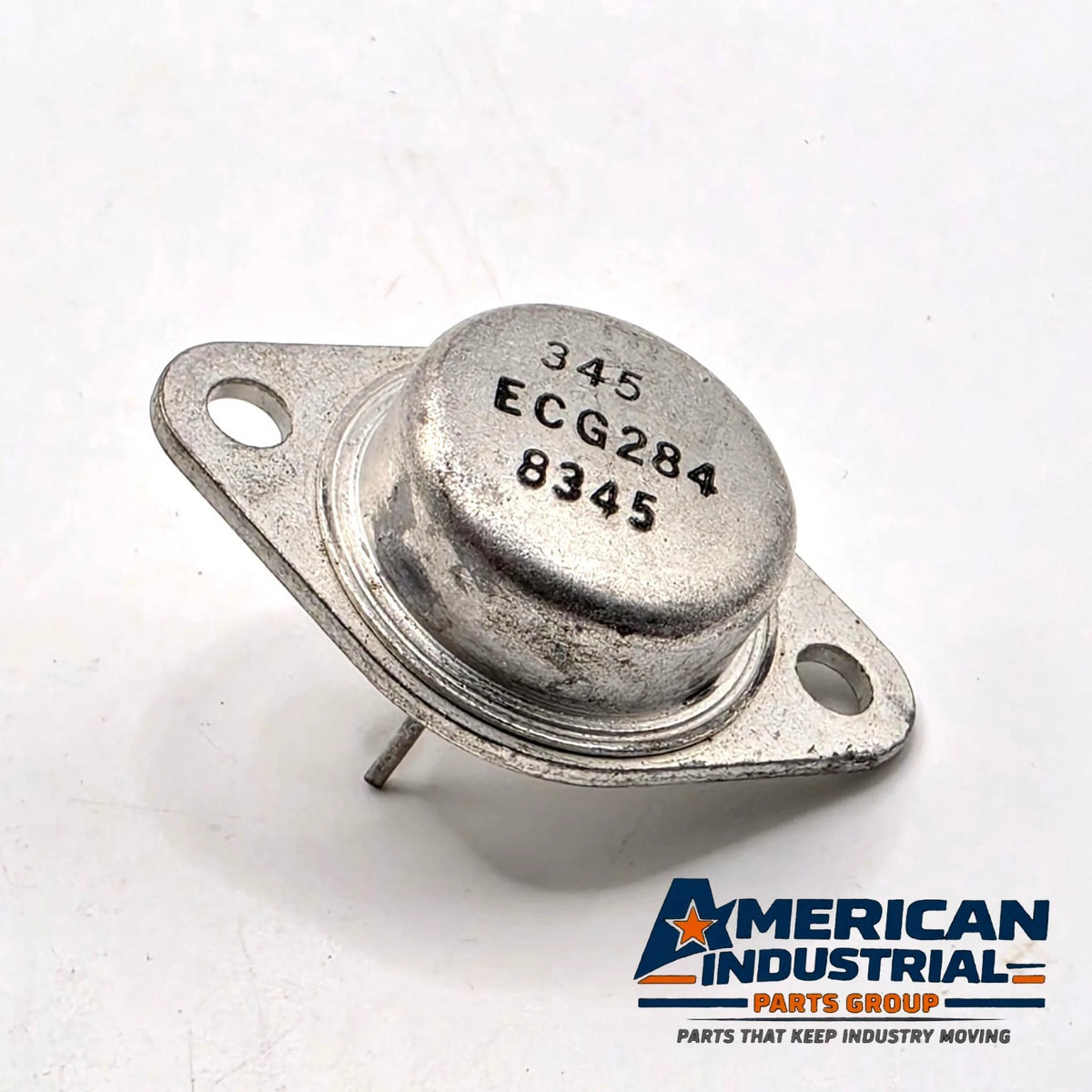

Case markings: "345", "ECG284" and "8345"
Unused; shows cosmetic storage wear and oxidation on the case and flange
Compatibility:
Direct cross-reference to NTE284. For use with the ECG285 / NTE285 PNP complement in complementary audio output stages, and for service on vintage amplifiers and receivers that call for the ECG284 or NTE284.
Q&A
Q: Is this the same as an NTE284?
A: Yes. NTE took over the ECG semiconductor replacement line, and the NTE284 carries the same part number and ratings.
Q: What is the PNP complement?
A: ECG285 / NTE285.
Q: Is it tested?
A: The item is sold as pictured. It has not been tested.
DISCLAIMER
Item is sold as pictured. Please review all photos carefully and compare part numbers before purchasing. Vintage stock with cosmetic storage wear.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of ECG, Philips ECG, NTE Electronics or any other manufacturer listed. All brand names and part numbers are used for identification purposes only. As an independent reseller, the original manufacturer warranty does not apply.
ECG284, NTE284, ECG 284, NTE 284, NPN power transistor, power transistor NPN, audio output transistor, TO-3 transistor, 180V 16A transistor, ECG285 complement, NTE285 complement, vintage amplifier repair
