Encoder Products 725N-S-S-1000-Q-HV-1-F-N-SK-N-N 1000PPR Encoder

ITEM SPECIFICS

Brand: Encoder Products Co.

Model: 725N-S-S-1000-Q-HV-1-F-N-SK-N-N

MPN: 725N-S-S-1000-Q-HV-1-F-N-SK-N-N

Series: 725N

Type: Incremental Optical Shaft Encoder

Resolution: 1000 PPR (Pulses Per Revolution)

Output Type: Quadrature (A, A', B, B', Z, Z')

Output Circuit: HV Line Driver

Supply Voltage: 5–28V DC

Mounting Style: Flange / Face Mount

Shaft Type: Solid Shaft

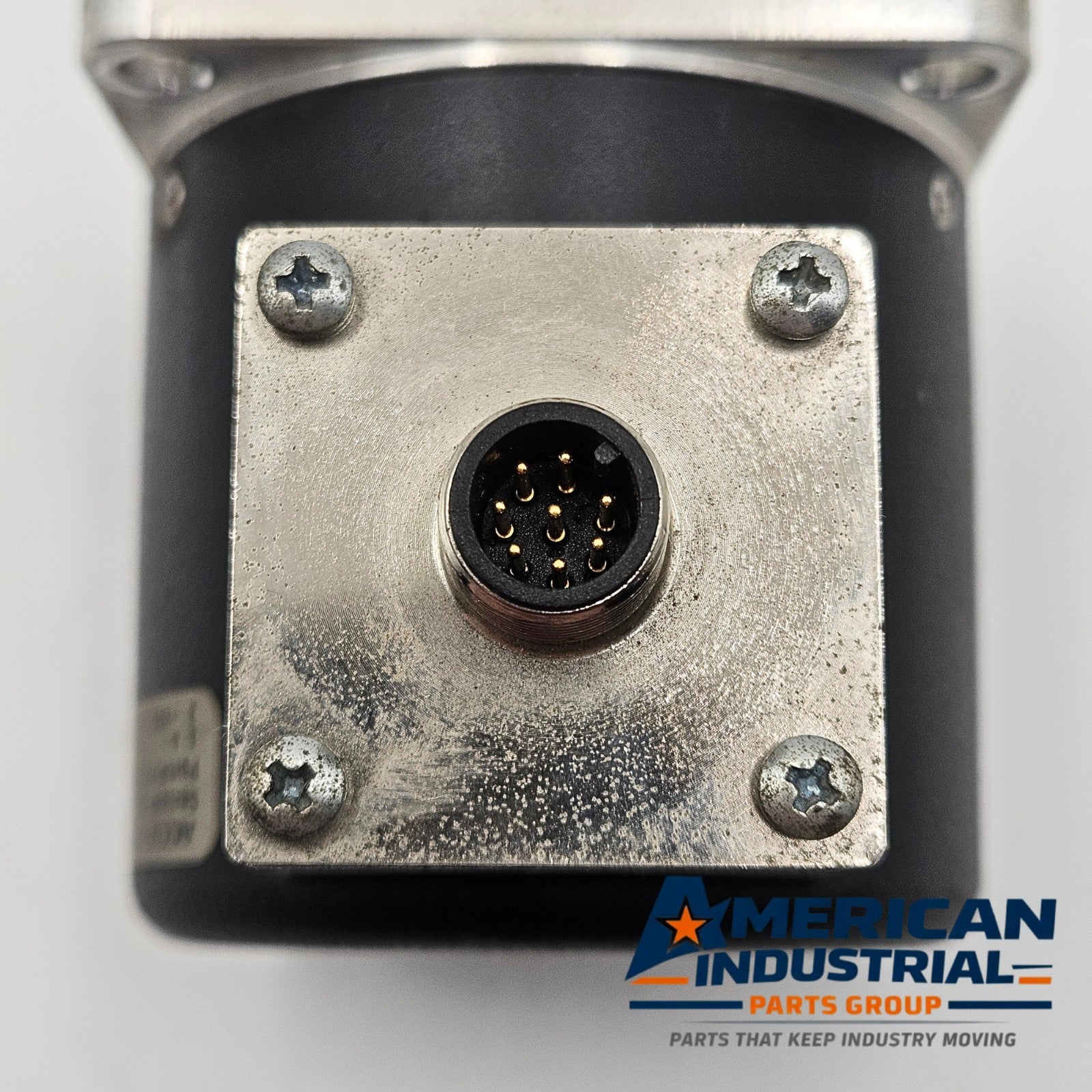

Connector Type: Multi-Pin Circular Connector

Channels: A, A', B, B', Z, Z', +VDC, Com

Serial Number: 1839115

Manufacture Date: 02/14/2013

Country/Region of Manufacture: USA

Condition: Used

DESCRIPTION

Encoder Products Co. Accu-Coder Model 725N incremental optical shaft encoder with part number 725N-S-S-1000-Q-HV-1-F-N-SK-N-N. This heavy-duty encoder delivers 1000 pulses per revolution with quadrature A/B/Z differential outputs and HV line driver output circuitry, compatible with 5–28VDC supply. Widely used in CNC machine tools, servo motor feedback, conveyor speed control, web tension control, printing machinery, packaging equipment, robotics, and precision motion control applications.

Features:

Encoder Products Co. Accu-Coder 725N

Part# 725N-S-S-1000-Q-HV-1-F-N-SK-N-N

Serial# 1839115

1000 PPR Resolution

Quadrature Output — A, A', B, B', Z, Z'

HV Differential Line Driver Output

5–28V DC Supply Input

Solid Shaft / Flange Mount Design

Multi-Pin Circular Connector

Heavy-Duty Industrial Construction

Made in USA

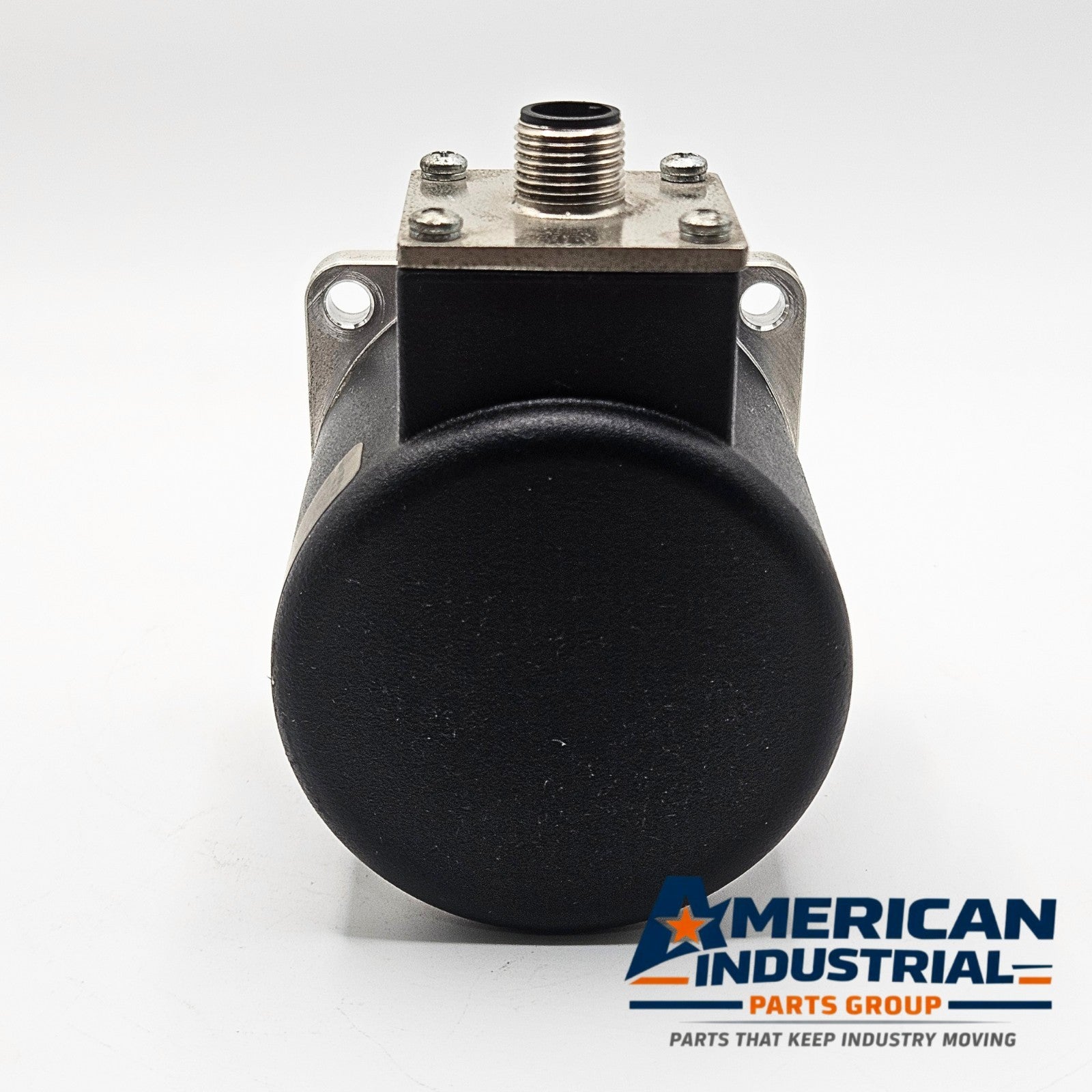

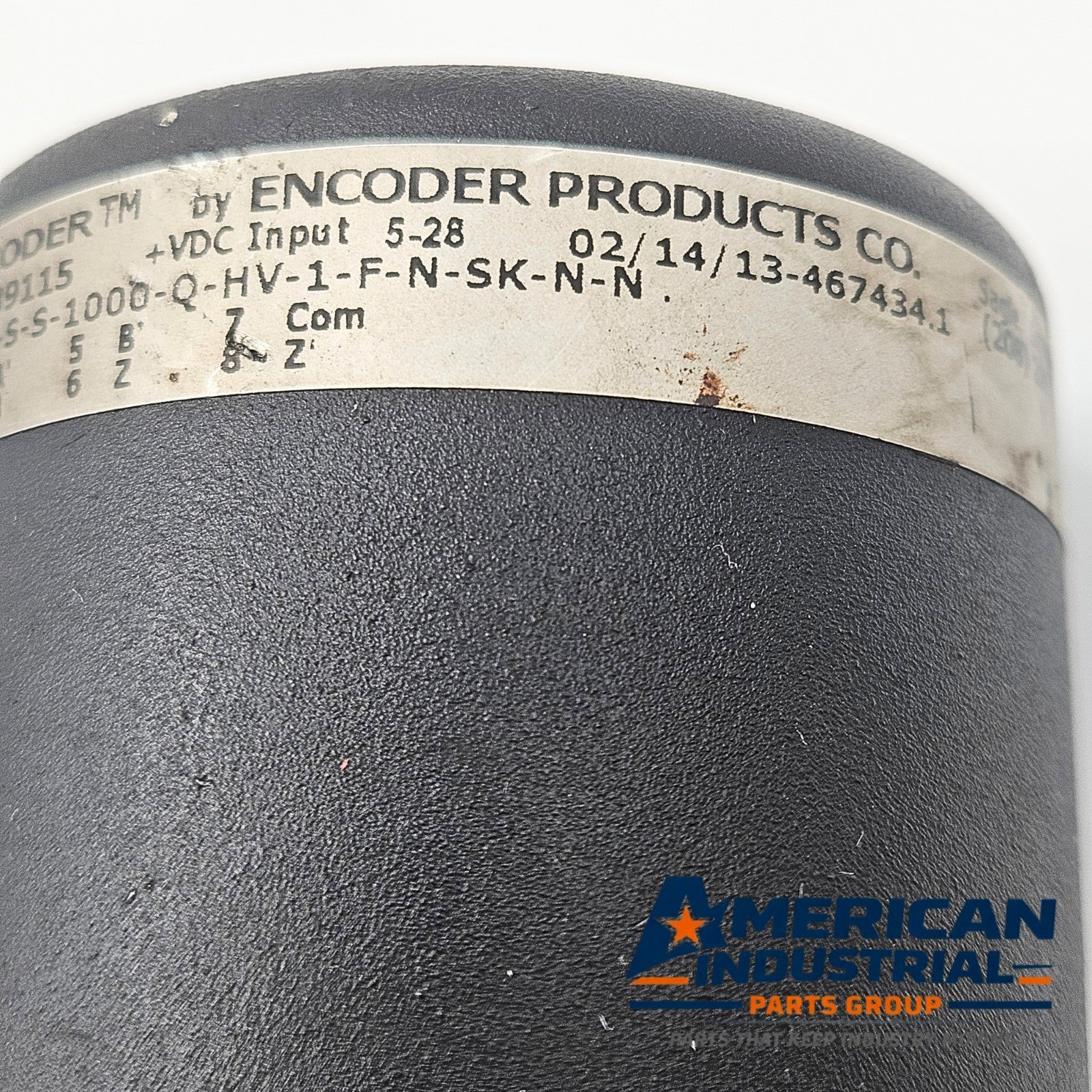

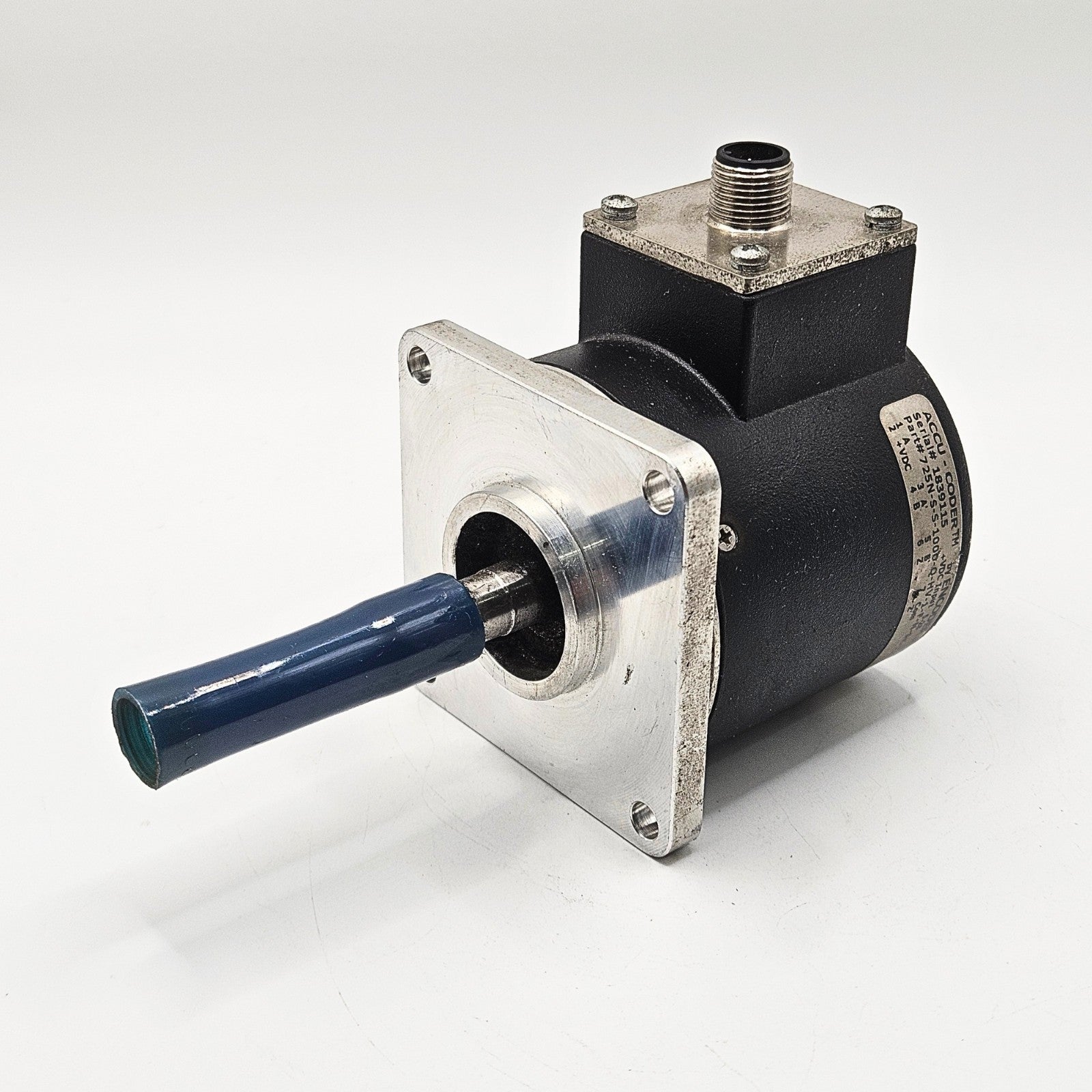

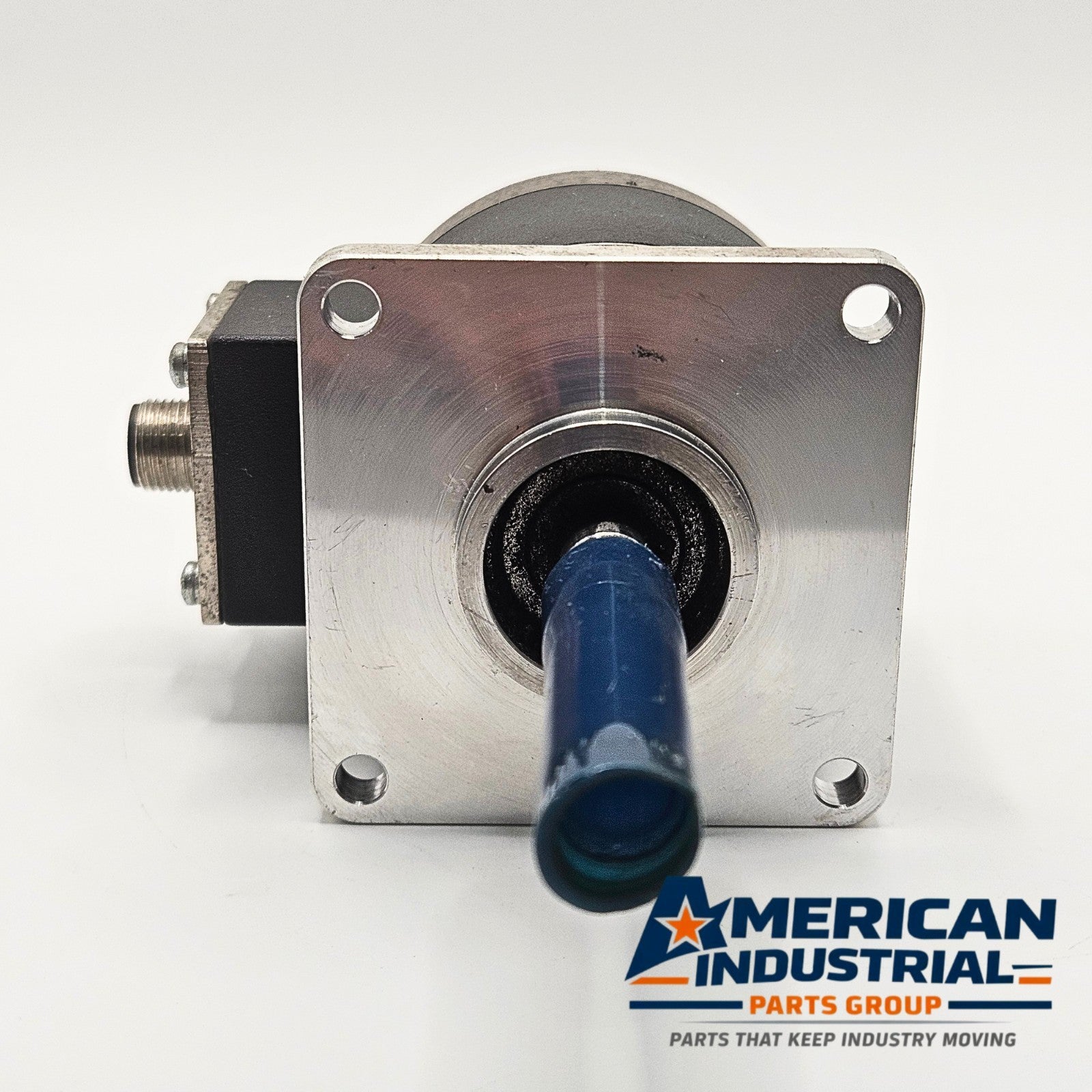

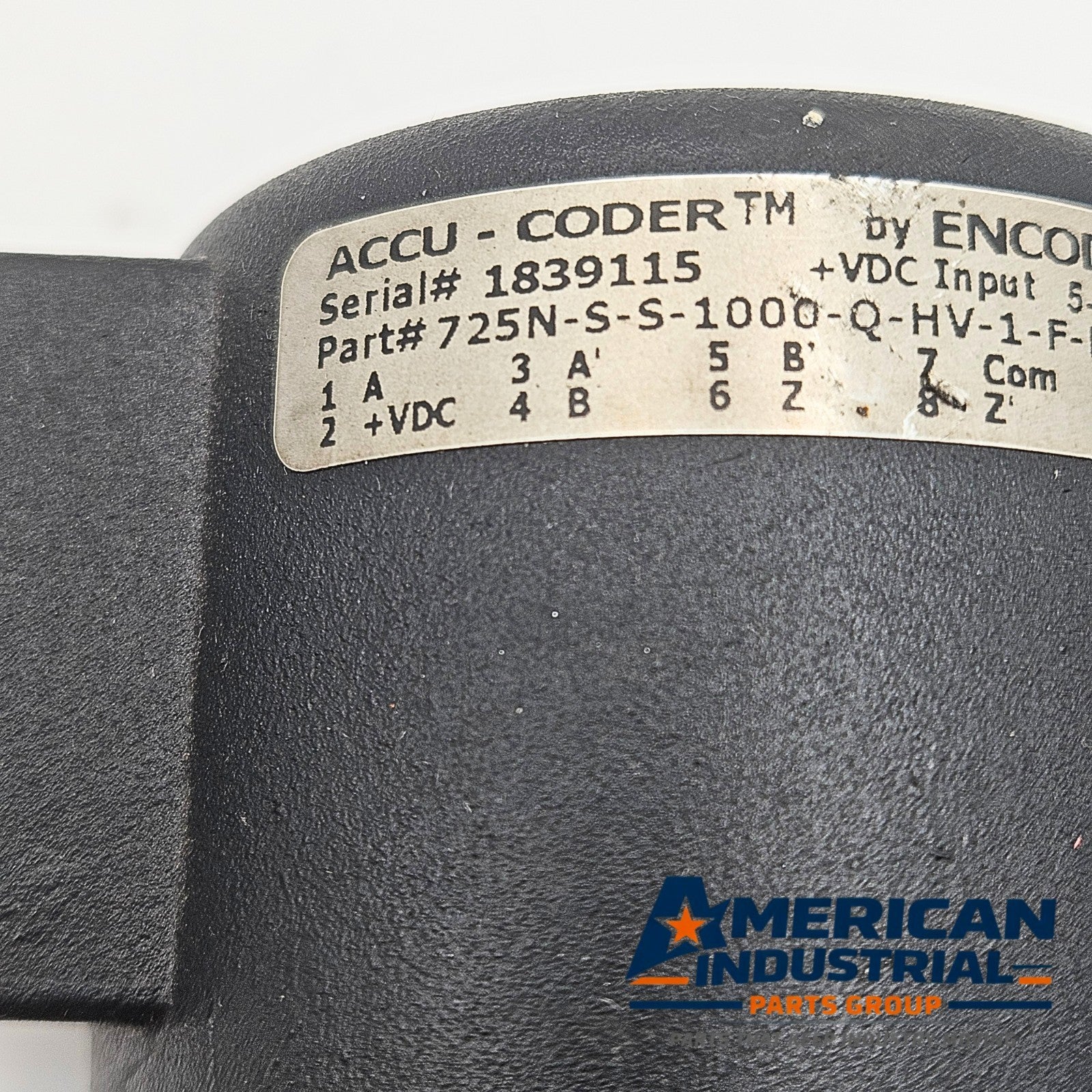

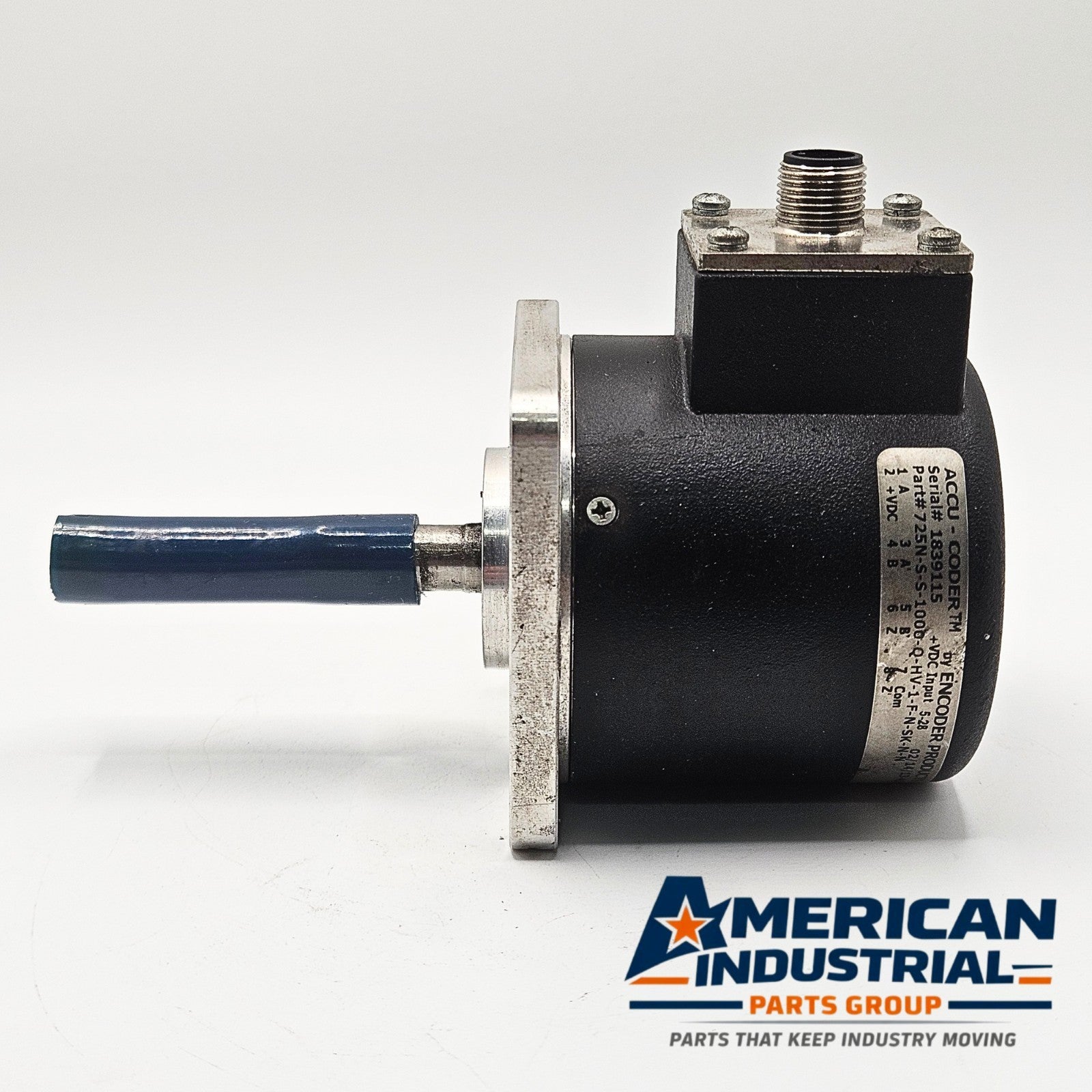

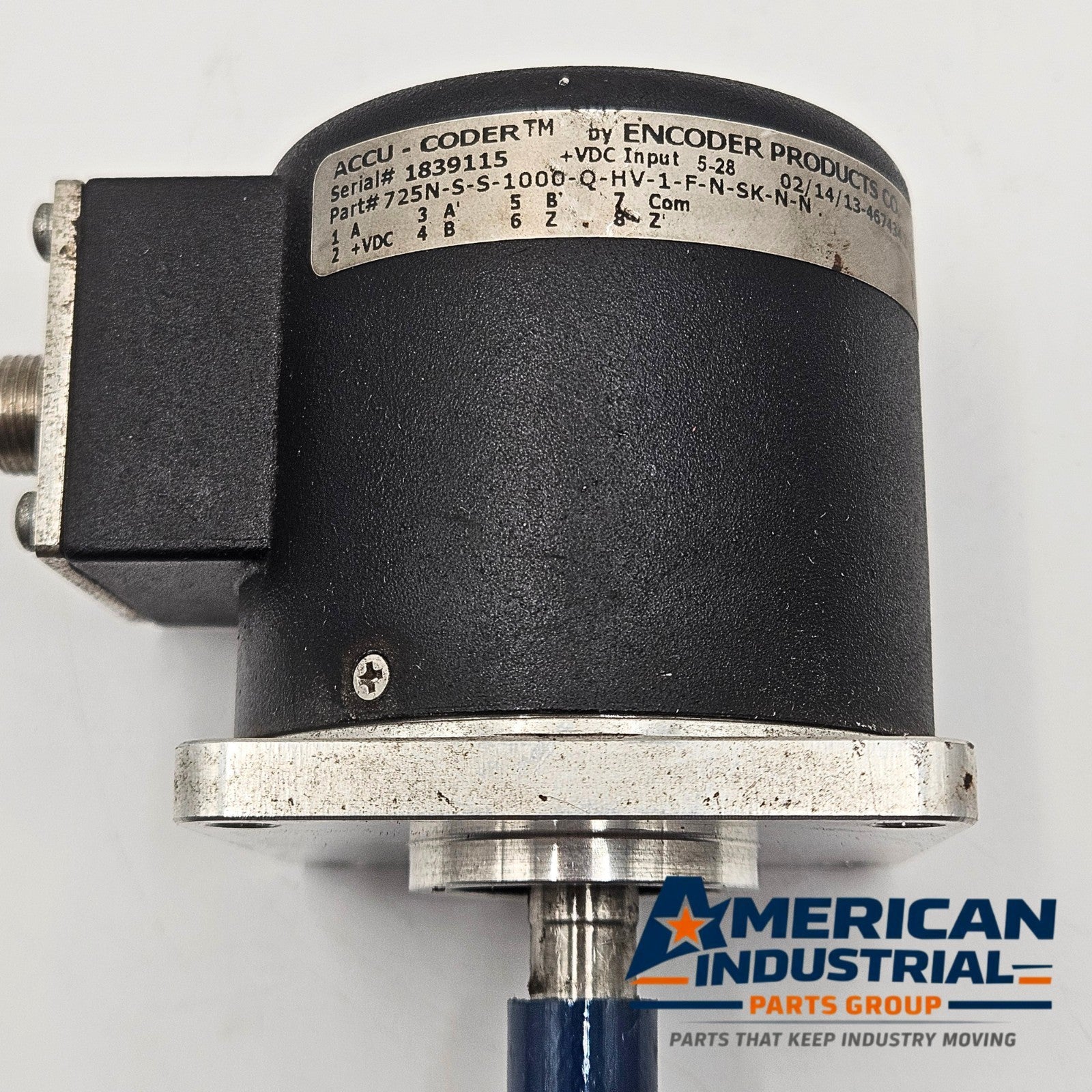

Unit is in used condition and may show cosmetic wear from normal industrial service, storage, and handling. Please review all photos for exact condition and included components.

COMPATIBILITY & CROSS-REFERENCE

Direct replacement for the Encoder Products Co. Accu-Coder 725N-S-S-1000-Q-HV-1-F-N-SK-N-N incremental optical encoder. Fits standard flange/face mount motor and shaft applications using this exact part number configuration, and works with 5–28VDC supply and HV differential line driver receiving equipment (servo drives, PLCs, motion controllers). If your machine is showing position feedback errors, lost counts, or the encoder has failed, this unit is a ready replacement.

Q: What does this replace? A: Direct replacement for the Encoder Products Co. Accu-Coder 725N-S-S-1000-Q-HV-1-F-N-SK-N-N encoder.

Q: What is the resolution? A: 1000 pulses per revolution (PPR).

Q: What output type is this? A: Quadrature A/A', B/B', Z/Z' with HV line driver output.

DISCLAIMER

This item is used and was removed from a running operational piece of equipment. May show signs of cosmetic wear (see photos). Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
