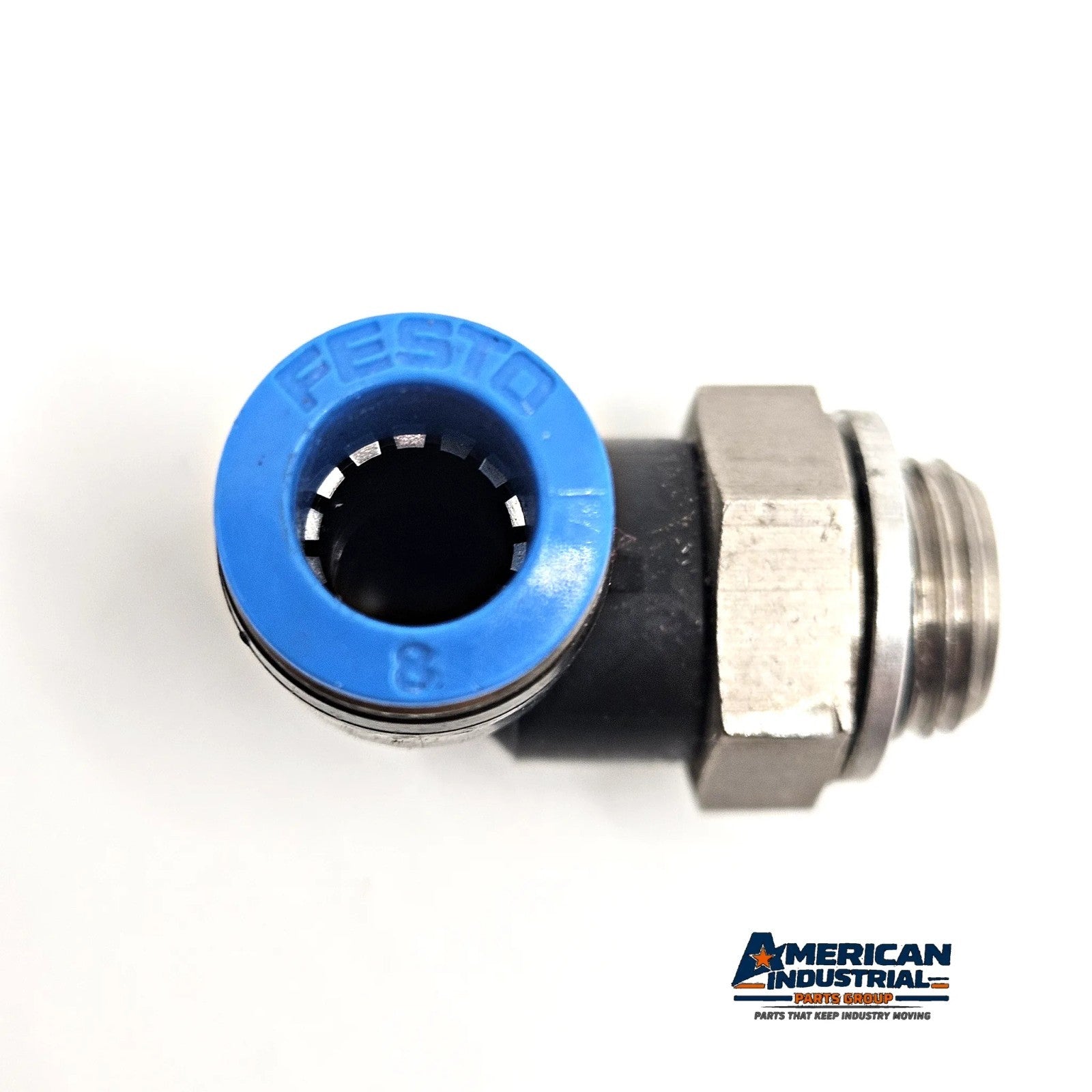

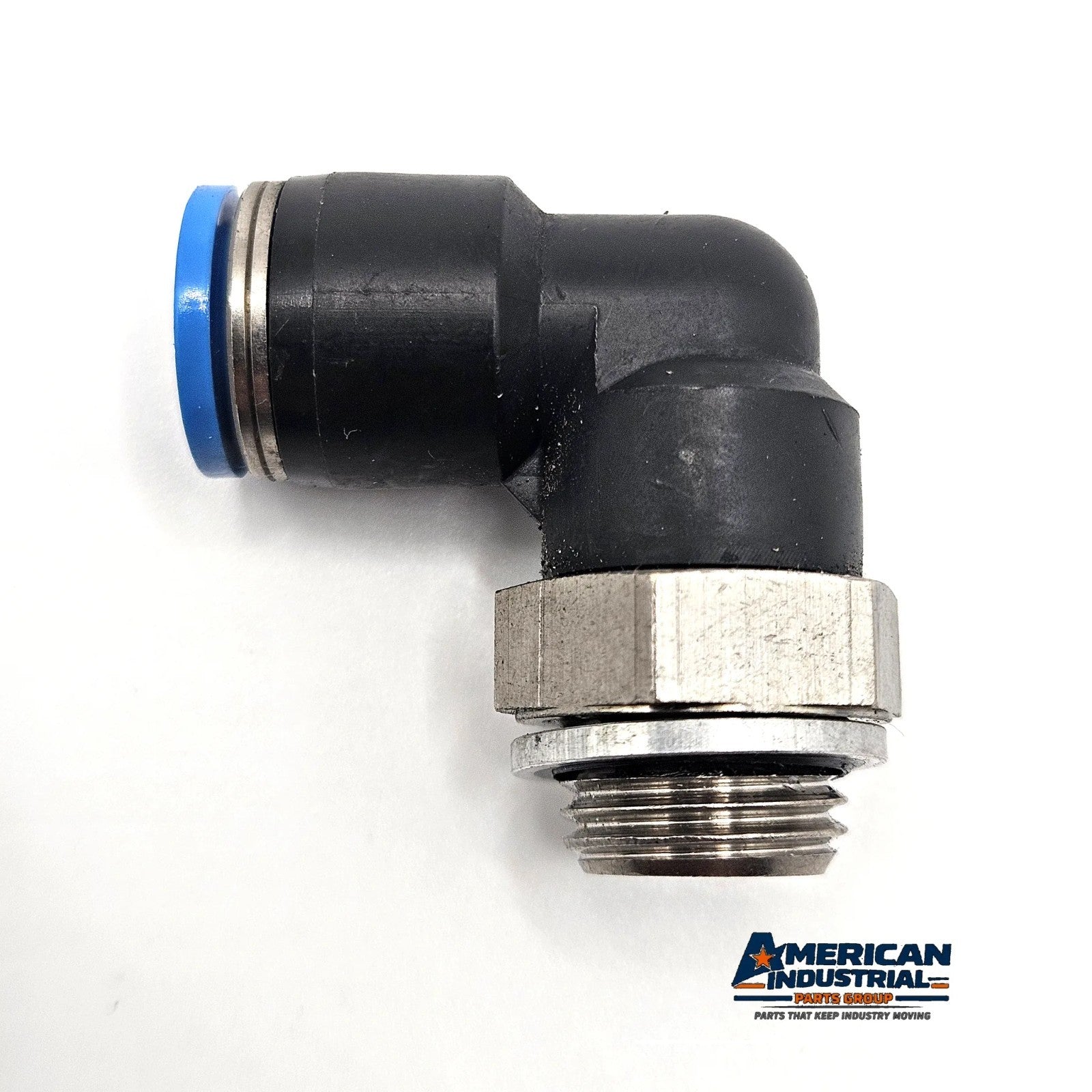

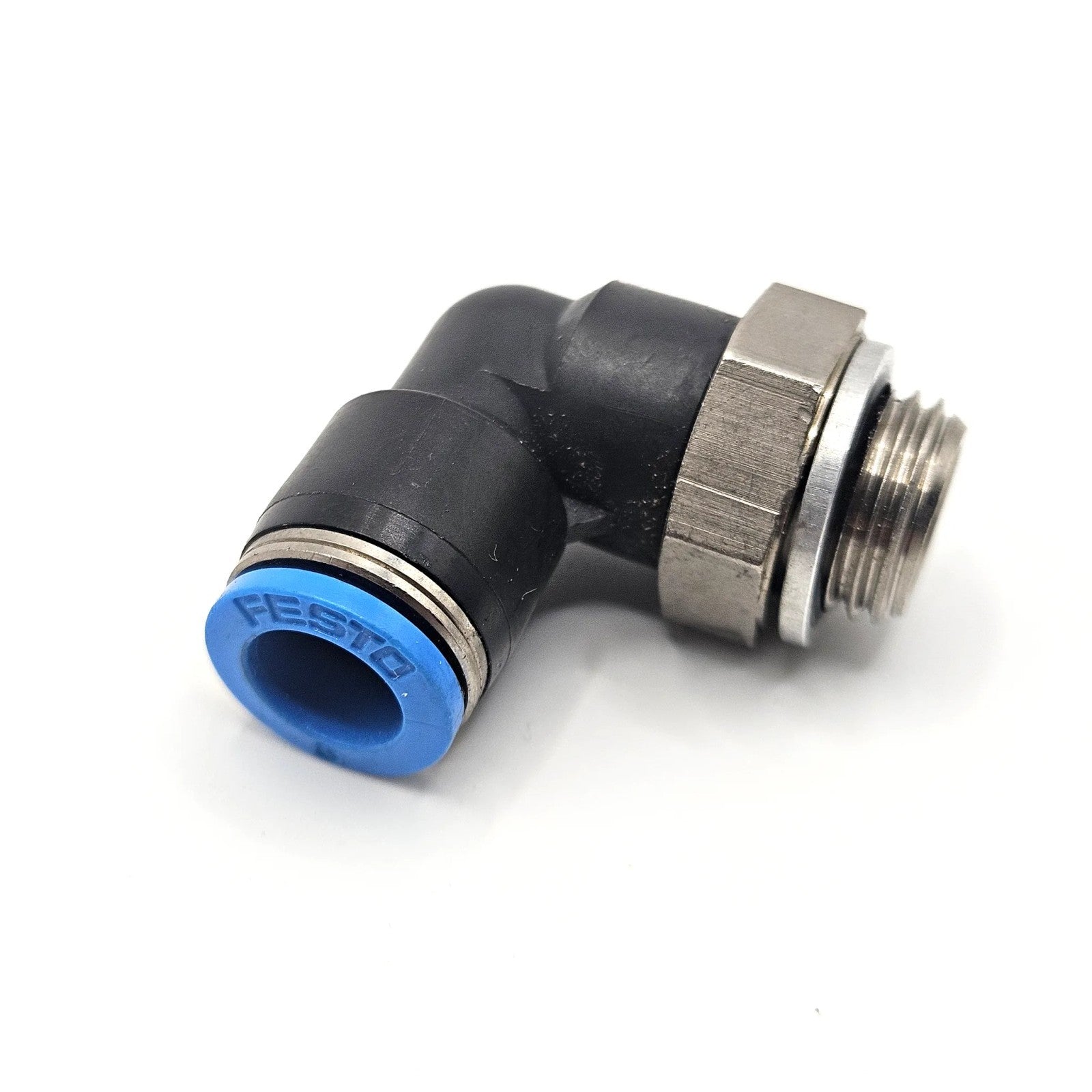

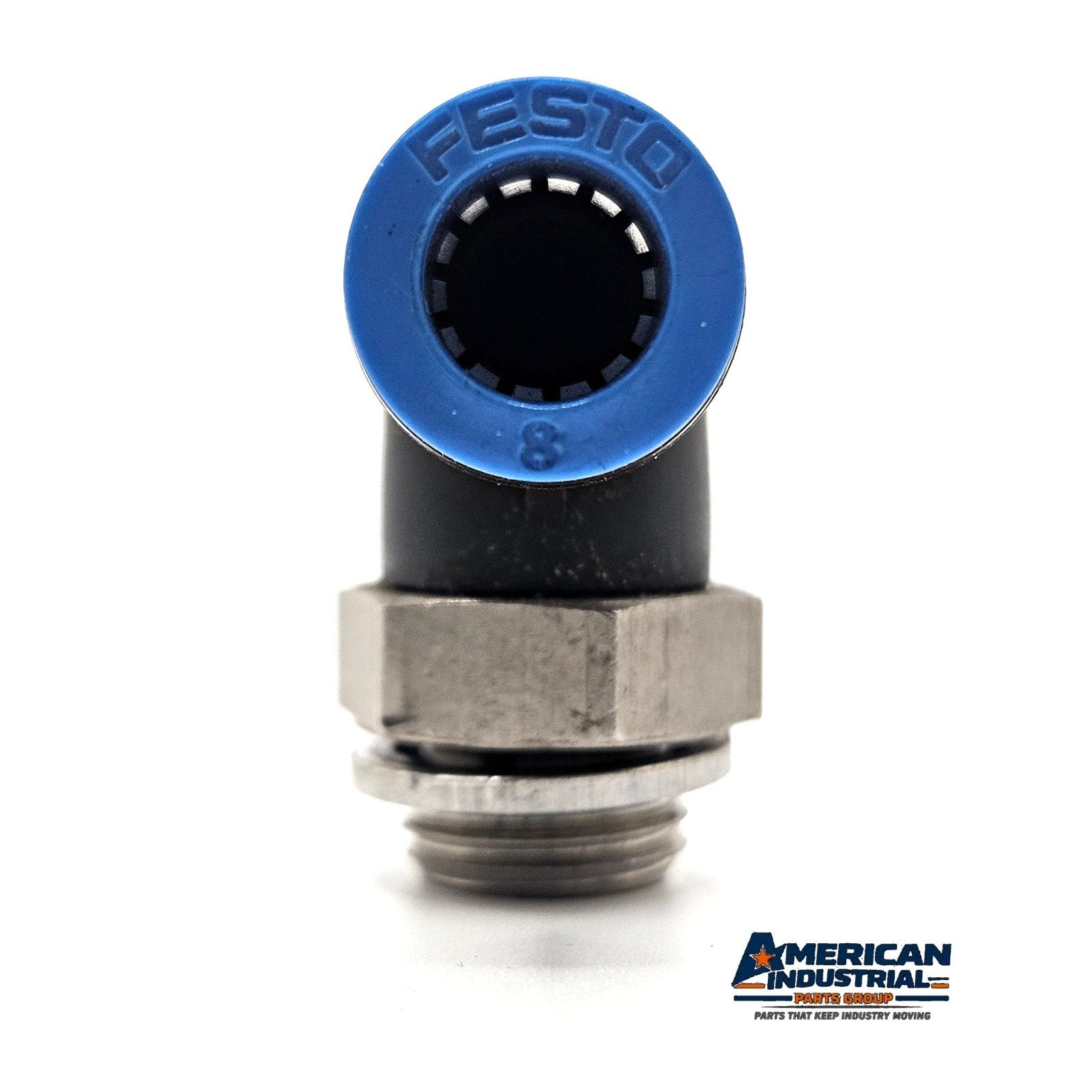

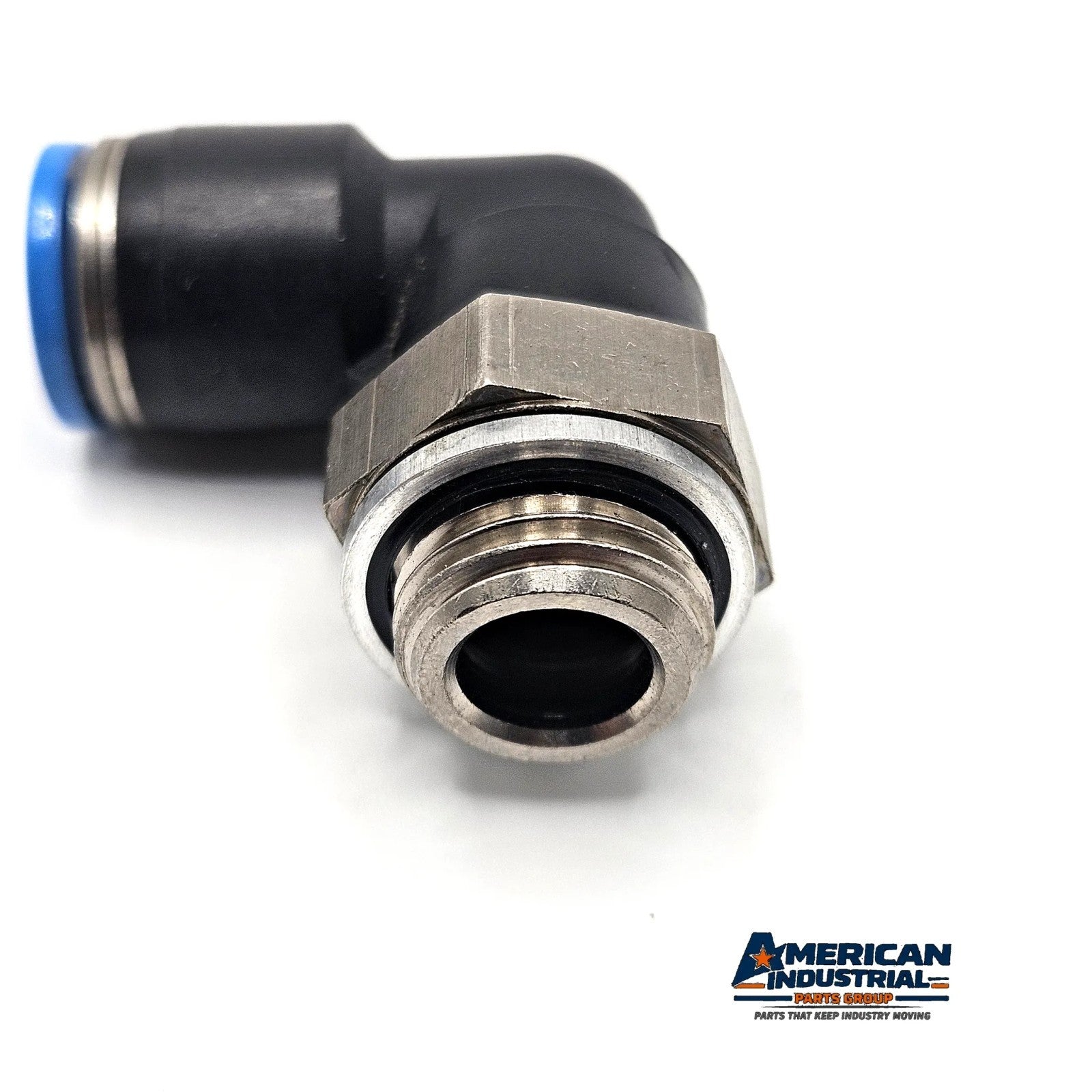

Festo QSL-G1/4-8 186120 Push-In 90° Elbow Fitting 8mm G1/4 New

ITEM SPECIFICS

Brand: Festo

Model: QSL-G1/4-8

MPN: 186120

Series: QS

Type: Push-In L-Fitting

Fitting Style: 90° Male Elbow

Connection 1: G1/4 Male Thread

Connection 2: 8 mm OD Pneumatic Tubing

Thread Standard: G1/4 BSPP / ISO 228-1

Tube Outside Diameter: 8 mm

Nominal Width: 6.7 mm

Tubing Insertion Depth: 18.1 mm

Connection Principle: Push-Pull / Push-to-Connect

Thread Seal: Sealing Ring

Mounting Position: Any

Mounting Hex: SW17

Nominal Tightening Torque: 9 Nm

Operating Pressure: -0.95 to 6 Bar Across Full Temperature Range

Temperature-Dependent Pressure: Up to 14 Bar

Ambient Temperature: -10°C to 80°C

Operating Medium: Compressed Air; Ice-Free Water

Housing Material: PBT

Threaded Stud Material: Nickel-Plated Brass

Release Ring Material: POM

Release Ring Color: Blue

Tubing Seal Material: NBR

Tubing Clamp Material: High-Alloy Stainless Steel

Product Weight: 23 g

GTIN: 4052568014674

Condition: New

DESCRIPTION

New Festo QSL-G1/4-8 push-in L-fitting, part number 186120. This 90-degree pneumatic elbow connects 8 mm outside-diameter air tubing to a G1/4 male threaded port.

The push-to-connect design allows fast tubing installation and removal. The G1/4 connection uses a sealing ring and an SW17 external hex for installation. Suitable for pneumatic automation systems, valve manifolds, cylinders, machine controls, and compressed-air distribution.

Includes the exact fitting shown in the photos.
