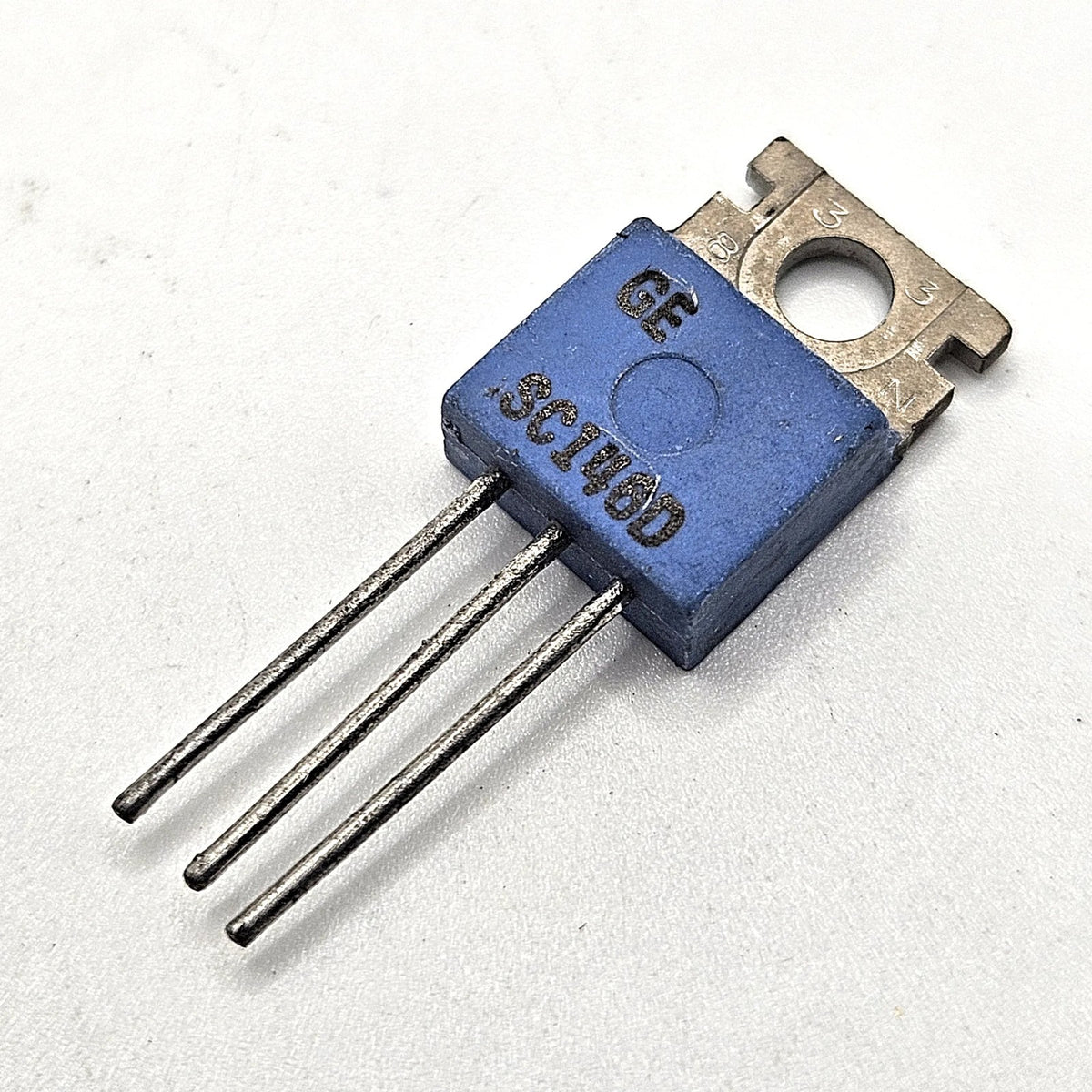

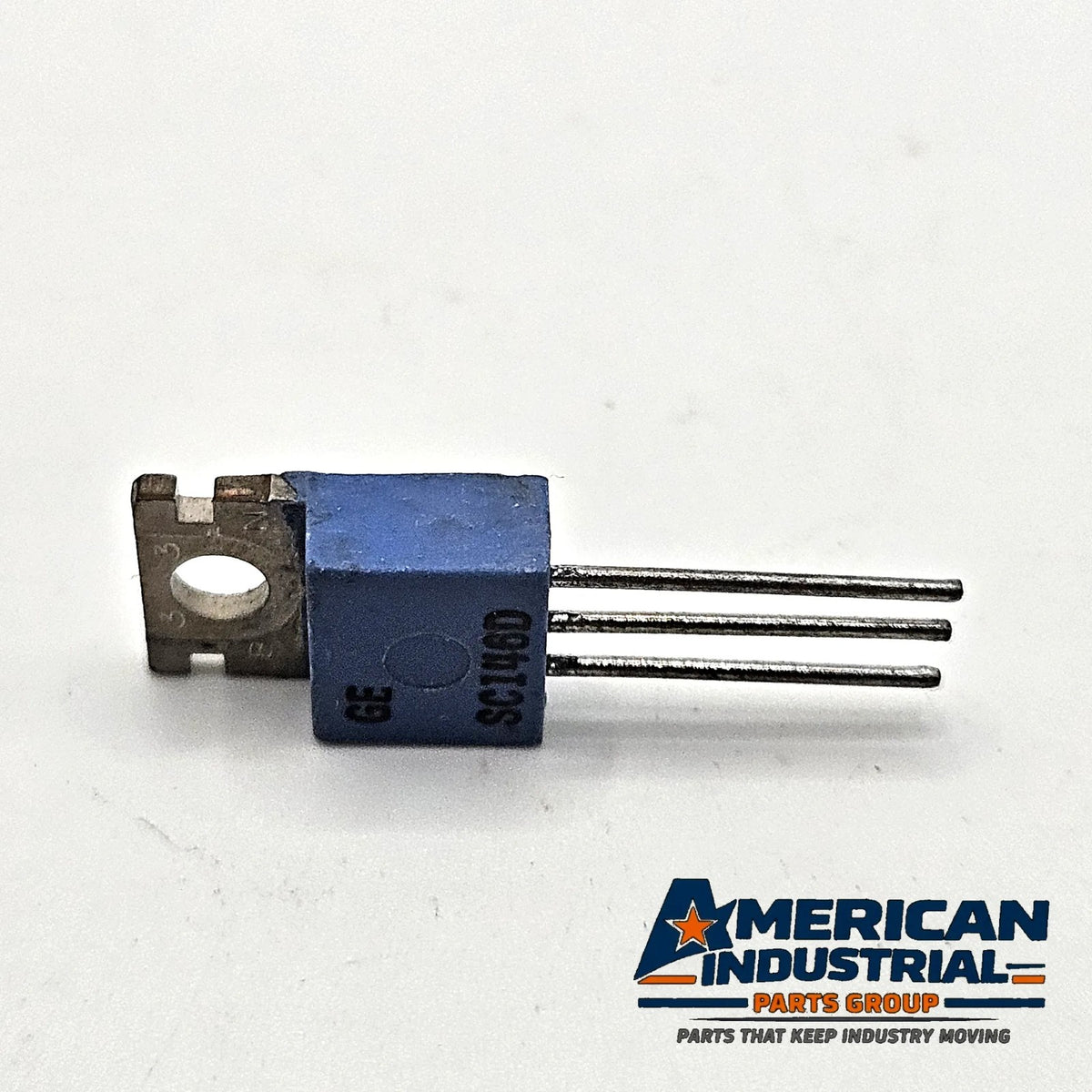

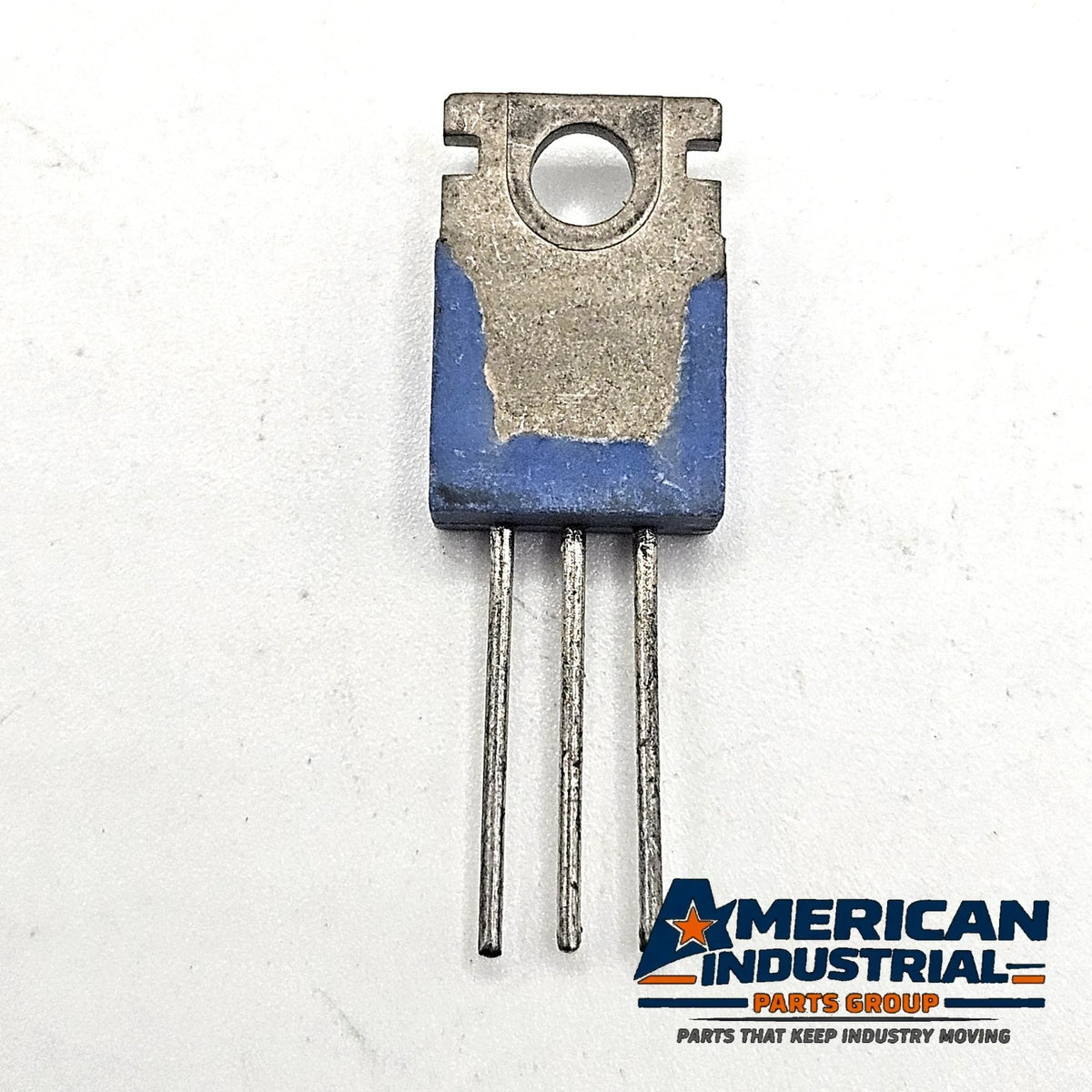

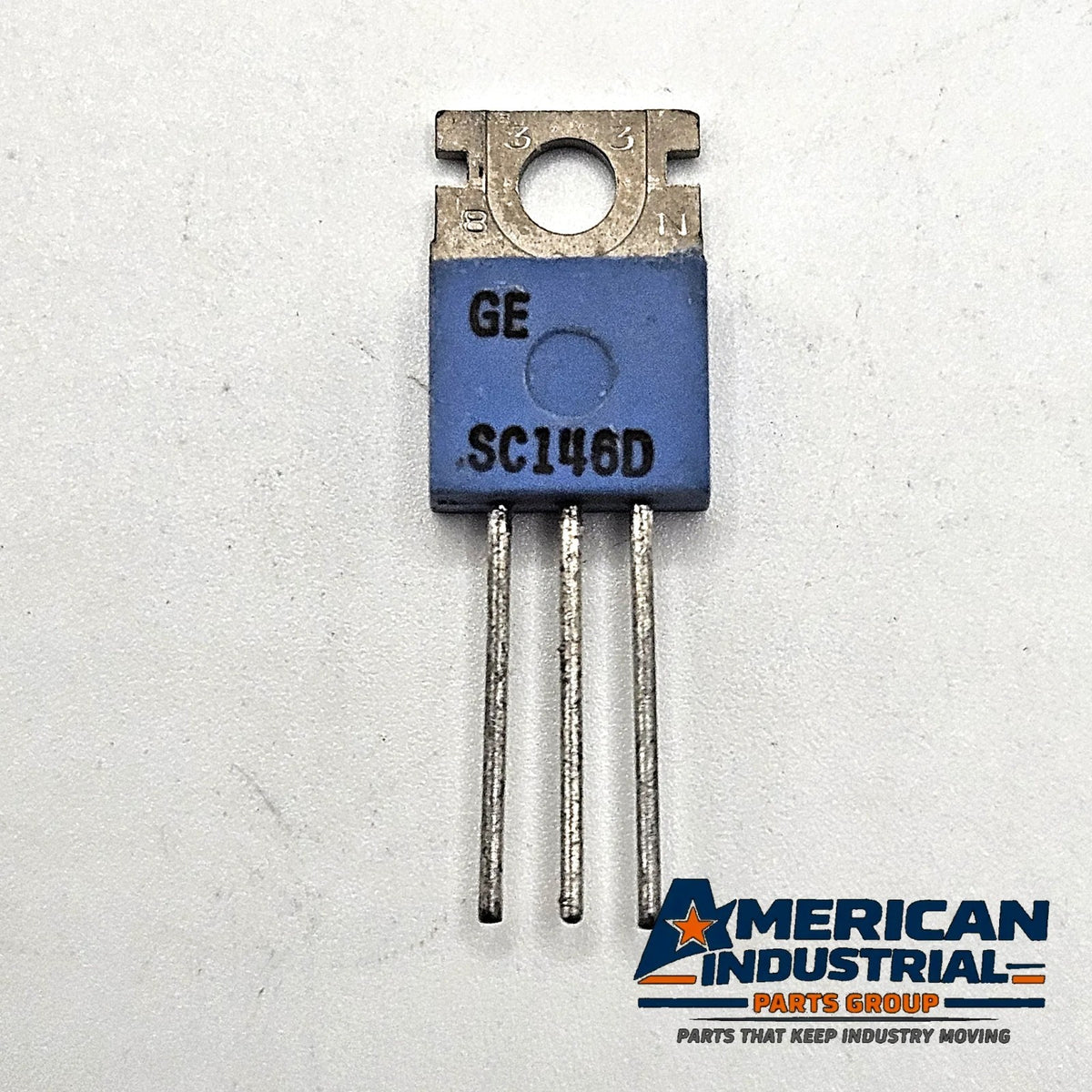

GE SC146D 400V 10A TRIAC TO-220AB Thyristor New Old Stock
GE SC146D 400V 10A TRIAC TO-220AB Thyristor New Old Stock
Regular price
$6.78 USD
Regular price
Sale price
$6.78 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: General Electric
Model: SC146D
MPN: SC146D
Type: TRIAC / Bidirectional Triode Thyristor
Repetitive Peak Off-State Voltage: 400 V
RMS On-State Current: 10 A
Package: TO-220AB
Number of Terminals: 3
Mounting Style: Through-Hole
Cross-Reference: Littelfuse Q4010R5
Condition: New Old Stock / Surplus
DESCRIPTION
General Electric SC146D silicon TRIAC designed for AC power-control and power-switching applications.
Features:
General Electric SC146D
400 V repetitive peak off-state voltage
10 A RMS on-state current
TO-220AB through-hole package
Three-terminal configuration
Discontinued legacy semiconductor
Littelfuse Q4010R5 listed as a direct cross-reference
New old stock surplus component. The item may show minor cosmetic wear, oxidation, or handling marks from long-term storage. No original retail packaging is included unless shown in the photos. Please review all photos for the exact condition and item included.
Cross-reference information is provided for identification purposes. Buyers must independently verify electrical characteristics, terminal configuration, and application compatibility before installation.
DISCLAIMER
This item is new old stock from surplus inventory. It may show cosmetic signs of storage and handling. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of General Electric or Littelfuse. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties. Cross-reference information does not guarantee suitability for a specific circuit or application.
COMPATIBILITY & CROSS-REFERENCE
The SC146D is a bidirectional triode thyristor (TRIAC) rated 400V repetitive peak off-state voltage and 10A RMS on-state current in a TO-220AB package. The SC146 series originated with General Electric's semiconductor line, and SC146D-marked devices have also been catalogued under ON Semiconductor. Littelfuse's Q4010R5 is a current-production 400V, 10A TO-220 TRIAC listed as an equivalent. Before substituting, confirm gate trigger current and voltage, holding current, quadrant operation and dv/dt requirements against your circuit, since these parameters vary between TRIAC families even at identical voltage and current ratings.
Q&A
Q: What are the SC146D's ratings? A: 400V repetitive peak off-state voltage and 10A RMS on-state current, in a TO-220AB three-terminal package.
Q: Is there a current-production equivalent? A: Littelfuse's Q4010R5 is a 400V/10A TO-220 TRIAC listed as a cross-reference — verify gate trigger and dv/dt specifications before substituting.
Q: What is a TRIAC used for? A: AC power control and switching — motor speed control, lighting control, heater control and similar applications.
General Electric SC146D GE SC146D 400V TRIAC 10A TRIAC TO-220AB Thyristor Bidirectional Triode Thyristor AC Power Control Semiconductor Through Hole TRIAC Power Switching Component Vintage Semiconductor New Old Stock NOS Electronic Component Industrial Electronics GE Solid State Q4010R5 Cross Reference Replacement Repair Component Industrial Surplus
