General Instrument JAN1N1731A 1500V Silicon Rectifier Diode NOS Military
General Instrument JAN1N1731A 1500V Silicon Rectifier Diode NOS Military
Regular price
$9.95 USD
Regular price
Sale price
$9.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: General Instrument
Model: 1N1731A
MPN: JAN1N1731A
Type: Silicon Rectifier Diode — Military JAN Grade
Voltage Rating: 1500V PIV
Package: Axial Leaded
Military Qualification: JAN (MIL-PRF-19500)
Body Marking: CAKK

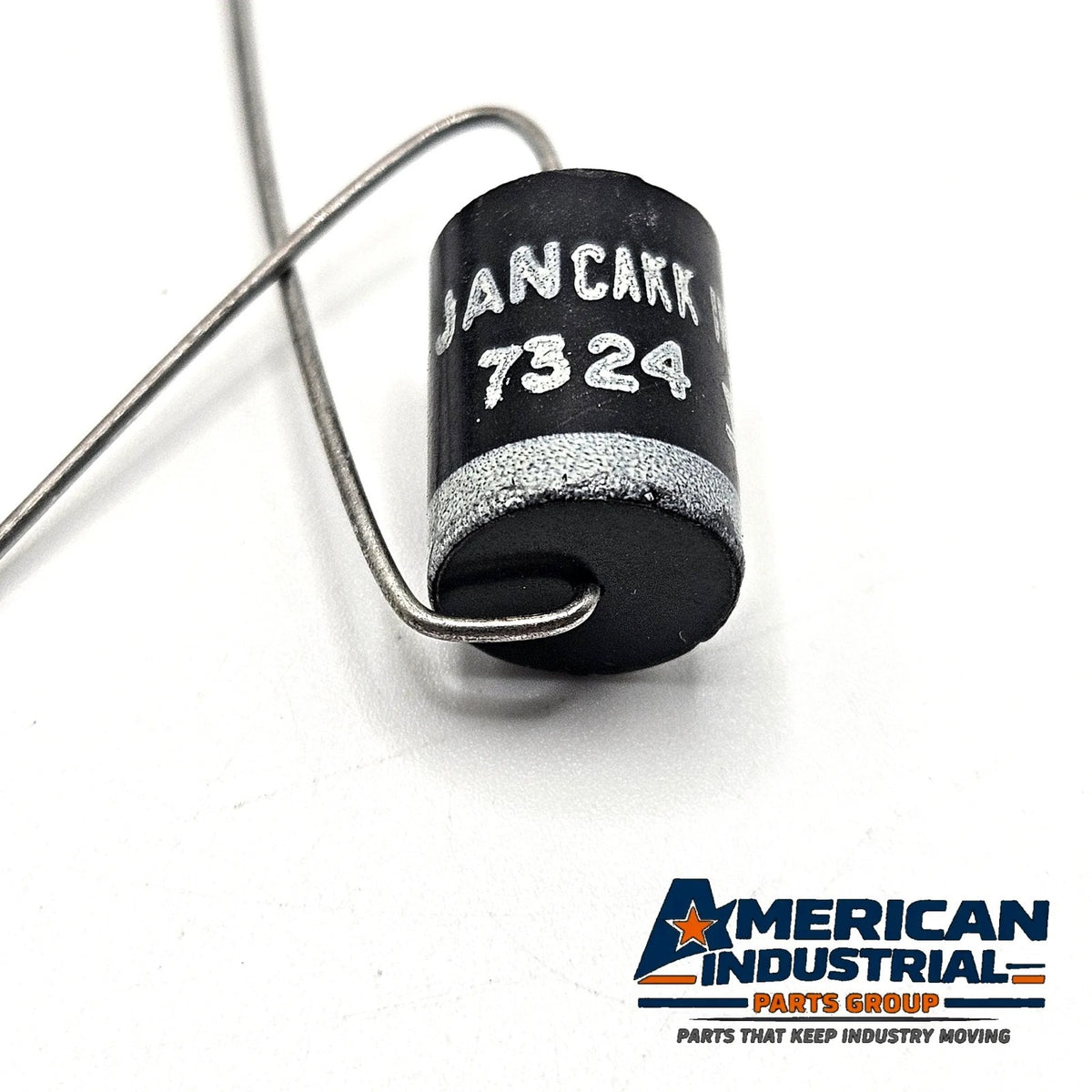

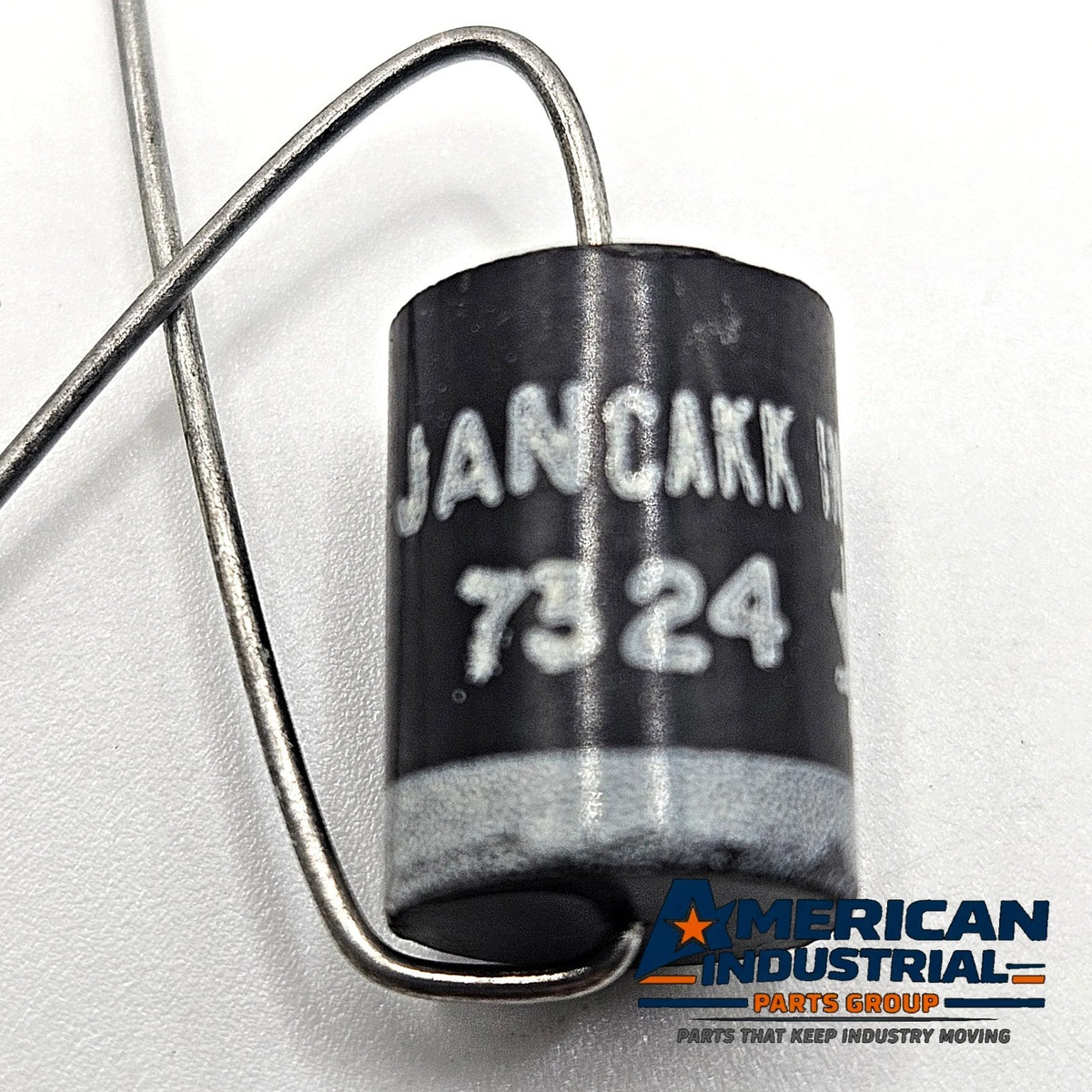

Date Code: 7324 (Week 24, 1973)
Condition: New Old Stock (NOS)
Quantity: 1
DESCRIPTION

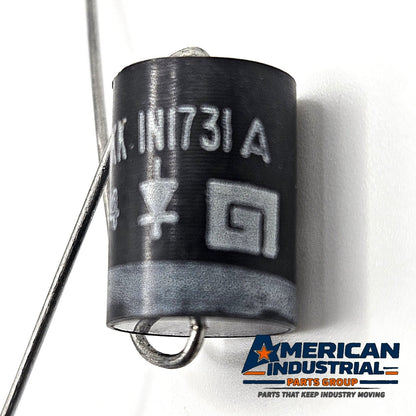

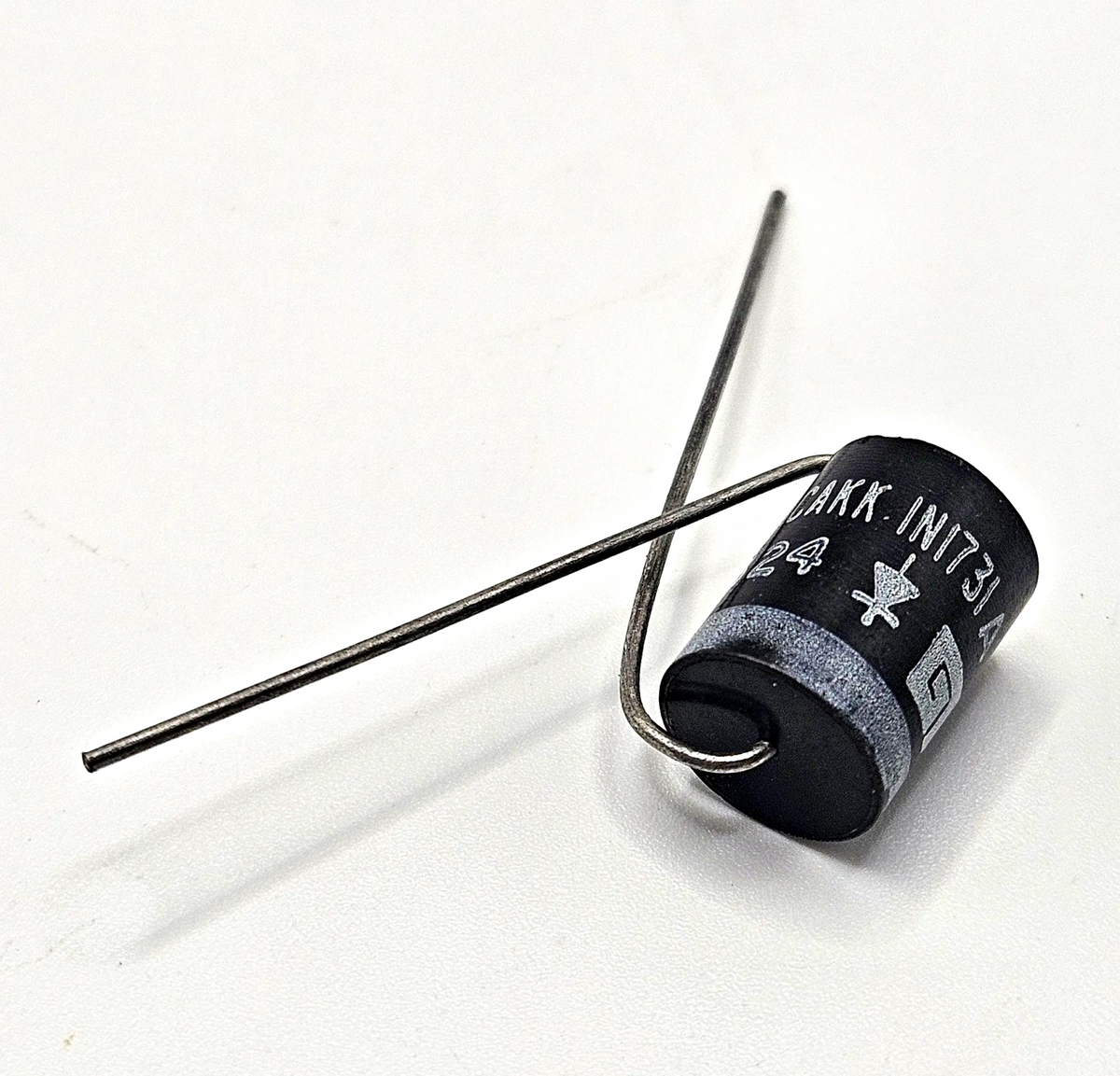

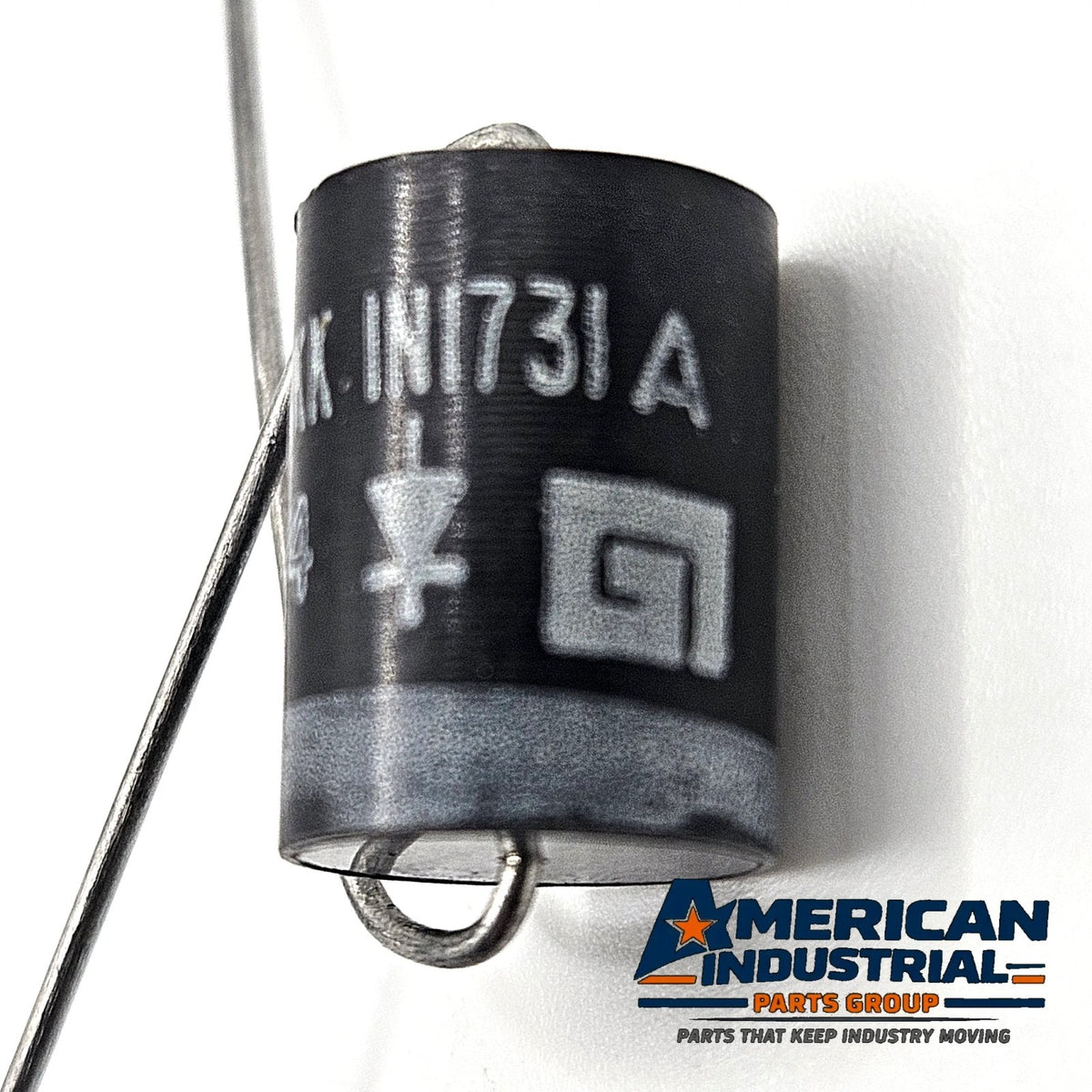

General Instrument JAN1N1731A military-grade (JAN) silicon rectifier diode rated 1500V PIV, axial leaded package. Date code 7324 (1973 manufacture). Body marked with a CAGE code (CAKK) alongside the diode symbol and MIL screening square — full JAN-level military screening per MIL-PRF-19500. New old stock, never installed, stored in original surplus inventory.
Features:
General Instrument JAN1N1731A
Military JAN Screened — MIL-PRF-19500
1500V PIV Silicon Rectifier
Axial Leaded Package
Body Marked CAKK
Date Code: 7324 (Week 24, 1973)
New Old Stock — Never Installed
DISCLAIMER
This item is new old stock (NOS) — unused, never installed. May show minor cosmetic marks from age and storage. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of General Instrument. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The 1N1731A is confirmed at 1.5kV (1500V PIV) in manufacturer part-number index documentation for the 1N1730–1N1734 high-voltage rectifier family (1kV–5kV in 1kV steps, with “A”-suffix variants carrying a higher current rating than the base number). Per NTE Electronics' own published cross-reference list, the NTE525 (2000V rectifier) is the documented replacement for 1N1731, 1N1731A and 1N1732 — note this is a higher-voltage universal replacement, not an exact-voltage match. Confirm current rating and application requirements before substituting.
Q&A
Q: What is the JAN prefix? A: JAN stands for Joint Army-Navy — it indicates military screening and qualification per MIL-PRF-19500, the U.S. standard for discrete semiconductor devices.
Q: What voltage is the 1N1731A rated for? A: 1500V PIV, confirmed against manufacturer part-number index documentation for the 1N1730–1N1734 family.
Q: What is the documented NTE equivalent? A: The NTE525 (2000V rectifier), per NTE Electronics' own cross-reference list — a higher-voltage universal replacement.
General Instrument JAN1N1731A 1N1731A JAN1N1731 1N1731 military diode 1500V rectifier diode JAN silicon rectifier MIL-PRF-19500 diode military grade rectifier General Instrument diode NOS military diode vintage rectifier diode axial silicon rectifier 1500V silicon diode high voltage rectifier diode obsolete military rectifier NOS rectifier diode vintage military semiconductor NTE525 cross reference
Thank you for shopping with American Industrial Parts Group!
