H.H. Smith 206-102 Red Insulated Banana Jack Kit Pack of 5 Panel Mount NOS

ITEM SPECIFICS
Brand: H.H. Smith
MPN: 206-102
Type: Insulated Banana Jack Kit, Panel Mount
Color: Red (-102 is H.H. Smith's red color code)
Gender: Female (jack)
Termination: Solder lug
Mounting: Panel mount, threaded body with hex nut

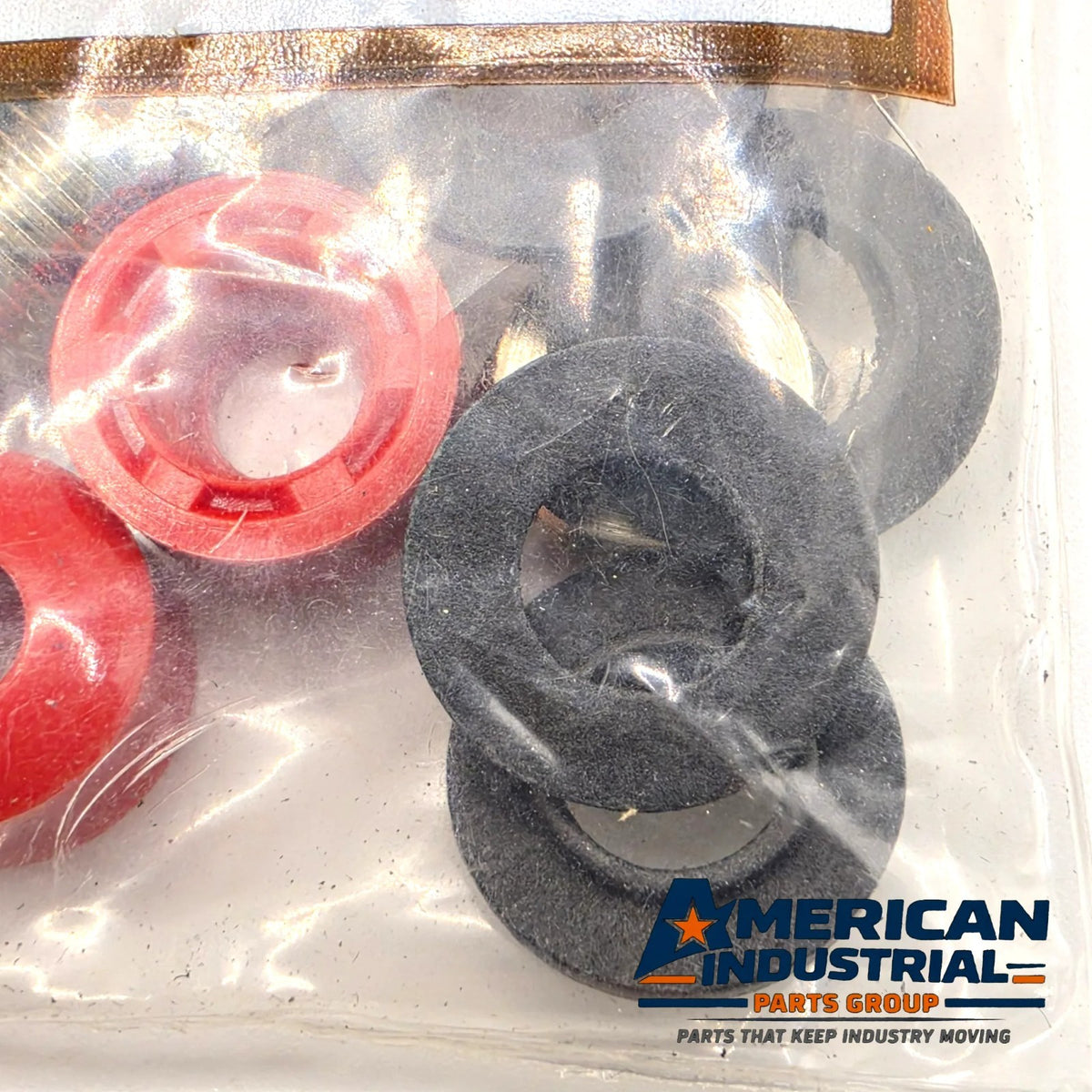

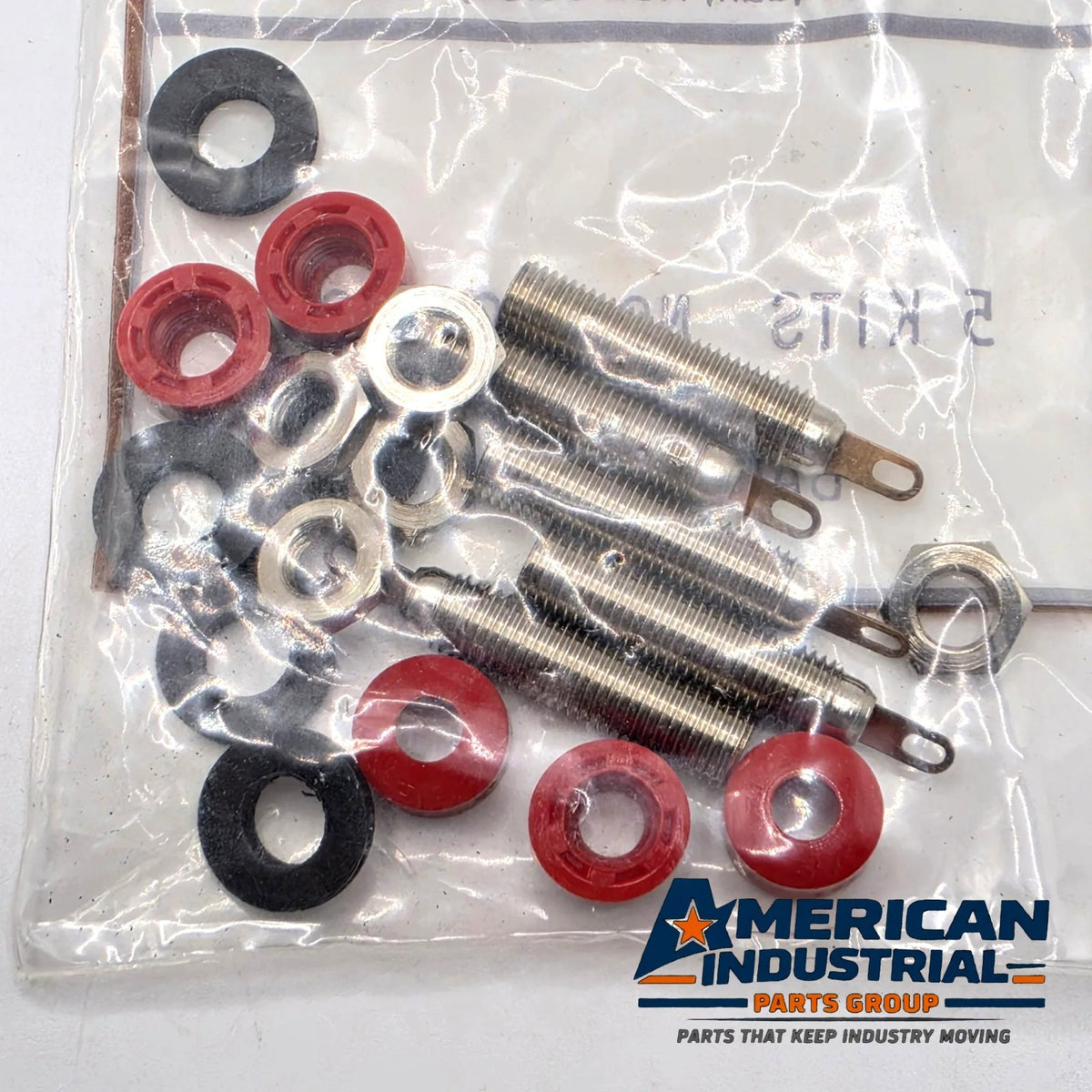

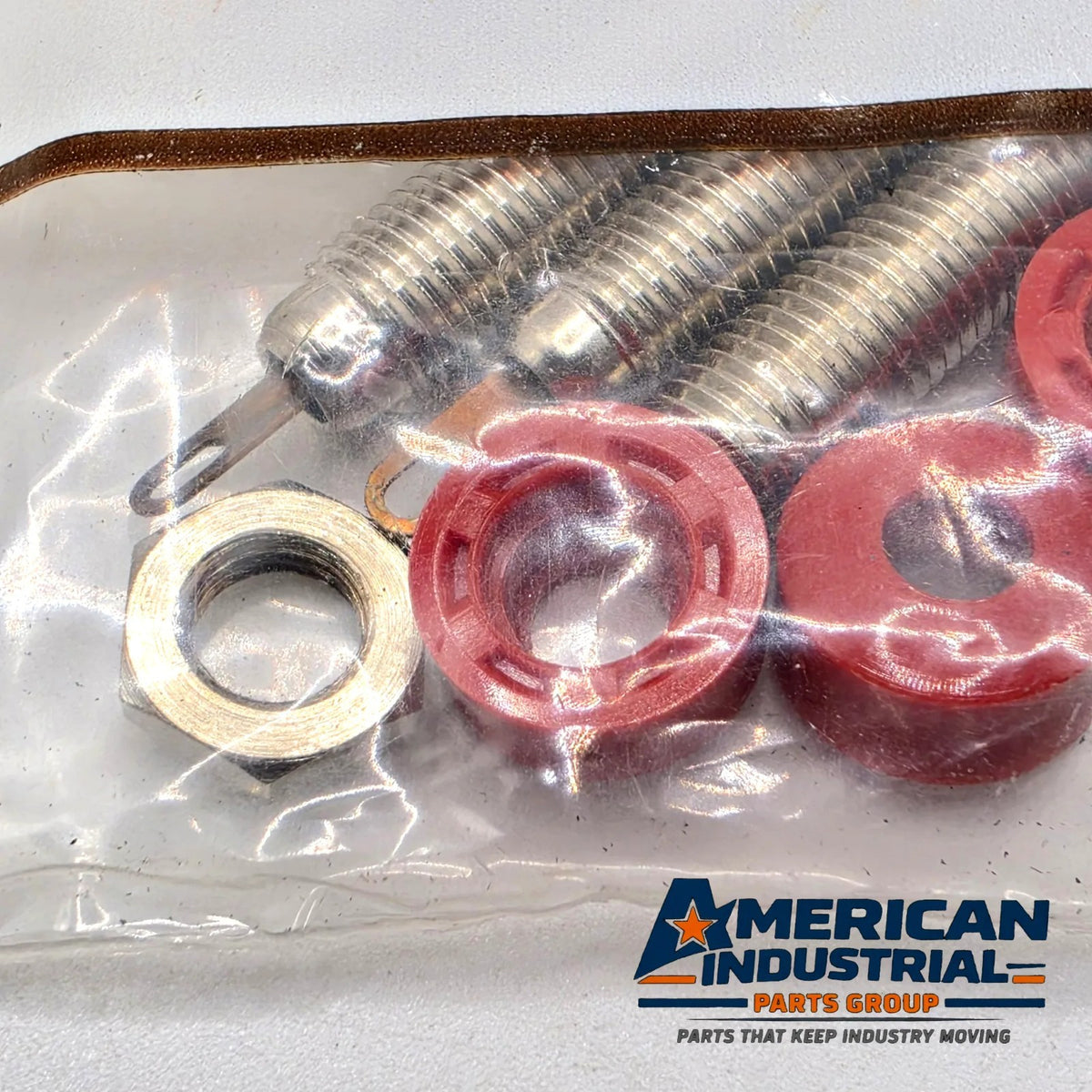

Kit Contents: Threaded jack body with solder lug, hex nut, red insulating shoulder washer, red flat insulator, black fiber washers (per kit, as pictured)
Package Quantity: 5 kits (as labeled)
Manufacturer Location: Manasquan, New Jersey (as labeled)
Condition: New in Package (old stock)
Quantity: 1 package of 5 kits

DESCRIPTION

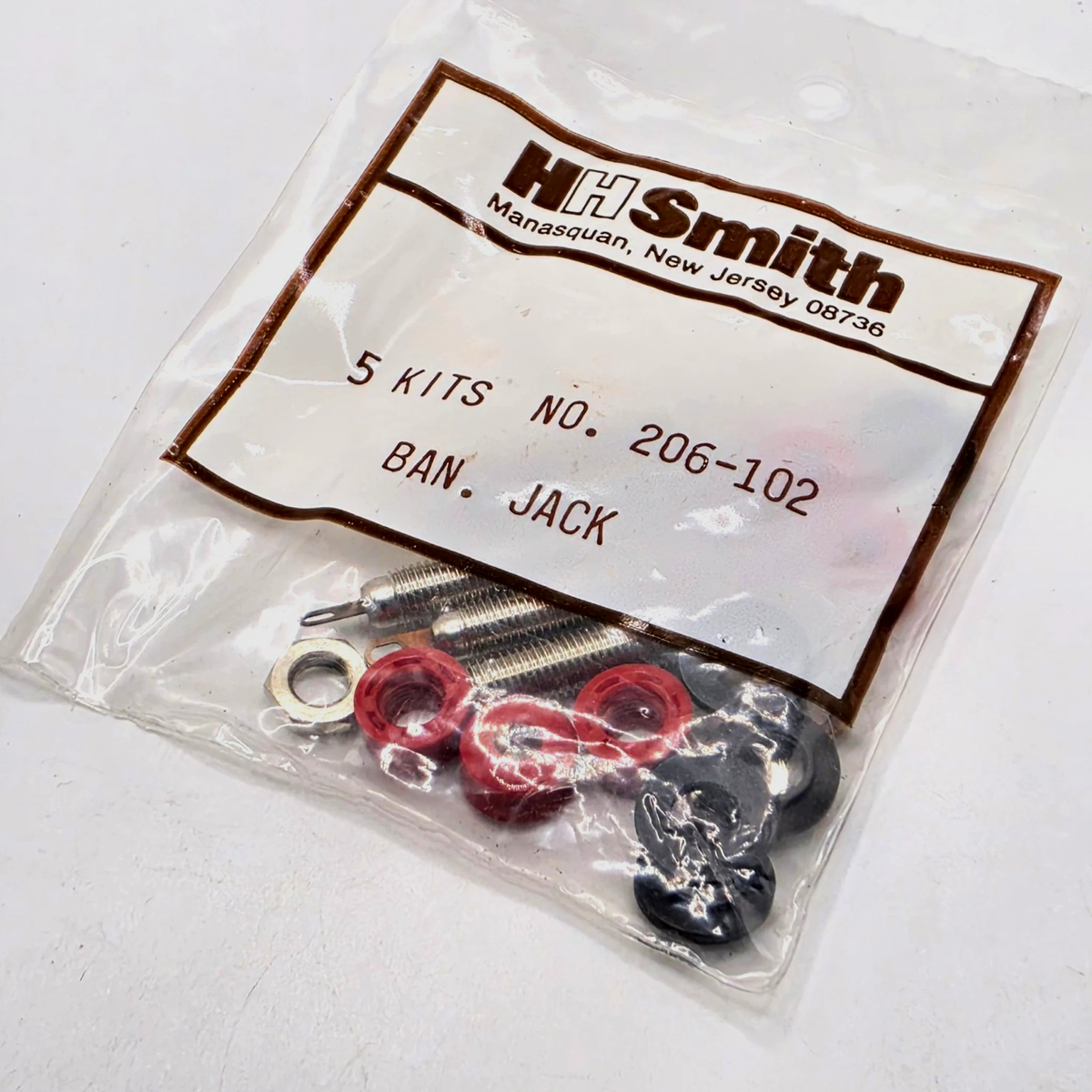

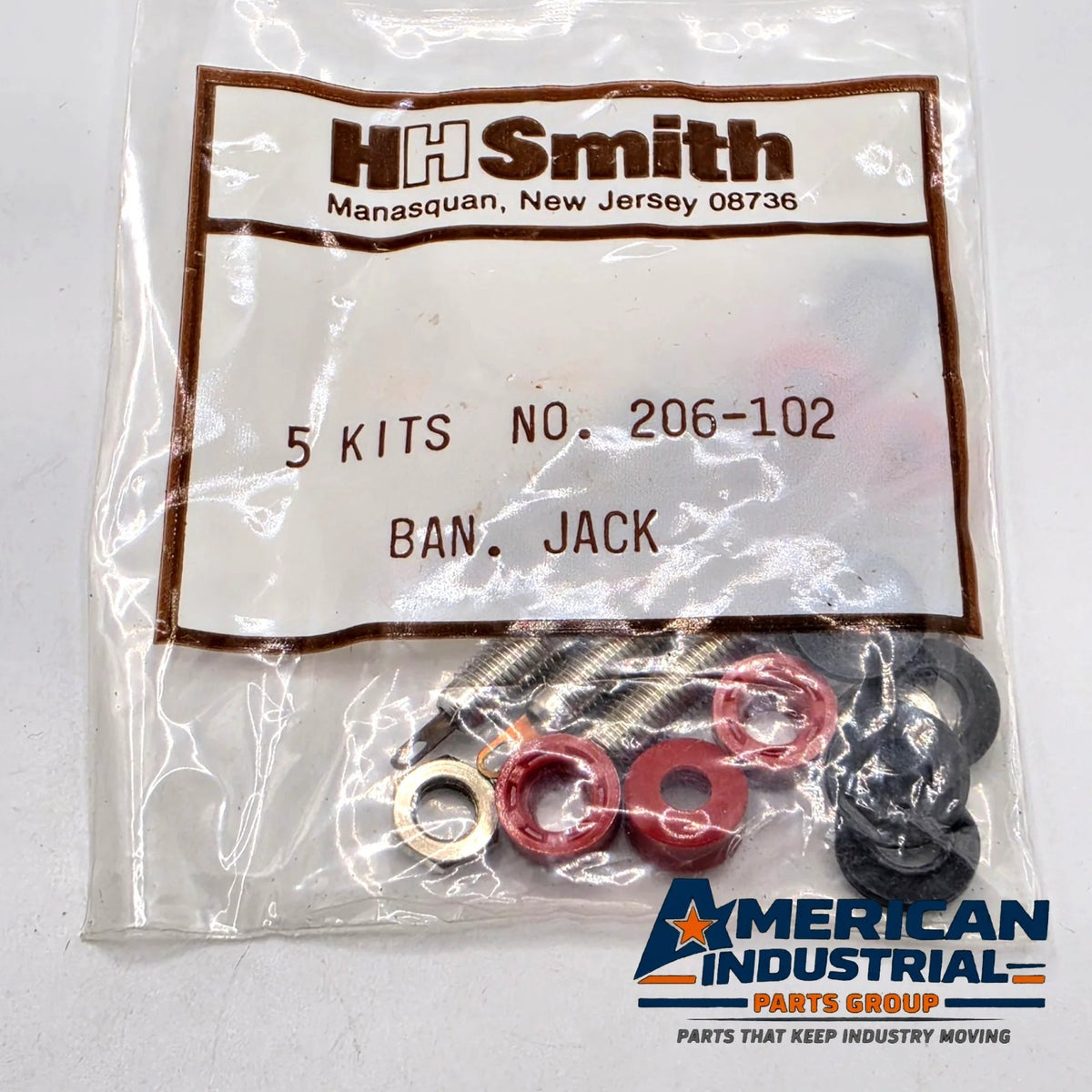

New old stock H.H. Smith No. 206-102 red insulated banana jack kits in the original factory package. The label reads "H.H. Smith, Manasquan, New Jersey 08736, 5 KITS NO. 206-102 BAN. JACK." Each kit is a panel-mount banana jack with a threaded body, a solder lug, a hex mounting nut, red insulating washers and black fiber washers that isolate the jack from a metal panel. The package has not been used. The bag shows storage wear and creasing, as pictured.

H.H. Smith (now Abbatron/HH Smith) made test-jack and banana connector hardware for test equipment, power supplies, meters and lab panels. The -102 suffix is H.H. Smith's red color code, the standard color for positive (+) terminals. These kits suit building or repairing test fixtures, bench power supplies, amplifier binding posts and instrument front panels.

Features:
5 complete banana jack kits per package
Red insulators for positive (+) terminal identification
Insulating washers isolate the jack from metal panels
Solder-lug termination
Threaded body with hex nut for panel mounting
Made by H.H. Smith in New Jersey

Compatibility:
Direct replacement for H.H. Smith 206-102 banana jacks. Accepts standard banana plugs. For a black (negative/common) version, H.H. Smith's black color code is -103. Similar H.H. Smith red insulated banana jacks include the 205-102 and 286-102. Confirm panel hole size and panel thickness against your application, because the 206's body length and thread are not listed in current H.H. Smith literature.

Q&A
Q: How many jacks are included?
A: The package is labeled 5 kits, one banana jack each, with mounting hardware.
Q: What color is it?
A: Red. The -102 suffix is H.H. Smith's red color code.
Q: Does it isolate from a metal panel?
A: Yes. Each kit includes insulating washers so the jack is electrically isolated from the panel.
Q: How do I connect a wire?
A: Solder to the lug on the back of the jack.
Q: Will standard banana plugs fit?
A: Yes. It is a standard banana jack for common banana plugs.
