HP 1901-1062 Silicon Stud Mount Diode 25A NSN 5961-01-013-9353 NOS

ITEM SPECIFICS
Brand: Hewlett-Packard
Model: 1901-1062
MPN: 1901-1062
Type: Silicon Stud-Mount Diode
Maximum Average Forward Current: 25A
Semiconductor Material: Silicon
Mounting Style: Threaded Stud
Terminal Type: Threaded Stud and Solder Lug
Thread Series: UNF
Case Type: Hermetically Sealed
Enclosure Material: Glass
Overall Length: 0.405 in Maximum
Width Across Flats: 0.437 in Maximum
NSN: 5961-01-013-9353
Federal Supply Class: 5961
Packaging: Original Hewlett-Packard Service Packaging
Condition: New Old Stock

DESCRIPTION

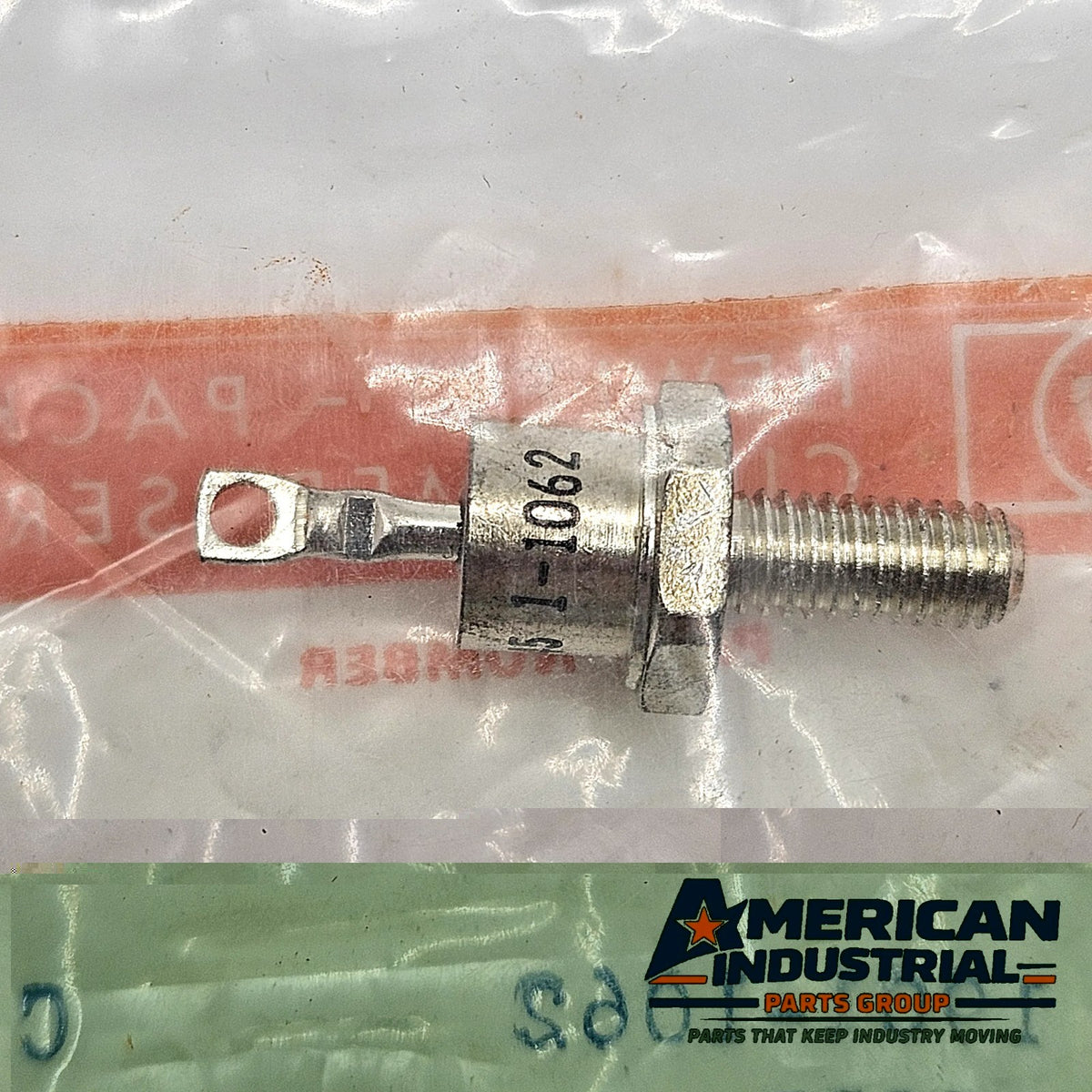

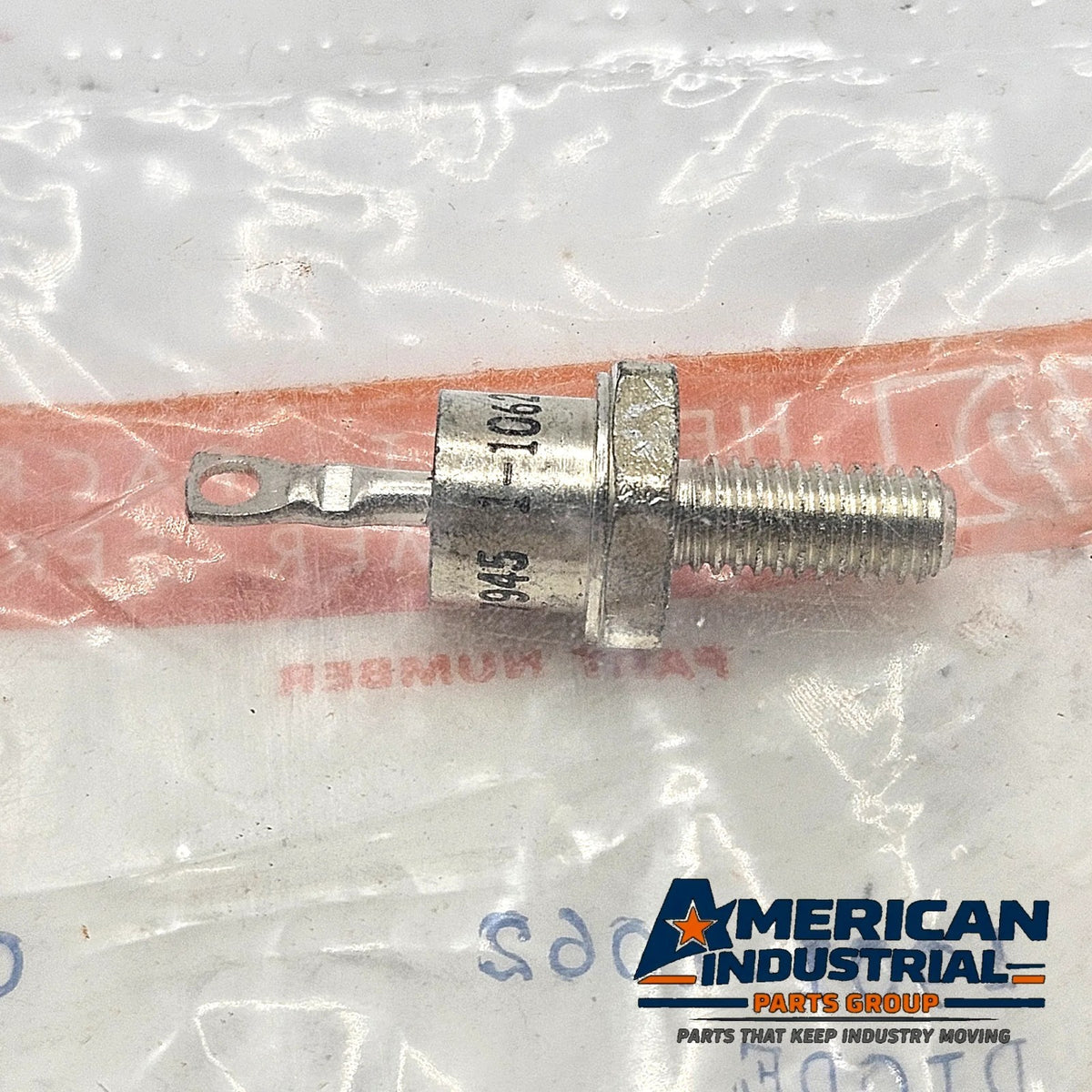

Hewlett-Packard 1901-1062 silicon stud-mount diode rated for a maximum average forward current of 25 amperes. This obsolete HP service component is identified under National Stock Number 5961-01-013-9353.

Features
Hewlett-Packard Part Number 1901-1062 25A Maximum Average Forward Current Silicon Semiconductor Construction Threaded Stud Mounting Solder-Lug Terminal Hermetically Sealed Case UNF Thread Series NSN 5961-01-013-9353 Original Hewlett-Packard Customer Service Packaging

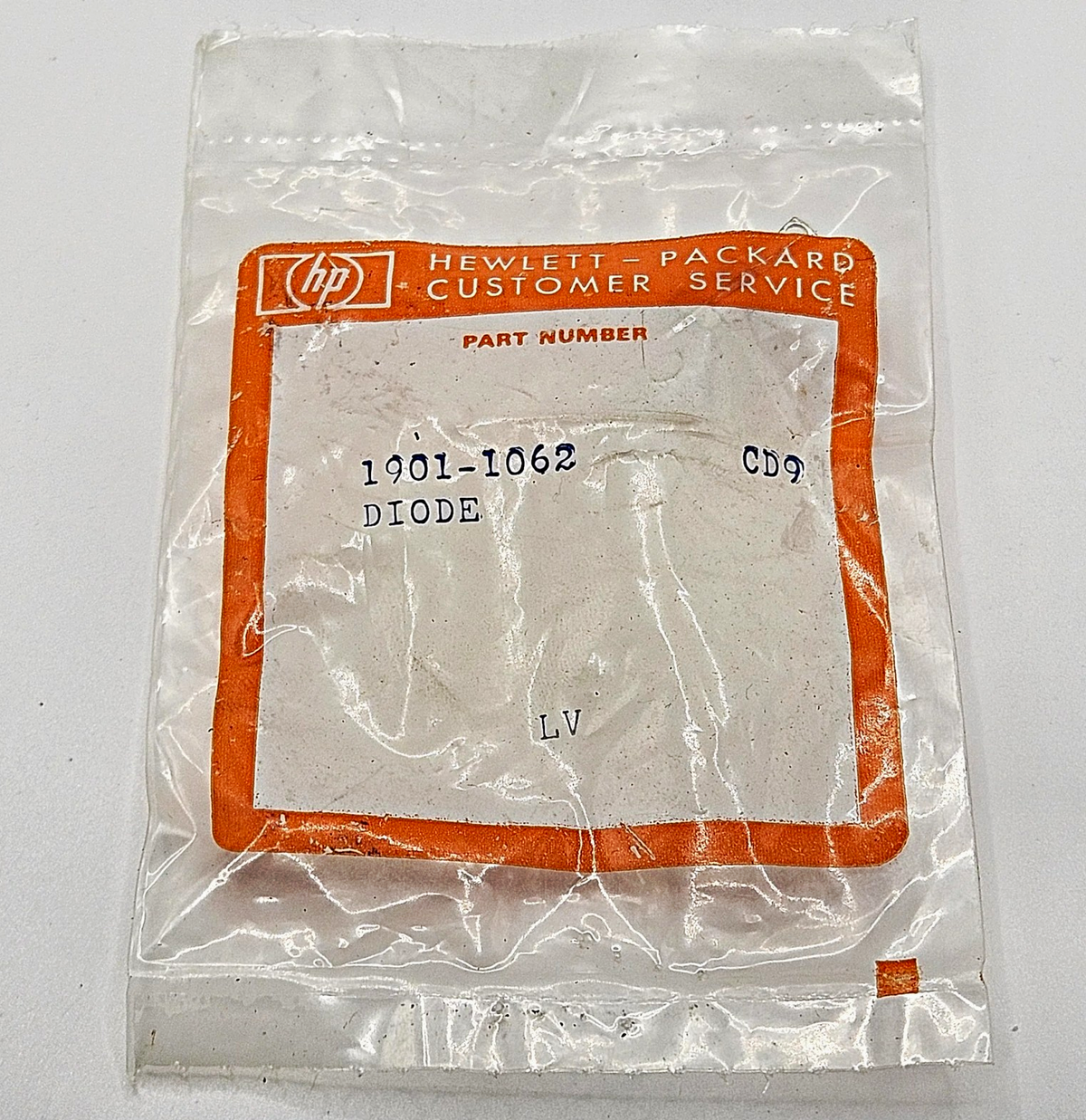

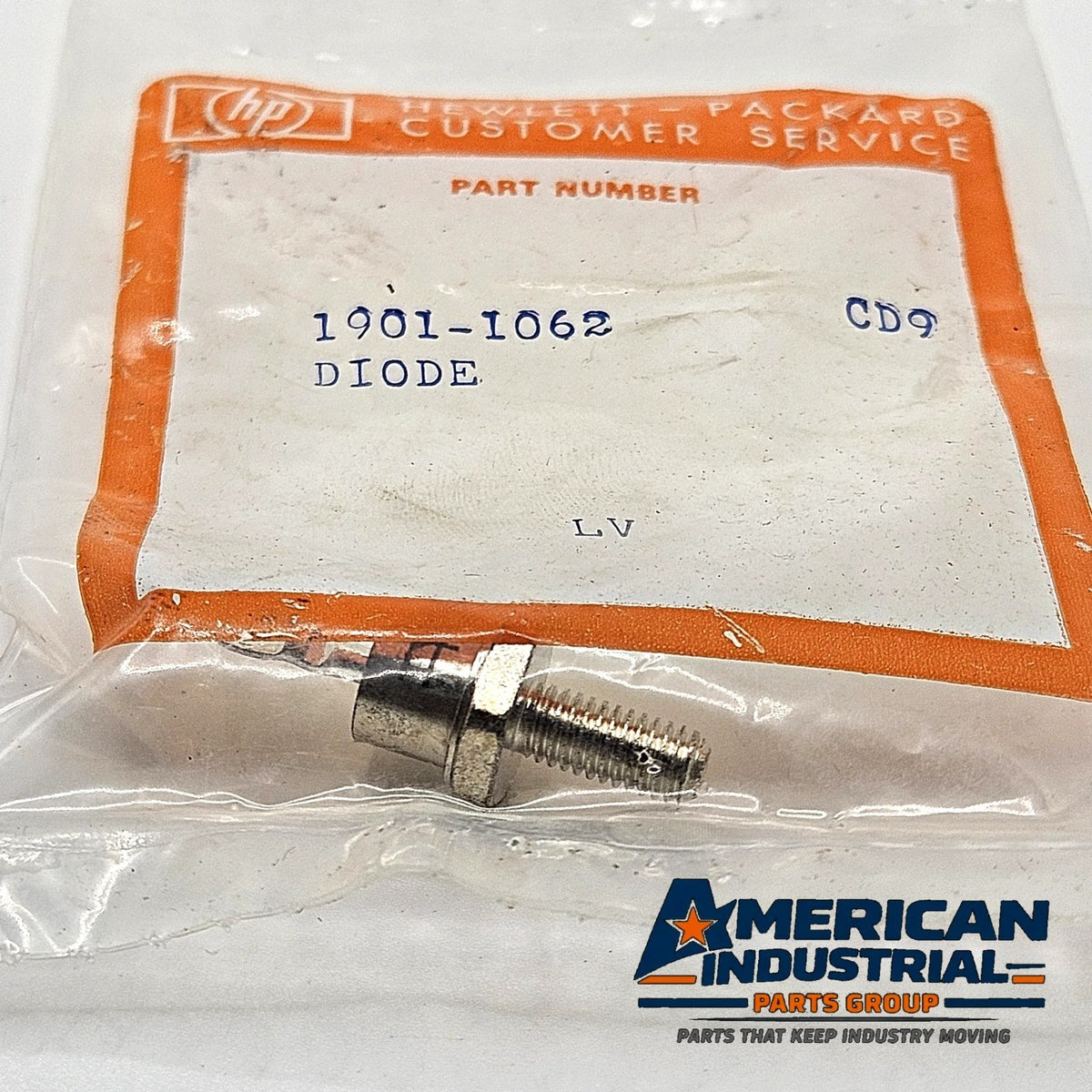

This component is new old stock and is supplied in its original HP service packaging as pictured. The packaging and component may show cosmetic aging, discoloration, or storage wear. Please review all photos carefully for the exact condition and markings.

DISCLAIMER
This item is new old stock from surplus inventory. It has not been installed or placed into service by us. Vintage electronic components should be inspected and tested by a qualified technician before installation, particularly in safety-critical applications. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.

LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Hewlett-Packard. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.

COMPATIBILITY & CROSS-REFERENCE
HP part number 1901-1062 is a house number: Hewlett-Packard assigned its own part numbers to the semiconductors used in its instruments, so the HP number — not a commercial type number — is what appears in HP service documentation and parts lists. This device is additionally catalogued in United States federal supply data under NSN 5961-01-013-9353, within Federal Supply Class 5961 (semiconductor devices and associated hardware), as a 25A silicon stud-mount rectifier in a hermetically sealed case with a threaded UNF stud and solder-lug terminal. When servicing HP instruments, match the HP part number first. If substituting a commercial stud rectifier, confirm reverse voltage, average forward current, stud thread size and polarity — stud diodes are supplied in both standard and reverse-polarity versions, where the stud is either the cathode or the anode.

Q&A
Q: What is HP part number 1901-1062? A: An HP house-numbered silicon stud-mount rectifier diode rated 25A maximum average forward current, catalogued under NSN 5961-01-013-9353.
Q: How does it mount? A: By a threaded UNF stud, with a solder-lug terminal for the opposite connection; the stud carries the heat into the chassis or heatsink.
Q: Is the original HP packaging included? A: Yes — the diode ships in its original Hewlett-Packard Customer Service packaging as pictured.

HP 1901-1062 Hewlett Packard 19011062 Diode Silicon Diode Stud Mount Diode Stud Diode 25A Diode 25 Amp Rectifier Semiconductor Device NSN 5961-01-013-9353 5961010139353 Hermetically Sealed Diode Solder Lug Diode Threaded Stud Diode Vintage HP Service Part Electronic Component Industrial Electronics Power Rectifier NOS New Old Stock Obsolete Replacement Part
