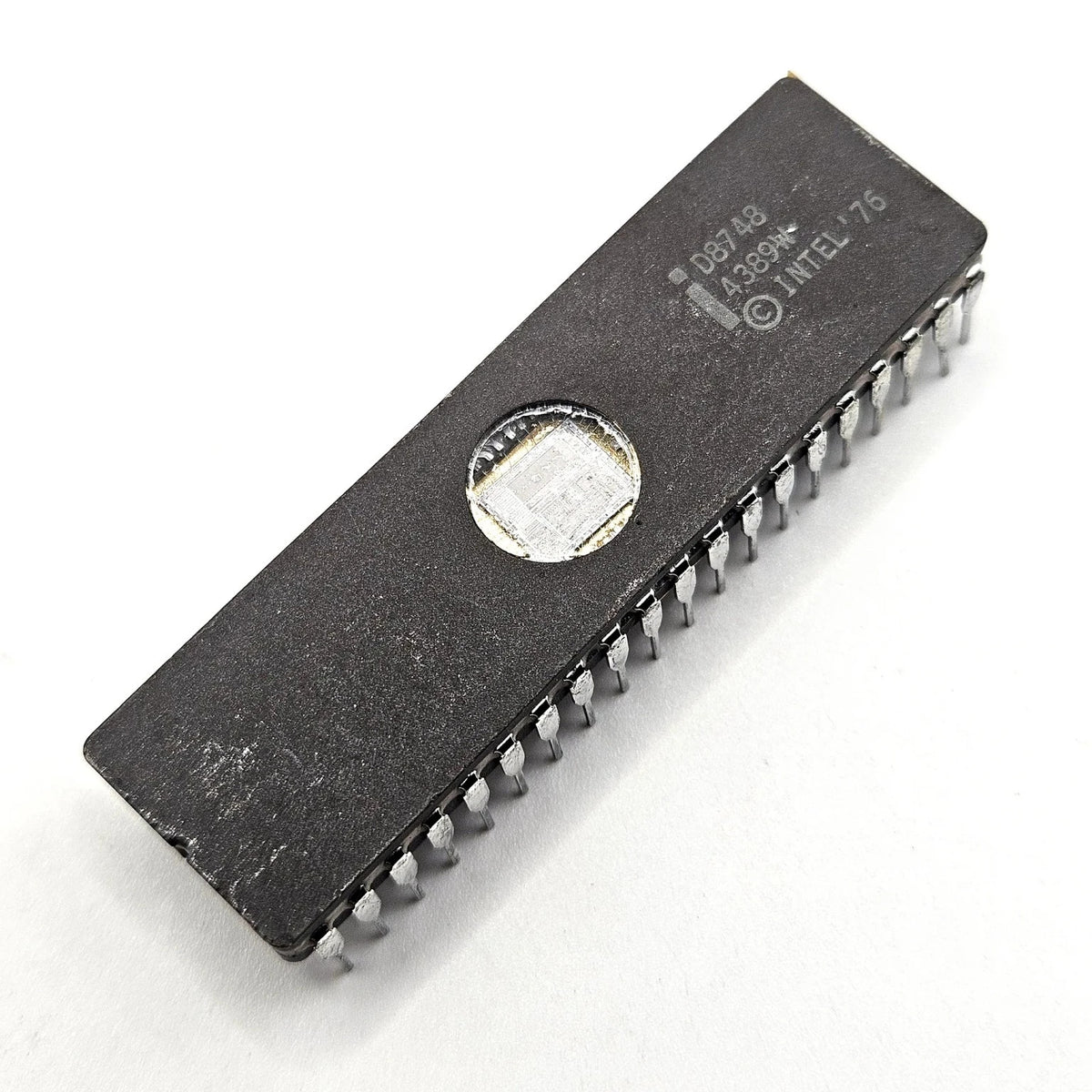

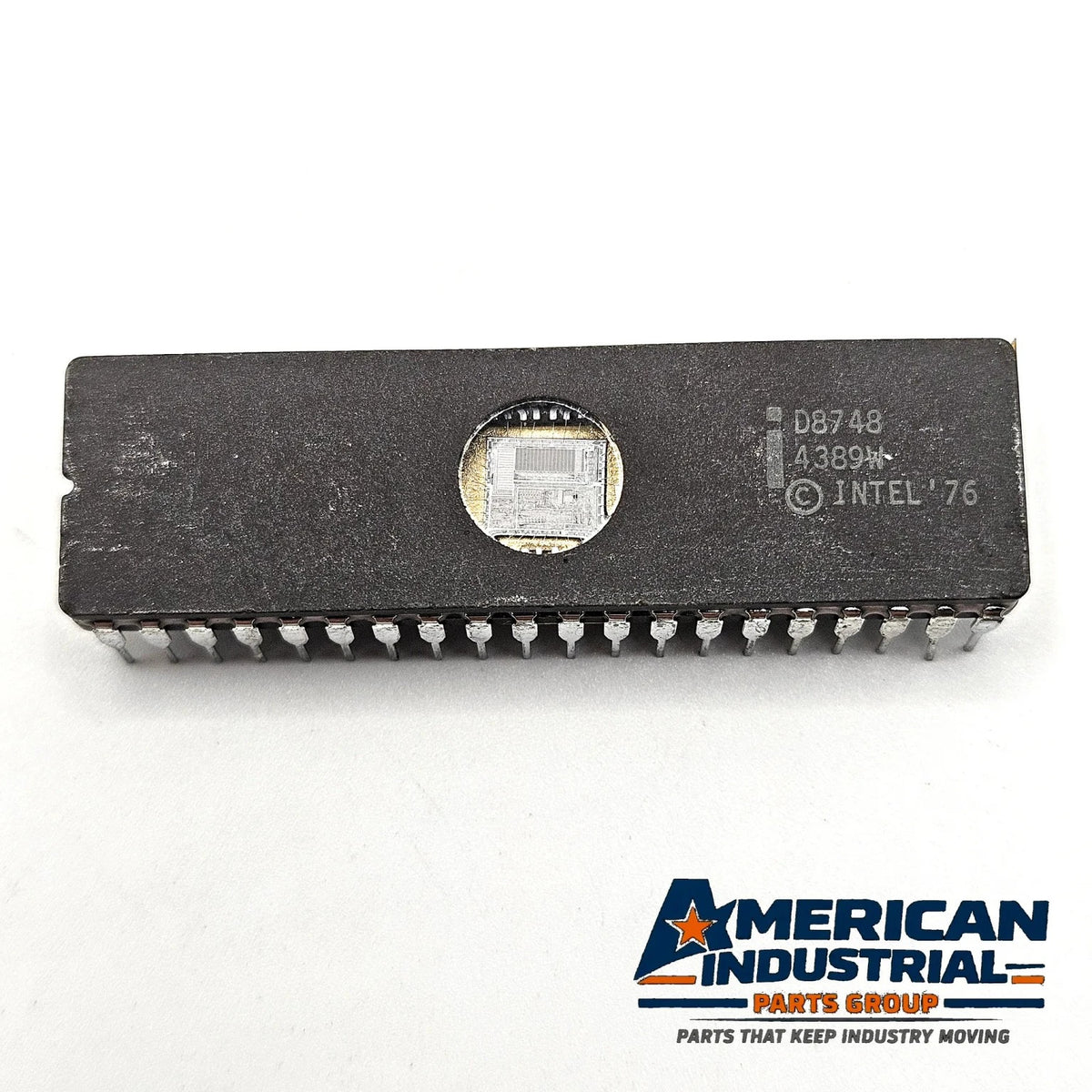

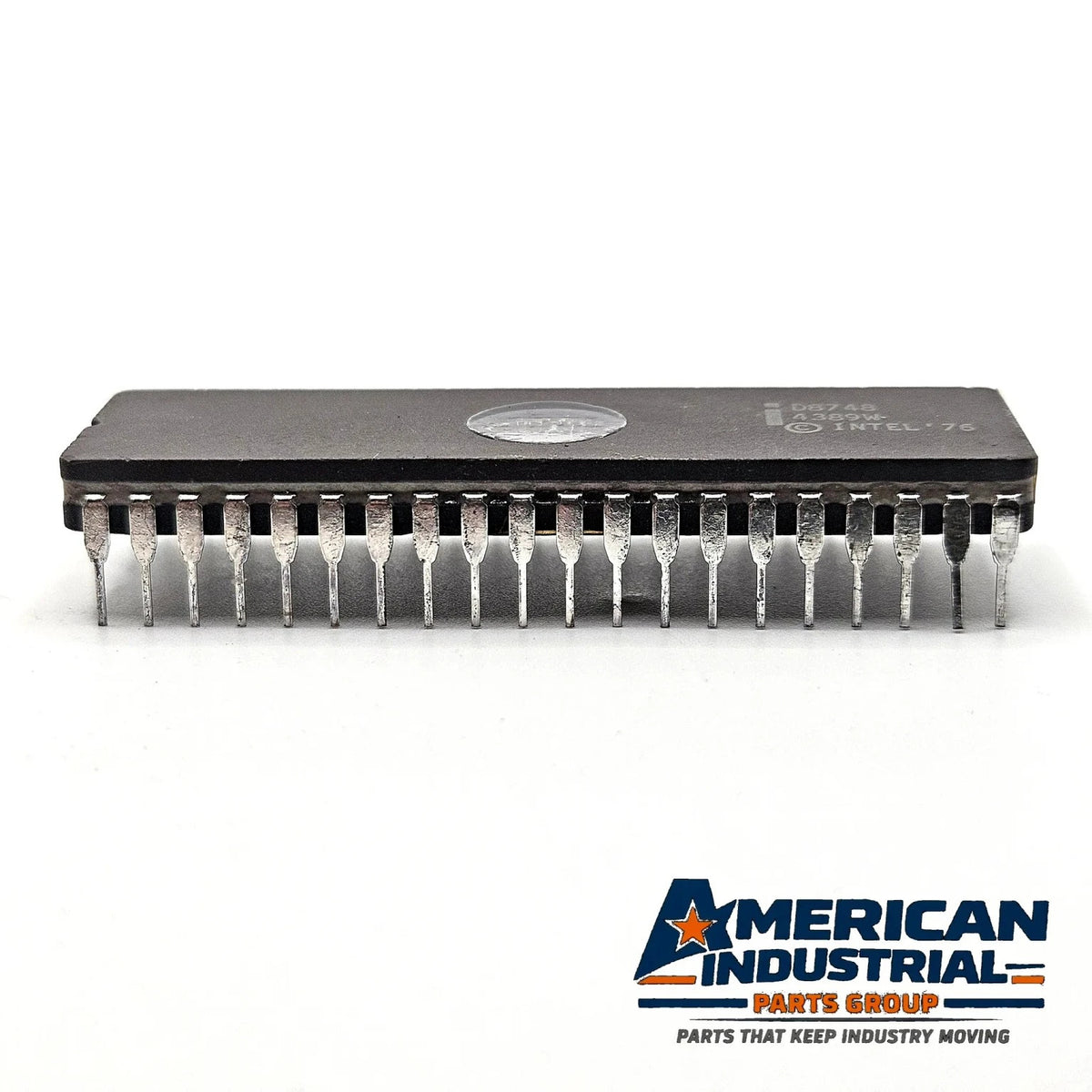

Intel D8748 MCS-48 8-Bit UV EPROM Microcontroller Ceramic DIP-40 NOS

ITEM SPECIFICS

Brand: Intel
MPN: D8748
Model: D8748
Series: MCS-48
Type: 8-Bit Microcontroller
Program Memory Type: UV-Erasable EPROM
Program Memory: 1K x 8
RAM: 64 x 8
I/O Lines: 27
Timer: 8-Bit Timer/Event Counter
Supply Voltage: 5 V
Package: Ceramic DIP-40
Number of Pins: 40
Mounting Style: Through-Hole
Technology: NMOS
Condition: New Old Stock
Visible Markings: D8748 / 4389M / © INTEL '76
Country Marking: Malaysia

DESCRIPTION

Vintage Intel D8748 MCS-48 8-bit microcontroller from new old stock inventory.

The D8748 combines an 8-bit CPU, user-programmable and UV-erasable EPROM program memory, RAM, I/O capability, and an internal timer/event counter in a single 40-pin ceramic DIP package.

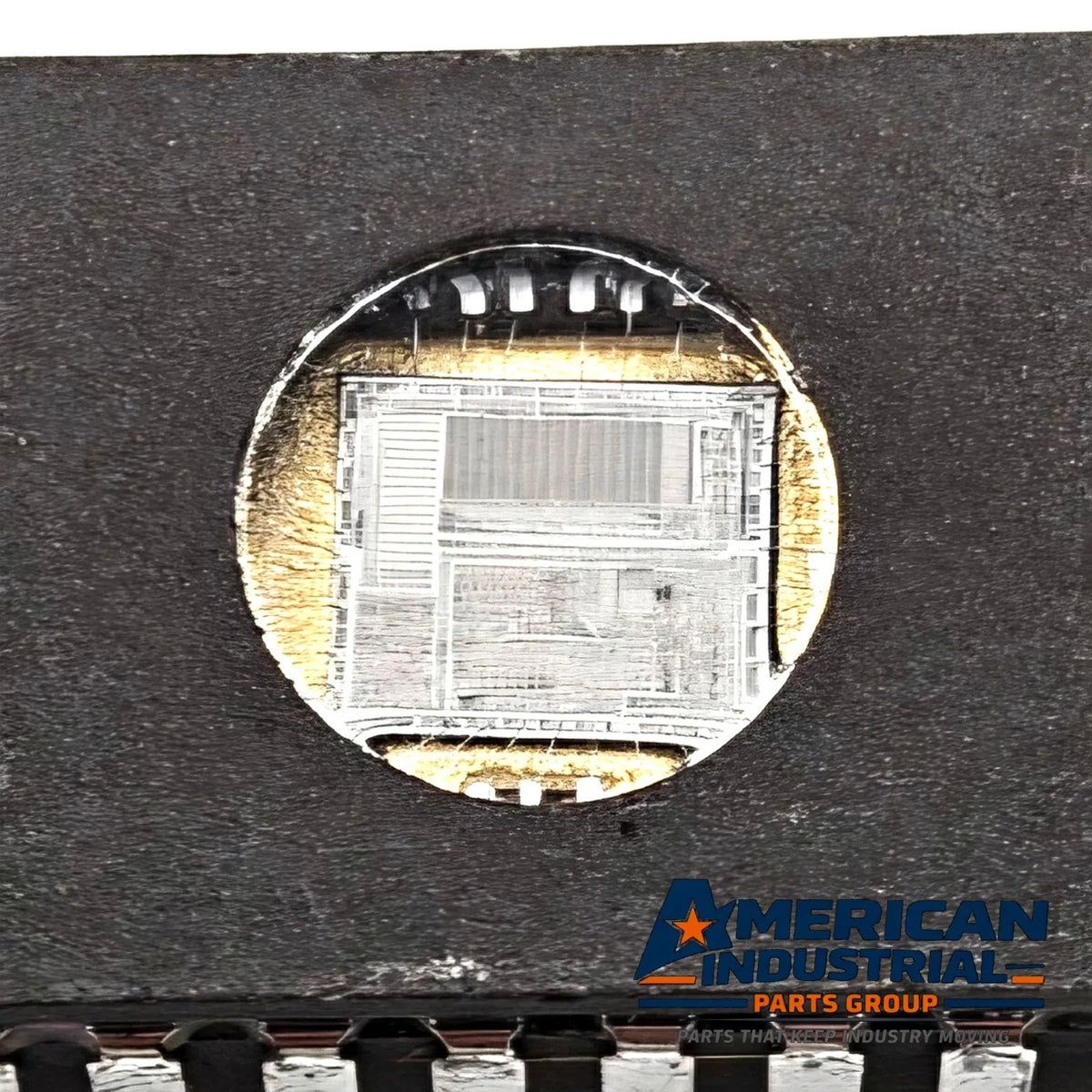

The ceramic package includes the characteristic quartz EPROM erase window, allowing the internal program memory to be erased using ultraviolet light and reprogrammed with compatible programming equipment.

• Genuine Intel D8748
• MCS-48 microcontroller family
• 8-bit CPU architecture
• 1K x 8 UV-erasable EPROM
• 64 x 8 RAM
• 27 I/O lines
• 8-bit timer/event counter
• Single +5 V supply
• 40-pin ceramic DIP package
• UV erase window
• Through-hole mounting
• Vintage obsolete semiconductor
• New old stock

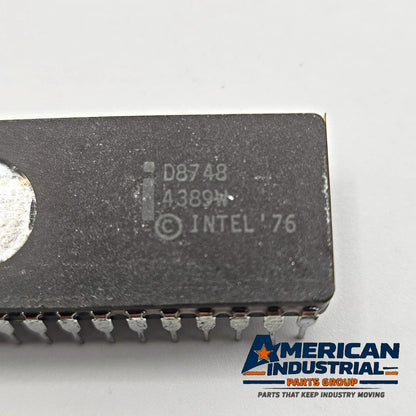

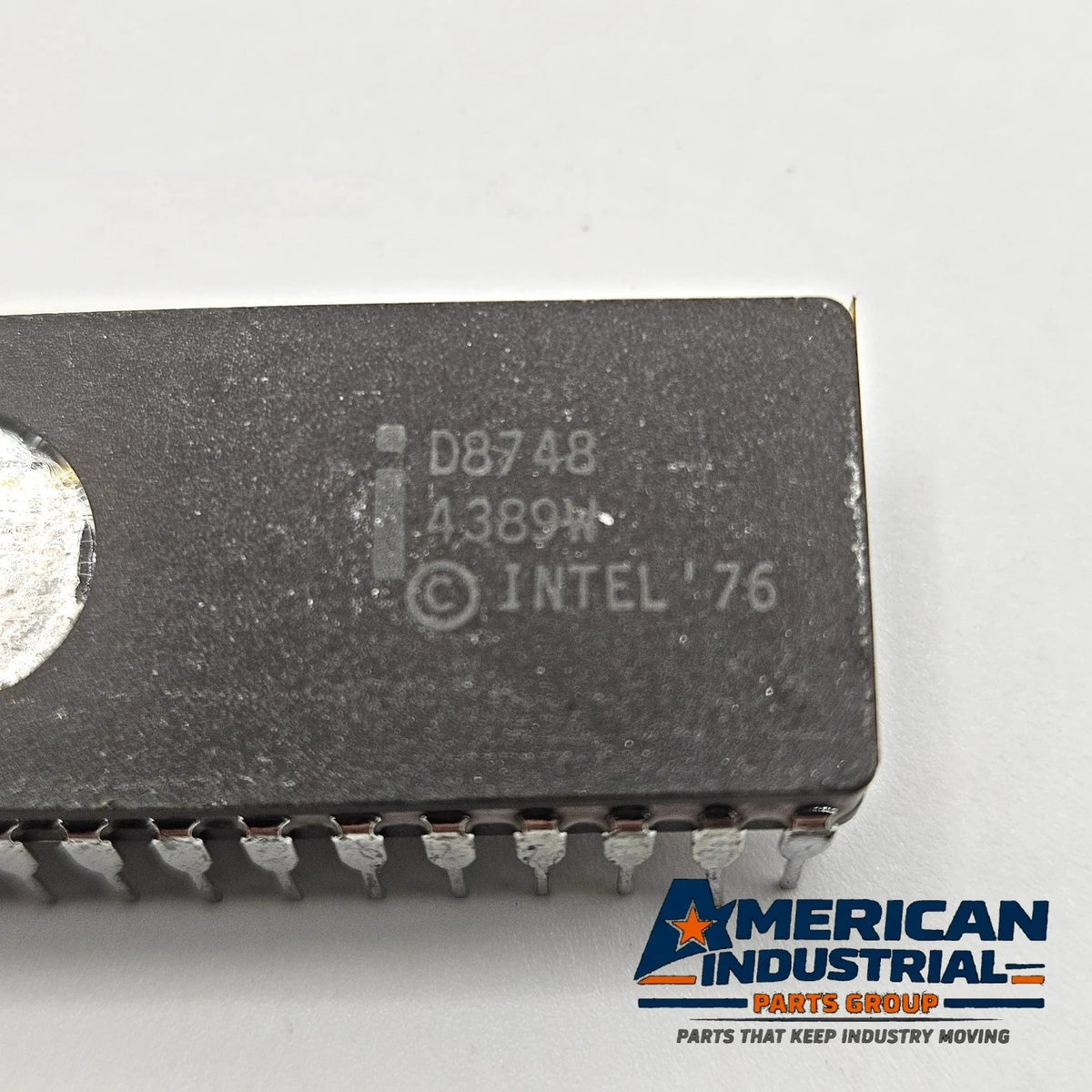

The visible © INTEL '76 marking identifies the Intel copyright/design generation and should not be interpreted as the manufacturing date of this specific component.

Component has not been electrically tested or programmed by American Industrial Parts Group. Buyer should verify programming state, electrical requirements, and compatibility before installation.

COMPATIBILITY & CROSS-REFERENCE

The Intel D8748 is the UV-erasable EPROM member of the MCS-48 microcontroller family, in a 40-pin ceramic DIP. The component has not been tested or programmed, so verify the programming state, electrical requirements, and compatibility before installation.

Q: What memory does the D8748 have?
A: 1K x 8 UV-erasable EPROM program memory and 64 x 8 RAM.

Q: What I/O does it have?
A: 27 I/O lines and an 8-bit timer/event counter.

Q: What package is it?
A: 40-pin ceramic DIP with a UV erase window.
