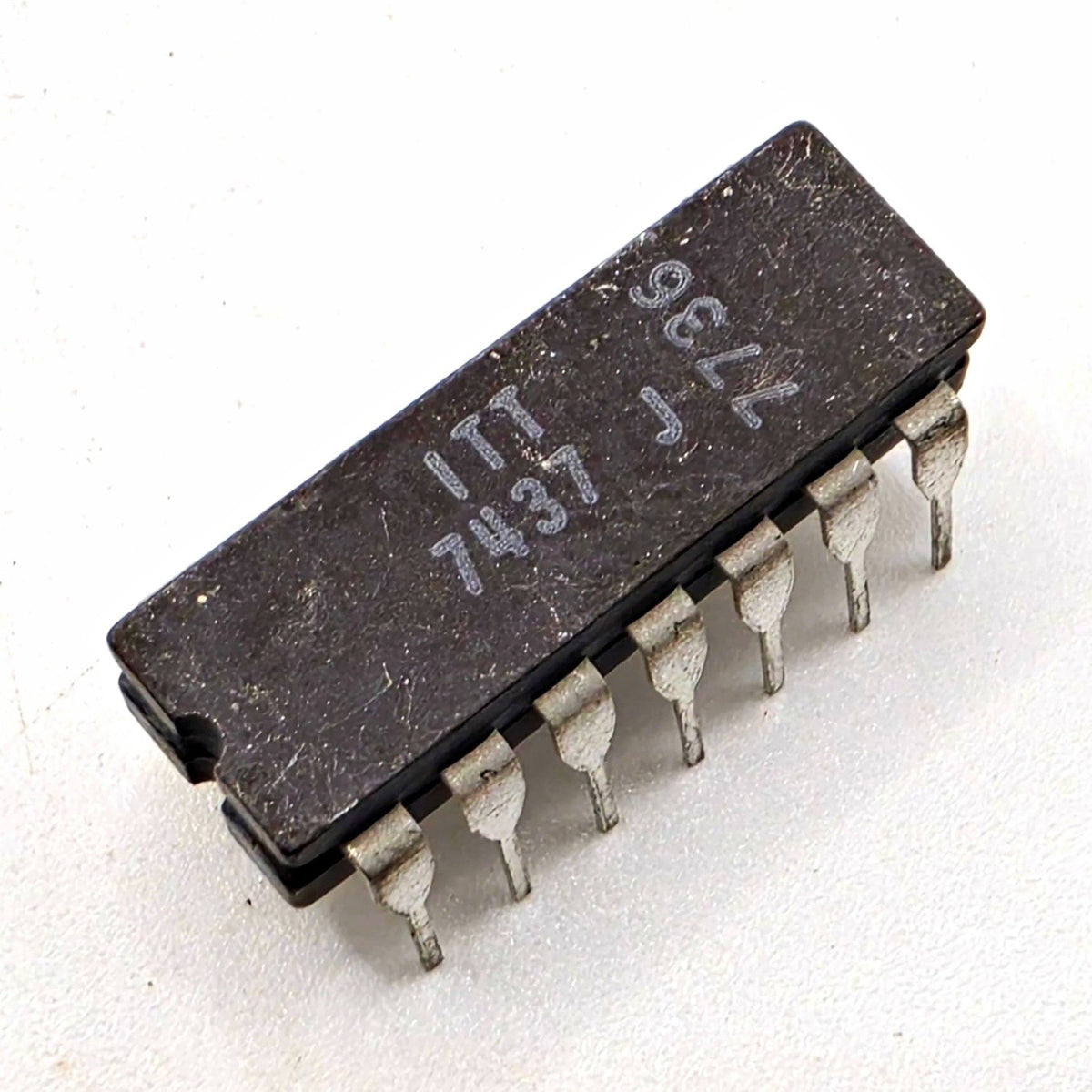

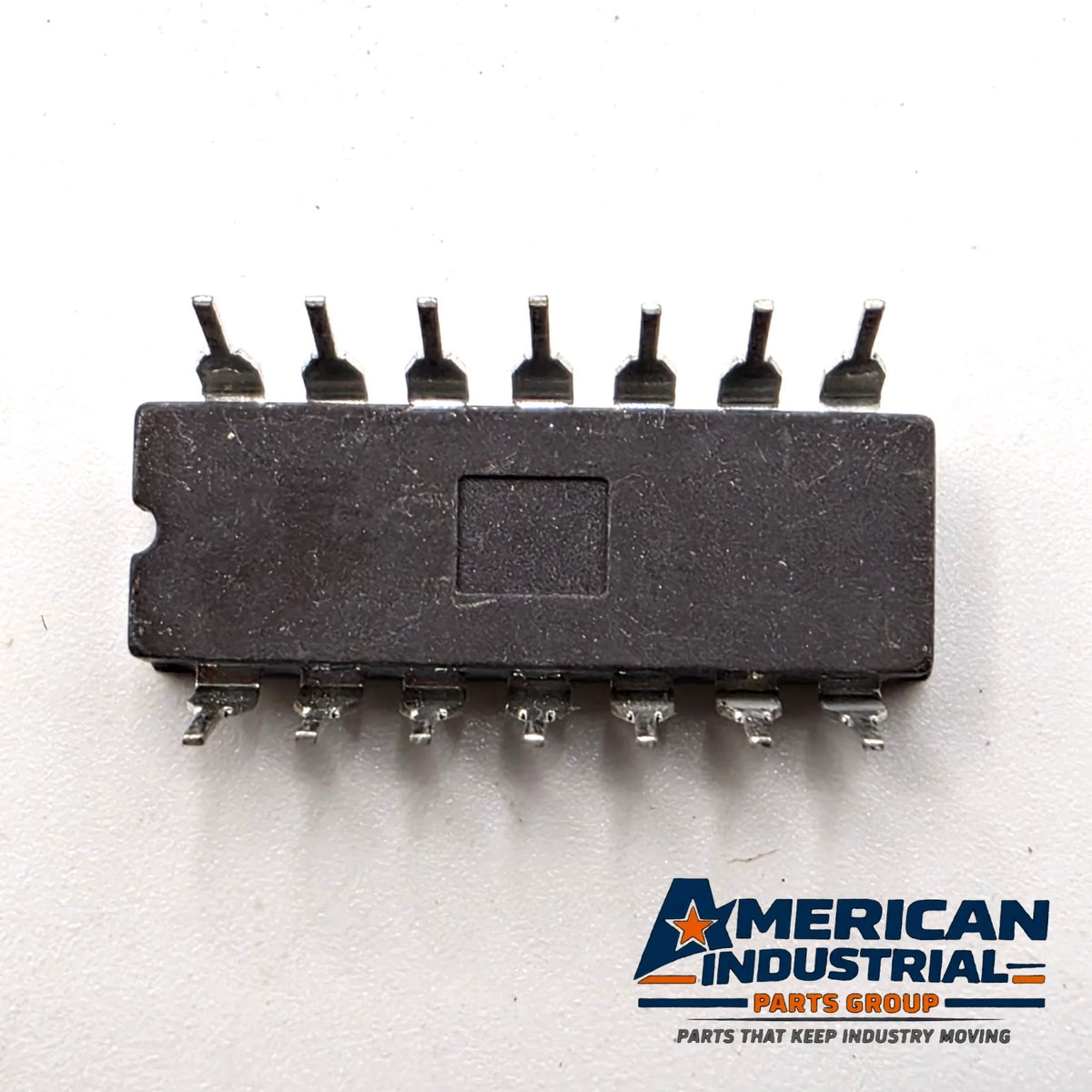

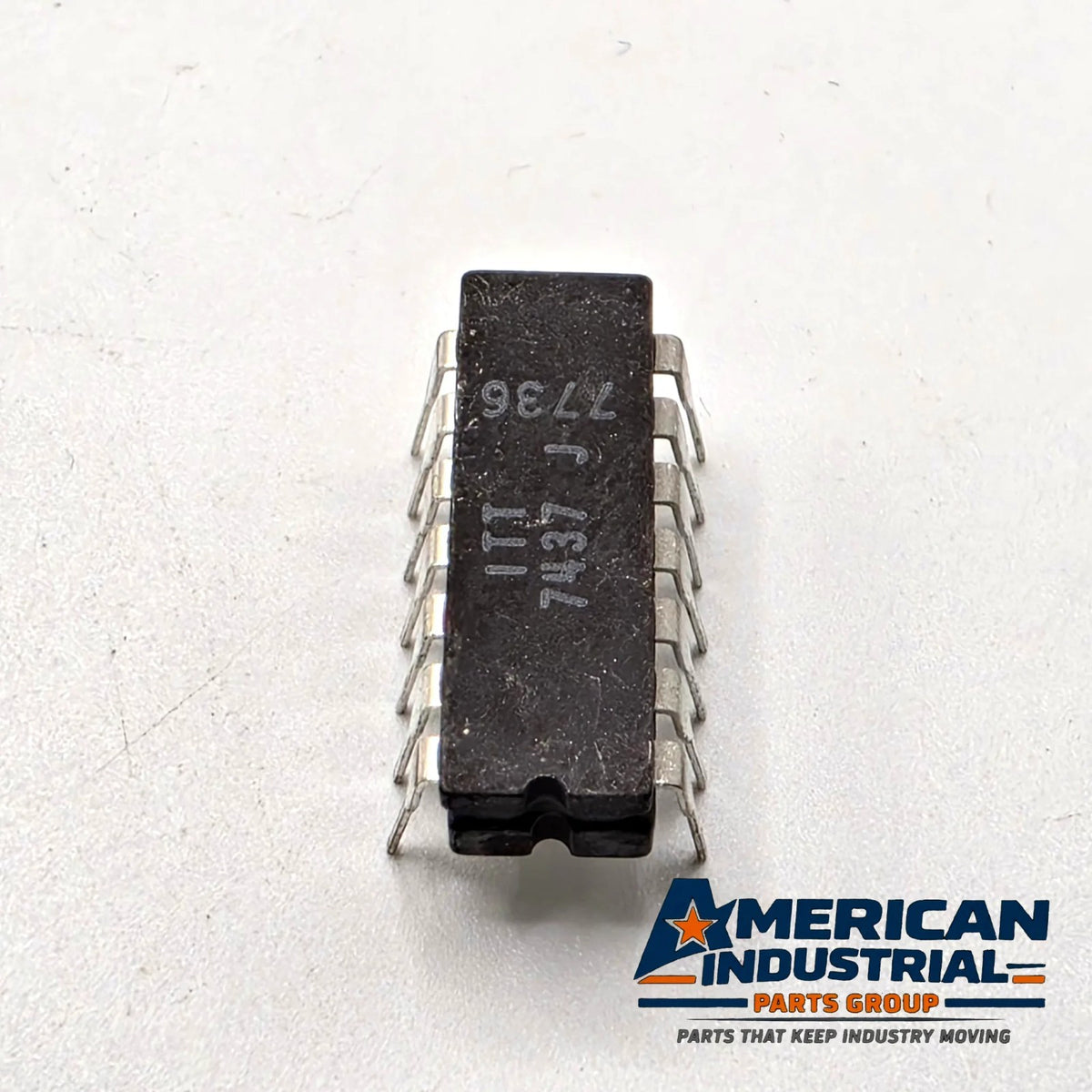

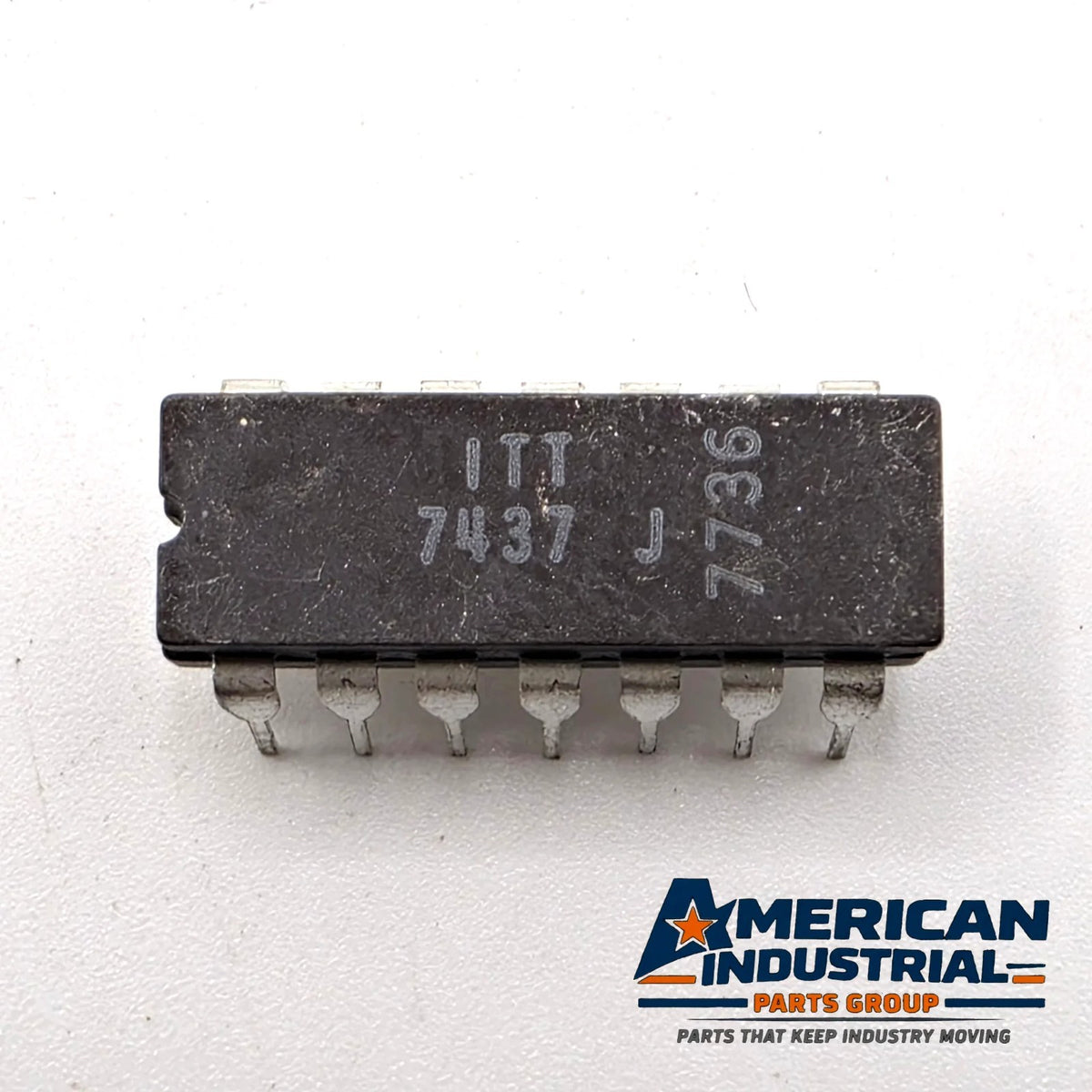

ITT 7437J Quad 2-Input NAND Buffer TTL IC 14-Pin Ceramic DIP 1977 New
ITT 7437J Quad 2-Input NAND Buffer TTL IC 14-Pin Ceramic DIP 1977 New
Regular price
$5.99 USD
Regular price
Sale price
$5.99 USD
Shipping calculated at checkout.
10 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: ITT
MPN: 7437J
Model: 7437
Type: Quad 2-Input Positive-NAND Buffer
Logic Family: TTL (Standard 74 Series)
Number of Gates: 4
Inputs per Gate: 2
Package / Case: 14-Pin Ceramic DIP
Mounting: Through Hole
Date Code: 7736 (1977, week 36)
Condition: New
DESCRIPTION
This is a vintage ITT 7437 quad 2-input NAND buffer, a standard 74-series TTL logic device, in a 14-pin ceramic DIP. It contains four independent 2-input NAND gates with buffered outputs. The 7437 is the buffer (higher output drive) version of the 7400 quad 2-input NAND gate, used to drive heavier loads and bus lines.
Features:
Four independent 2-input NAND gates (Y = NOT(AยทB))
Buffered outputs with higher drive than the standard 7400
Standard TTL logic levels
14-pin ceramic DIP
Markings: "ITT", "7437 J" and "7736"
Date code 7736: 1977, week 36
Unused; light surface scuffs on the package
Compatibility:
Direct replacement for the ITT 7437J. Functionally equivalent to the SN7437, DM7437 and N7437 quad 2-input NAND buffers from Texas Instruments, National and Signetics. Pin-compatible with the 7400 pinout, with higher output drive.
Q&A
Q: What is the difference between a 7437 and a 7400?
A: Both are quad 2-input NAND gates with the same pinout. The 7437 is a buffer version with higher output drive, for driving heavier loads.
Q: When was it made?
A: The date code 7736 indicates 1977, week 36.
Q: Is it tested?
A: The item is sold as pictured. It has not been tested.
DISCLAIMER
Item is sold as pictured. Please review all photos carefully and compare part numbers before purchasing. Vintage stock with light surface scuffs.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of ITT or any other manufacturer listed. All product names, trademarks, brands, and logos are the property of their respective owners and are used for identification purposes only. As an independent reseller, the original manufacturer warranty does not apply.
7437J, 7437, ITT 7437, SN7437, DM7437, N7437, 7437 NAND buffer, quad 2-input NAND buffer, nand gate ic, ic nand gate, TTL NAND gate, 7400 series logic, ceramic DIP TTL, vintage ITT IC, 1977 IC, obsolete TTL chip
Thank you for shopping with American Industrial Parts Group!
