Keyence LV-22A Digital Laser Sensor Amplifier Expansion Unit NPN Used

ITEM SPECIFICS

Brand: Keyence

Model: LV-22A

MPN: LV-22A

Series: Keyence LV Series

Type: Digital Laser Sensor Amplifier

Unit Type: Expansion Unit

Expansion Type: 1-Line Expansion Unit

Output Type: NPN

Control Output: NPN Open-Collector

Number of Output Channels: 2

Maximum Output Voltage: 40 VDC

Maximum Output Current: 100 mA

Maximum Residual Voltage: 1.0 V

Response Speed – Fine Mode: 80 µs

Response Speed – Turbo Mode: 500 µs

Response Speed – Super Turbo Mode: 4 ms

Power Voltage: 12–24 VDC, supplied through the connected main amplifier unit

Power Consumption: 1.5 W Maximum

Expansion Capacity: Up to 7 Expansion Units / 8 Total Units Including Main Unit

Ambient Temperature: -10°C to 55°C

Relative Humidity: 35% to 85% RH, Non-Condensing

Housing Material: Polycarbonate

Approximate Weight: 75 g

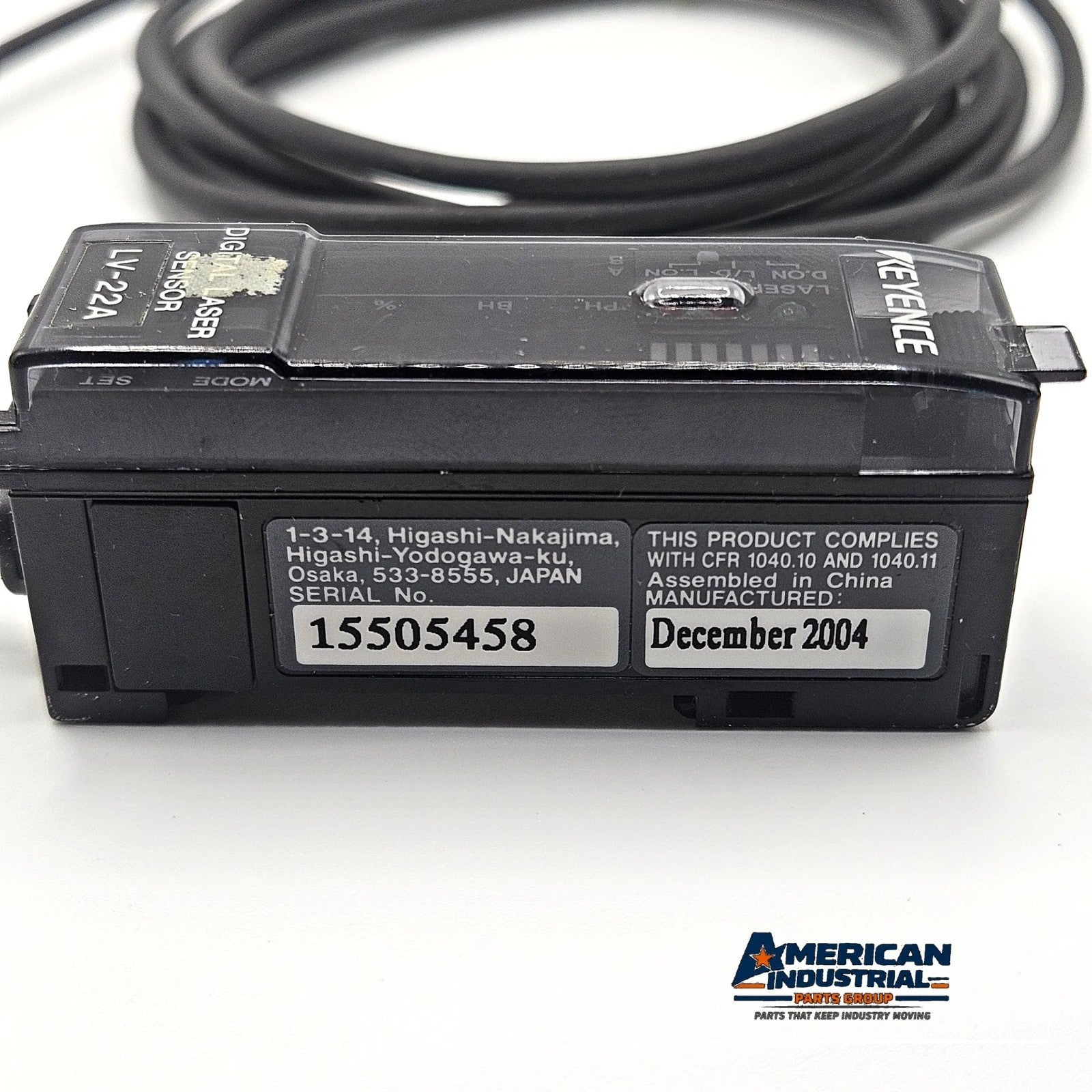

Manufactured: December 2004

Serial Number: 15505458

Assembly Location: China, Per Product Label

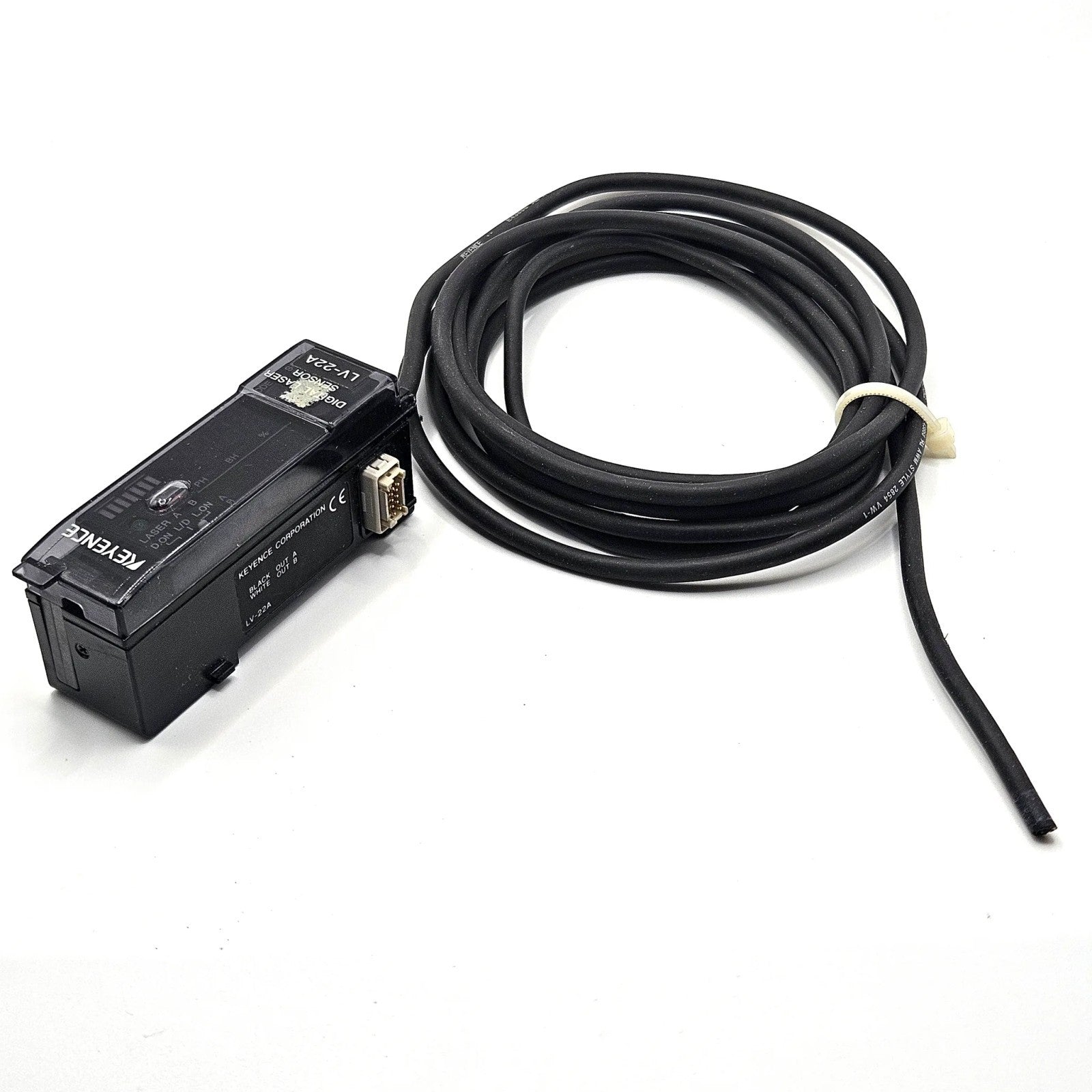

Cable: Attached Cable with Cut/Open End as Shown

Condition: Used

Specifications were verified through Keyence’s official LV-22A documentation.

DESCRIPTION

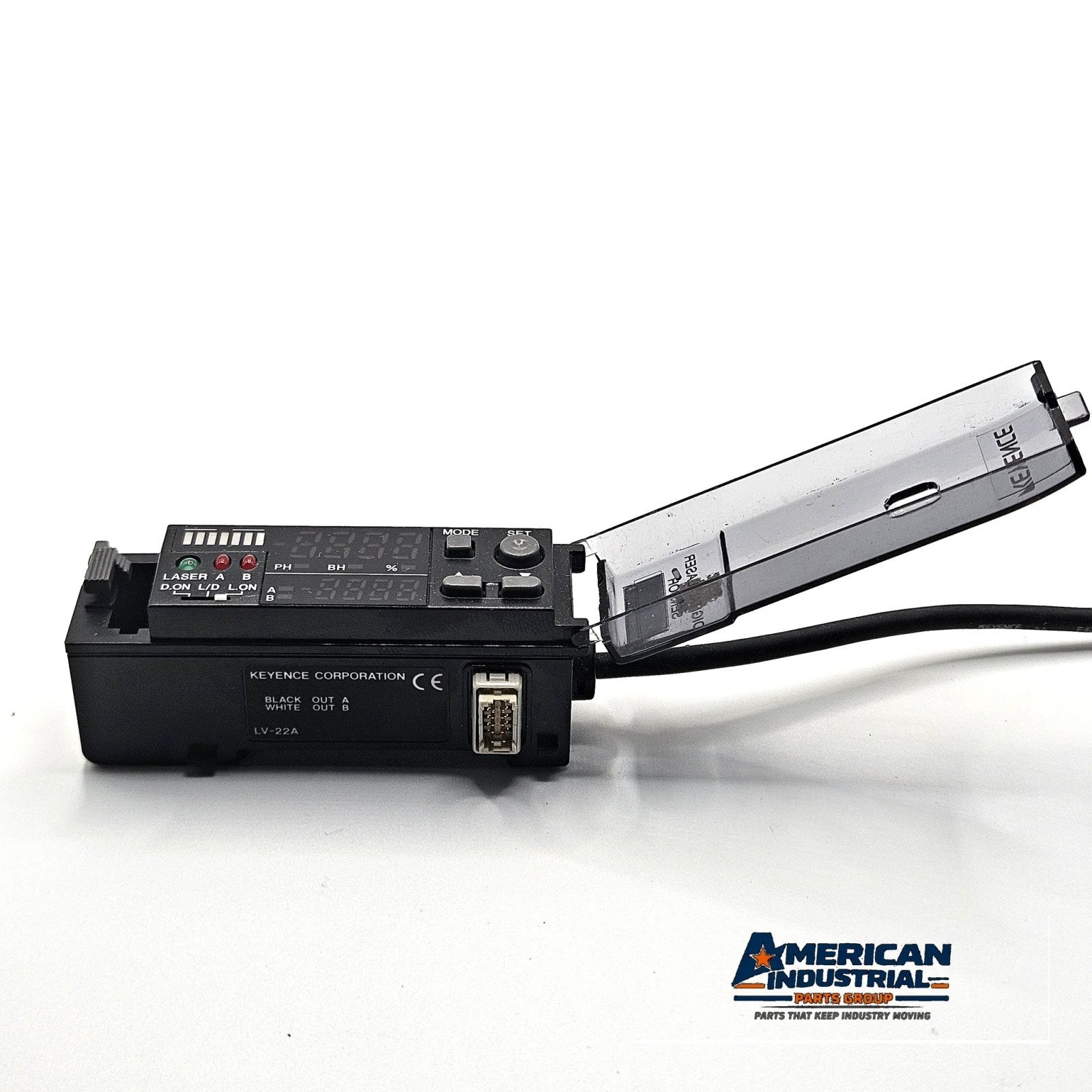

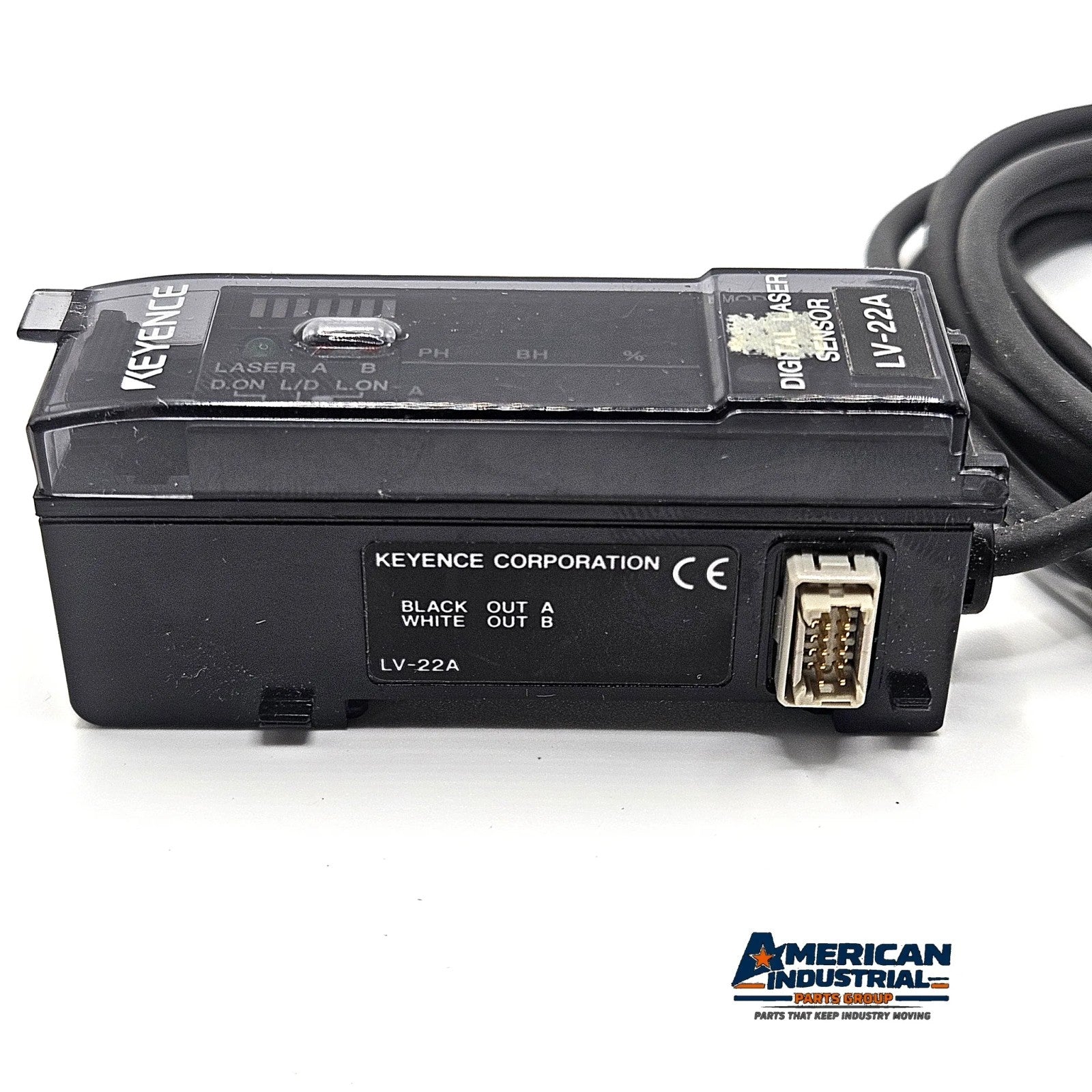

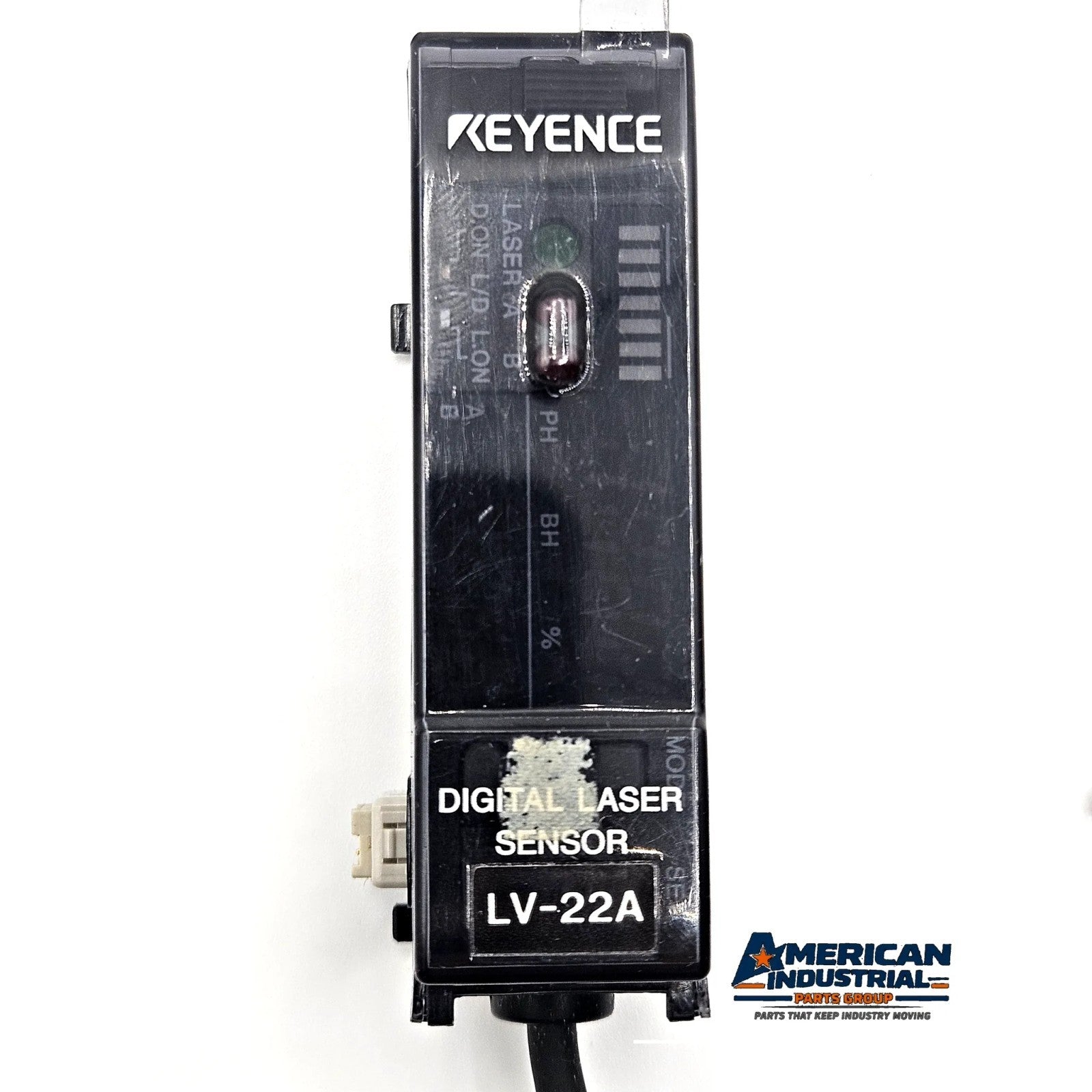

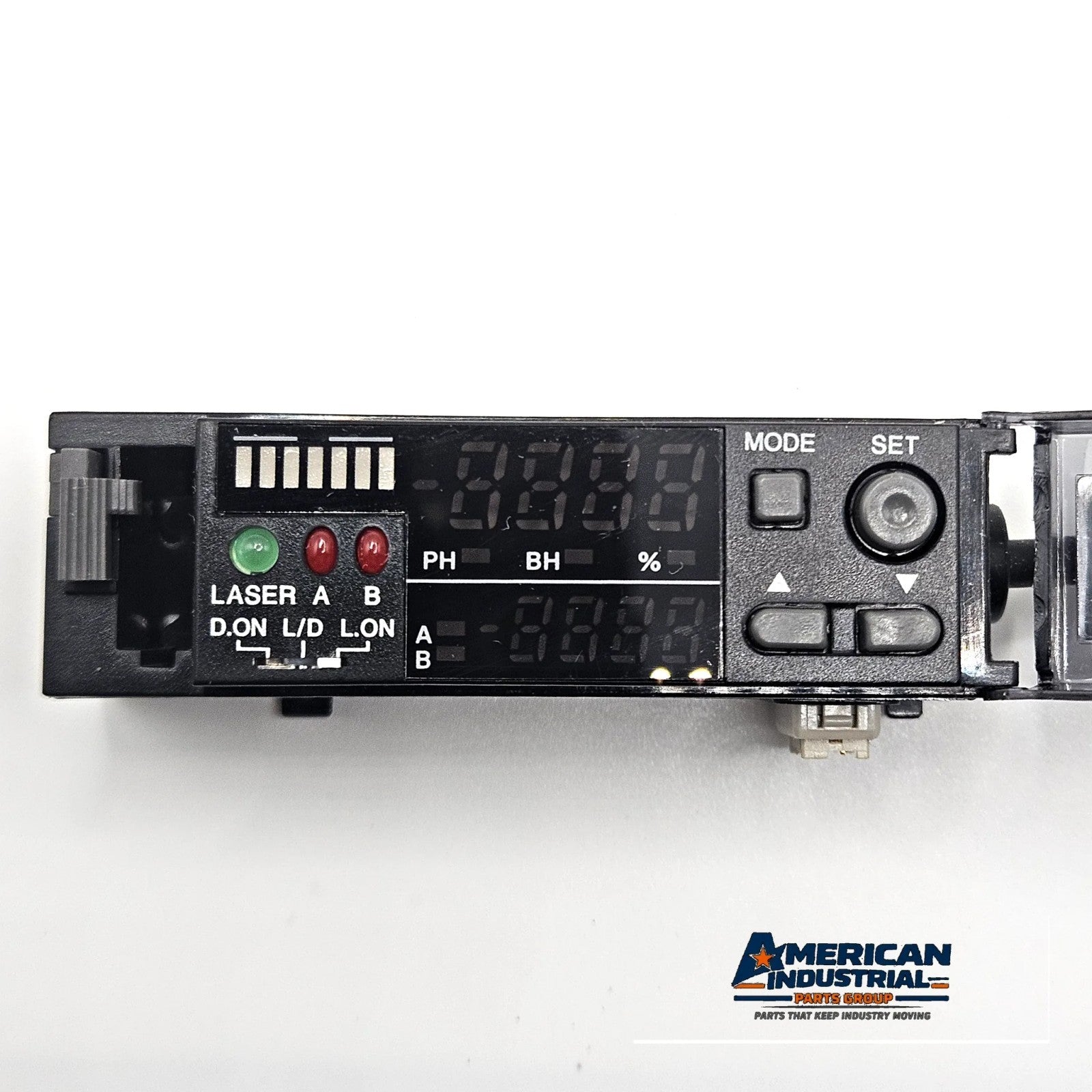

Used Keyence LV-22A digital laser sensor amplifier expansion unit for the Keyence LV Series.

The LV-22A is a one-line expansion amplifier with two NPN open-collector control outputs. It receives its 12–24 VDC operating power through a compatible LV Series main amplifier and supports multi-unit laser detection systems.

The unit shows cosmetic wear, surface scratches and label residue from previous use. The attached cable has a cut/open end. Includes only the Keyence LV-22A and attached cable shown in the photographs.
