Lot of 10 Cinch 50-30H-30 Card Edge Connectors 30 Contact Solder Eyelet NOS

ITEM SPECIFICS
Brand: Cinch Connectivity Solutions
Model: 50-30H-30
MPN: 50-30H-30
Series: CARDCON
Type: Card Edge Connector Receptacle
Connector Style: Double Readout
Number of Positions: 15
Number of Contacts: 30
Number of Rows: 2
Contact Spacing: 0.156 in (3.96 mm)
Row Spacing: 0.200 in (5.08 mm)
Termination Type: Solder Eyelet
Compatible PCB Thickness: 0.062 in (1.59 mm)
Mounting Hole Diameter: 0.128 in (3.25 mm)
Current Rating: 5A
Dielectric Withstanding Voltage: 1800 VAC RMS at Sea Level
Contact Resistance: 10 Milliohms Maximum
Insulation Resistance: 5000 Megohms Minimum
Contact Material: Phosphor Bronze
Contact Plating: Selective Gold Over Copper
Insulator Material: Green Diallyl Phthalate
Operating Temperature: -65°C to +125°C

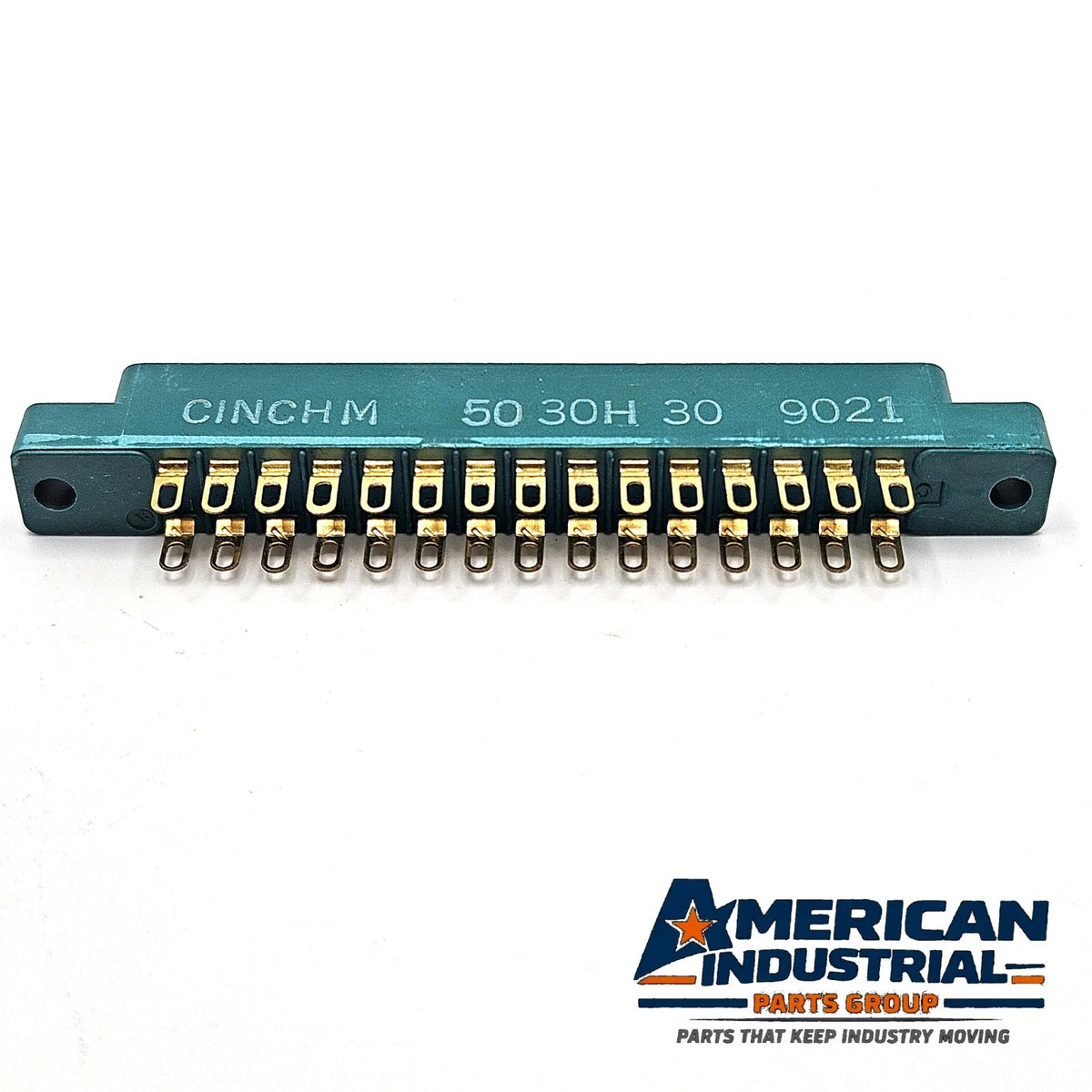

Additional Marking: 9021
Quantity Included: 10
Condition: New Old Stock (NOS)

DESCRIPTION
Lot of ten Cinch Connectivity Solutions 50-30H-30 high-reliability card-edge connector receptacles. Each connector features 15 positions, 30 contacts, double-readout construction, and solder-eyelet terminations.

Features:
Lot of 10 Connectors
Cinch MPN 50-30H-30
15 Positions / 30 Contacts Each
Two Contact Rows
Double-Readout Configuration
0.156-Inch Contact Spacing
0.200-Inch Row Spacing
Solder-Eyelet Terminations
0.128-Inch Mounting Holes
Accepts 0.062-Inch-Thick Single- or Double-Sided PC Boards
Bifurcated Bellows Contacts
Gold-Plated Phosphor-Bronze Contacts
Green Diallyl-Phthalate Insulator
5-Amp Current Rating

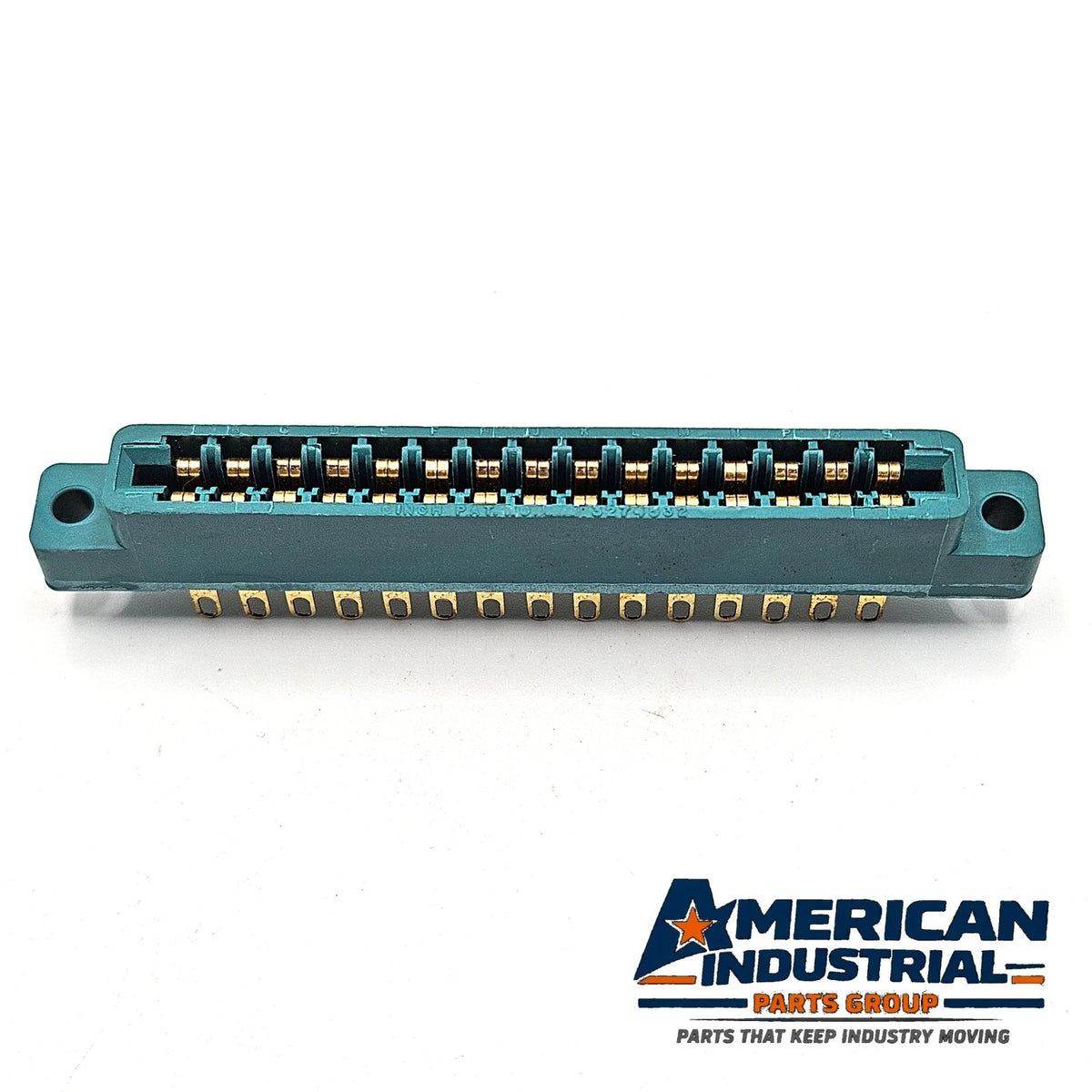

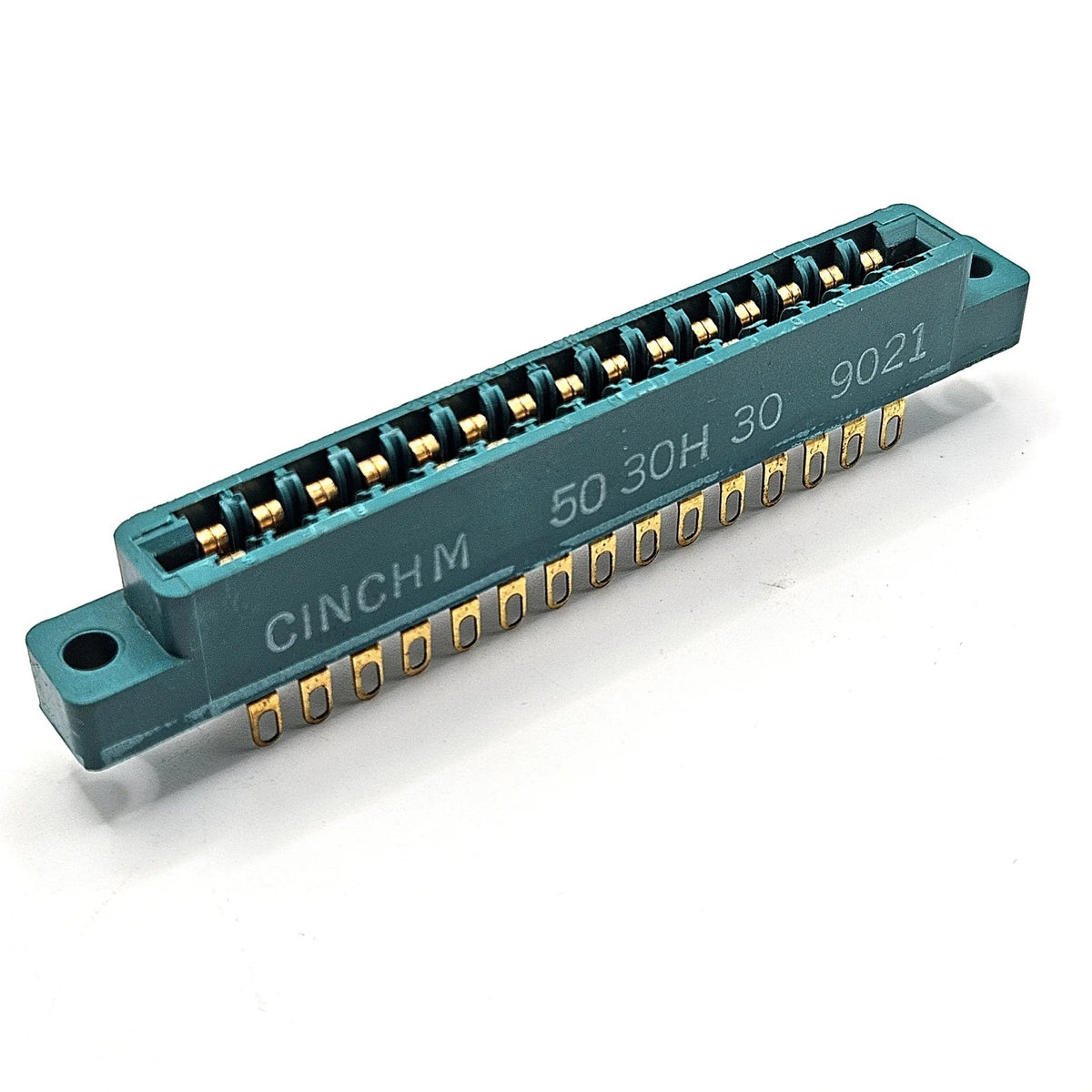

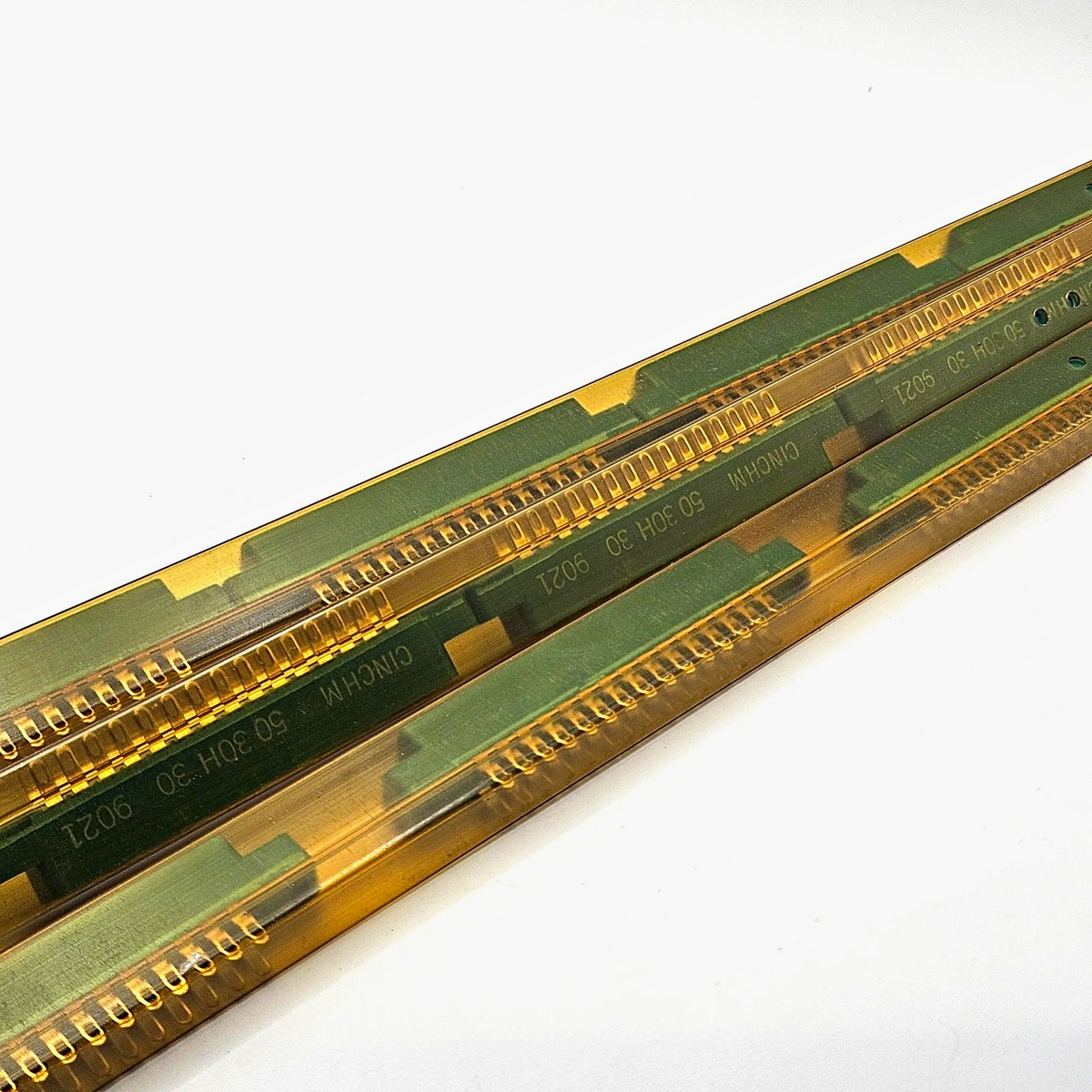

These connectors are New Old Stock from long-term storage. No original manufacturer packaging is included. Units may show minor cosmetic or shelf wear from storage and handling. They have not been electrically tested. Please review all photographs for the construction, condition, and markings shown.

COMPATIBILITY & CROSS-REFERENCE
The Cinch 50-30H-30 is a CARDCON double-readout card-edge connector with 15 positions / 30 contacts, 0.156 in contact spacing, and solder eyelet terminations, for 0.062 in PC boards. Verify board thickness, contact spacing, and keying before ordering.

Q: How many positions and contacts does each connector have?
A: 15 positions and 30 contacts, in two rows.

Q: What board thickness does it accept?
A: 0.062 in (1.59 mm) single- or double-sided PC boards.

Q: How many are included?
A: Lot of 10 Cinch 50-30H-30 connectors.
