Lot of 10 ECG128 NPN Silicon Transistor 2N3568 AF Preamp Driver Gold Leads NOS
Lot of 10 ECG128 NPN Silicon Transistor 2N3568 AF Preamp Driver Gold Leads NOS
Regular price
$39.95 USD
Regular price
Sale price
$39.95 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: ECG
MPN: ECG128
Cross Reference: 2N3568 (per bin label)
Type: Bipolar Junction Transistor (BJT)
Polarity: NPN
Material: Silicon
Application: AF Preamp, Driver, Video Amp (per bin label)
Package: 3-lead epoxy body (TO-105 style)
Lead Finish: Gold-plated
Mounting: Through-Hole
Number of Pins: 3
Quantity: 10
Condition: New (New Old Stock)

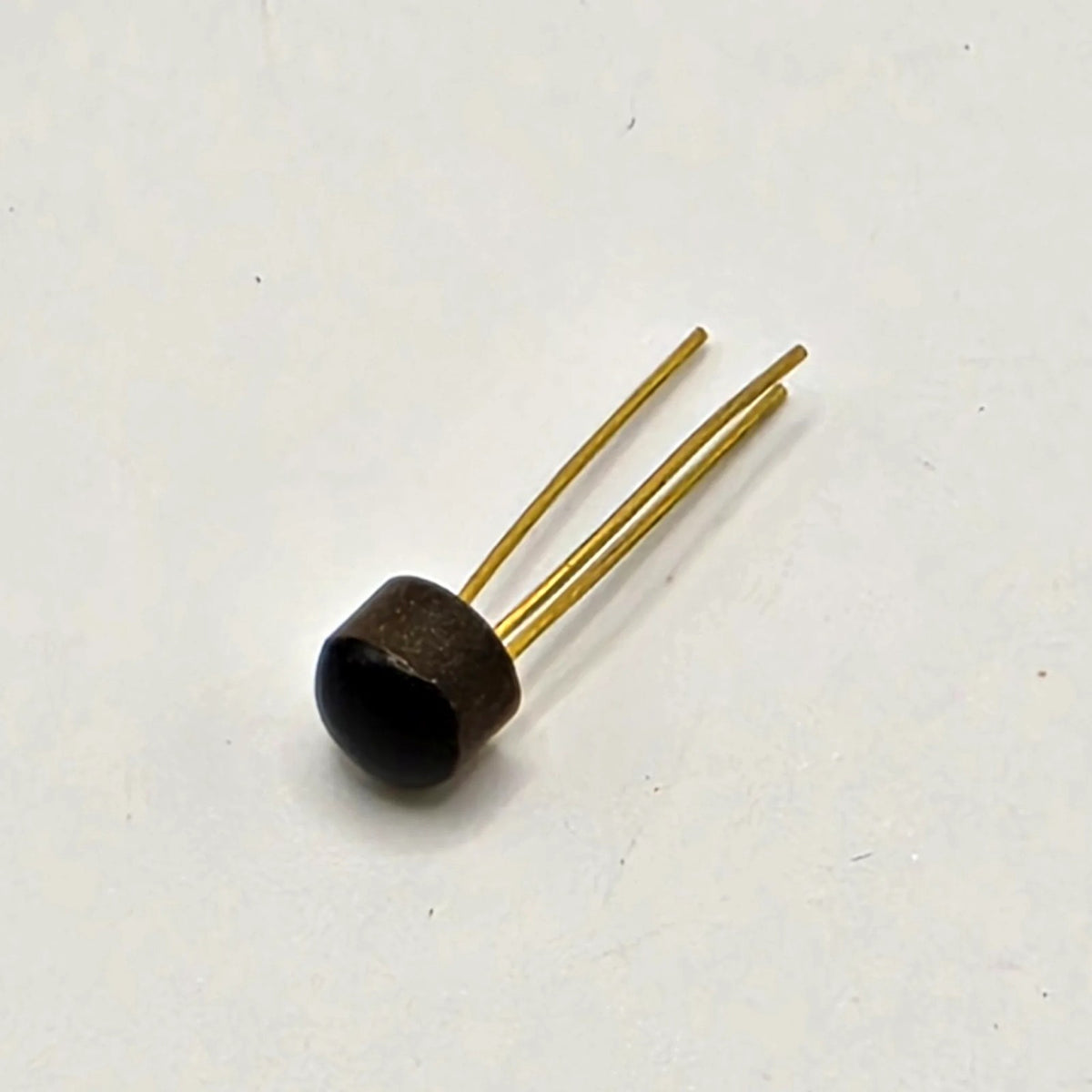

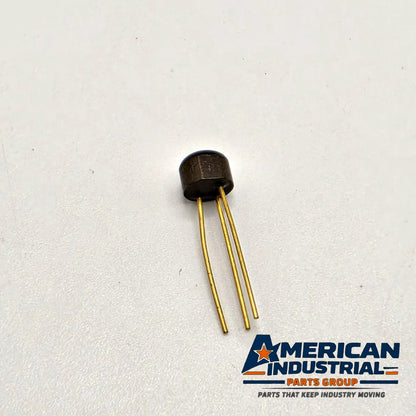

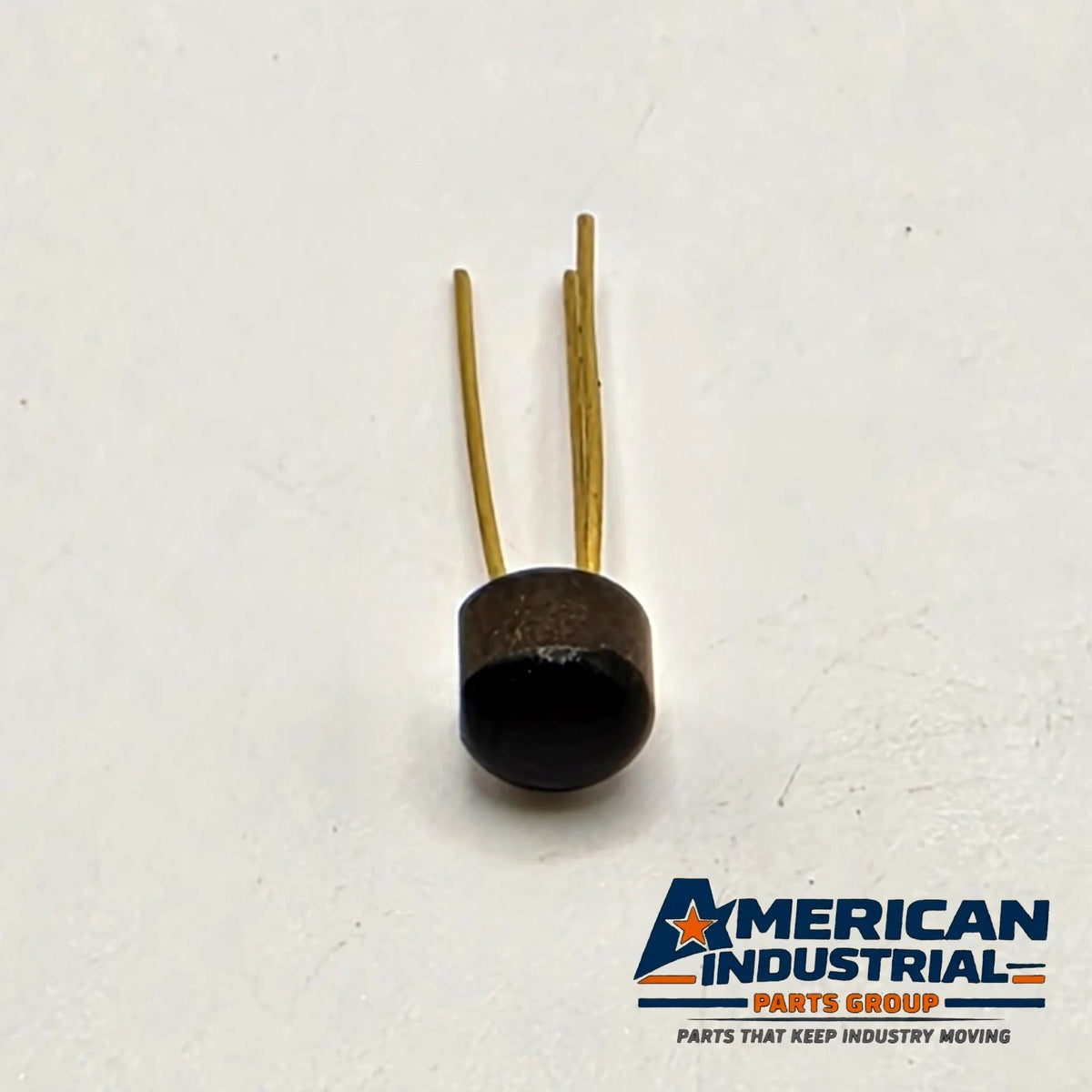

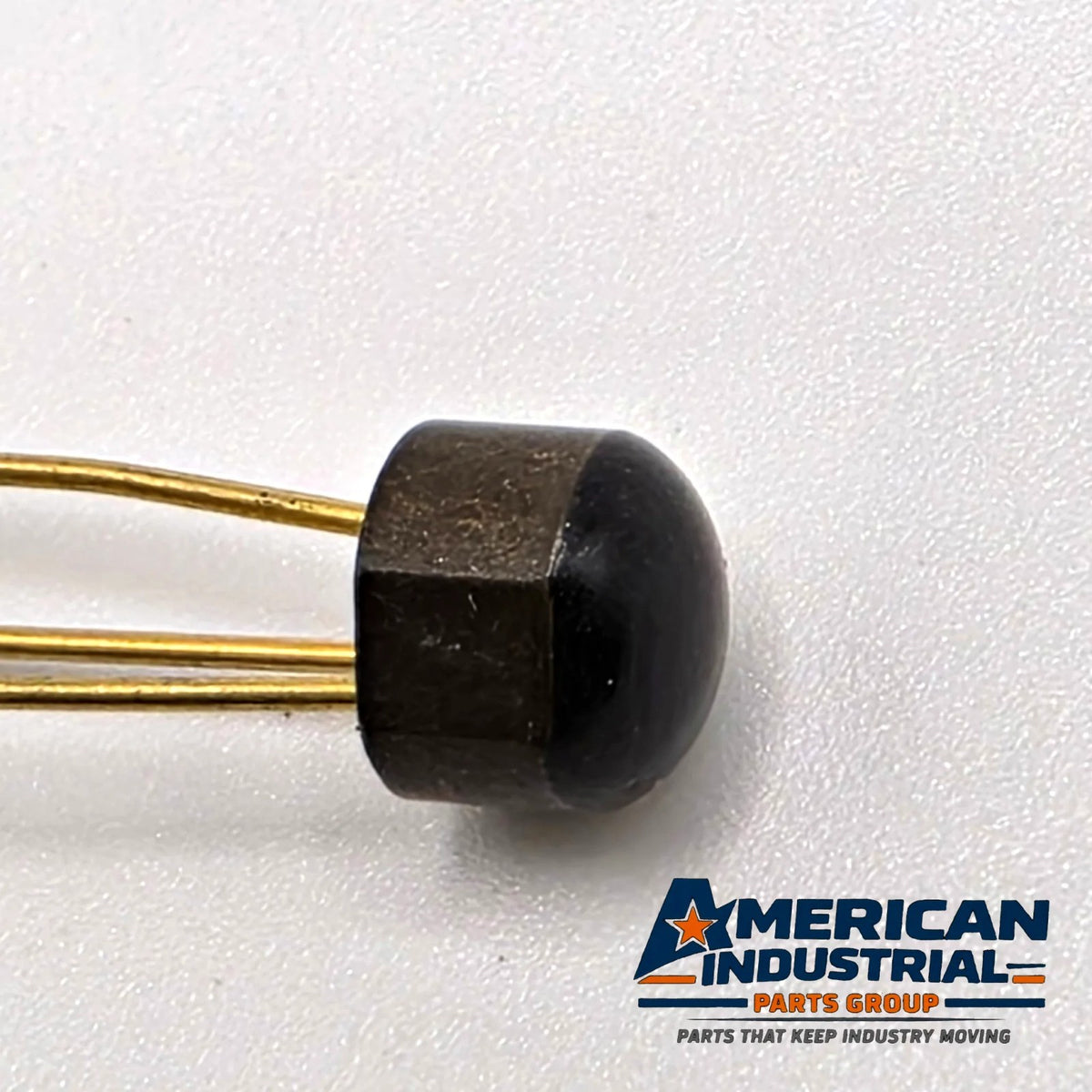

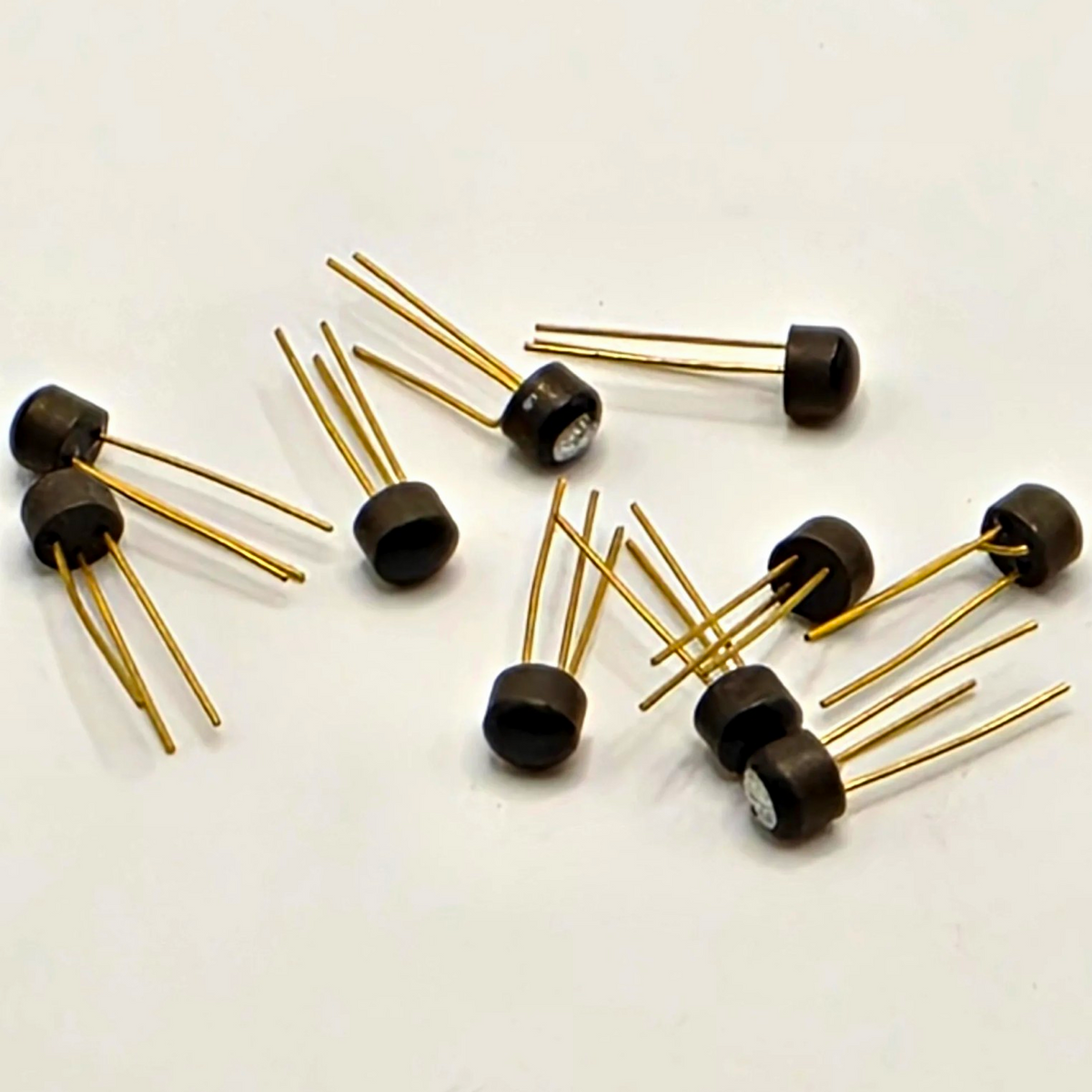

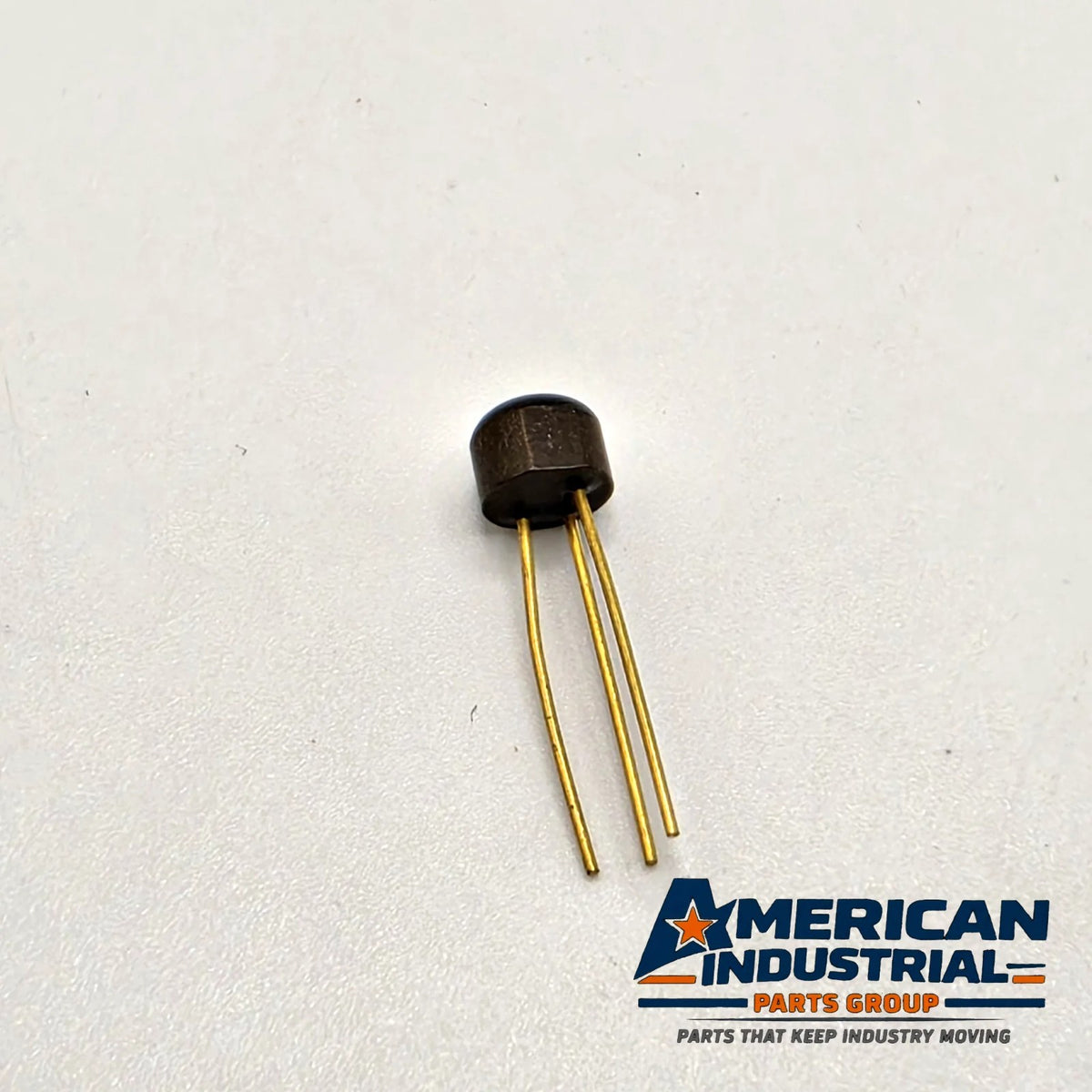

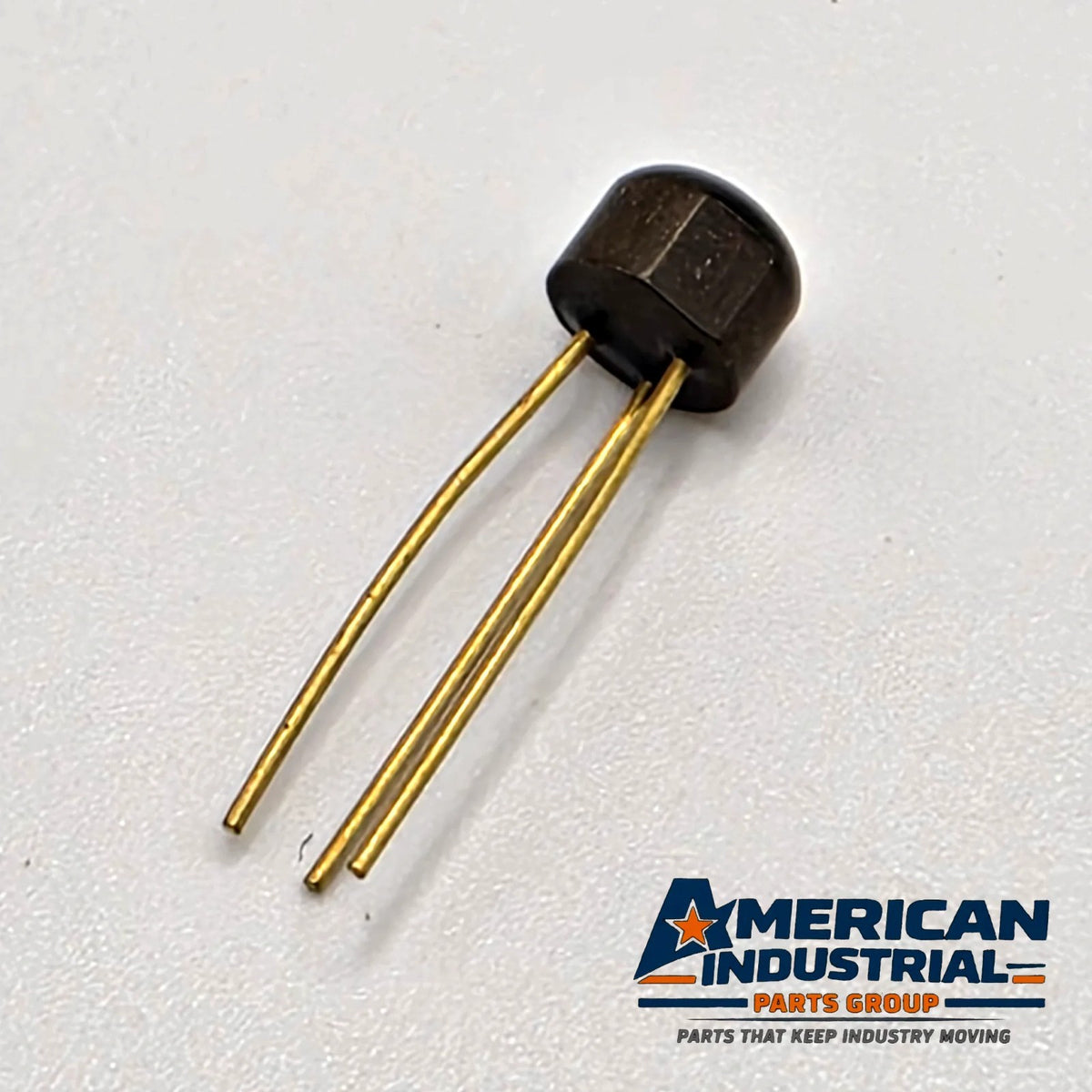

NPN silicon transistors, new old stock, from original parts-bin inventory. The bin is labeled "ECG-128, 2N-3568, T-NPN, Si AF Pre Amp, Dr., Vid Amp." The transistor bodies have no markings. Each unit is a 3-lead epoxy package (TO-105 style) with gold-plated leads. The bin label says "TO-39," but these are not TO-39 metal cans, so please see the photos. The leads are full length and unused. The bodies show light storage marks.
Features:
10 NPN silicon small-signal transistors
Intended for audio-frequency preamp, driver and video amplifier stages, per the bin label
2N3568 ratings: VCEO 60 V, VCBO 80 V, hFE 40 minimum, fT 60 MHz
Gold-plated through-hole leads
Full-length leads, never soldered
Compatibility:
For through-hole repair and replacement in vintage audio, TV/video and general small-signal amplifier circuits calling for an ECG128 or 2N3568 type device. The package differs from the TO-39 metal-can version of the ECG128, so check board footprint, pinout and heat-sinking requirements before installing.
Q&A
Q: Are these metal-can TO-39 transistors?
A: No. They're 3-lead epoxy packages (TO-105 style) with gold leads, as shown in the photos.
Q: Are the transistors marked?
A: No. The bodies are unmarked. Identification is from the original bin label (ECG-128 / 2N-3568).
Q: Are these new?
A: Yes. They're new old stock with full-length, unused leads.
Q: How many are included?
A: Ten transistors.
DISCLAIMER
The item shown in the photos is the exact item you will receive. Please review all photos and the description carefully before purchasing. Specifications are given for reference; verify compatibility with your equipment before installation.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of NTE Electronics, Philips ECG or Sylvania. Brand names, trademarks and part numbers are used for identification purposes only. Electrical components should be installed by qualified personnel in accordance with applicable codes.
ECG128 lot, ECG 128, ECG-128, NTE128, 2N3568 lot, 2N 3568, NPN transistor lot, silicon NPN transistor, audio preamp transistor, video amp transistor, driver transistor, TO-105 transistor, gold lead transistor, NOS transistor lot, vintage transistors
Thank you for shopping with American Industrial Parts Group!
