Lot of 10 Fairchild 9N23/7423 Dual 4-Input NOR Gate Strobe TTL 16-DIP 1973 NOS
Lot of 10 Fairchild 9N23/7423 Dual 4-Input NOR Gate Strobe TTL 16-DIP 1973 NOS
Regular price
$48.95 USD
Regular price
Sale price
$48.95 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Fairchild Semiconductor
Model: 9N23/7423
MPN: 9N23/7423
Type: Dual 4-Input Positive-NOR Gate with Strobe
Logic Family: Standard TTL (7400 series)
Number of Gates: 2
Inputs per Gate: 4
Package: 16-Pin Plastic DIP
Mounting: Through-Hole
Supply Voltage: 5V nominal
Operating Temperature: 0°C to 70°C
Condition: New
Quantity: 10
DESCRIPTION

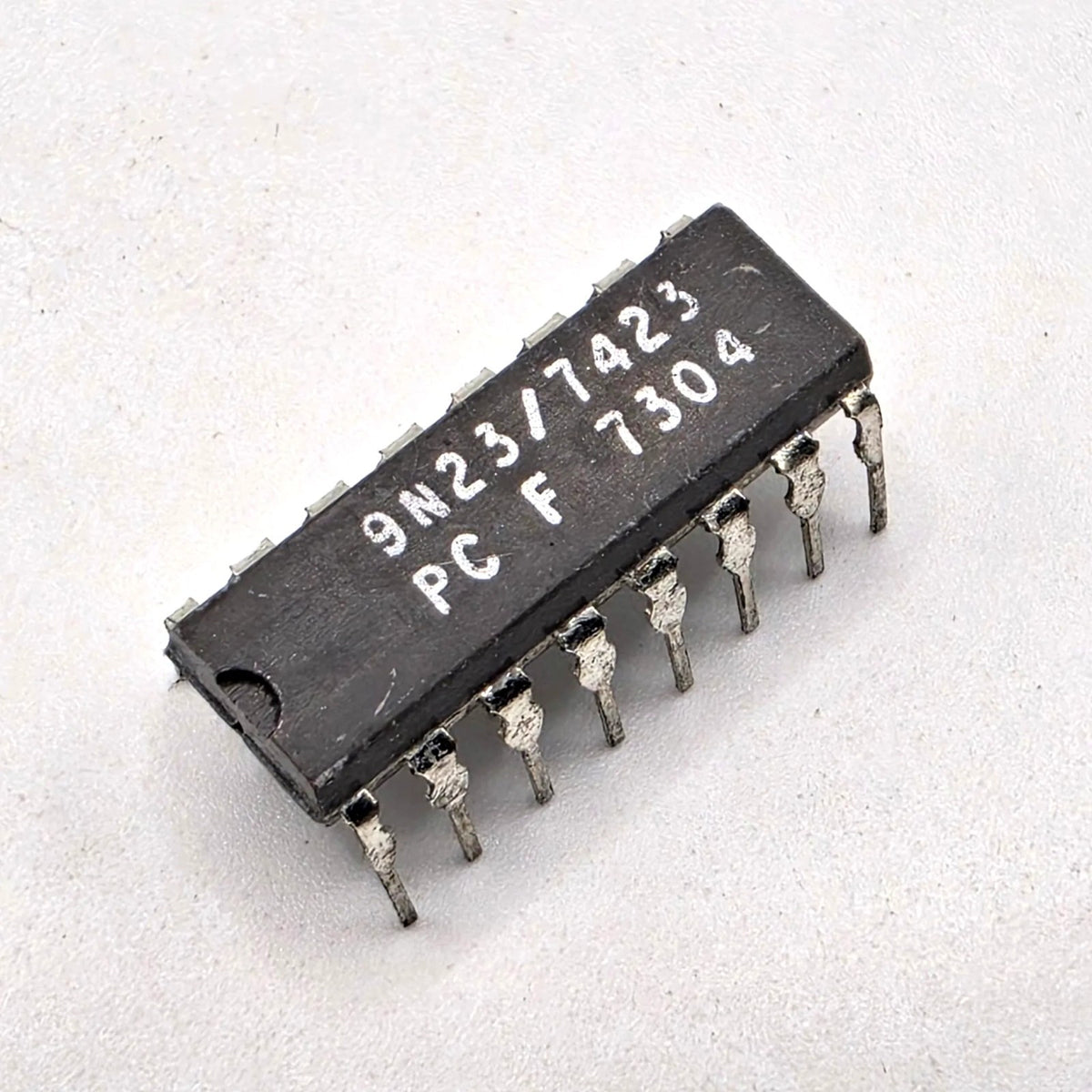

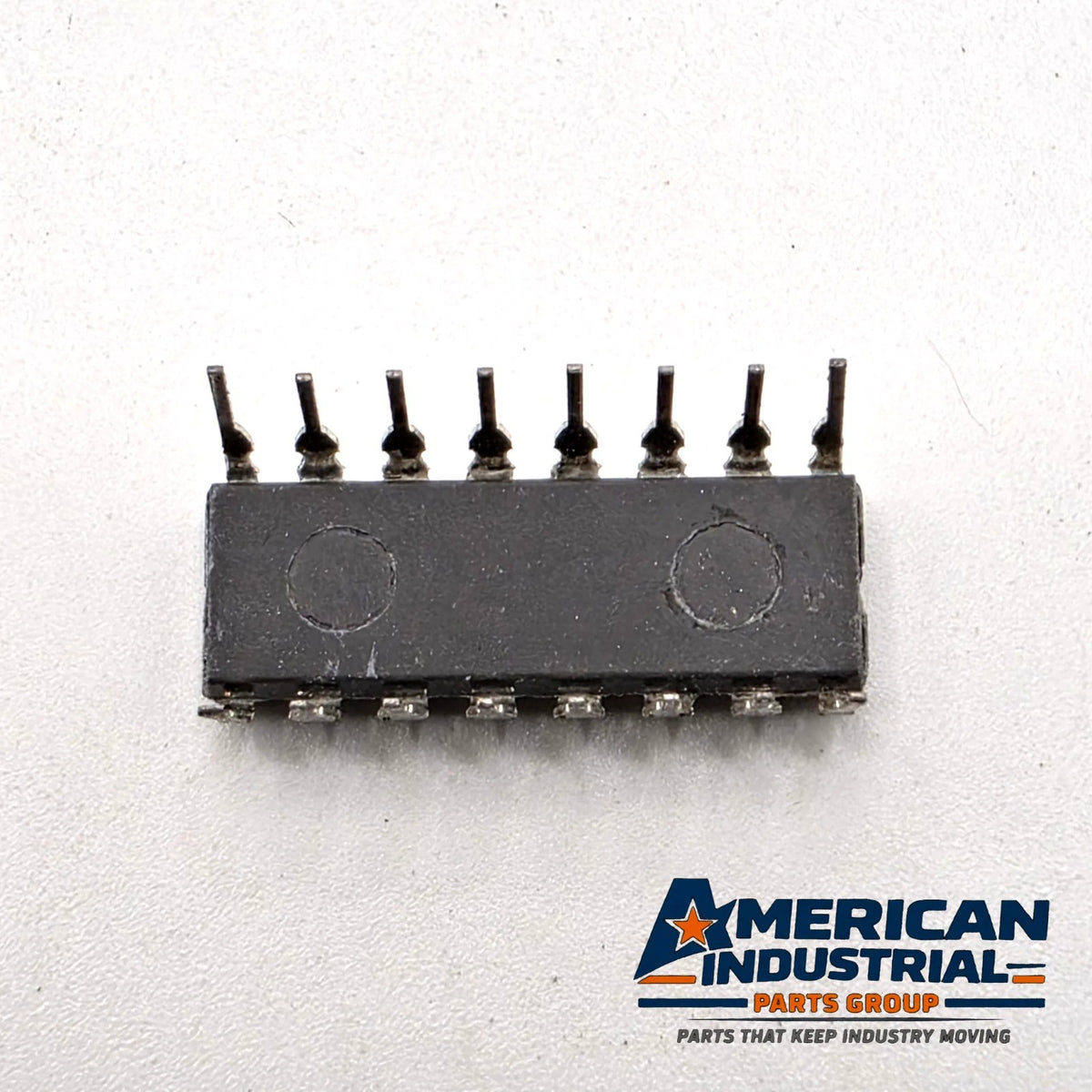

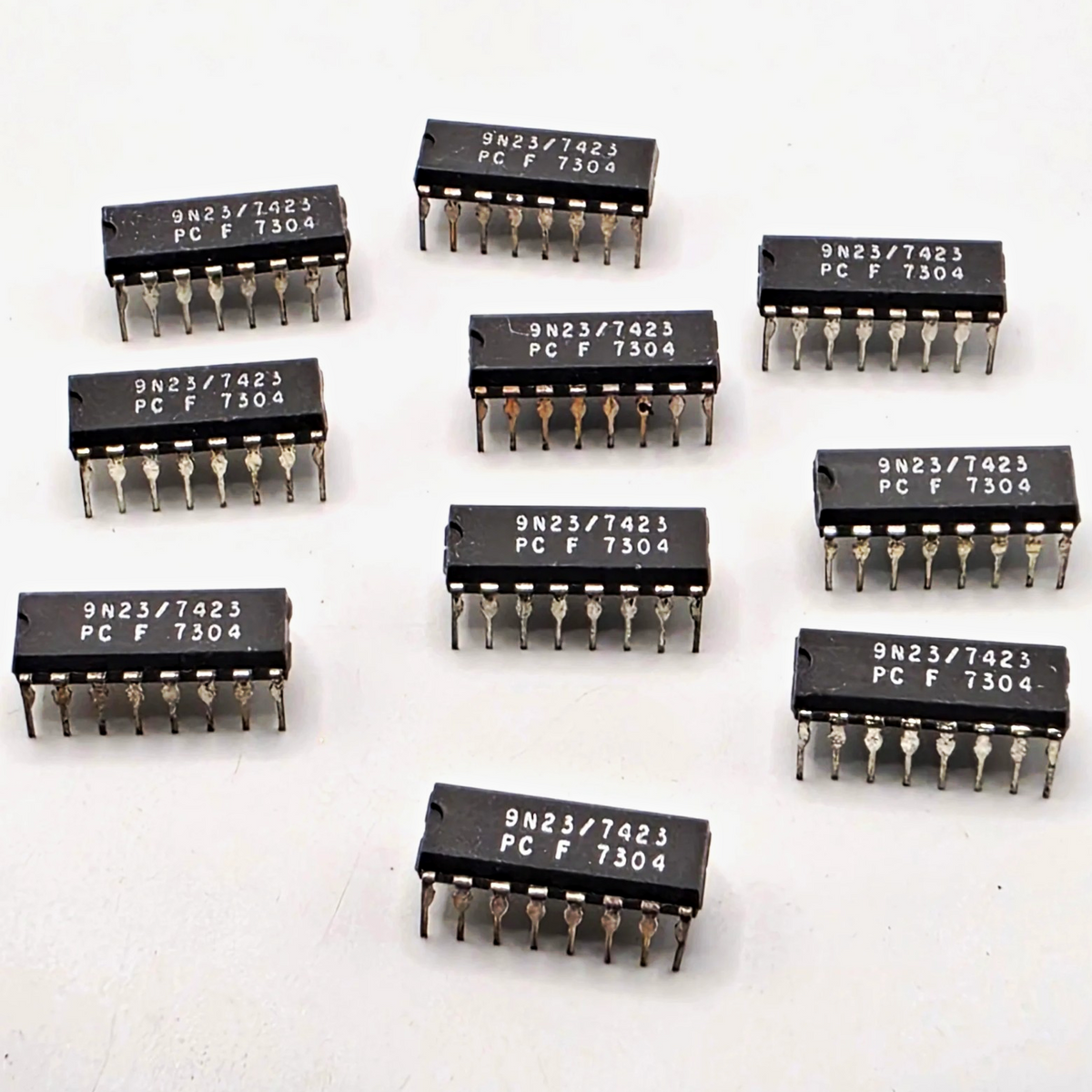

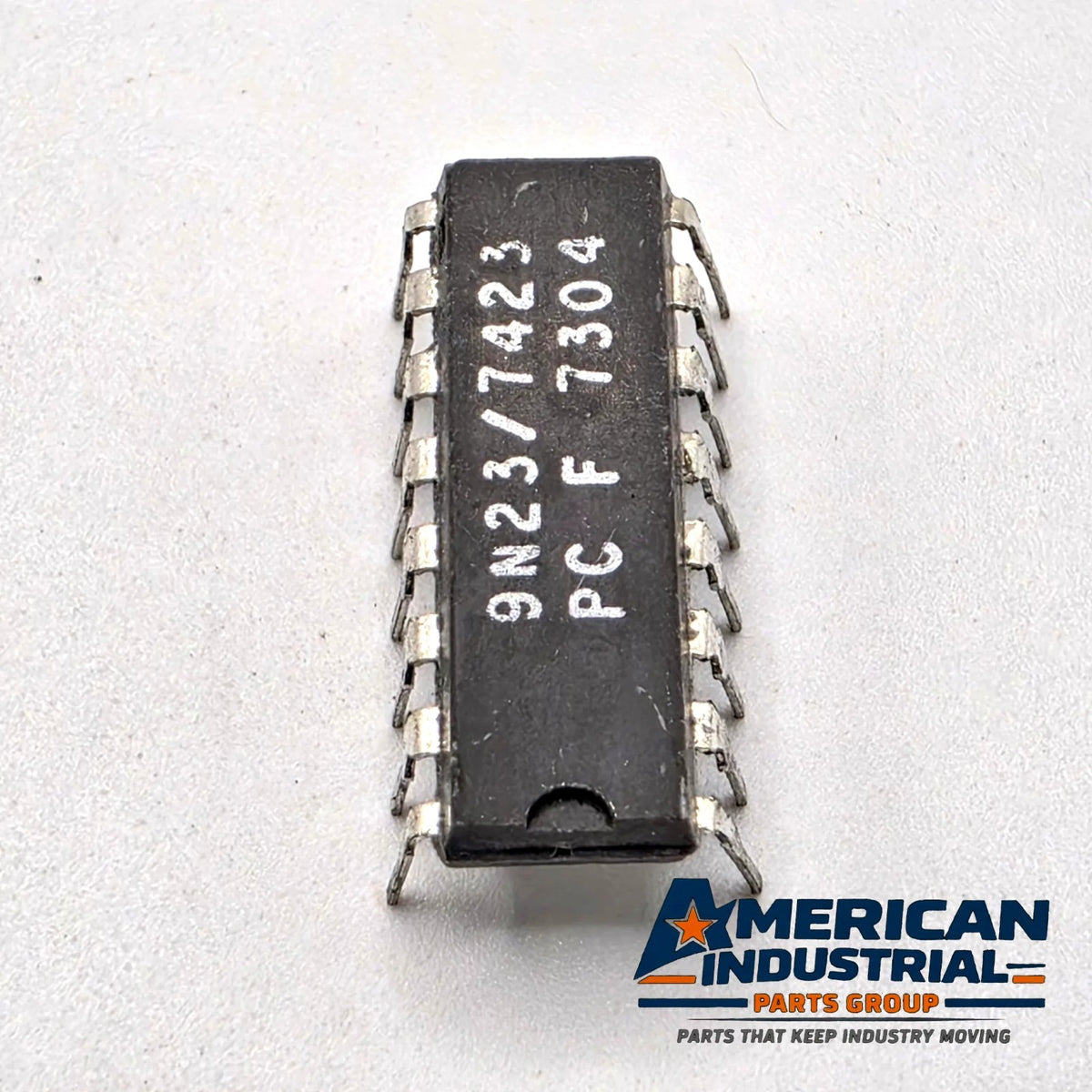

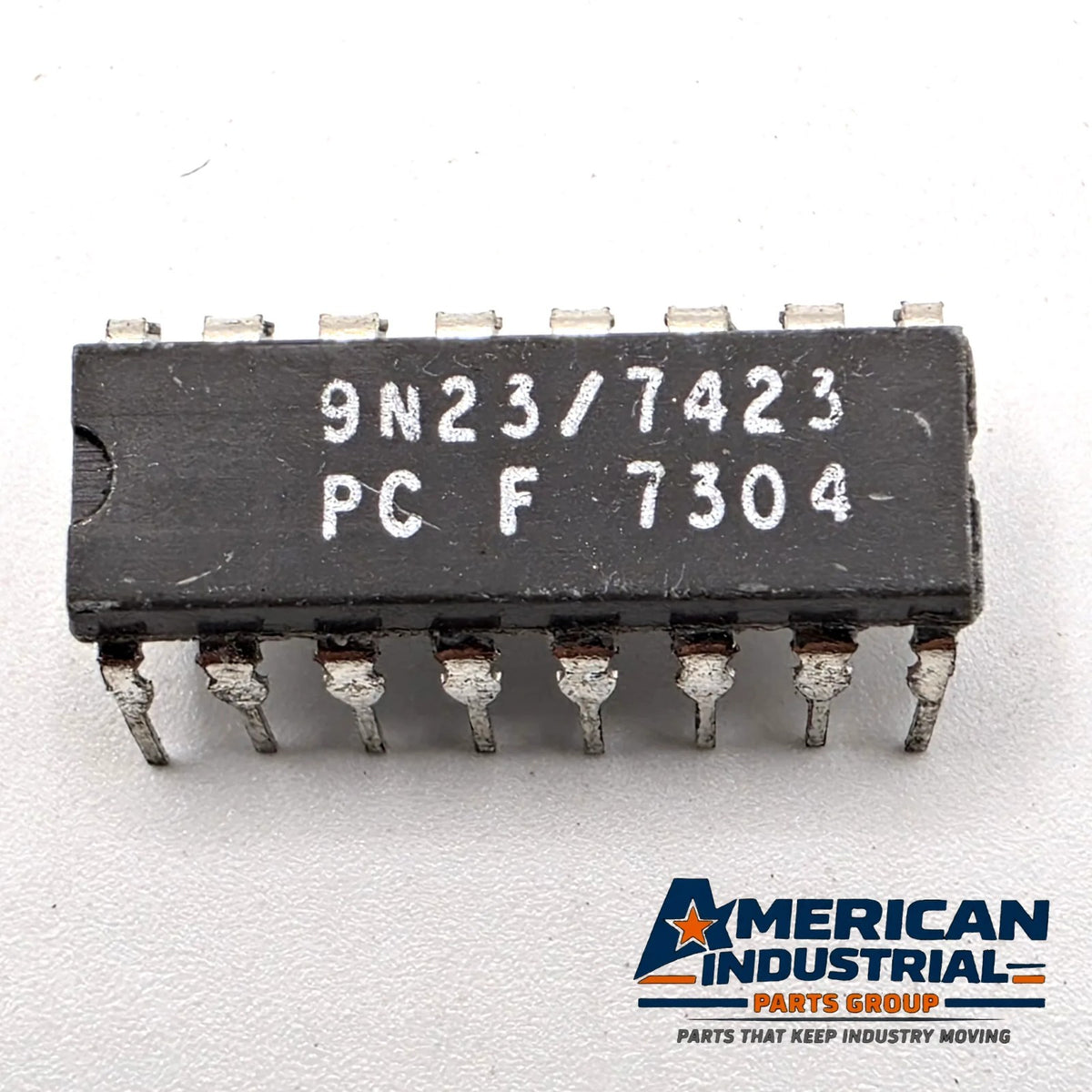

Lot of 10 new old stock Fairchild Semiconductor 9N23/7423 dual 4-input positive-NOR gates with strobe in 16-pin plastic DIP. Each is marked "9N23/7423" with Fairchild's "PC F" marking. Photos show a representative unit with date code 7304, which places manufacture in 1973; date codes may vary within the lot. Never installed. Leads show light storage discoloration, as pictured.
Fairchild sold its 7400-series equivalents under its own 9N numbering, so these parts carry both the Fairchild 9N23 number and the industry-standard 7423 number.
Features:
Two 4-input NOR gates, each with a strobe input
Standard 7400-series TTL, 5V logic
16-pin plastic DIP, through-hole
Original Fairchild manufacture, 1970s vintage
Commercial temperature range, 0°C to 70°C
10 pieces
Compatibility:
Direct replacement for 7423, SN7423, and Fairchild 9N23 in 16-pin DIP sockets. The 7425 performs the same dual 4-input NOR-with-strobe function but is a 14-pin part, so it is not a drop-in substitute.
Q&A
Q: What is the 9N23/7423?
A: A Fairchild dual 4-input NOR gate with strobe, in standard TTL, packaged in a 16-pin plastic DIP.
Q: What replaces a 7423?
A: These parts are a direct replacement for 7423, SN7423, and Fairchild 9N23.
Q: Is the 7423 the same as the 7425?
A: Same logic function, different package. The 7423 is 16-pin; the 7425 is 14-pin. They are not pin-compatible.
Q: How old are these parts?
A: The pictured unit is date coded 7304, which places manufacture in 1973. Date codes may vary within the lot.
DISCLAIMER
Items are new old stock, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of Fairchild Semiconductor. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
9N23 lot, 9N23/7423 10 pack, 7423 IC lot, SN7423, SN7423N, 7423PC, Fairchild 9N23, Fairchild 7423, dual 4-input NOR gate with strobe, 4-input NOR gate IC, NOR gate strobe DIP-16, TTL logic IC lot, 7400 series TTL, vintage Fairchild IC, 1973 vintage IC, NOS Fairchild TTL, obsolete TTL replacement, vintage computer repair IC, minicomputer repair TTL, test equipment repair logic IC, arcade board repair TTL, circuit board not working logic gate replacement
