Lot of 10 National Semiconductor DM74LS85N 4-Bit Magnitude Comparator 1979 NOS
Lot of 10 National Semiconductor DM74LS85N 4-Bit Magnitude Comparator 1979 NOS
Regular price
$45.99 USD
Regular price
Sale price
$45.99 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: National Semiconductor
Model: DM74LS85N
MPN: DM74LS85N
Type: 4-Bit Magnitude Comparator
Logic Family: 74LS (Low-Power Schottky TTL)
Outputs: A>B, A<B, A=B
Supply Voltage: 4.75V to 5.25V (5V nominal)
Supply Current: 10mA typical, 20mA maximum
Propagation Delay: 24ns typical (4-bit words)
Operating Temperature: 0°C to +70°C
Package: 16-Pin Plastic DIP
Pinout: Pin 16 VCC, Pin 8 GND
Mounting: Through-Hole
Date Code: 7931
Condition: New
Quantity: 10
DESCRIPTION

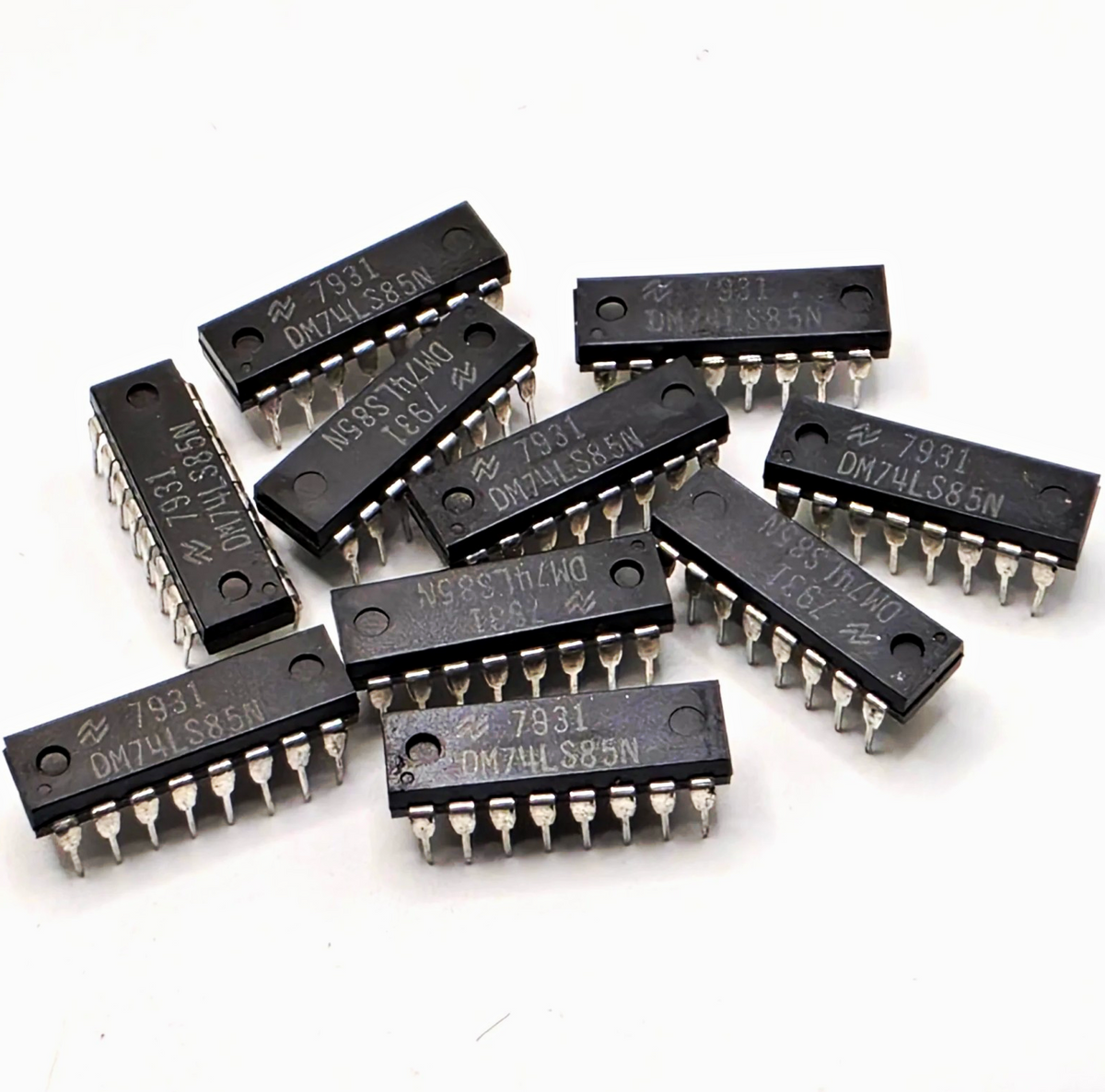

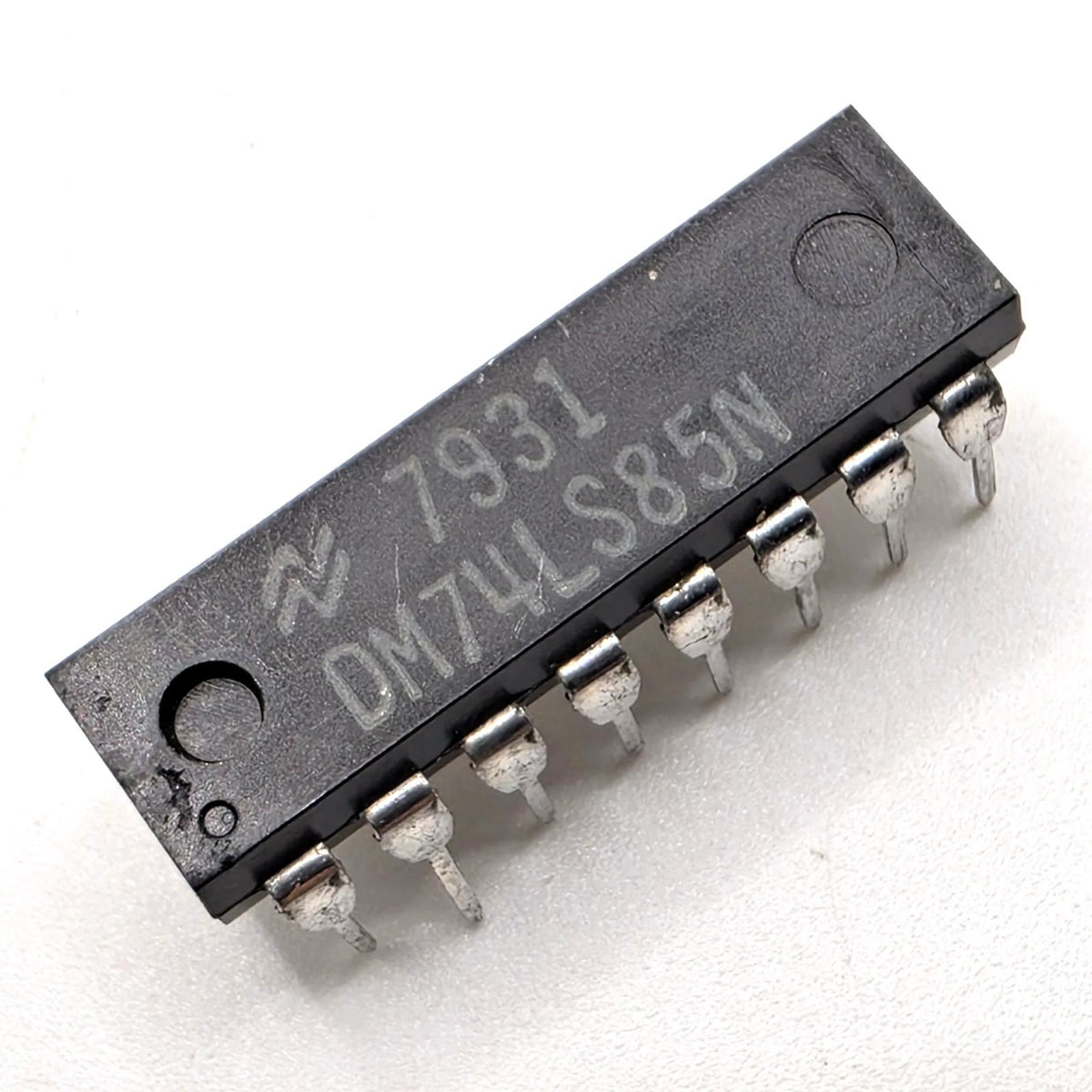

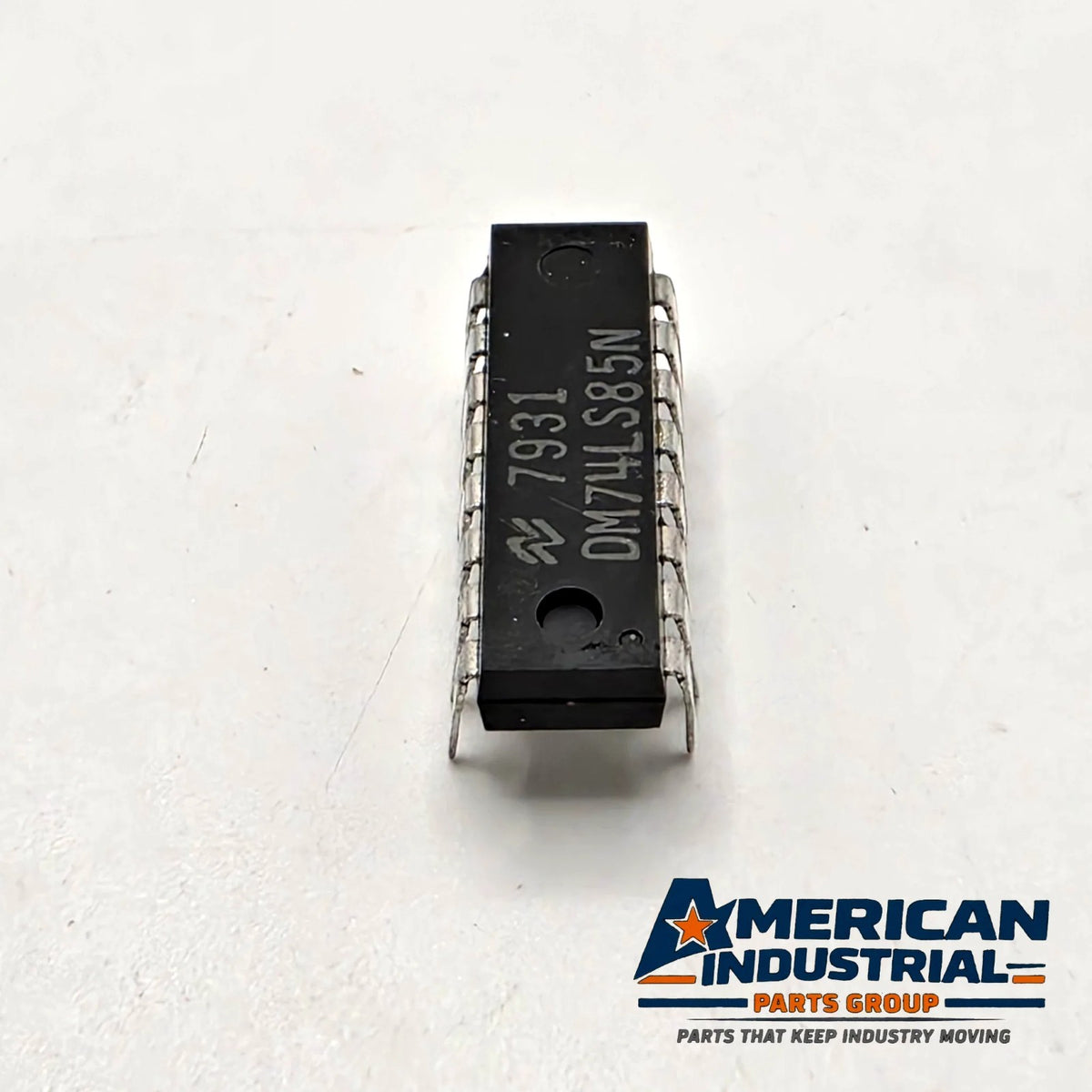

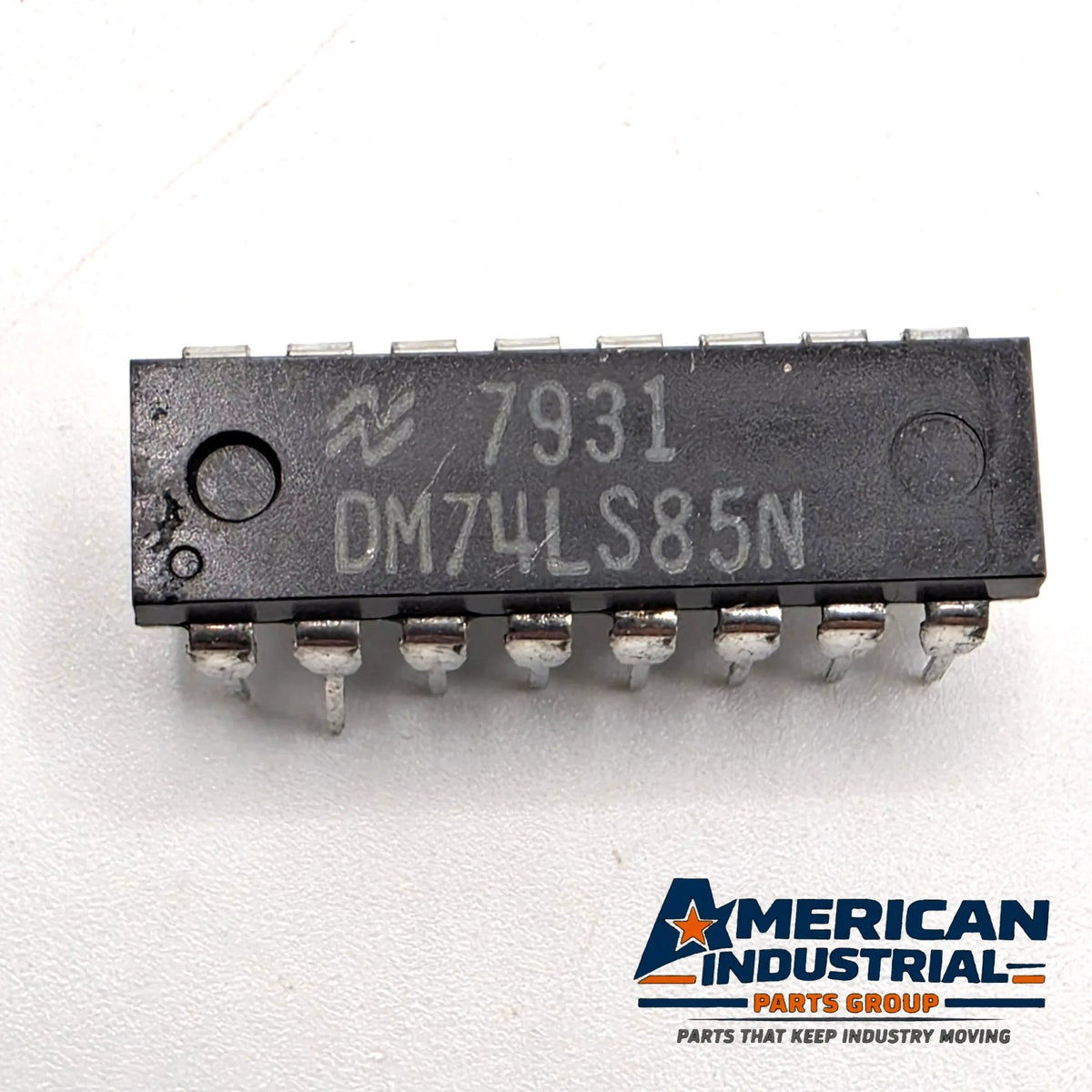

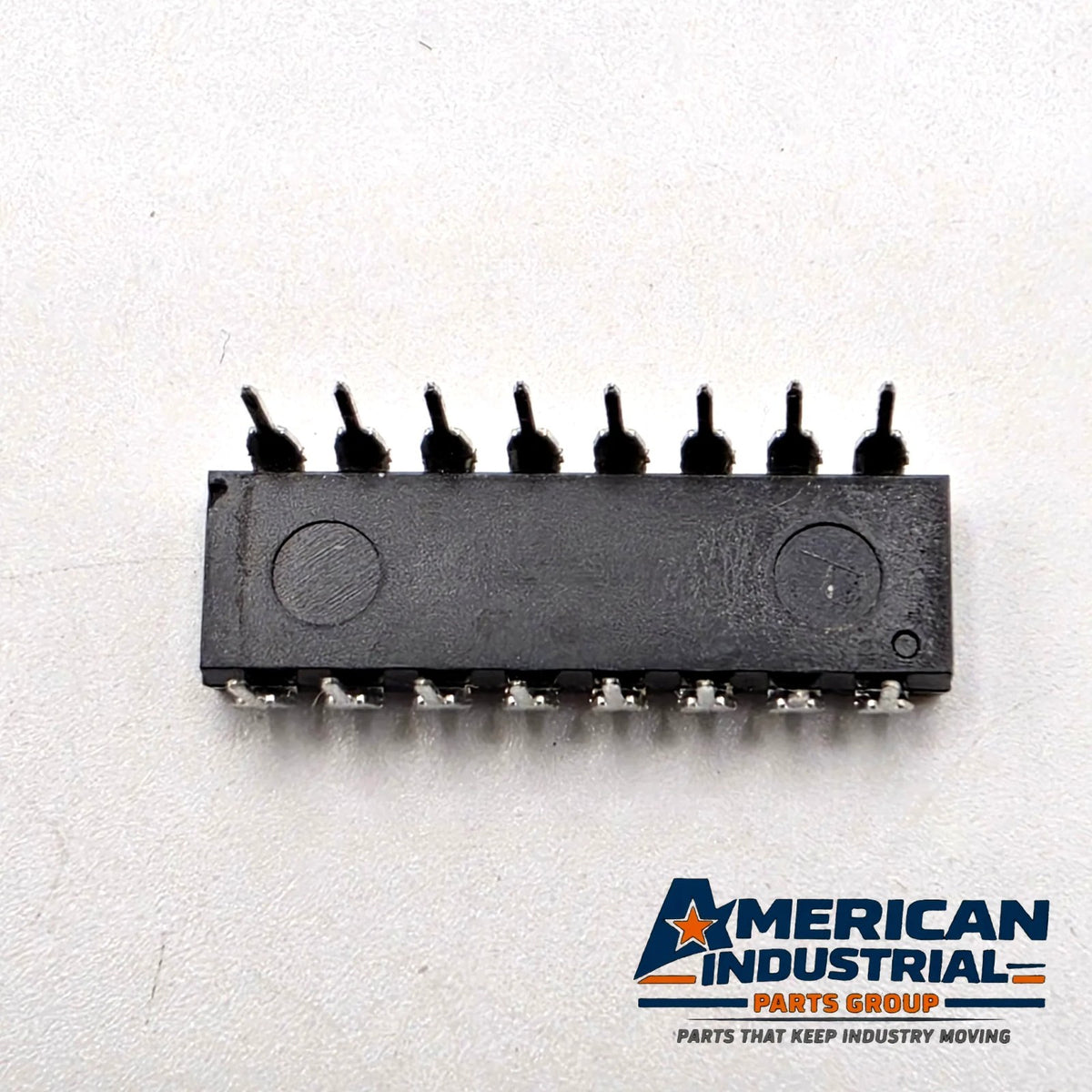

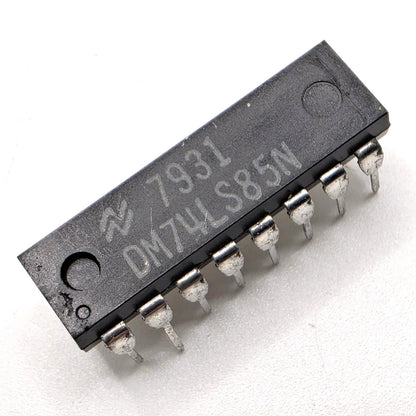

Lot of 10 new old stock National Semiconductor DM74LS85N 4-bit magnitude comparators in 16-pin plastic DIPs. Each is marked with the National Semiconductor logo, "7931," and "DM74LS85N." Date code 7931 places manufacture in week 31 of 1979. Never installed, with clean, unsoldered leads. Light surface marks on the packages, as pictured.
The 74LS85 compares two 4-bit binary or BCD words and outputs A greater than B, A less than B, or A equal to B. Cascading inputs let several chips compare longer words without external gates. With ten pieces you can build up to a 40-bit comparator, or keep spares for repair work.
Features:
Compares two 4-bit binary or BCD words
Three outputs: A>B, A<B, A=B
Cascading inputs, expandable to any word length
Low-power Schottky TTL (74LS)
5V supply
24ns typical propagation delay
16-pin through-hole DIP
Original National Semiconductor manufacture, 1979
10 pieces
Compatibility:
Direct replacement for the 74LS85 in any manufacturer's version, including SN74LS85N (Texas Instruments), 74LS85PC (Fairchild), 74LS85N (Signetics) and onsemi DM74LS85N. Pin-compatible with the 7485 and 74HCT85 in most 5V TTL circuits. Check timing and drive requirements before substituting a different logic family.
Q&A
Q: What does the 74LS85 do?
A: It compares two 4-bit numbers (A and B) and signals whether A is greater than, less than, or equal to B.
Q: What is the 74LS85 pinout for power?
A: VCC is pin 16 and ground is pin 8.
Q: How do I compare numbers longer than 4 bits?
A: Cascade the chips. Connect the A>B, A<B and A=B outputs of the lower-order chip to the cascading inputs of the next chip.
Q: How old are these parts?
A: Date code 7931, which places manufacture in 1979.
Q: How many are included?
A: Ten.
DISCLAIMER
Items are new old stock, sold as pictured. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of National Semiconductor or its successors. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from surplus inventory and are not covered by manufacturer warranties.
