Lot of 10 RCA 2N6250 NPN Power Transistors 275V 10A 175W TO-3 NOS
Lot of 10 RCA 2N6250 NPN Power Transistors 275V 10A 175W TO-3 NOS
Regular price
$149.95 USD
Regular price
Sale price
$149.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
ITEM SPECIFICS
Brand: RCA
Model: 2N6250
MPN: 2N6250
Type: NPN Power Transistor
Transistor Type: Silicon NPN Bipolar Junction Transistor
Collector-Emitter Voltage: 275V
Collector Current: 10A
Maximum Power Dissipation: 175W
Package Type: TO-3 Metal Case
Number of Terminals: 2
Mounting Style: Chassis Mount
Quantity: 10
Country/Region of Manufacture: Unknown
Condition: New Old Stock
DESCRIPTION

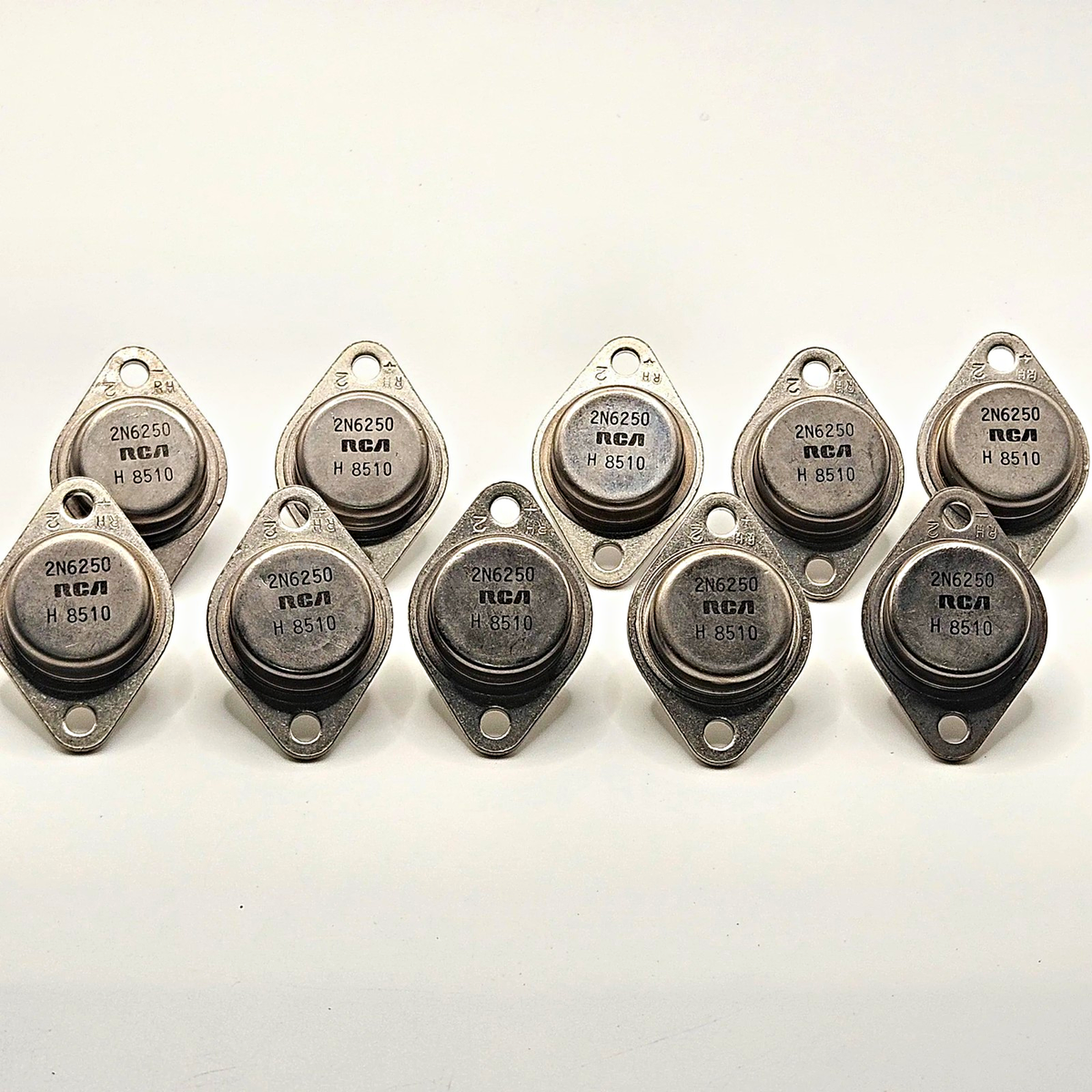

Lot of 10 RCA 2N6250 high-voltage silicon NPN power transistors in TO-3 metal cases. These transistors are rated for 275V collector-emitter voltage, 10A collector current, and maximum power dissipation of 175W.
These components are commonly used in high-voltage switching, power supplies, switching regulators, inverters, amplifiers, industrial electronics, and vintage equipment repair applications.

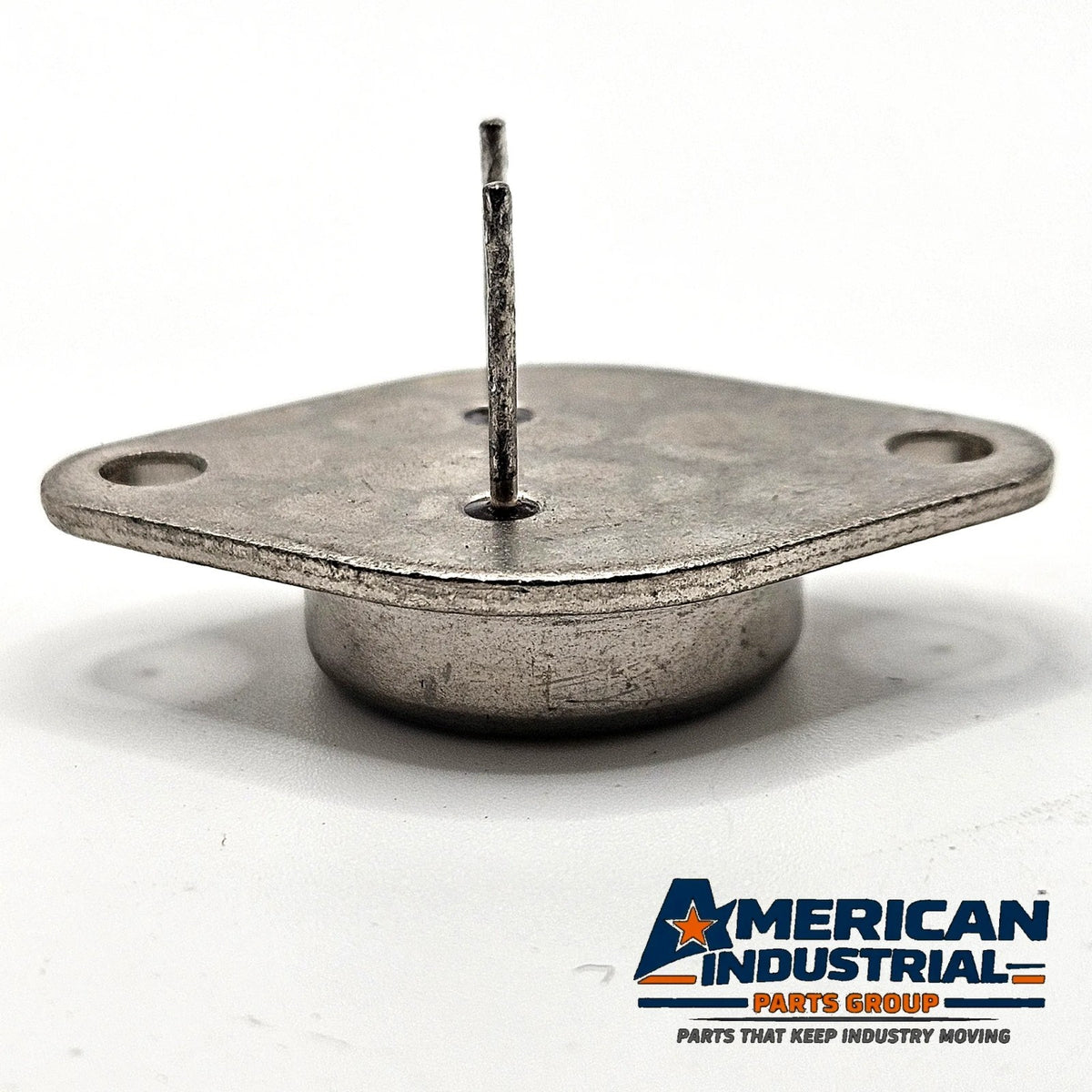

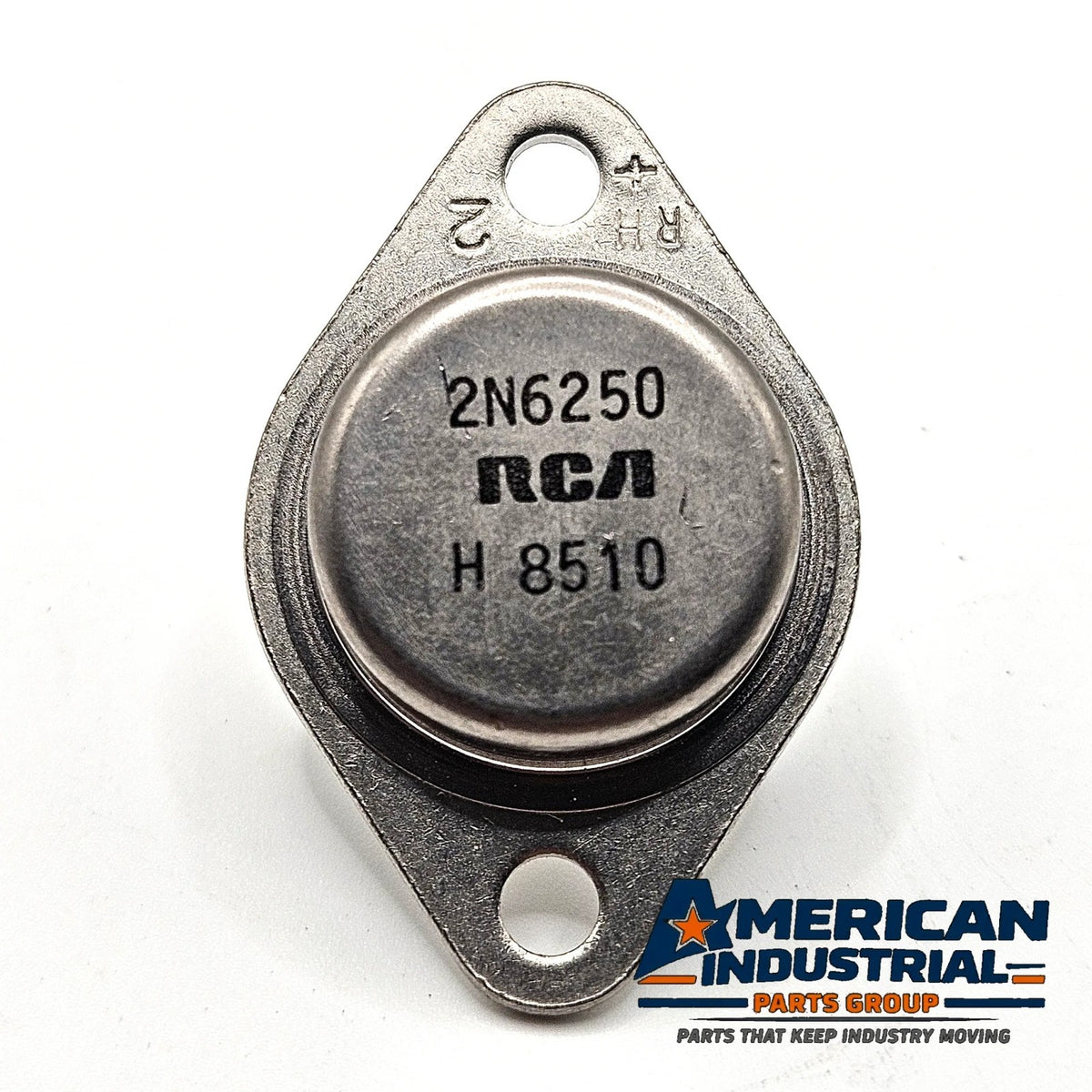

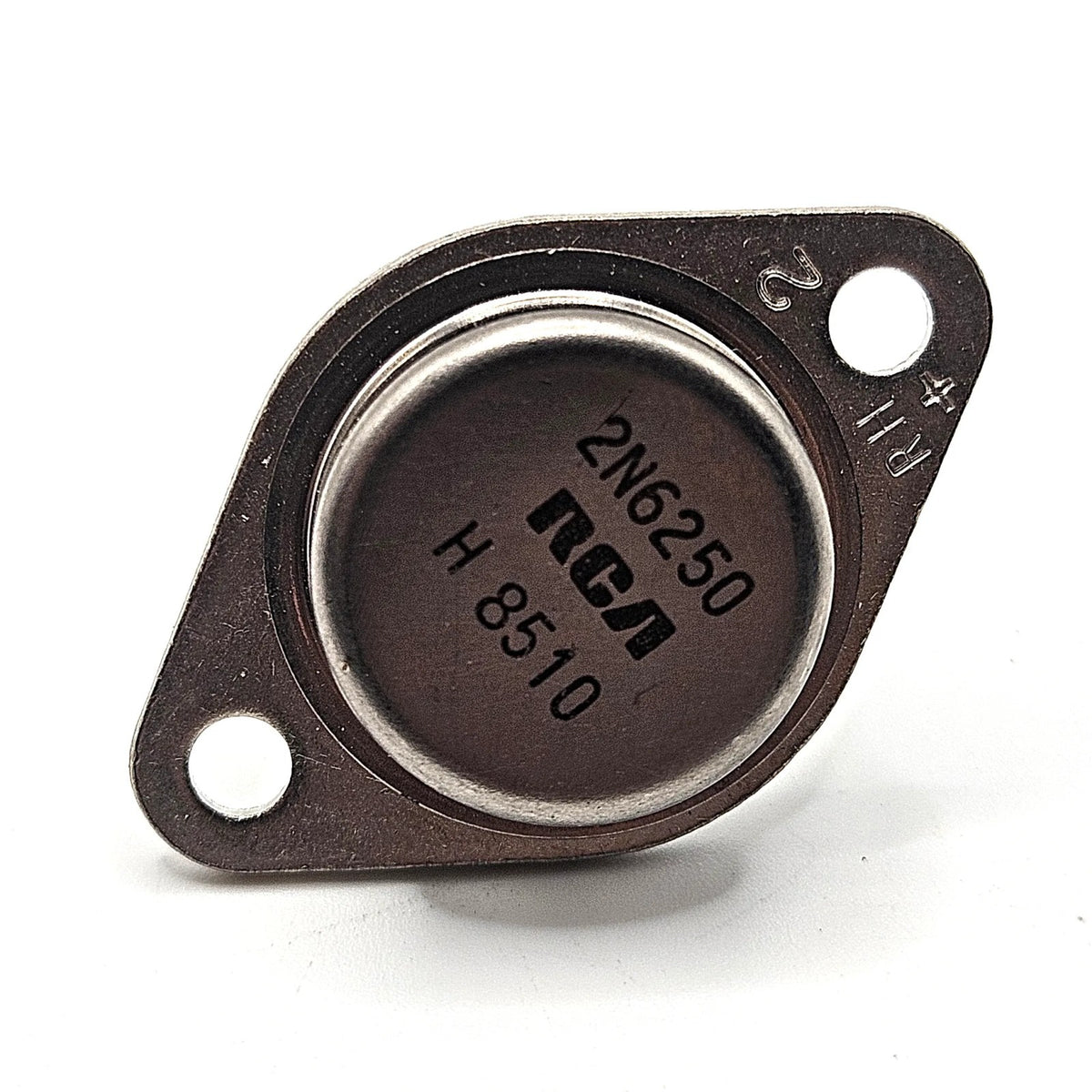

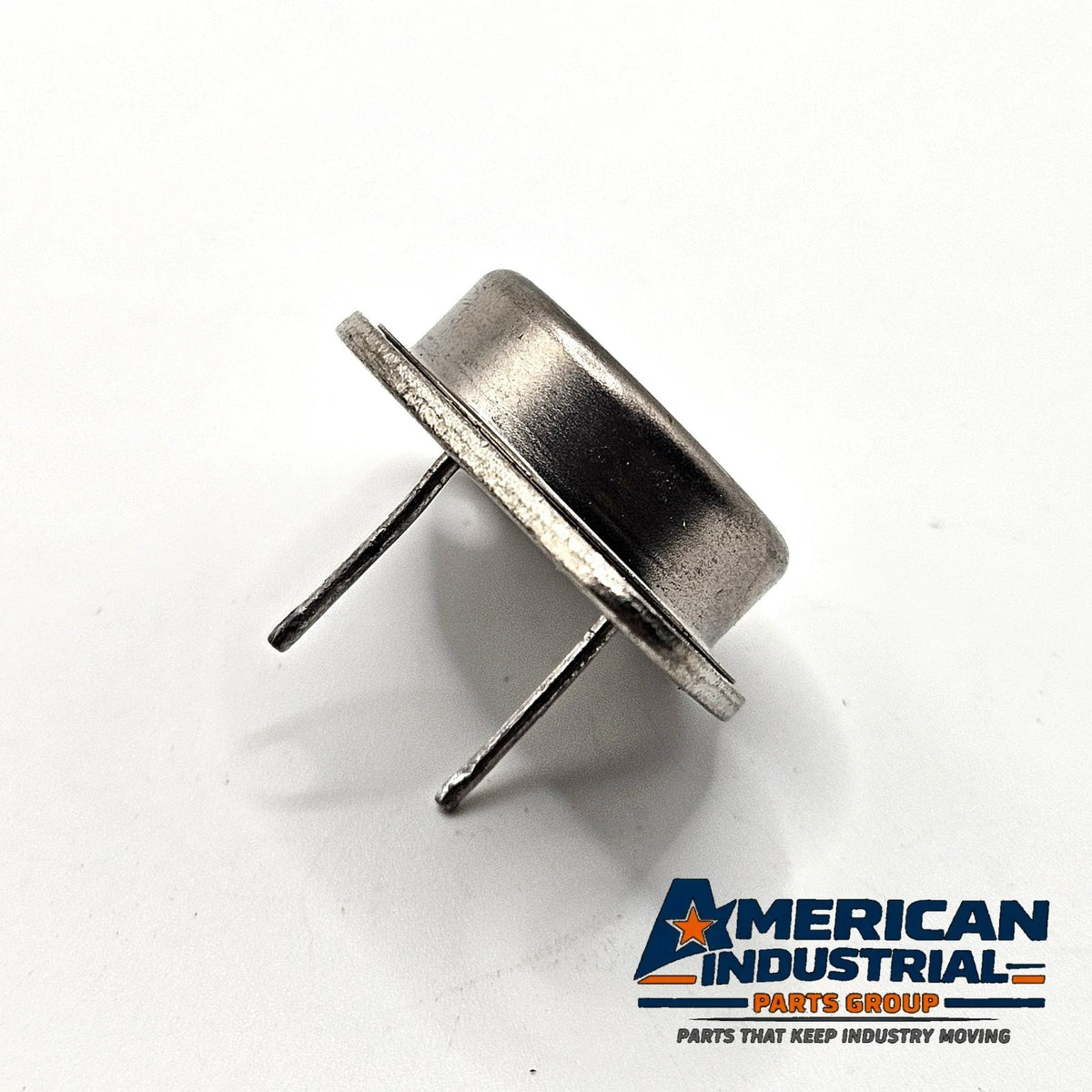

The transistors are New Old Stock and may show minor scratches, oxidation, discoloration, or other cosmetic evidence of long-term storage and handling. Please review all photos for the exact condition and markings of the available inventory.
DISCLAIMER
These items are New Old Stock and have not been installed or placed into service by us. Electrical operation has not been independently tested. Installation and application should be performed by a qualified technician who confirms suitability for the intended equipment. Ships fast with tracking. 30-day returns accepted; buyer pays return shipping.
LEGAL DISCLAIMER
We are not an authorized distributor, reseller, or representative of RCA. All product names, trademarks, brands, and logos are the property of their respective owners. Products are sourced from secondary-market inventory and are not covered by manufacturer warranties.
COMPATIBILITY & CROSS-REFERENCE
The 2N6250 is a JEDEC-registered high-voltage NPN silicon power transistor in a TO-3 (TO-204AA) package, and is the middle member of the 2N6249 / 2N6250 / 2N6251 family rated 200V, 275V and 350V collector-emitter respectively. Published family ratings are 375V collector-base and 6.0V emitter-base for the 2N6250, with 10A collector current. The series was designed for high-voltage inverters, switching regulators and line-operated amplifier applications, and has been second-sourced by several manufacturers; military-grade JAN, JANTX and JANTXV versions exist under MIL-PRF-19500/371. Confirm voltage grade, gain and saturation characteristics against the original device before substituting, and note that a lower-voltage 2N6249 is not a substitute in a 275V circuit. The collector is connected to the case, so insulate the package from a grounded heatsink where the circuit requires it.
Q&A
Q: What is included in this lot? A: Ten RCA 2N6250 high-voltage NPN silicon power transistors in TO-3 metal packages, rated 275V with 10A collector current.
Q: How does the 2N6250 differ from the 2N6249 and 2N6251? A: They are the same family with different voltage grades — 200V, 275V and 350V collector-emitter respectively.
Q: What was this transistor designed for? A: High-voltage inverters, switching regulators and line-operated amplifier applications.
RCA 2N6250 2N 6250 Lot of 10 NPN Power Transistor High Voltage Transistor Silicon Transistor Bipolar Junction Transistor BJT 275V Transistor 10A Transistor 175W Transistor TO-3 TO3 Metal Case Transistor Chassis Mount Transistor Switching Transistor Switching Regulator High Voltage Inverter Line Operated Amplifier Industrial Power Transistor Power Supply Repair Amplifier Repair Vintage Electronics Electronic Components New Old Stock NOS Replacement Transistors Industrial Electronics
Thank you for shopping with American Industrial Parts Group!
