Lot of 10 Texas Instruments SN7413N Dual 4-Input NAND Schmitt Trigger DIP-14 NOS

ITEM SPECIFICS
Brand: Texas Instruments
Model: SN7413N
MPN: SN7413N
Type: Dual 4-Input Positive-NAND Schmitt Trigger
Logic Family: Standard TTL (7400 series)
Number of Gates: 2
Inputs per Gate: 4
Package: 14-Pin Plastic DIP (PDIP)
Mounting: Through-Hole
Supply Voltage: 5V nominal
Operating Temperature: 0°C to 70°C
RoHS: Not Compliant
Condition: New
Quantity: 10

DESCRIPTION

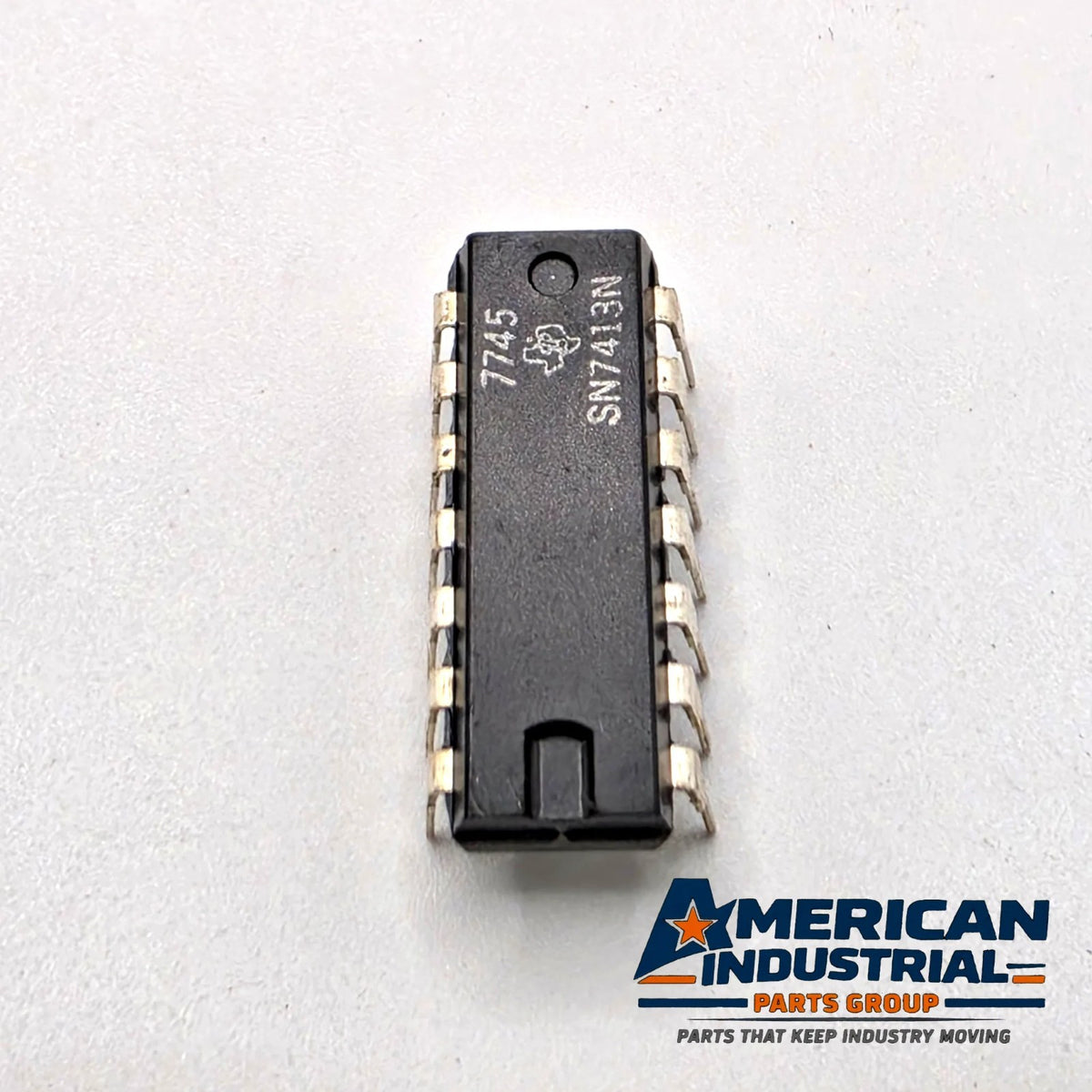

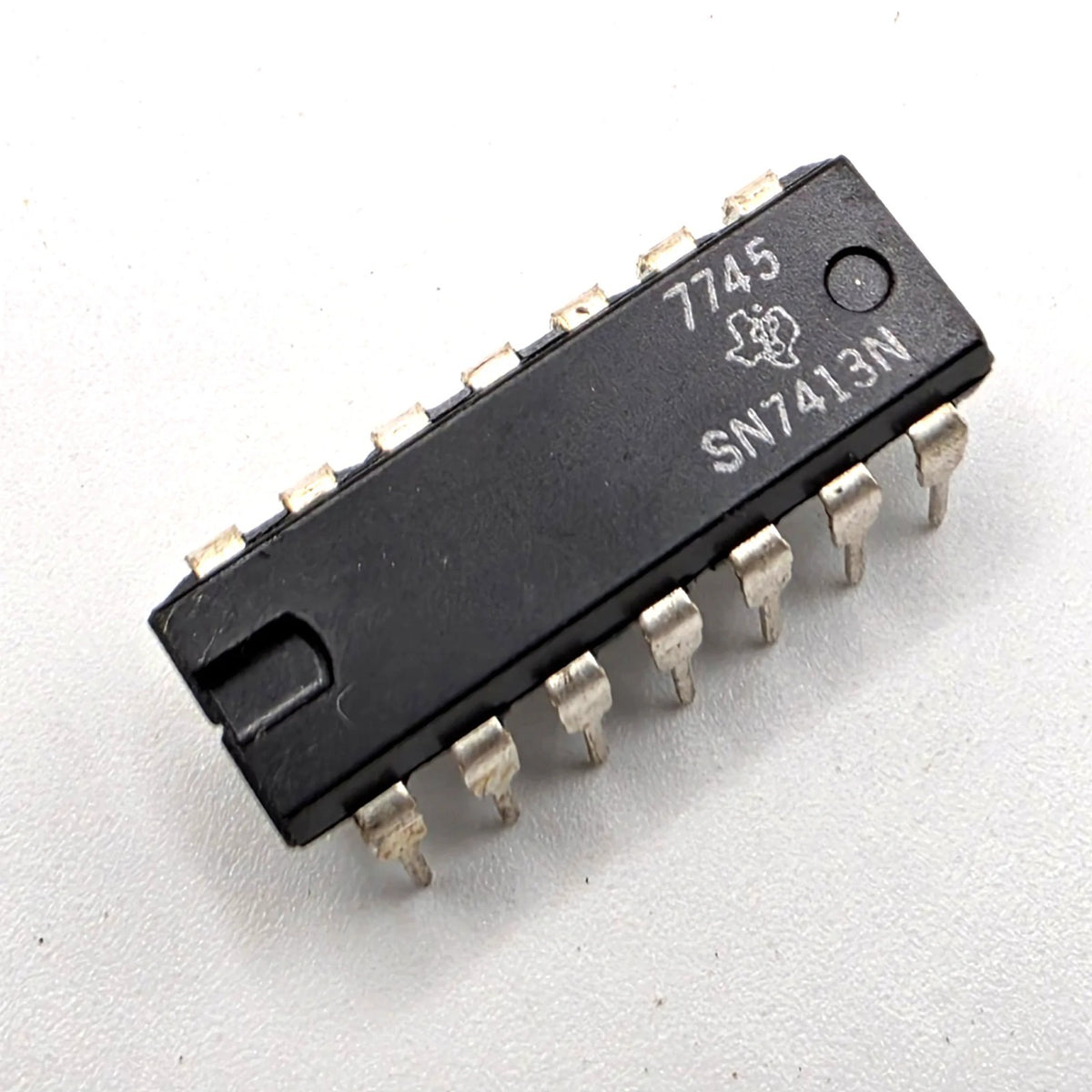

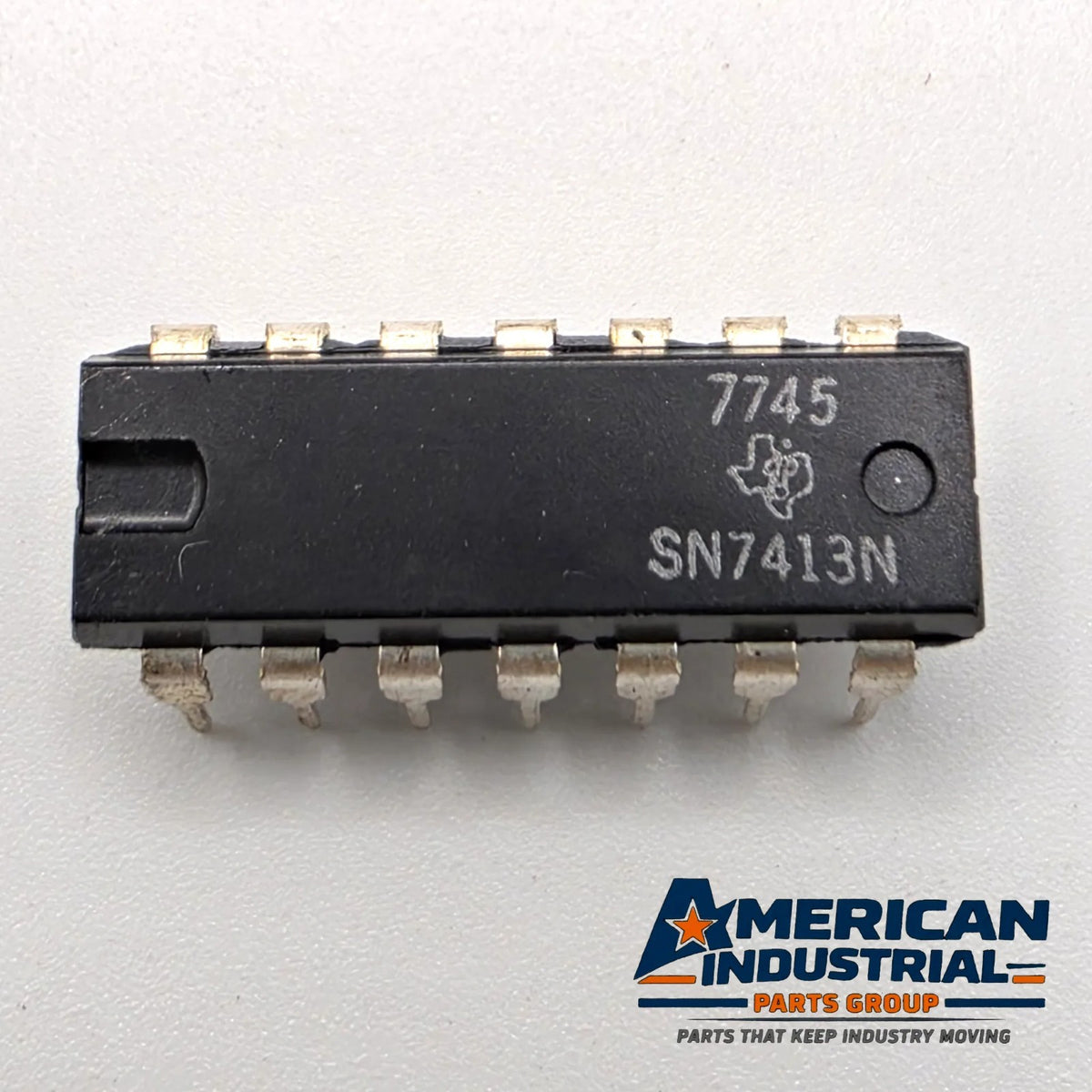

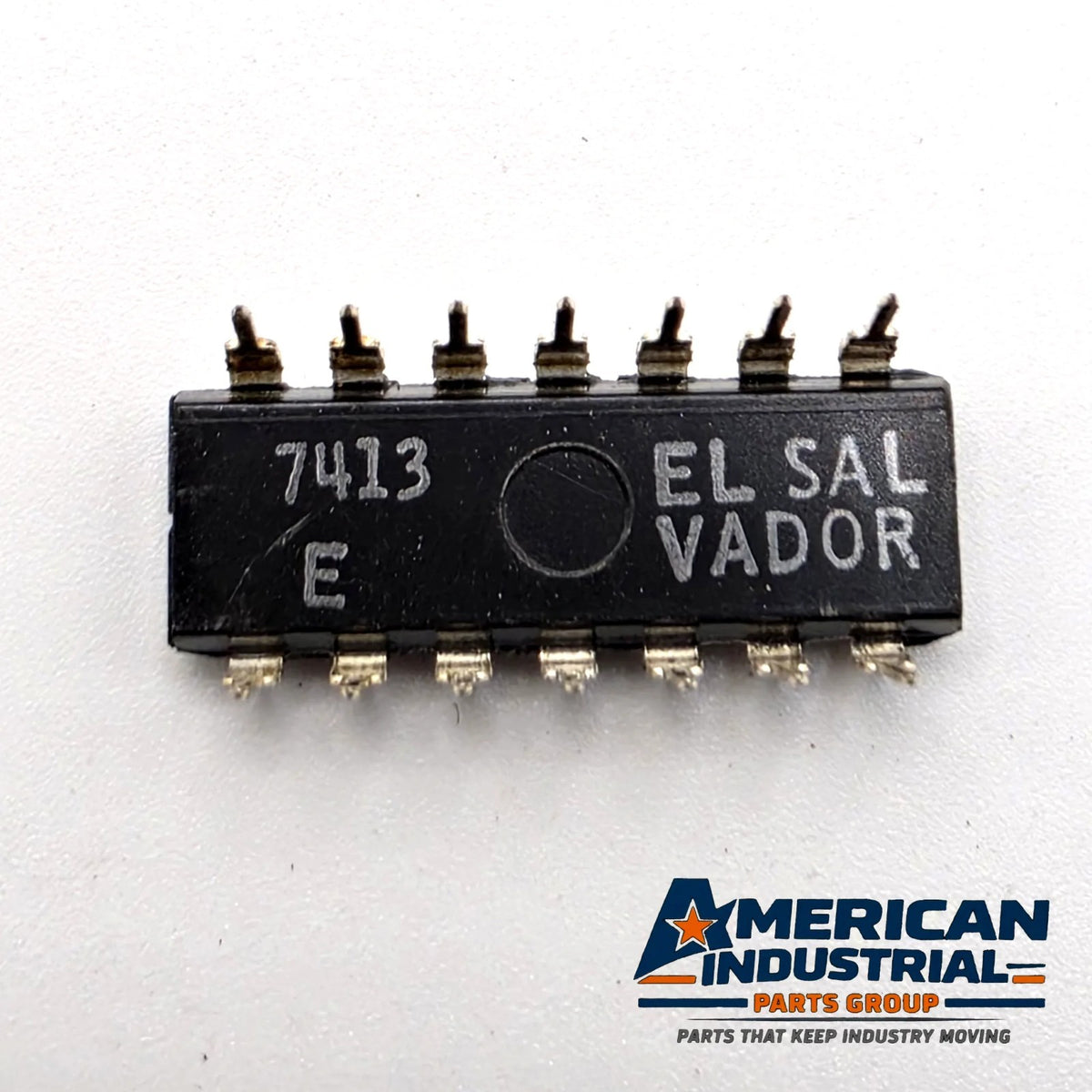

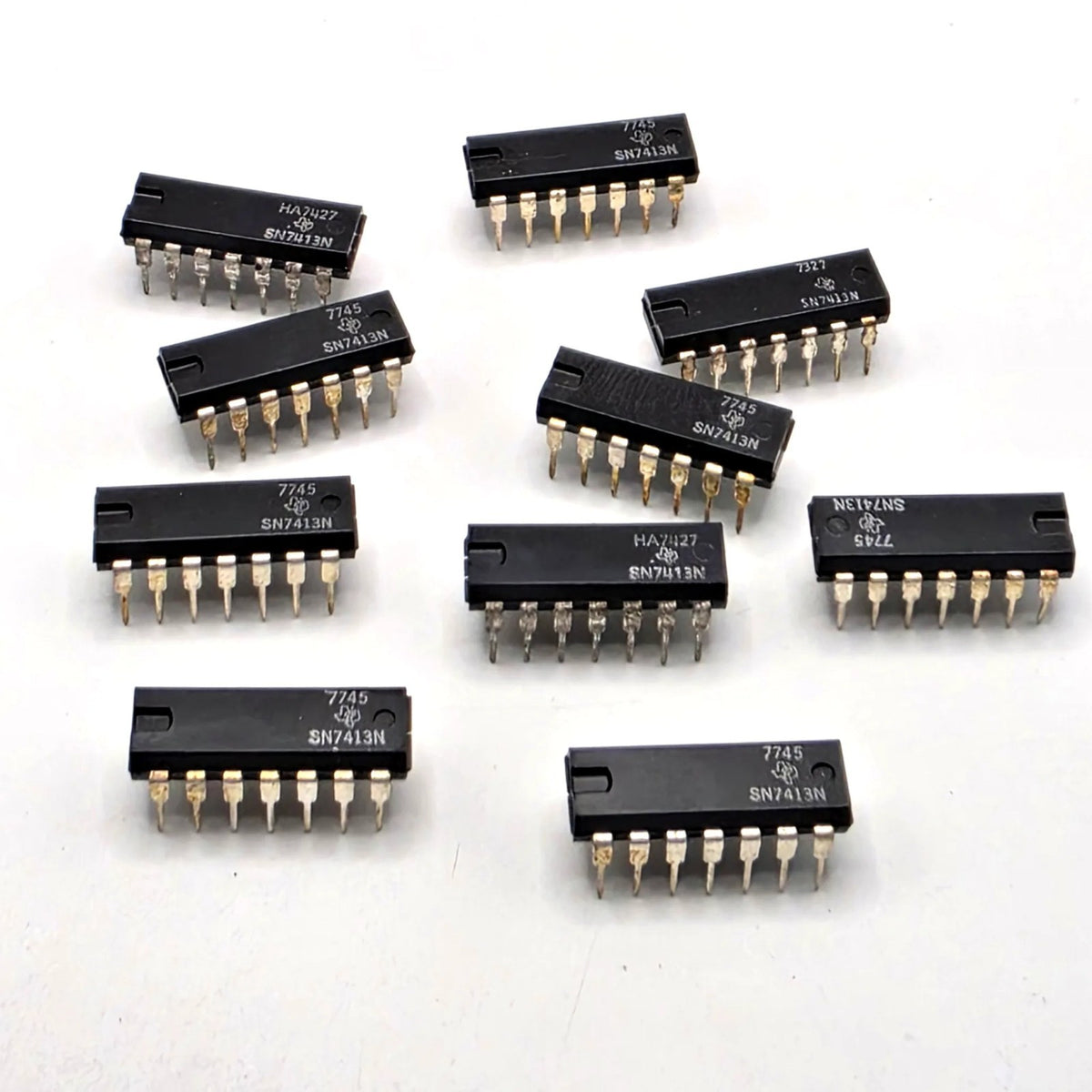

Lot of 10 new old stock Texas Instruments SN7413N dual 4-input positive-NAND Schmitt triggers in 14-pin plastic DIP. Each is marked "SN7413N" with the TI logo. Photos show a representative unit marked with date code 7745 and an underside marking of "7413 E EL SALVADOR"; date codes may vary within the lot. Never installed. Leads show light discoloration from storage, as pictured.
The SN7413 is a discontinued standard TTL part. Texas Instruments lists it as obsolete, which makes original TI stock hard to find for repair work.

Features:
Two independent 4-input NAND gates with Schmitt-trigger inputs
Hysteresis cleans up slow or noisy input edges
Standard 7400-series TTL, 5V logic
14-pin plastic DIP, 0.1" (2.54 mm) pin pitch
Pin 14 VCC, pin 7 ground, pins 3 and 11 not connected
Original Texas Instruments manufacture
10 pieces

Compatibility:
Direct replacement for SN7413N and generic 7413 in 14-pin DIP sockets. Cross-references to NTE7413 (formerly ECG-7413). The SN74LS13 performs the same logic function in the low-power Schottky family; check input loading and fan-out before substituting between families.

Q&A
Q: What is the SN7413N?
A: A Texas Instruments dual 4-input NAND gate with Schmitt-trigger inputs, in standard TTL, packaged in a 14-pin plastic DIP.
Q: What replaces an SN7413N?
A: This part is a direct replacement. The NTE7413 (formerly ECG-7413) is the common cross-reference.
Q: Is the 7413 the same as the 74132?
A: No. The 7413 has two 4-input NAND Schmitt triggers. The 74132 has four 2-input NAND Schmitt triggers.
Q: Is the SN7413N RoHS compliant?
A: No. Texas Instruments lists the SN7413N as not RoHS compliant and not lead-free.
