Lot of 3 Texas Instruments SN74LS86N Quad 2-Input XOR Gate IC DIP-14 NOS
Lot of 3 Texas Instruments SN74LS86N Quad 2-Input XOR Gate IC DIP-14 NOS
Regular price
$10.95 USD
Regular price
Sale price
$10.95 USD
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Texas Instruments
MPN: SN74LS86N
Quantity: 3
Type: Quadruple 2-Input Exclusive-OR Logic Gate
Logic Family: 74LS TTL
Function: XOR Gate
Number of Channels: 4
Inputs per Channel: 2
Package/Case: PDIP-14
Number of Pins: 14
Mounting Style: Through-Hole / DIP
Country/Region of Manufacture: Malaysia, package marking on one device
Package Markings: SN74LS86N, 8048, 323X
Condition: New old stock
DESCRIPTION

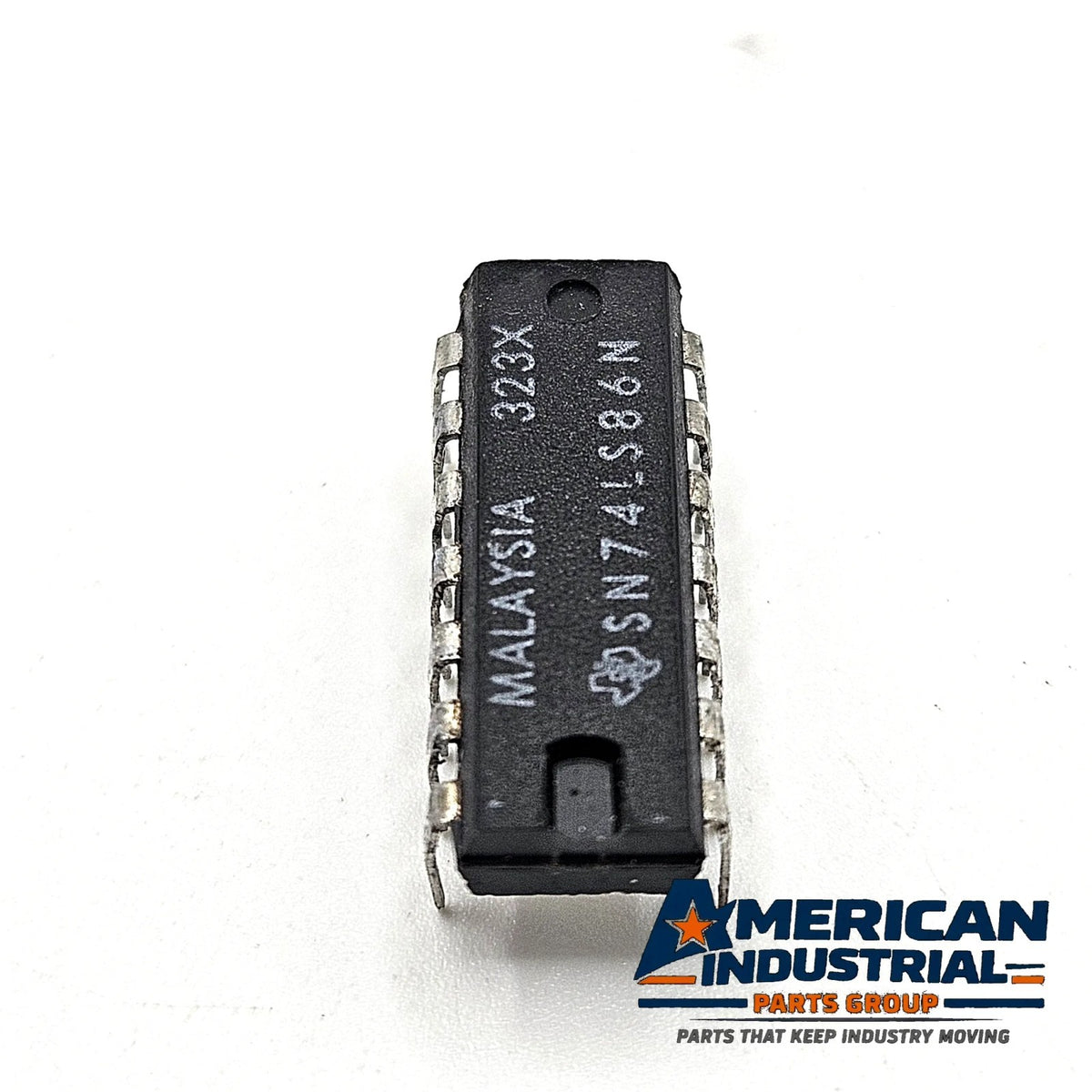

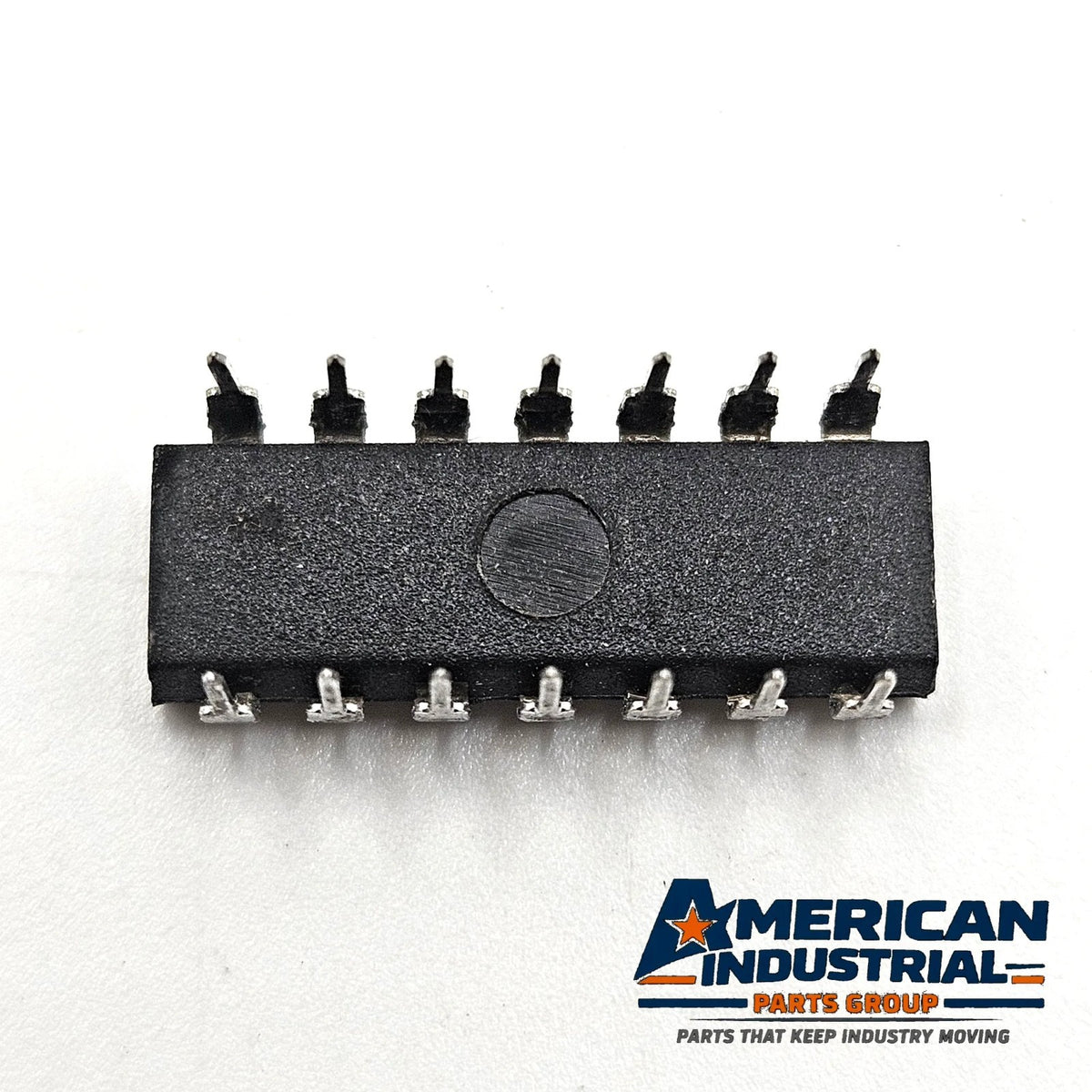

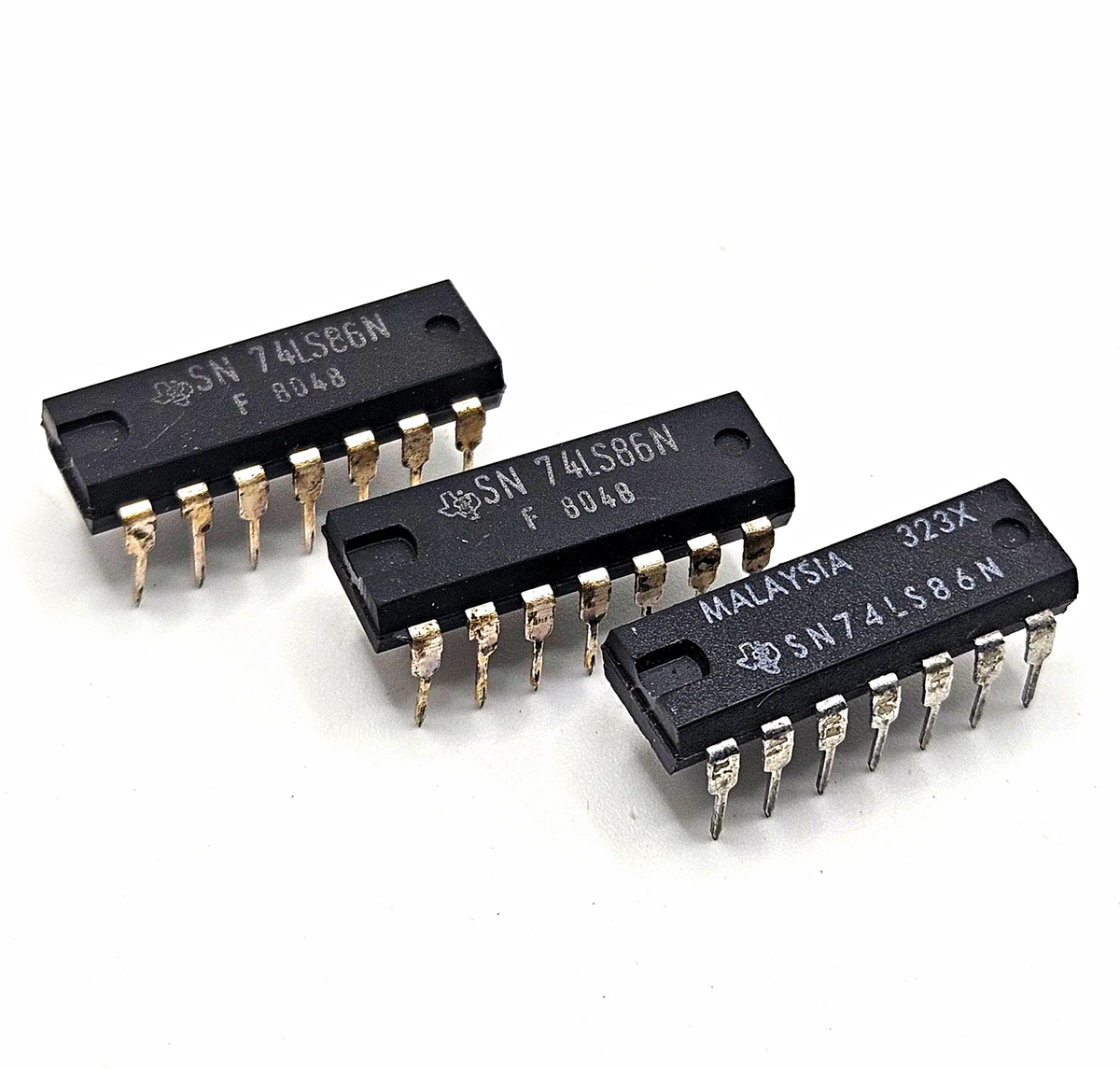

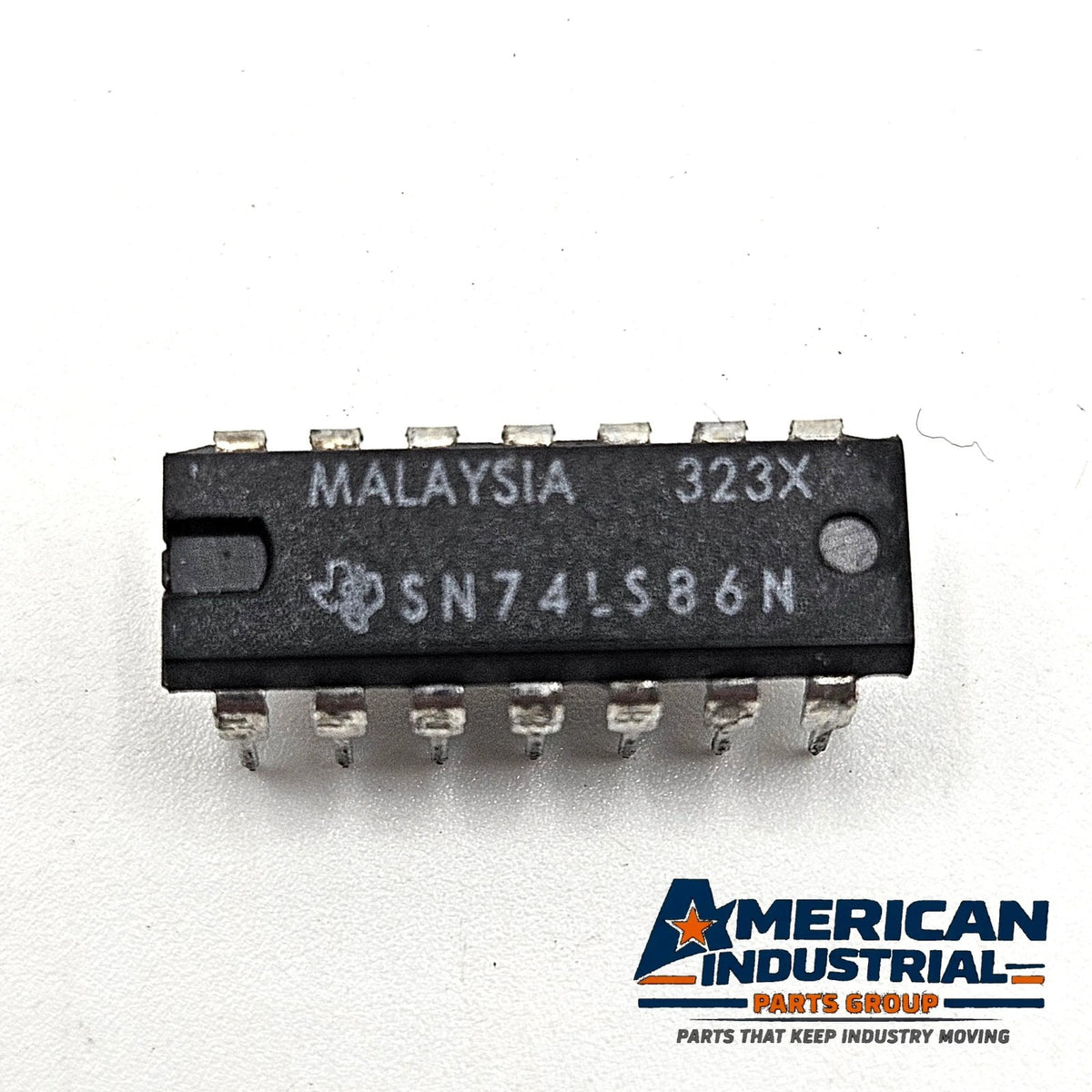

Lot of three new old stock Texas Instruments SN74LS86N integrated circuits. These are 14-pin 74LS-series logic devices containing four independent 2-input exclusive-OR gates. Package markings include the Texas Instruments logo, SN74LS86N, Malaysia, 8048, and 323X. Markings vary between the devices as shown. Parts are untested and sold as shown.
COMPATIBILITY & CROSS-REFERENCE
The Texas Instruments SN74LS86N is a 74LS86-family quad 2-input exclusive-OR gate in a 14-pin DIP for 5V TTL logic. Other 74LS86N and SN74LS86N devices share the same function and package, so they can serve as cross-references in 74LS86 sockets. It is not a drop-in for 74HC86 or 74S86 devices, which have different electrical characteristics. Use it to replace a failed 74LS86 in vintage computers, arcade boards, and TTL logic repair, and confirm the pinout against your board before installing.
Q: What does the Texas Instruments SN74LS86N replace?
A: Other 74LS86 quad XOR gates in 14-pin DIP sockets, including 74LS86N devices from other manufacturers.
Q: How many gates are in each chip?
A: Four independent 2-input exclusive-OR gates.
Q: Is it tested?
A: No. It is new old stock, untested and sold as shown.
DISCLAIMER
New old stock. Leads and packages may show storage, oxidation, or handling marks. Parts are untested and sold as shown. Ships fast with tracking. 30-day returns; buyer pays return shipping.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor, reseller, or representative of Texas Instruments or any successor company. All trademarks belong to their respective owners. This is secondary-market inventory and is not covered by any manufacturer warranty.
