Lot of 5 International Rectifier Z1318 22V 10W Zener Diode Stud DO-4 Vintage NOS

ITEM SPECIFICS
Brand: International Rectifier
Model: Z1318
MPN: Z1318
Type: Zener Diode (Voltage Regulator Diode)
Nominal Zener Voltage: 22 V
Power Dissipation: 10 W
Package: DO-4 Stud Mount
Stud Thread: 10-32
Mounting: Threaded Stud, Hex Base
Terminal: Single Solder Lug
Cross Reference: ECG5197A / NTE5197A
Condition: New
Quantity: 5

DESCRIPTION

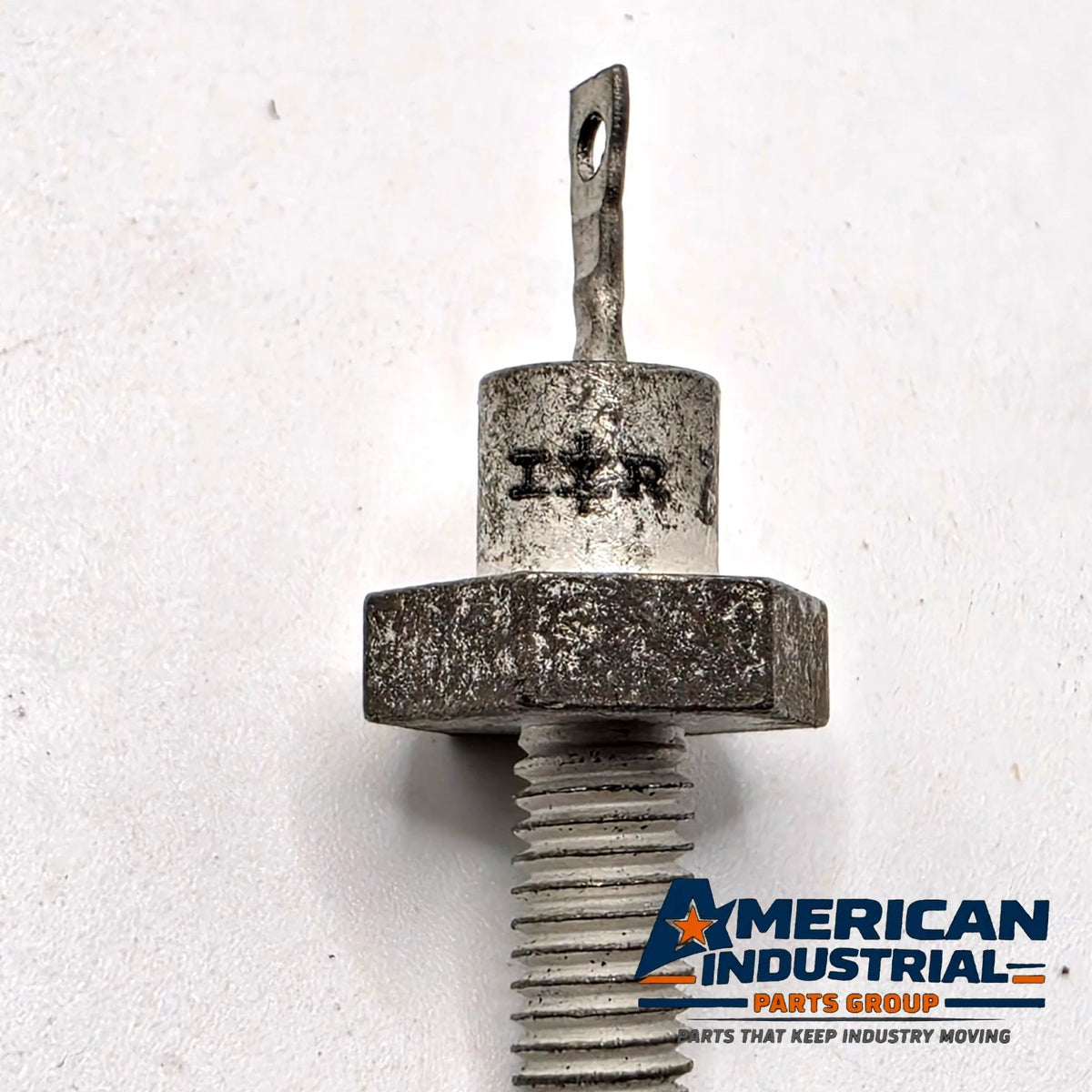

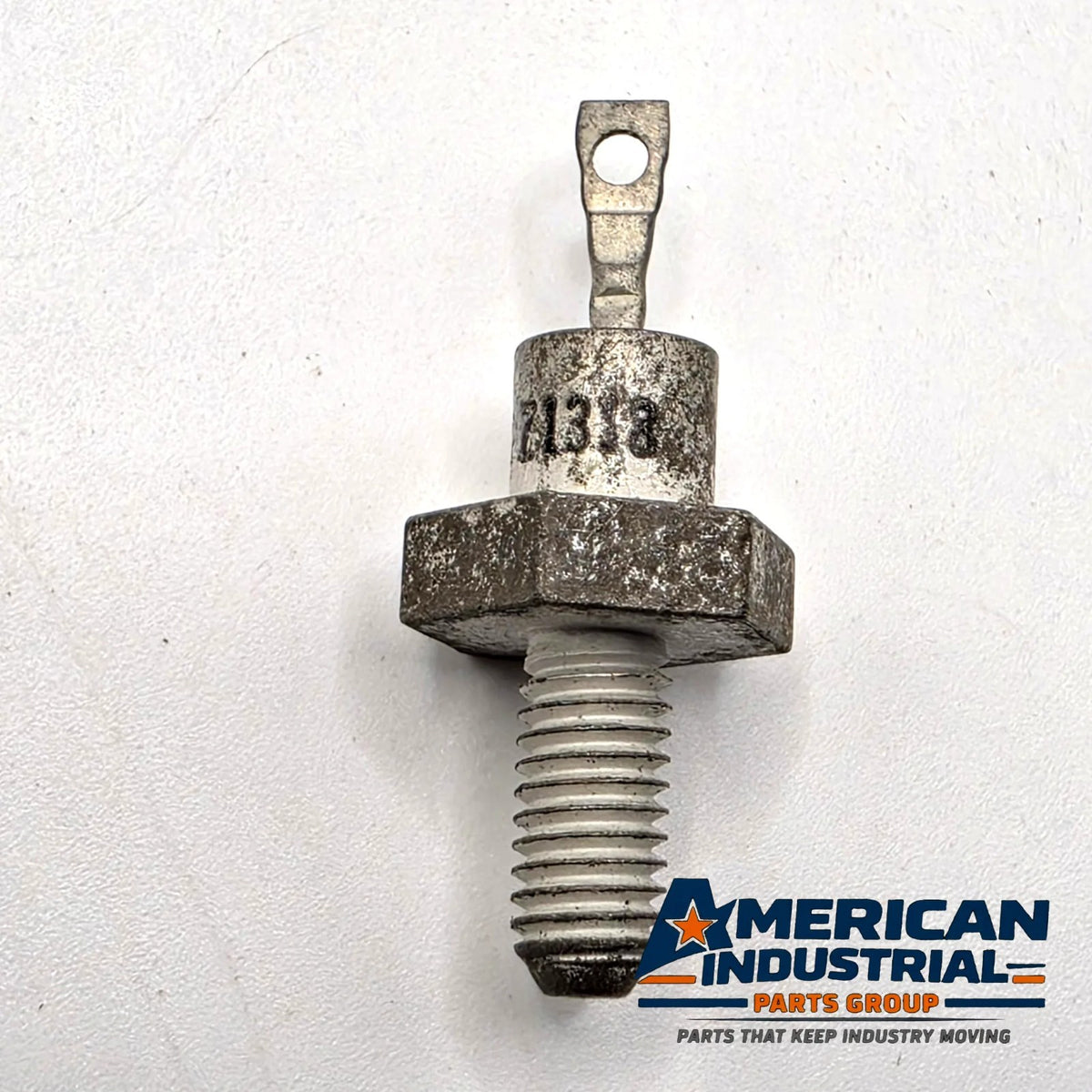

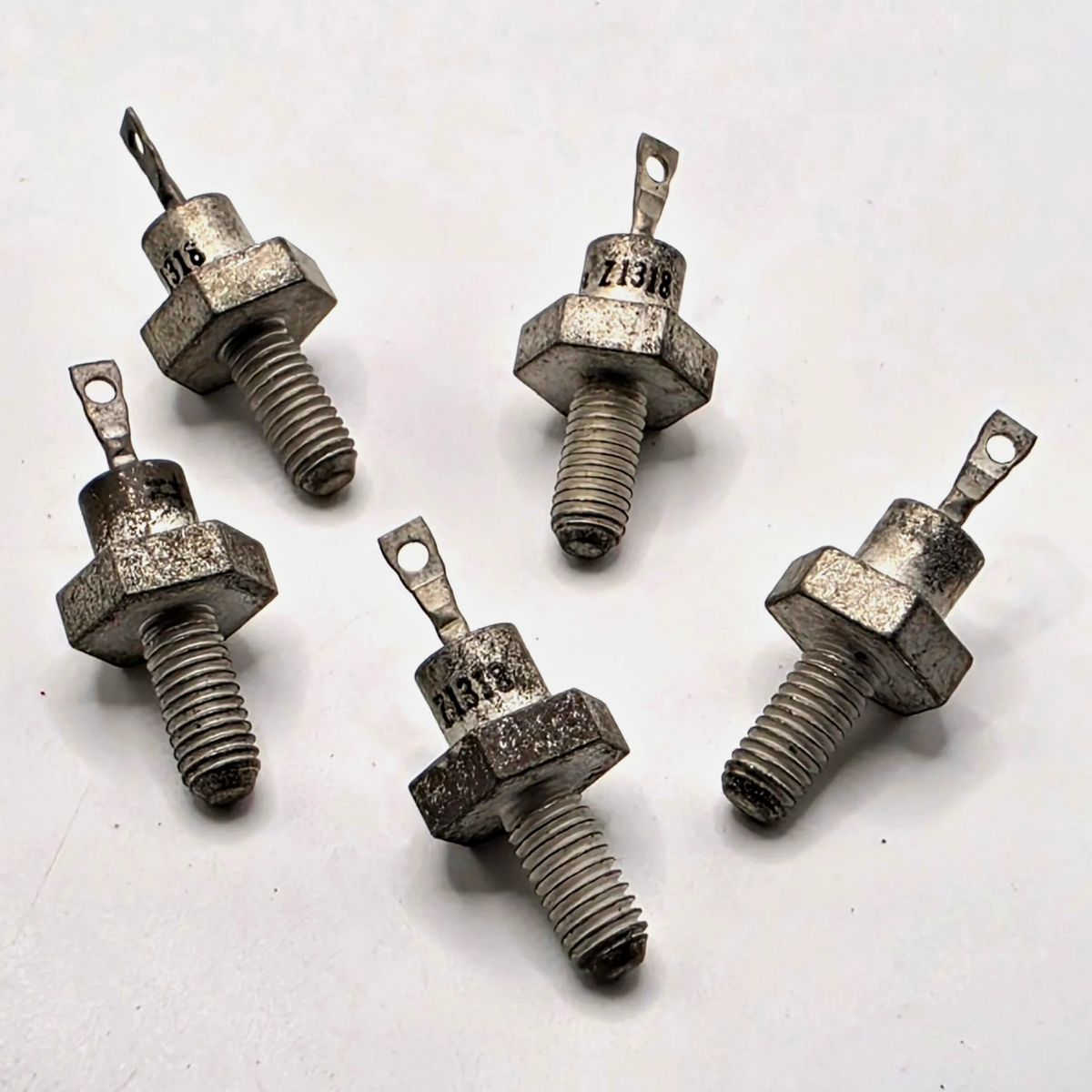

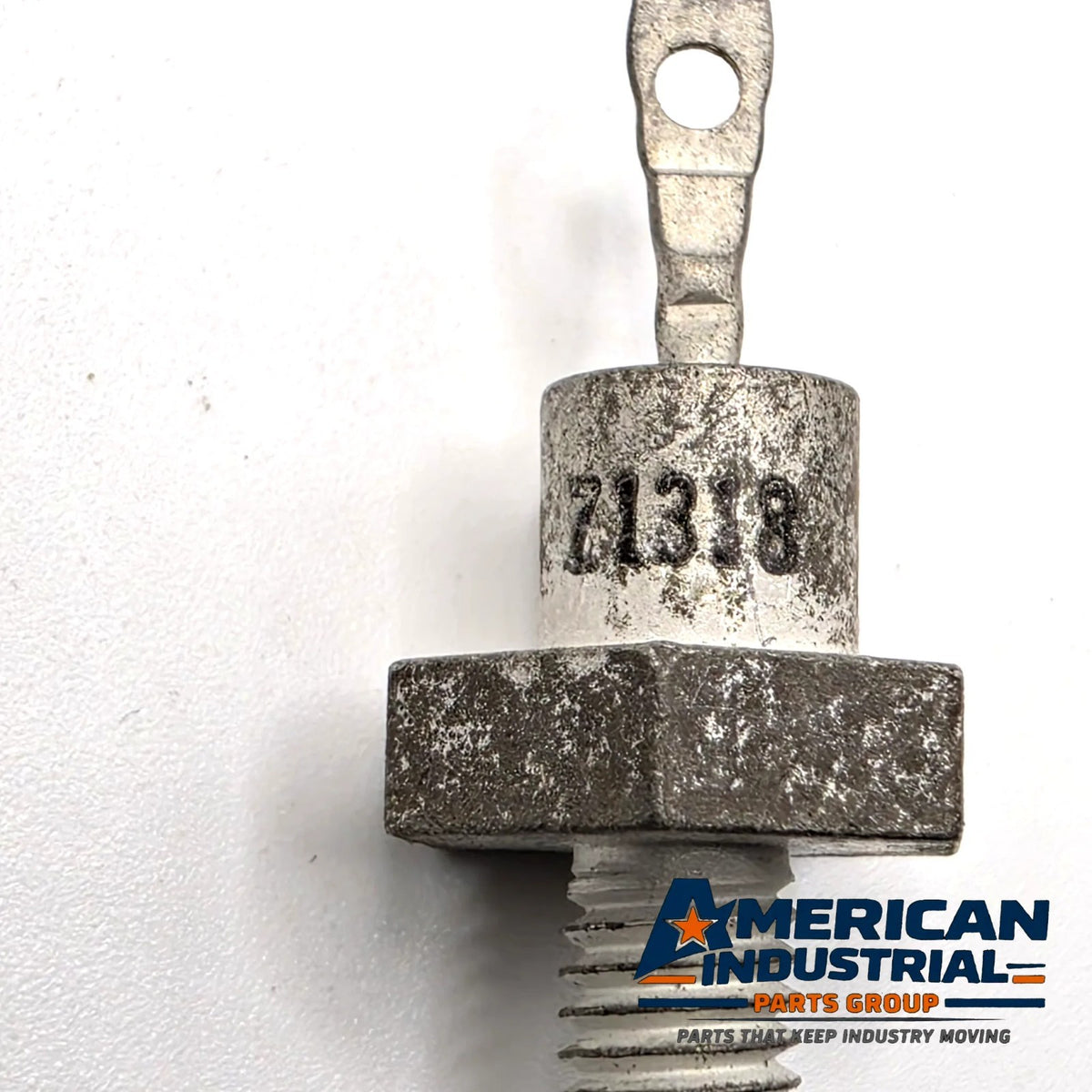

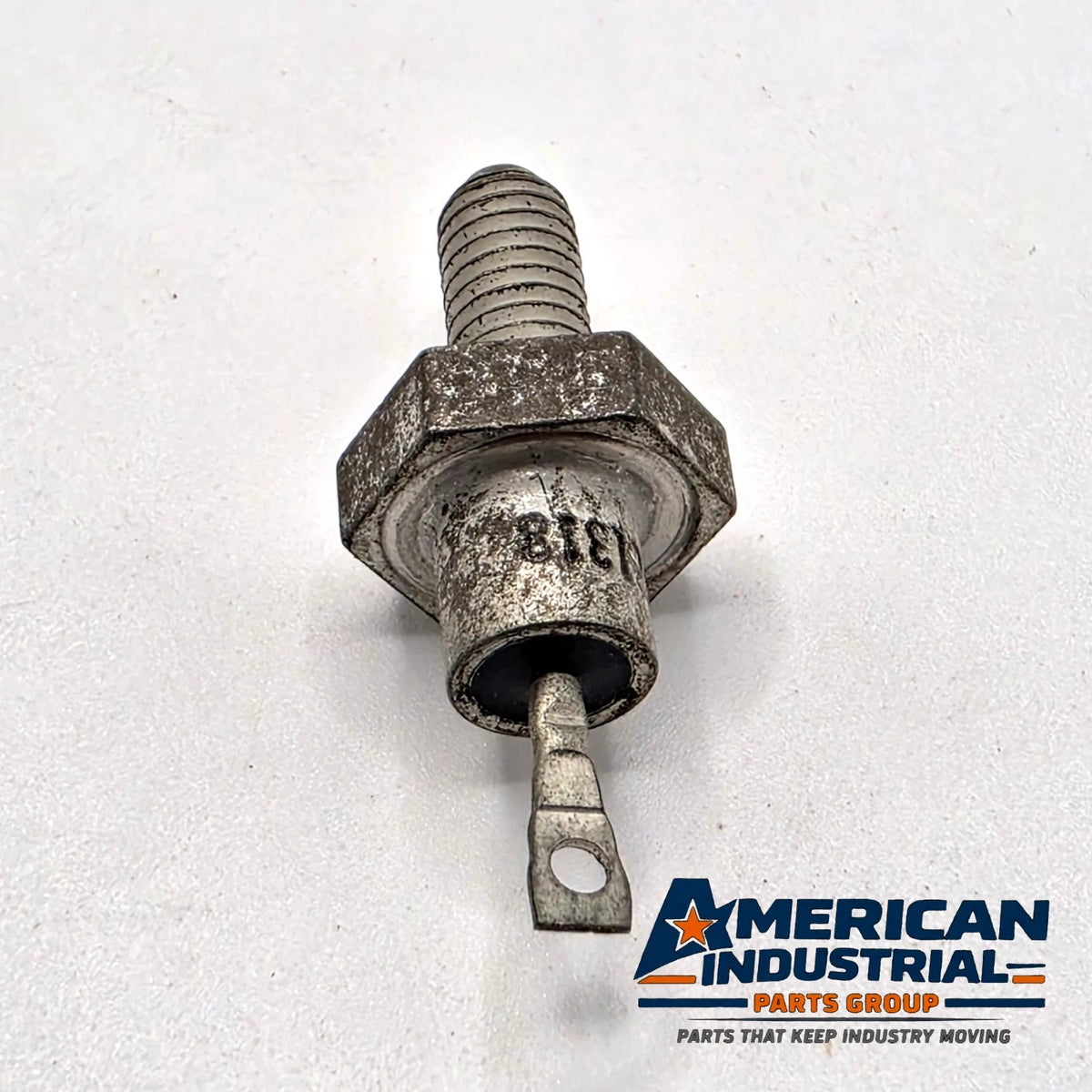

Lot of 5 new old stock International Rectifier Z1318 22V 10W zener diodes in DO-4 stud-mount packages. Each is marked "Z1318" with the International Rectifier logo. They come from an original bag with a typed ECG label reading "ECG-5197A Z-1318 Vol Regl D 22V 10W". Each has a threaded mounting stud, hex base, and a single solder-lug terminal with a mounting hole. Lug holes are free of solder; no signs of installation. Cases show heavy surface oxidation from long-term storage, as pictured.

Features:
Original International Rectifier manufacture, logo-marked
Marked "Z1318" on the case
22 V nominal zener voltage
10 W power dissipation
DO-4 stud package, 10-32 thread
Hex base for wrench tightening
Single solder-lug top terminal
Cross-references to ECG5197A / NTE5197A
5 pieces

Compatibility:
Replaces ECG5197A and NTE5197A 22V 10W DO-4 stud zener diodes. NTE lists the NTE5197A at 22 V ±5%, 115 mA test current, 380 mA max DC zener current, with the anode connected to the stud on standard types (the NTE5197AK is the reverse, cathode-to-stud version). Stud polarity of these International Rectifier units has not been tested; confirm with a multimeter's diode-test function before installing.

Q&A
Q: What is the Z1318?
A: A 22 V, 10 W zener (voltage regulator) diode in a DO-4 stud package, made by International Rectifier. The original ECG label cross-references it to the ECG5197A.
Q: Is the stud the anode or the cathode?
A: On the ECG/NTE5197A the stud is the anode. These units have not been tested, so confirm with a multimeter's diode-test function before installing.
Q: What thread is the stud?
A: DO-4 packages use a 10-32 thread.
Q: Are mounting nuts or washers included?
A: No. Only the 5 diodes shown are included.
