Marantz C1116A 2SC1116A NPN Power Output Transistor TO-3 New
Marantz C1116A 2SC1116A NPN Power Output Transistor TO-3 New
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
Shipping calculated at checkout.
2 in stock
Couldn't load pickup availability
ITEM SPECIFICS
Brand: Marantz
MPN: C1116A
Cross Reference: 2SC1116A
Type: Bipolar (BJT)
Polarity: NPN
Package / Case: TO-3
Mounting: Chassis Mount
Max Collector Current (Ic): 10 A
Power Dissipation (Pc): 100 W
Number of Pins: 2 (case is the collector)
Complement: A747A / 2SA747A (PNP)
Condition: New
Country/Region of Manufacture: Unknown
DESCRIPTION

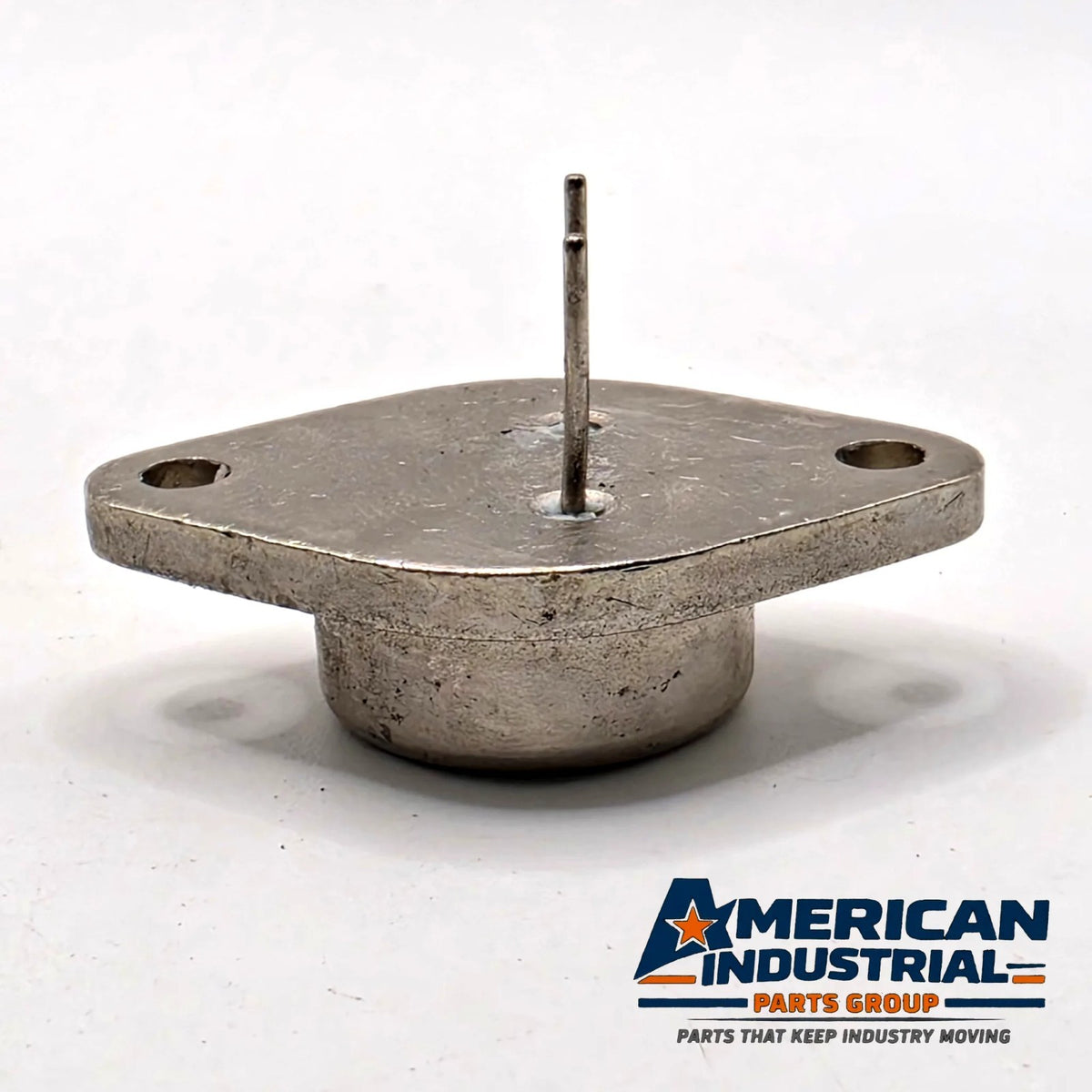

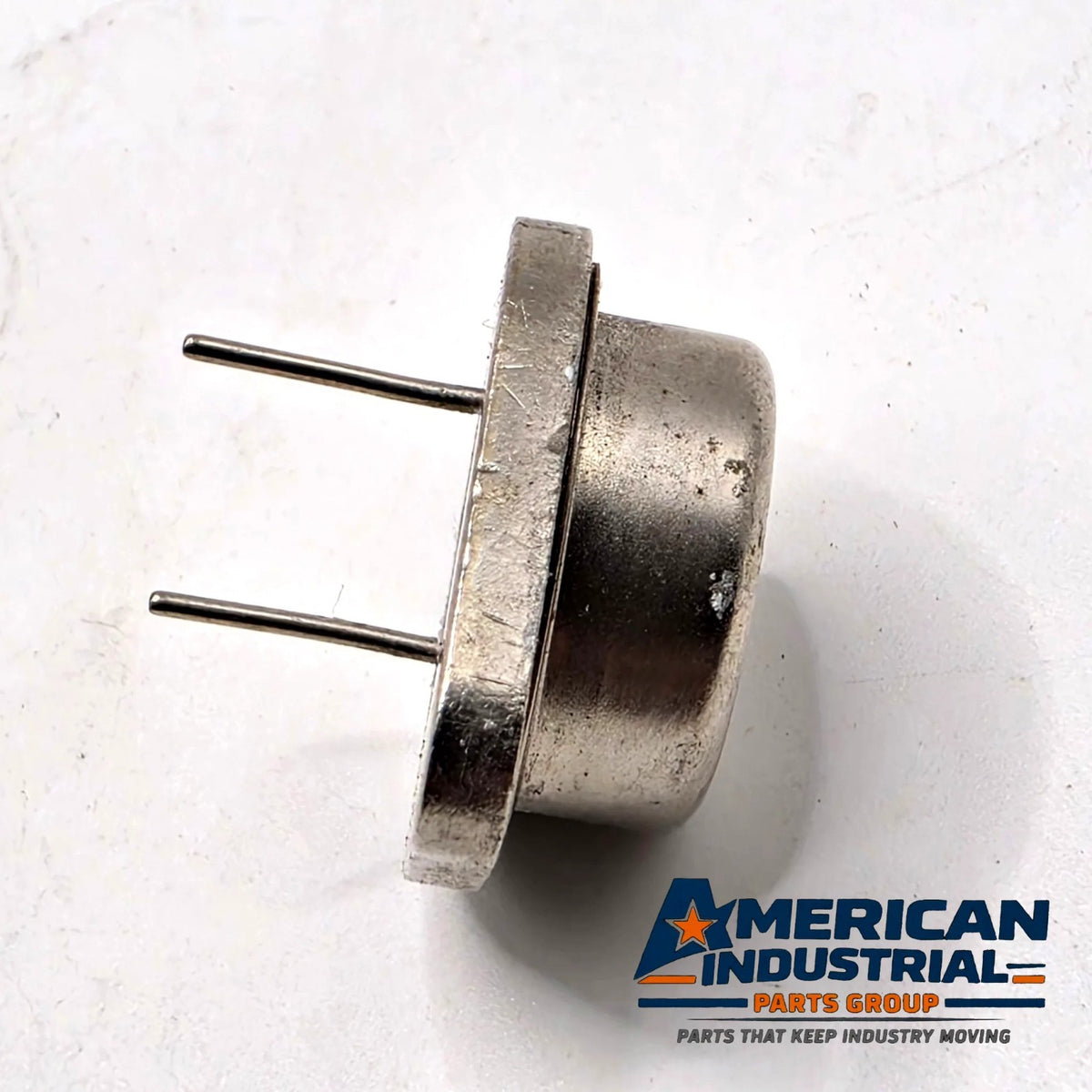

Marantz C1116A NPN power transistor, house-marked by Marantz and corresponding to the 2SC1116A. This is a TO-3 metal-can power output device of the type used in vintage Marantz receivers and power amplifiers.
Features:
NPN silicon power transistor
10 A collector current
100 W collector dissipation
TO-3 metal case; the case serves as the collector terminal

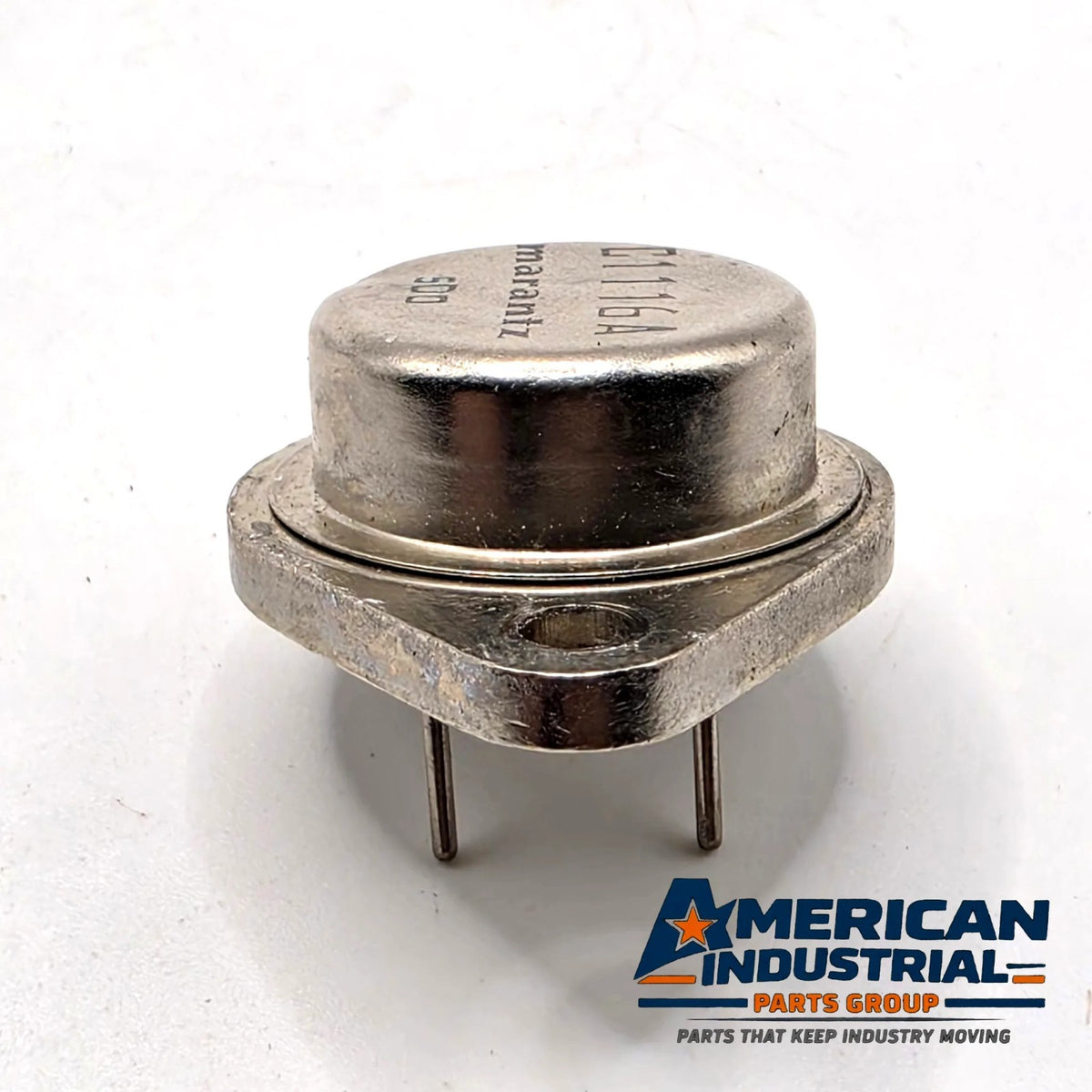

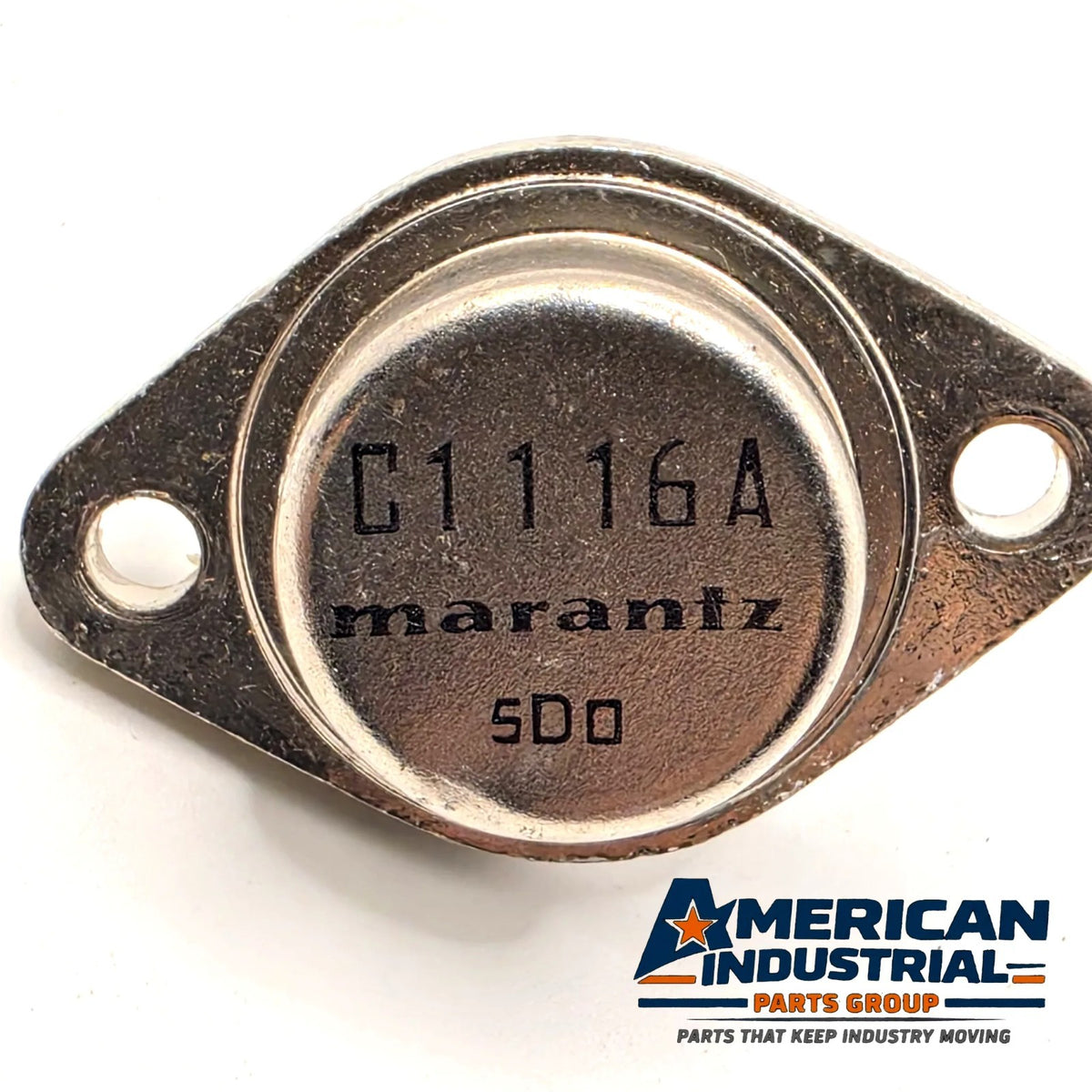

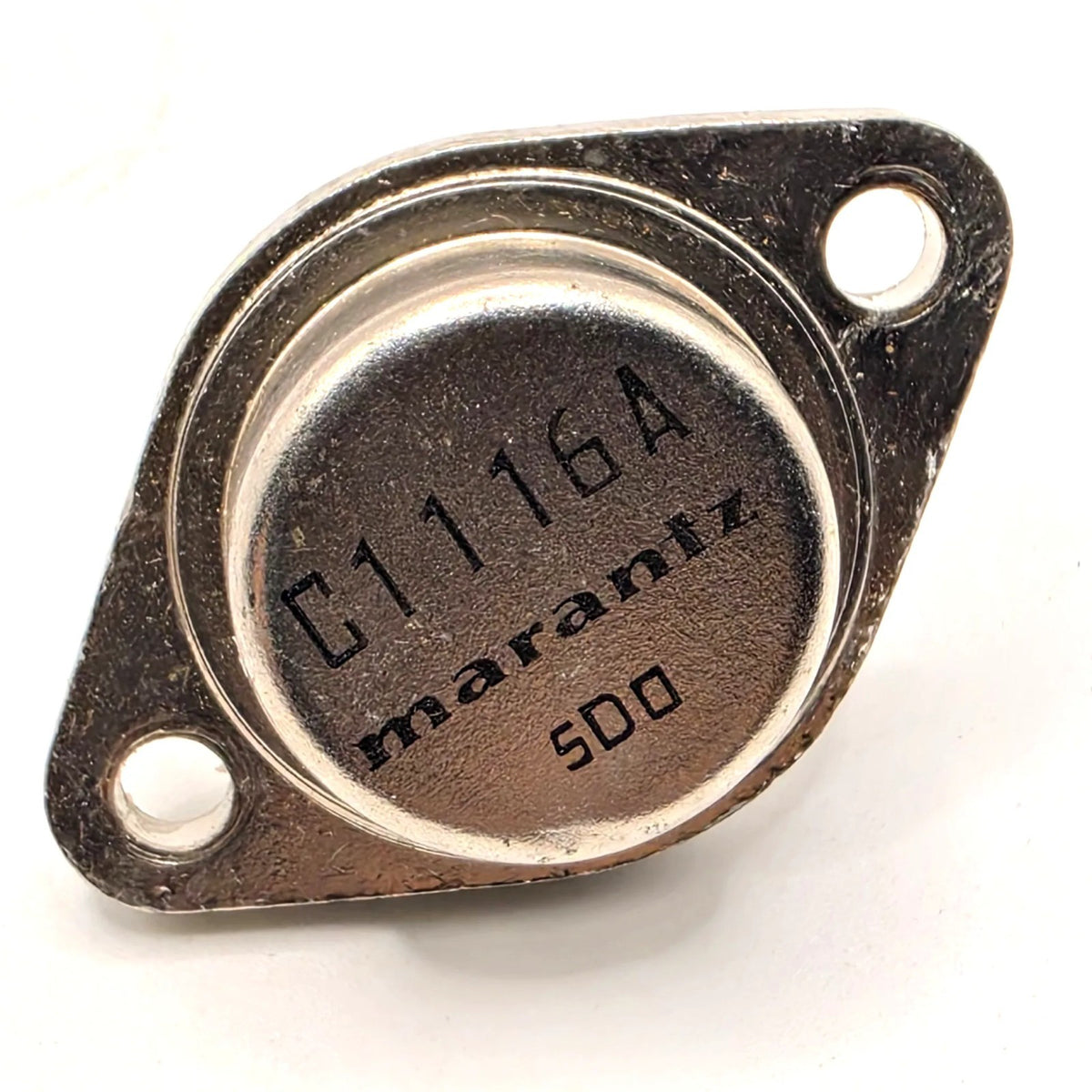

Marantz factory marking "C1116A" with date/lot code "5D0"

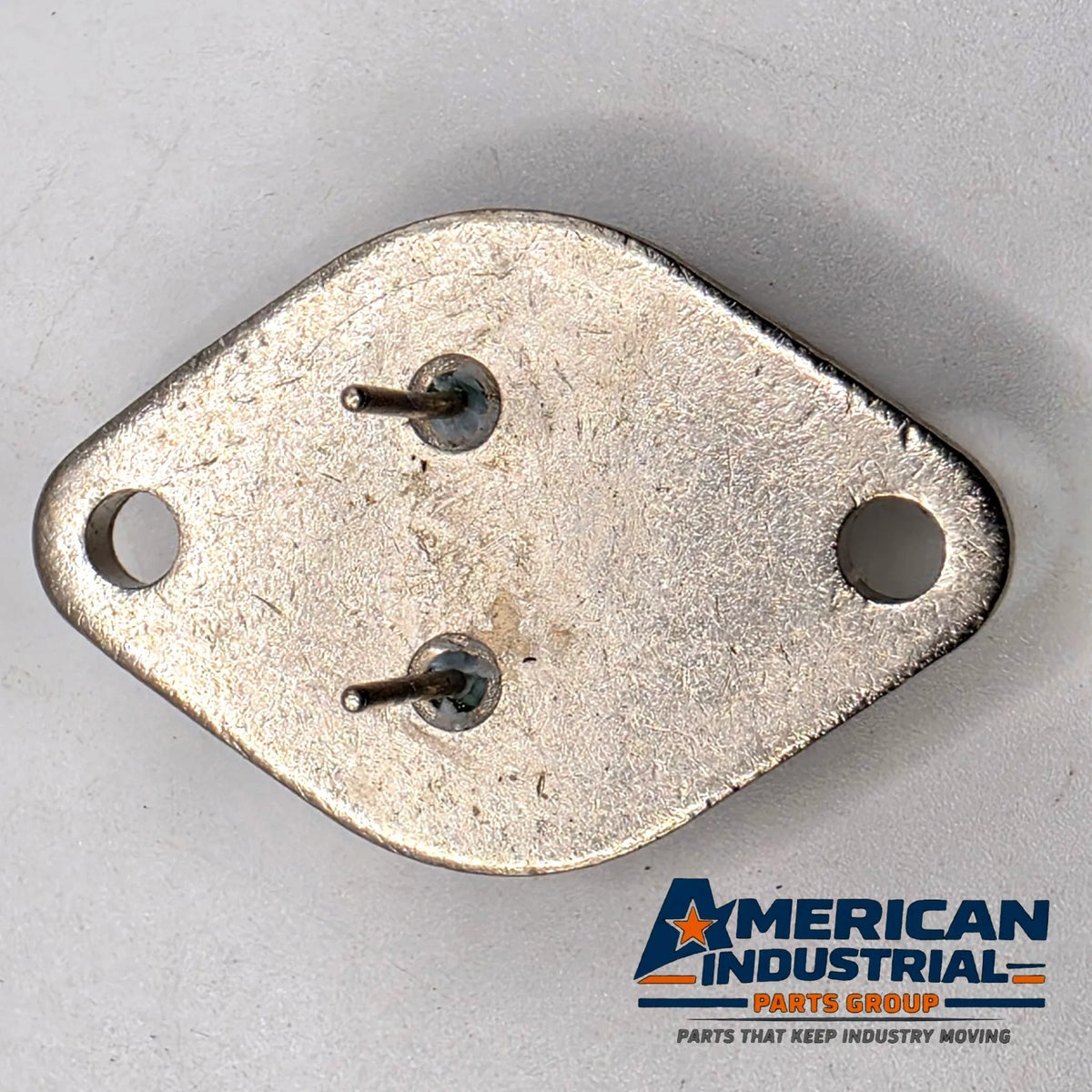

Unused. Cosmetic wear from storage is visible: scratches and tarnish on the flange, spotting on the can
Compatibility:
For service and restoration of vintage audio amplifiers and receivers that use the C1116A / 2SC1116A output transistor. The 2SC1116A was made by Sanken as the NPN half of a complementary pair with the 2SA747A (PNP); the matching Marantz-marked A747A is listed separately. Verify the part number and pinout against your equipment's service manual before installing.
Q&A
Q: Is this the same as a 2SC1116A?
A: The marking is C1116A, which follows the Japanese 2SC numbering convention for the 2SC1116A. It carries the Marantz house marking.
Q: What is the PNP complement?
A: The 2SA747A (marked A747A).
Q: Which pin is the collector?
A: On TO-3 transistors, the metal case is the collector. The two pins are the base and the emitter.
Q: Is it tested?
A: The item is sold as pictured. It has not been tested.
DISCLAIMER
Item is sold as pictured. Please review all photos carefully and compare part numbers before purchasing. Cosmetic storage wear is present on the case.
LEGAL DISCLAIMER
American Industrial Parts Group is not an authorized distributor or affiliate of Marantz or any other manufacturer listed. All brand names and part numbers are used for identification purposes only. As an independent reseller, the original manufacturer warranty does not apply.
2SC1116A, C1116A, 2SC1116, 2SA747A complement, Marantz output transistor, Sanken 2SC1116A, NPN power transistor, TO-3 transistor, vintage Marantz receiver parts, audio amplifier output transistor, 2SC1116 replacement, receiver output stage repair
Thank you for shopping with American Industrial Parts Group!
